  1. WEBINARData Mining & Direct Access

  2. Agenda • Overview • Data Structure • Data Mining • Events • Users • Direct Access • Connecting • Querying Events • Querying Users • Joining between Events and Users • Questions…

  3. Overview

  4. Overview Aggregated Data- Counts of events, users, sessions, missions, revenue, items etc..- Fixed set of Dimensions and Measures

  5. Overview Aggregated Data- Counts of events, users, sessions, missions, revenue, items etc..- Fixed set of Dimensions and Measures RawData- Not aggregated, contains all events and parameters- Stored in an HP Vertica Analytics Database- Very fast ad hock queries against any events or parameters - Event Data retained for 30 days be default (can be extended on a per game basis)- User Metrics retained for life

  6. Overview Aggregated Data- Counts of events, users, sessions, missions, revenue, items etc..- Fixed set of Dimensions and Measures RawData- Not aggregated, contains all events and parameters- Stored in an HP Vertica Analytics Database- Very fast ad hock queries against any events or parmaters - Event Data retained for 30 days be default (can be extended on a per game basis)- User Metrics retained for life Archives - All event data is archived to Amazon S3 so you can download and run longer map reduce queries.

  7. Data Structure • Events • Stored in a single wide table • One row per event there are exceptions! more on them later… • One column per parameter • So, simplistically there is a row for each event you send and it contains columns for every possible parameter the game can send. • New columns will be added to the events table automatically as you add new parameters to your event schema.

  8. Data Structure • Events • Stored in a single wide table • One row per event there are exceptions! more on them later… • One column per parameter • So, simplistically there is a row for each event you send and it contains column for every possible parameter the game can send. • New columns will be added to the events table automatically as you add new parameters to your event schema. • - The exceptions, • Some events can span multiple rows (transaction, levelUp etc...) • Some columns are automatically populated by deltaDNA

  9. Data Structure • User Metrics • Each row contains metrics for a user including • Generic Metrics – automatically calculated totalDaysPlayed, totalRealCurrencySpent … • Counts of events eventGameStartedCount, eventLevelUpCount … • Parameter Metrics • Auto fieldMissionNameLast, fieldDeviceTypeLast, fieldUserXPLast … • User Defined. Any String or Integer Game Parameter. Set parameters as metrics in Game Parameters tool.(Warning, don’t just set everything to be a metric, it will just bloat your user metrics table and slow down your direct access queries) • Multiple rows per user, use effective date to get the most recent • Updated every night in the early hours (UTC). This is an archive for you to run queries on, Segmentaion, Targeting etc.. Work against a live, in memory version of this that has real-time accuracy. • Be aware, some metrics are relative to the user_last_seen_date, e.g. daysPlayedLast7Days . We are looking to change this at some point to make re-evaluation of inactive users easier.

  10. Data Mining – Events • Moves Remaining on “First Time User Forest #2”

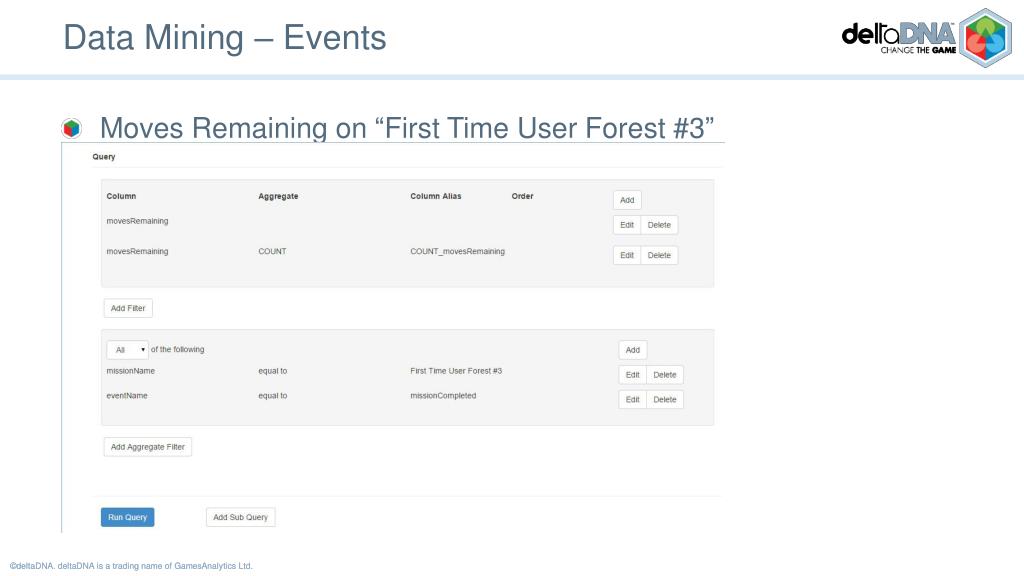

  11. Data Mining – Events • Moves Remaining on “First Time User Forest #3”

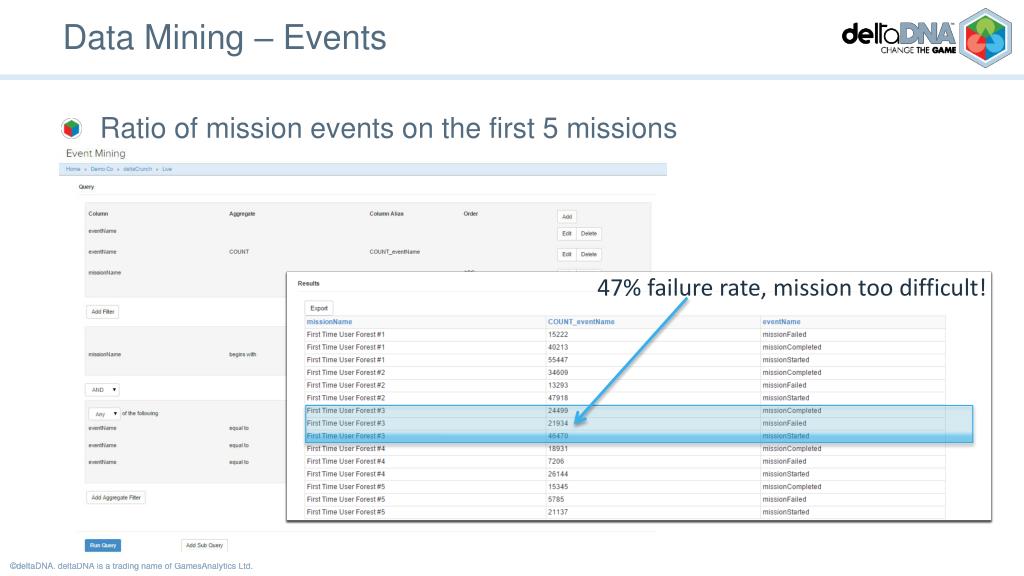

  12. Data Mining – Events • Ratio of mission events on the first 5 missions

  13. Data Mining – Events • Ratio of mission events on the first 5 missions 47% failure rate, mission too difficult!

  14. Data Mining – Users • Moves Remaining by mission

  15. Direct Access - Connecting • Direct Access Documentationhttp://docs.deltadna.com/direct-sql-access/

  16. Direct Access - Queries • Event Query • User Metrics Query -- Event Mining Query SELECTmovesRemaining, count(eventDate) FROMevents_live WHEREmissionName= 'First Time User Forest #2' ANDeventName = 'missionCompleted' GROUPBYmovesRemaining ORDERBYmovesRemainingdesc; -- User Mining Query select * fromuser_metrics_dev whereeffective_date = CURRENT_DATE limit 20;

  17. Direct Access - Queries • Advanced Query with JOIN between events and user metrics SELECTe.missionName, count(e.missionName) FROMevents_live e JOINuser_metrics_live m ONe.userID = m.user_id WHEREeventName = 'missionFailed' ANDe.missionNameLIKE'First Time User Forest%' ANDm.fieldLivesBalanceLast = 0 ANDm.effective_date = CURRENT_DATE GROUPBYe.missionName ORDERBYe.missionName; First Time User Forest #3 is causing abandonmentIt has the highest number of players where it is The last mission they play, and fail and have no lives left
