  1. Masking Failures Using Anti Entropy and Redundant Independent Paths Rebecca Braynard and Amin Vahdat Internet Systems and Storage Group Duke University http://issg.cs.duke.edu

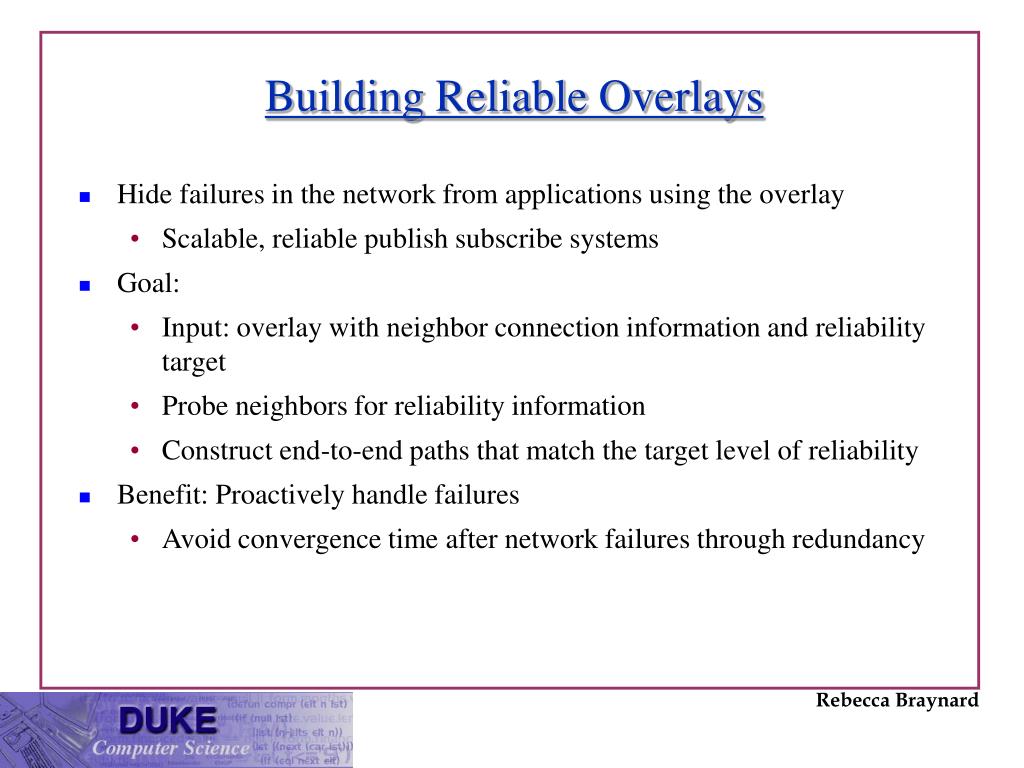

  2. Building Reliable Overlays • Hide failures in the network from applications using the overlay • Scalable, reliable publish subscribe systems • Goal: • Input: overlay with neighbor connection information and reliability target • Probe neighbors for reliability information • Construct end-to-end paths that match the target level of reliability • Benefit: Proactively handle failures • Avoid convergence time after network failures through redundancy Rebecca Braynard

  3. Restricted Flooding • All nodes in the overlay receive the data • Messages do not travel along every link in the overlay • Prevent nodes from receiving multiple copies • Idea is similar to Anti Entropy: used to maintain consistency between replicas in distributed computing Source Destination Rebecca Braynard

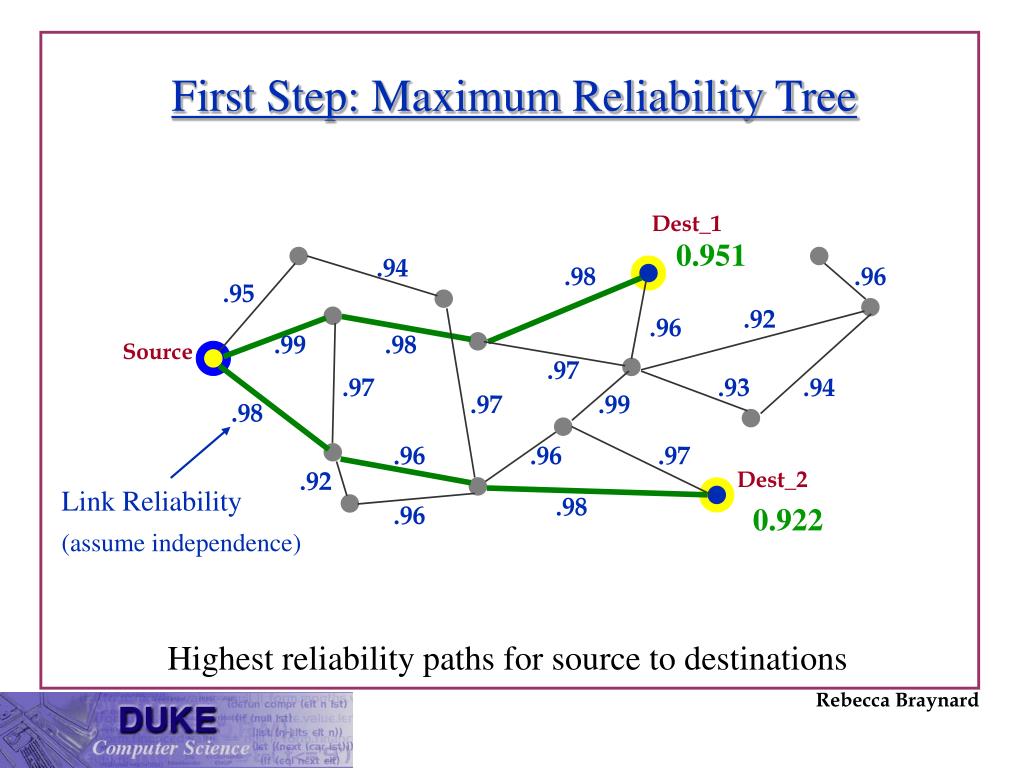

  4. First Step: Maximum Reliability Tree Dest_1 0.951 .94 .98 .96 .95 .92 .96 .99 .98 Source .97 .97 .93 .94 .97 .99 .98 .96 .96 .97 .92 Dest_2 Link Reliability (assume independence) .98 .96 0.922 Highest reliability paths for source to destinations Rebecca Braynard

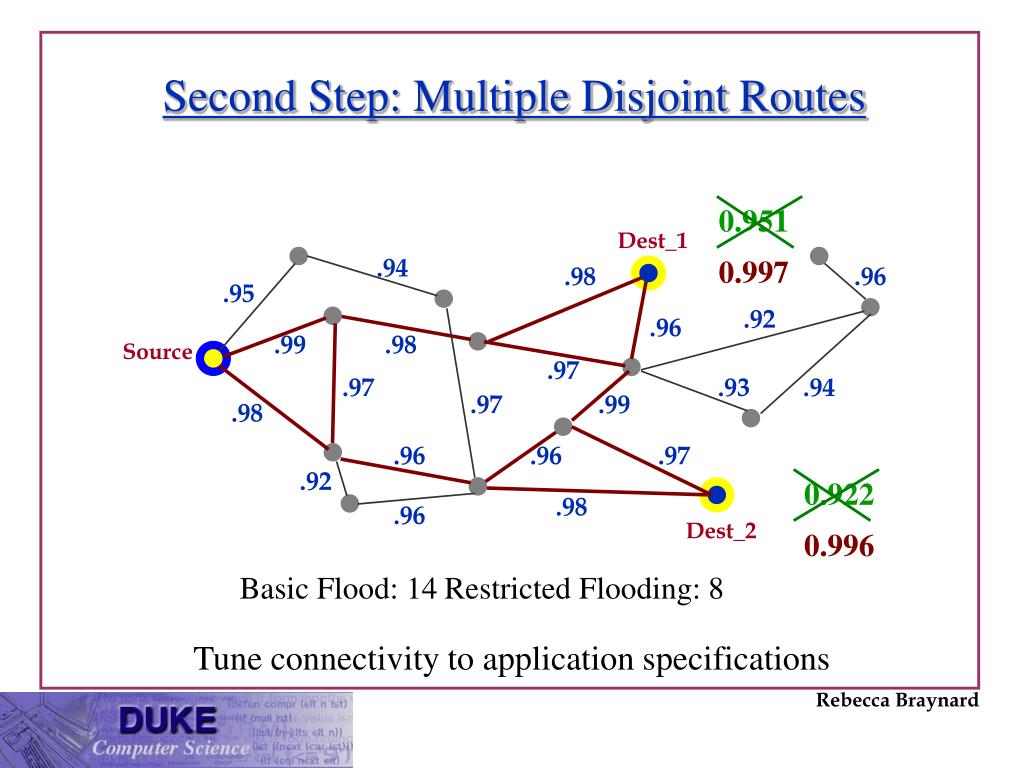

  5. Second Step: Multiple Disjoint Routes 0.951 Dest_1 .94 0.997 .98 .96 .95 .92 .96 .99 .98 Source .97 .97 .93 .94 .97 .99 .98 .96 .96 .97 .92 0.922 .98 .96 Dest_2 0.996 Basic Flood: 14 Restricted Flooding: 8 Tune connectivity to application specifications Rebecca Braynard

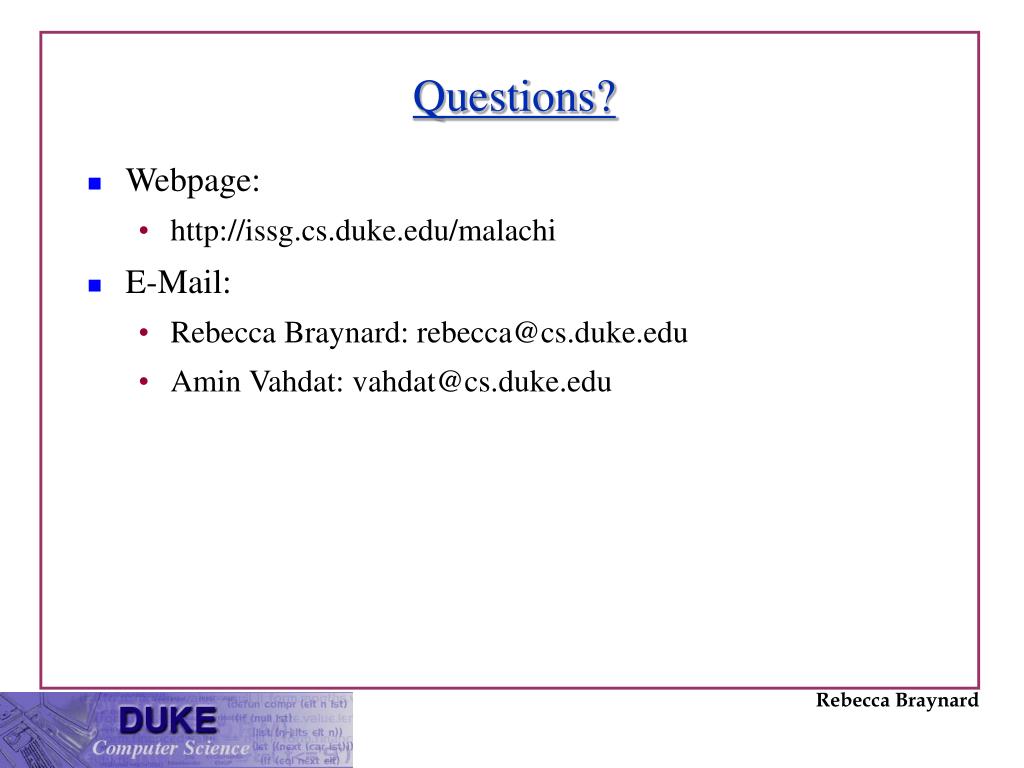

  6. Questions? • Webpage: • http://issg.cs.duke.edu/malachi • E-Mail: • Rebecca Braynard: rebecca@cs.duke.edu • Amin Vahdat: vahdat@cs.duke.edu Rebecca Braynard

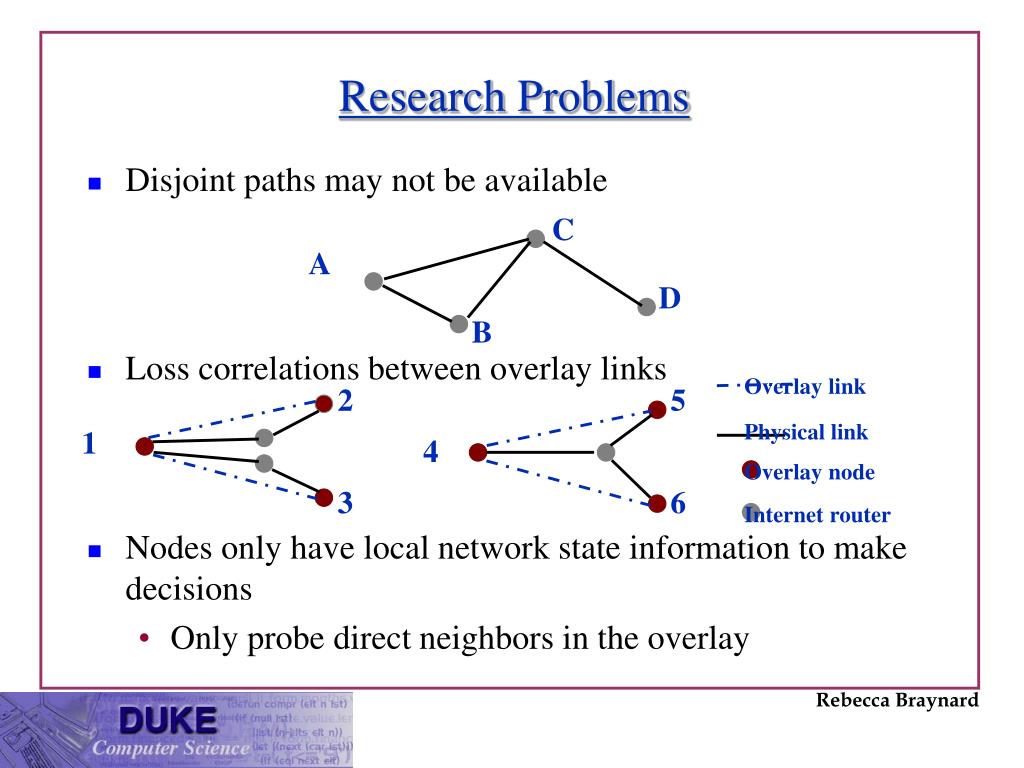

  7. Research Problems • Disjoint paths may not be available C A D B • Loss correlations between overlay links Overlay link 2 5 Physical link 1 4 Overlay node 3 6 Internet router • Nodes only have local network state information to make decisions • Only probe direct neighbors in the overlay Rebecca Braynard

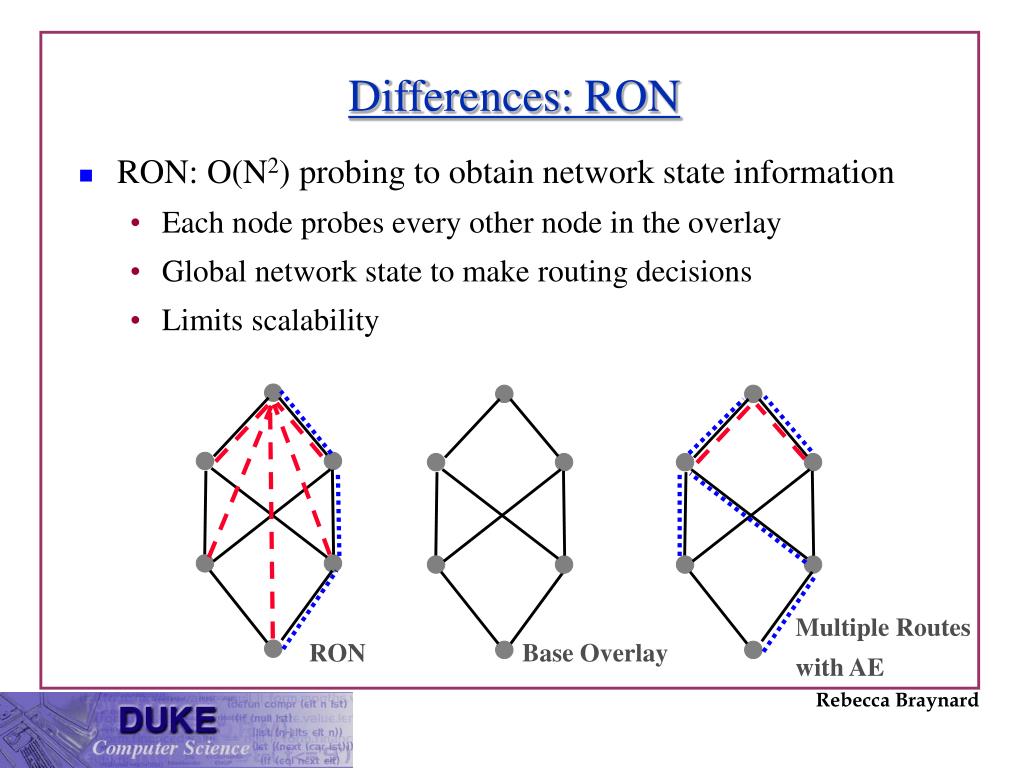

  8. Differences: RON • RON: O(N2) probing to obtain network state information • Each node probes every other node in the overlay • Global network state to make routing decisions • Limits scalability Multiple Routes with AE RON Base Overlay Rebecca Braynard

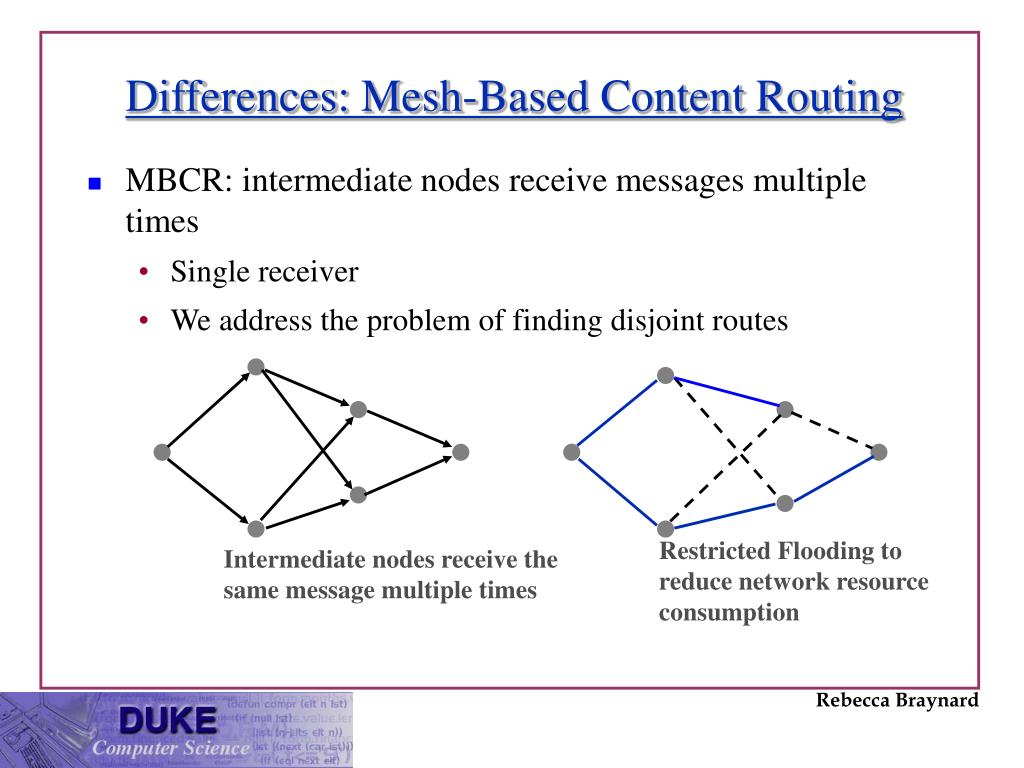

  9. Differences: Mesh-Based Content Routing • MBCR: intermediate nodes receive messages multiple times • Single receiver • We address the problem of finding disjoint routes Restricted Flooding to reduce network resource consumption Intermediate nodes receive the same message multiple times Rebecca Braynard

  10. Link Loss Correlation • Loss rates correlation between links • share a link in the underlying topology .99 .99 .98 .98 .95 .95 Rebecca Braynard
