Minimizing Counterexample with Refutation Analysis and Incremental SAT

This paper presents a novel approach to counterexample minimization through Incremental SAT, specifically targeting the challenges posed by model checkers in explaining property violations of complex systems. We discuss the Brute Force Lifting (BFL) algorithm and its limitations, highlighting significant case studies where traditional methods struggle to decipher long counterexamples. Our experimental results demonstrate that our method is 1-2 orders of magnitude faster than existing BFL techniques, achieving substantial speed-ups with only minor losses in counterexample minimization capability.

charla
Télécharger la présentation

Minimizing Counterexample with Refutation Analysis and Incremental SAT

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Minimizing Counterexample with Refutation Analysis and Incremental SAT Shengyu Shen School of Computer Science National University of Defence Technology

  2. Outline • Motivation • Brute Force Lifting algorithm • Refutation Analysis • Experiment Result • Conclusion

  3. Motivation • Model Checker generate counterexample to explain property violation. • Long counterexample of complex system are very hard to be understand.

  4. Example • DiVer can search 96 steps for a circuit with 416k gates and 12.7k latches • Pankaj Chauhan’s symbolic simulator can search 183 steps for a circuit with 4494 latches.

  5. Outline • Motivation • Brute Force Lifting algorithm • Refutation Analysis • Experiment Result • Conclusion

  6. Free W0 W1 W2 Property violation X0 X1 X2 X3 BFL Concept CEX : Free  {0,1}

  7. W0 W1 W2 X0 X1 X2 X3 BFL Concept(Cont. 1) 0 1 Property violation Property violation again Thus W2 is an irrelevant variable

  8. BFL Concept(Cont. 2) • Thus variable v is irrelevant  • Λ0ik-1T(Si,Si+1) fkAssign(Free-{v}) is UNSAT

  9. Try W2 Try W1 Try W0 W0 W1 W2 X0 X1 X2 X3 Try X0 BFL Implementation

  10. BFL—Difficulty and Solution • Difficulty: Too high run time complexity Why: Need to call SAT solver for very free variables Solution: Reduce the number of calling SAT solver How: Eliminate multiple variables after every SAT solving

  11. Outline • Motivation • Brute Force Lifting algorithm • Refutation Analysis • Experiment Result • Conclusion

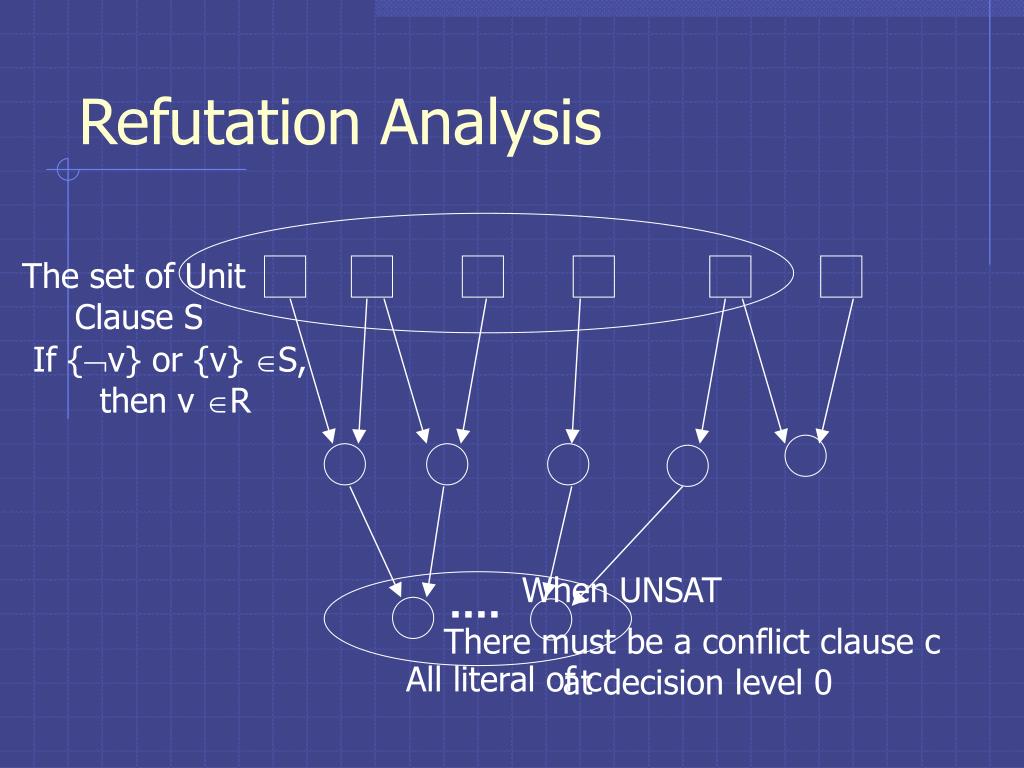

  12. The set of Unit Clause S All literal of c Refutation Analysis If {v} or {v} S, then v R When UNSAT There must be a conflict clause c at decision level 0

  13. Try W2 R W0 W1 W2 X0 X1 X2 X3 BFL with Refutation Analysis Property violation

  14. Outline • Motivation • Brute Force Lifting algorithm • Refutation Analysis • Experiment Result • Conclusion

  15. 1st step of our approach BFL 2nd step of our approach Experiment Result |Free| time

  16. Conclusion • Our approach is 1~2 order of magnitude faster than BFL. • Our approach achieve this speedup with only minor lost in its counterexample minimization ability.
