Presentation Transcript

  1. Chapter 7Gases The Combined Gas Law Volume and Moles (Avogadro’s Law) Partial Pressures LecturePLUS Timberlake

  2. Combined Gas Law P1V1 = P2V2 T1 T2 Rearrange the combined gas law to solve for V2 P1V1T2 = P2V2T1 V2 = P1V1T2 P2T1 LecturePLUS Timberlake

  3. Combined Gas Law P1V1 = P2V2 T1 T2 Isolate V2 P1V1T2 = P2V2T1 V2 = P1V1T2 P2T1 LecturePLUS Timberlake

  4. Learning Check C1 Solve the combined gas laws for T2. LecturePLUS Timberlake

  5. Solution C1 Solve the combined gas law for T2. (Hint: cross-multiply first.) P1V1 = P2V2 T1 T2 P1V1T2 = P2V2T1 T2 = P2V2T1 P1V1 LecturePLUS Timberlake

  6. Combined Gas Law Problem A sample of helium gas has a volume of 0.180 L, a pressure of 0.800 atm and a temperature of 29°C. What is the new temperature(°C) of the gas at a volume of 90.0 mL and a pressure of 3.20 atm? LecturePLUS Timberlake

  7. Data Table Set up Data Table P1 = 0.800 atm V1 = 0.180 L T1 = 302 K P2 = 3.20 atm V2= 90.0 mL T2 = ?? ?? LecturePLUS Timberlake

  8. Solution Solve for T2 Enter data T2 = 302 K x atm x mL = K atm mL T2 = K - 273 = °C LecturePLUS Timberlake

  9. Calculation Solve for T2 T2 = 302 K x 3.20 atm x 90.0 mL = 604 K 0.800 atm 180.0 mL T2 = 604 K - 273 = 331 °C LecturePLUS Timberlake

  10. Learning Check C2 A gas has a volume of 675 mL at 35°C and 0.850 atm pressure. What is the temperature in °C when the gas has a volume of 0.315 L and a pressure of 802 mm Hg? LecturePLUS Timberlake

  11. Solution G9 T1 = 308 K T2 = ? V1 = 675 mL V2 = 0.315 L = 315 mL P1 = 0.850 atm P2 = 802 mm Hg = 646 mm Hg T2 = 308 K x 802 mm Hg x 315 mL 646 mm Hg 675 mL P inc, T inc V dec, T dec = 178 K - 273 = - 95°C LecturePLUS Timberlake

  12. Volume and Moles How does adding more molecules of a gas change the volume of the air in a tire? If a tire has a leak, how does the loss of air (gas) molecules change the volume? LecturePLUS Timberlake

  13. Learning Check C3 True (1) or False(2) 1.___The P exerted by a gas at constant V is not affected by the T of the gas. 2.___ At constant P, the V of a gas is directly proportional to the absolute T 3.___ At constant T, doubling the P will cause the V of the gas sample to decrease to one-half its original V. LecturePLUS Timberlake

  14. Solution C3 True (1) or False(2) 1. (2)The P exerted by a gas at constant V is not affected by the T of the gas. 2. (1) At constant P, the V of a gas is directly proportional to the absolute T 3. (1) At constant T, doubling the P will cause the V of the gas sample to decrease to one-half its original V. LecturePLUS Timberlake

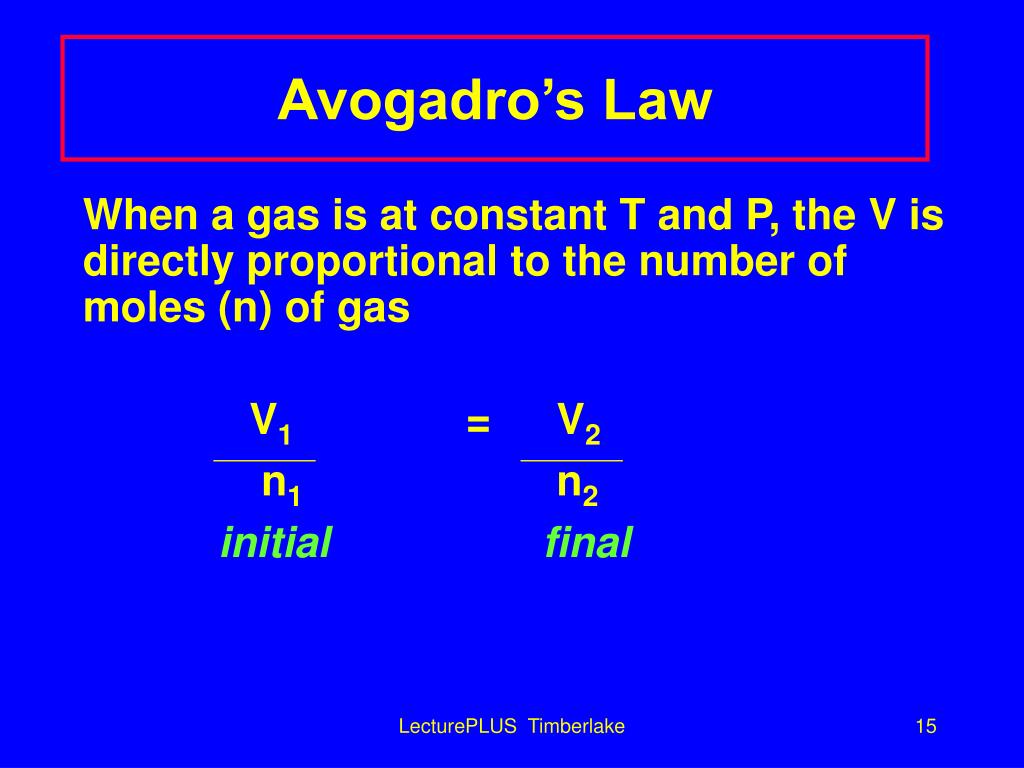

  15. Avogadro’s Law When a gas is at constant T and P, the V is directly proportional to the number of moles (n) of gas V1 = V2 n1 n2 initial final LecturePLUS Timberlake

  16. STP The volumes of gases can be compared when they have the same temperature and pressure (STP). Standard temperature 0°C or 273 K Standard pressure 1 atm (760 mm Hg) LecturePLUS Timberlake

  17. Learning Check C4 A sample of neon gas used in a neon sign has a volume of 15 L at STP. What is the volume (L) of the neon gas at 2.0 atm and –25°C? P1 = V1 = T1 = K P2 = V2 = ?? T2 = K V2 = 15 L x atm x K = 6.8 L atmK LecturePLUS Timberlake

  18. Solution C4 P1 = 1.0 atm V1 = 15 L T1 = 273 K P2 = 2.0 atm V2 = ?? T2 = 248 K V2 = 15 L x 1.0 atm x 248 K = 6.8 L 2.0 atm273 K LecturePLUS Timberlake

  19. Molar Volume At STP 4.0 g He 16.0 g CH4 44.0 g CO2 1 mole 1 mole 1mole (STP) (STP) (STP) V = 22.4 L V = 22.4 L V = 22.4 L LecturePLUS Timberlake

  20. Molar Volume Factor 1 mole of a gas at STP = 22.4 L 22.4 L and 1 mole 1 mole 22.4 L LecturePLUS Timberlake

  21. Learning Check C5 A.What is the volume at STP of 4.00 g of CH4? 1) 5.60 L 2) 11.2 L 3) 44.8 L B. How many grams of He are present in 8.0 L of gas at STP? 1) 25.6 g 2) 0.357 g 3) 1.43 g LecturePLUS Timberlake

  22. Solution C5 A.What is the volume at STP of 4.00 g of CH4? 4.00 g CH4 x 1 mole CH4 x 22.4 L (STP) = 5.60 L 16.0 g CH4 1 mole CH4 B. How many grams of He are present in 8.0 L of gas at STP? 8.00 L x 1 mole He x 4.00 g He = 1.43 g He 22.4 He 1 mole He LecturePLUS Timberlake

  23. Daltons’ Law of Partial Pressures Partial Pressure Pressure each gas in a mixture would exert if it were the only gas in the container Dalton's Law of Partial Pressures The total pressure exerted by a gas mixture is the sum of the partial pressures of the gases in that mixture. PT = P1 + P2 + P3 + ..... LecturePLUS Timberlake

  24. Gases in the Air The % of gases in air Partial pressure (STP) 78.08% N2 593.4 mmHg 20.95% O2 159.2 mmHg 0.94% Ar 7.1 mmHg 0.03% CO2 0.2 mmHg PAIR = PN + PO + PAr + PCO = 760 mmHg 2 2 2 Total Pressure 760 mm Hg LecturePLUS Timberlake

  25. Learning Check C6 A.If the atmospheric pressure today is 745 mm Hg, what is the partial pressure (mm Hg) of O2 in the air? 1) 35.6 2) 156 3) 760 B. At an atmospheric pressure of 714, what is the partial pressure (mm Hg) N2 in the air? 1) 557 2) 9.14 3) 0.109 LecturePLUS Timberlake

  26. Solution C6 A.If the atmospheric pressure today is 745 mm Hg, what is the partial pressure (mm Hg) of O2 in the air? 2) 156 B. At an atmospheric pressure of 714, what is the partial pressure (mm Hg) N2 in the air? 1) 557 LecturePLUS Timberlake

  27. Partial Pressures The total pressure of a gas mixture depends on the total number of gas particles, not on the types of particles. P = 1.00 atm P = 1.00 atm 1 mole H2 0.5 mole O2 + 0.3 mole He + 0.2 mole Ar LecturePLUS Timberlake

  28. Health Note When a scuba diver is several hundred feet under water, the high pressures cause N2 from the tank air to dissolve in the blood. If the diver rises too fast, the dissolved N2 will form bubbles in the blood, a dangerous and painful condition called "the bends". Helium, which is inert, less dense, and does not dissolve in the blood, is mixed with O2 in scuba tanks used for deep descents. LecturePLUS Timberlake

  29. Learning Check C7 A 5.00 L scuba tank contains 1.05 mole of O2 and 0.418 mole He at 25°C. What is the partial pressure of each gas, and what is the total pressure in the tank? LecturePLUS Timberlake

  30. Solution C7 P = nRT PT = PO + PHe V 2 PT = 1.47 mol x 0.0821 L-atm x 298 K 5.00 L (K mol) = 7.19 atm LecturePLUS Timberlake
