Distributed hash tables Protocols and applications

1. Distributed hash tablesProtocols and applications Jinyang Li

2. Peer to peer systems • Symmetric in node functionalities • Anybody can join and leave • Everybody gives and takes • Great potentials • Huge aggregate network capacity, storage etc. • Resilient to single point of failure and attack • E.g. Gnapster, Gnutella, Bittorrent, Skype, Joost

3. Motivations: the lookup problem • How to locate something given its name? • Examples: • File sharing • VoIP • Content distribution networks (CDN)

4. Strawman #1: a central search service • Central service poses a single point of failure or attack • Not scalable(?) Central service needs $$$

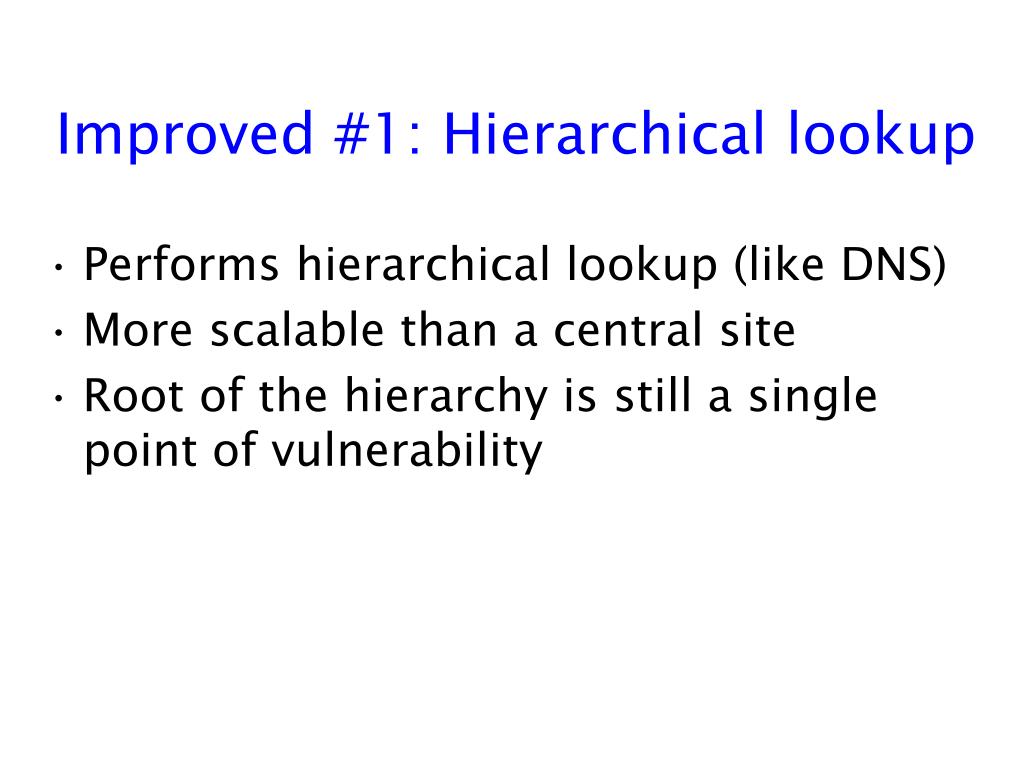

5. Improved #1: Hierarchical lookup • Performs hierarchical lookup (like DNS) • More scalable than a central site • Root of the hierarchy is still a single point of vulnerability

6. Strawman #2: Flooding Where is item K? • Symmetric design: No special servers needed • Too much overhead traffic • Limited in scale • No guarantee for results

7. Improved #2: super peers • E.g. Kazaa, Skype • Lookup only floods super peers • Still no guarantees for lookup results

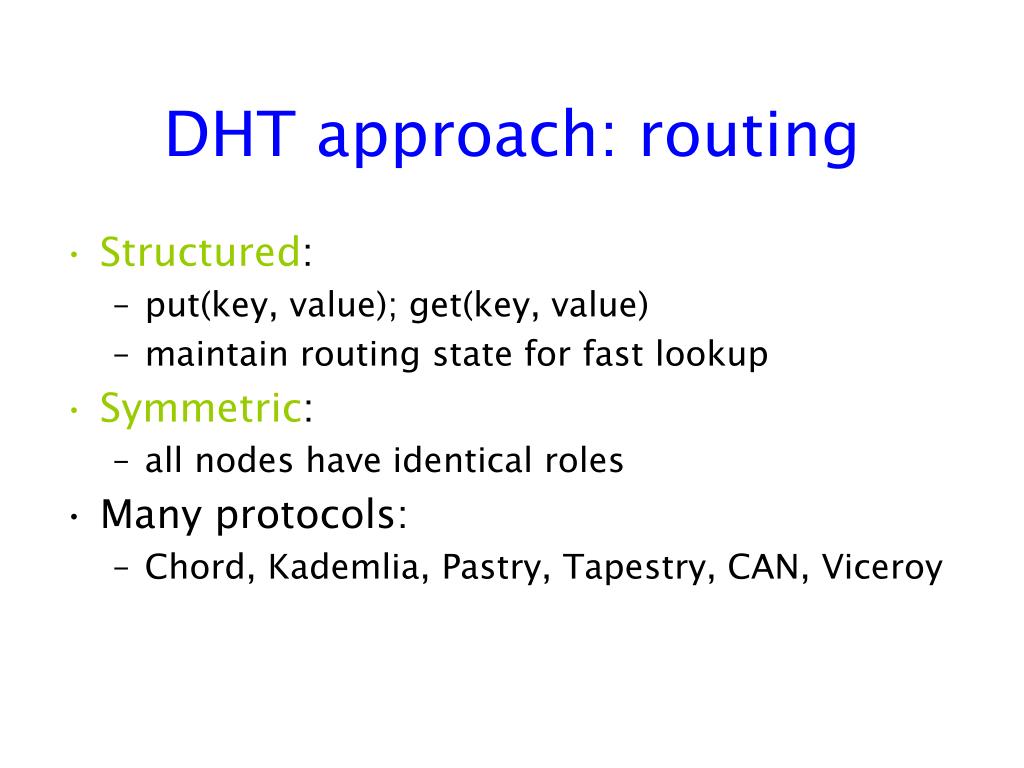

8. DHT approach: routing • Structured: • put(key, value); get(key, value) • maintain routing state for fast lookup • Symmetric: • all nodes have identical roles • Many protocols: • Chord, Kademlia, Pastry, Tapestry, CAN, Viceroy

9. DHT ideas • Scalable routing needs a notion of “closeness” • Ring structure [Chord]

10. 01100100 01100101 01100110 01100111 011000** 011001** 011010** 011011** Different notions of “closeness” • Tree-like structure, [Pastry, Kademlia, Tapestry] 01100101 Distance measured as the length of longest matching prefix with the lookup key

11. 0,0.5, 0.5,1 0.5,0.5, 1,1 0.5,0.25,0.75,0.5 0.75,0, 1,0.5 0,0, 0.5,0.5 0.5,0,0.75,0.25 Different notions of “closeness” • Cartesian space [CAN] (1,1) Distance measured as geometric distance (0,0)

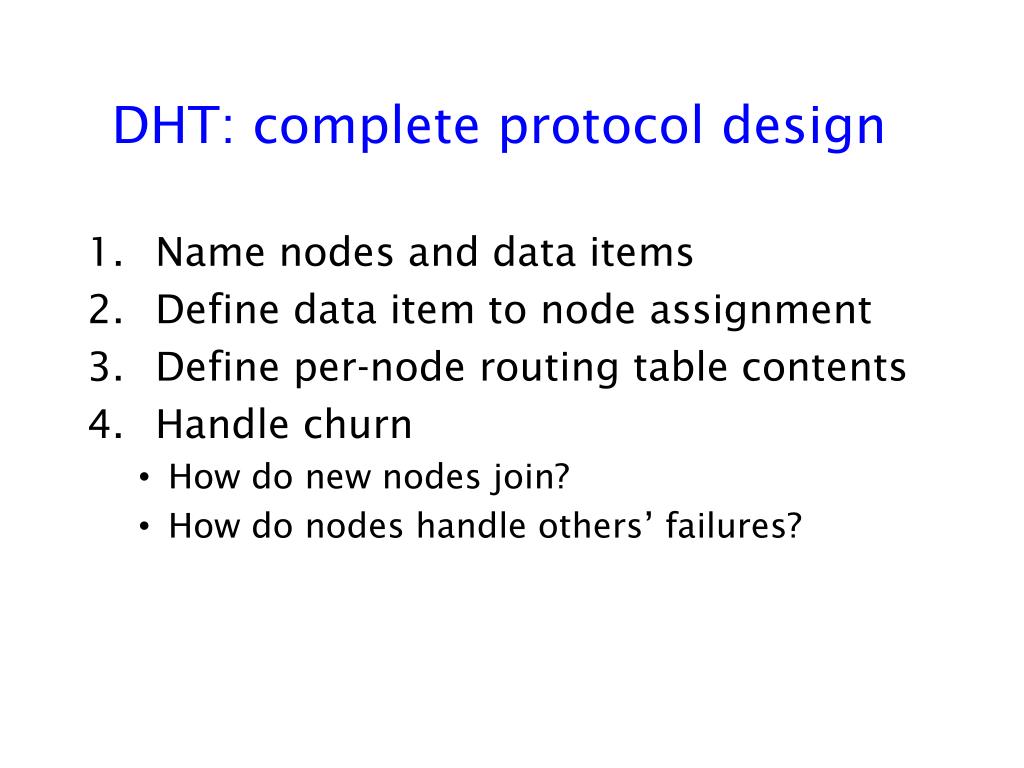

12. DHT: complete protocol design • Name nodes and data items • Define data item to node assignment • Define per-node routing table contents • Handle churn • How do new nodes join? • How do nodes handle others’ failures?

13. Chord: Naming • Each node has a uniqueflat ID • E.g. SHA-1(IP address) • Each data item has a unique flat ID (key) • E.g. SHA-1(data content)

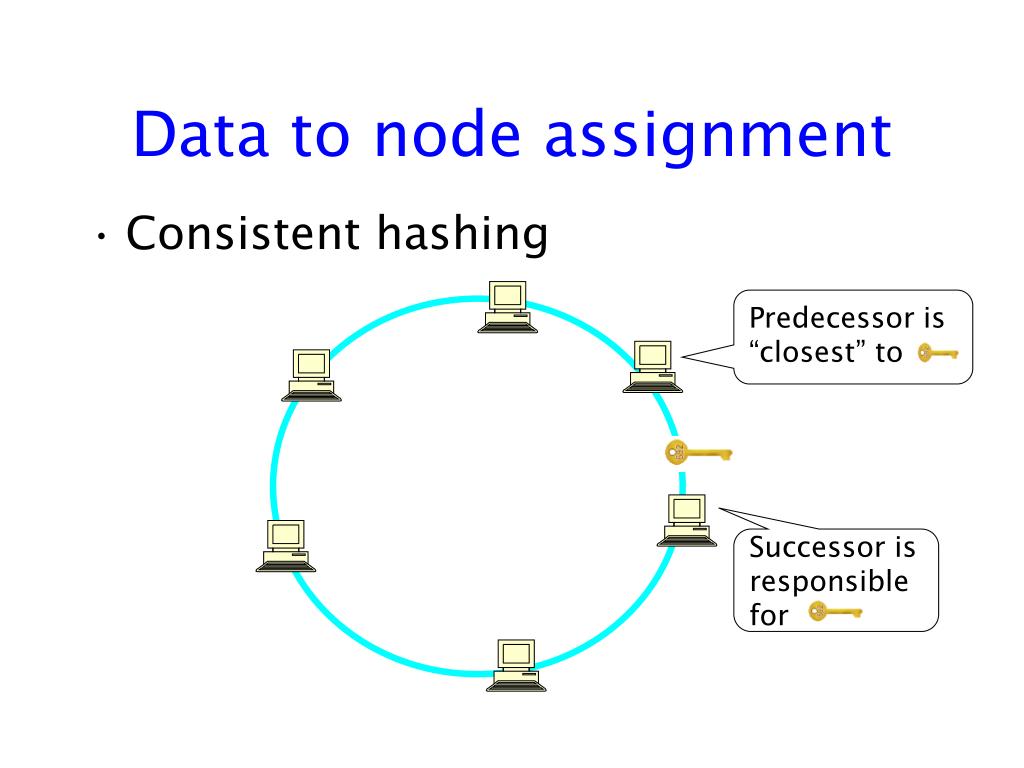

14. Predecessor is “closest” to Successor is responsible for Data to node assignment • Consistent hashing

15. Key-based lookup (routing) • Correctness • Each node must know its correct successor

16. Key-based lookup • Fast lookup • A node has O(log n) fingers exponentially “far” away Node x’s i-th finger is at x+2i away Why is lookup fast?

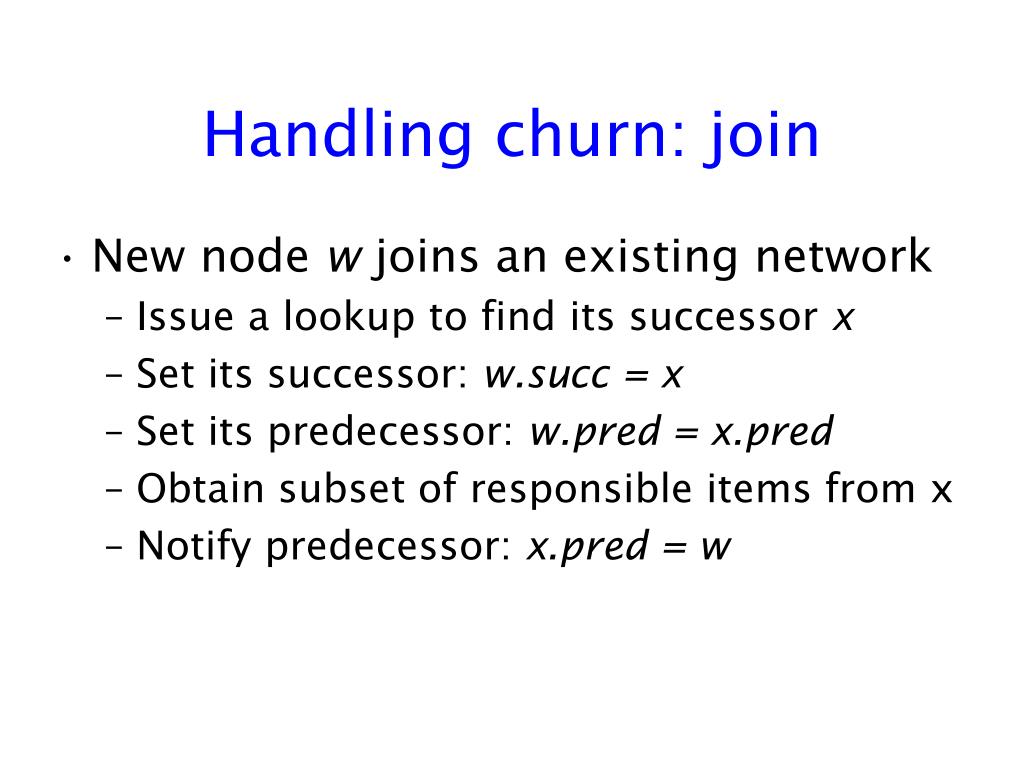

17. Handling churn: join • New node w joins an existing network • Issue a lookup to find its successor x • Set its successor: w.succ = x • Set its predecessor: w.pred = x.pred • Obtain subset of responsible items from x • Notify predecessor: x.pred = w

18. Handling churn: stabilization • Each node periodically fixes its state • Node w asks its successor x for x.pred • If x.pred is “closer” to itself, set w.succ = x.pred Starting with any connected graph, stabilization eventually makes all nodes find correct successors

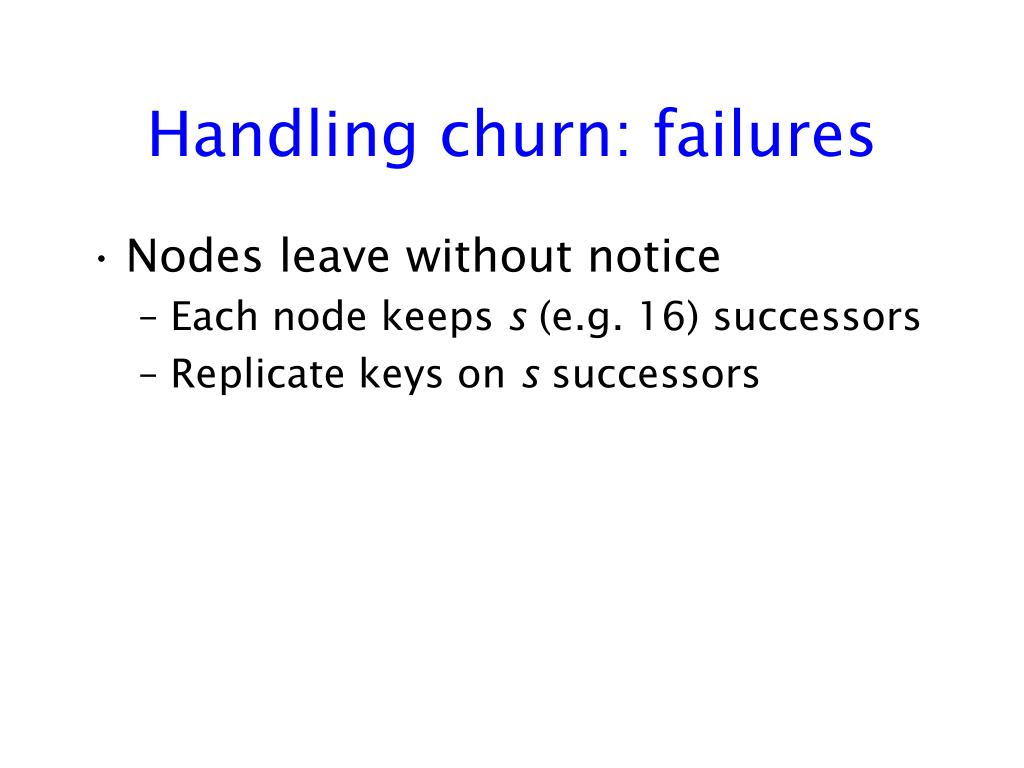

19. Handling churn: failures • Nodes leave without notice • Each node keeps s (e.g. 16) successors • Replicate keys on s successors

20. Handling churn: fixing fingers • Much easier to maintain fingers • Any node at [2i, 2i+1] distance away will do • Geographically closer fingers --> lower latency • Periodically flush dead fingers

21. Using DHTs in real systems • Amazon’s Dynamo key-value storage [SOSP’07] • Serve as persistent state for applications • shopping carts, user preferences • How does it apply DHT ideas? • Assign key-value pairs to responsible nodes • Automatic recovery from churn • New challenges? • Manage read-write data consistency

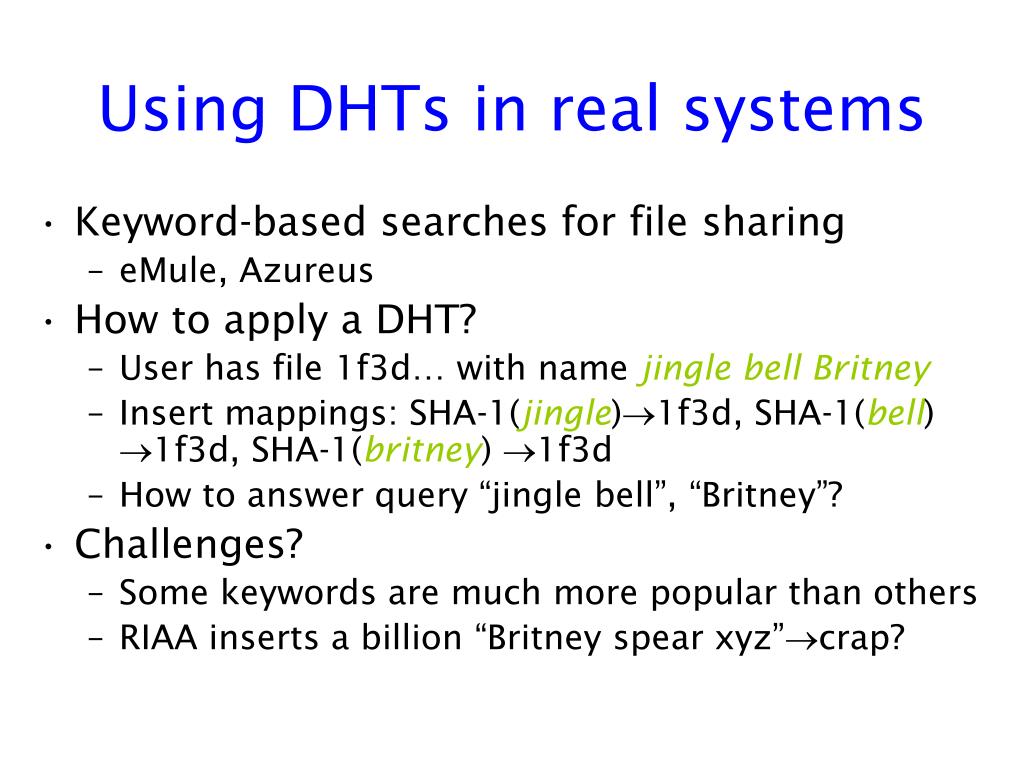

22. Using DHTs in real systems • Keyword-based searches for file sharing • eMule, Azureus • How to apply a DHT? • User has file 1f3d… with name jingle bell Britney • Insert mappings: SHA-1(jingle)1f3d, SHA-1(bell) 1f3d, SHA-1(britney) 1f3d • How to answer query “jingle bell”, “Britney”? • Challenges? • Some keywords are much more popular than others • RIAA inserts a billion “Britney spear xyz”crap?

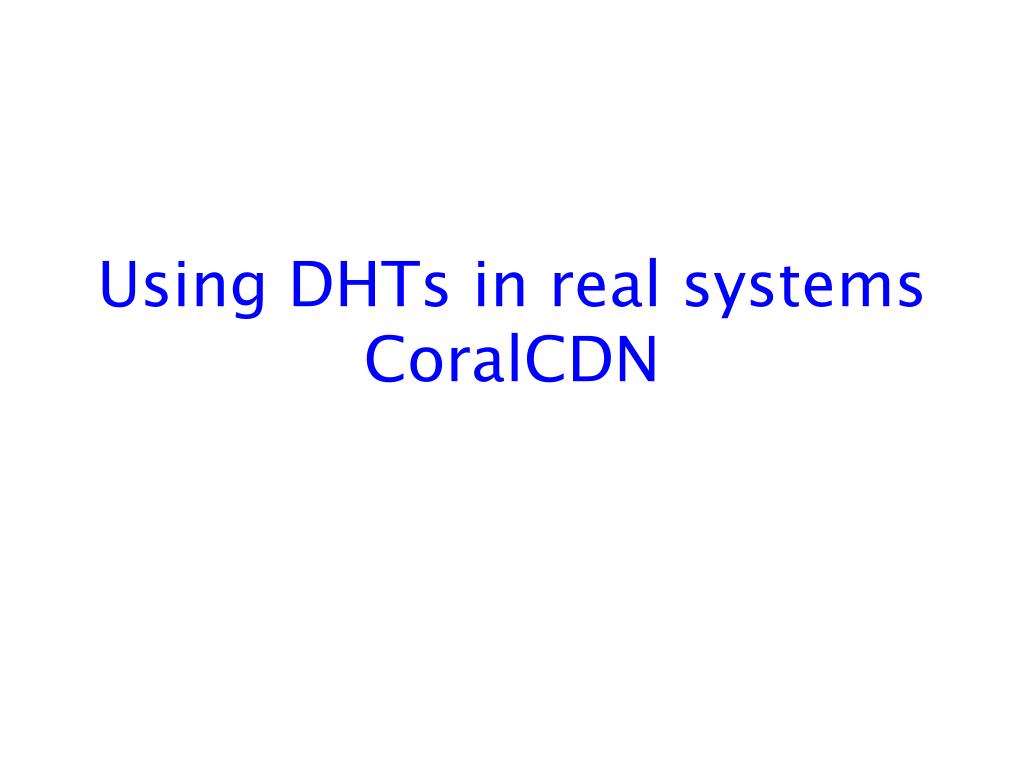

23. Using DHTs in real systems CoralCDN

24. Browser Browser Browser Browser http proxy http proxy http proxy http proxy http proxy Browser Browser Browser Browser Motivation: alleviating flash crowd • Proxies handle most client requests • Proxies cooperate to fetch content from each other Origin Server

25. Getting content with CoralCDN 2.Lookup(URL) What nodes are caching the URL? Origin Server 1.Server selection What CDN node should I use? 3.Content transmission From which caching nodes should I download file? • Clients use CoralCDN via modified domain name nytimes.com/file → nytimes.com.nyud.net/file

26. Coral design goals • Don’t control data placement • Nodes cache based on access patterns • Reduce load at origin server • Serve files from cached copies whenever possible • Low end-to-end latency • Lookup and cache download optimize for locality • Scalable and robust lookups

27. ,TTL) Lookup for cache locations • Given a URL: • Where is the data cached? • Map name to location: URL  {IP1, IP2, IP3, IP4} • lookup(URL)  Get IPs of nearby caching nodes • insert(URL,myIP) Add me as caching URL for TTL seconds Isn’t this what a distributed hash table is for?

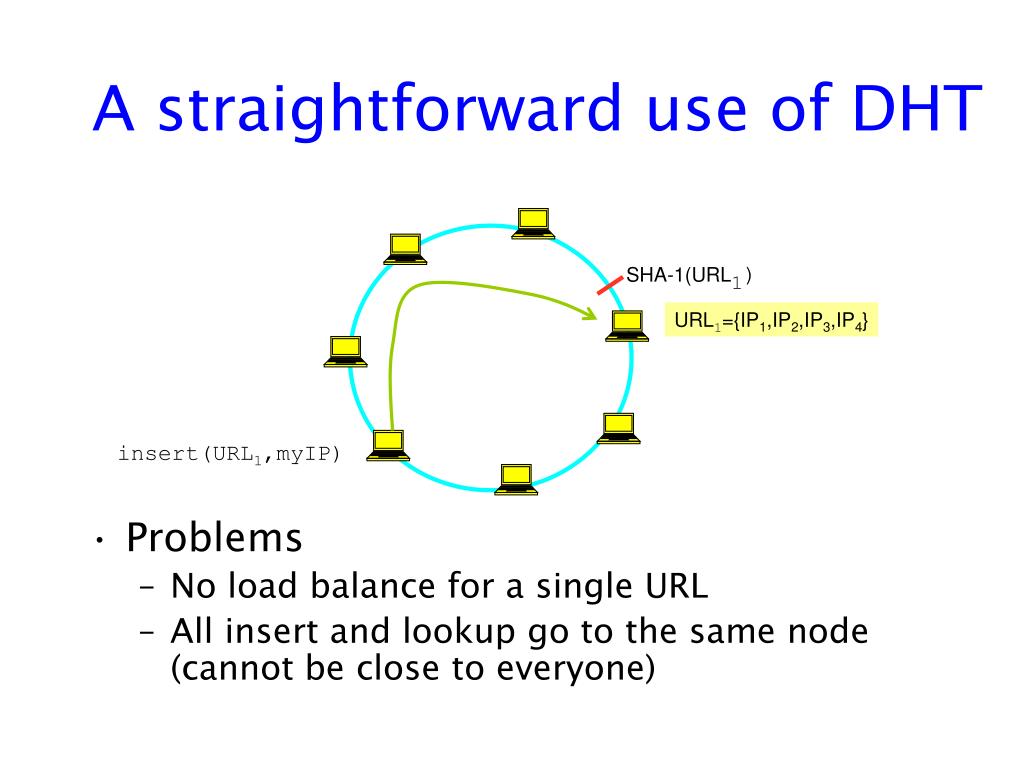

28. SHA-1(URL1) A straightforward use of DHT • Problems • No load balance for a single URL • All insert and lookup go to the same node (cannot be close to everyone) URL1={IP1,IP2,IP3,IP4} insert(URL1,myIP)

29. #1 Solve load balance problem: relax hash table semantics • DHTs designed for hash-table semantics • Insert and replace: URL  IPlast • Insert and append: URL  {IP1, IP2, IP3, IP4} • Each Coral lookup needs only few values • lookup(URL)  {IP2, IP4} • Preferably ones close in network

30. 1 2 3 # hops: Prevent hotspots in index • Route convergence • O(b) nodes are 1 hop from root • O(b2) nodes are 2 hops away from root … Leaf nodes (distant IDs) Root node (closest ID)

31. 1 2 3 # hops: Prevent hotspots in index • Request load increases exponentially towards root Root node (closest ID) Leaf nodes (distant IDs) URL={IP1,IP2,IP3,IP4}

32. 1 2 3 # hops: Rate-limiting requests • Refuse to cache if already have max # “fresh” IPs / URL, • Locations of popular items pushed down tree Root node (closest ID) Leaf nodes (distant IDs) URL={IP5} URL={IP1,IP2,IP3,IP4} URL={IP3,IP4}

33. 1 2 3 # hops: Rate-limiting requests • Refuse to cache if already have max # “fresh” IPs / URL, • Locations of popular items pushed down tree • Except, nodes leak through at most β inserts / min / URL • Bound rate of inserts towards root, yet root stays fresh Root node (closest ID) Leaf nodes (distant IDs) URL={IP5} URL={IP1,IP2,IP6,IP4} URL={IP3,IP4}

34. 7 β 3 β 2 β 1 β Load balance results 494 nodes on PlanetLab • Aggregate request rate: ~12 million / min • Rate-limit per node (β): 12 / min • Root has fan-in from 7 others

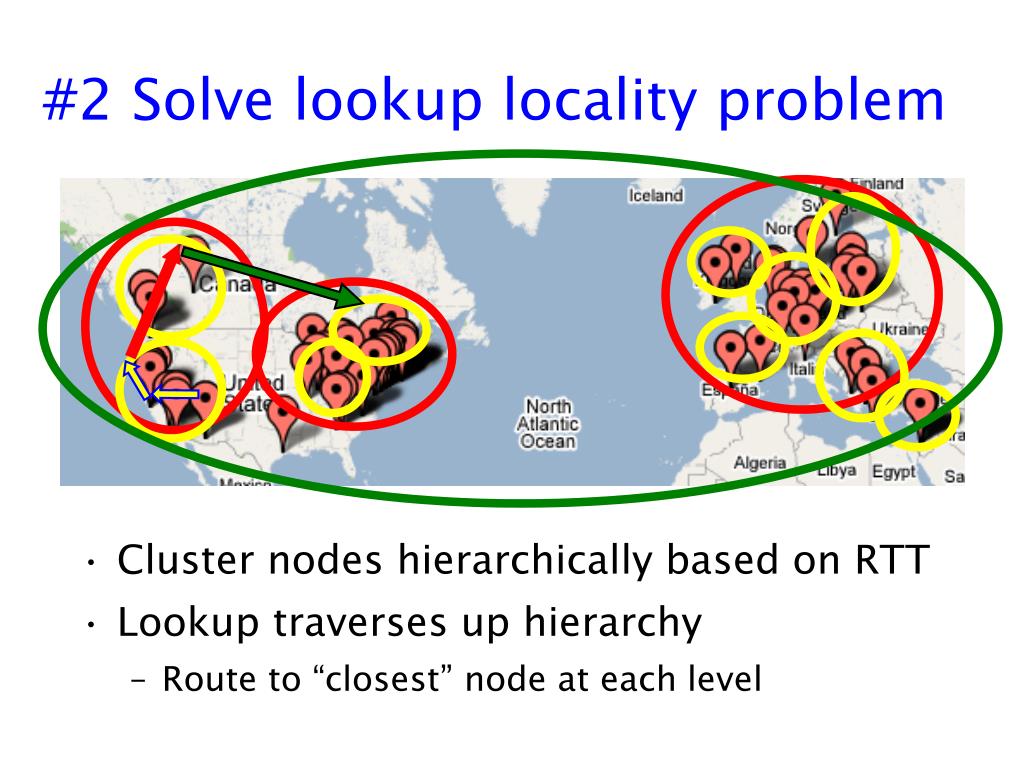

35. #2 Solve lookup locality problem • Cluster nodes hierarchically based on RTT • Lookup traverses up hierarchy • Route to “closest” node at each level

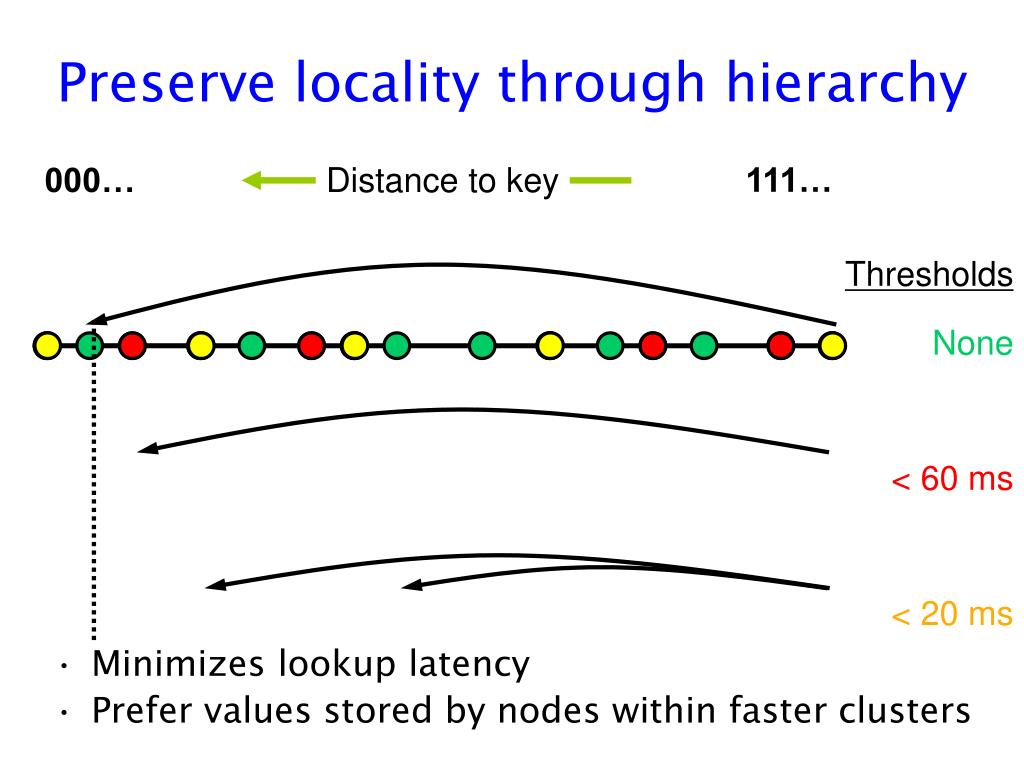

36. Preserve locality through hierarchy 111… 000… Distance to key • Minimizes lookup latency • Prefer values stored by nodes within faster clusters Thresholds None < 60 ms < 20 ms

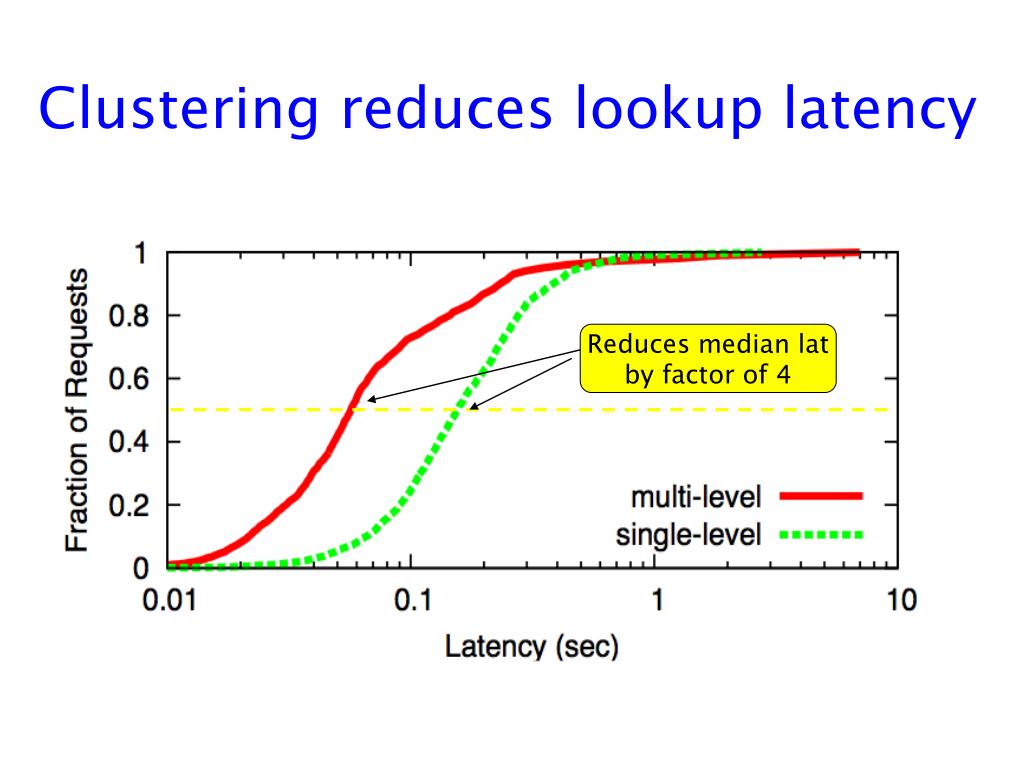

37. Reduces median lat by factor of 4 Clustering reduces lookup latency

38. Putting all together: Coral reduces server load Most hits in 20-ms Coral cluster Local disk caches begin to handle most requests 400+ nodes provide 32 Mbps 100x capacity of origin Few hits to origin
