Lutiac – Small Soft Processors for Small Programs

1. Lutiac – Small Soft Processors for Small Programs David Galloway and David Lewis November 18, 2010

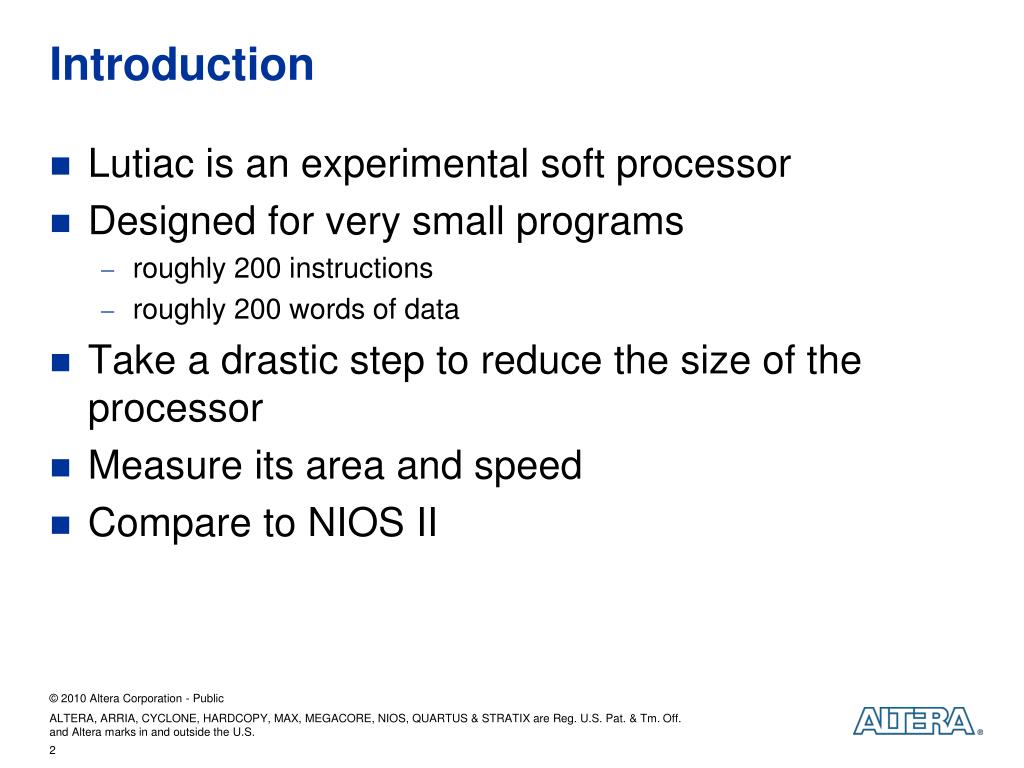

2. Introduction • Lutiac is an experimental soft processor • Designed for very small programs • roughly 200 instructions • roughly 200 words of data • Take a drastic step to reduce the size of the processor • Measure its area and speed • Compare to NIOS II

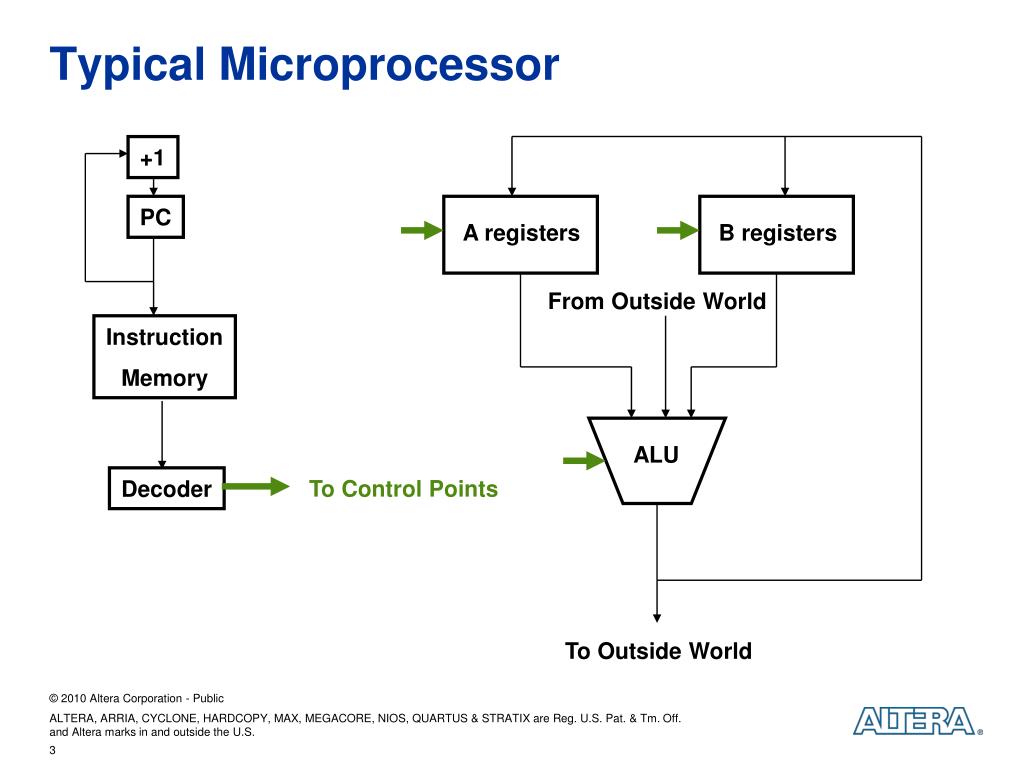

3. Typical Microprocessor +1 PC A registers B registers From Outside World Instruction Memory ALU Decoder To Control Points To Outside World

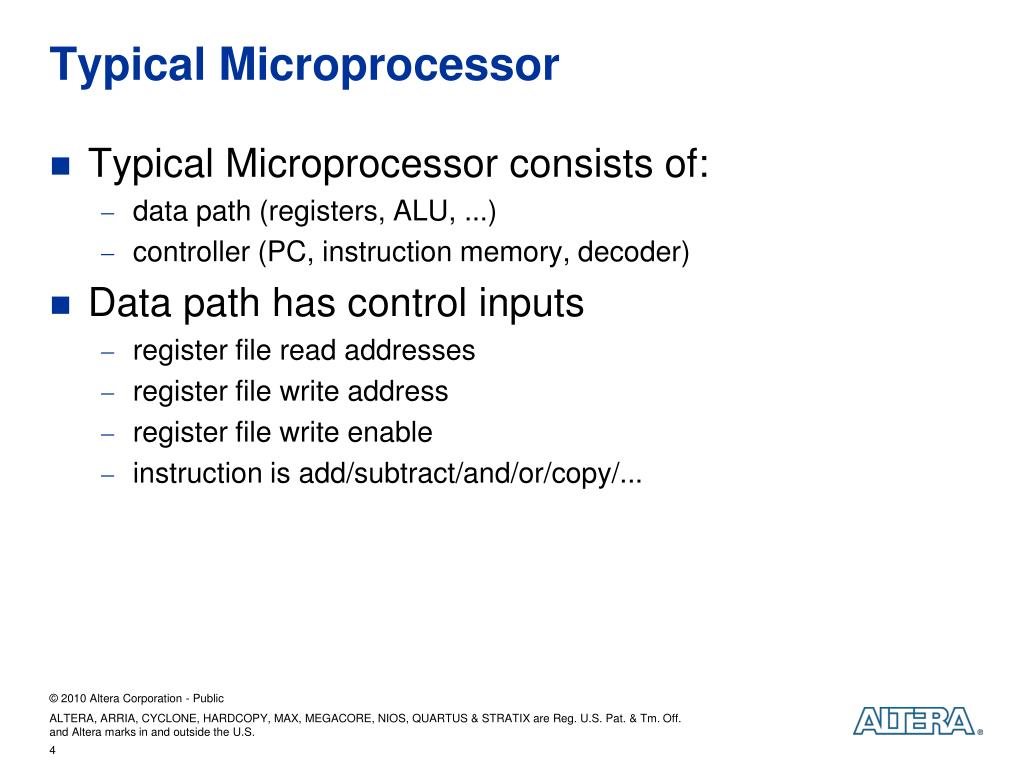

4. Typical Microprocessor • Typical Microprocessor consists of: • data path (registers, ALU, ...) • controller (PC, instruction memory, decoder) • Data path has control inputs • register file read addresses • register file write address • register file write enable • instruction is add/subtract/and/or/copy/...

5. Control Inputs • Control inputs are driven from the decoder • Decoder driven from current instruction • Current instruction determined by program counter • If instruction memory never changes: • current instruction is a constant function of the program counter • so control inputs depend entirely on the value of the program counter

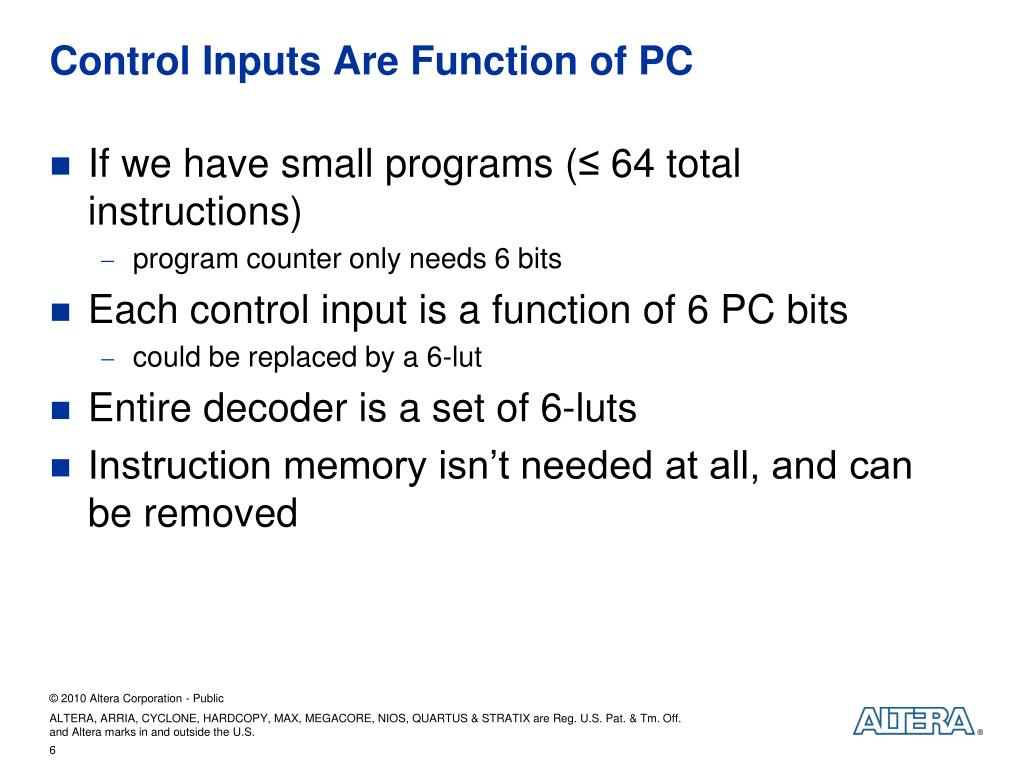

6. Control Inputs Are Function of PC • If we have small programs (≤ 64 total instructions) • program counter only needs 6 bits • Each control input is a function of 6 PC bits • could be replaced by a 6-lut • Entire decoder is a set of 6-luts • Instruction memory isn’t needed at all, and can be removed

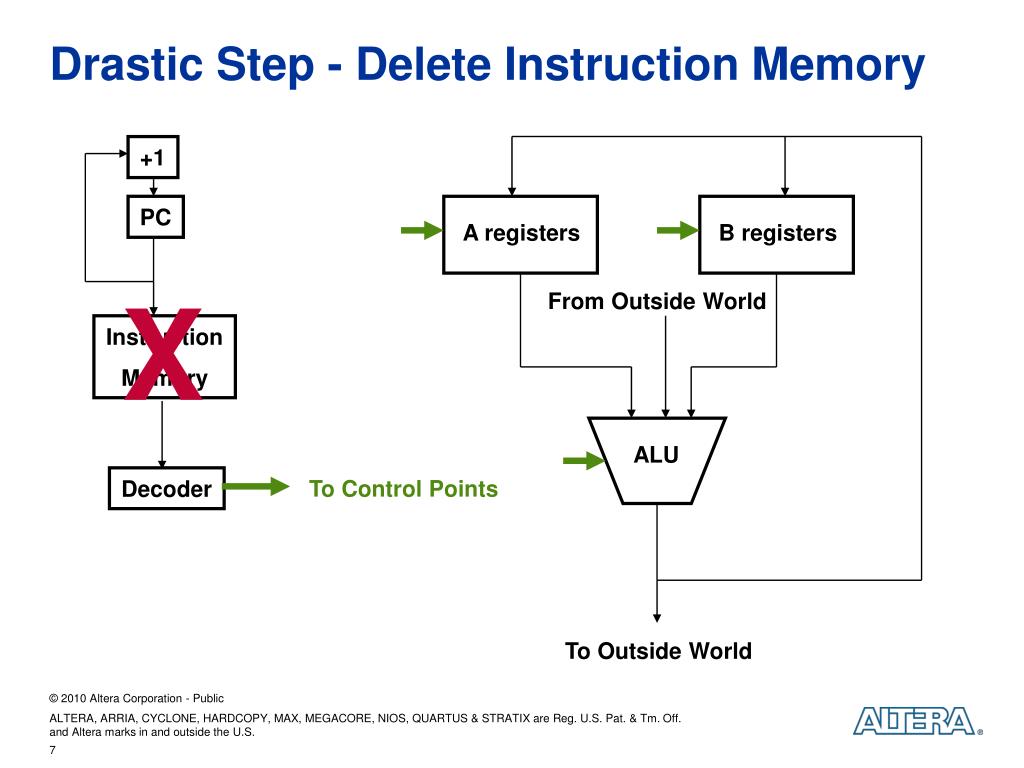

7. Drastic Step - Delete Instruction Memory +1 PC A registers B registers X From Outside World Instruction Memory ALU Decoder To Control Points To Outside World

8. Lutiac +1 PC A registers B registers From Outside World ALU Decoder To Control Points To Outside World

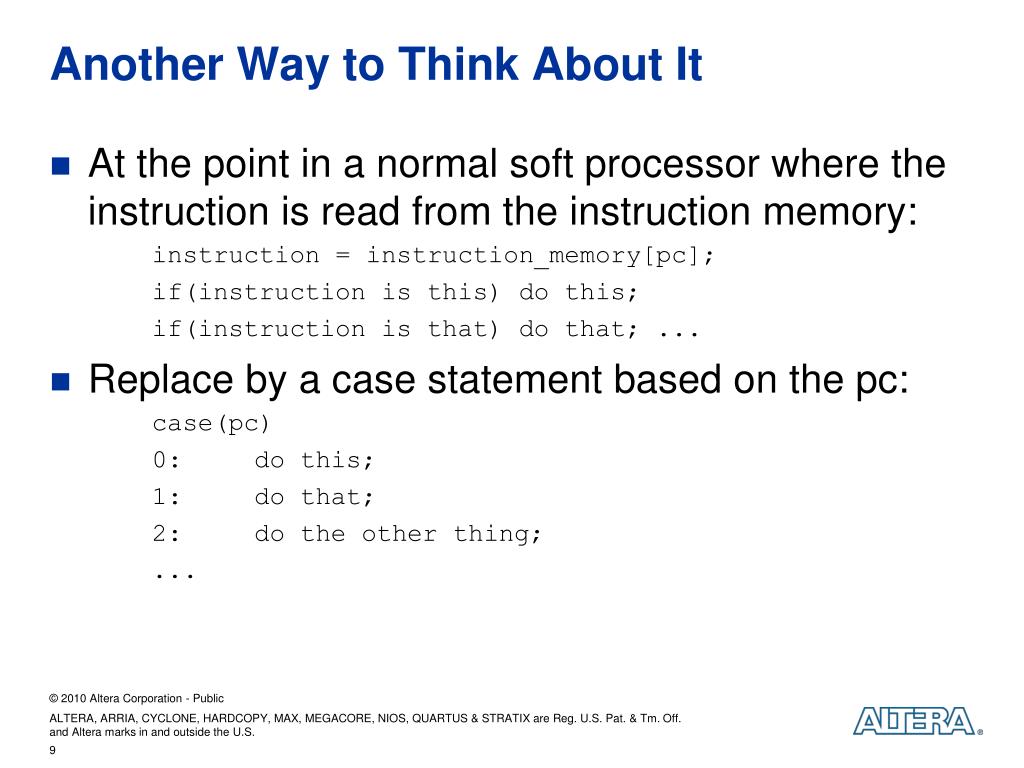

9. Another Way to Think About It • At the point in a normal soft processor where the instruction is read from the instruction memory: instruction = instruction_memory[pc]; if(instruction is this) do this; if(instruction is that) do that; ... • Replace by a case statement based on the pc: case(pc) 0: do this; 1: do that; 2: do the other thing; ...

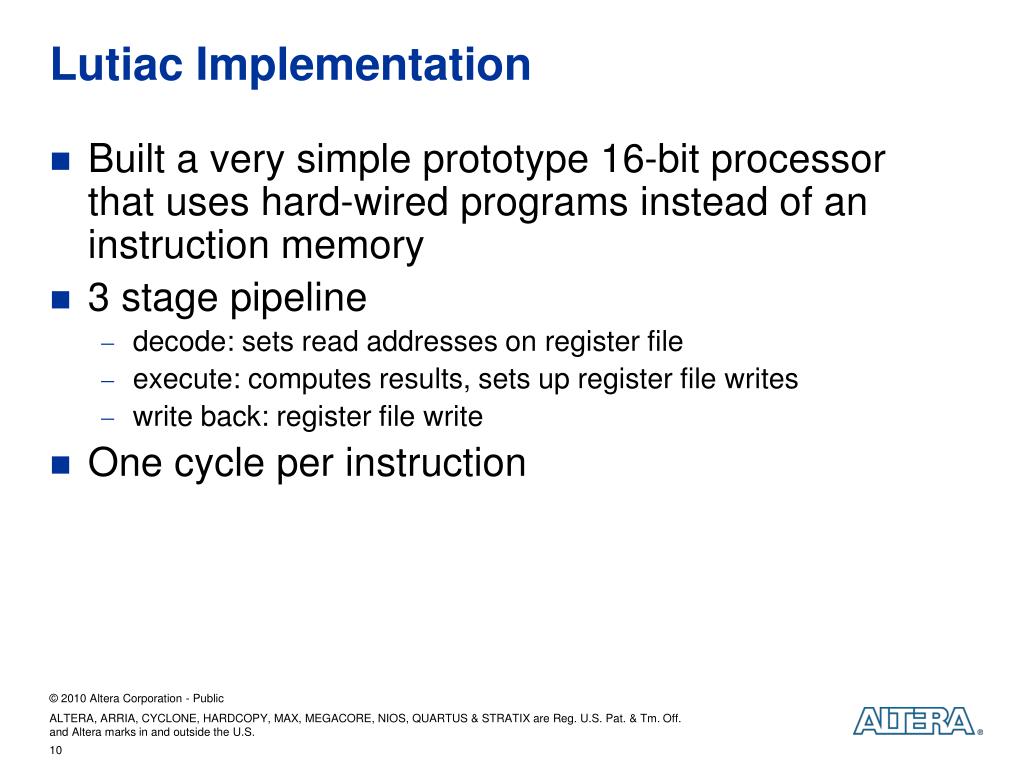

10. Lutiac Implementation • Built a very simple prototype 16-bit processor that uses hard-wired programs instead of an instruction memory • 3 stage pipeline • decode: sets read addresses on register file • execute: computes results, sets up register file writes • write back: register file write • One cycle per instruction

11. Lutiac Implementation • No data memory, just registers • no fixed instruction format, so no hard limit on number of registers • One input port from outside world, one output port • Simple assembler converts my_program.s file into an equivalent Verilog processor description

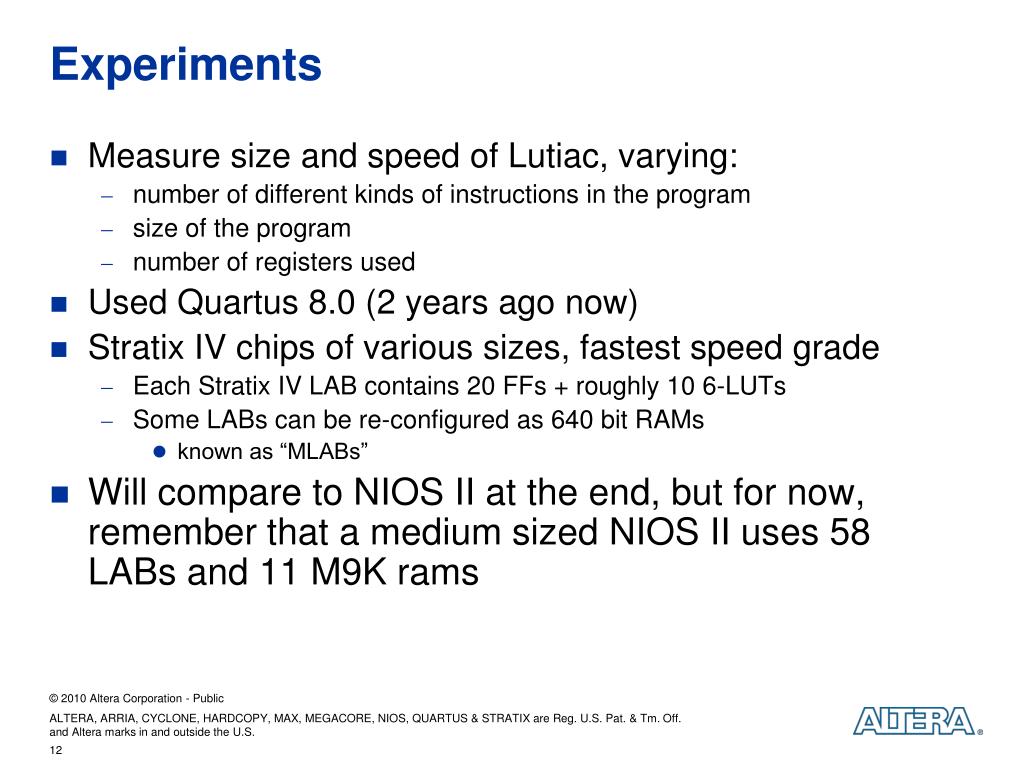

12. Experiments • Measure size and speed of Lutiac, varying: • number of different kinds of instructions in the program • size of the program • number of registers used • Used Quartus 8.0 (2 years ago now) • Stratix IV chips of various sizes, fastest speed grade • Each Stratix IV LAB contains 20 FFs + roughly 10 6-LUTs • Some LABs can be re-configured as 640 bit RAMs • known as “MLABs” • Will compare to NIOS II at the end, but for now, remember that a medium sized NIOS II uses 58 LABs and 11 M9K rams

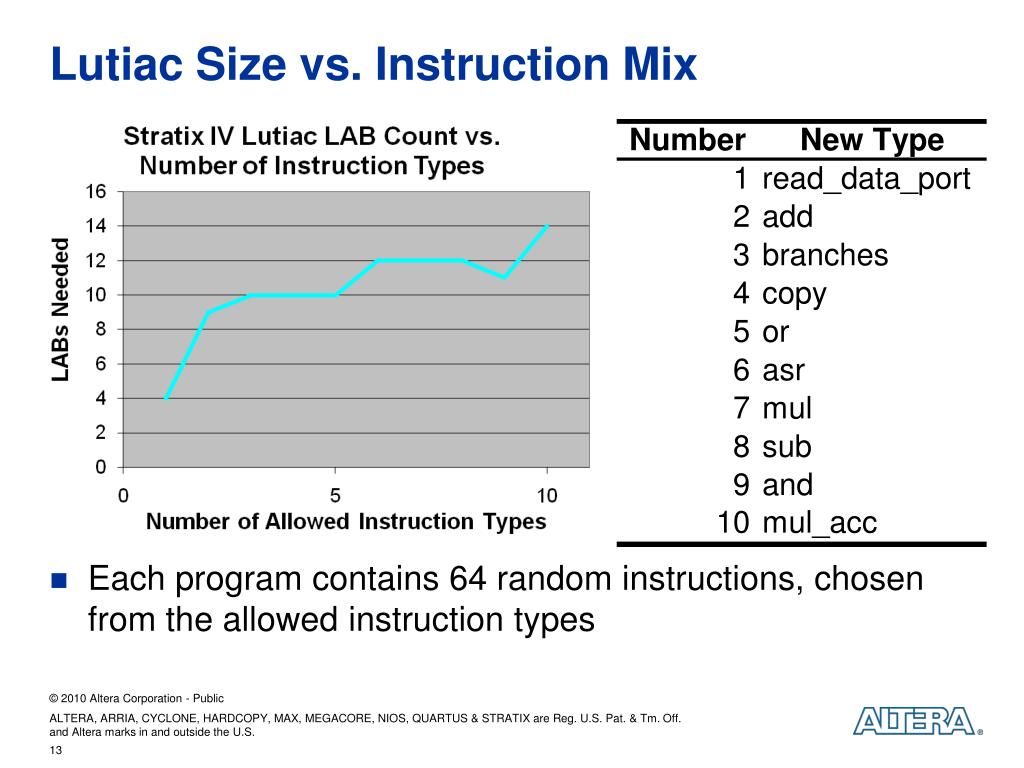

13. Lutiac Size vs. Instruction Mix • Each program contains 64 random instructions, chosen from the allowed instruction types

14. Fmax vs. Instruction Mix

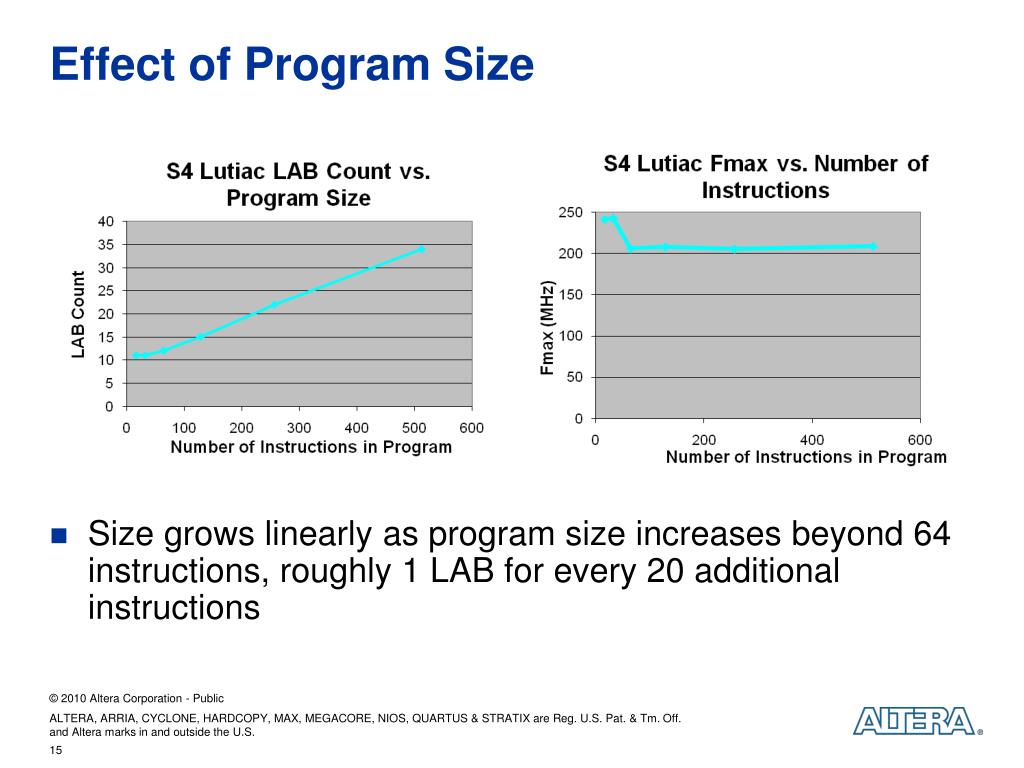

15. Effect of Program Size • Size grows linearly as program size increases beyond 64 instructions, roughly 1 LAB for every 20 additional instructions

16. Effect of Number of Registers • Very large Lutiac (512 random instructions) grows by the number of MLABs needed to hold additional registers • Would save area if we used M9Ks instead of MLABs once we needed more than 96 16-bit registers

17. Scalability of Multiple Lutiac Cores • Chained N identical 64 instruction Lutiac cores together • LABs grow by 14.5 per core • Fmax drops as Quartus placement worsens • Ran out of DSP blocks above 256 cores

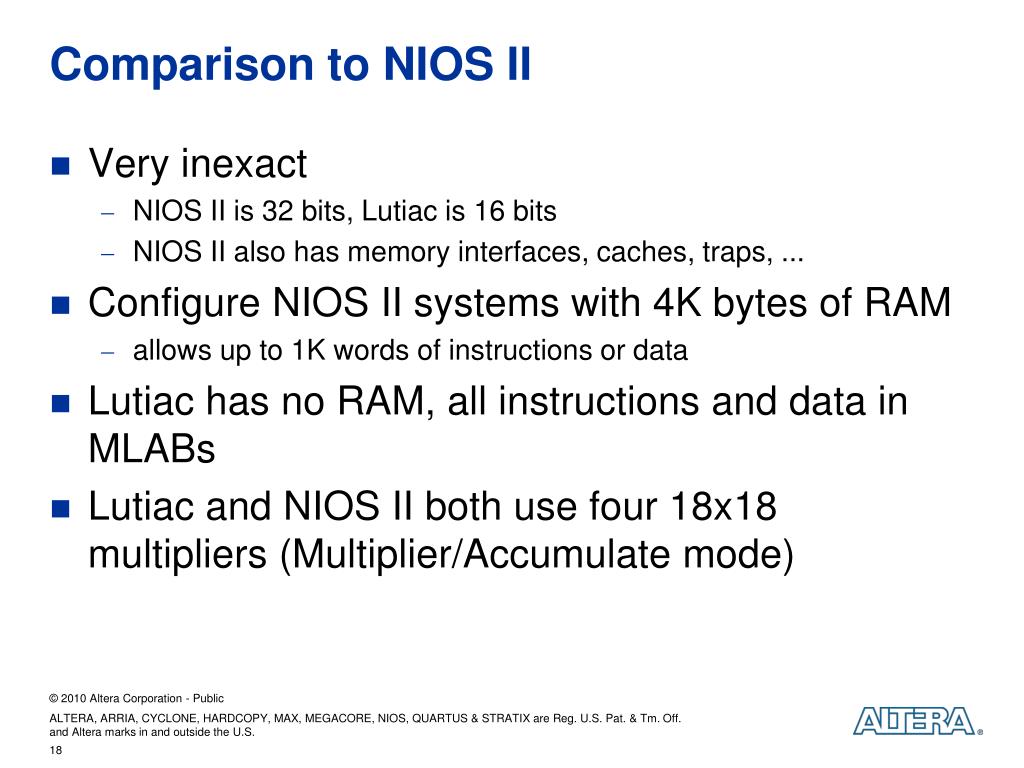

18. Comparison to NIOS II • Very inexact • NIOS II is 32 bits, Lutiac is 16 bits • NIOS II also has memory interfaces, caches, traps, ... • Configure NIOS II systems with 4K bytes of RAM • allows up to 1K words of instructions or data • Lutiac has no RAM, all instructions and data in MLABs • Lutiac and NIOS II both use four 18x18 multipliers (Multiplier/Accumulate mode)

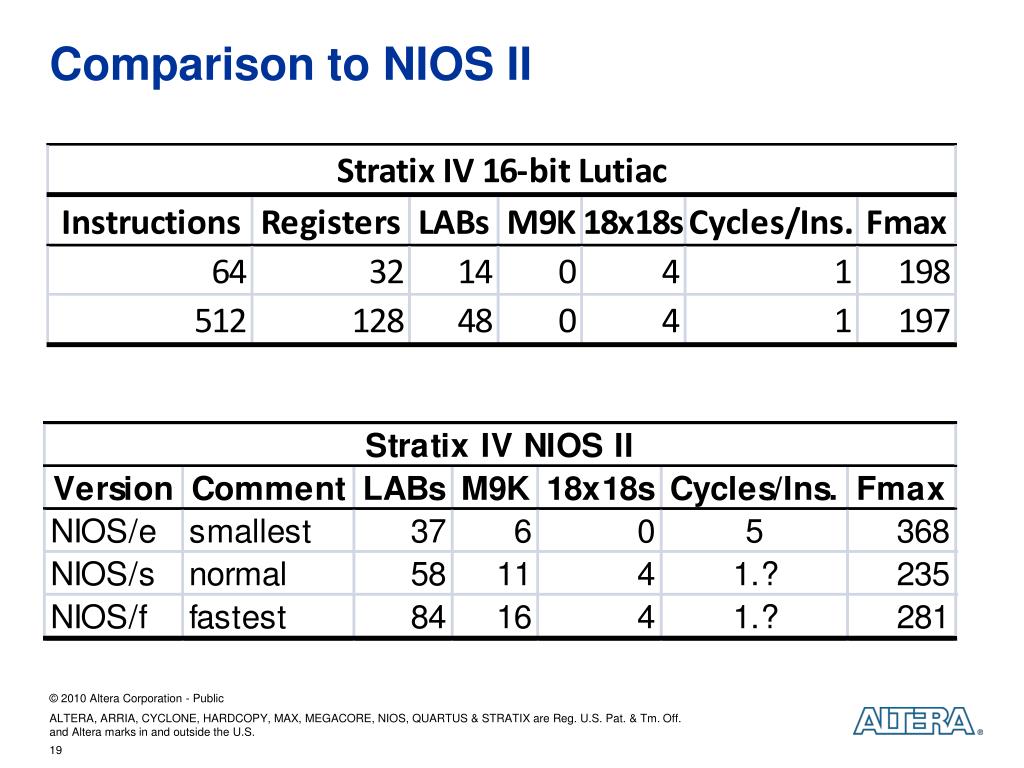

19. Comparison to NIOS II

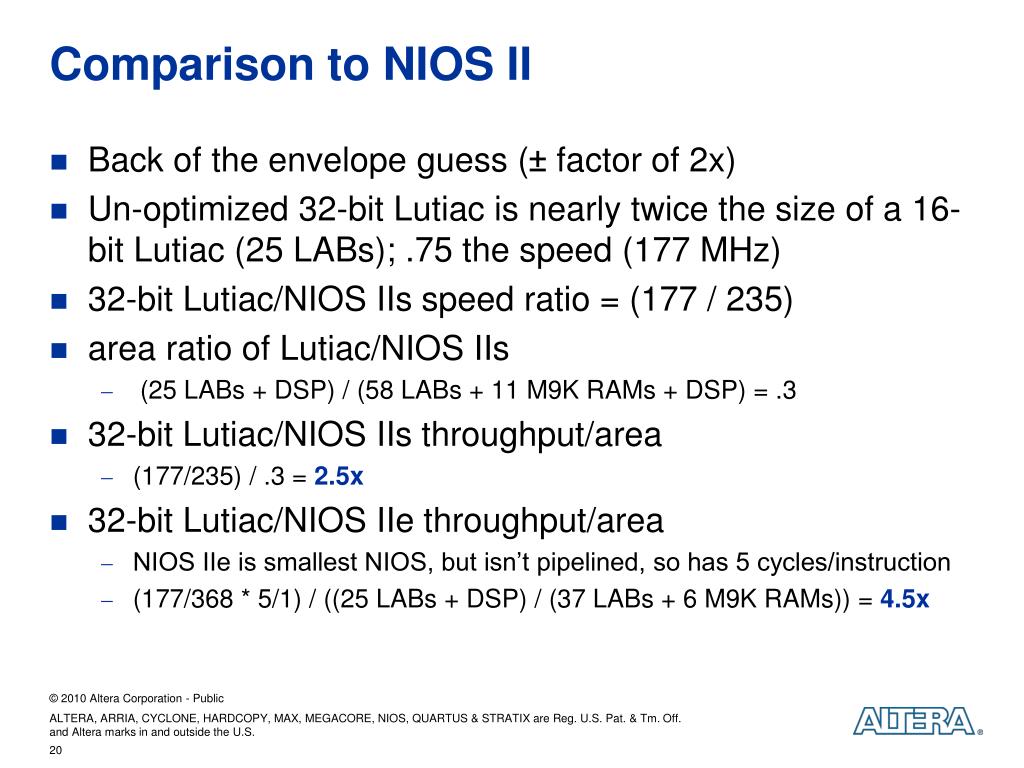

20. Comparison to NIOS II • Back of the envelope guess (± factor of 2x) • Un-optimized 32-bit Lutiac is nearly twice the size of a 16-bit Lutiac (25 LABs); .75 the speed (177 MHz) • 32-bit Lutiac/NIOS IIs speed ratio = (177 / 235) • area ratio of Lutiac/NIOS IIs • (25 LABs + DSP) / (58 LABs + 11 M9K RAMs + DSP) = .3 • 32-bit Lutiac/NIOS IIs throughput/area • (177/235) / .3 = 2.5x • 32-bit Lutiac/NIOS IIe throughput/area • NIOS IIe is smallest NIOS, but isn’t pipelined, so has 5 cycles/instruction • (177/368 * 5/1) / ((25 LABs + DSP) / (37 LABs + 6 M9K RAMs)) = 4.5x

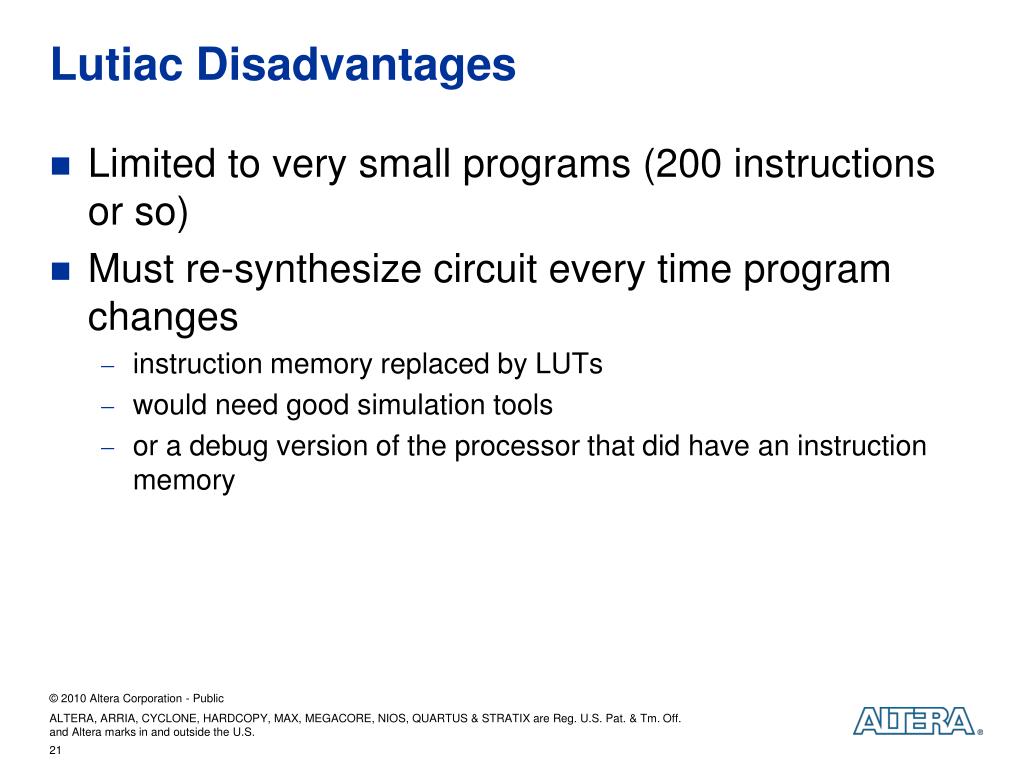

21. Lutiac Disadvantages • Limited to very small programs (200 instructions or so) • Must re-synthesize circuit every time program changes • instruction memory replaced by LUTs • would need good simulation tools • or a debug version of the processor that did have an instruction memory

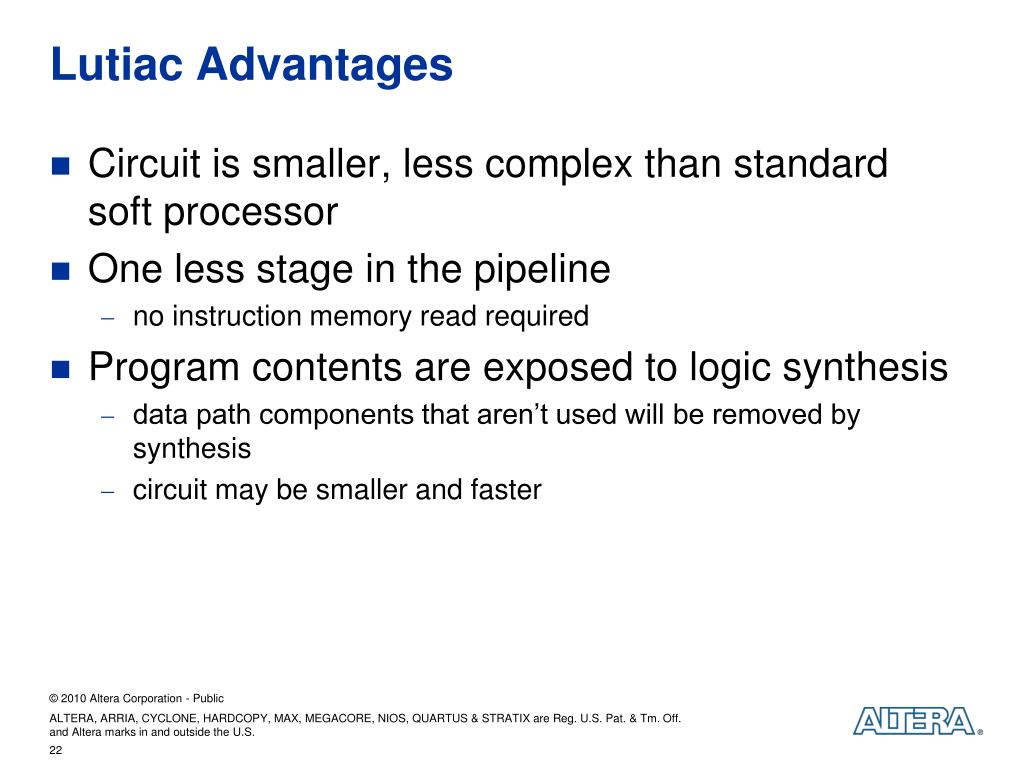

22. Lutiac Advantages • Circuit is smaller, less complex than standard soft processor • One less stage in the pipeline • no instruction memory read required • Program contents are exposed to logic synthesis • data path components that aren’t used will be removed by synthesis • circuit may be smaller and faster

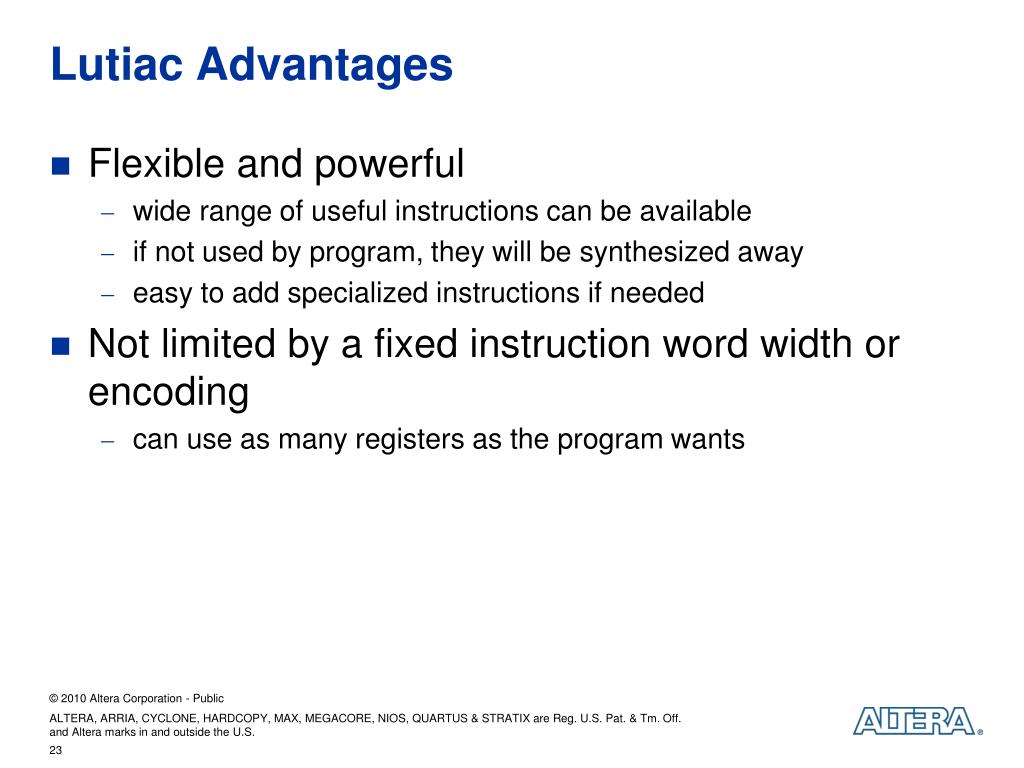

23. Lutiac Advantages • Flexible and powerful • wide range of useful instructions can be available • if not used by program, they will be synthesized away • easy to add specialized instructions if needed • Not limited by a fixed instruction word width or encoding • can use as many registers as the program wants

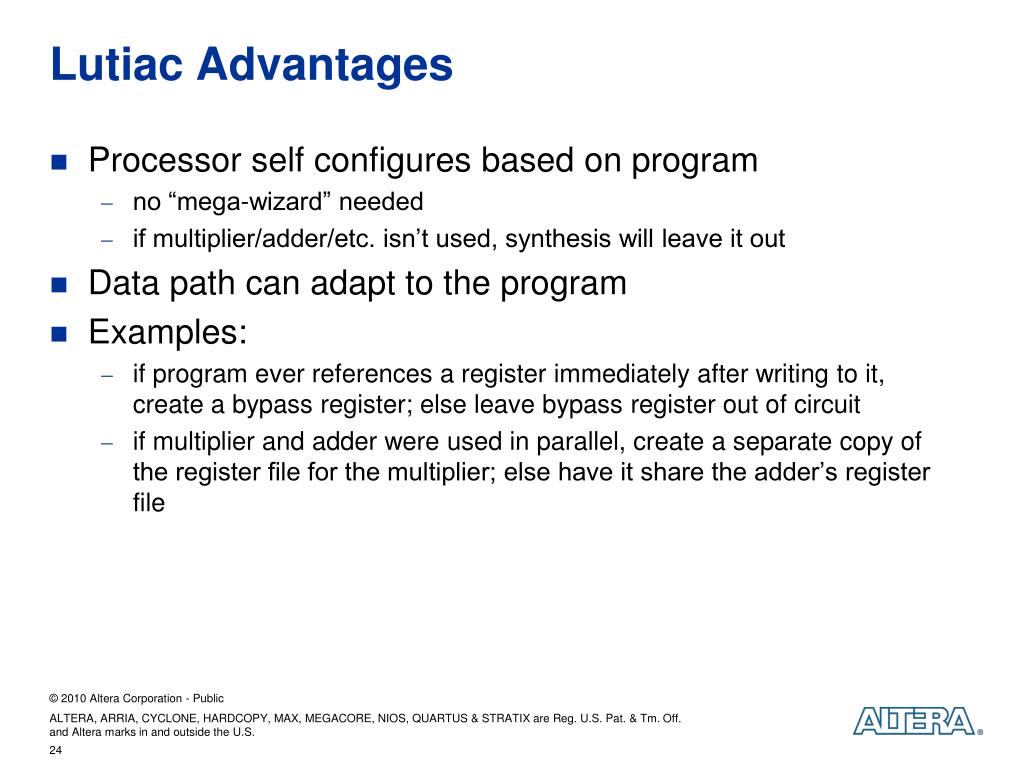

24. Lutiac Advantages • Processor self configures based on program • no “mega-wizard” needed • if multiplier/adder/etc. isn’t used, synthesis will leave it out • Data path can adapt to the program • Examples: • if program ever references a register immediately after writing to it, create a bypass register; else leave bypass register out of circuit • if multiplier and adder were used in parallel, create a separate copy of the register file for the multiplier; else have it share the adder’s register file

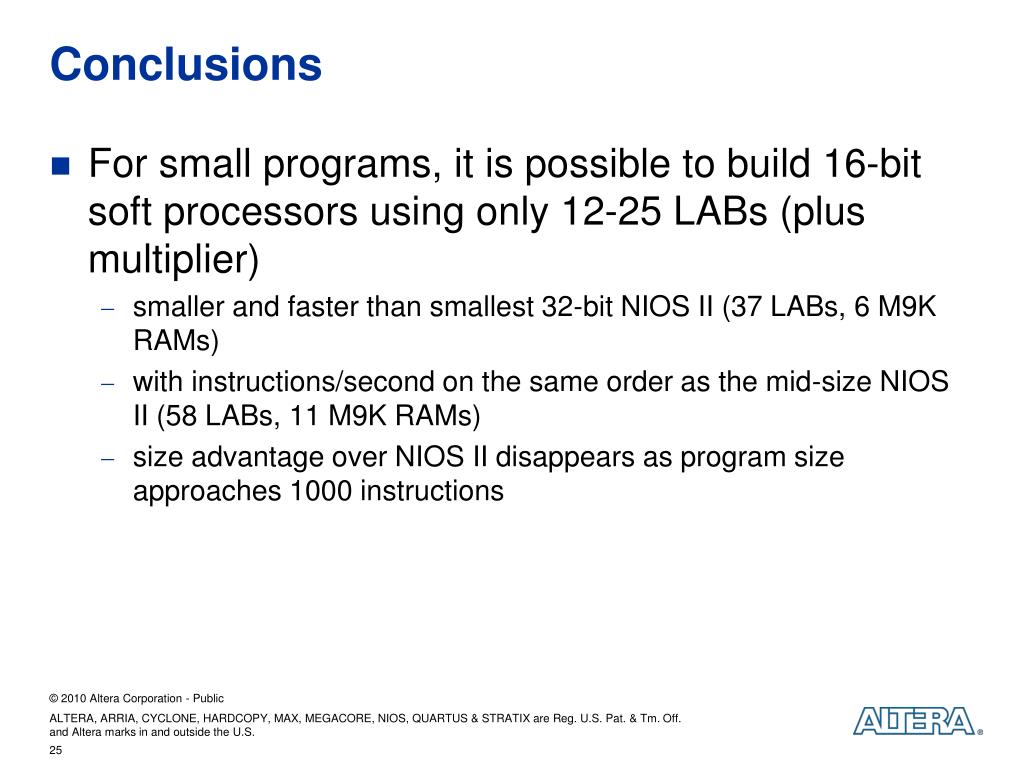

25. Conclusions • For small programs, it is possible to build 16-bit soft processors using only 12-25 LABs (plus multiplier) • smaller and faster than smallest 32-bit NIOS II (37 LABs, 6 M9K RAMs) • with instructions/second on the same order as the mid-size NIOS II (58 LABs, 11 M9K RAMs) • size advantage over NIOS II disappears as program size approaches 1000 instructions
