Digitization with Millennium & CONTENTdm

1. Digitization with Millennium & CONTENTdm Stuart Hunt IUG17 Anaheim May 2009

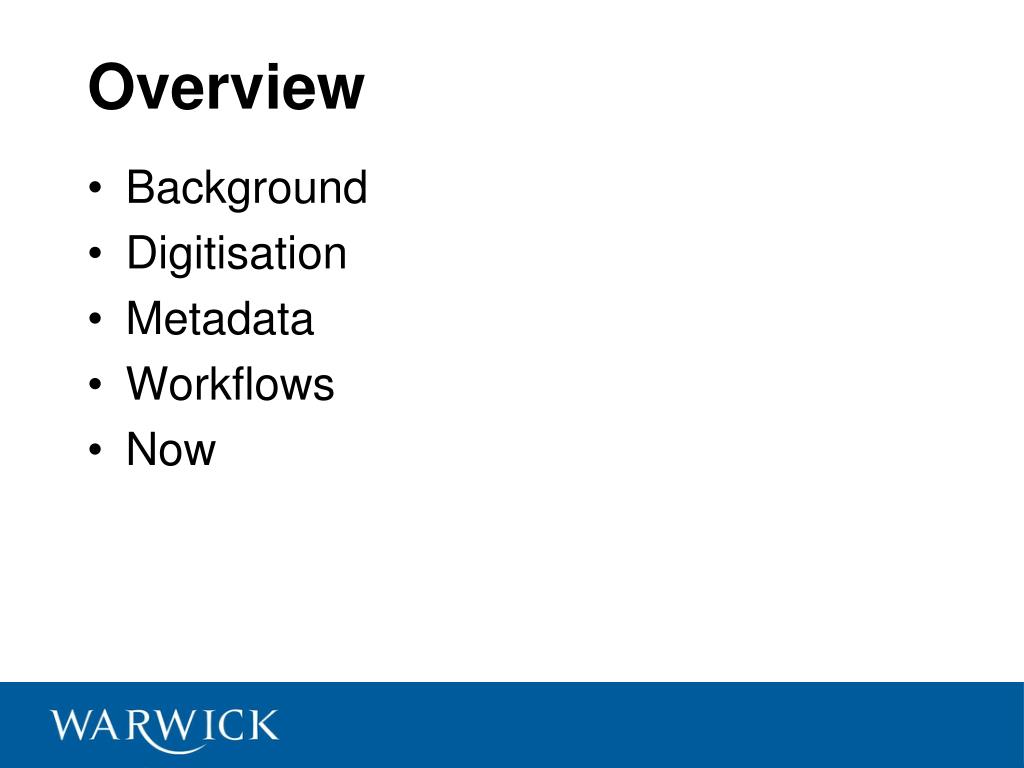

2. Overview • Background • Digitisation • Metadata • Workflows • Now

3. University of Warwick • Royal Charter 1965 • Russell Group • 16,000 FTE students • 5000 staff

4. University Library • Approx 1.1 million volumes • 170 staff (110 FTE) • Millennium 2003 • Approx 100,000 issues/renewals per yr • Approx 28,000 new books per yr • RLUK member • OCLC member

5. Content • Marandet Collection • 4000+ French plays 1720 to 1900 • Acquired 1970s • Guide published 1979 • Bibliographic records in Millennium, RLUK, COPAC, & WorldCat • No IPR issues

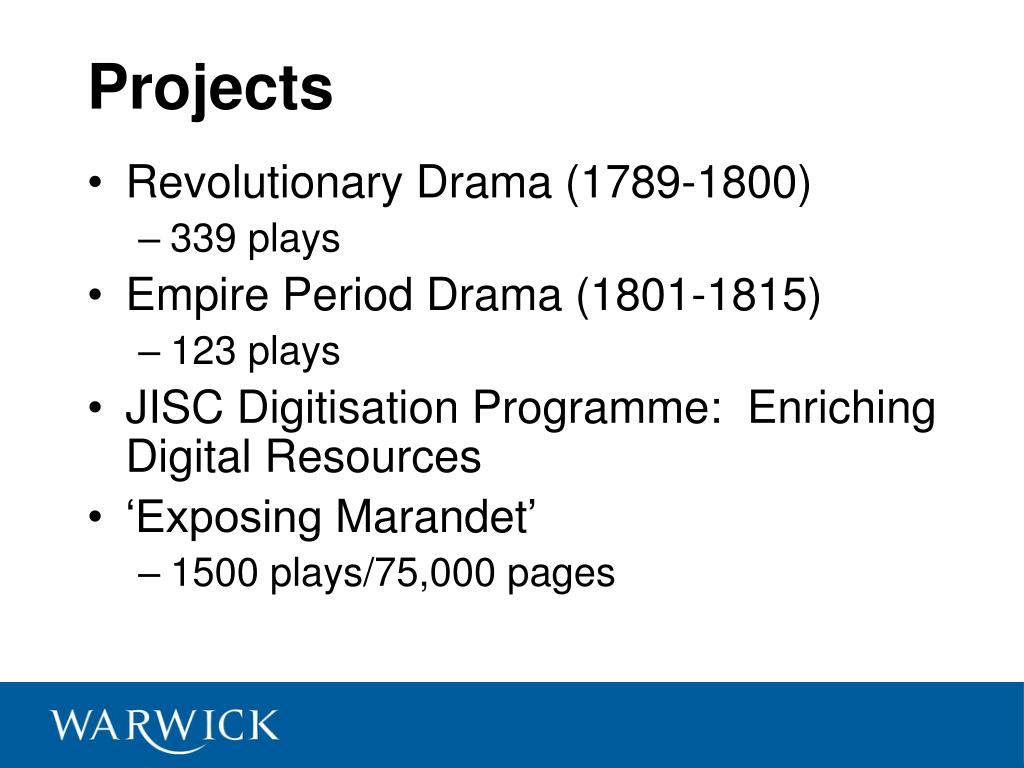

7. Projects • Revolutionary Drama (1789-1800) • 339 plays • Empire Period Drama (1801-1815) • 123 plays • JISC Digitisation Programme: Enriching Digital Resources • ‘Exposing Marandet’ • 1500 plays/75,000 pages

8. Objectives • Cross-searching • Full-text searching • Integration with existing & future systems • Millennium • Web • Vertical search solution

9. Options • Existing solutions • Millennium • In-house web publishing tool • Separate product • Digital collection management software • CONTENTdm • Solution would drive approach taken

10. Digital production • Image files • TIFF & JPEG derivative • Full colour & greyscale • Outsourced • Text files/full-text transcripts • OCR quality initially not acceptable • Re-keying • Outsourced

11. Media Management • Tried & tested solution • Quick & easy • Link digital content • D2D process simplified • Existing bibs • New bibs • Use existing authentication if required

13. Media Management • No full-text searching • No cross-collection searching (unless in separate scope) • Tied to MARC metadata • Metadata enrichment difficult • Image file format • Not a total solution

14. CONTENTdm • Full-text & cross-collection searching • Not tied to MARC metadata • Metadata enrichment simple • Local Windows server • Initial licence <50K images • Upgraded to unlimited licence 2008

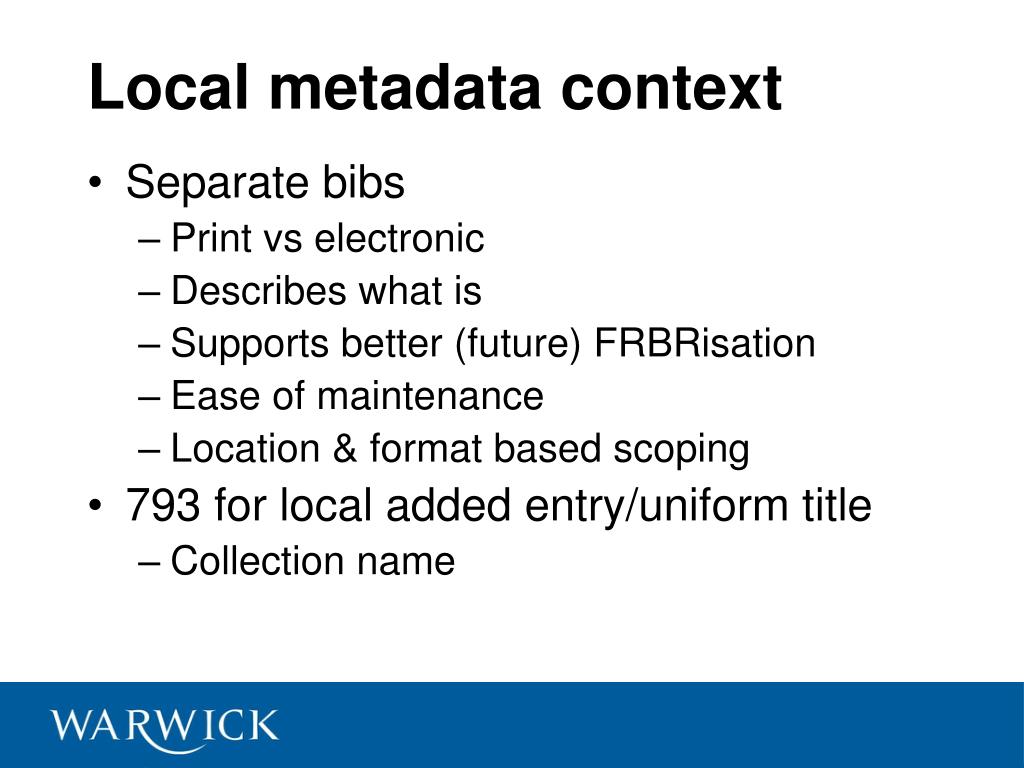

15. Local metadata context • Separate bibs • Print vs electronic • Describes what is • Supports better (future) FRBRisation • Ease of maintenance • Location & format based scoping • 793 for local added entry/uniform title • Collection name

16. Metadata option 1 • Create metadata within CONTENTdm • Play-by-play • Metadata already present in Millennium

17. Metadata option 1 • Assumes that metadata is already available • Not scalable • Poor use of resources • Does not allow data to work harder or smarter

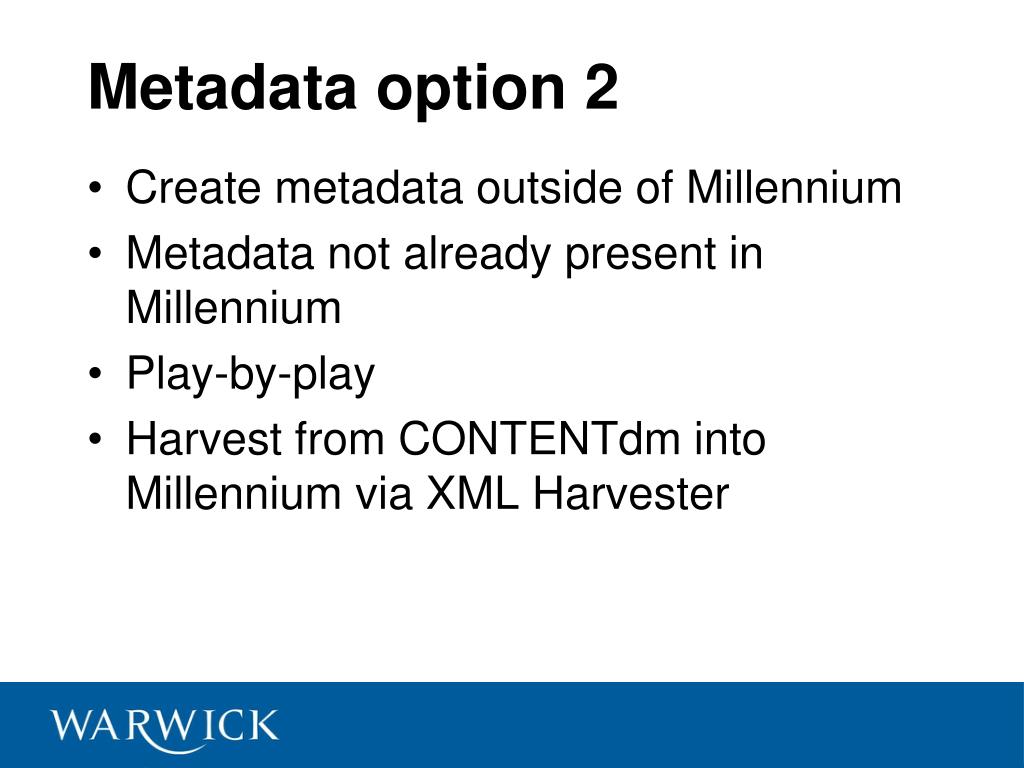

18. Metadata option 2 • Create metadata outside of Millennium • Metadata not already present in Millennium • Play-by-play • Harvest from CONTENTdm into Millennium via XML Harvester

19. XML Harvester • Single configuration file • Needs to be edited for each separate resource • Uses XSLT not load table(s) • Major changes (e.g. harvest different schema) may need to be done by III

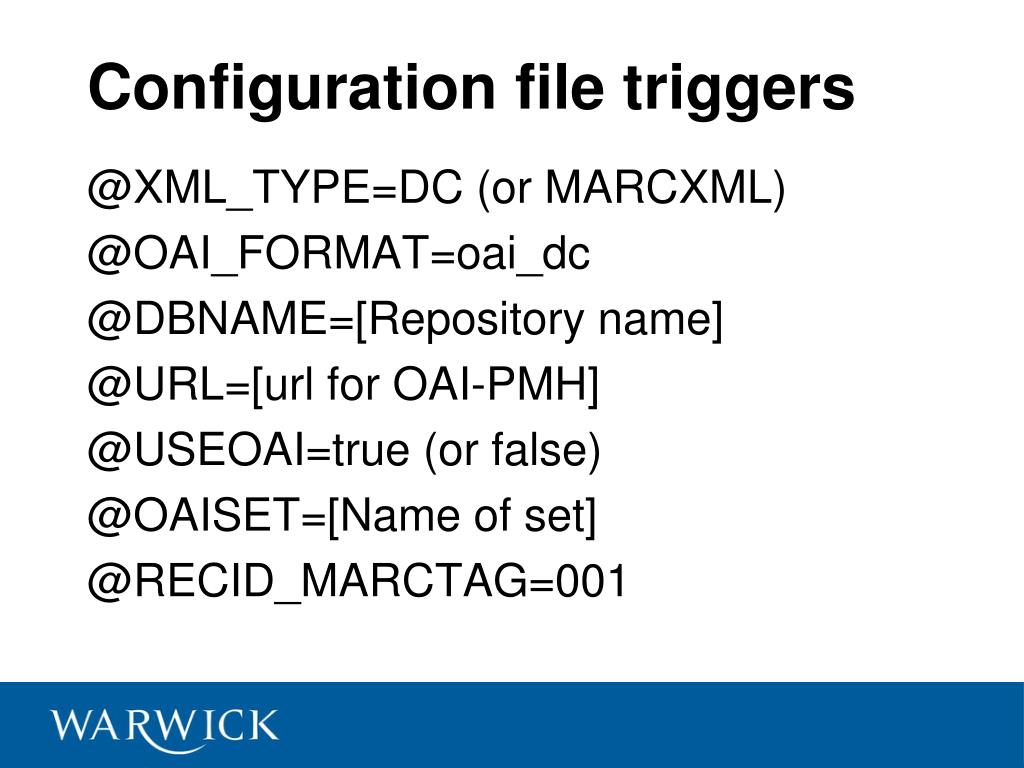

20. Configuration file triggers @XML_TYPE=DC (or MARCXML) @OAI_FORMAT=oai_dc @DBNAME=[Repository name] @URL=[url for OAI-PMH] @USEOAI=true (or false) @OAISET=[Name of set] @RECID_MARCTAG=001

21. XML Harvester

22. Harvested metadata • Loaded through Data Exchange • Significant re-editing • Tags & indicators • Diacritics • Creating attached items or holdings records

23. Harvested metadata

24. Metadata option 3 • Batchloadinto CONTENTdm via delimited file from Create Lists • Cross-walk MARC21 to DC • Directory structure

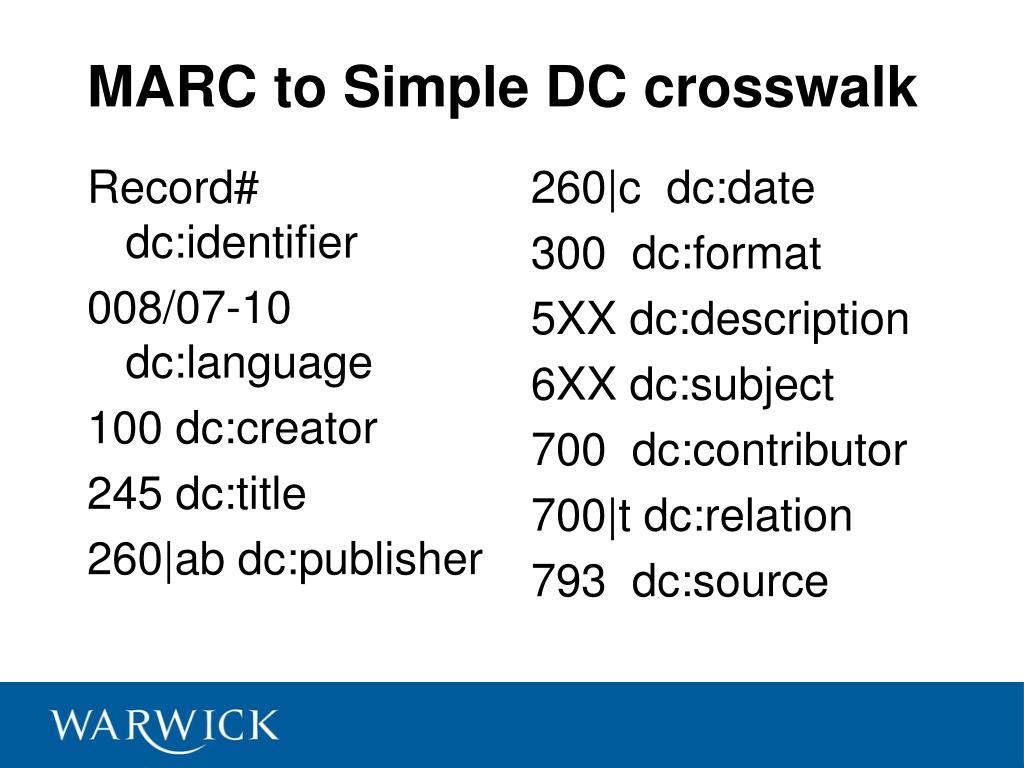

25. Record# dc:identifier 008/07-10 dc:language 100 dc:creator 245 dc:title 260|ab dc:publisher 260|c dc:date 300 dc:format 5XX dc:description 6XX dc:subject 700 dc:contributor 700|t dc:relation 793 dc:source MARC to Simple DC crosswalk

26. MARC – DC Crosswalk

27. Additional DC elements • dc:rights • dc:type • Transcript mapped to dc:description

28. Metadata workflow • Create separate bibs for e-versions • Export print records via Data Exchange • MarcEdit to remove extraneous tags (907, etc) • Insert 006, 007, 008/23, GMD, 533 • Re-import into Millennium as new bibs • [856 CONTENTdm reference urladded]

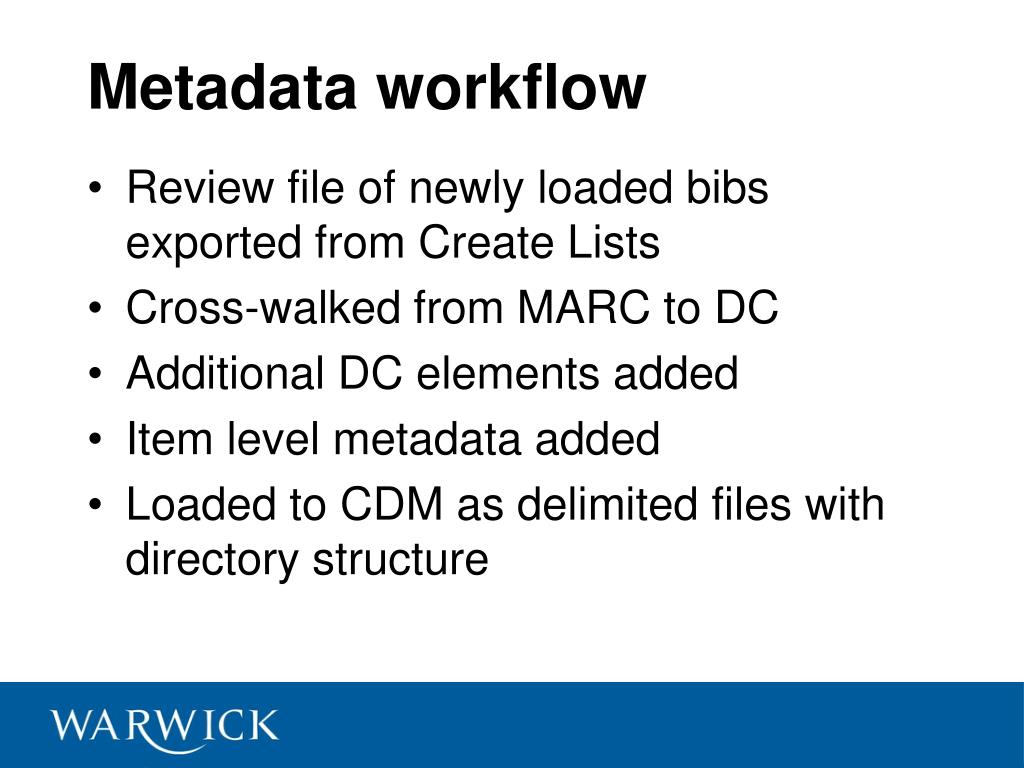

29. Metadata workflow • Review file of newly loaded bibs exported from Create Lists • Cross-walked from MARC to DC • Additional DC elements added • Item level metadata added • Loaded to CDM as delimited files with directory structure

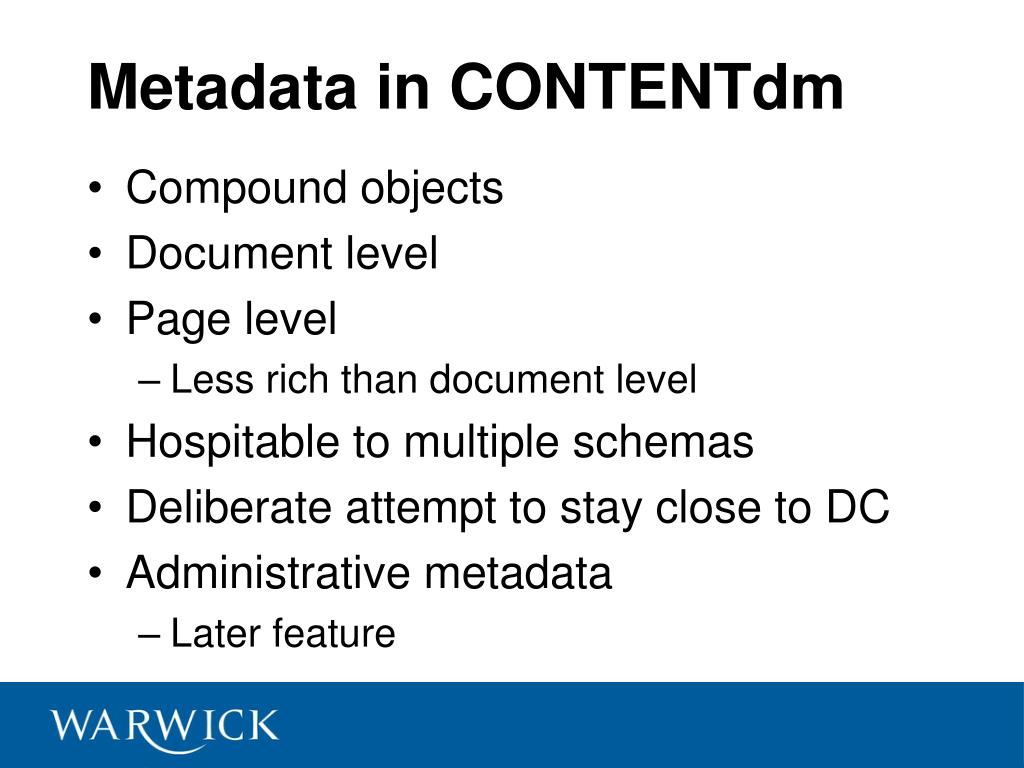

30. Metadata in CONTENTdm • Compound objects • Document level • Page level • Less rich than document level • Hospitable to multiple schemas • Deliberate attempt to stay close to DC • Administrative metadata • Later feature

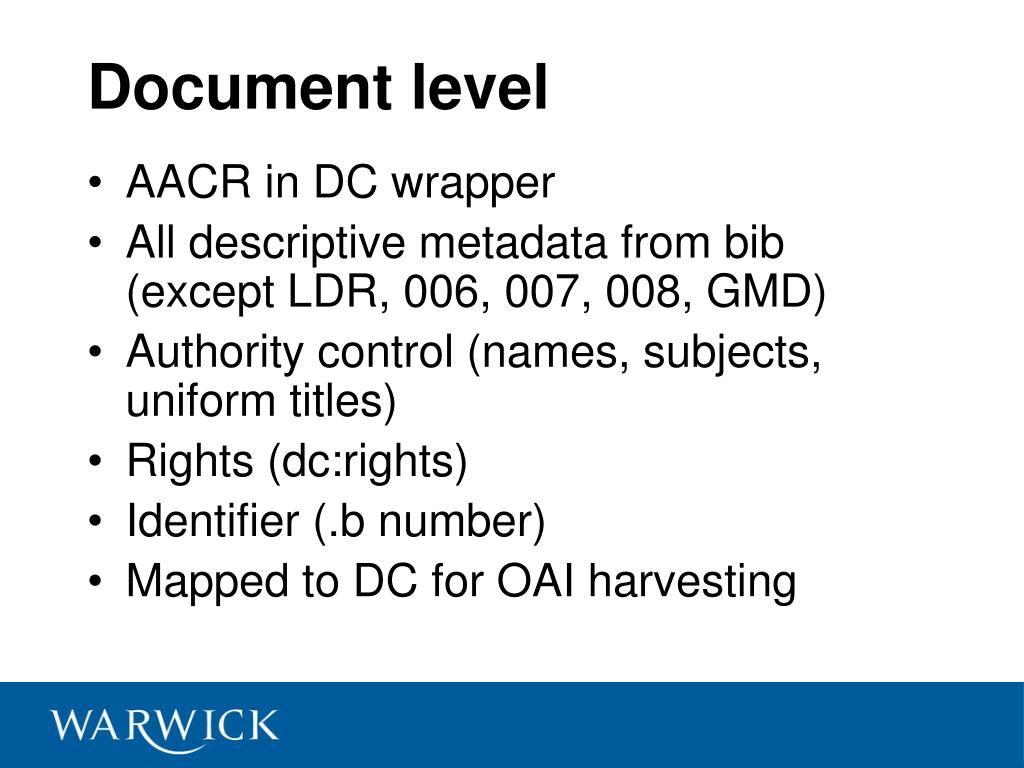

31. Document level • AACR in DC wrapper • All descriptive metadata from bib (except LDR, 006, 007, 008, GMD) • Authority control (names, subjects, uniform titles) • Rights (dc:rights) • Identifier (.b number) • Mapped to DC for OAI harvesting

32. Page level • Basic descriptive metadata (creator, title, publisher, date) • Rights (dc:rights) • Identifier (.b number) • Transcript (dc:description) • No OAI harvesting at page level • Local decision

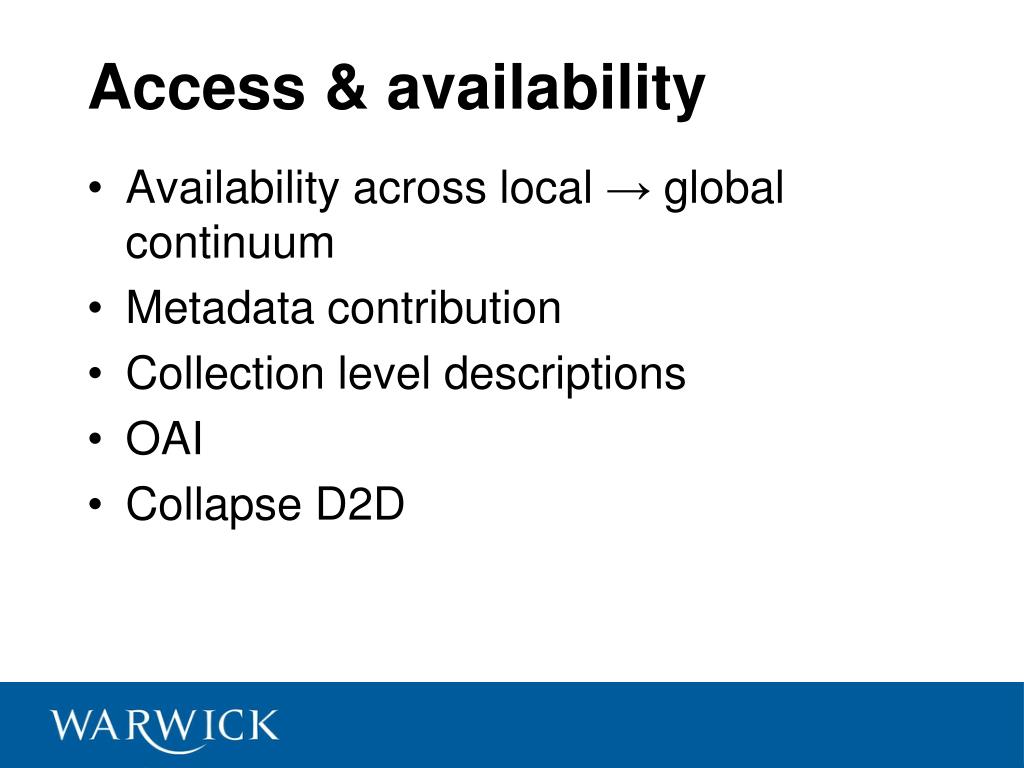

33. Access & availability • Availability across local → global continuum • Metadata contribution • Collection level descriptions • OAI • Collapse D2D

34. Metadata in WorldCat • Local CDM server – not able to use Connexion Digital Import • Bug between WorldCat and CDM for compound objects • FRBRized display in worldcat.org potentially impedes discovery

35. Now • ‘Exposing Marandet’ completes 9/2009 • Established service 4 collections • Ancien Régime Drama • Revolutionary Drama • Empire Period Drama • Restoration Drama • Integration with course delivery • Metadata enrichment to/from CÉSAR

36. Links • http://go.warwick.ac.uk/fac/arts/french/marandet/ • http://www.jisc.ac.uk/whatwedo/programmes/digitisation/enrichingdigi/marandet.aspx • http://webcat.warwick.ac.uk • http://contentdm.warwick.ac.uk
