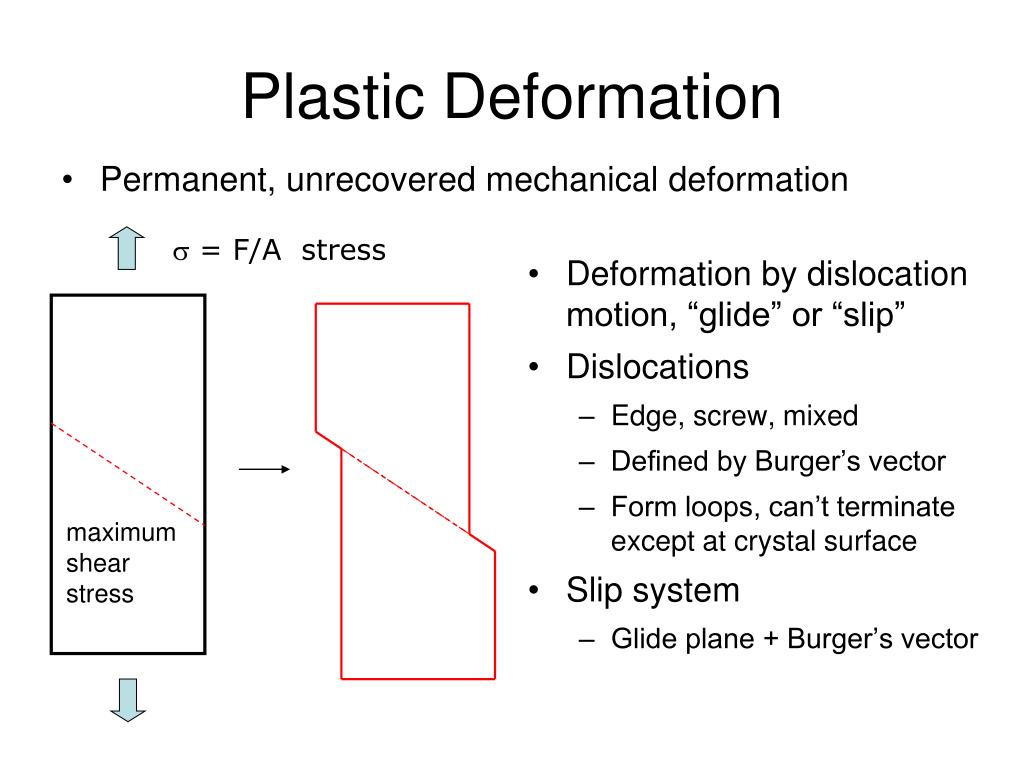

1. Plastic Deformation • Permanent, unrecovered mechanical deformation • Deformation by dislocation motion, “glide” or “slip” • Dislocations • Edge, screw, mixed • Defined by Burger’s vector • Form loops, can’t terminate except at crystal surface • Slip system • Glide plane + Burger’s vector s = F/A stress maximum shear stress

2. a3 a2 b = a/2 <1 1 0> | b | = a/2 a1 [1 1 0] Crystallography of Slip • Slip system = glide plane + burger’s vector • Correspond to close-packed planes + directions • Why? • Fewest number of broken bonds • Cubic close-packed • Closest packed planes • {1 1 1} • 4 independent planes • Closest packed directions • Face diagonals • <1 1 0> • 3 per plane (only positive) • 12 independent slip systems

3. HCP “BCC” b = a <1 0 0> | b | = a b = a/2 <1 1 1> | b | = 3a/2 • Planes {1 1 0} • 6 independent planes • Directions <1 1 1> • 2 per plane (only positive) • 12 independent slip systems • Planes {0 0 1} • 1 independent plane • Directions <1 0 0> • 3 per plane (only positive) • 3 independent slip systems Occasionally also {1 1 2} planes in “BCC” are slip planes Diamond structure type: {1 1 1} and <1 1 0> --- same as CCP, but slip less uncommon

4. Why does the number of independent slip systems matter? Are any or all or some of the grains in the proper orientation for slip to occur? s = F/A   HCP   CCP maximum shear stress • Large # of independent slip systems in CCP at least one will be active for any particular grain • True also for BCC • Polycrystalline HCP materials require more stress to induce deformation by dislocation motion

5. Dislocations in Ionic Crystals viewing edge dislocations as the termination defect of “extra half-planes” like charges touch 2 1 like charges do not touch long burger’s vector compared to metals compare possible slip planes (1) slip brings like charges in contact (2) does not bring like charges in contact

6. Energy Penalty of Dislocations bonds are compressed E R0 R compression tension Energy / length  |b|2 Thermodynamically unfavorable Strong interactions bonds are under tension attraction  annihilation repulsion  pinning Too many dislocations become immobile

7. Summary • Materials often deform by dislocation glide • Deforming may be better than breaking • Metals • CCP and BCC have 12 indep slip systems • HCP has only 3, less ductile • |bBCC| > |bCCP|  higher energy, lower mobility • CCP metals are the most ductile • Ionic materials/Ceramics • Dislocations have very high electrostatic energy • Deformation by dislocation glide atypical • Covalent materials/Semiconductors • Dislocations extremely rare Now on to elastic deformation
