  1. SVX Simulation 04th Apr, 2008 Maki Kurosawa

  2. Current Status • Input the geometry of omega shape and SVX4 into a PISA code. cross section of strip layer Omega Shape strip layer Cooling Tube SVX4 80mm

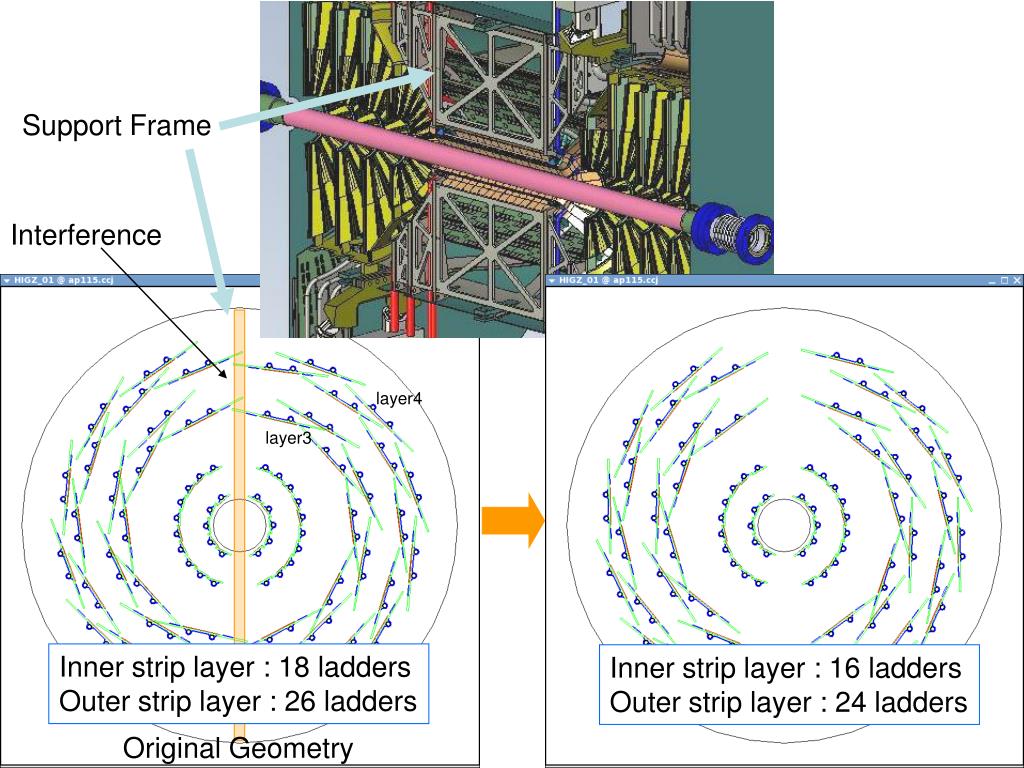

  3. Support Frame Interference layer4 layer3 Inner strip layer : 18 ladders Outer strip layer : 26 ladders Inner strip layer : 16 ladders Outer strip layer : 24 ladders Original Geometry

  4. Single Photon Events X-Y view of hit position on silicon sensor vertex position (not initial vertex) Next step simulation study in Au+Au collision (200GeV HIJING events) multiple scattering, DCA resolution, reconstruction efficiency…
