  1. WECC TRD/NERC TADS Webinar September, 2009

  2. WECC TRD and NERC TADS • Brian Keel, Salt River Project • TRD and TADS Timelines • How TRD and TADS fit together • Review of Spreadsheets • Differences in TRD – TADS, attributes • Doug Tucker, WECC • Data Gathering Discussion & Results • WECC Data Handling

  3. WECC Transmission Reliability Database • Started as sub group of the Reliability Subcommittee • Spring 2004 • WECC PCC - OC 2005, re-tool for attributes • Formed TRDTF Fall 2005 • WECC PCC, OC and Board approved Fall of 2006 • Purposes of TRD: • WECC PCC Goal • WECC PCC and OC presentations over 2005 • Completed with added physical attributes

  4. WECC Transmission Reliability Database • Purpose of the TRD Development • Transmission Outage Database • PCUR, used with Performance Category Upgrade Requests • Primary Use - RPEWG – monitor, evaluate and report performance to WECC, core charge of RPEWG • WECC transmission line performance and tracking • Facilitate probabilistic planning • Provide common format for data collection, i.e., all of Western adopted for their use

  5. Purpose of the TRD • In a 1996 WSCC survey, 90%, criteria expanded to be more probabilistic based. • PBRC Phase I development and implementation of event probabilities into Performance Table. Table S-1 • Ultimate goal is to produce a more economically efficient system without sacrificing system reliability.

  6. WECC TRD and NERC TADS • WECC TRD Sheets • Transmission Circuit Attribute Table • Same as last year; Miles, Type, Voltage, Conductors per Phase, Overhead Ground Wires, Insulation Type, Cable Type, Structure Materials, Structure Types, Circuits per Structure, Terrain Exposure, Elevation Exposure. • Transformer Attribute Table • Same as last year; High and Low Side kV, Single or Multi, Rating.

  7. WECC TRD and NERC TADS • WECC TRD Documents • User’s Manual for Reporting WECC Common Transmission Outage Data • Forced Outage Performance of 200kV and above Transmission Lines, Cables and Transformers • Input Data Sheets formed • Costs of WECC Members and cost to WECC developed, presented and budgeted

  8. WECC Table W-1

  9. WECC TRD and NERC TADS • RPEWG • Members of the RPEWG (includes WECC Staff as Members of RPEWG) only have access to raw outage data • RPEWG Members listed on the WECC website • Access to data governed by RPIC, Approved Exhibit C • Raw outage performance compared to criteria of WECC Performance Criteria Table W-1

  10. WECC TRD and NERC TADS • TADS (TRD) overview • NERC wide data collection • AC circuits >= 200kV • Transformers Low Side >= 200kV • AC/DC Back to Back Converters >= 200kV AC Voltage • DC Circuits >= +/-200kV

  11. WECC TRD and NERC TADS • TADS Forms • 1.1 Non – Reporting TO Statement • 1.2 Reporting TO Statement • 2.1 Tie Lines and Jointly Owned AC & DC • 2.2 Jointly Owned AC/DC BTB Converters • 3.1 AC & DC Circuit Inventory Data • 3.2 Transformer Inventory Data • 3.3 AC/DC BTB Converter Inverter Data • 3.4 Summary Automatic Outage Data • 4.1 AC Circuit Detailed Outage Data • 4.2 DC Circuit Detailed Outage Data • 4.3 Transformer Detailed Outage Data • 4.4 AC/DC BTB Converter Detailed Outage Data • 5.0 Event Code Data • Indicates WECC Members fill in these NERC TADS Forms • Indicates NERC data to be supplied by WECC from TRD Sheets

  12. WECC TRD and NERC TADS • Form 1.1 Non – Reporting TO Statement • TOS who do not own TRD/TADS Elements • Continuous submittal, “Once is Not Enough” • Form 1.2 Reporting TO Information • Business Contact • List of which Forms completed • NERC confidentiality default status of TO data

  13. WECC TRD and NERC TADS • Form 2.1 Tie Lines and Jointly Owned • Each Tie Line (s) TO has ownership • Mutual agreement and discussion between TOs

  14. TRD Sheet Review • Go to Each Individual Sheet for Discussion of individual column:

  15. Transmission Availability Database - TADS • TADS Metrics Calculated: • Inventory of AC & DC Equipment • Circuit & Transformer Outage F & D per outage initiation code • Circuit Sustained and Momentary Outage Metrics, Element or Other Initiated

  16. TRD and TADS Differences • TRD Data Differences: • Focus to Common Corridor Outages (RPEWG) • Physical Attribute Data Inputs • Circuits; • Outage Rates per • Conductors per Phase • Number of Ground Wires • Insulator Type • Structure Material • Structure Type • Terrain Exposure • Elevation Range

  17. Phase II Design • Phase II TADS designed to expand the collection of Phase I outage data to: • Planned Outage • Operational Outage – non automatic outage for purpose of avoiding emergency • Data collection will commence in 2011 for CY2010 data • Metrics Calculated: • Non – automatic outage frequency per element • Outage Duration per Element • Mean Element outage time • Median Element outage time • Percent of Elements without outage • Max percent of simultaneous outage

  18. Phase II Design • Phase II: • Non – automatic Outage data will compliment Phase I data • Complete outage information may influence Standards • May allow bridging the gap between Planning and Operating environments • U.S. – avoids duplicative reporting for EIA non – automatic outage reporting • Care used in evaluation or using data: • Live line maintenance • Region to region comparisons are not recommended

  19. TRD & TADS Timelines • SEP 1st 2009 • Forms 1.1, 1.2 & 2.1 • Reporting & Non – Reporting Transmission Owner Sheets • Jointly-Owned AC & DC Circuits • FEB 1st 2010 • All 2009 Automatic Outage Data to WECC • MAR 1st 2010 • WECC Data Submittal to NERC

  20. WECC TRD and NERC TADS • New Items for 2009: • Sustained Outage Cause Code • “Unavailable” was removed • Initiating and Sustained will both need entered • Each TO must keep 5 years of supporting data for auto outage submittals • Phase II starts 1.01.10 • Training will be held late 2009, either WECC or NERC giving this training, 1 to 1 translation (WECC)

  21. Role of Regional Entities • The process involves a coordinated effort between NERC and the Regional Entities. This coordination is critical to the success of TADS. Regional Entities are responsible for the following tasks: • Request data from TOs. • Review tie lines and jointly-owned facilities to ensure that a single TO is responsible for TADS reporting. • Review inventory and outage data for consistency and completeness (but do not review a TO’s source data). • Assign common Event ID Codes for Events affecting more than one TO in their region. • Evaluate AC Circuit outages on common structures when the circuits are owned by different TOs.

  22. Data Submittal & Review

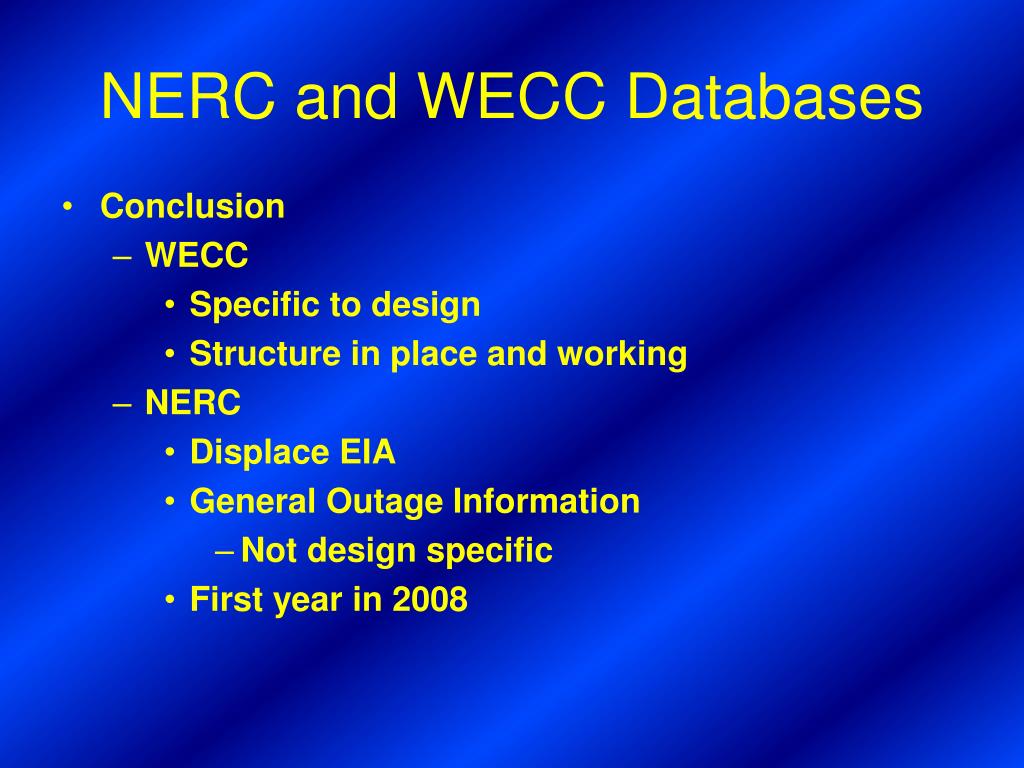

  23. NERC and WECC Databases • Conclusion • WECC • Specific to design • Structure in place and working • NERC • Displace EIA • General Outage Information • Not design specific • First year in 2008
