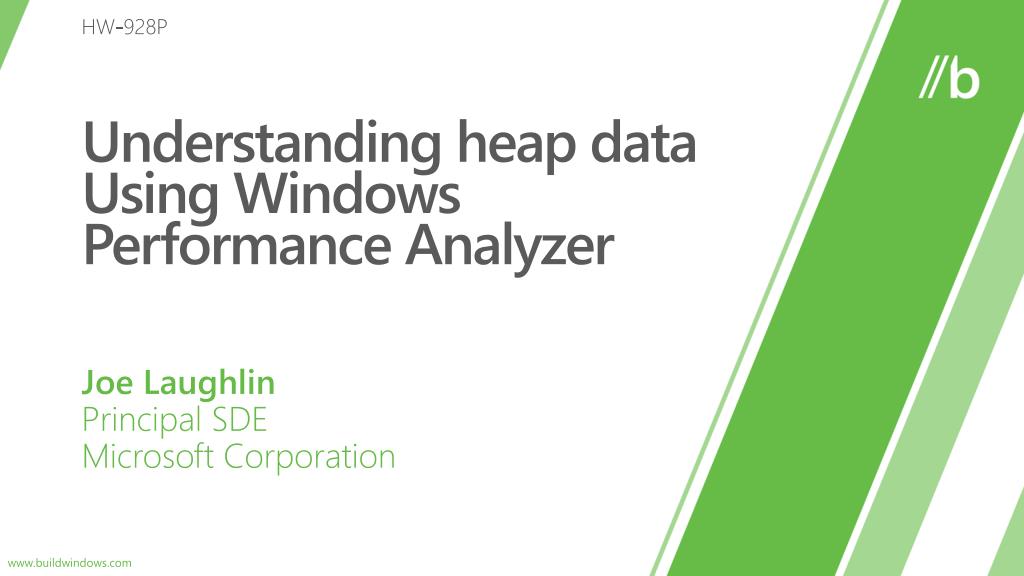

  1. HW-928P Understanding heap data Using Windows Performance Analyzer Joe Laughlin Principal SDE Microsoft Corporation

  2. Agenda • Heap Overview and Concepts • Demo: Collecting and Analyzing Heap Data • Guidelines and Best Practices • Key Takeaways

  3. Heap Overview

  4. Mainline (NT Heap) Low Fragmentation Heap (LFH) • VirtualAlloc • Services allocation requests of all sizes < 64 KB, until allocation thresholds are reached • Composed of sub-segments that service allocation requests using fixed size blocks once allocation thresholds are met • All allocation requests above 64 KB are serviced using VirtualAlloc The Windows Heap • The Windows heap is a memory pool that processes use to dynamically allocate memory as needed • Primary Audience – Application developers • The Windows heap has three basic allocation areas:

  5. Heap Overview • Heap is used for all dynamic allocations • Allocations are made directly via Heap APIs, HeapAlloc, HeapRealloc • C/C++ allocators , new, alloc, realloc, calloc • Understand how allocations impact the Heap usage of a process • Key Concepts • Low Fragmentation Heap (LFH) –once allocation thresholds are met • Sub-segment – chunks of LFH bucket size • Fragmentation – caused by intermingling allocations of differing lifetimes

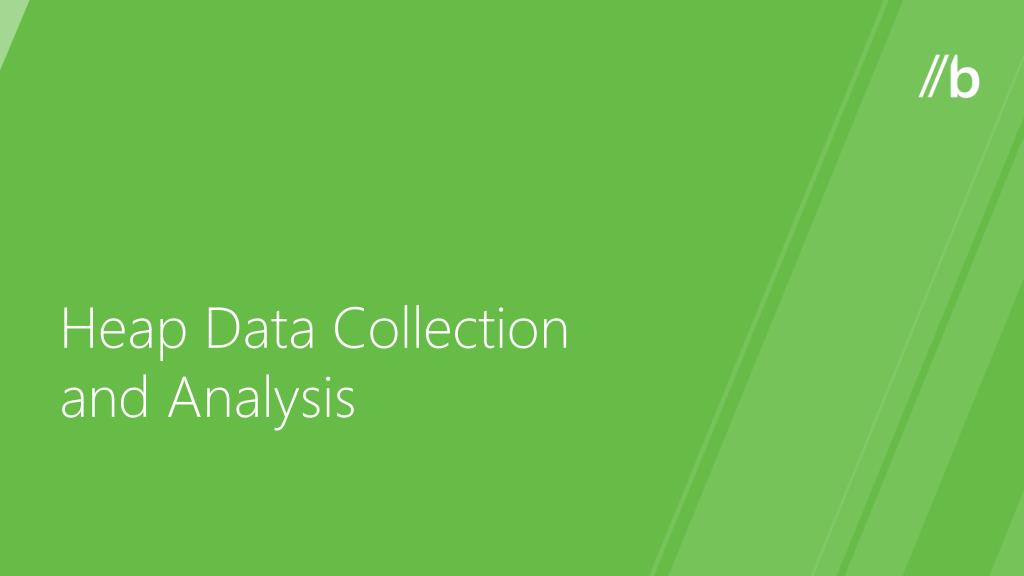

  6. Heap Data Collectionand Analysis

  7. Heap Vocabulary • Basic Data • Allocation Lifetime – How long an allocation remains outstanding • Stack – Stack corresponding to the allocation • Address – Address corresponding to allocation • Page Address – Page within which the allocation resides • LFH Bucket Size – size of block the allocation is placed within • Metadata • Sub-segment Slot Count – number of bucket sized chunks in the sub-segment • Heap Overhead – each allocation has an overhead of 8 bytes on 32 bit and 16 bytes on 64 bit • Context • Transient – allocations with a short lifetime, measured in milliseconds • Outstanding – allocations that remain alive at the point in time being investigated

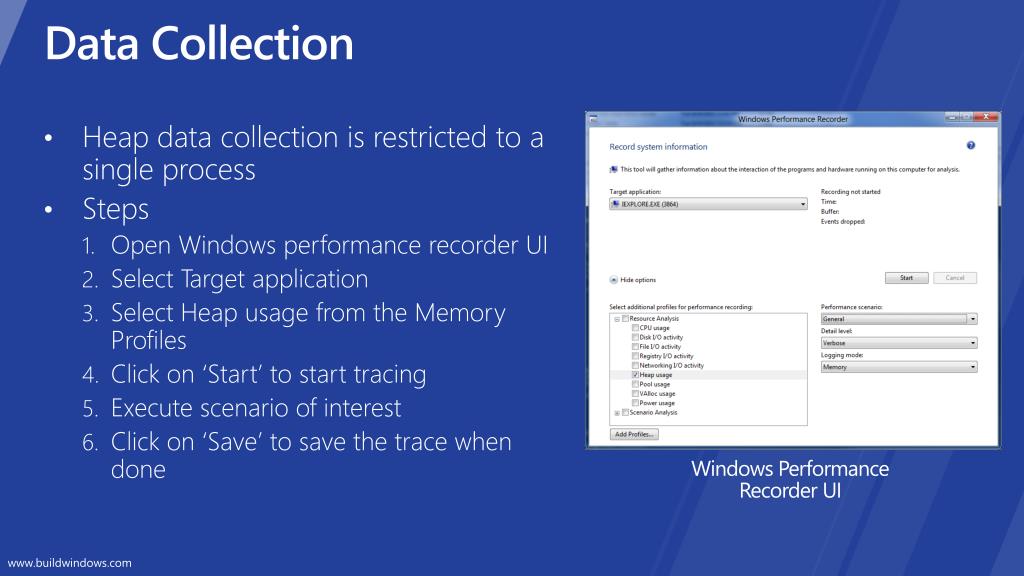

  8. Data Collection • Heap data collection is restricted to a single process • Steps • Open Windows performance recorder UI • Select Target application • Select Heap usage from the Memory Profiles • Click on ‘Start’ to start tracing • Execute scenario of interest • Click on ‘Save’ to save the trace when done Windows Performance Recorder UI

  9. WPA Heap Analysis • Heap Outstanding Allocation Size • What is the total size of allocations alive at a given point in time? • Heap Outstanding Allocation Count • What is the total number of allocations to a particular point in time? • Heap Total Allocation Size • What is the total number of allocation to a particular point in time? • Heap Total Allocation Count • What is the total number of allocations alive at a given point in time?

  10. WPA Heap Analysis • Low Frag Heap Outstanding Allocation Slots • What is the total number of allocations slots available at a given point in time? • Low Frag Heap Unused Allocation Slots • What is the total number of unused allocation slots at a given point in time? • Low Frag Heap Unused Allocation Slot Size • What is the total size of unused allocation slots at a given point in time? • Heap Extents • What is the size of the heaps and the contained allocations (includes overhead)

  11. Summary Table • Raw data is exposed via summary tables • Vocabulary • Allocation lifetime is expressed based on the visible region of the trace • AIFO - Allocated inside, freed outside • AIFI - Allocated inside, freed inside • AOFO - Allocated outside, freed outside • AOFI - Allocated outside, freed inside

  12. Demo

  13. Guidelines and Best Practices

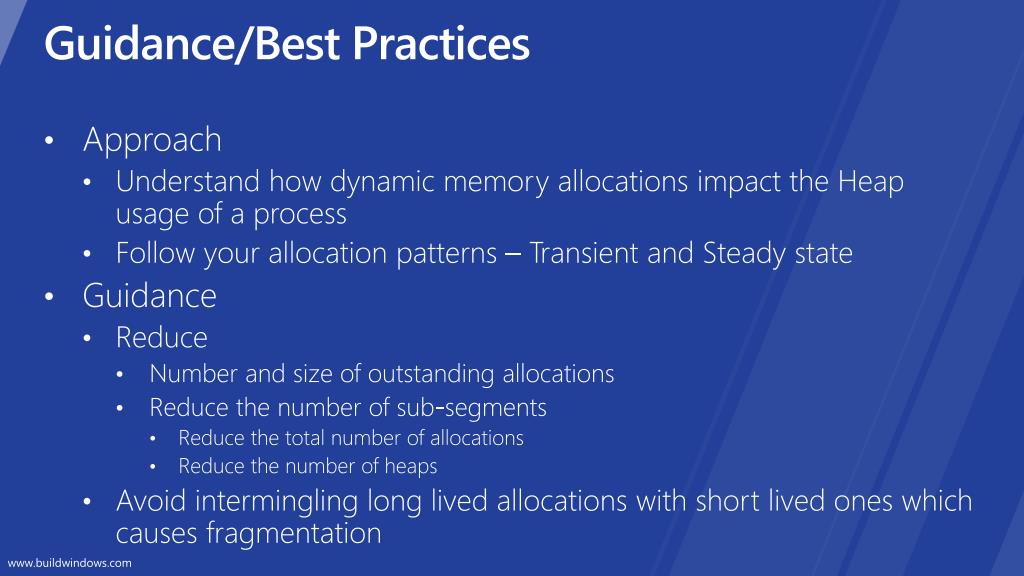

  14. Guidance/Best Practices • Approach • Understand how dynamic memory allocations impact the Heap usage of a process • Follow your allocation patterns – Transient and Steady state • Guidance • Reduce • Number and size of outstanding allocations • Reduce the number of sub-segments • Reduce the total number of allocations • Reduce the number of heaps • Avoid intermingling long lived allocations with short lived ones which causes fragmentation

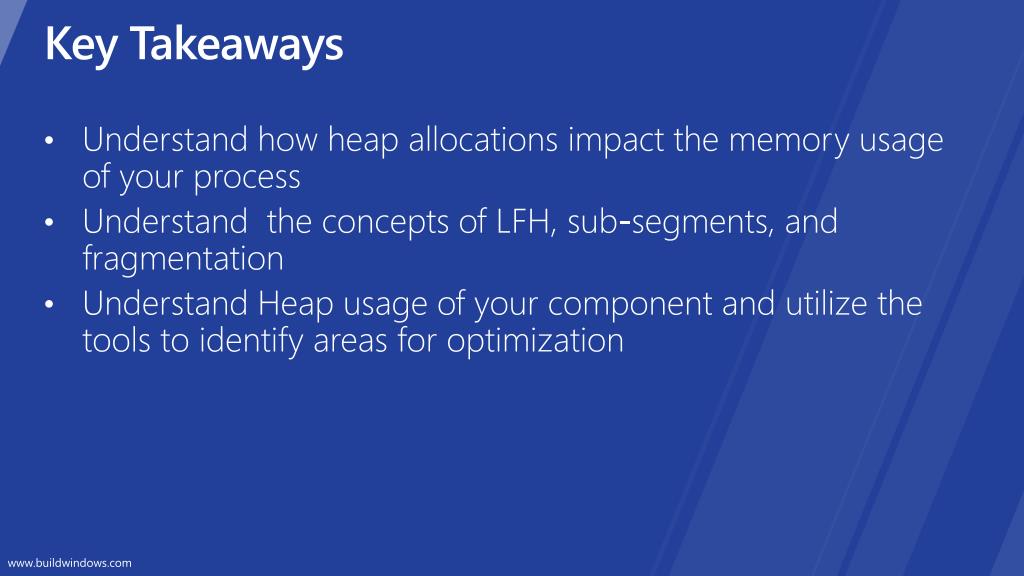

  15. Key Takeaways • Understand how heap allocations impact the memory usage of your process • Understand the concepts of LFH, sub-segments, and fragmentation • Understand Heap usage of your component and utilize the tools to identify areas for optimization

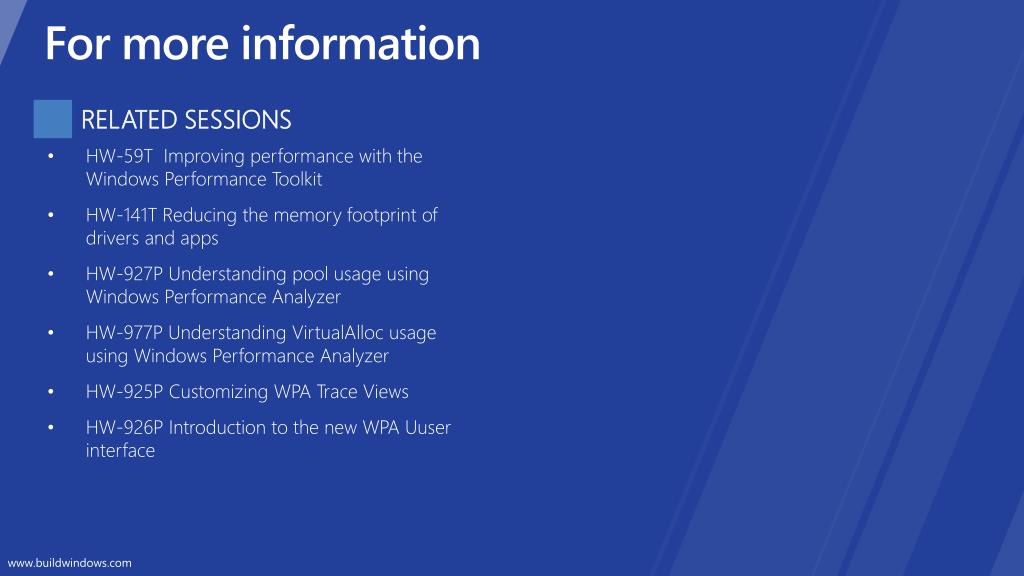

  16. For more information RELATED SESSIONS • HW-59T Improving performance with the Windows Performance Toolkit • HW-141T Reducing the memory footprint of drivers and apps • HW-927P Understanding pool usage using Windows Performance Analyzer • HW-977P Understanding VirtualAlloc usage using Windows Performance Analyzer • HW-925P Customizing WPA Trace Views • HW-926P Introduction to the new WPA Uuser interface

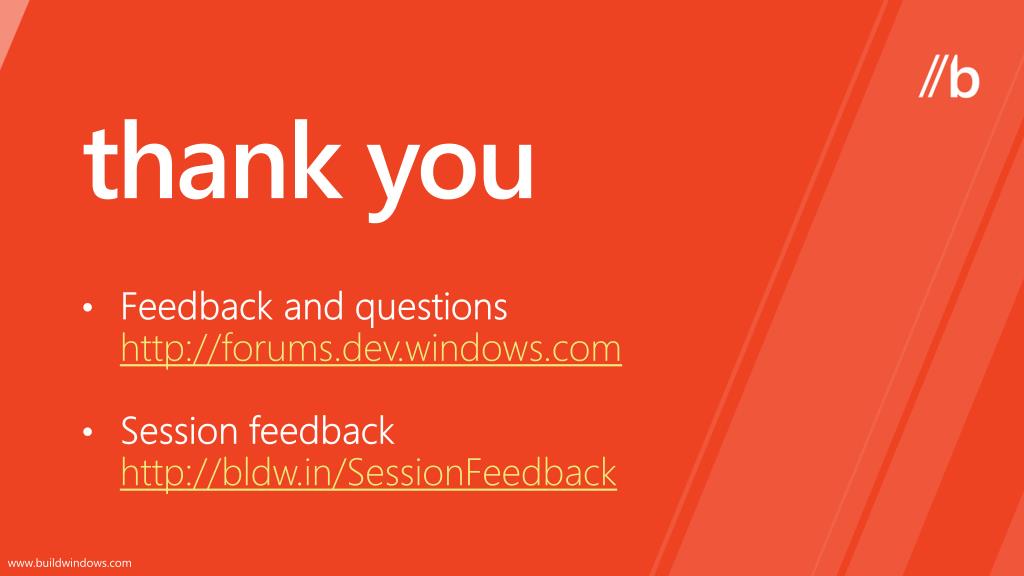

  17. thank you Feedback and questions http://forums.dev.windows.com Session feedbackhttp://bldw.in/SessionFeedback
