  1. Chapter 3 : Distributed Data Processing Business Data Communications, 6e

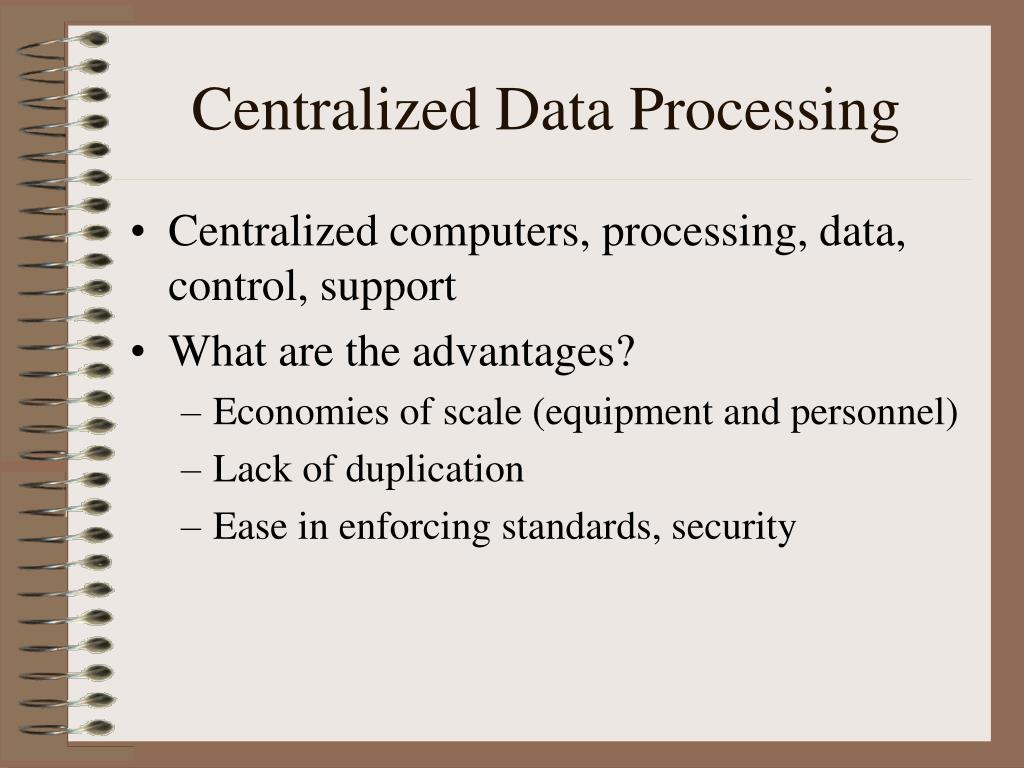

  2. Centralized Data Processing • Centralized computers, processing, data, control, support • What are the advantages? • Economies of scale (equipment and personnel) • Lack of duplication • Ease in enforcing standards, security

  3. Centralized Data Processing May Consist Of: • Centralized Computers • Centralized Processing • Centralized Data • Centralized Control • Centralized Support Staff

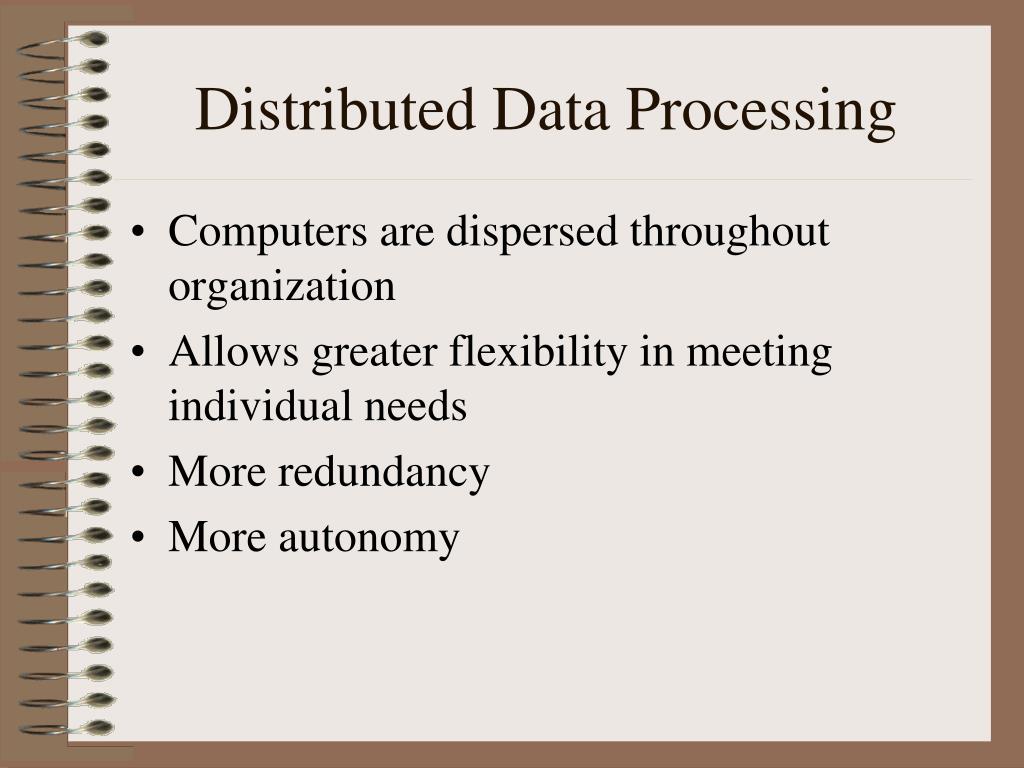

  4. Distributed Data Processing • Computers are dispersed throughout organization • Allows greater flexibility in meeting individual needs • More redundancy • More autonomy

  5. Why is DDP Increasing? • Dramatically reduced hardware costs • Dramatically increased distributed processing capabilities • Dramatically increased need for new applications and shorter development times • Ability to share data across multiple servers

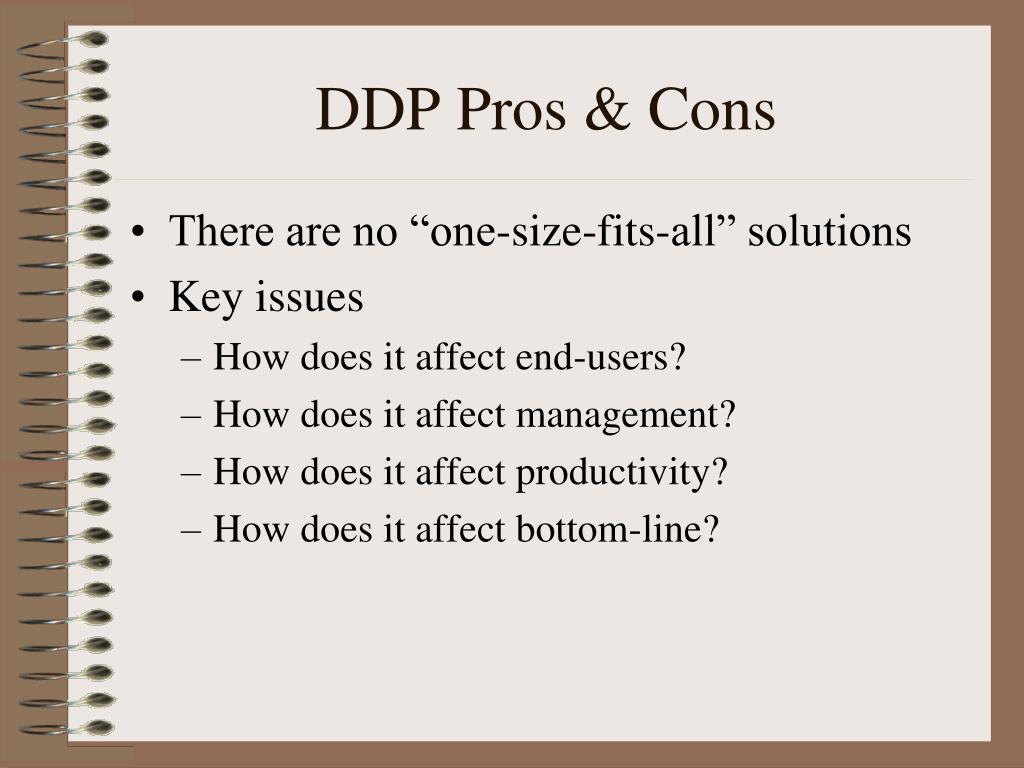

  6. DDP Pros & Cons • There are no “one-size-fits-all” solutions • Key issues • How does it affect end-users? • How does it affect management? • How does it affect productivity? • How does it affect bottom-line?

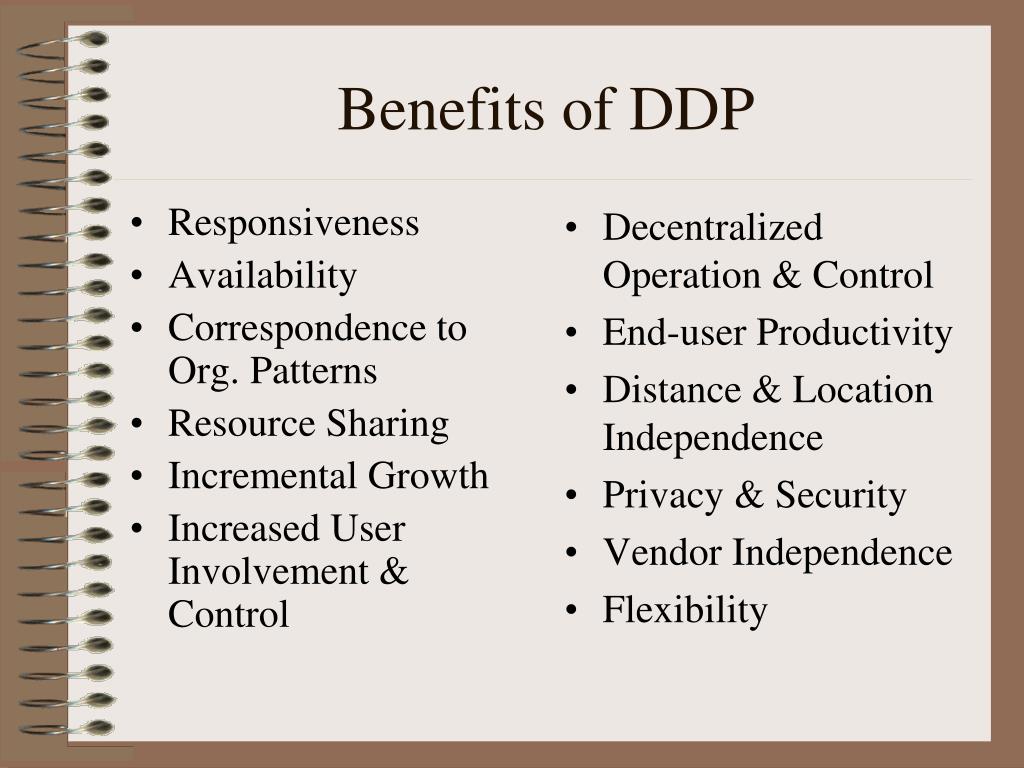

  7. Responsiveness Availability Correspondence to Org. Patterns Resource Sharing Incremental Growth Increased User Involvement & Control Decentralized Operation & Control End-user Productivity Distance & Location Independence Privacy & Security Vendor Independence Flexibility Benefits of DDP

  8. More difficulty test & failure diagnosis More dependence on communication technology Incompatibility of components Incompatibility of data More complex management & control Difficulty in control of corporate information resources Suboptimal procurement Duplication of effort Data integrity Security Drawbacks of DDP

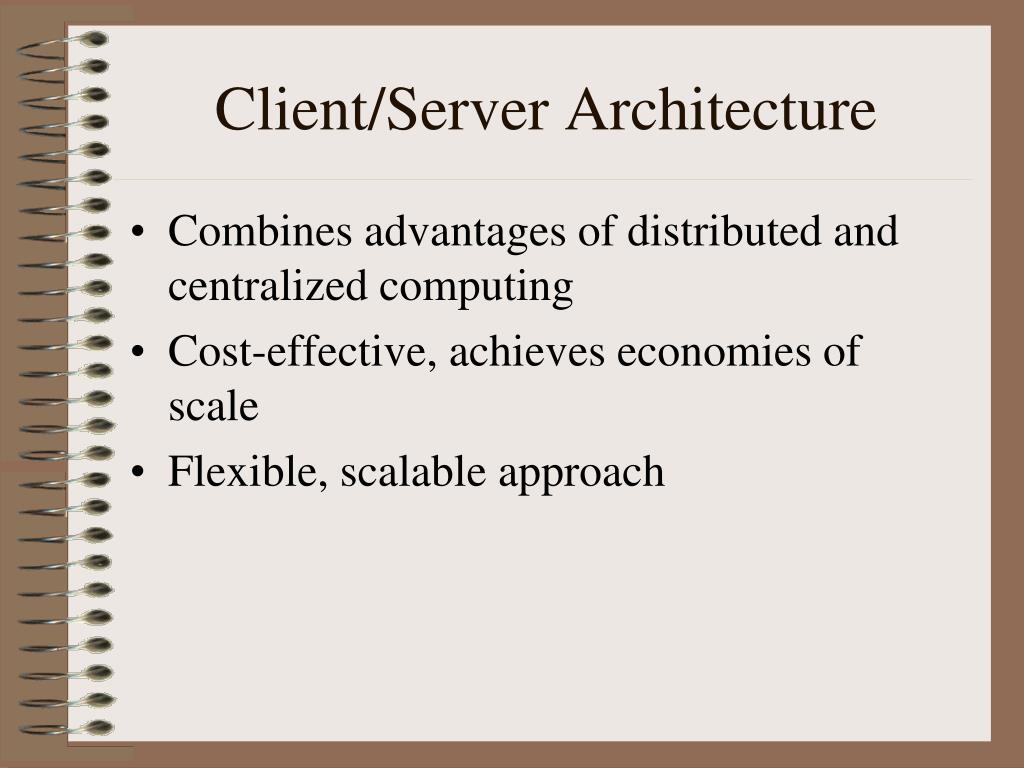

  9. Client/Server Architecture • Combines advantages of distributed and centralized computing • Cost-effective, achieves economies of scale • Flexible, scalable approach

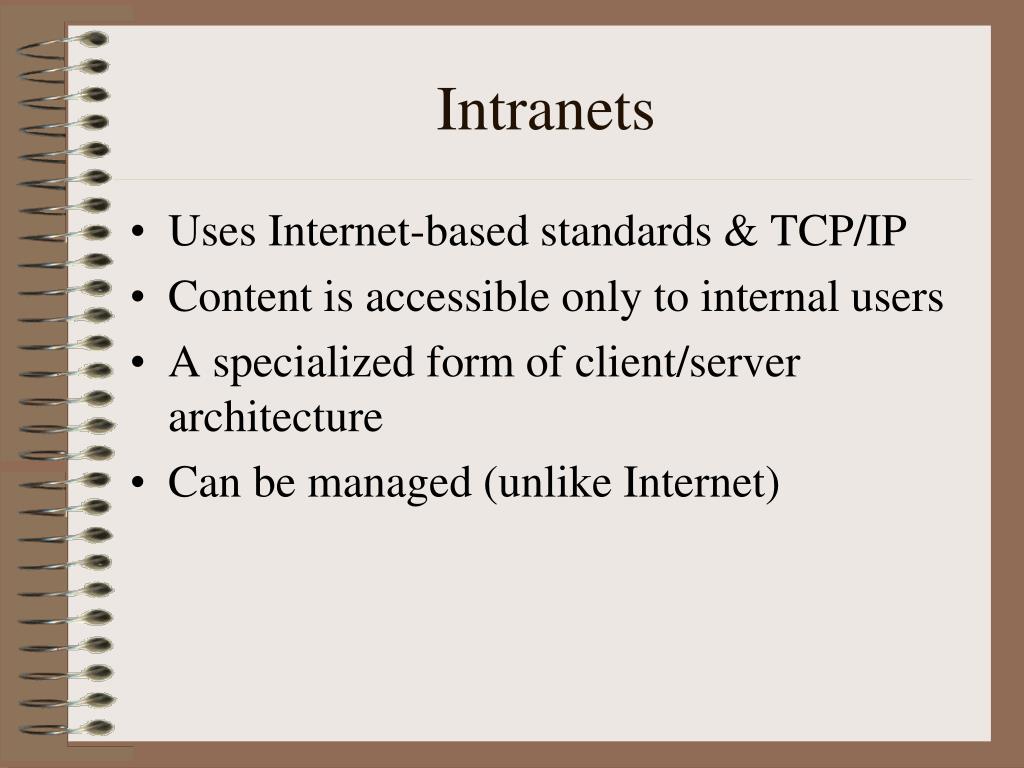

  10. Intranets • Uses Internet-based standards & TCP/IP • Content is accessible only to internal users • A specialized form of client/server architecture • Can be managed (unlike Internet)

  11. Extranets • Similar to intranet, but provides access to controlled number of outside users • Vendors/suppliers • Customers Utilizing Web technologies

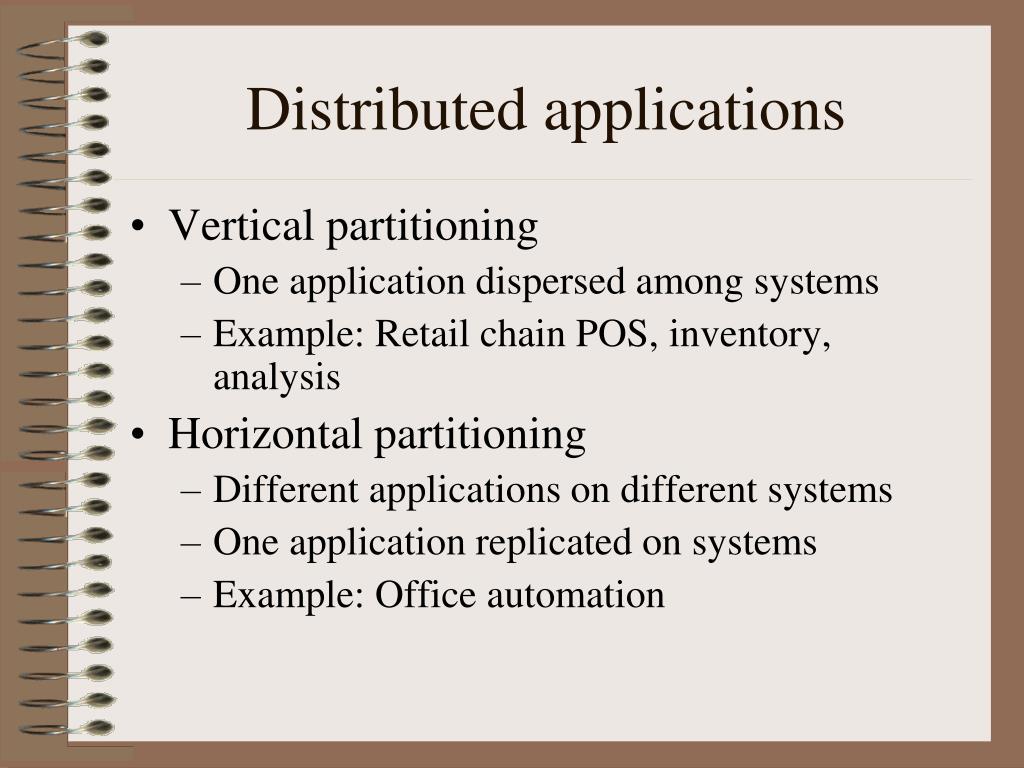

  12. Distributed applications • Vertical partitioning • One application dispersed among systems • Example: Retail chain POS, inventory, analysis • Horizontal partitioning • Different applications on different systems • One application replicated on systems • Example: Office automation

  13. Other Forms of DDP • Distributed devices • Example: ATM machines • Network management • Centralized systems provide management and control of distributed nodes

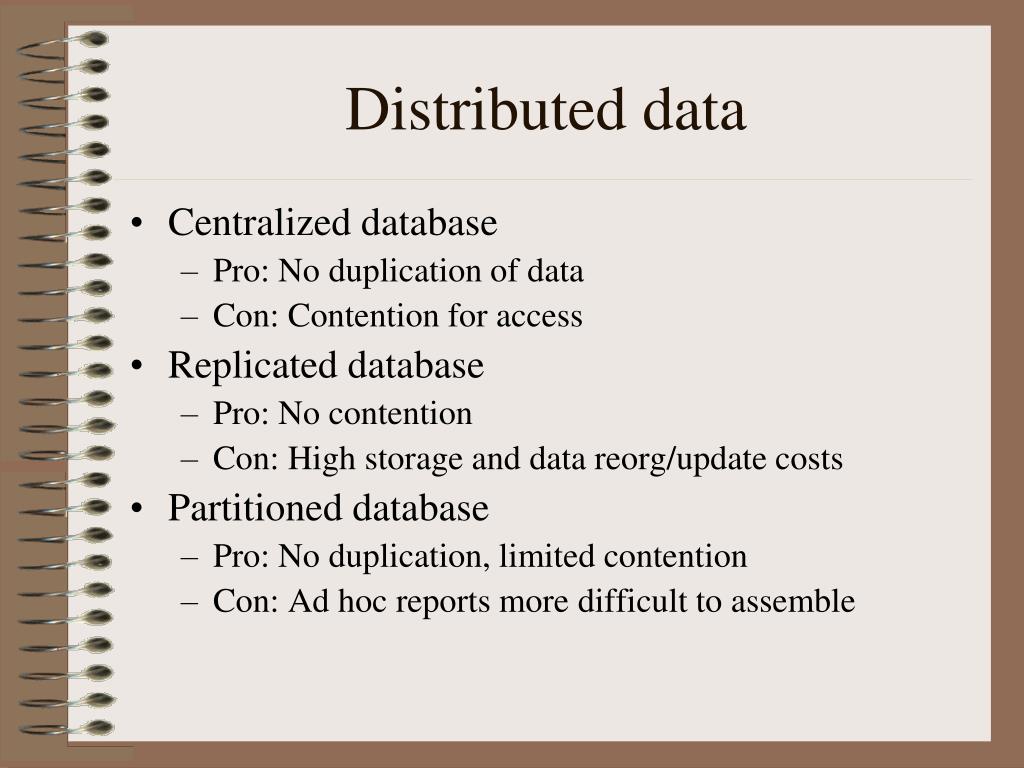

  14. Distributed data • Centralized database • Pro: No duplication of data • Con: Contention for access • Replicated database • Pro: No contention • Con: High storage and data reorg/update costs • Partitioned database • Pro: No duplication, limited contention • Con: Ad hoc reports more difficult to assemble

  15. Networking Implications • Connectivity requirements • What links between components are necessary? • Availability requirements • Percentage of time application or data is available to users • Performance requirements • Response time requirements

  16. Database Management Systems • Structured collection of data for multiple applications to use • Query language provides uniform access

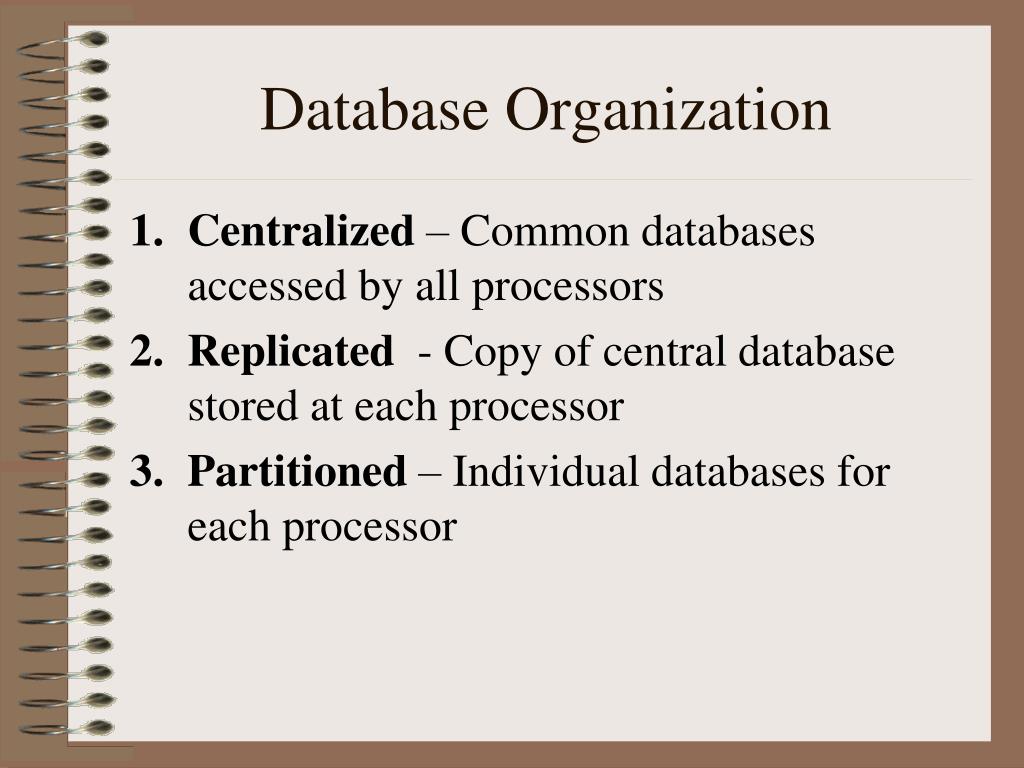

  17. Database Organization • Centralized – Common databases accessed by all processors • Replicated - Copy of central database stored at each processor • Partitioned – Individual databases for each processor

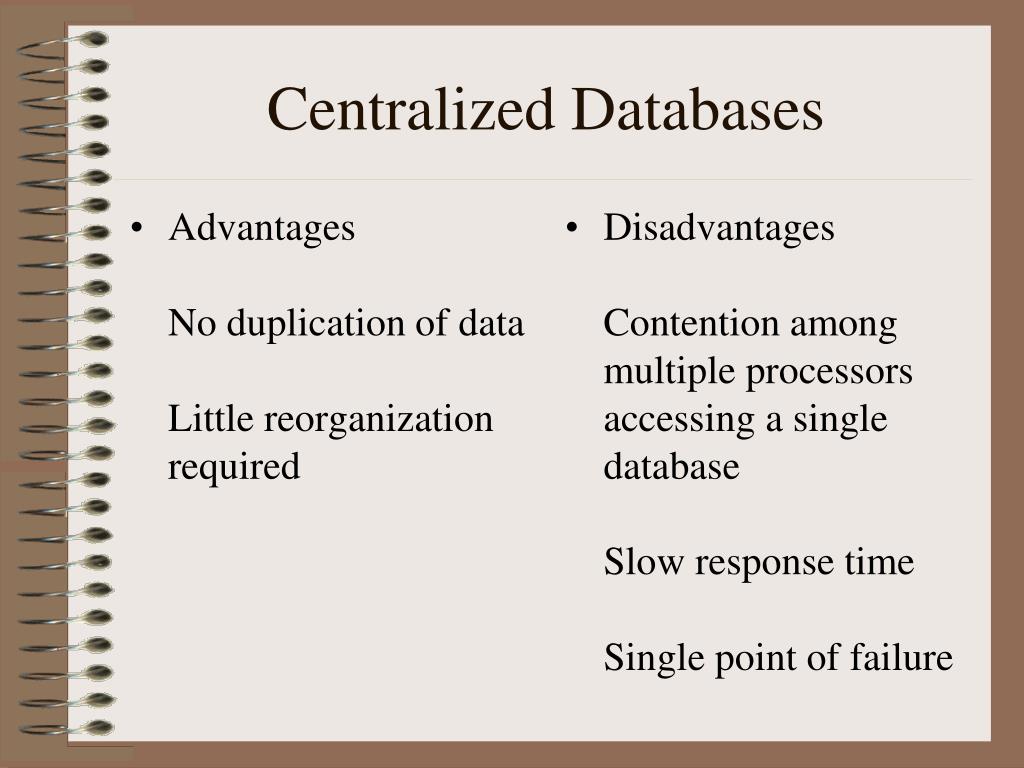

  18. Centralized Databases • AdvantagesNo duplication of dataLittle reorganization required • DisadvantagesContention among multiple processors accessing a single databaseSlow response timeSingle point of failure

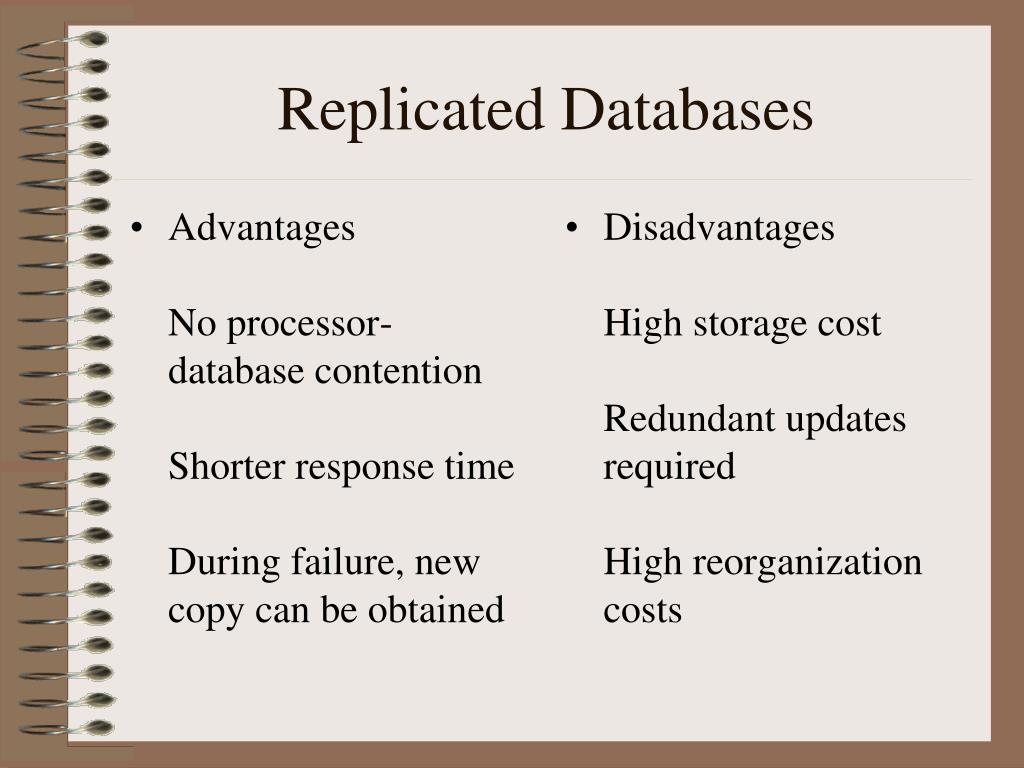

  19. Replicated Databases • AdvantagesNo processor-database contentionShorter response time During failure, new copy can be obtained • DisadvantagesHigh storage costRedundant updates requiredHigh reorganization costs

  20. Partitioned Databases • AdvantagesNo duplication of dataSize of database determined by application needsShort response time • DisadvantagesAd hoc management reports must access multiple databases

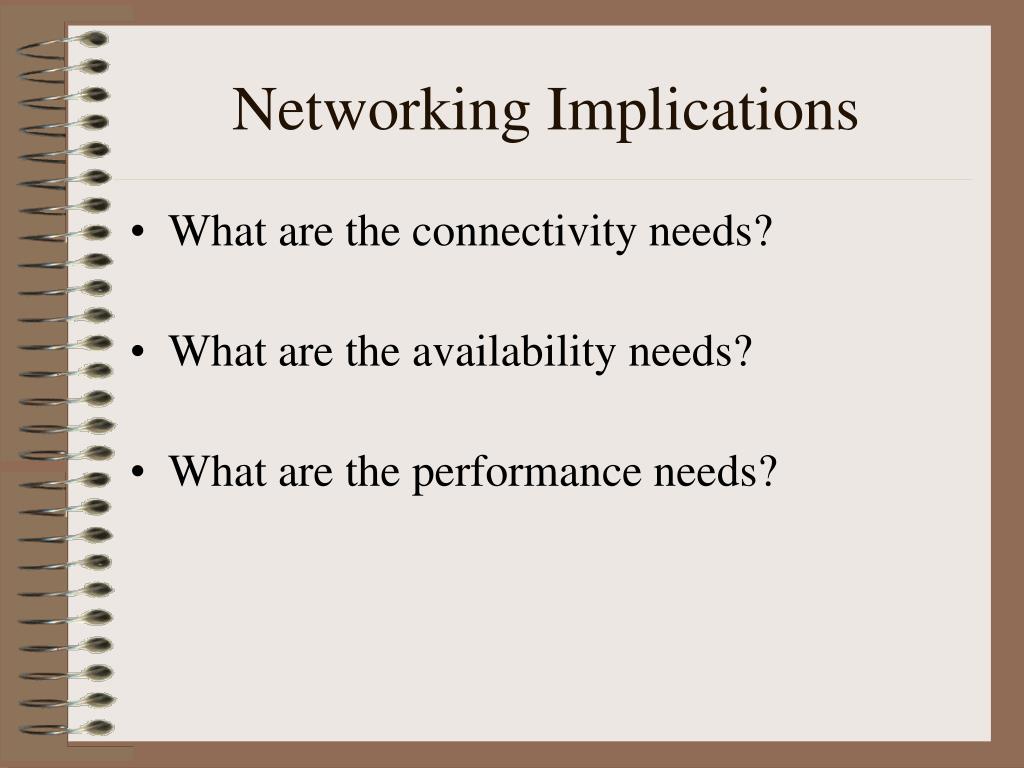

  21. Networking Implications • What are the connectivity needs? • What are the availability needs? • What are the performance needs?
