WLM-7000A Wireless Communication Model with Versatile Input/Output Options

The WLM-7000A is a robust communication model equipped with a CPU 64180, designed for adaptability in harsh environments. It features a powerful 424 MHz frequency processor with 128K Flash ROM and 256K RAM. It supports a wide range of I/O options including 24 channels for extensive network configuration, 8 digital inputs, and 8 analog outputs with 12-bit resolution. Communication is achieved via RS-232 for bi-directional data communication and a port for radio pass-through. Additionally, it includes built-in data error detection and recovery, ensuring reliability.

cheyenne-mendez
Télécharger la présentation

WLM-7000A Wireless Communication Model with Versatile Input/Output Options

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

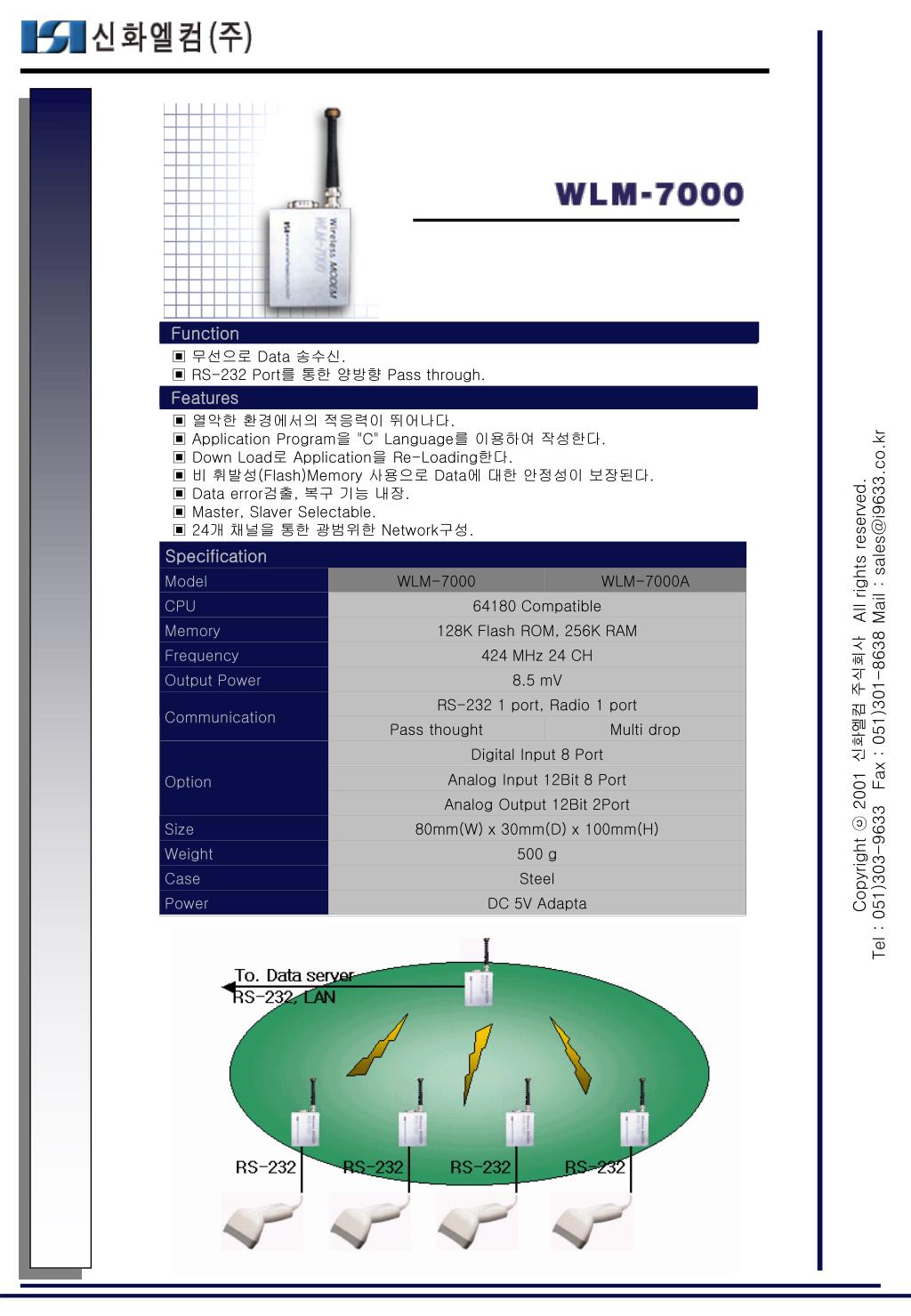

  1. Function Features Model WLM-7000 WLM-7000A CPU 64180 Compatible Memory 128K Flash ROM, 256K RAM Frequency 424 MHz 24 CH Output Power 8.5 mV Communication RS-232 1 port, Radio 1 port Pass thought Multi drop Option Digital Input 8 Port Analog Input 12Bit 8 Port Analog Output 12Bit 2Port Size 80mm(W) x 30mm(D) x 100mm(H) Weight 500 g Case Steel Power DC 5V Adapta ▣ 무선으로 Data 송수신.▣ RS-232 Port를 통한 양방향 Pass through. ▣ 열악한 환경에서의 적응력이 뛰어나다.▣ Application Program을 "C" Language를 이용하여 작성한다.▣ Down Load로 Application을 Re-Loading한다.▣ 비 휘발성(Flash)Memory 사용으로 Data에 대한 안정성이 보장된다.▣ Data error검출, 복구 기능 내장.▣ Master, Slaver Selectable.▣ 24개 채널을 통한 광범위한 Network구성. Specification
