Step through Array of Structures

chi avatar
chi
14 diapositives · 302 Views · Jul 29, 2014

This guide explores how to create and utilize arrays of structures in programming, particularly focusing on pointers to enhance efficiency. We’ll define a structure, declare and initialize an array of four structures, and demonstrate access through pointers. The example involves purchasing proper rims for a car, showcasing how to handle complex data effectively. Key topics include the definition of structures, initialization, and recalling data with pointers, emphasizing linked lists as a dynamic solution for storing related data.

#step through array of structures #step through array of structures ppt #powerpoint #presentation
Step through Array of Structures - slide 1
01 / 14Step through Array of Structures
1 / 17

Télécharger la présentation

Step through Array of Structures
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Step through Array of Structures

  2. Problem: How do we create an array of structures and recall them using pointers?

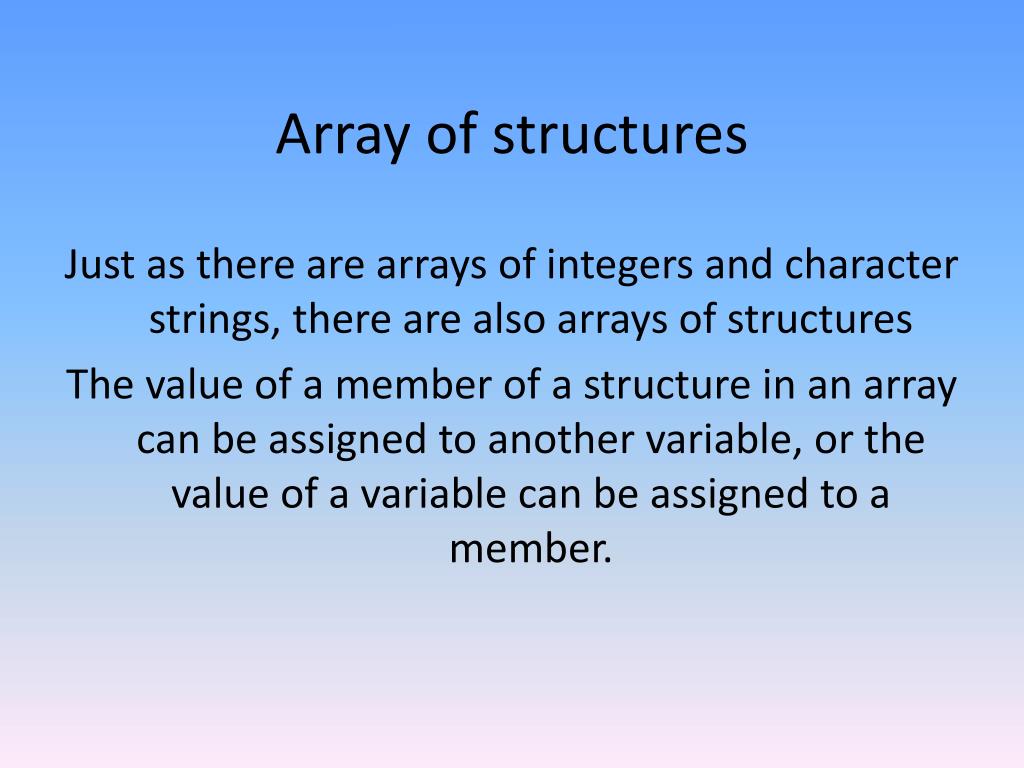

  3. Array of structures Just as there are arrays of integers and character strings, there are also arrays of structures The value of a member of a structure in an array can be assigned to another variable, or the value of a variable can be assigned to a member.

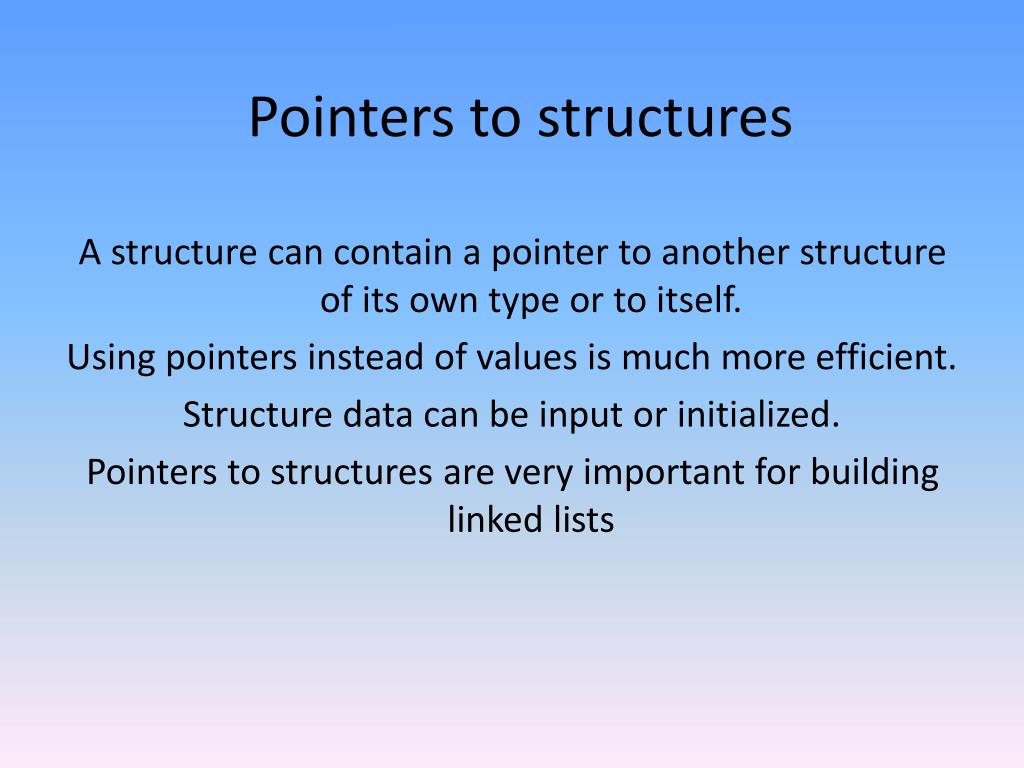

  4. Pointers to structures A structure can contain a pointer to another structure of its own type or to itself. Using pointers instead of values is much more efficient. Structure data can be input or initialized. Pointers to structures are very important for building linked lists

  5. What does the program do? A structure is defined and then an array of 4 structures is declared and initialized. A pointer to the structure is established The various parts of the structures are then recalled and printed using pointers.

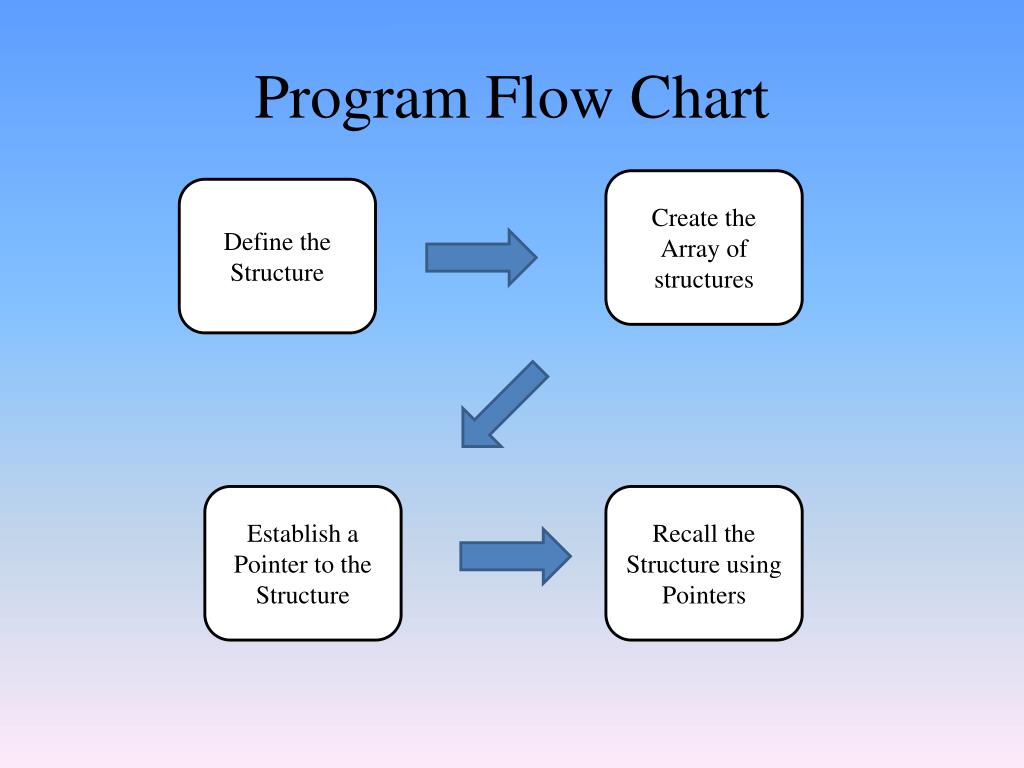

  6. Program Flow Chart Create the Array of structures Define the Structure Establish a Pointer to the Structure Recall the Structure using Pointers

  7. Defining The structure: Creating The Array:

  8. Establishing a Pointer to the Structure: Recalling The Structure:

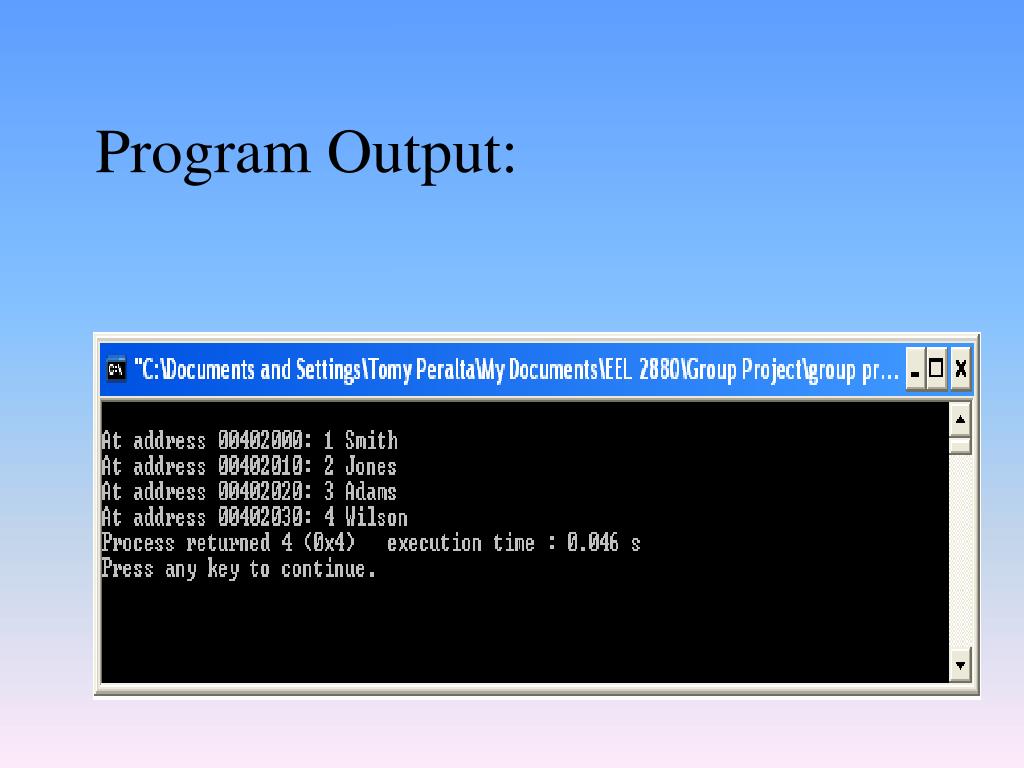

  9. Program Output:

  10. Stepping through arrays. Example: Purchasing Proper Rims We use a real word situation to show the application of the Arrays of a Structure. Situation : Customer looking to upgrade Rims on his car needs to know what the adequate size for his vehicle is. He approaches a company or a website to obtain the information. A car has many characteristics that identify them. For instance: Year Built, Make, Model, Color, Plate, etc. Because all of these attributes describe a car, we see suitable the use of a structure to store under one data type the full description of a car. Relevant to this particular case we will only use the year built, make and model. See below.

  11. Stepping through arrays. Example: Purchasing Proper Rims Before the main function: -Declare structure. -Initialize structure array. -Declare function prototype. -Declare pointer.

  12. Stepping through arrays. Example: Purchasing Proper Rims Cars in data base: Option 1-BMW Rim 20” Option 3-Dodge Rim 22” Option 2-Cadillac Rim 24”

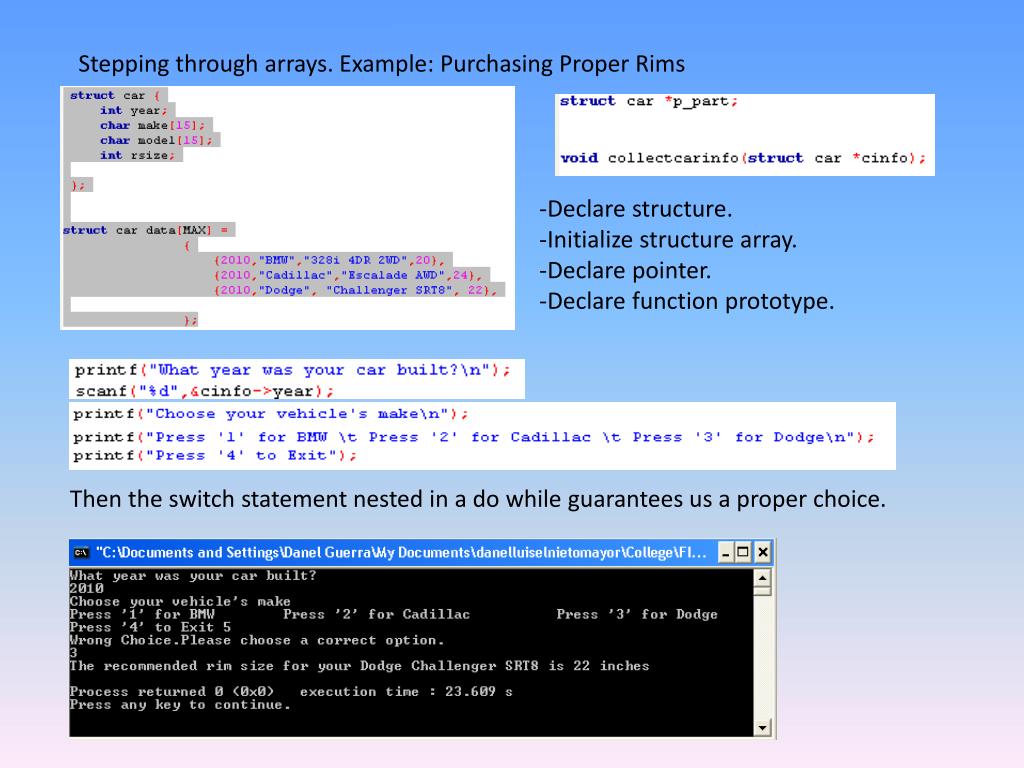

  13. Stepping through arrays. Example: Purchasing Proper Rims -Declare structure. -Initialize structure array. -Declare pointer. -Declare function prototype. Then the switch statement nested in a do while guarantees us a proper choice.

  14. Stepping through arrays. Lessons Learned. As shown throughout this presentation, we point out once more that while arrays allow for a named collection of identical objects. This is suitable for a limited number of tasks, but isn't really very flexible. Most real data objects are complicated things with an inherent structure that does not fit well on to array style storage. The use of the ‘arrow’ -> operator as opposed to the (*…) was implemented to avoid confusion when using linked lists, which are structures with pointers to other structures. Pointers to structures are the most efficient and most common programming practice nowadays .
