  1. SIMATIC Software STEP 7 V5.2 Highlights of the new STEP 7 version

  2. Introduction • The new STEP 7 V5.2 will enter the market in December 2002, replacing STEP 7 V5.1 that has been shipping since 08.2001. • In STEP 7 V5.2 we have implemented new functions such as Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run • STEP 7 goes Internet • Multi-project • Configuration in Run • ... LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table • as well as further developing existing functions such as Monitor/force Networks/connections • Multi-language project management • Block comparison • ... Hardware Config Topology display Data on MMC Messages • This set of slides provides information covering all aspects of the new STEP V5.2. Report system fault Online help Compatibility

  3. Ordering information • STEP 7 V5.2 • Single License for one installation • Requirements: none • For installation on one programming device/PC. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  4. Ordering information • STEP 7 V5.2 – Upgrade • Single License for one installation • Requirements: STEP 7 V3.x, V4.x, V5.0 or V5.1 • For upgrading an existing STEP 7 installation (V3.x, V4.x, V5.0 or V5.1) to the new STEP 7 V5.2. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

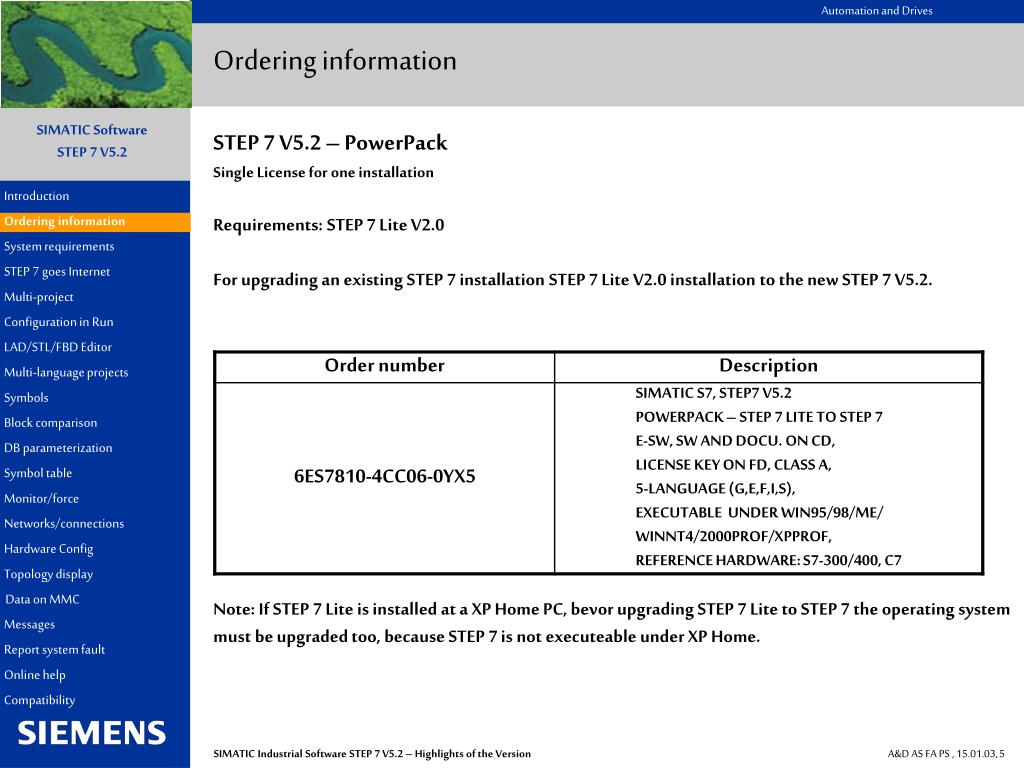

  5. Ordering information • STEP 7 V5.2 – PowerPack • Single License for one installation • Requirements: STEP 7 Lite V2.0 • For upgrading an existing STEP 7 installation STEP 7 Lite V2.0 installation to the new STEP 7 V5.2. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC • Note: If STEP 7 Lite is installed at a XP Home PC, bevor upgrading STEP 7 Lite to STEP 7 the operating system must be upgraded too, because STEP 7 is not executeable under XP Home. Messages Report system fault Online help Compatibility

  6. Ordering information • STEP 7 – Software Update Service • Requirements for new order: STEP 7 V5.2 • STEP 7 is under continuous development. The Software Update Service is the most user-friendly way of consistently utilizing these improvements. It guarantees automatic shipment of all new software versions released after ordering the Software Update Service. This keeps the software always up to date. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections • Ordering • One Software Update Service is required per installed software license • The Software Update Service is valid for a period of 1 year from ordering • It is automatically extended by one year if not cancelled 3 months before expiry • An annual flat rate is charged per license Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

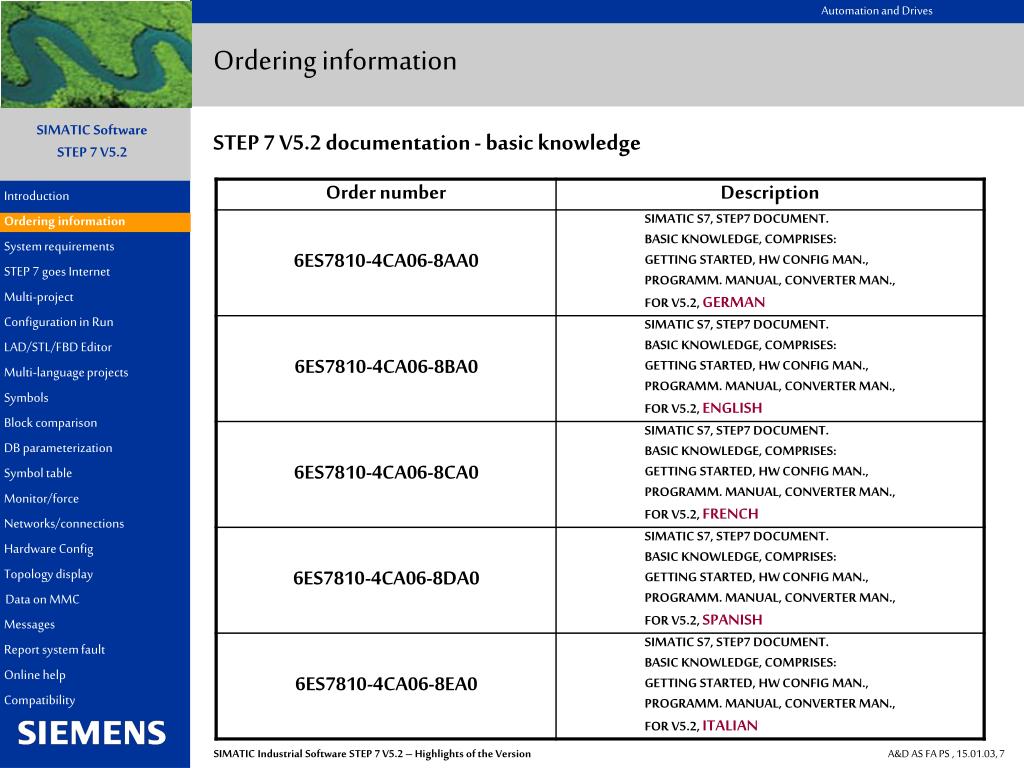

  7. Ordering information • STEP 7 V5.2 documentation - basic knowledge Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  8. Ordering information • STEP 7 V5.2 documentation - reference manuals Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  9. Ordering information • STEP 7 Professional Edition 12/2002 • To accompany STEP 7 V5.2, there will also be a new STEP 7 Professional Edition. Below is a list of the STEP 7 Professional components with their version releases: Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor New Multi-language projects • STEP 7 V5.2 • S7-GRAPH V5.2 • S7-SCL V5.1 including SP4 • S7-PLCSIM V5.1 Symbols Block comparison New DB parameterization Symbol table Updated Monitor/force Networks/connections Hardware Config New Topology display Data on MMC Messages Report system fault Online help Compatibility

  10. Ordering information • STEP 7 Professional Edition 12/2002 • Single License for one installation • Requirements: none • For installation on a programming device/PC. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  11. Ordering information • STEP 7 Professional Edition 12/2002 – PowerPack • Single License for one installation • Requirements: STEP 7 V3.x, V4.x, V5.0 or V5.1 (V5.2) • For upgrading an existing STEP 7 installation (V3.x, V4.x, V5.0 or V5.1) to the new STEP 7 Professional Edition 12/2002 Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages • Note: You can, of course, upgrade from an existing STEP 7 V5.2 installation to STEP 7 Professional Edition 12/2002 with this PowerPack. Report system fault Online help Compatibility

  12. Ordering information • STEP 7 Professional Edition 12/2002 – Upgrade • Single License for one installation • Requirements: STEP 7 Professional Edition 01/2000, Edition 08/2000 or Edition 08/2001 • For upgrading from an existing STEP 7 Professional Installation (Edition 01/2000, Edition 08/2000 or Edition 08/2001) to the new STEP 7 Professional Edition 12/2002 Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

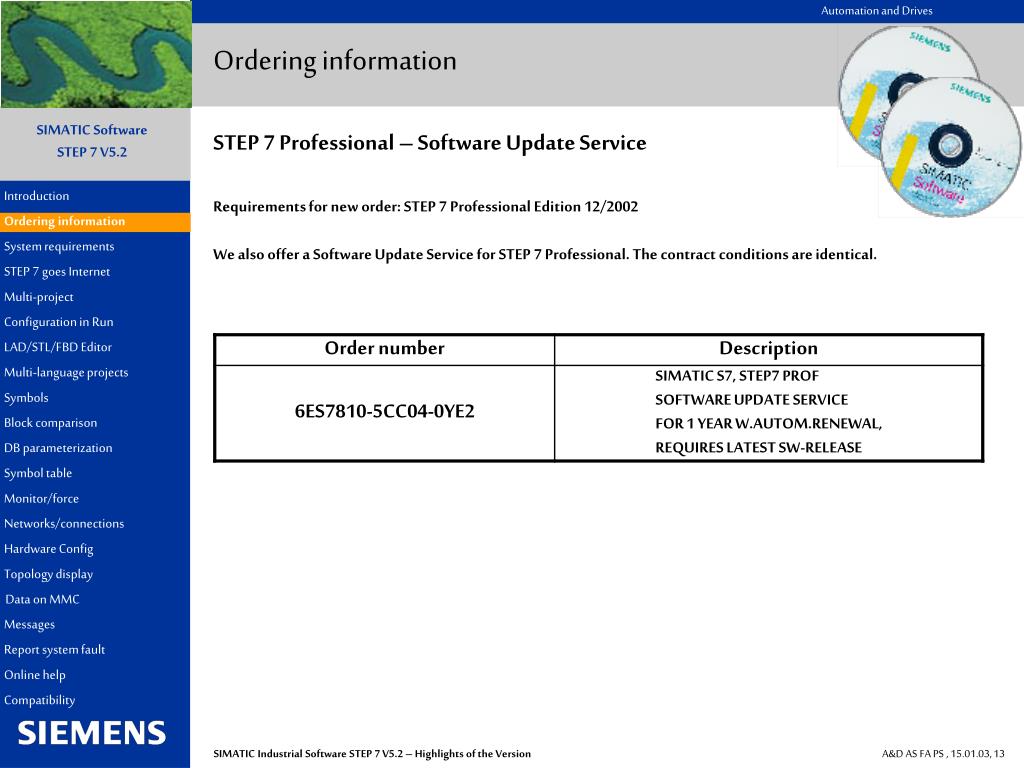

  13. Ordering information • STEP 7 Professional – Software Update Service • Requirements for new order: STEP 7 Professional Edition 12/2002 • We also offer a Software Update Service for STEP 7 Professional. The contract conditions are identical. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  14. System requirements - software • STEP 7 V5.2 runs on the following Microsoft operating systems: Introduction • Windows 95 • Windows 98SE • Windows Me • Windows NT 4.0 Workstation (SP6a) • Windows 2000 Professional (at least SP2) • Windows XP Professional • Note: • Windows XP Home is not supported. • Windows 95 / 98 / Me / NT were last supported by STEP 7 V5.2. • With the successor version of STEP 7 V5.2, support will be provided only for Windows 2000 Professional and Windows XP Professional, and possibly also for new MS operating systems. Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  15. System requirements - hardware Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Explanation: Windows NT 4.0 and free memory 1GB. I want to use STEP 7 Professional on this. How much RAM do I require? Windows NT 4.0 with Service Pack 6a with Internet Explorer V4.01 alone requires 64MB. To this are added a further 64MB for STEP 7 Professional. With 128MB RAM, I’ll be able to load all my desired applications in parallel. Note: The values listed are recommendations from Microsoft. STEP 7 V5.2 can, of course, run on hardware platforms with lower specifications. However, performance restrictions can then result. Topology display Data on MMC Messages Report system fault Online help Compatibility

  16. STEP 7 goes Internet • STEP 7 is already equipped with a powerful, context-sensitive Help system. To be able to access current information and software updates quickly and accurately (finding instead of searching), we now link STEP 7 with our Internet product information system. • The following functions are possible: Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols • Detailed information (technical specifications, FAQs, documentation) on modules can be queried direct from HW Config via our Product Support pages on the Internet. • Updating of HW Config via Internet – this provides the opportunity of integrating individual components such as new CPUs or new distributed I/O devices "a bit at a time" into the current version of STEP 7 without having to install an extensive Service Pack. Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  17. Internet STEP 7 goes InternetDetailed information on modules • STEP 7 - Hardware Configuration Introduction Ordering information System requirements STEP 7 goes Internet Multi-project • Product Information System Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  18. Internet STEP 7 goes InternetHardware Config - updating the module catalog Introduction Ordering information System requirements • STEP 7 - Hardware Configuration STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force • Product Information System Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

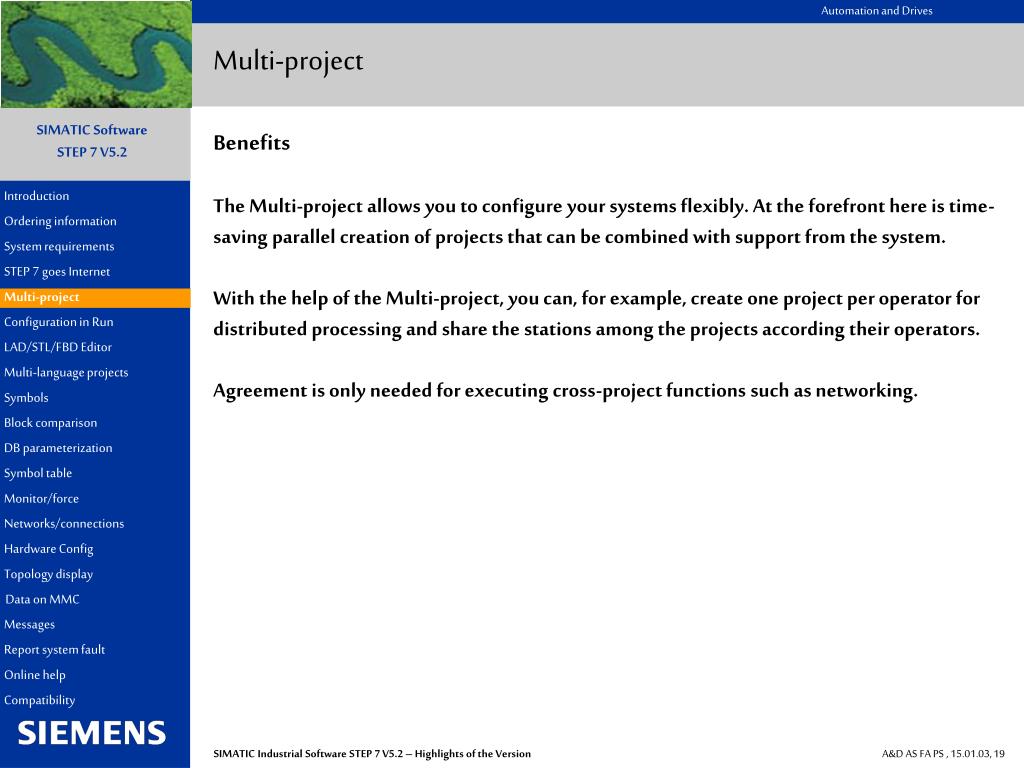

  19. Multi-project • Benefits • The Multi-project allows you to configure your systems flexibly. At the forefront here is time-saving parallel creation of projects that can be combined with support from the system. • With the help of the Multi-project, you can, for example, create one project per operator for distributed processing and share the stations among the projects according their operators. • Agreement is only needed for executing cross-project functions such as networking. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  20. Multi-project • Previous situation: centralized project • Advantages • 1 project • Project is always consistent with regard to • Networks • (AS-OS assignment) • (Mapping) • Disadvantages • Copying/moving of project sections time-consuming • Centralized project can become extremely large • ‘Save as’ to centralized project Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Centralized project Block comparison Station 1 Station 2 DB parameterization Symbol table Station 3 Monitor/force Copy Copy Networks/connections Copy Hardware Config Topology display Station 1 * Station 2 * Station 3 * Data on MMC Messages Report system fault Online help Compatibility

  21. Multi-project • New: Multi-project as additive method for structuring the project • Advantages: • Distributed working easily possible (even on different computers) • (Sub-)projects are completely independent • No complex operations required (Copy) • Small sub-projects • Only a few functions need to access ALL sub-projects • Cross-project sub-networks can be created within the scope of working with projects of a multi-project. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison Multi-project DB parameterization Symbol table Reference to Project 1 Monitor/force Reference to Project 2 Networks/connections Reference to Project 3 Hardware Config Topology display Data on MMC Messages Report system fault Station3 Station 1 Station 2 Online help Compatibility

  22. Configuration in RUN (CiR) • There are plants that must not be shut down during operation. Nevertheless, dismantling work or conversion work can become necessary. • With the help of CiR, it is possible to carry out certain changes to the hardware configuration during operation (that is, in the RUN state of the S7-CPU). In doing so, operation of the process is interrupted for one second at the most. • This requires the use of an S7-400-CPU (from FW V3.1*) or an S7-400-H-CPU of expansion stage 1v1 (from FW V3.1*). • *Planned start of delivery: start of 2003 Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  23. Configuration in RUN (CiR) • Principle of CiR • In configuring the hardware, provision is made for later hardware modifications by setting “CiR capability activated”. • CiR elements are defined that can be replaced later, step-by-step, with actual objects (slaves and/or modules) in the RUN operating state. • CiR means • During the CiR synchronization time, the process inputs and outputs are maintained at their last values. • The CiR synchronization time depends on the degree of expansion of the line (input and output bytes of the DP master system) Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  24. Configuration in RUN (CiR) • Permissible configuration changes • Addition of modules in the case of the ET 200M modular DP slave • Re-parameterization of ET 200M modules; selection of other alarm limits, for example, or the use of previously unused channels • Addition of DP slaves to an existing DP master system • Addition of PA slaves (field devices) to an existing PA master system • Addition of DP/PA couplers behind an IM157 • Addition of DP/PA Links (including PA master systems) to an existing DP master system • Assignment of added modules to a partial process image • Modification of partial process image assignment in the case of existing modules or compact slaves • Undoing of changes: added modules, DP slaves and PA slaves (field devices) can be removed again. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

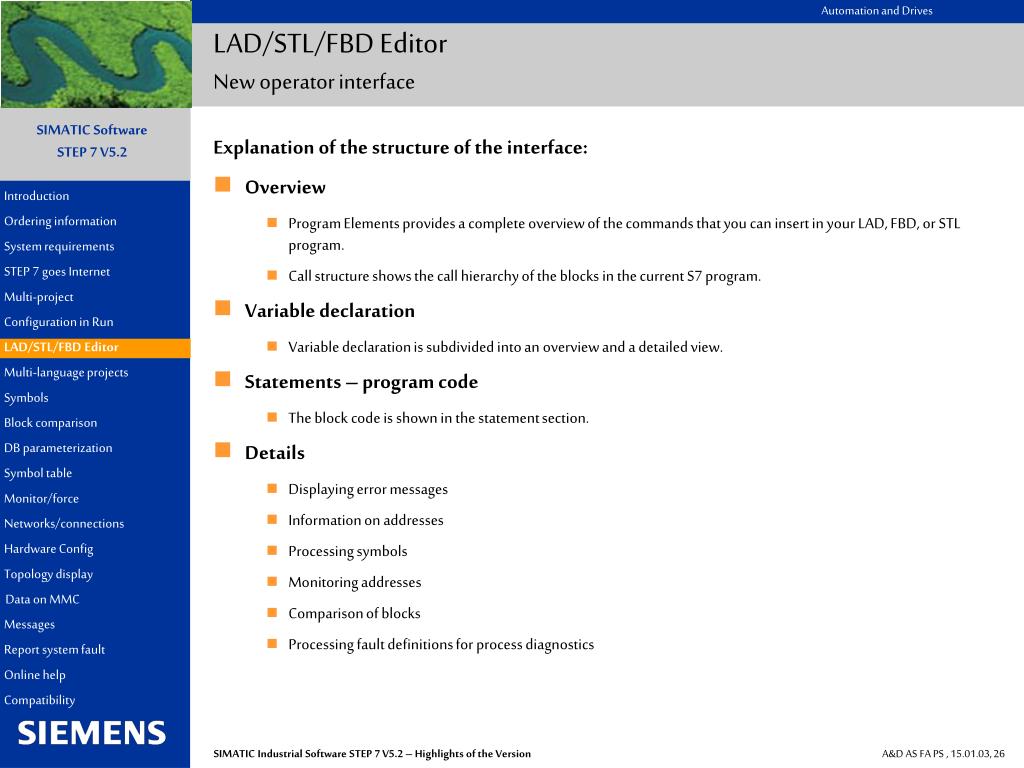

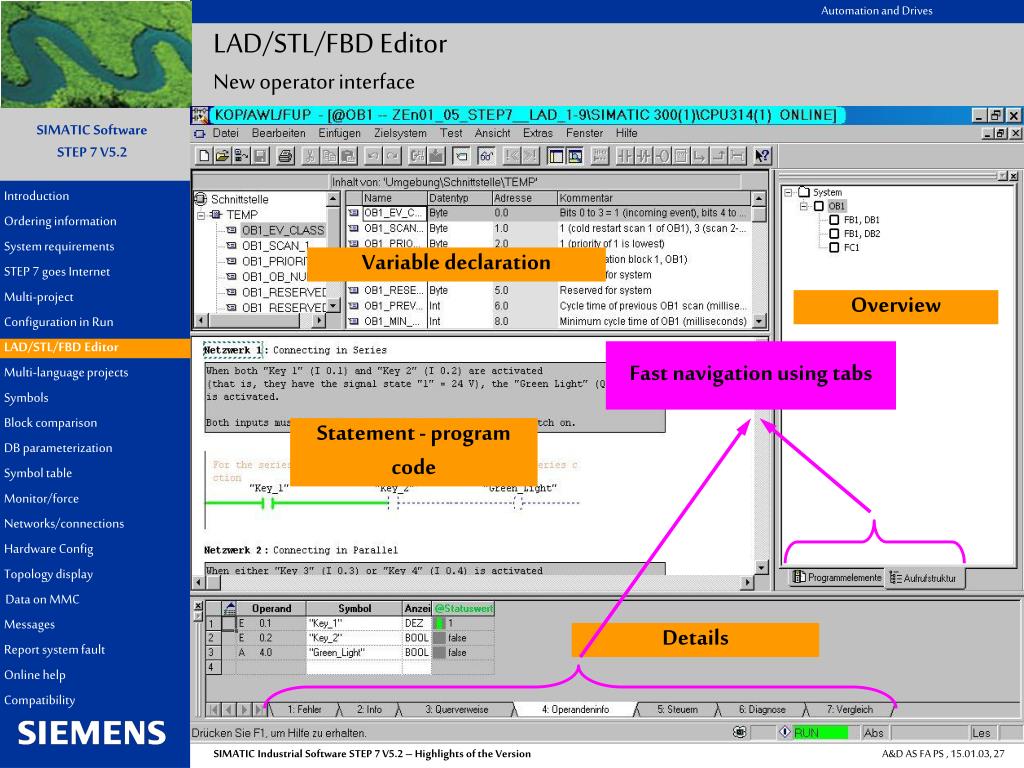

  25. LAD/STL/FBD Editor • New operator interfaceThe program editor for LAD/FBD/STL contains a restructured, user-friendly operator interface. All the important information is presented at a glance. Navigation is made simple and fast by the use of tabs. • Monitoring variables from the program editor Binary inputs and bit memories can be monitored in the program editor using a button • Further development of existing functionality Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  26. LAD/STL/FBD EditorNew operator interface • Explanation of the structure of the interface: • Overview • Program Elements provides a complete overview of the commands that you can insert in your LAD, FBD, or STL program. • Call structure shows the call hierarchy of the blocks in the current S7 program. • Variable declaration • Variable declaration is subdivided into an overview and a detailed view. • Statements – program code • The block code is shown in the statement section. • Details • Displaying error messages • Information on addresses • Processing symbols • Monitoring addresses • Comparison of blocks • Processing fault definitions for process diagnostics Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  27. LAD/STL/FBD EditorNew operator interface Introduction Ordering information System requirements Variable declaration STEP 7 goes Internet Multi-project Overview Configuration in Run LAD/STL/FBD Editor Fast navigation using tabs Multi-language projects Symbols Block comparison Statement - program code DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Details Report system fault Online help Compatibility

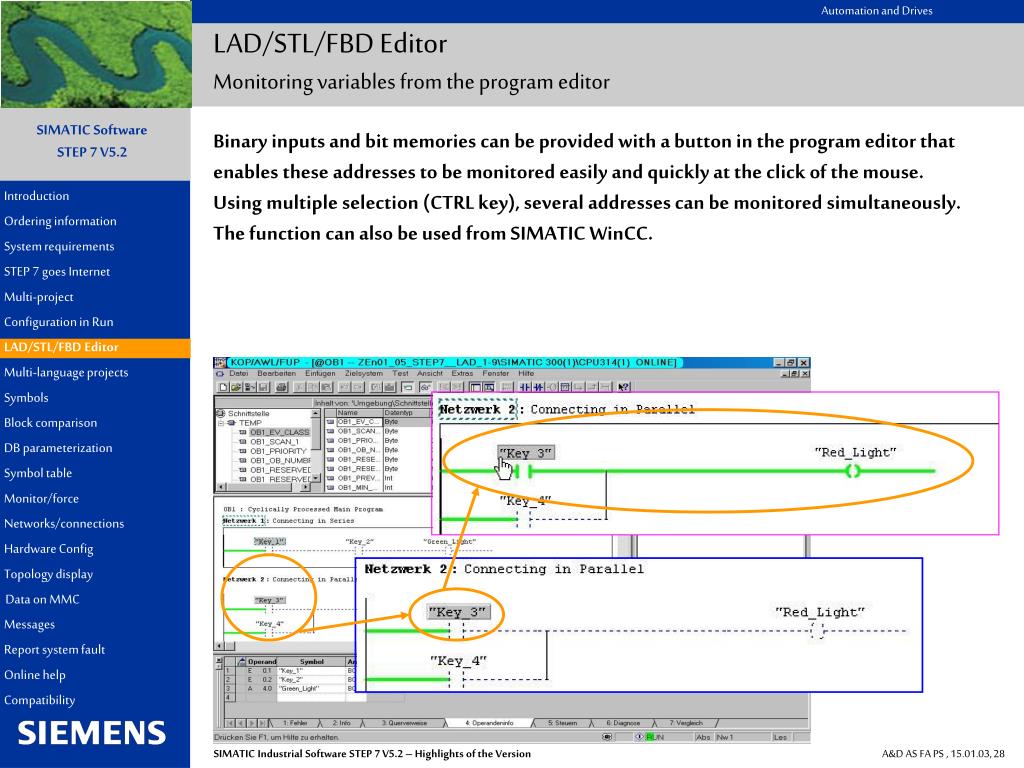

  28. LAD/STL/FBD EditorMonitoring variables from the program editor • Binary inputs and bit memories can be provided with a button in the program editor that enables these addresses to be monitored easily and quickly at the click of the mouse. • Using multiple selection (CTRL key), several addresses can be monitored simultaneously. • The function can also be used from SIMATIC WinCC. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  29. LAD/STL/FBD EditorFurther development of existing functionality • STL sources • When generating a source from a block, the configuring data from message and project diagnostics are also stored and are therefore retained when the source is compiled again. • Format, character font, and printer settings for the text in STL sources can be selected freely. • Address browser as input aid also for local addresses, structures, and DB components. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Example: address browser to DB components Compatibility

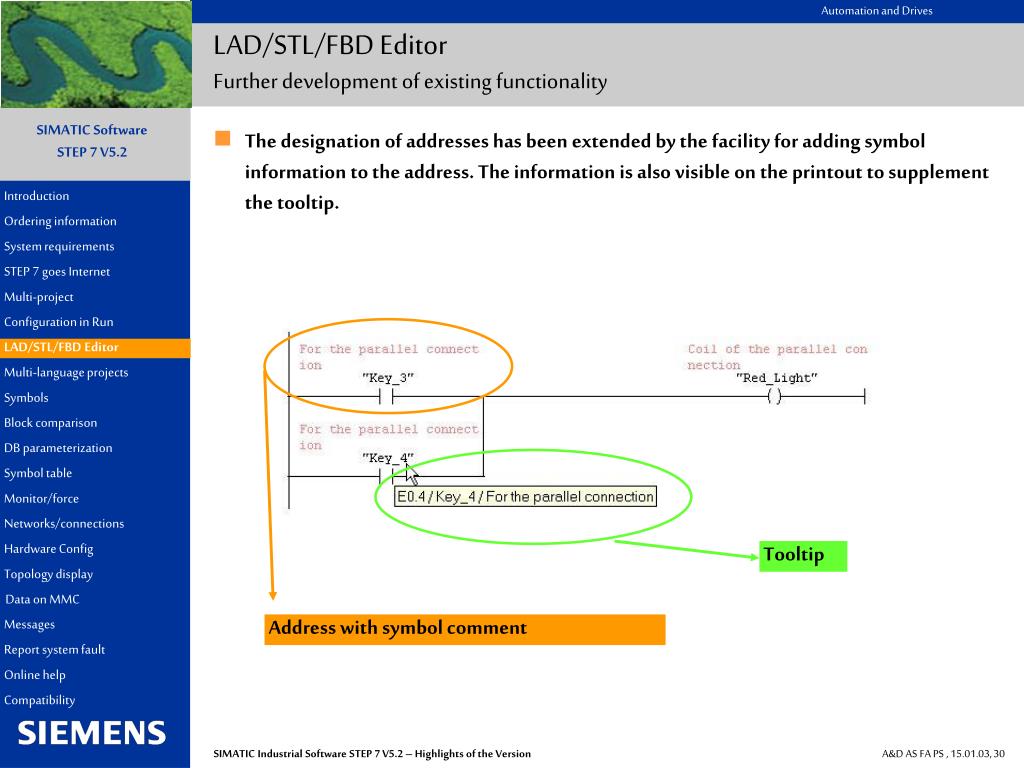

  30. LAD/STL/FBD EditorFurther development of existing functionality • The designation of addresses has been extended by the facility for adding symbol information to the address. The information is also visible on the printout to supplement the tooltip. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Tooltip Topology display Data on MMC Address with symbol comment Messages Report system fault Online help Compatibility

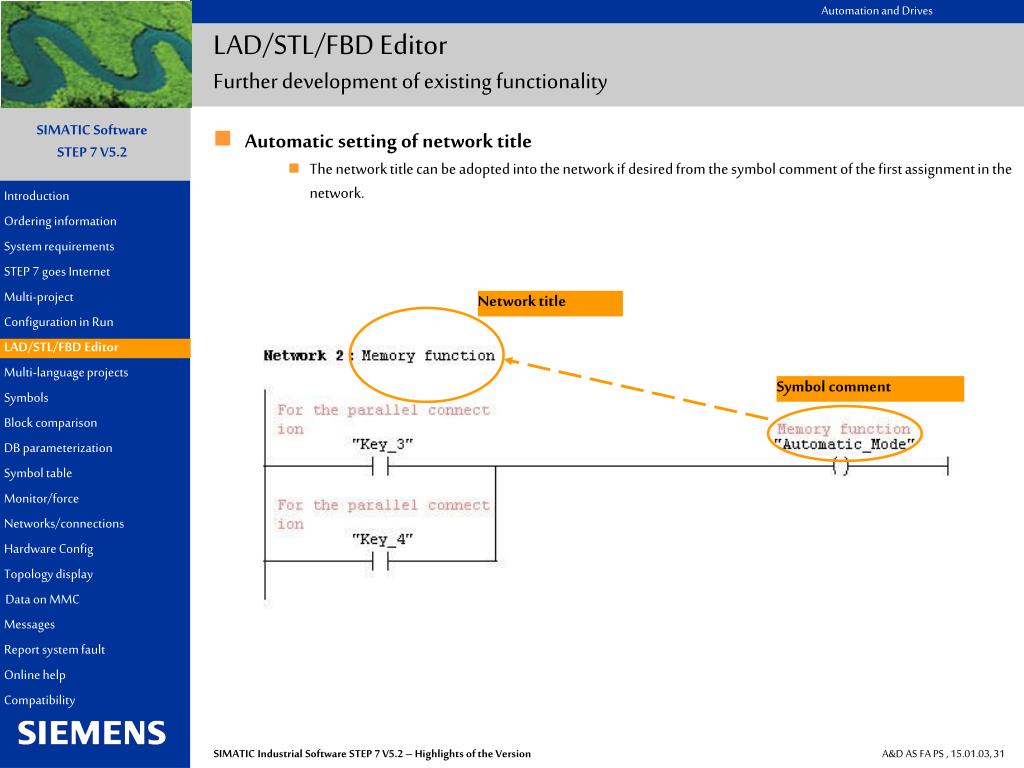

  31. LAD/STL/FBD EditorFurther development of existing functionality • Automatic setting of network title • The network title can be adopted into the network if desired from the symbol comment of the first assignment in the network. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project • Network title Configuration in Run LAD/STL/FBD Editor Multi-language projects • Symbol comment Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  32. LAD/STL/FBD EditorFurther development of existing functionality • Variables can be tested direct in the program editor. • Addition to the Standard Library of the new "Miscellaneous Blocks" for time stamping and clock synchronization. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  33. LAD/STL/FBD –EditorFurther development of existing functionality • The function "Go to" can now also be used for local variables. • Editing of arrays has been made easier. • Colors have been introduced for different text types when editing sources. • Symbols and symbol comments can be redefined, modified, or deleted. • The data type of the symbol can be changed. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

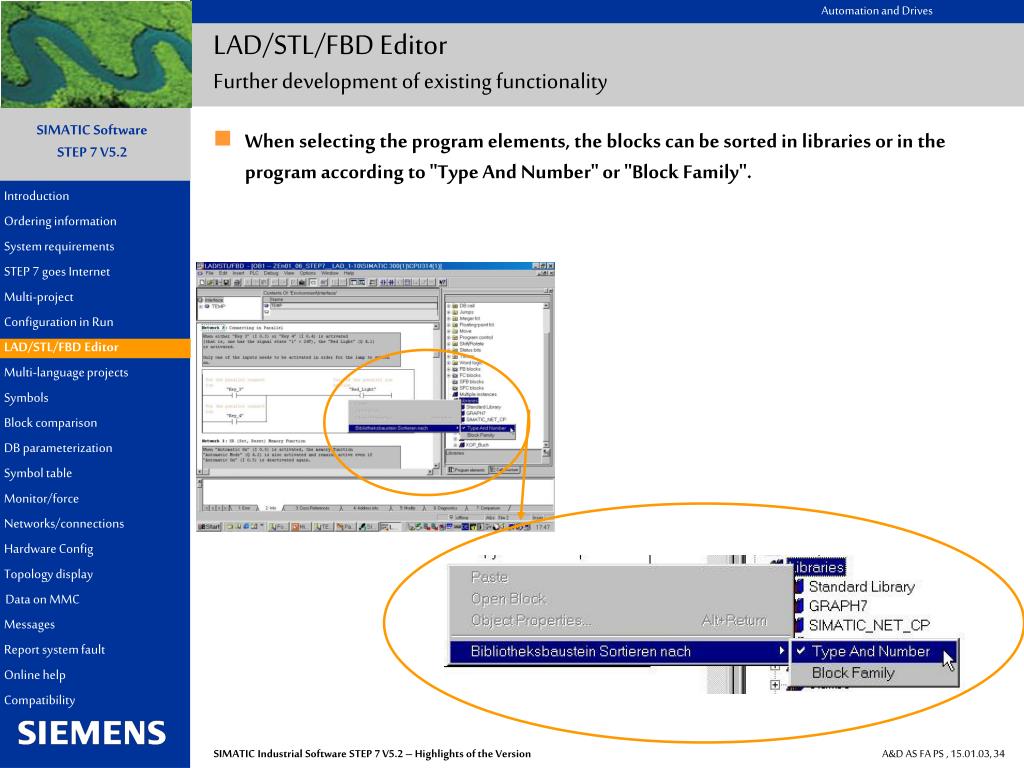

  34. LAD/STL/FBD EditorFurther development of existing functionality • When selecting the program elements, the blocks can be sorted in libraries or in the program according to "Type And Number" or "Block Family". Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

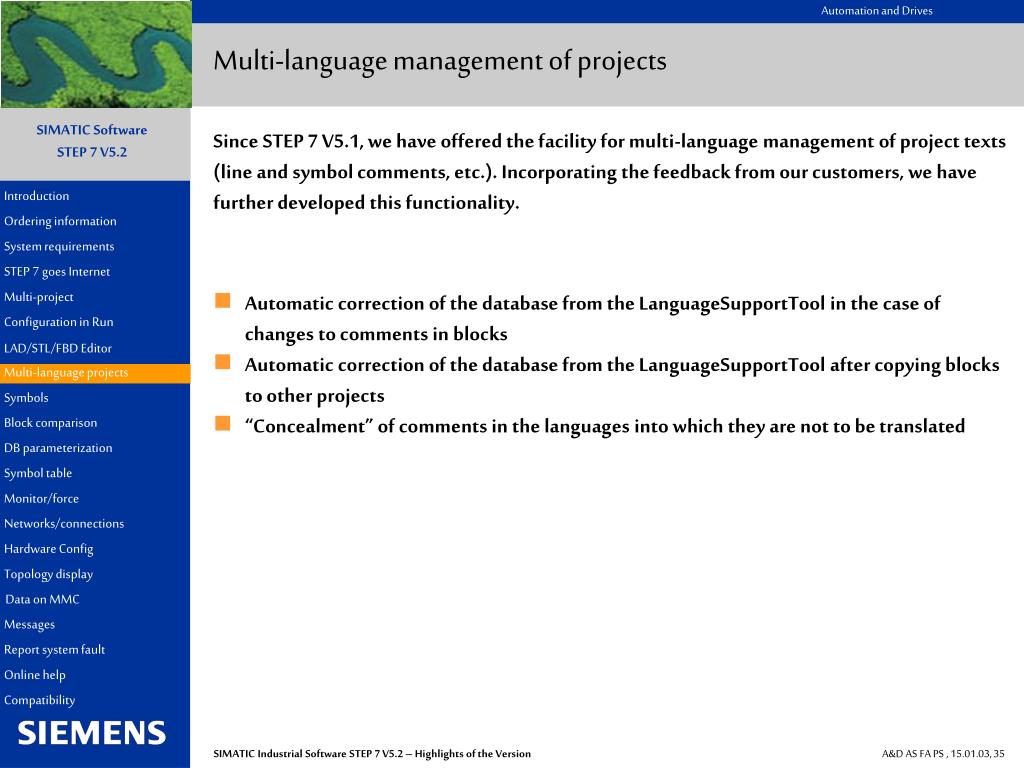

  35. Multi-language management of projects • Since STEP 7 V5.1, we have offered the facility for multi-language management of project texts (line and symbol comments, etc.). Incorporating the feedback from our customers, we have further developed this functionality. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project • Automatic correction of the database from the LanguageSupportTool in the case of changes to comments in blocks • Automatic correction of the database from the LanguageSupportTool after copying blocks to other projects • “Concealment” of comments in the languages into which they are not to be translated Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  36. Address priority (symbolic/absolute) • Setting the address priority (symbolic/absolute) • In the dialog box for block folder properties, you can specify whether the symbol or the absolute value is to have priority when opening the blocks following changes to the symbol table. In STEP 7 versions older than V5, the absolute value has priority. • This functionality has been expanded and is now valid for all accesses (inputs, outputs, bit memories, timers, counters, and data blocks). You can specify STEP 7’s behavior, from absolute access right up to symbolic access. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  37. Address priority (symbolic/absolute) Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  38. Block comparison • Further development of block comparison • Block comparison can be started both in the LAD/STL/FBD Editor and from the SIMATIC Manager. • The first difference per network is now displayed. • You can navigate between the differences. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  39. Block comparison Introduction Ordering information Offline project Online project System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison Differences – graphical representation DB parameterization Symbol table Monitor/force Networks/connections Navigation Hardware Config Topology display Differences – textual representation Data on MMC Messages Report system fault Online help Compatibility Compatibility

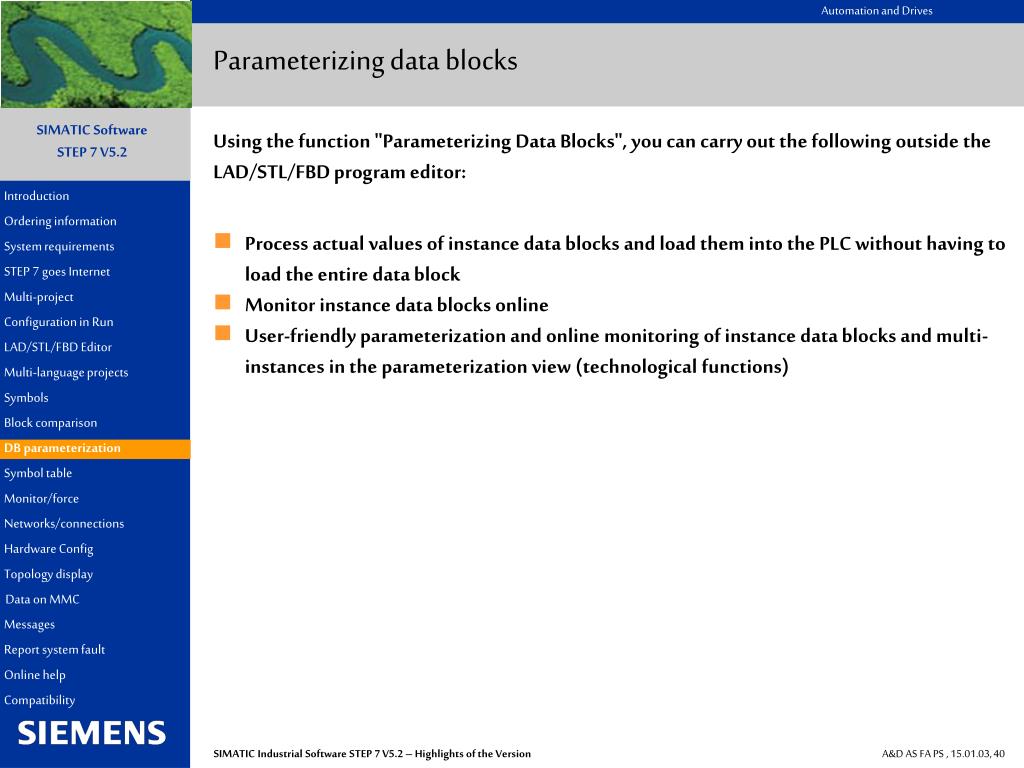

  40. Parameterizing data blocks • Using the function "Parameterizing Data Blocks", you can carry out the following outside the LAD/STL/FBD program editor: Introduction Ordering information • Process actual values of instance data blocks and load them into the PLC without having to load the entire data block • Monitor instance data blocks online • User-friendly parameterization and online monitoring of instance data blocks and multi-instances in the parameterization view (technological functions) System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

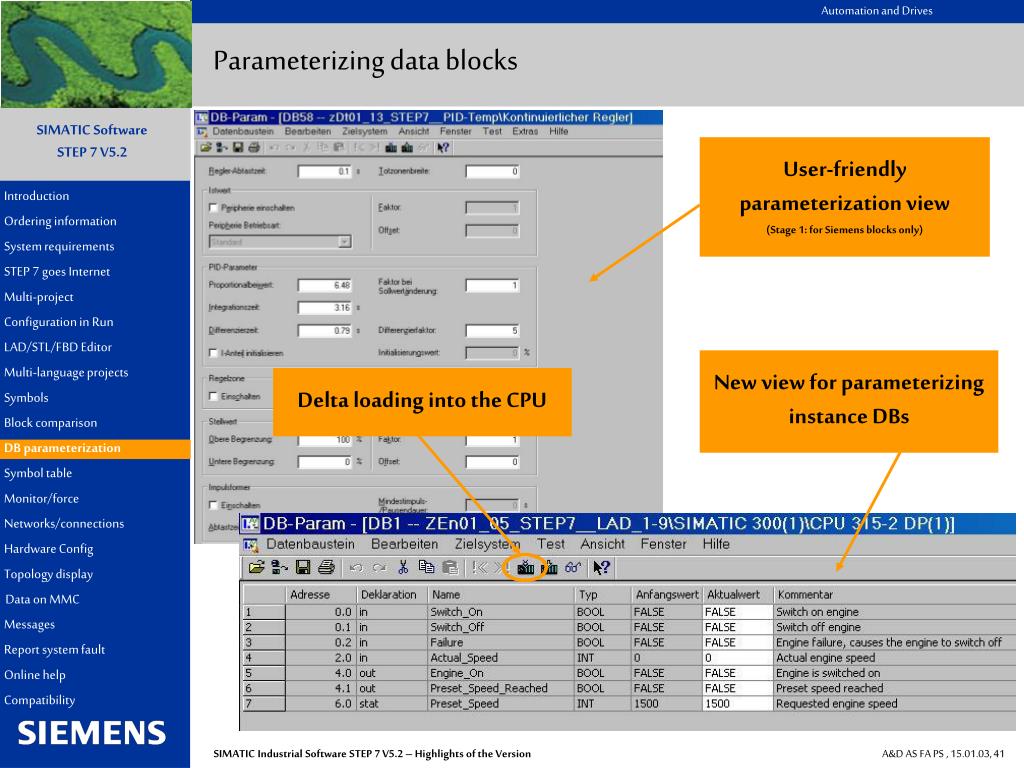

  41. Parameterizing data blocks User-friendly parameterization view (Stage 1: for Siemens blocks only) Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor New view for parameterizing instance DBs Multi-language projects Delta loading into the CPU Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  42. Symbol table • The symbol table has been completely revised. The following performance features deserve a special mention here: Introduction • The previous restriction to a maximum of 16380 symbols in one symbol table has been removed. • The "special object properties" of the symbols are represented clearly and are easy to edit. All the information on the symbol is available at a glance. • In the new "Status" column, non-unique symbols, for example, are graphically designated. There is also a powerful filter function. • Support for the wheel mouse. Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  43. Monitor/force variables • The table for the monitoring and forcing of variables has been revised: Introduction Ordering information • Address priority is taken into account when opening a table. • If the "Symbol Comments" column is blanked out, the symbol comments are displayed in a condensed form in the "Symbol" column. • Condensed information can now also be shown using the keyboard. • The table can be maximized and minimized. • It is possible to display force values with results. System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  44. Diagnostics and status/monitor on native PROFIBUS services • This new functionality makes it possible to access PROFIBUS nodes online with STEP 7, even if only DP slaves are connected to PROFIBUS (without DP master). • Access is possible from the SIMATIC Manager or from the HW Configuration. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  45. Configuring networks and connections • Cross-project sub-networks can be created within the scope of working with projects of a multi-project. • In NetPro, connections can be exported and imported with the station data. • NetPro can automatically merge connections that are loaded back into the programming device. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

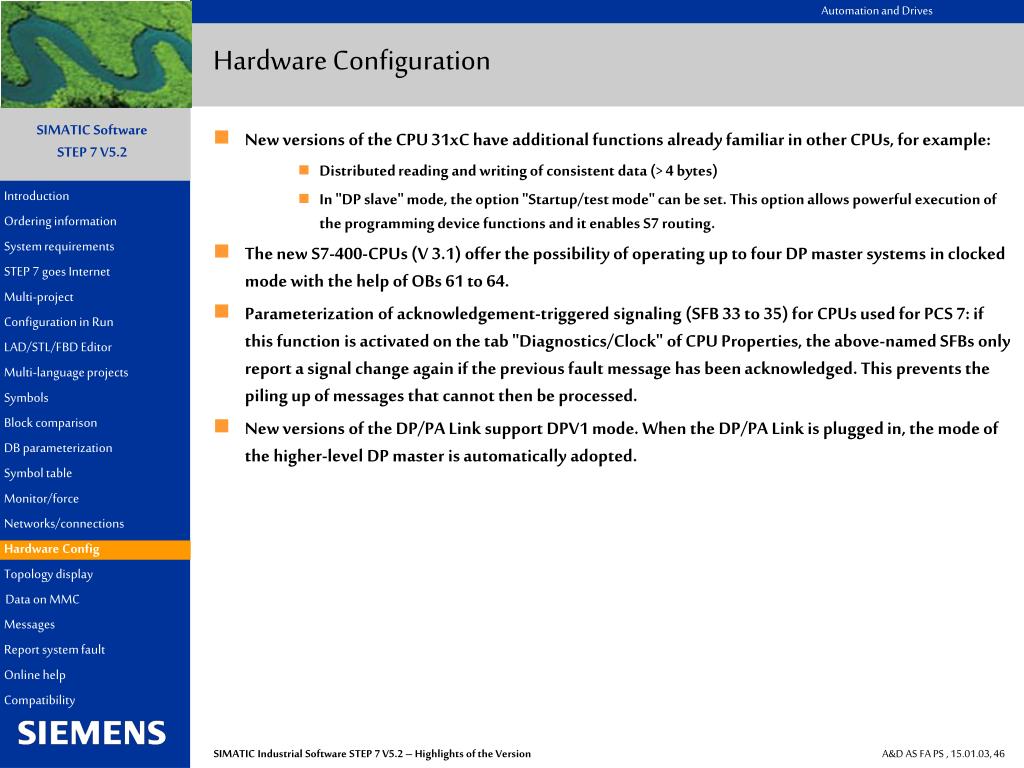

  46. Hardware Configuration • New versions of the CPU 31xC have additional functions already familiar in other CPUs, for example: • Distributed reading and writing of consistent data (> 4 bytes) • In "DP slave" mode, the option "Startup/test mode" can be set. This option allows powerful execution of the programming device functions and it enables S7 routing. • The new S7-400-CPUs (V 3.1) offer the possibility of operating up to four DP master systems in clocked mode with the help of OBs 61 to 64. • Parameterization of acknowledgement-triggered signaling (SFB 33 to 35) for CPUs used for PCS 7: if this function is activated on the tab "Diagnostics/Clock" of CPU Properties, the above-named SFBs only report a signal change again if the previous fault message has been acknowledged. This prevents the piling up of messages that cannot then be processed. • New versions of the DP/PA Link support DPV1 mode. When the DP/PA Link is plugged in, the mode of the higher-level DP master is automatically adopted. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  47. Hardware Configuration • Online coordination of identification data: • For the new ET 200M interface module (153-2AA03) and the new DP/PA Link (157-0AA82) as well as for other signal modules of the S7-300, modifiable identification data such as plant designation and creation date can be coordinated (that is coordination between configuration and loaded identification data). • The times specified for events in the diagnostics buffer can be displayed both as module time and as local time. • In module status (PLC >Module Status), specific help can be called up for many of the displayed hardware channel faults. In the case of DP slaves integrated via GSD file, help for device-specific diagnostics can be called up, provided the associated GSD file contains the relevant help texts. • The module status of slaves can be called up via accessible nodes. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  48. Hardware Configuration • Visualization of possible slotsPossible slots are highlighted in color in mounting racks. This makes configuring simpler and faster • Help in selecting possible modulesA selection of possible modules for the slots of a mounting rack can be displayed using the context menu (right mouse key). This saves searching the Hardware Catalog Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

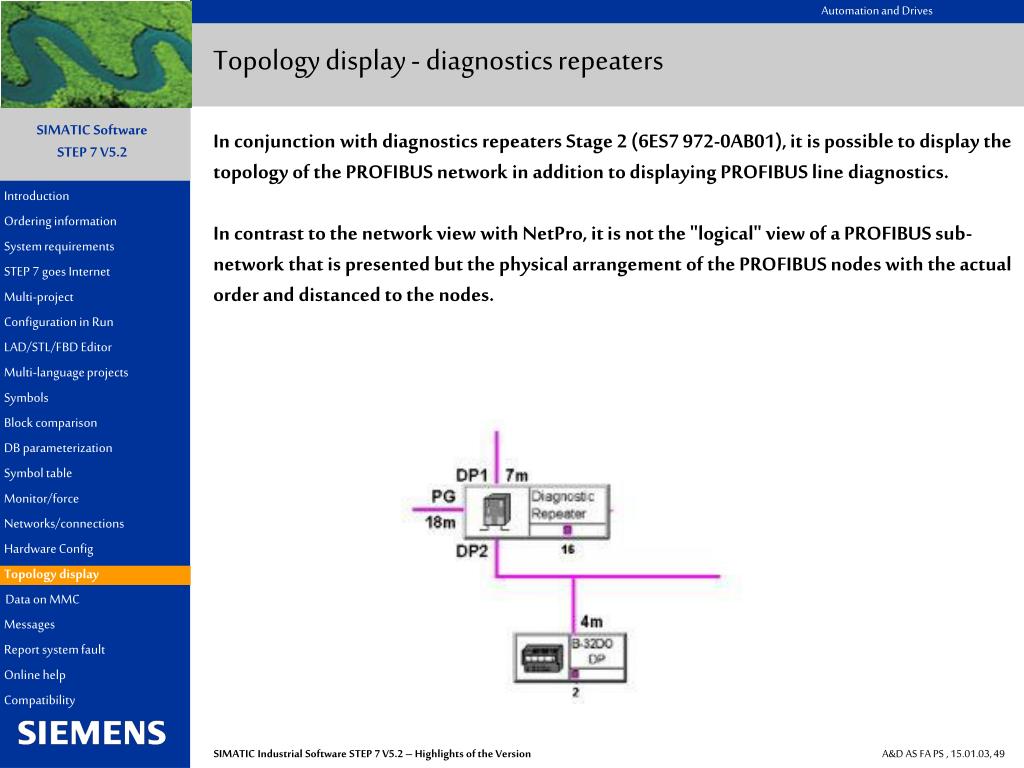

  49. Topology display - diagnostics repeaters • In conjunction with diagnostics repeaters Stage 2 (6ES7 972-0AB01), it is possible to display the topology of the PROFIBUS network in addition to displaying PROFIBUS line diagnostics. • In contrast to the network view with NetPro, it is not the "logical" view of a PROFIBUS sub-network that is presented but the physical arrangement of the PROFIBUS nodes with the actual order and distanced to the nodes. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility

  50. Saving data on MMC/flash card • Since STEP 7 V5.1, we have offered the facility for storing the entire project (programs, symbol information, comments, and HW Configuration) on a MicroMemoryCard (MMC). We have expanded this function too. • Now, any data can be stored along with the project data on the MMC or, in the case of the S7-400, on the flash card. Introduction Ordering information System requirements STEP 7 goes Internet Multi-project Configuration in Run LAD/STL/FBD Editor Multi-language projects Symbols Block comparison DB parameterization Symbol table Monitor/force Networks/connections Hardware Config Topology display Data on MMC Messages Report system fault Online help Compatibility
