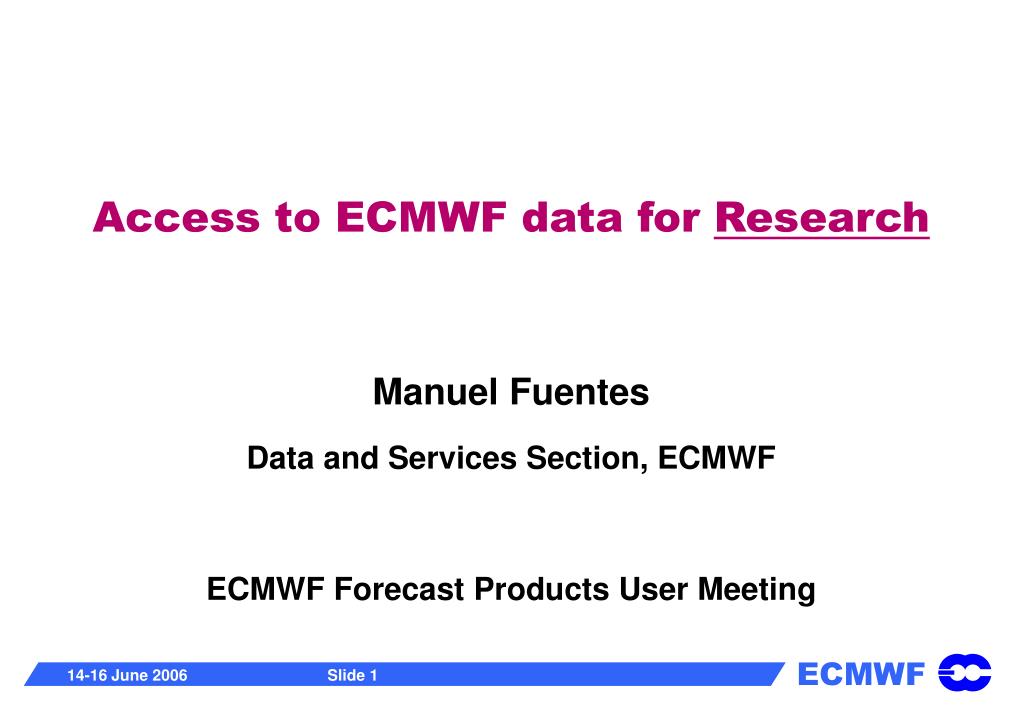

  1. Access to ECMWF data for Research Manuel Fuentes Data and Services Section, ECMWF ECMWF Forecast Products User Meeting

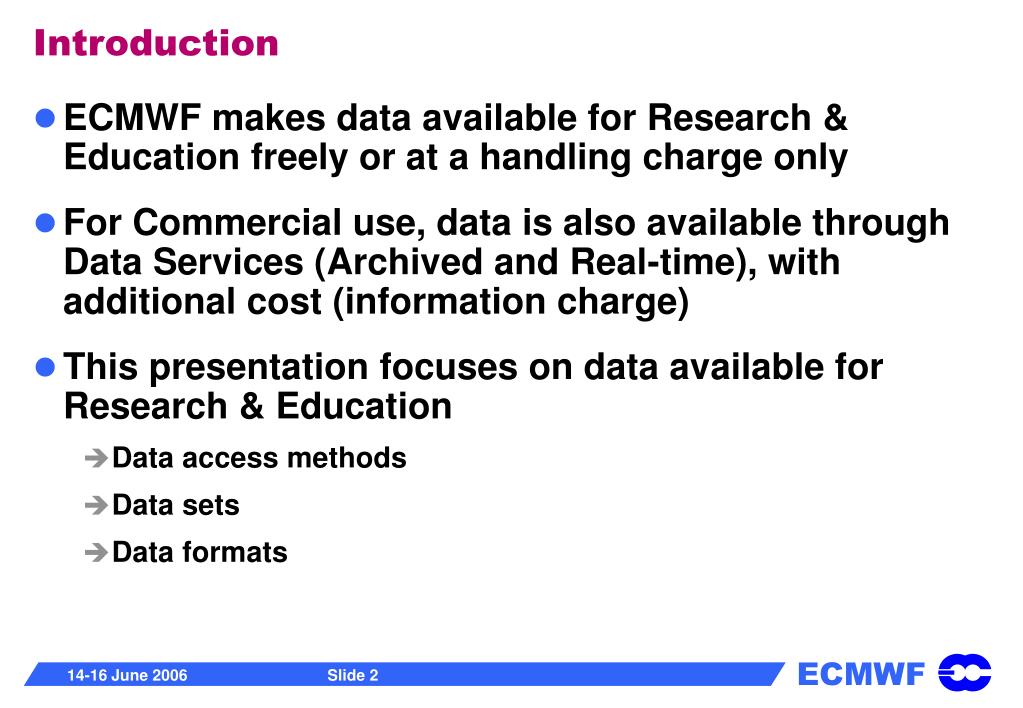

  2. Introduction • ECMWF makes data available for Research & Education freely or at a handling charge only • For Commercial use, data is also available through Data Services (Archived and Real-time), with additional cost (information charge) • This presentation focuses on data available for Research & Education • Data access methods • Data sets • Data formats

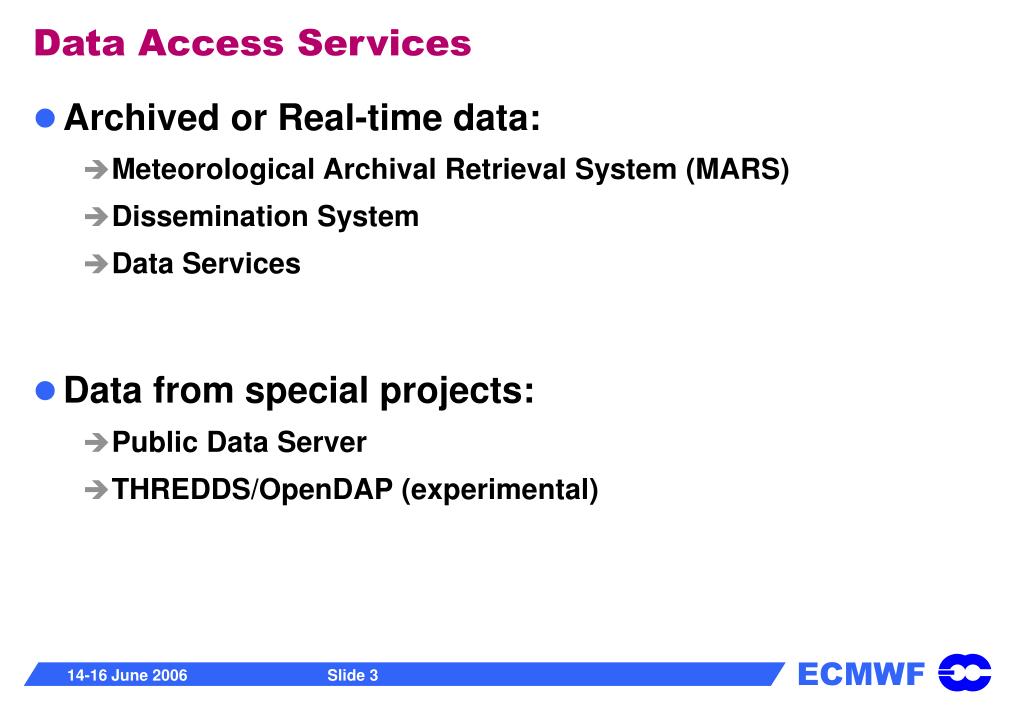

  3. Data Access Services • Archived or Real-time data: • Meteorological Archival Retrieval System (MARS) • Dissemination System • Data Services • Data from special projects: • Public Data Server • THREDDS/OpenDAP (experimental)

  4. MARS: Contents • Main repository of meteorological data: • Operational runs • Deterministic Forecast: Atmospheric and Wave models • Ensemble Prediction System • Monthly Forecast • Seasonal Forecast • Monthly Datasets • Monthly means • Climatology • Data from other NWP Centres

  5. MARS: Contents (cont.) • Project Datasets • ERA-15, ERA-40 • PROVOST • DEMETER • Observations • ECMWF Research experiments • Member States experiments • Using ECMWF models • Using own models: COSMO/LEPS

  6. MARS: Access • Direct access to more than 2 PetaBytes of data using pseudo-meteorological language • Access modes: • Batch • Interactive: Metview, WebMARS • Remotely from Member States • Discovery (Data Finder) and Browsing (Catalogue) • Restrictions to access valid data • Users: Member States for Research & Education • Access granted by NMSs

  7. Dissemination system • Real-time products • Subscription based • Users edit requirement specification: • which data (parameter, step, forecasting system, …) • what post-processing (sub-area, grid, resolution, …) • Product generation • All products are generated in parallel on the supercomputer • Data is pushed from ECMWF to users • Operates under a fixed schedule • Everyone gets same data at the same time

  8. Data Services • Provide Data and Software to external organisations under rules approved by Council • Data Services Catalogues • Catalogue of Archived data and products • Catalogue of Real-time products • Software catalogue

  9. Data Services: Archive Catalogue • Contents: MARS contents • Access: On-line costing system • ERA-15, ERA-40 • Operational data • Observations • Marine, Aircraft, Vertical soundings • Cost: • Handling charge only for Research & Education • Handling charge and Information charge for commercial use

  10. Data Services: Archive Catalogue, delivery • Tape • DAT • Exabyte • DLT • LTO2 • CD • DVD • Internet transfer • FTP Push • Downloadable

  11. Data Services: Real-Time Catalogue • Contents: • Selected parameters from Operational forecasting systems • Web products (as a whole) • Access: • Dissemination system • www • Cost: • Handling charge (Research & Education) • Additional Information charge (Commercial)

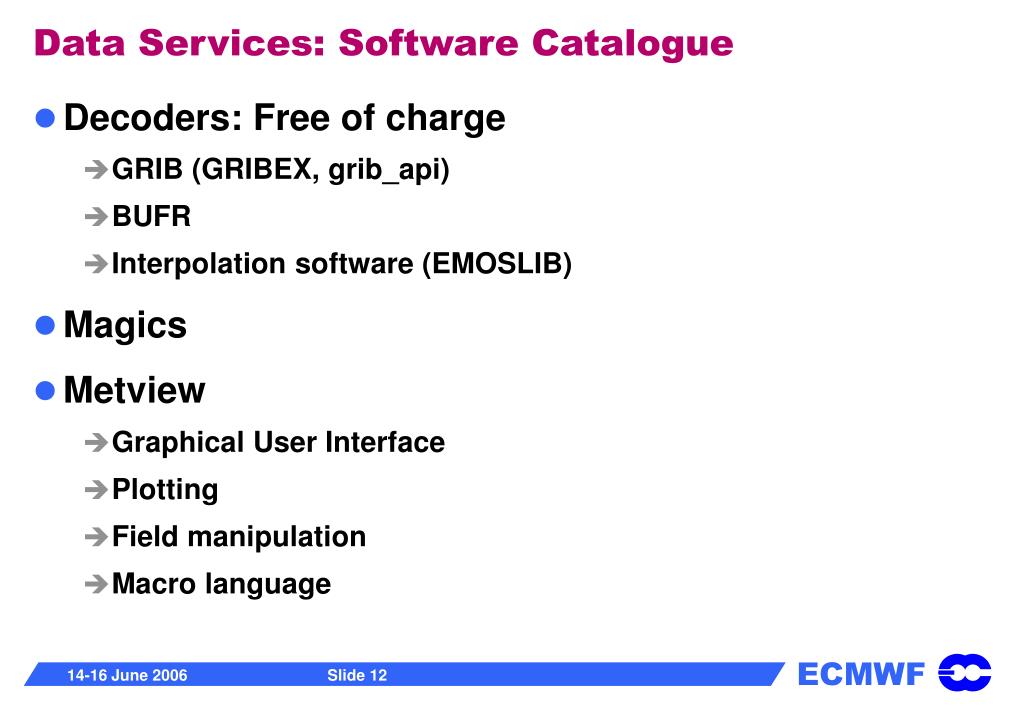

  12. Data Services: Software Catalogue • Decoders: Free of charge • GRIB (GRIBEX, grib_api) • BUFR • Interpolation software (EMOSLIB) • Magics • Metview • Graphical User Interface • Plotting • Field manipulation • Macro language

  13. Public Data Server • 1 Terabyte of data online, 2.5 ° resolution: • DEMETER • ERA-15 • ERA-40 • ENACT • Data is downloadable in GRIB, NetCDF or in graphical form • Field manipulation capabilities: sub-area extraction and change of resolution • ERA-40 contents can be obtained on 2 LTO2 tapes at handling charge

  14. Public Data Server (cont.) • Service started in 2003 • 7000 users • Average 700 GBytes/month (peaks of 1 TB/month) • For Research and Education only

  15. THREDDS/OpenDAP • Data access method under investigation • Contents: • ENACT • DEMETER • ENSEMBLES • Link to Climate Explorer at KNMI • For Research and Education only

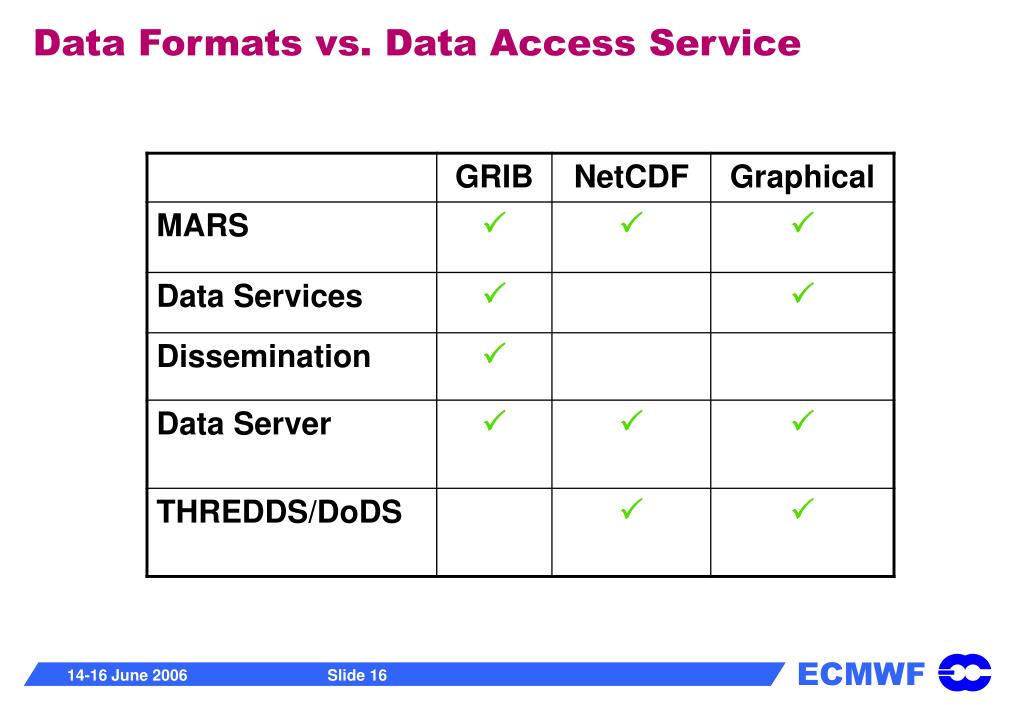

  16. Data Formats vs. Data Access Service

  17. Future developments • Thorpex Interactive Grand Global Ensemble, TIGGE • Creation of a Database containing all available global ensemble in near real-time • 3 Archive Centres (NCAR, CMA, ECMWF), 9 Data Providers (BoM, CMA, JMA, KMA, NCEP, CMC, CPTEC, UKMO, ECMWF) • GRIB Edition 2 • Initial exchange of data started (2 models) • First users expected by end 2006 • ENSEMBLES • Some experiments already available in MARS • Interim Re-Analysis

  18. Summary • Data Access Services • MARS, Data Services, Dissemination • Data Server, THREDDS/OpenDAP • Data sets • Operational Archive • Archive Catalogue and Real-Time Catalogue • Special projects: ERA, DEMETER, ENSEMBLES, TIGGE • Data formats • GRIB (Edition 1, 2) • NetCDF • Graphical

  19. More information • MARS: www.ecmwf.int/services/archive • Data Services: www.ecmwf.int/products/data • Dissemination: www.ecmwf.int/services/dissemination • Data Server: data.ecmwf.int/data • TIGGE: tigge.ecmwf.int • ENSEMBLES: www.ecmwf.int/research/EU_projects/ENSEMBLES Thank you !
