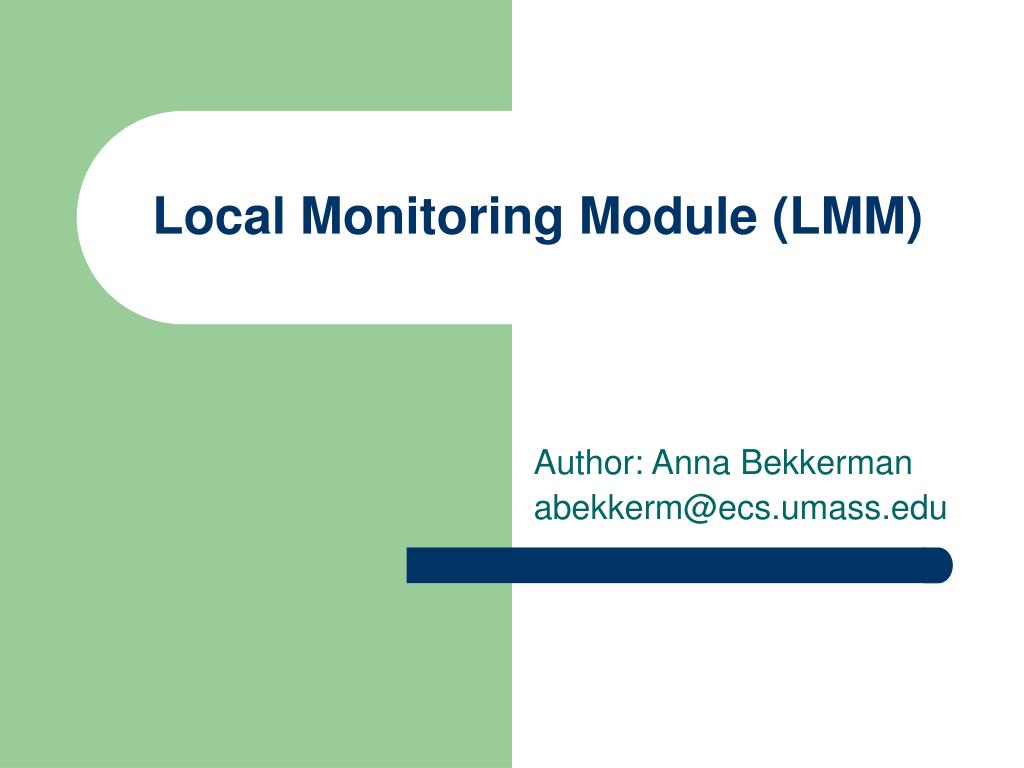

  1. Local Monitoring Module (LMM) Author: Anna Bekkerman abekkerm@ecs.umass.edu

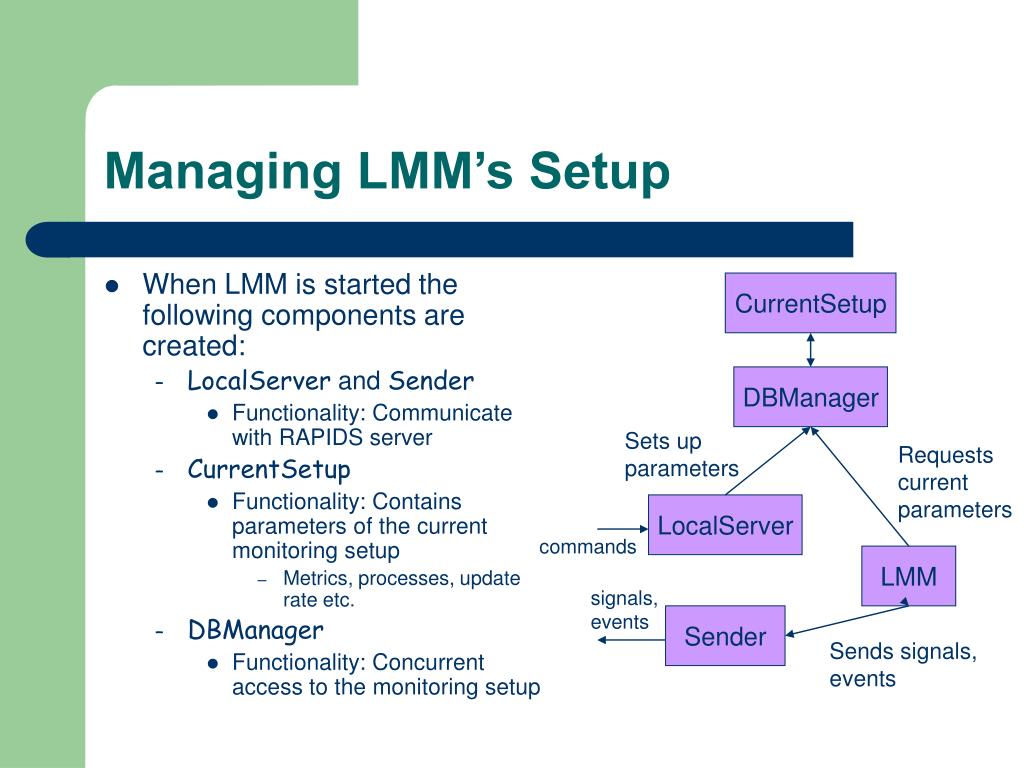

  2. Managing LMM’s Setup • When LMM is started the following components are created: • LocalServer and Sender • Functionality: Communicate with RAPIDS server • CurrentSetup • Functionality: Contains parameters of the current monitoring setup • Metrics, processes, update rate etc. • DBManager • Functionality: Concurrent access to the monitoring setup CurrentSetup DBManager Sets up parameters Requests current parameters LocalServer commands LMM signals, events Sender Sends signals, events

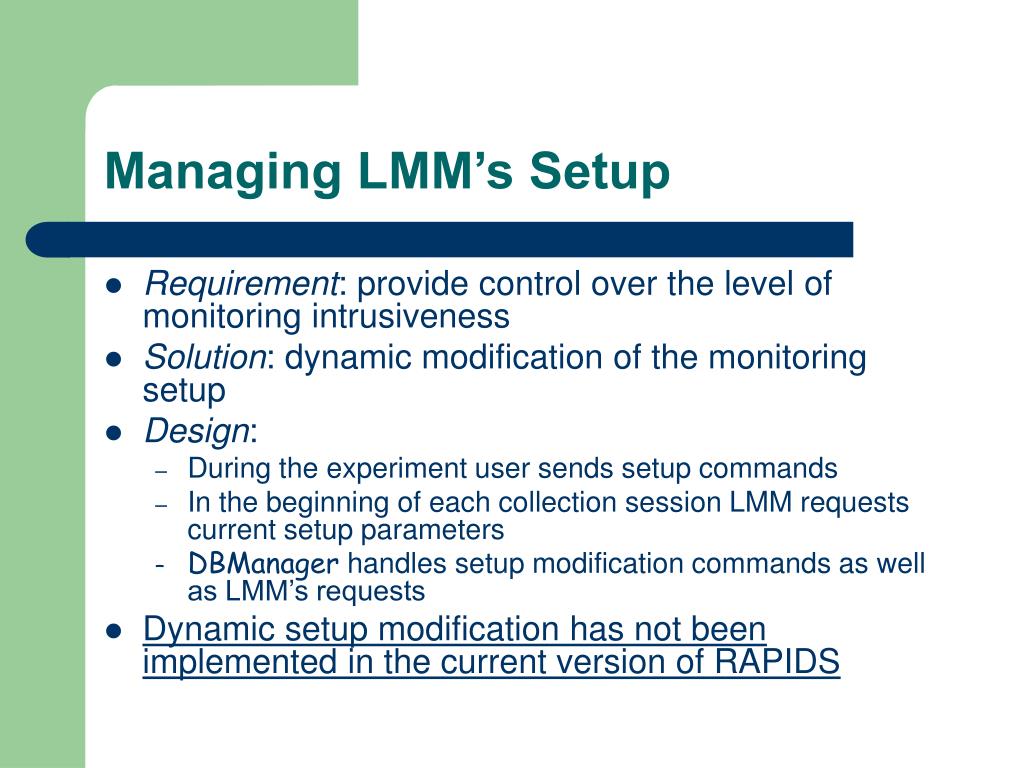

  3. Managing LMM’s Setup • Requirement: provide control over the level of monitoring intrusiveness • Solution: dynamic modification of the monitoring setup • Design: • During the experiment user sends setup commands • In the beginning of each collection session LMM requests current setup parameters • DBManager handles setup modification commands as well as LMM’s requests • Dynamic setup modification has not been implemented in the current version of RAPIDS

  4. Start-up Procedure • Start network control application (if needed) • Initialize RAPIDS Message Queue (RMQ) • Start heartbeat application • Launch processes

  5. Network Control • Requirement: simulate packet drop rates and transit delays on links between radar nodes and the SOCC • Solution: use iptables to forward packets to user-land application that will delay or drop them SOCC SOCC1 SOCC2 Radar node Radar node Radar node

  6. Network Control: Implementation • Configure iptables to use the QUEUE target SOCC emmy2 SOCC1 SOCC2 /etc/sysconfig/iptables on emmy5.casa.umass.edu : … -A INPUT -s 128.119.245.36 -j QUEUE … Radar node Radar node Radar node emmy2.casa.umass.edu emmy5 All packets coming from emmy2 will be queued!

  7. Network Control: Implementation In order to unload the ip_queue module do: > /sbin/modprobe –r ip_queue In order to stop iptables do: > /sbin/service iptables stop • Start iptables • Load the ip_queue module that forwards packages to the user space > /sbin/service iptables start Applying iptables firewall rules: [ OK ] These commands should be executed under root login! > /sbin/modprobe ip_queue > /sbin/lsmod Module Size Used by ip_queue 14553 0 …

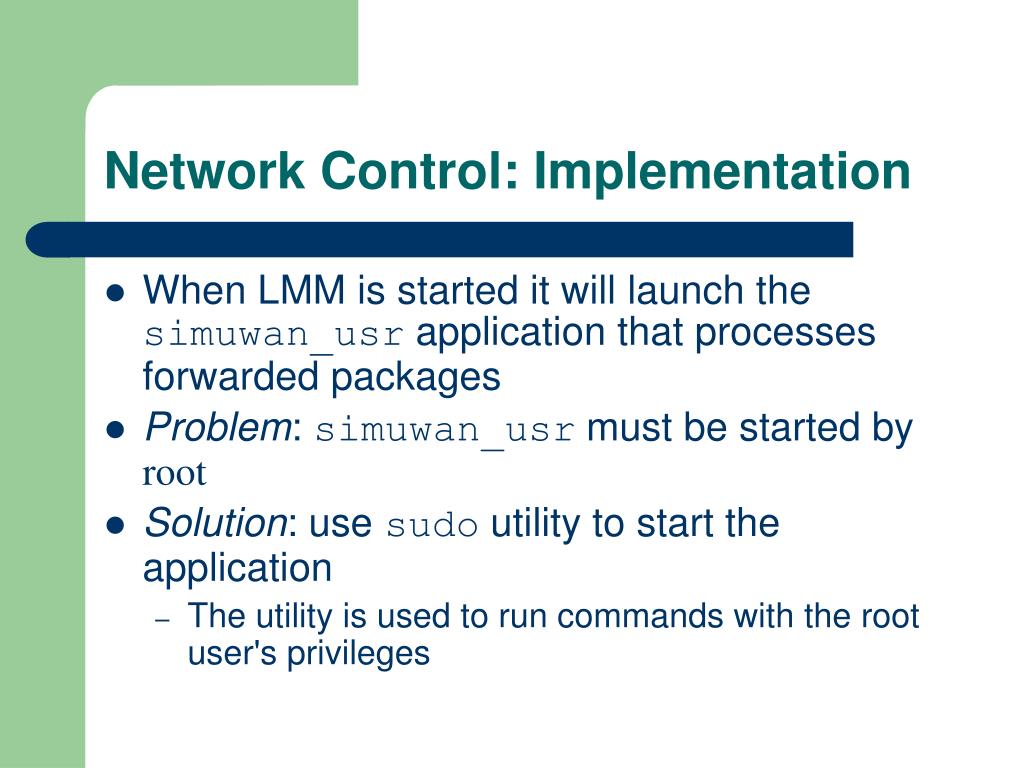

  8. Network Control: Implementation • When LMM is started it will launch the simuwan_usr application that processes forwarded packages • Problem: simuwan_usr must be started by root • Solution: use sudo utility to start the application • The utility is used to run commands with the root user's privileges

  9. How to Set Up the sudo Utility • On the machine X edit the sudoers file (as root): • Specify commands that should be executed under root login: • Now, while running on Xunder someLogin, LMM should be able to start/stop simuwan_usr > /usr/sbin/visudo someLogin X = NOPASSWD : /usr/share/rapids/bin/ simuwan_usr, /usr/bin/kill

  10. More on simuwan_usr Application • Two types of action can be applied to the packets • Delay for either constant or variable amount of time • Drop according to the specified drop rate • Packets that are not dropped can be delayed still • Uses Glib’s event loop to process forwarded packets • Each packet is an event • Each event should be assigned a verdict: ACCEPT or REJECT • Each event can be assigned a timeout before it is dispatched

  11. RAPIDS Message Queue (RMQ) • RMQ employs Unix message queues to store Messaging and Application events • Events are generated: • Through wrapped library function calls • Using RAPIDS API • RMQManager: • Creates/removes RMQ • Periodically retrieves events and prepares them for sending to the RAPIDS server Application 1 Application 1 Function call LMM RMQ RMQManager To server

  12. Network Monitoring • Requirement: monitor status of links between SOCC and radar nodes • Solution: send “I’m alive” messages from radars to the SOCC • Drawback: false alarms

  13. Network Monitoring: Implementation • heartbeat_socc application is started on the SOCC node • If there is more than one node in the SOCC, the first one specified in the configuration file is chosen • heartbeat_sensor applications are started on the rest of the nodes • SOCC periodically pings nodes SOCC SOCC1 SOCC2 Radar node Radar node heartbeat_socc heartbeat_sensor

  14. Network Monitoring: Implementation • If node X replays, SOCC generates Variable event: “X=true” • If node X does not replay, SOCC generates Variable event: “X=false” • When RAPIDS server receives false event for node X, it reports failure for connection SOCC ↔ X LMM RMQ To server RMQManager SOCC SOCC1 SOCC2 “Variable” event Radar node Radar node heartbeat_socc heartbeat_sensor

  15. Launching Processes • User provides commands to start/stop processes in the configuration file • RAPIDS server sends these commands to LMMs while setting them up • LMM writes commands to a script • Scripts are created in the home directory and deleted at the end of the experiment • Script name is start_commands/stop_commands followed by the sequence number of the node where the script is executed • SOCC nodes have 1-digit sequence numbers: 1, 2, 3 … • Sensor nodes have 3-digit sequence numbers: 100, 101, 102 … • Starting script is executed in the beginning of the experiment • Stopping script is executed when LMM receives stop signal

  16. Sender void send(Bucket *b) CommandProvider vector<Command *> commands(Bucket *s, Bucket *p, Bucket *e) CommandExecutor vector<Command *> commands; void execute() Collection Session: Class Diagram RMQManager SyncBuffer DBManager CollectionSession executes creates void start() starts SystemBucket ProcessBucket Bucket EventBucket

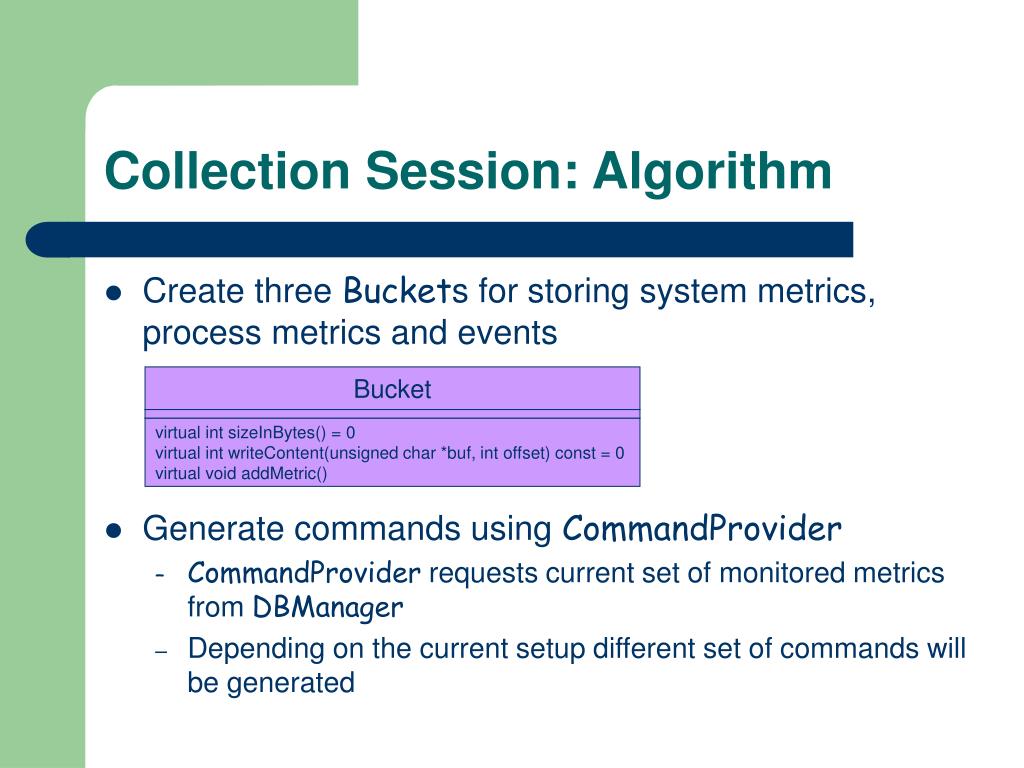

  17. Bucket virtual int sizeInBytes() = 0 virtual int writeContent(unsigned char *buf, int offset) const = 0 virtual void addMetric() Collection Session: Algorithm • Create three Buckets for storing system metrics, process metrics and events • Generate commands using CommandProvider • CommandProvider requests current set of monitored metrics from DBManager • Depending on the current setup different set of commands will be generated

  18. Collection Session: Algorithm • Run CommandExecutor • System/process metrics: • Each command reads current value of a certain metric • For example: CPU utilization, workload etc. • Command writes metric values to a bucket • Events: • RMQManager inserts events into a SyncBuffer • Special EventCatcher command retrieves events from the buffer and puts them into a bucket • Send events/metrics to the RAPIDS server using Sender

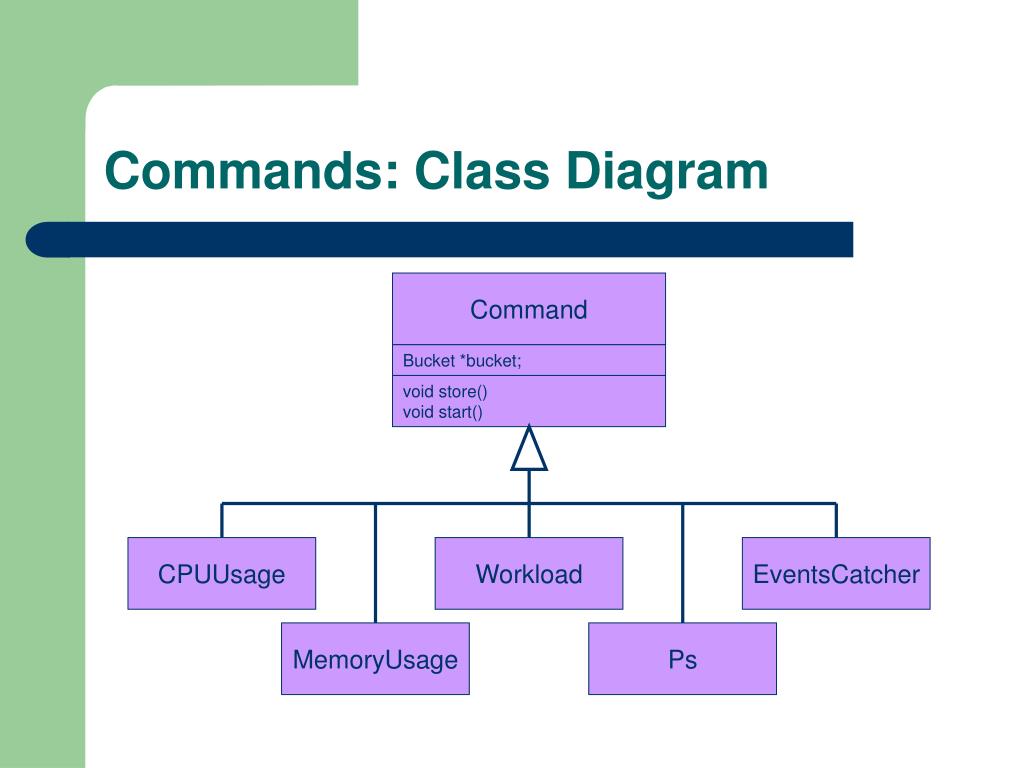

  19. Commands: Class Diagram Command Bucket *bucket; void store() void start() CPUUsage Workload EventsCatcher MemoryUsage Ps

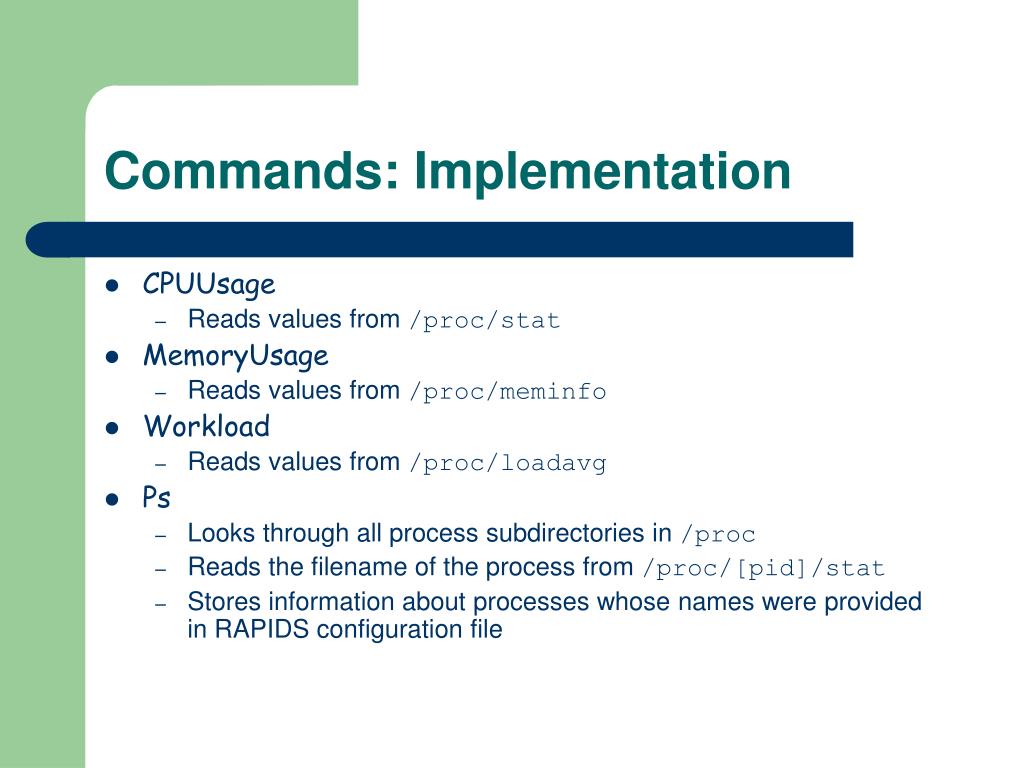

  20. Commands: Implementation • CPUUsage • Reads values from /proc/stat • MemoryUsage • Reads values from /proc/meminfo • Workload • Reads values from /proc/loadavg • Ps • Looks through all process subdirectories in /proc • Reads the filename of the process from /proc/[pid]/stat • Stores information about processes whose names were provided in RAPIDS configuration file
