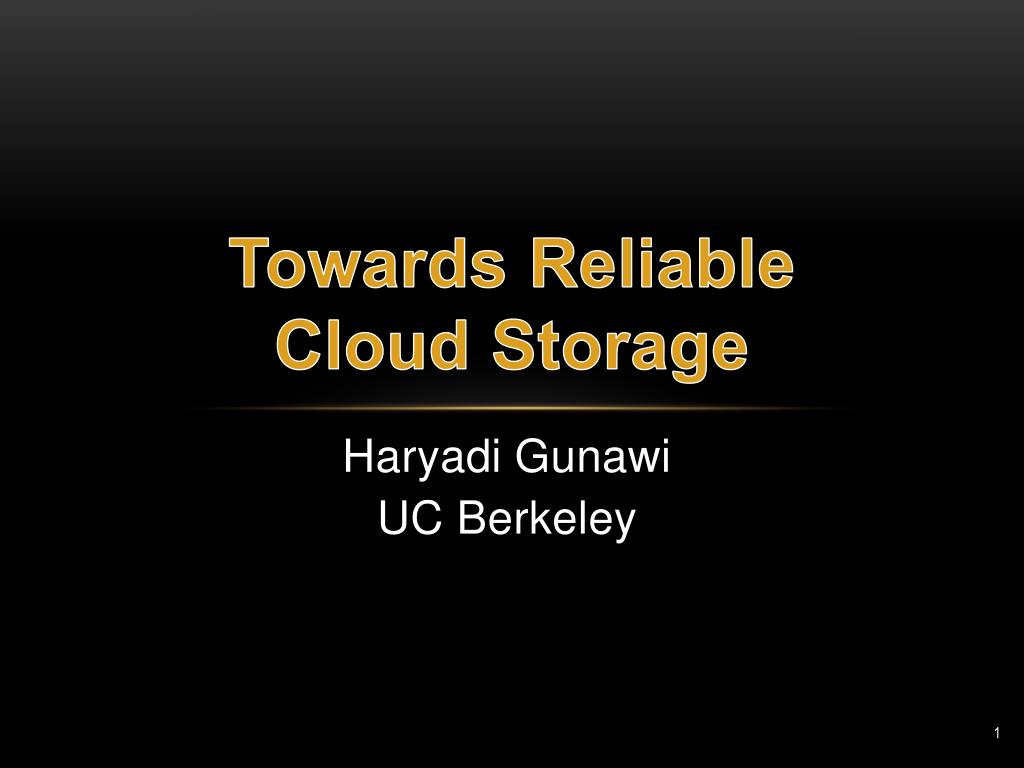

Towards ReliableCloud Storage Haryadi Gunawi UC Berkeley
Outline • Research background • FATE and DESTINI
Yesterday’s storage Storage Servers Local storage
Tomorrow’s storage e.g. Google Laptop Cloud Storage
Tomorrow’s storage Internet-service FS: GoogleFS, HadoopFS, CloudStore, ... Key-Value Store: Cassandra, Voldemort, ... + Replication + Scale-up + Migration + ... Reliable? Structured Storage: Yahoo! PNUTS, Google BigTable, Hbase, ... “This is not just data. It’s my life. And I would be sick if I lost it” [CNN ’10] Highly-available? Custom Storage: Facebook Haystack Photo Store, Microsoft StarTrack(Map Apps), Amazon S3, EBS, ...
Headlines Cloudy with a chance of failure
Outline • Research background • FATE and DESTINI • Motivation • FATE • DESTINI • Evaluation Joint work with: Thanh Do, Pallavi Joshi, Peter Alvaro, Joseph Hellerstein, Andrea Arpaci-Dusseau, RemziArpaci-Dusseau, Koushik Sen, Dhruba Borthakur
Failure recovery ... • Cloud • Thousands of commodity machines • “Rare (HW) failures become frequent” [Hamilton] • Failure recovery • “… has to come from the software” [Dean] • “… must be a first-class op” [Ramakrishnan et al.]
... hard to get right • Google Chubby (lock service) • Four occasions of data loss • Whole-system down • More problems after injecting multiple failures (randomly) • Google BigTable (key-value store) • Chubby bug affects BigTable availability • More details? • How often? Other problems and implications?
... hard to get right • HDFS JIRA study • 1300 issues, 4 years (April 2006 to July 2010) • Select recovery problems due to hardware failures • 91 recovery bugs/issues • Open-source cloud projects • Very valuable bug/issue repository! • HDFS (1400+), ZooKeeper (900+), Cassandra (1600+), Hbase (3000+), Hadoop (7000+)
Why? • Testing is not advanced enough [Google] • Failure model: multiple, diverse failures • Recovery is under-specified [Hamilton] • Lots of custom recovery • Implementation is complex • Need two advancements: • Exercise complex failure modes • Write specifications and test the implementation
Cloud testing FATE Cloud software X2 X1 Failure Testing Service DESTINI Declarative Testing Specifications Violate specs?
Outline • Research background • FATE and DESTINI • Motivation • FATE • Architecture • Failure exploration • DESTINI • Evaluation
Setup Stage M C 1 2 3 4 M C 1 2 3 HadoopFS (HDFS) Write Protocol Alloc Req Data Transfer X1 X2 No failures M C 1 2 3 Data Transfer Recovery: Continue on surviving nodes (1, 2) Setup Recovery: Recreate fresh pipeline (1, 2, 4)
Failures and FATE M C 1 2 3 4 • Failures • Anytime: different stages different recovery • Anywhere: N2 crash, and then N3 • Any type: bad disks, partitioned nodes/racks • FATE • Systematically exercise multiple, diverse failures • How? need to “remember” failures – via failure IDs M C 1 2 3
Failure IDs • Abstraction of I/O failures • Building failure IDs • Intercept every I/O • Inject possible failures • Ex: crash, network partition, disk failure (LSE/corruption) Node2 Node3 X Note: FIDs A, B, C, ...
FATE Architecture Workload Driver while (new FIDs) { hdfs.write() } Target system (e.g. Hadoop FS) I/O Info Failure Server (fail/no fail?) AspectJ Failure Surface Java SDK
A A A A A A B B B B B C C C Brute-force exploration 1 failure / run 2 failures / run M C 1 2 3 M C 1 2 3 Exp #1: A AB Exp #2: B AC Exp #3: C BC
Outline • Research background • FATE and DESTINI • Motivation • FATE • Architecture • Failure exploration challenge and solution • DESTINI • Evaluation
Combinatorial explosion • Exercised over 40,000 unique combinations of 1, 2, and 3 failures per run • 80 hours of testing time! • New challenge: Combinatorial explosion • Need smarter exploration strategies A1 B1 A2 B2 A3 B3 1 2 3 2 failures / run A1 A2 A1 B2 B1 A2 B1 B2 ...
Pruning multiple failures • Properties of multiple failures • Pairwise dependent failures • Pairwise independent failures • Goal: exercise distinctrecovery behaviors • Key: some failures result in similar recovery • Result: > 10x faster, and found the same bugs

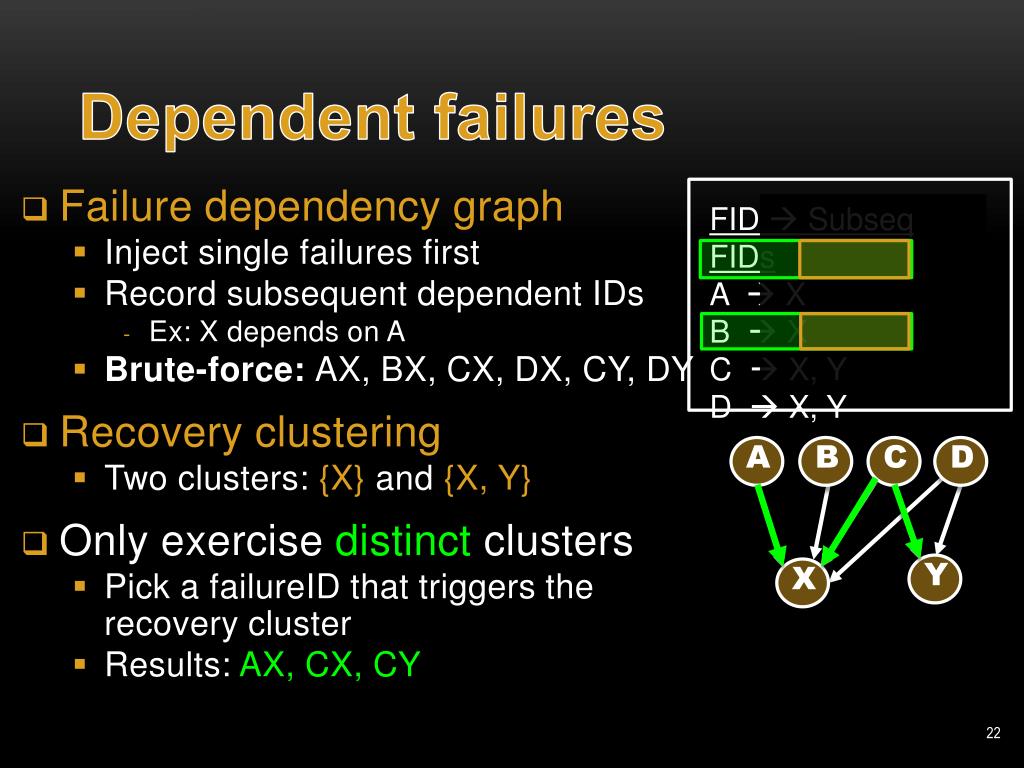

Dependent failures • Failure dependency graph • Inject single failures first • Record subsequent dependent IDs • Ex: X depends on A • Brute-force: AX, BX, CX, DX, CY, DY • Recovery clustering • Two clusters: {X} and {X, Y} • Only exercise distinct clusters • Pick a failureID that triggers the recovery cluster • Results: AX,CX,CY FID Subseq FIDs A X B X C X, Y D X, Y A B C D X Y
Independent failures (1) • Independent combinations • FP2 x N (N – 1) • FP = 2, N = 3, Tot = 24 • Symmetric code • Just pick two nodes • N (N – 1) 2 • FP2 x 2 1 2 3 B3 A3 A1 B1 A2 B2 B3 A1 B1 A2 B2 A3 1 2 3
Independent failures (2) • FP2bottleneck • FP = 4, total = 16 • Real example, FP = 15 • Recovery clustering • Cluster A and B if: fail(A) == fail(B) • Reduce FP2to FP2clustered • E.g.15 FPs to 8 FPsclustered A1 B1 A2 B2 C1 D1 C2 D2 A1 B1 A2 B2 C1 D1 C2 D2
FATE Summary • Exercise multiple, diverse failures • Via failure IDs abstraction • Challenge: combinatorial explosion of multiple failures • Smart failure exploration strategies • > 10x improvement • Built on top of failure IDs abstraction • Current limitations • No I/O reordering • Manual workload setup
Outline • Research background • FATE and DESTINI • Motivation • FATE • DESTINI • Overview • Building specifications • Evaluation

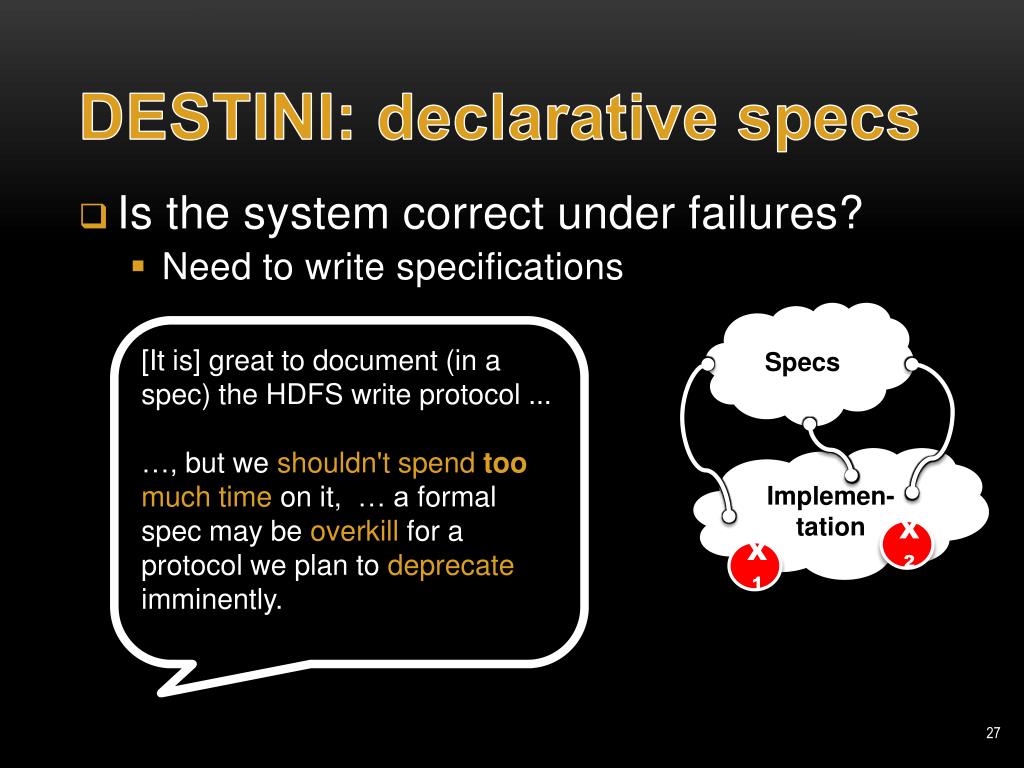

DESTINI: declarative specs • Is the system correct under failures? • Need to write specifications X1 X2 Specs [It is] great to document (in a spec) the HDFS write protocol ... …, but weshouldn't spend toomuch time on it, … aformal spec may be overkill for a protocol we plan to deprecate imminently. Implemen- tation
Declarative specs • How to write specifications? • Developer friendly (clear, concise, easy) • Existing approaches: • Unit test (ugly, bloated, not formal) • Others too verbose and long • Declarative relational logic language (Datalog) • Key: easy to express logical relations
Specs in DESTINI • How to write specs? • Violations • Expectations • Facts • How to write recovery specs? • “... recovery is under specified” [Hamilton] • Precise failure events • Precise check timings • How to test implementation? • Interpose I/O calls (lightweight) • Deduce expectations and facts from I/O events Specs Implemen- tation
Outline • Research background • FATE and DESTINI • Motivation • FATE • DESTINI • Overview • Building specifications • Evaluation
Specification template “Throw a violation if an expectation is different from the actual behavior” violationTable(…) :- expectationTable(…), NOT-IN actualTable(…) head() :- predicates(), … :- derivation , AND Datalog syntax:
Data transfer recovery M C 1 2 3 “Replicas should exist in surviving nodes” X Data Transfer B B incorrectNodes(B, N) :- expectedNodes(B, N), NOT-IN actualNodes(B, N);
Recovery bug X B B M C 1 2 3 incorrectNodes(B, N) :- expectedNodes(B, N), NOT-IN actualNodes(B, N);
Building expectations 1 2 3 M C • Ex: which nodes should have the blocks? • Deduce expectations from I/O events (italic) X2 C M getBlockPipe(…) Give me 3 nodes for B [Node1, Node2, Node3] expectedNodes (B, N) :- getBlockPipe(B, N); #1: incorrectNodes(B, N) :- expectedNodes(B, N), NOT-IN actualNodes(B, N);
Updating expectations M C 1 2 3 DEL expectedNodes (B, N) :- expectedNodes (B, N), fateCrashNode(N) X B B #1: incorrectNodes(B, N) :- expectedNodes(B, N), NOT-IN actualNodes(B, N); #2: expectedNodes(B, N) :- getBlockPipe(B,N)
Precise failure events M C 1 2 3 4 DEL expectedNodes(B, N) :- expectedNodes (B, N), fateCrashNode(N), writeStage(B, Stage), Stage == “Data Transfer”; Different stages different recovery behaviors Precise failure events Data transfer recovery vs. Setup stage recovery M C 1 2 3 #1: incorrectNodes(B,N) :- expectedNodes(B,N), NOT-IN actualNodes(B,N) #2: expectedNodes(B,N) :- getBlockPipe(B,N) #3: expectedNodes(B,N) :- expectedNodes(B,N), fateCrashNode(N), writeStage(B,Stage), Stage == “DataTransfer” #4: writeStage(B, “DataTr”) :- writeStage(B,“Setup”), nodesCnt(Nc), acksCnt (Ac), Nc==Ac #5: nodesCnt (B, CNT<N>) :- pipeNodes (B, N); #6: pipeNodes (B, N) :- getBlockPipe(B, N); #7: acksCnt (B, CNT<A>) :- setupAcks (B, P, “OK”); #8: setupAcks (B, P, A) :- setupAck(B, P, A);
Facts • Ex: which nodes actually store the valid blocks? • Deduced from disk I/O events in 8 datalog rules X M C 1 2 3 B #1: incorrectNodes(B,N) :- expectedNodes(B,N), NOT-IN actualNodes(B,N)
Violation and check-timing • Recovery ≠ invariant • If recovery is ongoing, invariants are violated • Don’t want false alarms • Need precisecheck timings • Ex: upon block completion #1: incorrectNodes(B, N) :- expectedNodes(B, N), NOT-IN actualNodes(B, N), completeBlock(B);
Data-transfer recovery spec Failure event (crash) Expectation Actual Facts I/O Events
More detailed specs M C 1 2 3 M C 1 2 3 • The spec: “something is wrong” • Why? Where is the bug? • Let’s write more detailed specs X X B B B
Adding specs M C 1 2 3 X • First analysis • Client’s pipeline excludes Node2, why? • Maybe, client gets a bad ack for Node2 errBadAck(N) :- dataAck (N, “Error”), liveNodes (N) • Second analysis • Client gets a bad ack for Node2, why? • Maybe, Node1 could not communicate to Node2 errBadConnect(N, TgtN) :- dataTransfer (N, TgtN, “Terminated”), liveNodes (TgtN) • We catch the bug! • Node2 cannot talk to Node3 (crash) • Node2 terminates all connections (including Node1!) • Node1 thinks Node2 is dead B
Catch bugs with more specs • More detailed specs • Catch bugs closer to the source and earlier in time Datanode’s view Client’s view Global view
More ... • Design patterns • Add detailed specs • Refine existing specs • Write specs from different views (global, client, dn) • Incorporate diverse failures (crashes, net partitions) • Express different violations (data-loss, unavailability)
Outline • Research background • FATE and DESTINI • Motivation • FATE • DESTINI • Evaluation
Evaluation • Implementation complexity • ~6000 LOC in Java • Target 3 popular cloud systems • HadoopFS (primary target) • Underlying storage for Hadoop/MapReduce • ZooKeeper • Distributed synchronization service • Cassandra • Distributed key-value store • Recovery bugs • Found 22 new HDFS bugs (confirmed) • Data loss, unavailability bugs • Reproduced 51 old bugs
Availability bug “Ifmultiple racks are available (reachable), a block should be stored in a minimum of two racks” “Throw a violation if a block is only stored in one rack, but the rack is connected to another rack” errorSingleRack(B) :- rackCnt(B,Cnt), Cnt==1, blkRacks(B,R), connected(R,Rb), endOfReplicationMonitor (_); rackCnt B, 1 blkRacks B, R1 connected R1, R2 errorSingleRack B Rack #1 Rack #2 Availability bug! #replicas = 3, locations are not checked, B is not migrated to R2 B B Client B B FATE injects rack partitioning Replication Monitor
Pruning Efficiency 7720 • Reduce #experiments by an order of magnitude • Each experiment = 4-9 seconds • Found the same number of bugs • (by experience) 5000 # Exps Brute Force Pruned 618 Write + 2 crashes Append + 2 crashes Write + 3 crashes Append + 3 crashes
Specification simplicity • Compared to other related work
Summary • Cloud systems • All good, but must manage failures • Performance, reliability, availability depend on failure recovery • FATE and DESTINI • Explore multiple, diverse failures systematically • Facilitate declarative recovery specifications • A unified framework • Real-world adoption in progress
