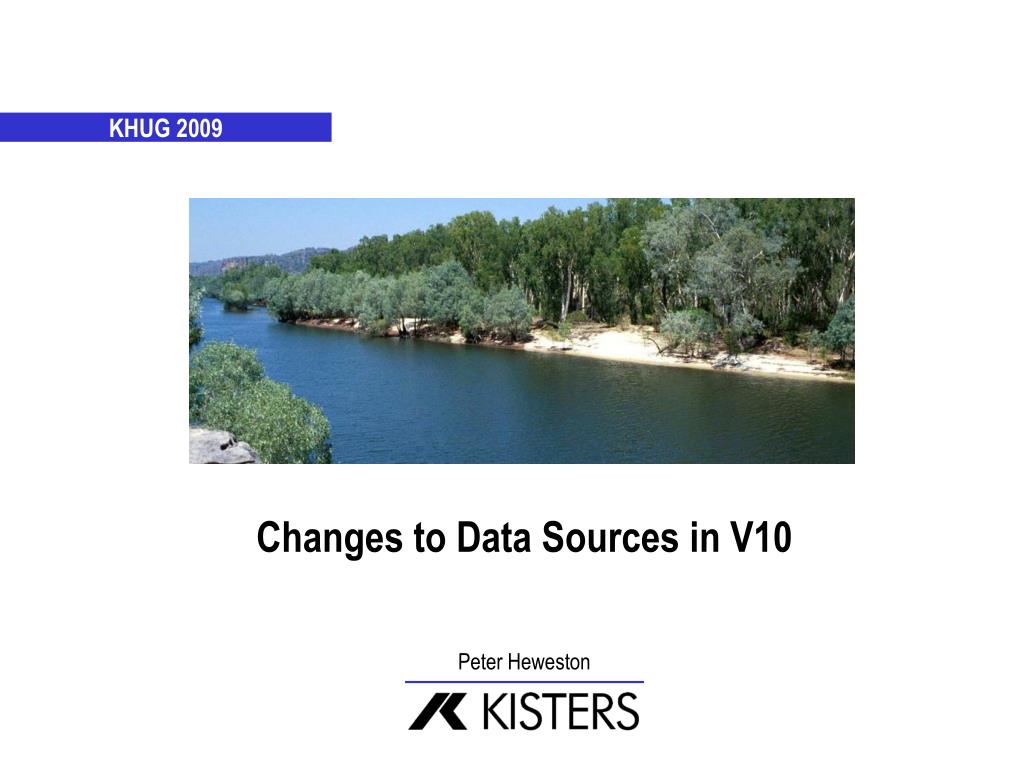

  1. Changes to Data Sources in V10 KHUG 2009 Peter Heweston

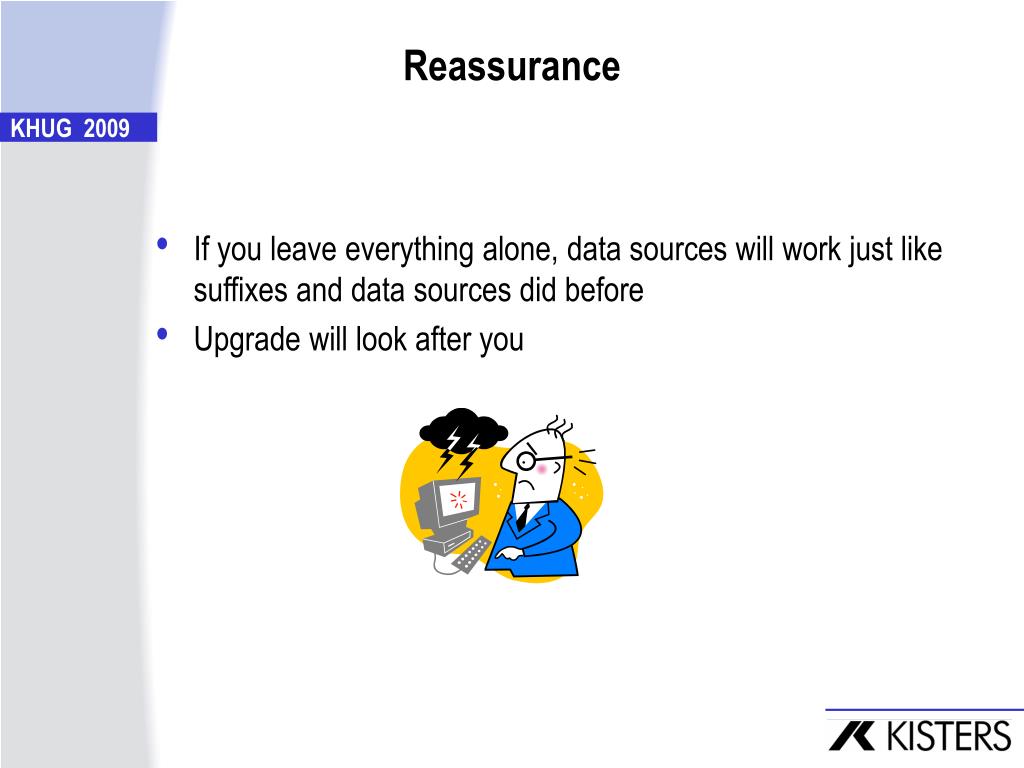

  2. Reassurance • If you leave everything alone, data sources will work just like suffixes and data sources did before • Upgrade will look after you

  3. Data Sources Changes - Drivers • Traditionally, the way Hydstra time series data was identified has been very file-specific, particularly for TS files. • Also very arbitrary: “.A” = archive, “.B”..“.Z” for work area files • Other products in the Hydstra / Kisters family use a more tree-oriented view of the data world • TSM, HydroTel, TimeStudio, Wiski • The user decides how the data is arranged • Hydstra’s “switchable datasets” feature • Not an elegant solution • Did not fit Kisters world view • Part of aligning all Kisters products with TSM concepts to allow for future integration

  4. All datasources registered in DATASRC.INI • In Hydstra V9 there were four classes of TS data: • Single-letter TS files (A, B..Z) (suffixes in old parlance) • “Presets” from DATASRC.INI (WQ, GW, TE etc.) • Fully specified data source expressions: • SRC=CONST,VALUE=1.25 • now CONST(1.25) • TS files in other datasets • Usually access via a datasource • Edited by changing dataset • In Hydstra V10 everything comes from DATASRC.INI • No exceptions • However we do offer parameterised datasources

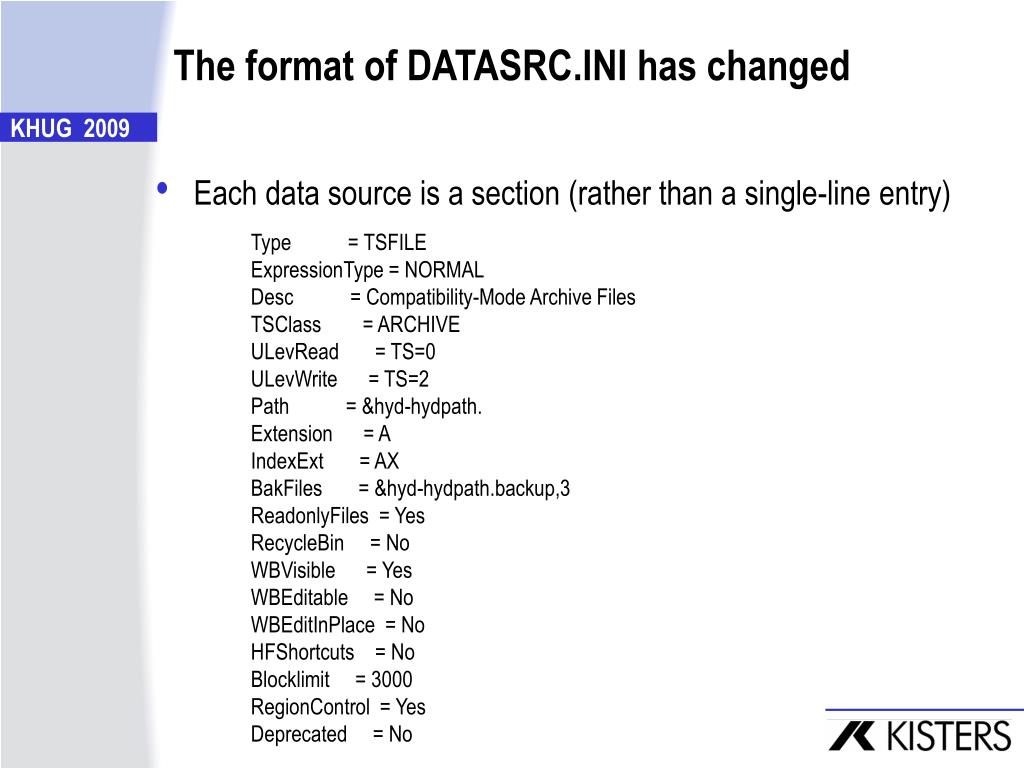

  5. The format of DATASRC.INI has changed • Each data source is a section (rather than a single-line entry) • Type = TSFILE • ExpressionType = NORMAL • Desc = Compatibility-Mode Archive Files • TSClass = ARCHIVE • ULevRead = TS=0 • ULevWrite = TS=2 • Path = &hyd-hydpath. • Extension = A • IndexExt = AX • BakFiles = &hyd-hydpath.backup,3 • ReadonlyFiles = Yes • RecycleBin = No • WBVisible = Yes • WBEditable = No • WBEditInPlace = No • HFShortcuts = No • Blocklimit = 3000 • RegionControl = Yes • Deprecated = No

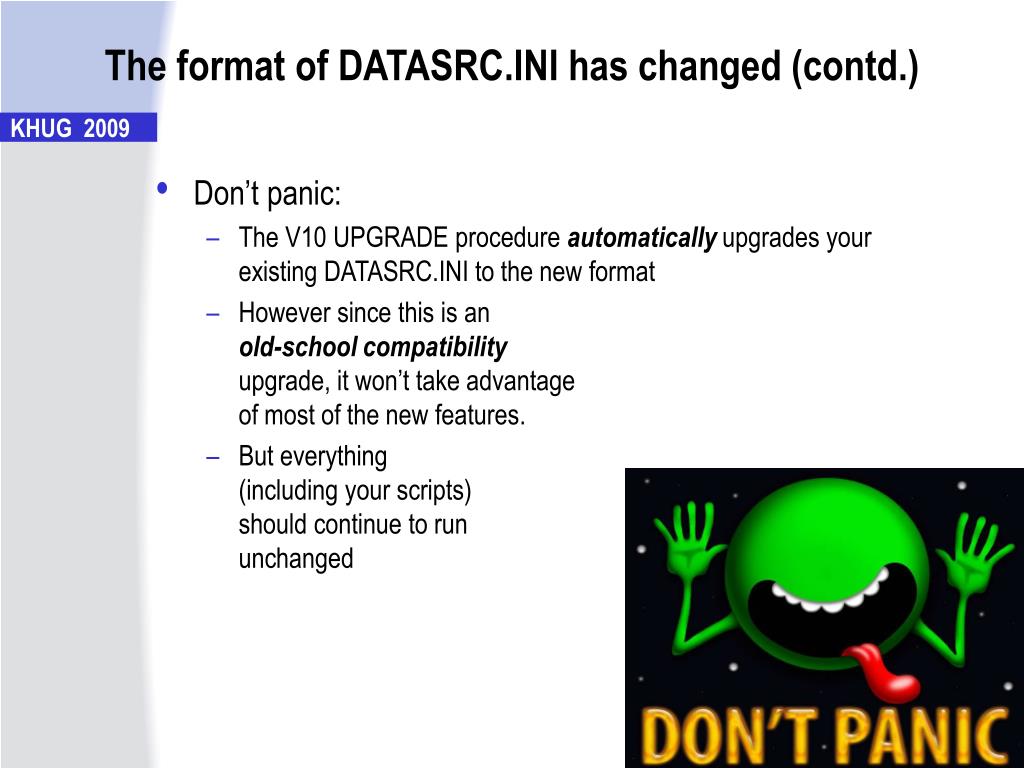

  6. The format of DATASRC.INI has changed (contd.) • Don’t panic: • The V10 UPGRADE procedure automatically upgrades your existing DATASRC.INI to the new format • However since this is an old-school compatibilityupgrade, it won’t take advantage of most of the new features. • But everything (including your scripts) should continue to run unchanged

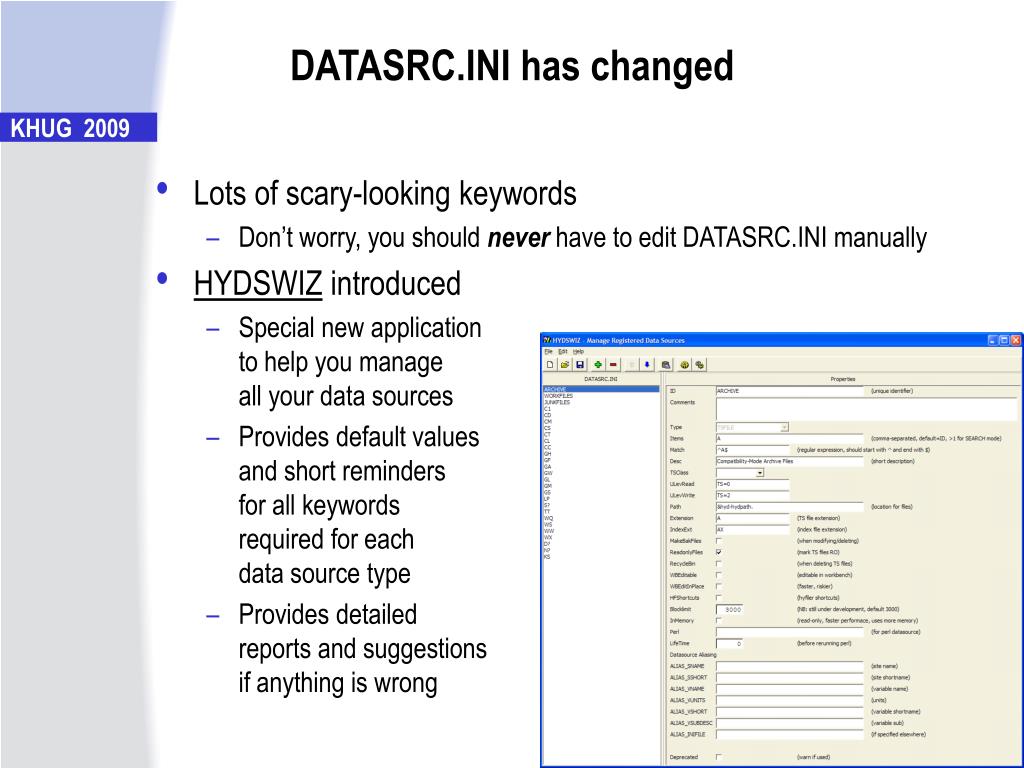

  7. DATASRC.INI has changed • Lots of scary-looking keywords • Don’t worry, you should never have to edit DATASRC.INI manually • HYDSWIZ introduced • Special new application to help you manage all your data sources • Provides default valuesand short reminders for all keywords required for each data source type • Provides detailed reports and suggestions if anything is wrong

  8. New concept for TS files: TSCLASS • All TSFILE datasources divided into something called TSCLASSThere are four choices: ARCHIVE – the primary managed archive of TS file dataThere must be one and only one datasource of this class WORK – files intended to become part of the archive in due course AUX – auxiliary data Neither the primary archive, or intended to be merged with it in the future. • Virtual data sources (Perl data sources) • Data from other systems (WQ, GW converted to TS) • Data from other organisations. TEMP – temporary filesFor use in scriptsBelong to none of the categories above, will not appear in the Data Managers’ Workbench.

  9. No Magic Behaviours • TSFILE DataSources now define settings previously either controlled by HYCONFIG.INI, or hardwired into the system • User level required to read this data • User level required to write this data • Create .BAK files? • How many .BAK files to keep? • Mark files as read-only in the folder? • Send deleted files to recycle bin? • Enforce (or relax) region control? • As a result of this, the following keywords are removed from HYCONFIG.INI: • BAKFILE, ROHYD, RecycleArch, RecycleWork, TSArchive, TSWork, TSTemp, WBEditArchive, WBIPEdArchive, WBIPEdWork, HFShortCuts

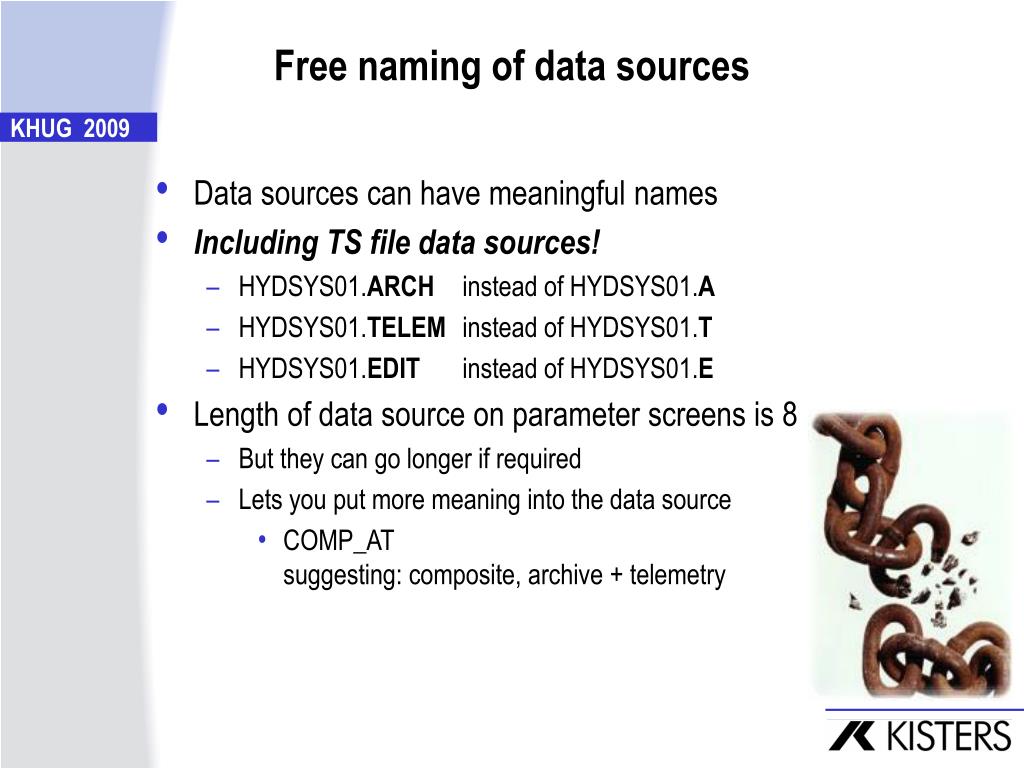

  10. Free naming of data sources • Data sources can have meaningful names • Including TS file data sources! • HYDSYS01.ARCH instead of HYDSYS01.A • HYDSYS01.TELEM instead of HYDSYS01.T • HYDSYS01.EDIT instead of HYDSYS01.E • Length of data source on parameter screens is 8 • But they can go longer if required • Lets you put more meaning into the data source • COMP_AT suggesting: composite, archive + telemetry

  11. That pesky ol’ SEARCH mode • Not a universally loved feature • Writing TS data to the next “free” data source if the one you specified already exists • We came quite close to ditching it altogether • It is now under your TOTAL control: • If you don’t want it, you don’t have to have it • You can quarantine it to a subset of your work data sources, eg: • TELEM, TELEM.1, TELEM.2, TELEM.3 • Put an end to runaway suffixes • Never stomp on T files again

  12. More control over folders & file extensions • You have complete control over which folders your TS files live in, and their file extensions • Different WORK data sources an live in different folders • Each data source can live in its own folder if you like • HYDPATH and WORKPATH have no guaranteed meaning! • A new HYCONFIG path introduced • TSPATH - \hyd\dat\ts • Each new TS file work area should live in a folder under this • But it is under your control

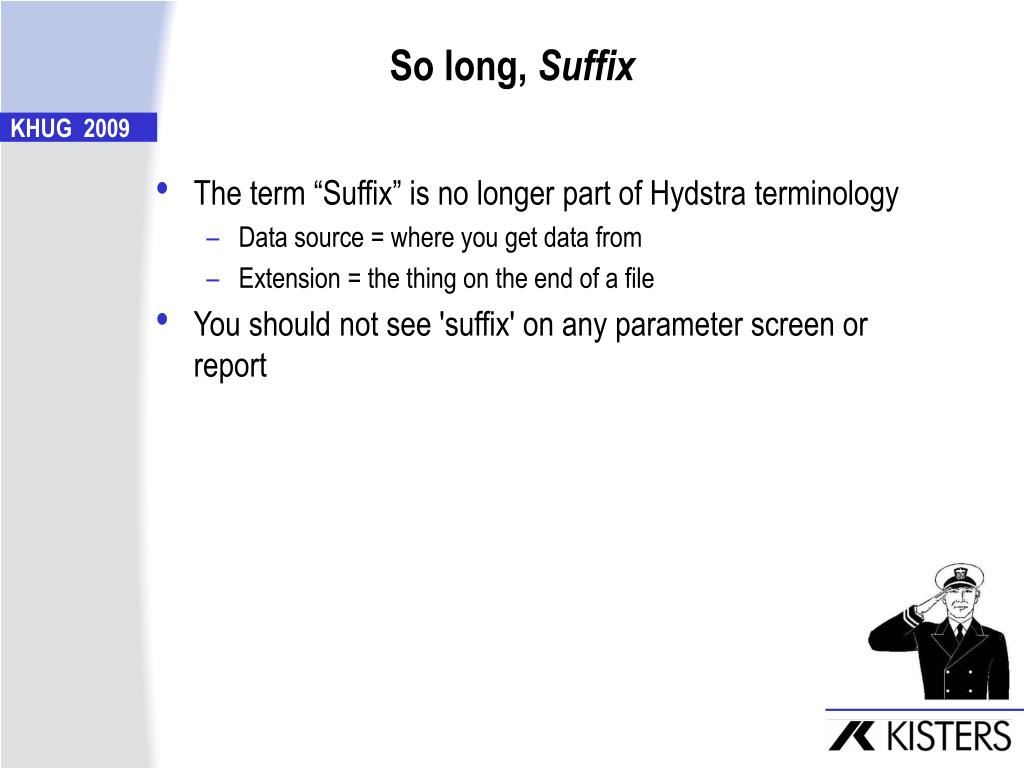

  13. So long, Suffix • The term “Suffix” is no longer part of Hydstra terminology • Data source = where you get data from • Extension = the thing on the end of a file • You should not see 'suffix' on any parameter screen or report

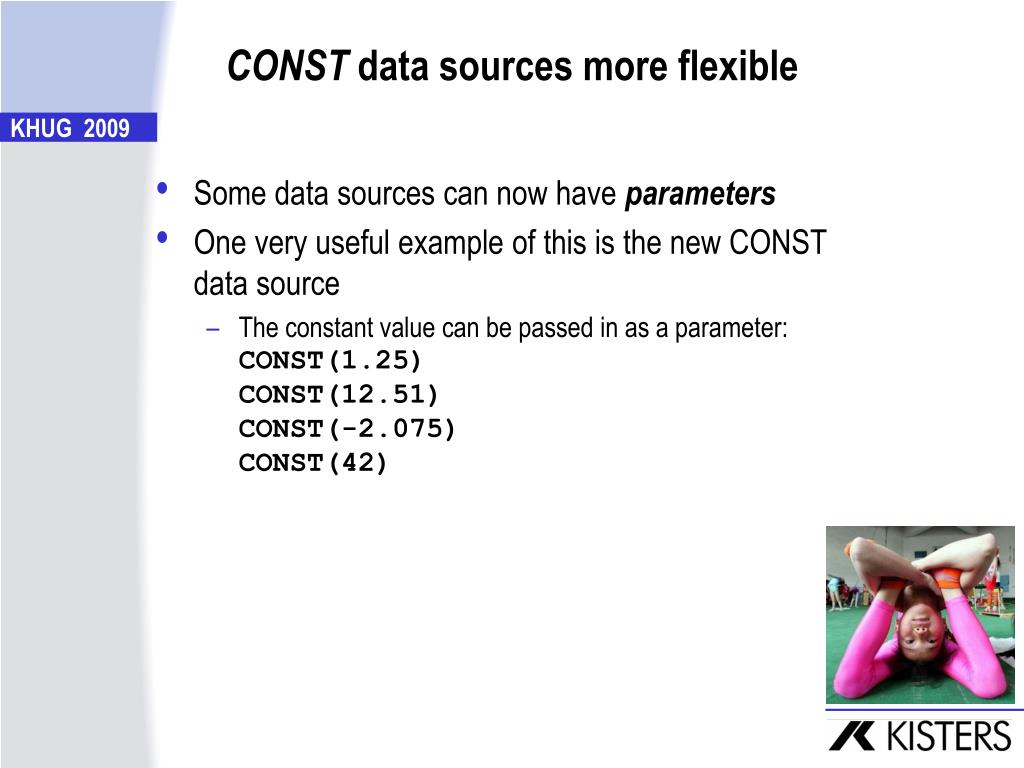

  14. CONST data sources more flexible • Some data sources can now have parameters • One very useful example of this is the new CONSTdata source • The constant value can be passed in as a parameter:CONST(1.25)CONST(12.51)CONST(-2.075)CONST(42)

  15. Perl Datasources • Perl datasources can be much more powerful • Can have parameters, no need to replicate different versions • T_LAG datasource example • TSCALC datasource • Under construction • Based on TSCALC table in TSADMIN manage • Has a dated period table • Different algorithms at different times • Use any technique (Perl, MODSYN, batch etc) • HYPLOT Demo • Demo Percentile Datasource

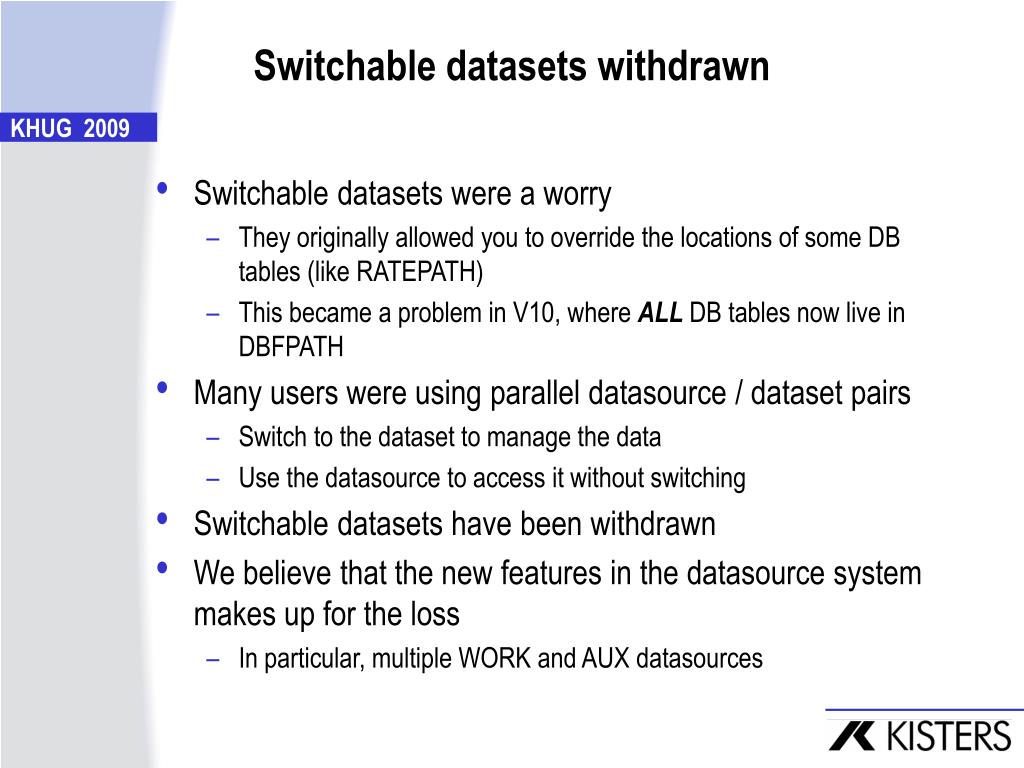

  16. Switchable datasets withdrawn • Switchable datasets were a worry • They originally allowed you to override the locations of some DB tables (like RATEPATH) • This became a problem in V10, where ALL DB tables now live in DBFPATH • Many users were using parallel datasource / dataset pairs • Switch to the dataset to manage the data • Use the datasource to access it without switching • Switchable datasets have been withdrawn • We believe that the new features in the datasource system makes up for the loss • In particular, multiple WORK and AUX datasources

  17. Datasets and Databases • Datasets have been withdrawn • All tables live in DBFPATH or SQL • Use work areas for separating tables out • Use DBSEARCH to use separate tables • E.g. • HYDBUTIL copy RATE*.* to [priv.myrate] • Run HYPLOT /e=hyconf=dbsearch;[priv.myrate]

  18. Impact on scripts: “A” for Archive • “A” may not be the archive datasource anymore • We have introduced a new “pseudo-HYCONFIG” variable: ArchiveDataSource • Pseudo-HYCONFIG? • Because it is not stored in HYCONFIG.INI • It is defined by the contents of DATASRC.INI • But you access it as if it were a HYCONFIG setting In perl: my $ArchDS = HyconfigValue('ARCHIVEDATASOURCE'); In DOS batch jobs: call hysetenv ARCHIVEDATASOURCE hyrep %site% %ARCHIVEDATASOURCE% ... INI files can specify it via macro substitution: DataSource = &hyd-ARCHIVEDATASOURCE.

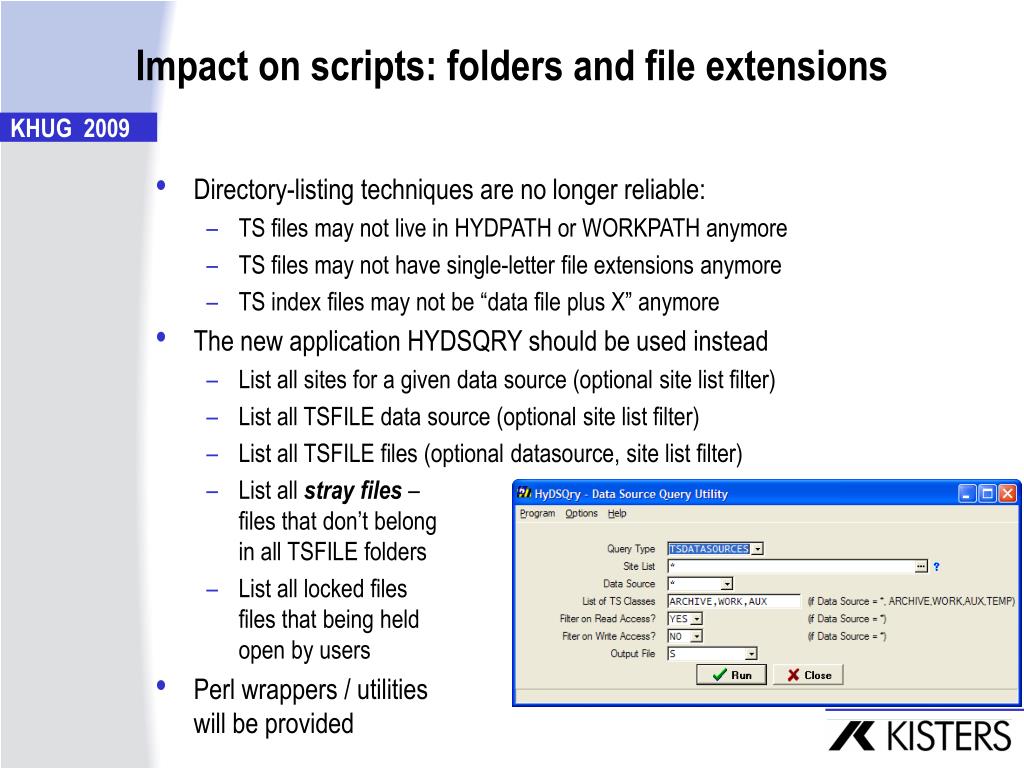

  19. Impact on scripts: folders and file extensions • Directory-listing techniques are no longer reliable: • TS files may not live in HYDPATH or WORKPATH anymore • TS files may not have single-letter file extensions anymore • TS index files may not be “data file plus X” anymore • The new application HYDSQRY should be used instead • List all sites for a given data source (optional site list filter) • List all TSFILE data source (optional site list filter) • List all TSFILE files (optional datasource, site list filter) • List all stray files – files that don’t belong in all TSFILE folders • List all locked filesfiles that being held open by users • Perl wrappers / utilities will be provided

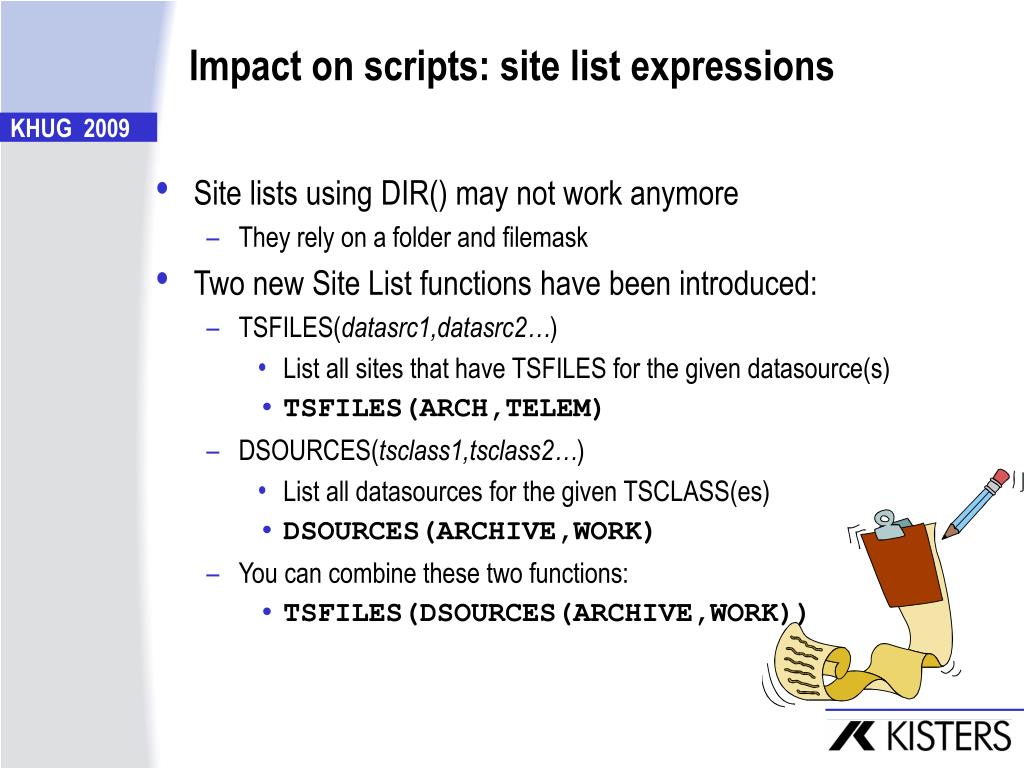

  20. Impact on scripts: site list expressions • Site lists using DIR() may not work anymore • They rely on a folder and filemask • Two new Site List functions have been introduced: • TSFILES(datasrc1,datasrc2…) • List all sites that have TSFILES for the given datasource(s) • TSFILES(ARCH,TELEM) • DSOURCES(tsclass1,tsclass2…) • List all datasources for the given TSCLASS(es) • DSOURCES(ARCHIVE,WORK) • You can combine these two functions: • TSFILES(DSOURCES(ARCHIVE,WORK))

  21. Changes to Data Sources in V10 KHUG 2009 Peter Heweston
