Database Transactions and Transaction Management

1. Database Transactions and Transaction Management Svetlin Nakov National Academy for Software Development academy.devbg.org

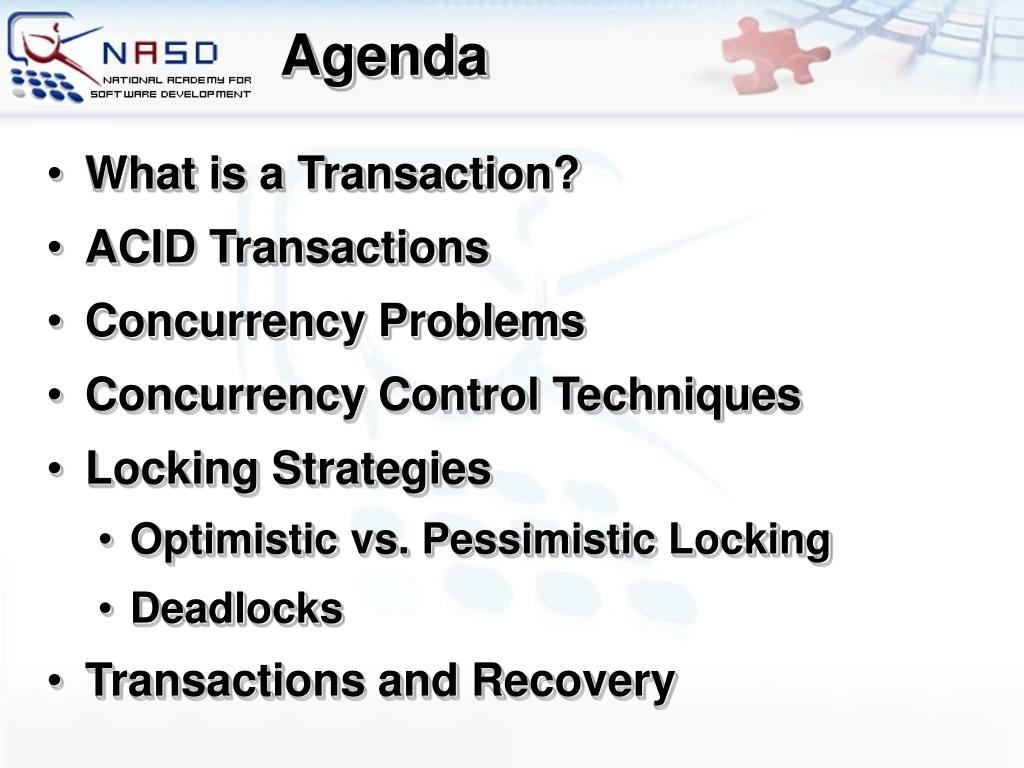

2. Agenda • What is a Transaction? • ACID Transactions • Concurrency Problems • Concurrency Control Techniques • Locking Strategies • Optimistic vs. Pessimistic Locking • Deadlocks • Transactions and Recovery

3. Agenda (2) • Transactions and SQL Language • Transaction Isolation Levels • When and How to Use Transactions?

4. What is a Transaction?

5. Transactions • Transactions are a sequence of actions (database operations) which are executed as a whole: • Either all of them execute successfully • Or none of the them • Example: • A bank transfer from one account into another (withdrawal + deposit) • If either the withdrawal or the deposit failsthe whole operation is cancelled

6. A Transaction Read Write Durable starting state Collection of reads and writes Durable, consistent, ending state Commit Write Rollback

7. Transactions Behavior • Transactions guarantee the consistency and the integrity of the database • All changes in a transaction are temporary • Changes become final when COMMIT is executed • At any time all changes can be canceled by ROLLBACK • All of the operations are executed as a whole, either all of them or none of them

8. Withdraw $100 Read savings New savings =current - 100 Read checking New checking =current + 100 Write savings Write checking Transactions: Examples Transfer $100 • Read current balance • New balance = current - 100 • Write new balance • Dispense cash

9. What Can Go Wrong? • Some actions fail to complete • For example, the application software or database server crashes • Interference from another transaction • What will happen if several transfers run for the same account in the same time? • Some data lost after actions complete • Database crashes after withdraw is complete and all other actions are lost

10. ACID Transactions

11. Transactions Properties • DBMS servers have built-in transaction support • Contemporary databases implement “ACID” transactions • ACID means: • Atomicity • Consistency • Isolation • Durability

12. Atomicity • Atomicity means that • Transactions execute as a whole • DBMS to guarantee that either all of the tasks of a transaction are performed or none of them are • Atomicity example: • Transfer funds between bank accounts • Either withdraw and deposit both execute successfully or none of them • In case of failure DB stays unchanged

13. Consistency • Consistencymeans that • The database is in a legal state when the transaction begins and when it ends • Only valid data will be written to the database • Transaction cannot break the rules of the database, e.g. integrity constraints • Primary, foreign, alternate keys • Consistency example • Transaction cannot end with a duplicate primary key in a table

14. Isolation • Isolationmeans that • Multiple transactions running at the same time not impact each other’s execution • Transactions don’t see other transaction’s uncommitted changes • Isolation level defines how deep transactions isolate from one another • Read committed, read uncommitted, repeatable read, serializable, etc. • Isolation example: • Manager can see the transferred funds on one account or the other, but never on both

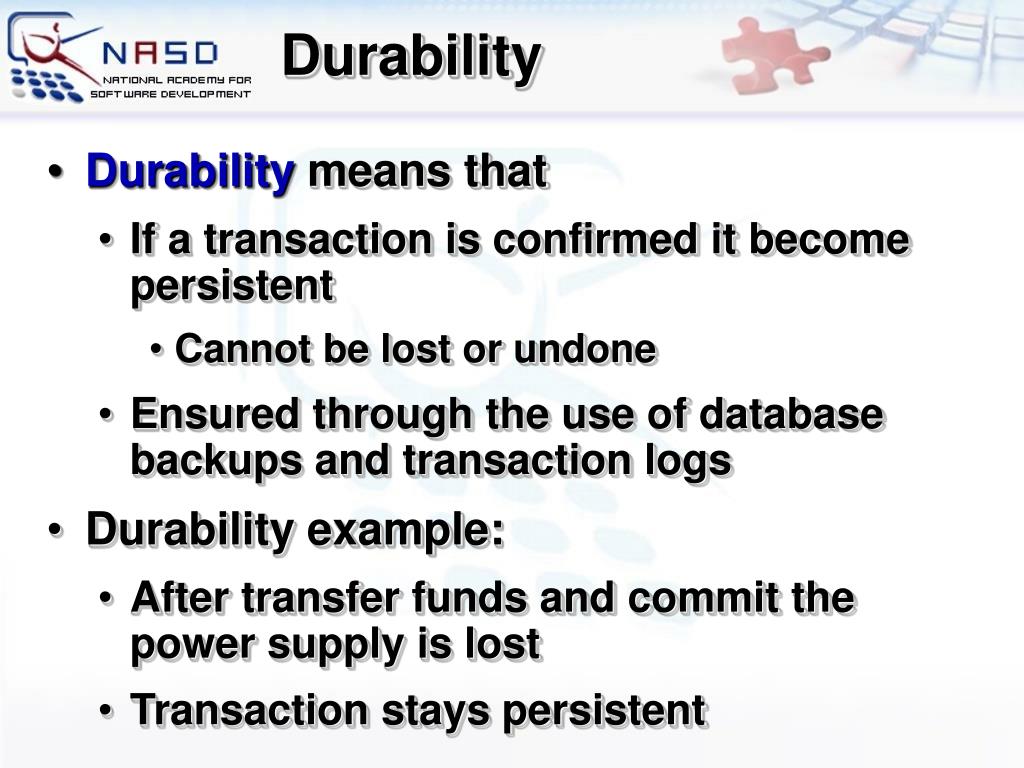

15. Durability • Durabilitymeans that • If a transaction is confirmed it become persistent • Cannot be lost or undone • Ensured through the use of database backups and transaction logs • Durability example: • After transfer funds and commit the power supply is lost • Transaction stays persistent

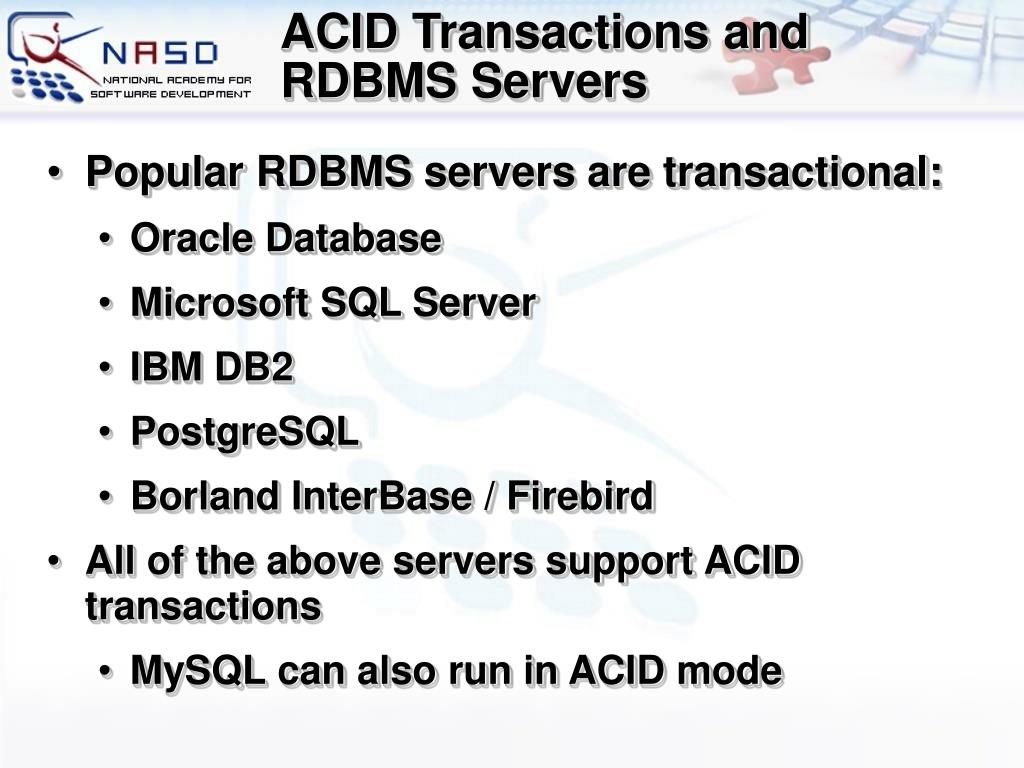

16. ACID Transactions and RDBMS Servers • PopularRDBMS servers are transactional: • Oracle Database • Microsoft SQL Server • IBM DB2 • PostgreSQL • Borland InterBase / Firebird • All of the above servers support ACID transactions • MySQL can also run in ACID mode

17. Concurrency Problems

18. Scheduling Transactions • Serial schedule – the ideal case • An ordering of operations of the transactions so with no interleaving • Problem: Doesn’t allow for as much concurrency as we’d like • Conflicting operations • Two operations conflict if they 1) are from different transactions 2) access the same item, and 3) at least one of the transactions does a write operation to that item

19. Serial Schedule – Example • T1: Adds 50 to the balance • T2: Subtracts 25 from the balance • T1 completes before T2 begins: no concurrency problems Time Trans. Step Value 1 T 1 Read balance 100 2 T 1 balance= 100 + 50 3 T 1 Write balance 150 4 T 2 Read balance 150 5 T 2 balance= 150 - 25 6 T 2 Write balance 125

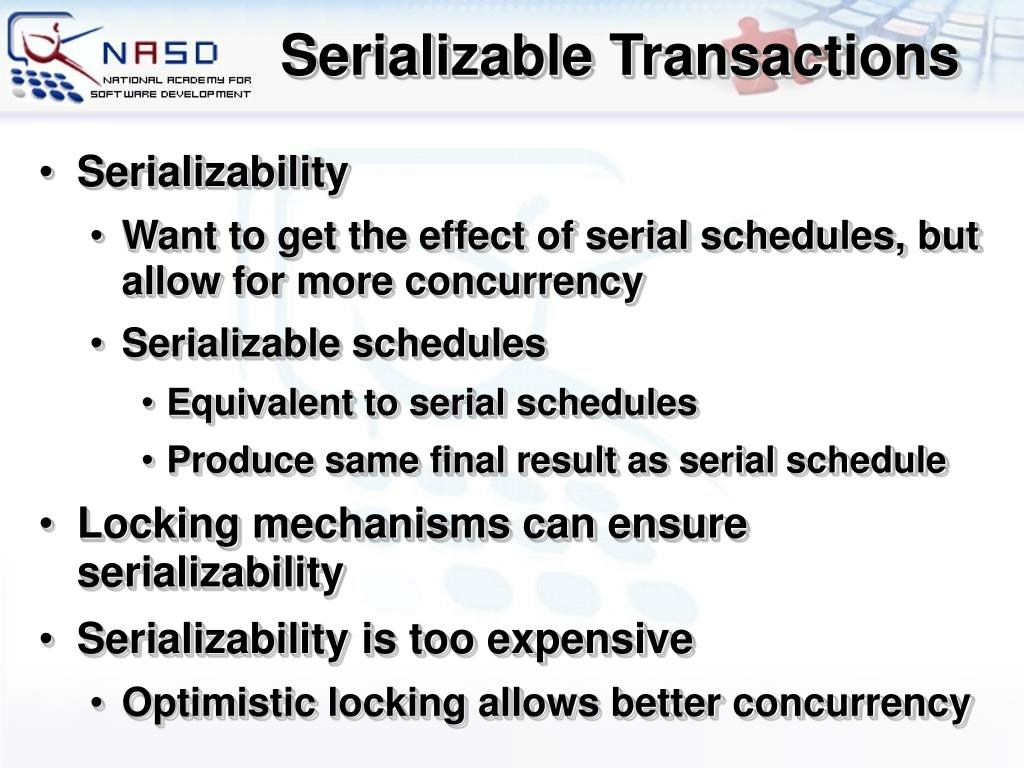

20. Serializable Transactions • Serializability • Want to get the effect of serial schedules, but allow for more concurrency • Serializable schedules • Equivalent to serial schedules • Produce same final result as serial schedule • Locking mechanisms can ensure serializability • Serializability is too expensive • Optimistic locking allows better concurrency

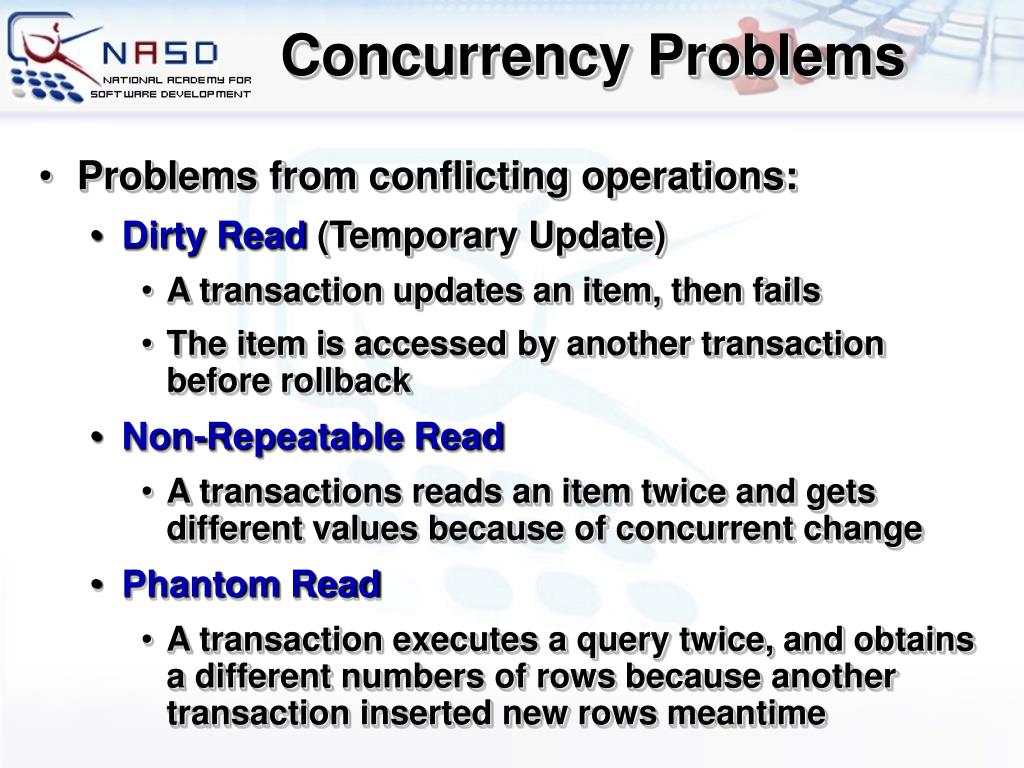

21. Concurrency Problems • Problems from conflicting operations: • Dirty Read (Temporary Update) • A transaction updates an item, then fails • The item is accessed by another transaction before rollback • Non-Repeatable Read • A transactions reads an item twice and gets different values because of concurrent change • Phantom Read • A transaction executes a query twice, and obtains a different numbers of rows because another transaction inserted new rows meantime

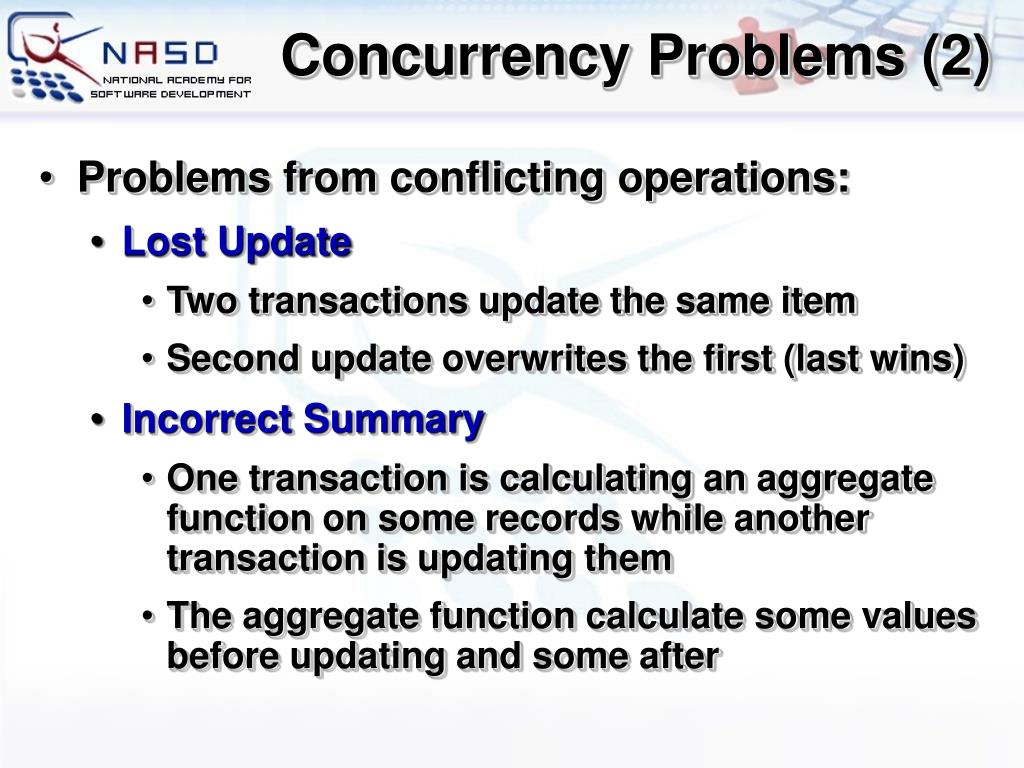

22. Concurrency Problems (2) • Problems from conflicting operations: • Lost Update • Two transactions update the same item • Second update overwrites the first (last wins) • Incorrect Summary • One transaction is calculating an aggregate function on some records while another transaction is updating them • The aggregate function calculate some values before updating and some after

23. Dirty Read (Read Uncommitted) – Example Time Trans. Step Value 1 T 1 Read balance 100 balance= 100 + 50 2 T 1 3 T 1 Write balance 150 Uncommitted 4 T 2 Read balance 150 5 T 2 balance= 150 - 25 Undoes T1 6 T 1 Rollback 7 T 2 Write balance 125 • Update from T1 was rolled back, but T2 doesn’t know about it, so finally the balance is incorrect. T2 writes incorrect balance

24. Lost Update – Example Time Trans. Step Value 1 T 1 Read balance 100 100 2 T 2 Read balance 3 T 1 balance= balance + 50 4 T 2 balance= balance - 25 150 5 T 1 Write balance 6 T 2 Write balance 75 • Update from T1 is lost because T2 reads balance before T1 was complete Lost update!!

25. Concurrency Control Techniques

26. Concurrency Control • The problem • Conflicting operations in simultaneous transactions may produce an incorrect results • What is concurrency control? • Managing simultaneous operations on the database without having them interfere with one another • Prevents conflicts when two or more users access database simultaneously

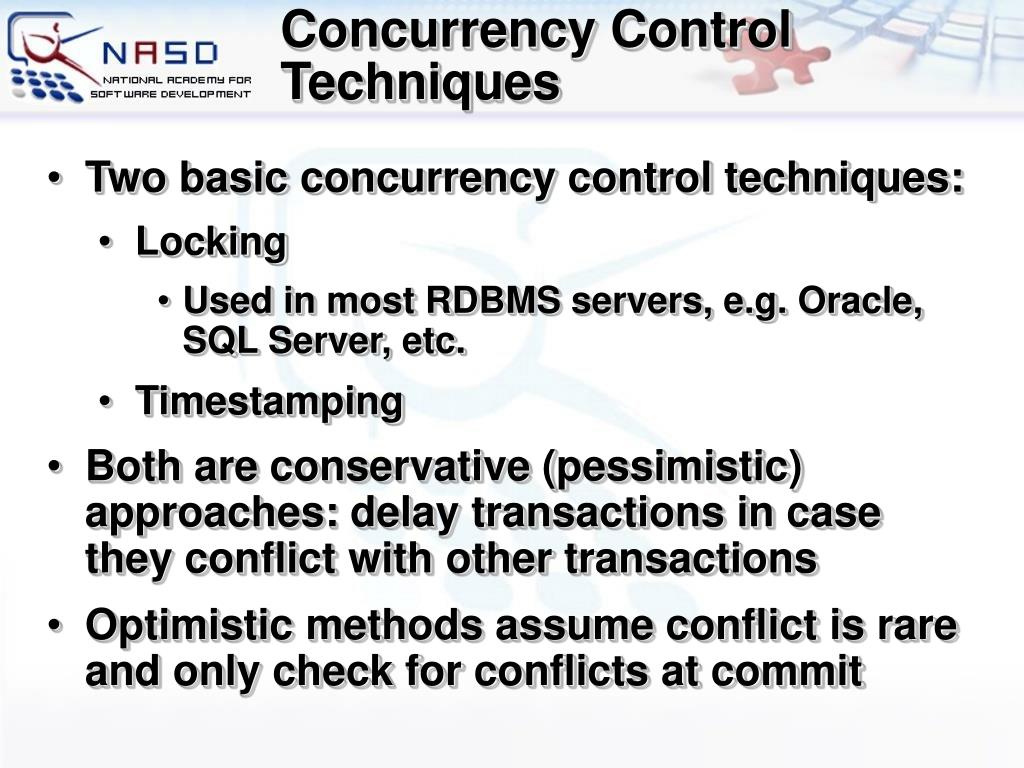

27. Concurrency Control Techniques • Two basic concurrency control techniques: • Locking • Used in most RDBMS servers, e.g. Oracle, SQL Server, etc. • Timestamping • Both are conservative (pessimistic) approaches: delay transactions in case they conflict with other transactions • Optimistic methods assume conflict is rare and only check for conflicts at commit

28. Locking • Transaction uses locks to deny access to shared data by the other transactions • Most widely used approach to ensure serializability • Generally, a transaction must claim a read (shared) or write (exclusive) lock on a data item before read or write • Lock prevents another transaction from modifying item or even reading it, in the case of a write lock • Deadlock is possible

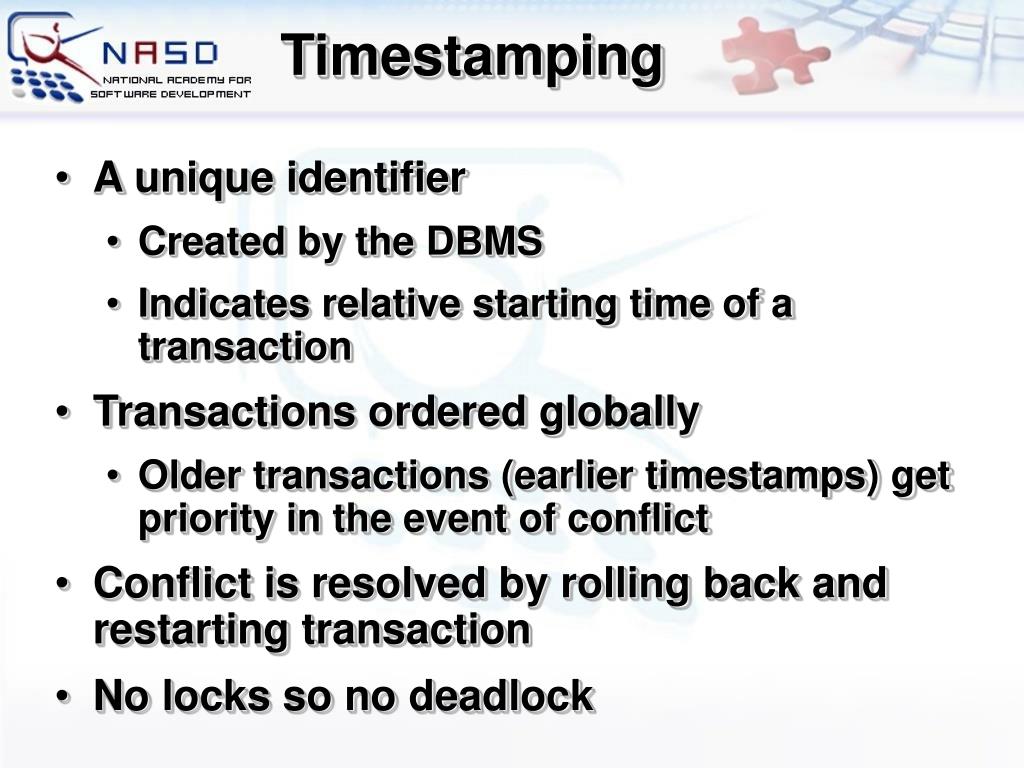

29. Timestamping • A unique identifier • Created by the DBMS • Indicates relative starting time of a transaction • Transactions ordered globally • Older transactions (earlier timestamps) get priority in the event of conflict • Conflict is resolved by rolling back and restarting transaction • No locks so no deadlock

30. Locking Strategies

31. Locking Strategies • Optimistic locking • Locks are not used • Conflicts are possible but are resolved before commit • High concurrency – scale well • Pessimistic locking • Use exclusive and shared locks • Transactions wait for each other • Low concurrency – does not scale

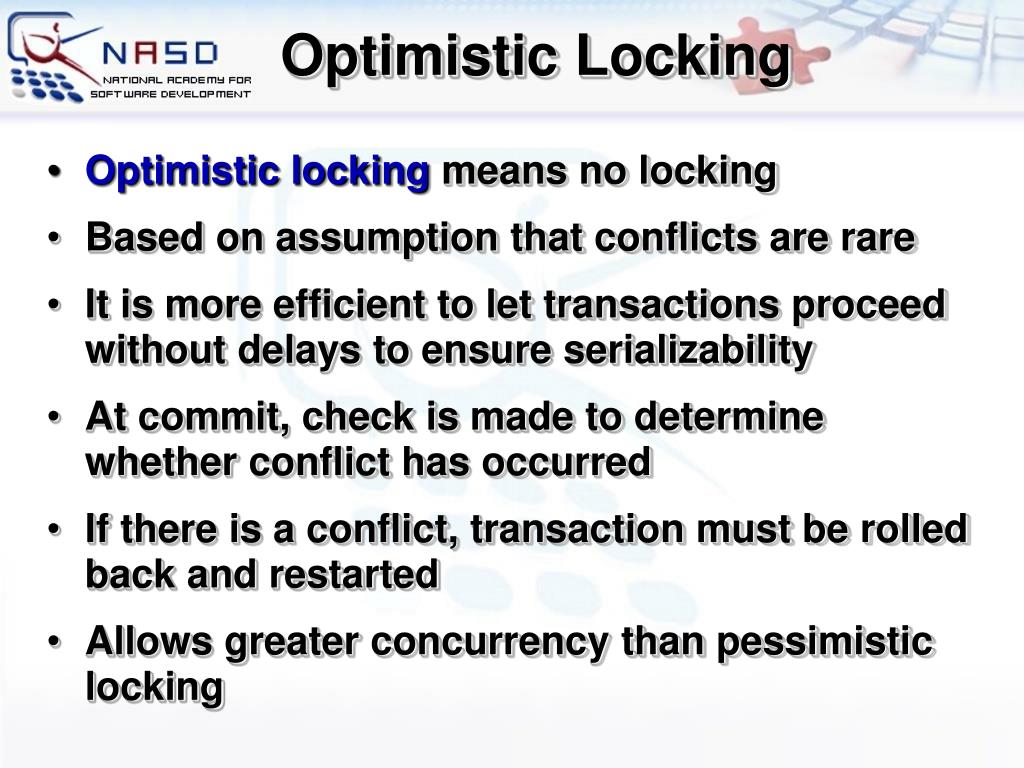

32. Optimistic Locking • Optimistic locking means no locking • Based on assumption that conflicts are rare • It is more efficient to let transactions proceed without delays to ensure serializability • At commit, check is made to determine whether conflict has occurred • If there is a conflict, transaction must be rolled back and restarted • Allows greater concurrency than pessimistic locking

33. Optimistic Locking Phases • Three phases • Read • Transaction reads the DB, does computations, then makes updates to a private copy of the DB (e.g. in the memory) • Validation • Make sure that transaction doesn’t cause any integrity/consistency problems • If no problems, transaction goes to write phase • If problems, changes are discarded and transaction is restarted • Write • Changes are made persistent to DB

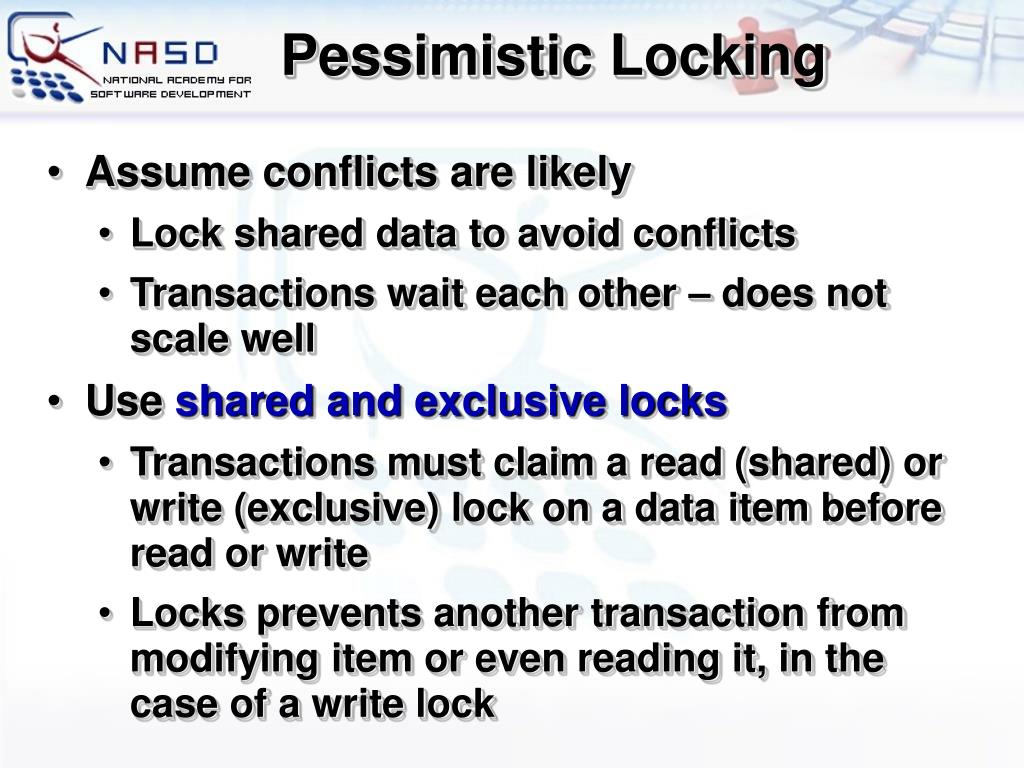

34. Pessimistic Locking • Assume conflicts are likely • Lock shared data to avoid conflicts • Transactions wait each other – does not scale well • Useshared and exclusive locks • Transactions must claim a read (shared) or write (exclusive) lock on a data item before read or write • Locks prevents another transaction from modifying item or even reading it, in the case of a write lock

35. Locking – Basic Rules • If transaction has read lock on an item, the item can be read but not modified • If transaction has write lock on an item, the item can be both read and modified • Reads cannot conflict, so multiple transactions can hold read locks simultaneously on the same item • Write lock gives one transaction exclusive access to an item • Transaction can upgrade a read lock to a write lock, or downgrade a write lock to a read lock • Commits or rollbacks release the locks

36. Deadlock • What is deadlock? • When two (or more) transactions are each waiting for locks held by the other to be released • Breaking a deadlock • Only one way to break deadlock: abort one or more of the transactions

37. Dealing with Deadlock • Deadlock prevention • Transaction can’t obtain a new lock if the possibility of a deadlock exists • Deadlock avoidance • Transaction must obtain all the locks it needs before it starts • Deadlock detection and recovery • DB checks for possible deadlocks • If deadlock is detected, one of the transactions is killed, then restarted

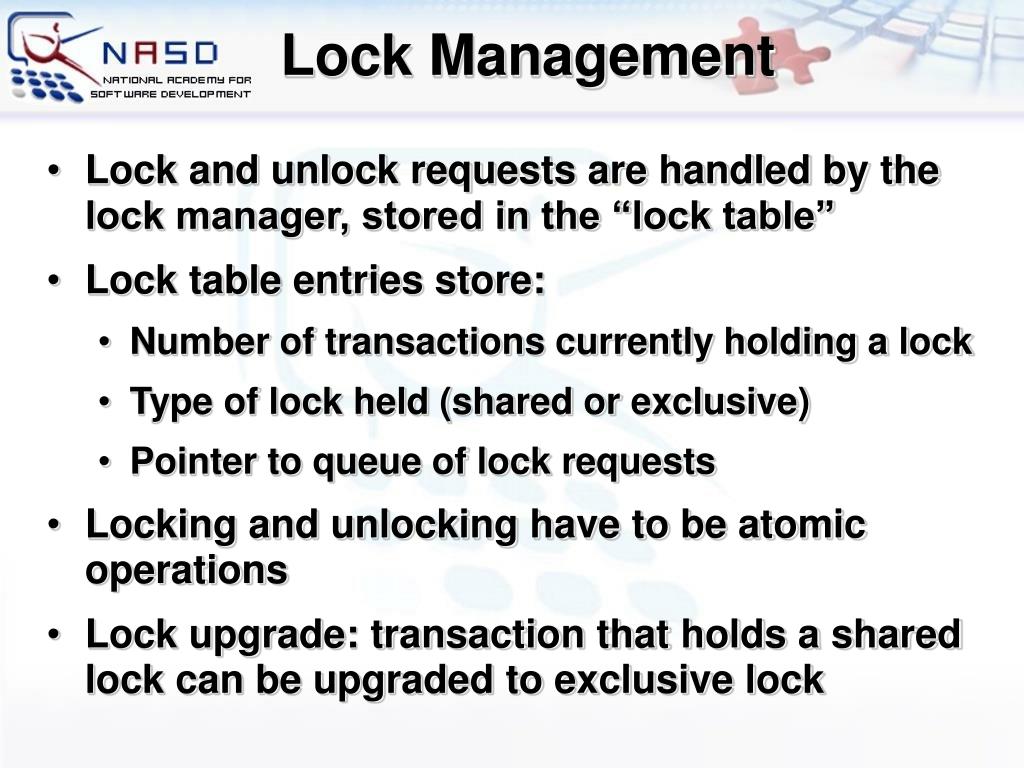

38. Lock Management • Lock and unlock requests are handled by the lock manager, stored in the “lock table” • Lock table entries store: • Number of transactions currently holding a lock • Type of lock held (shared or exclusive) • Pointer to queue of lock requests • Locking and unlocking have to be atomic operations • Lock upgrade: transaction that holds a shared lock can be upgraded to exclusive lock

39. Locking Granularity • Size of data items chosen as unit of protection by concurrency control • Ranging from coarse to fine: • Entire database • File • Page (block) • Record • Field value of a record

40. Coarse vs. Fine Granularity • Granularity is a measure of the amount of data the lock is protecting • Coarse granularity • Small number of locks protecting large segments of data, e.g. DB, file, page locks • Small overhead, small concurrency • Fine granularity • Large number of locks over small areas of data, e.g. table row of field in a row • More overhead, more concurrency • DBMS servers are “smart” and use both

41. Transactions and Recovery

42. Transactions and Recovery • Transactions represent basic unit of recovery • Recovery manager responsible for atomicity and durability • What happens at failure? • If transaction had not committed at failure time, recovery manager has to undo (rollback) any effects of that transaction for atomicity • If failure occurs between commit and database buffers being flushed to secondary storage, recovery manager has to redo (rollforward) transaction's updates

43. Crash Before Completion – Sample Scenario • Application tries to transfer $100 • Read savings • new savings = current - 100 • Read checking • new checking = current + 100 • Write savings to DB • System crash before write of new checking balance

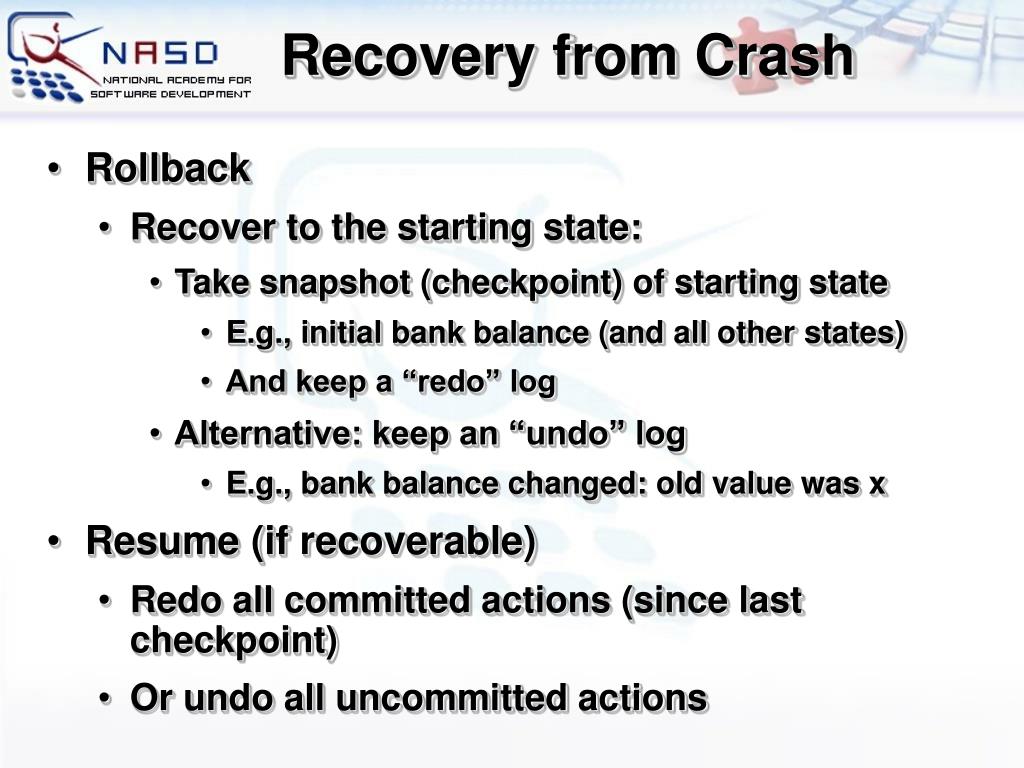

44. Recovery from Crash • Rollback • Recover to the starting state: • Take snapshot (checkpoint) of starting state • E.g., initial bank balance (and all other states) • And keep a “redo” log • Alternative: keep an “undo” log • E.g., bank balance changed: old value was x • Resume (if recoverable) • Redo all committed actions (since last checkpoint) • Or undo all uncommitted actions

45. Creating REDO Log • Keep a log of all database writes ON DISK (so that it is still available after crash) • <transaction ID>; <data item>; <new value> • (Tj; x=125) (Ti; y=56) • Actions must be idempotent (redoable) • NOT x = x + 100 • But don't write to the database yet • At the end of transaction execution • Add "commit <transaction ID>" to the log • Do all the writes to the database • Add "complete <transaction ID>" to the log

46. Sample REDO Log File

47. Recovering From a Crash • There are 3 phases in the recovery algorithm: • Analysis – scan the log forward to identify all transactions that were active, and all dirty pages in the buffer pool at the time of the crash • Redo – redoes all updates to dirty pages in the buffer pool, as needed, to ensure that all logged updates are in fact carried out and written to disk • Undo – all transactions that were active at the crash are undone, working backwards in the log • Some care must be taken to handle the case of a crash occurring during the recovery process!

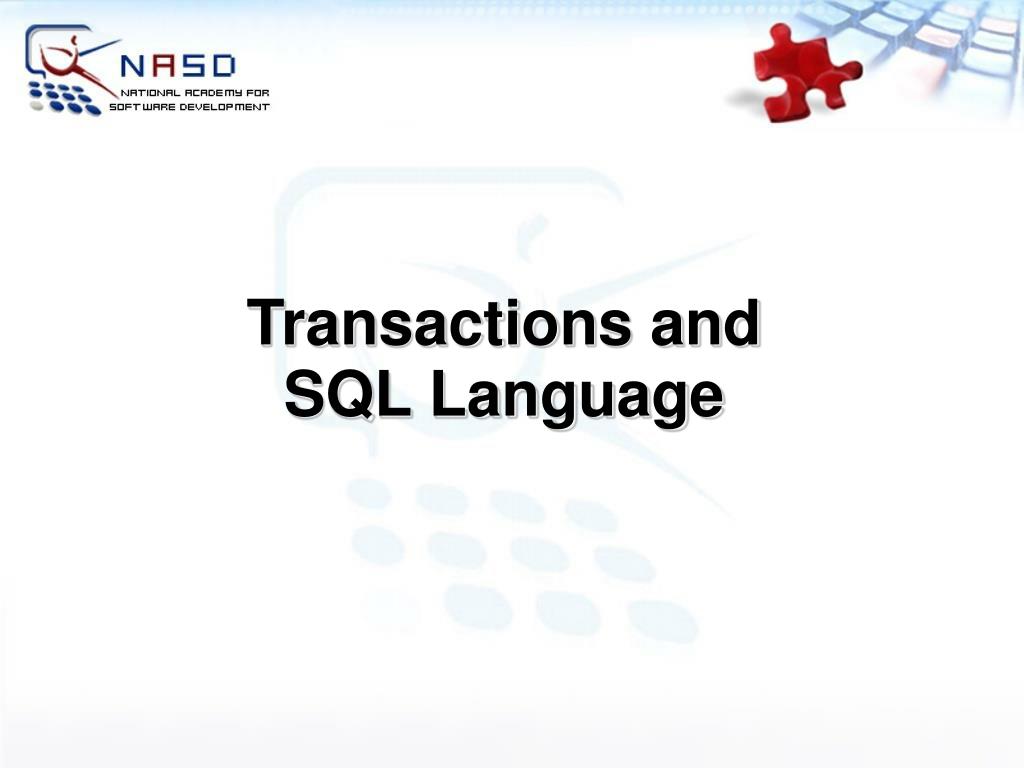

48. Transactions and SQL Language

49. Transactions and SQL • Start a transaction • BEGIN TRANSACTION • Some databases assume implicit start • E.g. Oracle • Ending a transaction • COMMIT • Used to end a successful transaction and make changes “permanent” • ROLLBACK • “Undo” changes from an aborted transaction • May be done automatically when failure occurs

50. Transactions in SQL Server: Example • We have a table with bank accounts: • We use a transaction to transfer money from one account into another CREATE TABLE ACCOUNT( id int NOT NULL, balancedecimal NOT NULL) CREATE OR REPLACE PROCEDURE sp_Transfer_Funds( from_account IN INT, to_account IN INT, ammount IN NUMBER) IS BEGIN BEGIN TRAN (example continues)
