  1. Xilinx Design Flow FPGA Design Flow Workshop

  2. Objectives After completing this module, you will be able to: • List the steps of the Xilinx design process • Implement an FPGA design by using default software options

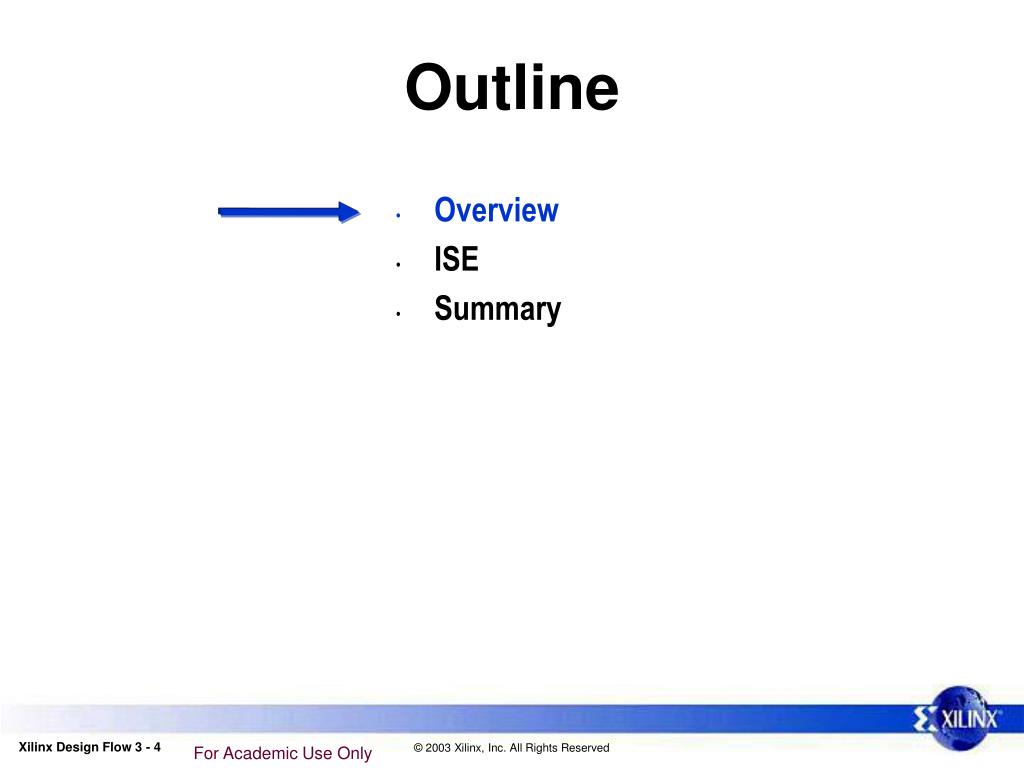

  3. Outline • Overview • ISE • Summary

  4. Xilinx Design Flow Create Code/ Schematic HDL RTL Simulation Plan & Budget Implement Functional Simulation Synthesize to create netlist Translate Map Place & Route Timing Simulation CreateBit File Attain Timing Closure

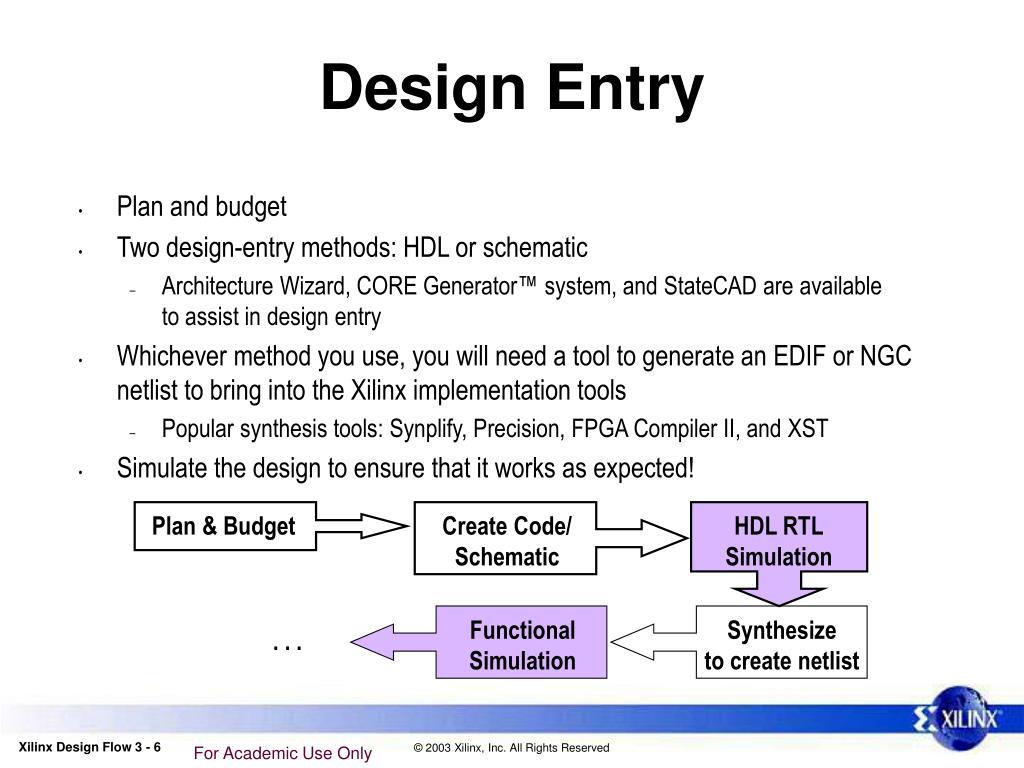

  5. Plan & Budget Create Code/ Schematic HDL RTL Simulation Functional Simulation Synthesize to create netlist . . . Design Entry • Plan and budget • Two design-entry methods: HDL or schematic • Architecture Wizard, CORE Generator™ system, and StateCAD are available to assist in design entry • Whichever method you use, you will need a tool to generate an EDIF or NGC netlist to bring into the Xilinx implementation tools • Popular synthesis tools: Synplify, Precision, FPGA Compiler II, and XST • Simulate the design to ensure that it works as expected!

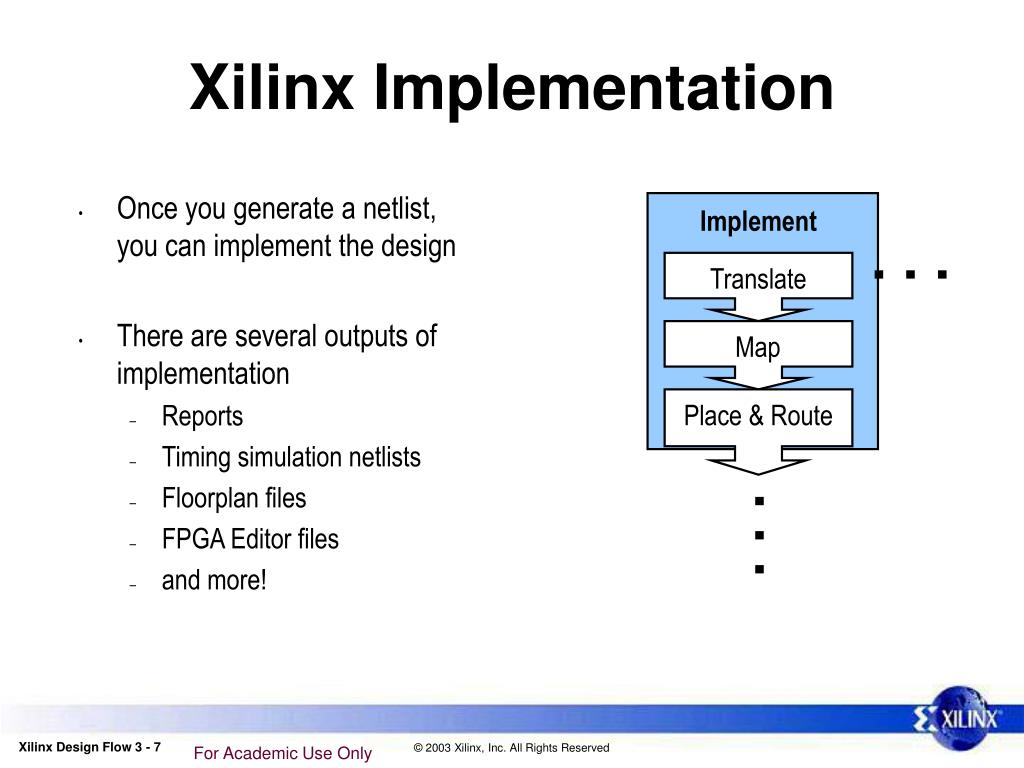

  6. Xilinx Implementation • Once you generate a netlist, you can implement the design • There are several outputs of implementation • Reports • Timing simulation netlists • Floorplan files • FPGA Editor files • and more! Implement . . . Translate Map Place & Route . . .

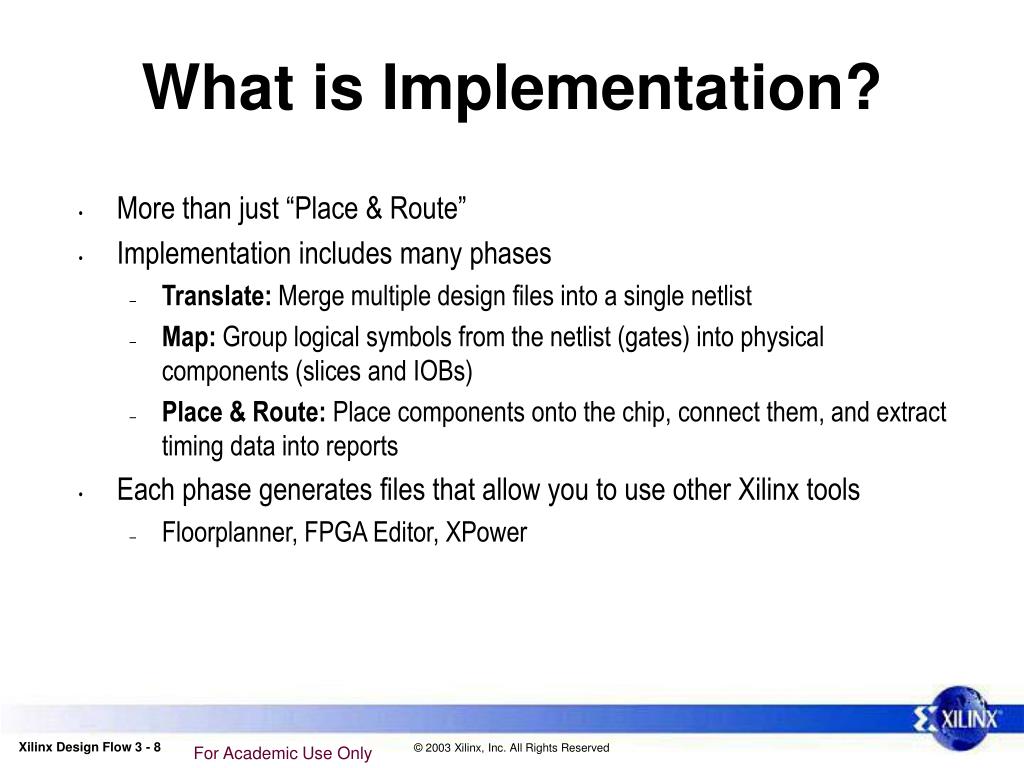

  7. What is Implementation? • More than just “Place & Route” • Implementation includes many phases • Translate: Merge multiple design files into a single netlist • Map: Group logical symbols from the netlist (gates) into physical components (slices and IOBs) • Place & Route: Place components onto the chip, connect them, and extract timing data into reports • Each phase generates files that allow you to use other Xilinx tools • Floorplanner, FPGA Editor, XPower

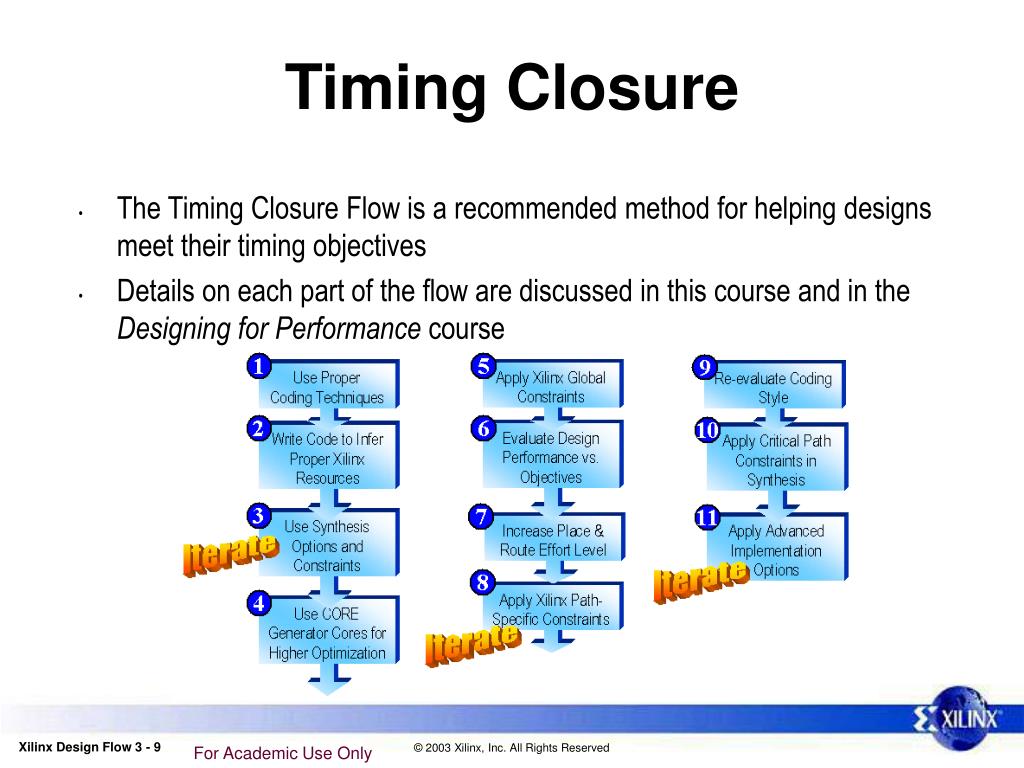

  8. Timing Closure • The Timing Closure Flow is a recommended method for helping designs meet their timing objectives • Details on each part of the flow are discussed in this course and in the Designing for Performance course

  9. Download • Once a design is implemented, you must create a file that the FPGA can understand • This file is called a bitstream: a BIT file (.bit extension) • The BIT file can be downloaded directly to the FPGA, or it can be converted into a PROM file, which stores the programming information

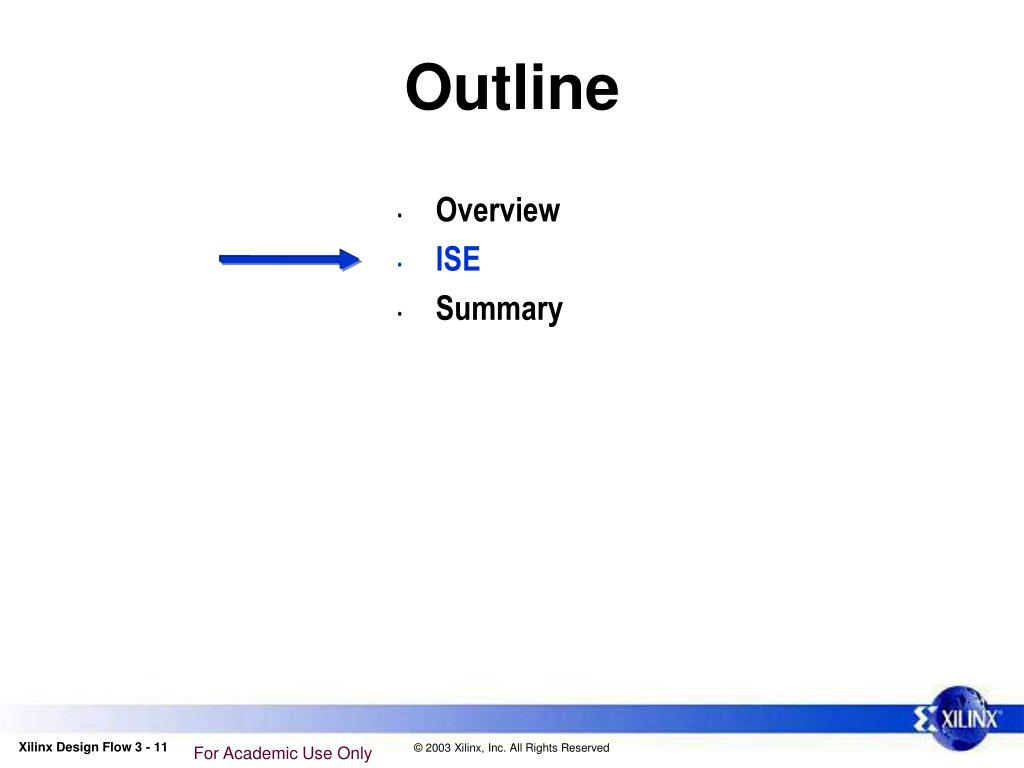

  10. Outline • Overview • ISE • Summary

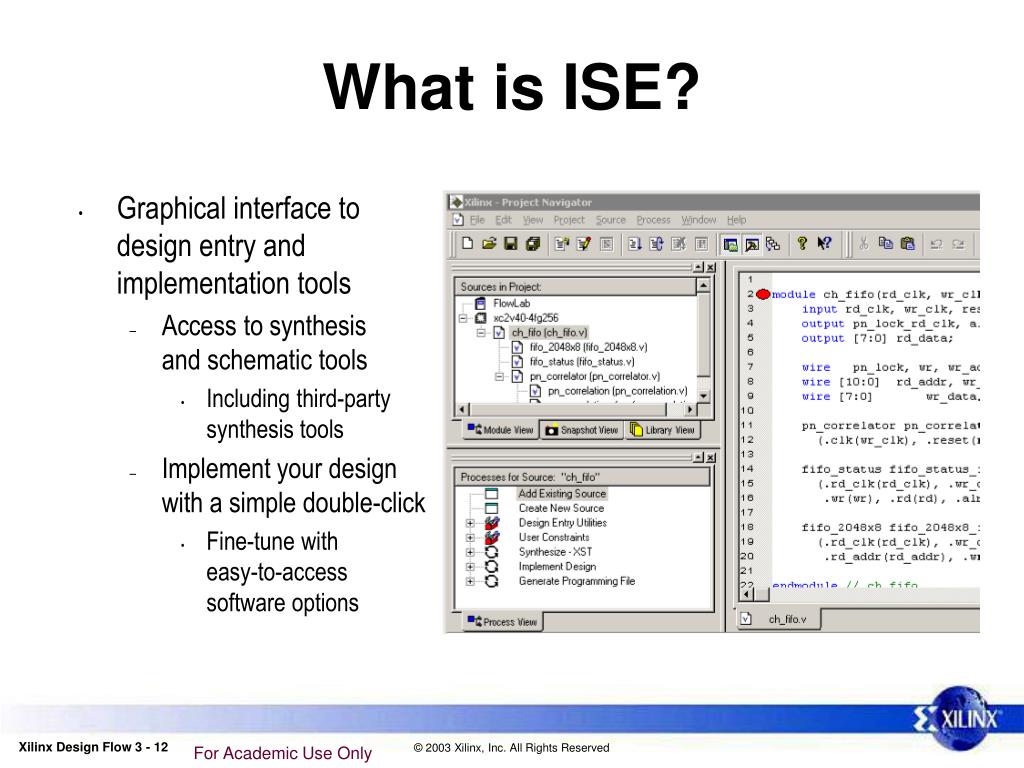

  11. What is ISE? • Graphical interface to design entry and implementation tools • Access to synthesis and schematic tools • Including third-party synthesis tools • Implement your design with a simple double-click • Fine-tune with easy-to-access software options

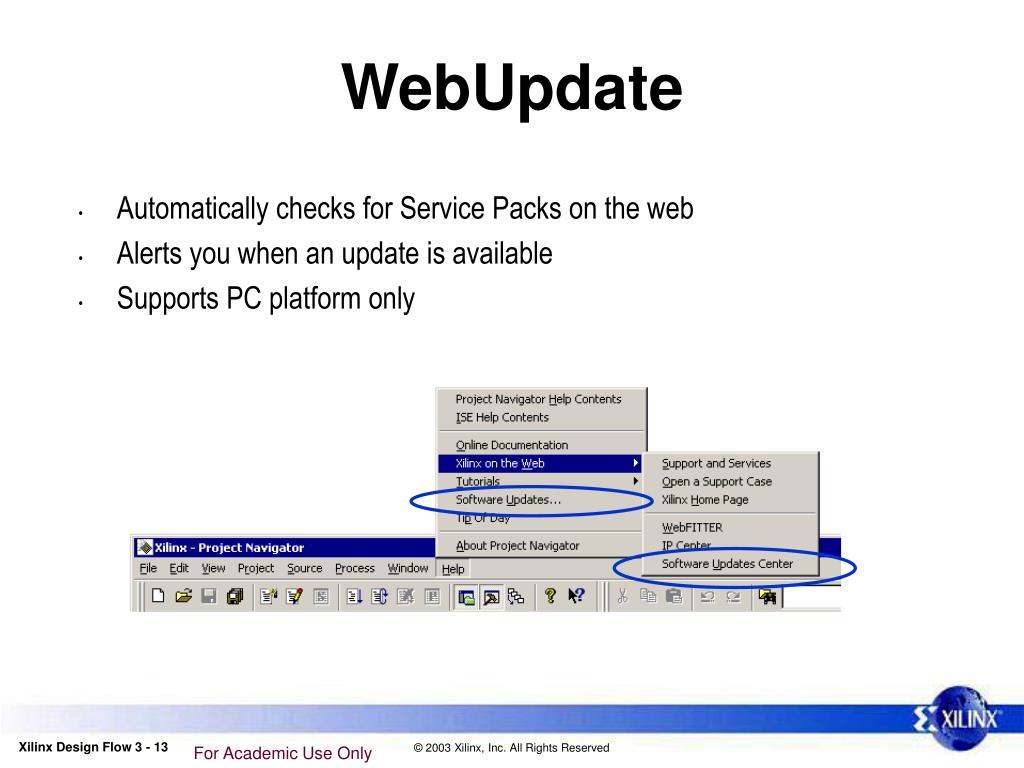

  12. WebUpdate • Automatically checks for Service Packs on the web • Alerts you when an update is available • Supports PC platform only

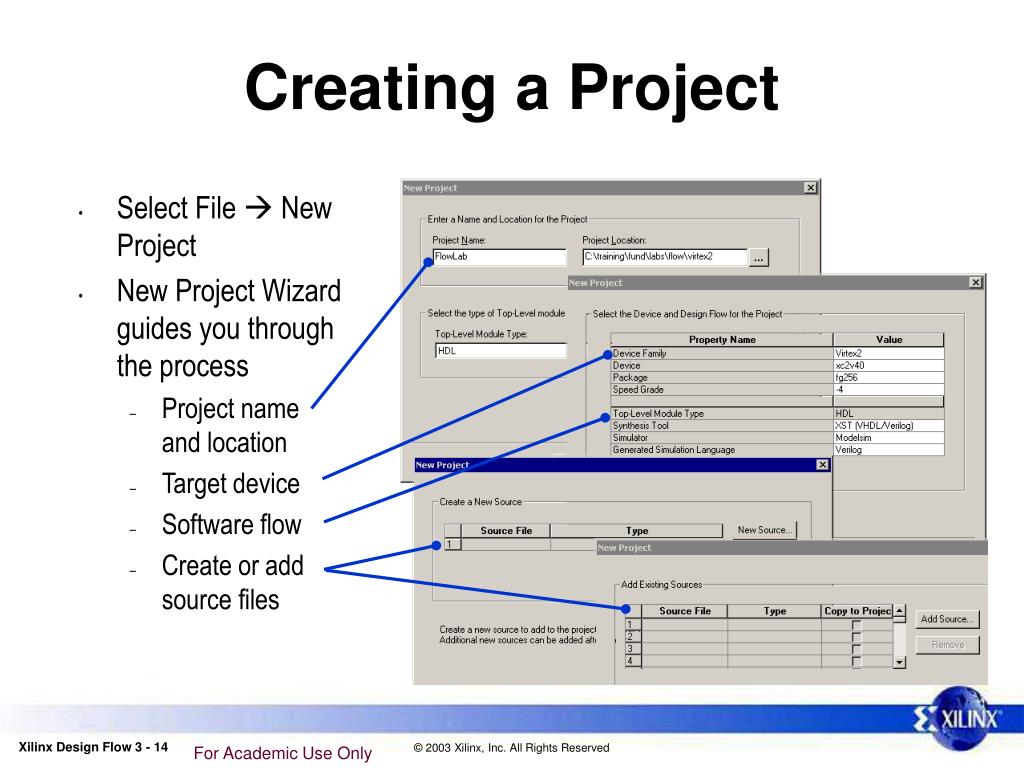

  13. Creating a Project • Select File New Project • New Project Wizard guides you through the process • Project name and location • Target device • Software flow • Create or add source files

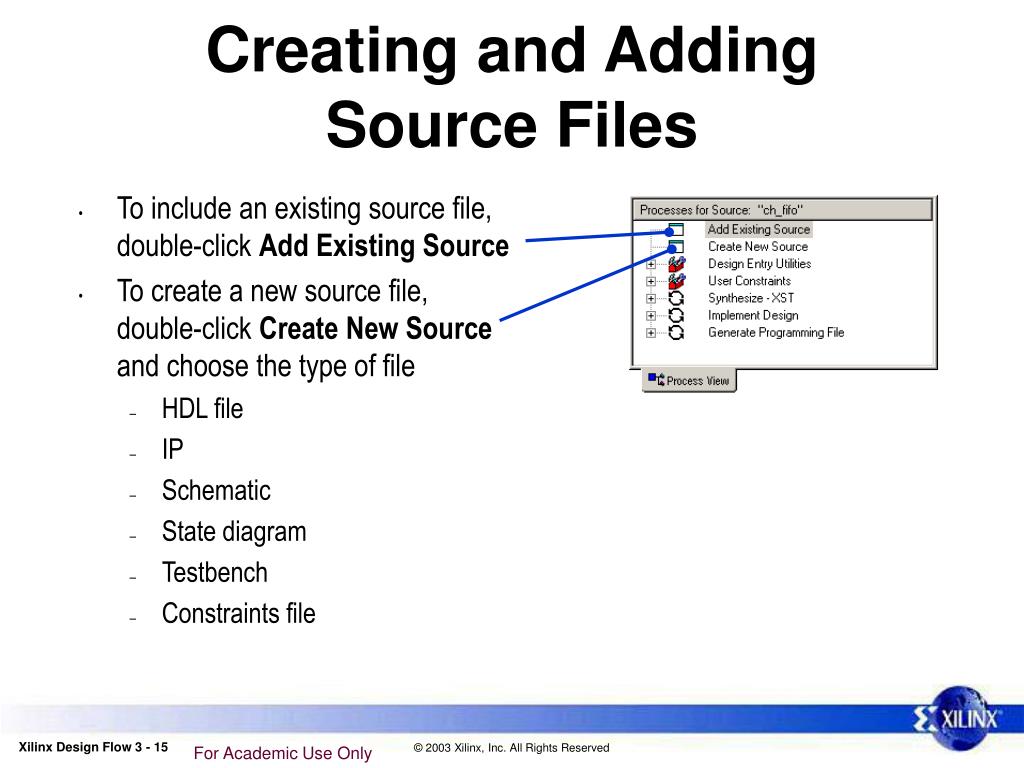

  14. Creating and AddingSource Files • To include an existing source file, double-click Add Existing Source • To create a new source file, double-click Create New Sourceand choose the type of file • HDL file • IP • Schematic • State diagram • Testbench • Constraints file

  15. Implementing a Design • To implement a design: • In the Sources in Project window, select the top-level source file • HDL, schematic, or EDIF,depending on your design flow • In the Processes for Source window, double-click Implement Design

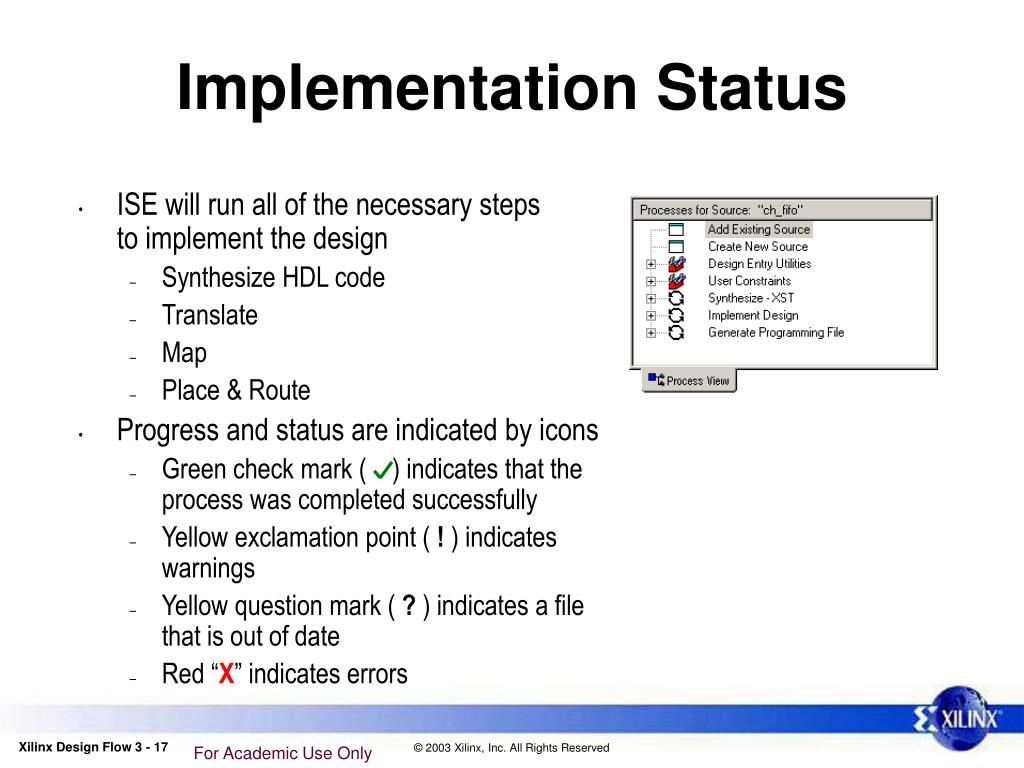

  16. Implementation Status • ISE will run all of the necessary steps to implement the design • Synthesize HDL code • Translate • Map • Place & Route • Progress and status are indicated by icons • Green check mark ( ) indicates that the process was completed successfully • Yellow exclamation point ( ! ) indicates warnings • Yellow question mark ( ? ) indicates a file that is out of date • Red “X” indicates errors

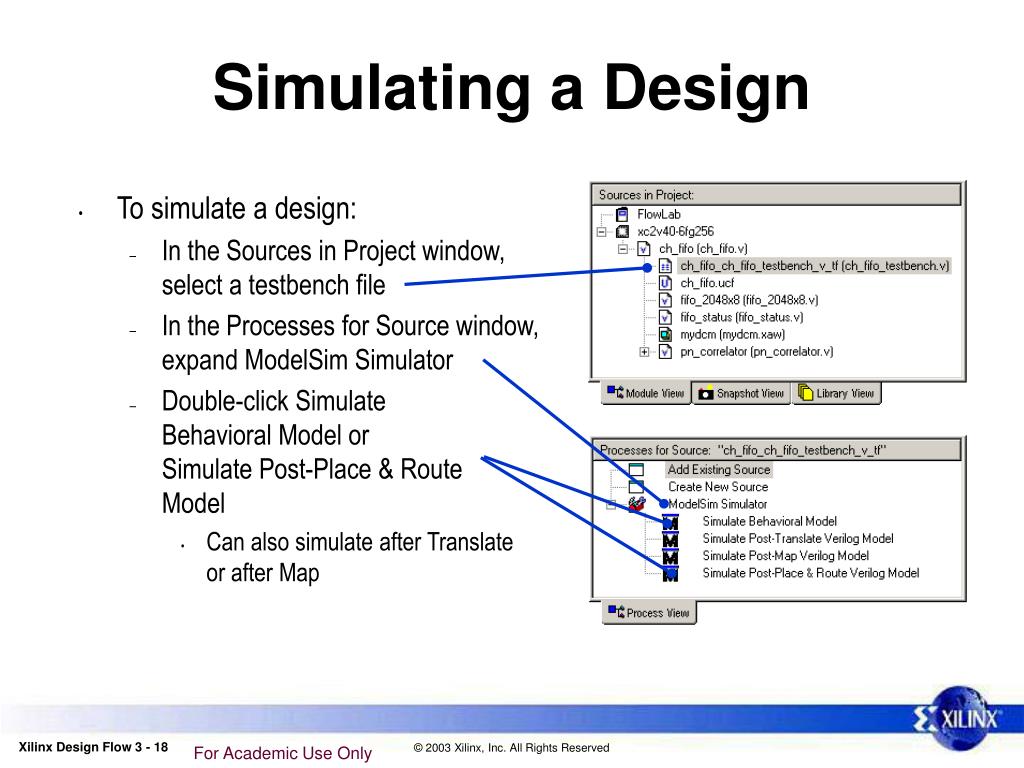

  17. Simulating a Design • To simulate a design: • In the Sources in Project window, select a testbench file • In the Processes for Source window, expand ModelSim Simulator • Double-click Simulate Behavioral Model or Simulate Post-Place & Route Model • Can also simulate after Translate or after Map

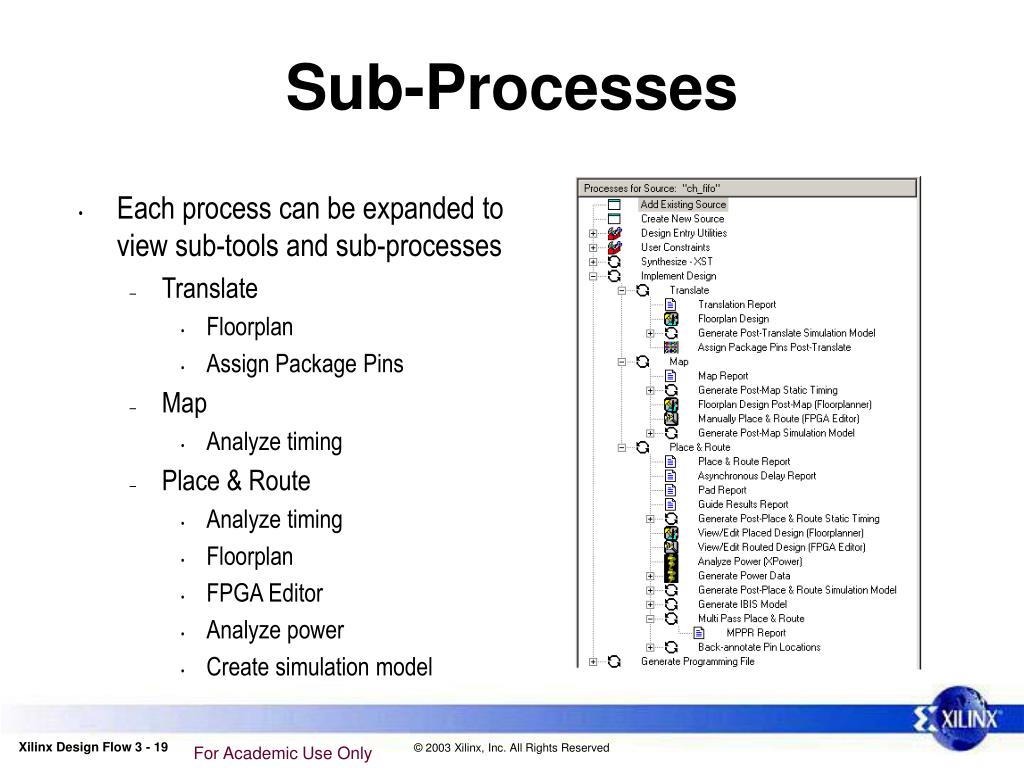

  18. Sub-Processes • Each process can be expanded to view sub-tools and sub-processes • Translate • Floorplan • Assign Package Pins • Map • Analyze timing • Place & Route • Analyze timing • Floorplan • FPGA Editor • Analyze power • Create simulation model

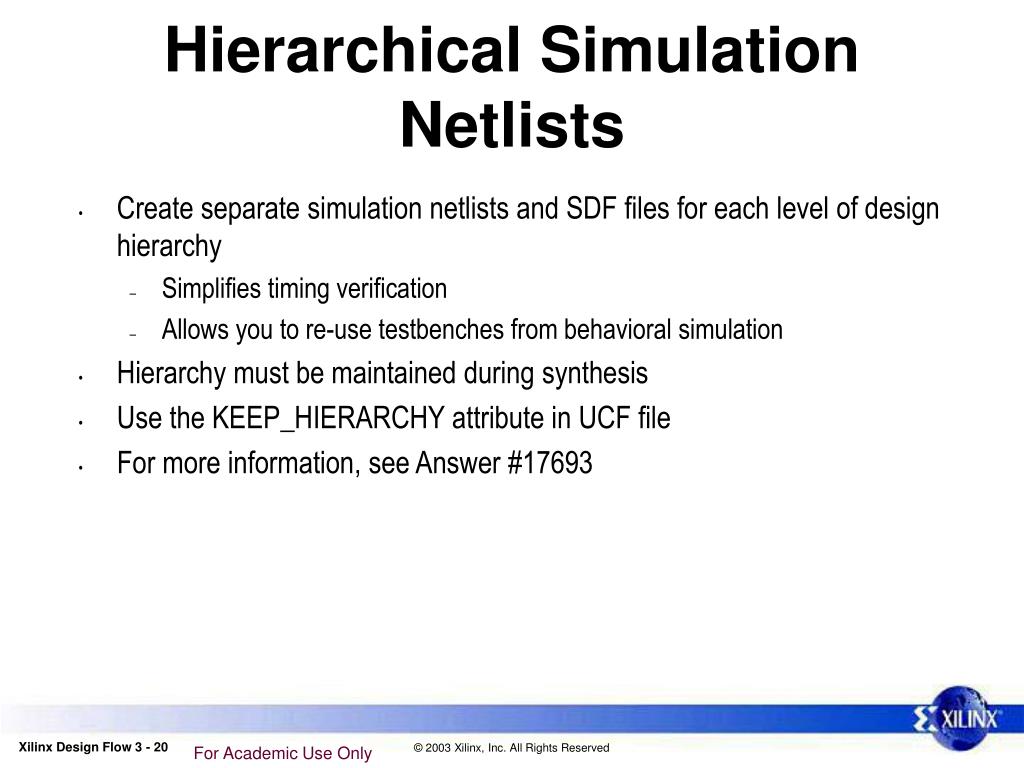

  19. Hierarchical Simulation Netlists • Create separate simulation netlists and SDF files for each level of design hierarchy • Simplifies timing verification • Allows you to re-use testbenches from behavioral simulation • Hierarchy must be maintained during synthesis • Use the KEEP_HIERARCHY attribute in UCF file • For more information, see Answer #17693

  20. Program the FPGA • There are two ways to program an FPGA • Through a PROM device • You will need to generate a file that the PROM programmer will understand • Directly from the computer • Use the iMPACT configuration tool

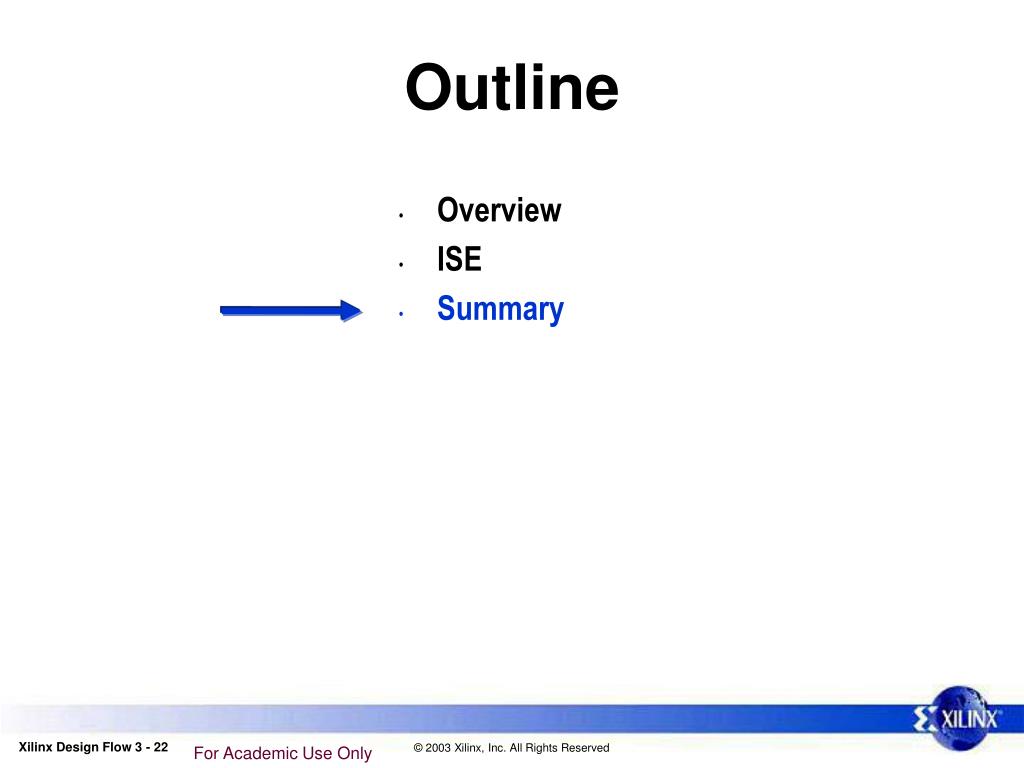

  21. Outline • Overview • ISE • Summary

  22. Review Questions • What are the phases of the Xilinx design flow? • What are the components of implementation, and what happens at each step? • What are two methods used to program an FPGA?

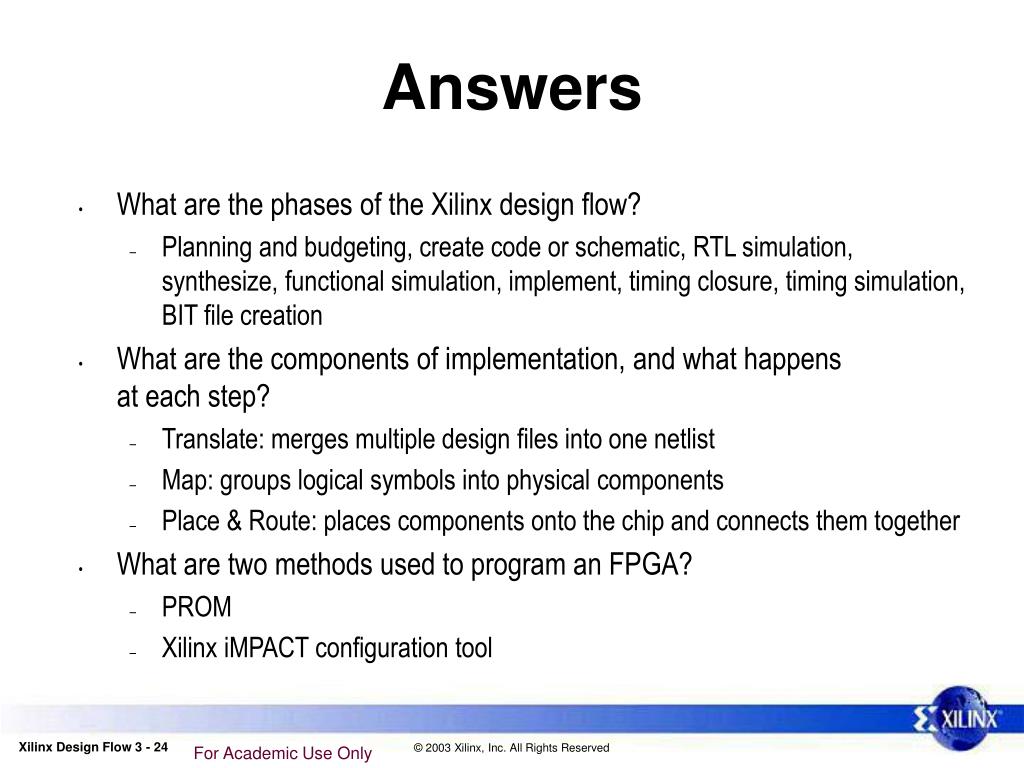

  23. Answers • What are the phases of the Xilinx design flow? • Planning and budgeting, create code or schematic, RTL simulation, synthesize, functional simulation, implement, timing closure, timing simulation, BIT file creation • What are the components of implementation, and what happens at each step? • Translate: merges multiple design files into one netlist • Map: groups logical symbols into physical components • Place & Route: places components onto the chip and connects them together • What are two methods used to program an FPGA? • PROM • Xilinx iMPACT configuration tool

  24. Summary • Implementation means more than place & route • Xilinx provides a simple “pushbutton” tool to help you through the Xilinx design process

  25. Where Can I Learn More? • Complete design flow tutorials • http://support.xilinx.com  Documentation  Tutorials • On the phases of implementation • http://support.xilinx.com  Software Manuals  Development System Reference Guide • On hierarchical simulation netlists • http://support.xilinx.com Answer #17693 • Configuration Problem Solver • http://support.xilinx.com  Problem Solvers  Configuration Problem Solver
