  1. TDCpix design & what if G. Aglieri, P.Jarron, J. Kaplon, A. Kluge, M. Morel, M. Noy, L. Pertktold, K. Poltorak August 27, 2012

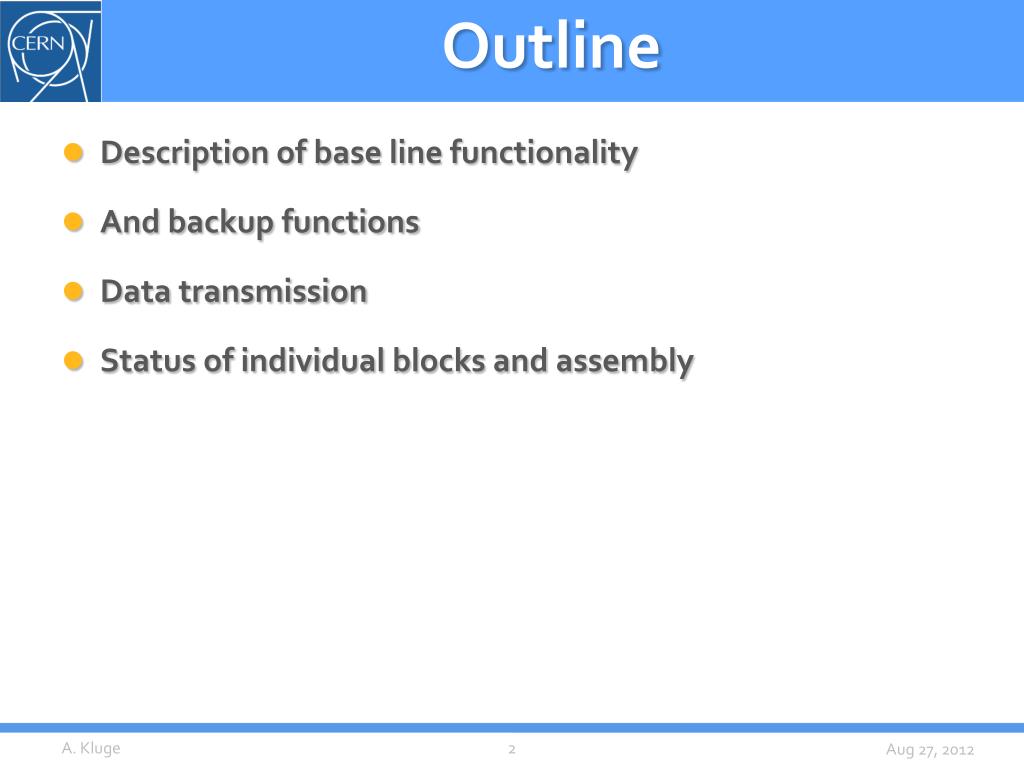

  2. Outline • Description of base line functionality • And backup functions • Data transmission • Status of individual blocks and assembly A. Kluge

  3. TDCpix block diagram

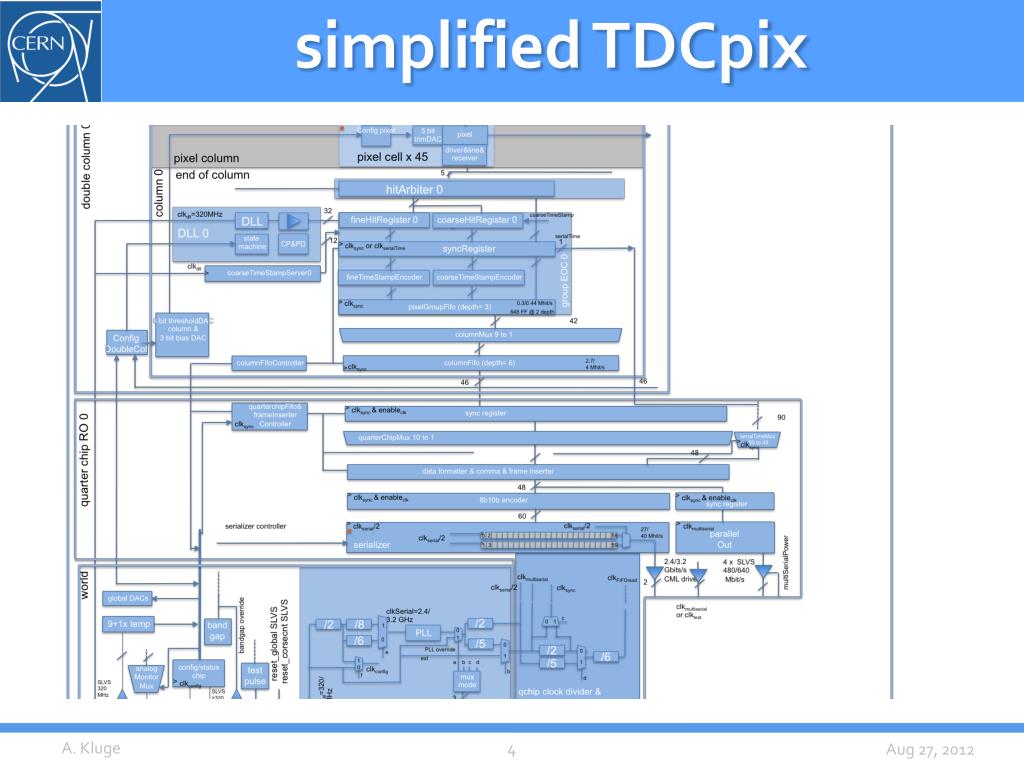

  4. simplified TDCpix A. Kluge

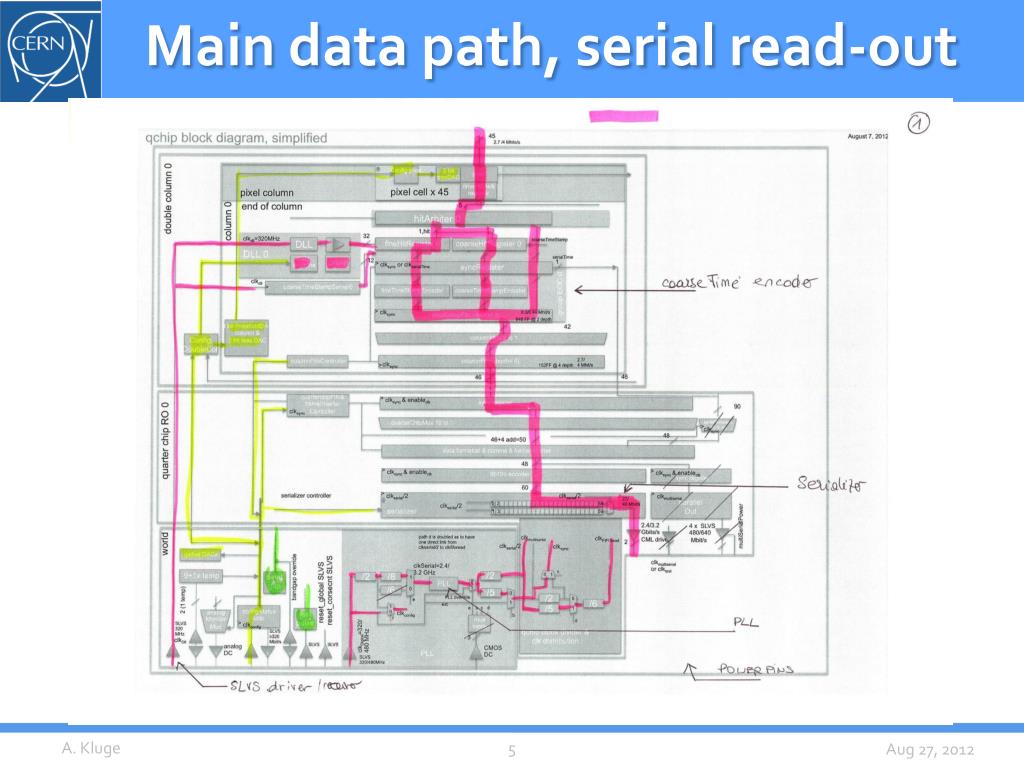

  5. Main data path, serial read-out A. Kluge

  6. Parallel read out A. Kluge

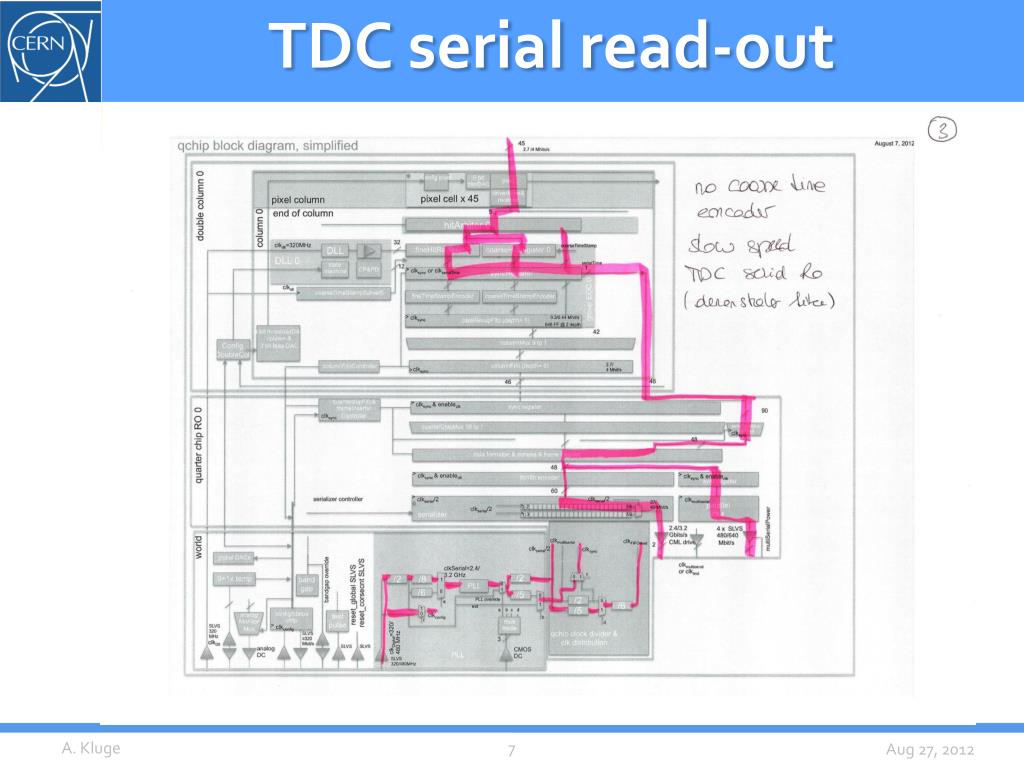

  7. TDC serial read-out A. Kluge

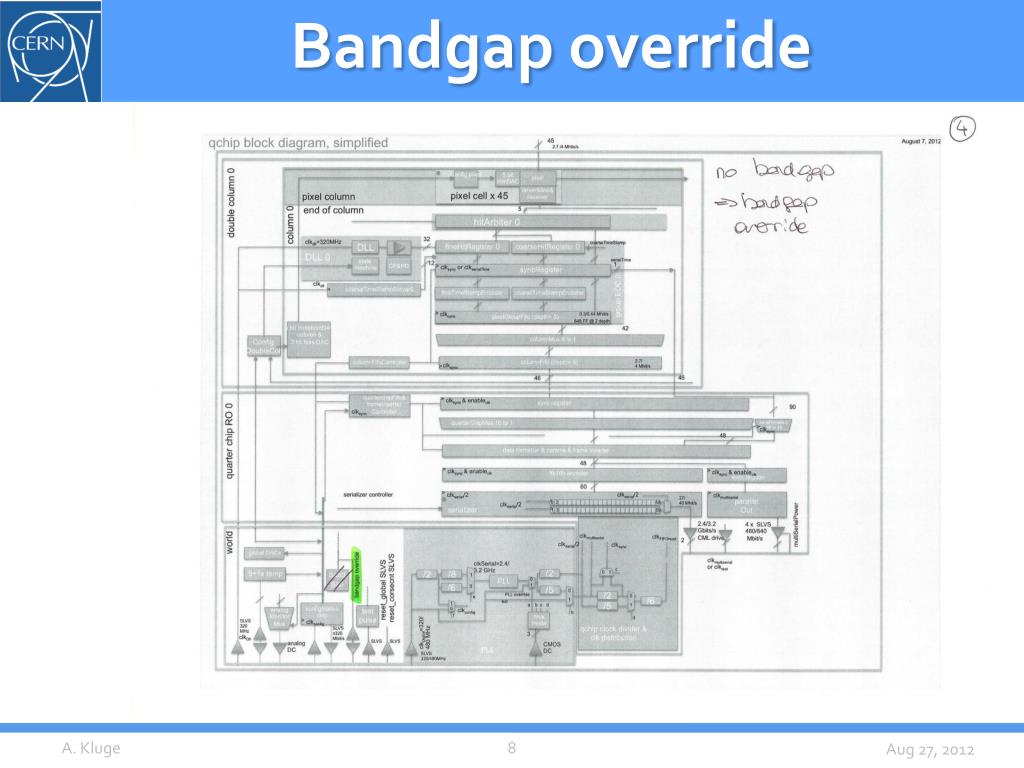

  8. Bandgap override A. Kluge

  9. Components with no backup A. Kluge

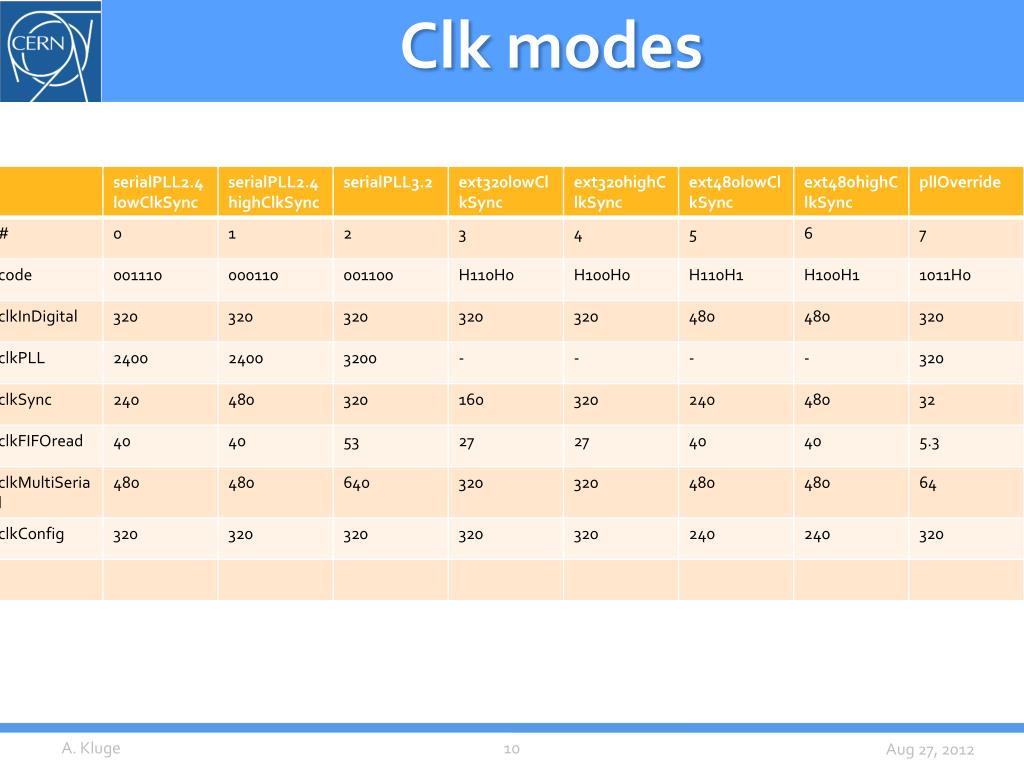

  10. Clk modes A. Kluge

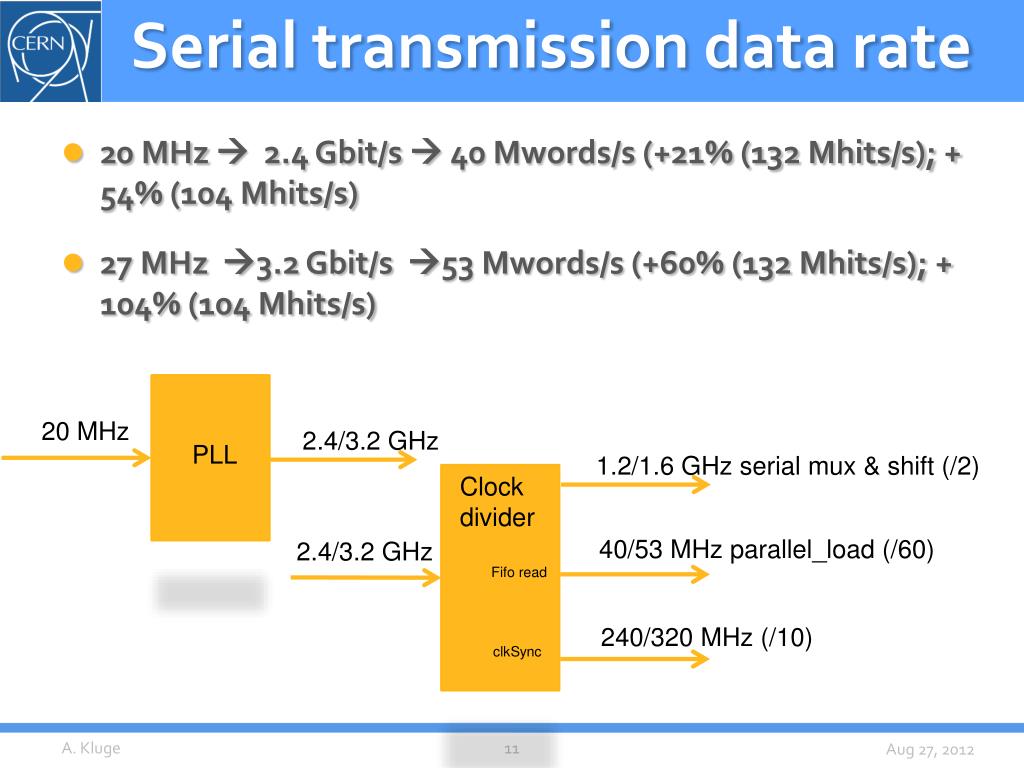

  11. Serial transmission data rate • 20 MHz  2.4 Gbit/s  40 Mwords/s (+21% (132 Mhits/s); + 54% (104 Mhits/s) • 27 MHz 3.2 Gbit/s 53 Mwords/s (+60% (132 Mhits/s); + 104% (104 Mhits/s) 20 MHz 2.4/3.2 GHz PLL 1.2/1.6 GHz serial mux & shift (/2) Clock divider 40/53 MHz parallel_load (/60) 2.4/3.2 GHz Fifo read 240/320 MHz (/10) clkSync A. Kluge

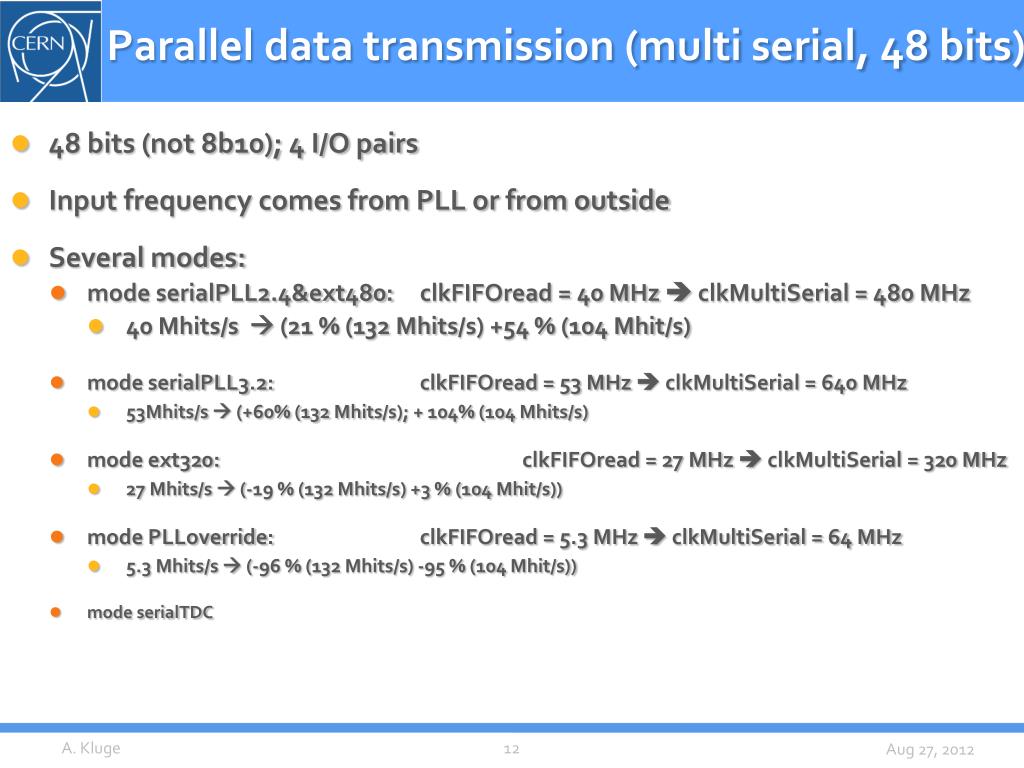

  12. Parallel data transmission (multi serial, 48 bits) • 48 bits (not 8b10); 4 I/O pairs • Input frequency comes from PLL or from outside • Several modes: • mode serialPLL2.4&ext480: clkFIFOread = 40 MHz  clkMultiSerial = 480 MHz • 40 Mhits/s  (21 % (132 Mhits/s) +54 % (104 Mhit/s) • mode serialPLL3.2: clkFIFOread = 53 MHz  clkMultiSerial = 640 MHz • 53Mhits/s  (+60% (132 Mhits/s); + 104% (104 Mhits/s) • mode ext320: clkFIFOread = 27 MHz  clkMultiSerial = 320 MHz • 27 Mhits/s  (-19 % (132 Mhits/s) +3 % (104 Mhit/s)) • mode PLLoverride: clkFIFOread = 5.3 MHz  clkMultiSerial = 64 MHz • 5.3 Mhits/s  (-96 % (132 Mhits/s) -95 % (104 Mhit/s)) • mode serialTDC A. Kluge

  13. Status of blocks and assembly A. Kluge

  14. TDCpix digital layout Assembly & power distribution & IO ring A. Kluge

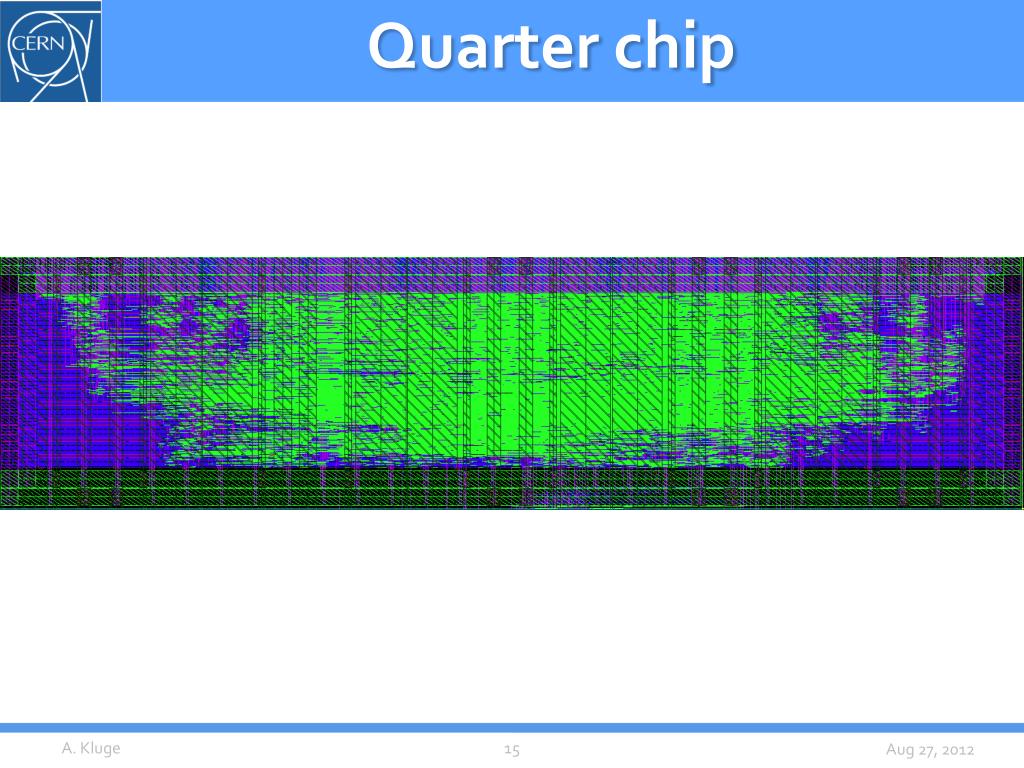

  15. Quarter chip A. Kluge

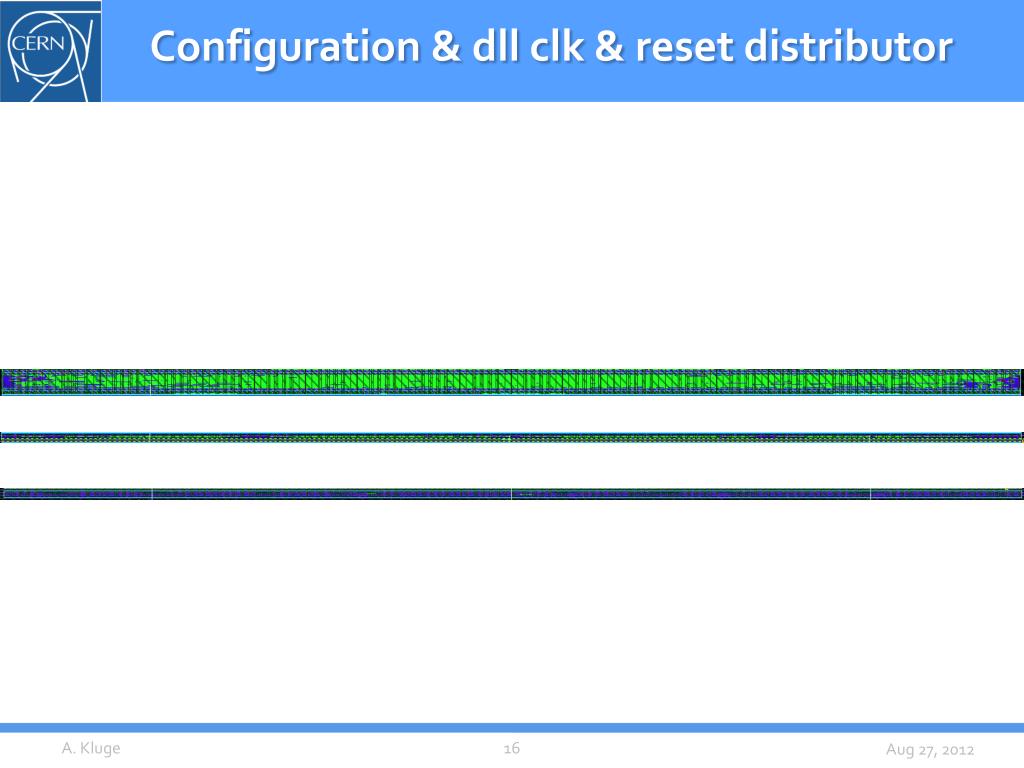

  16. Configuration & dll clk & reset distributor A. Kluge

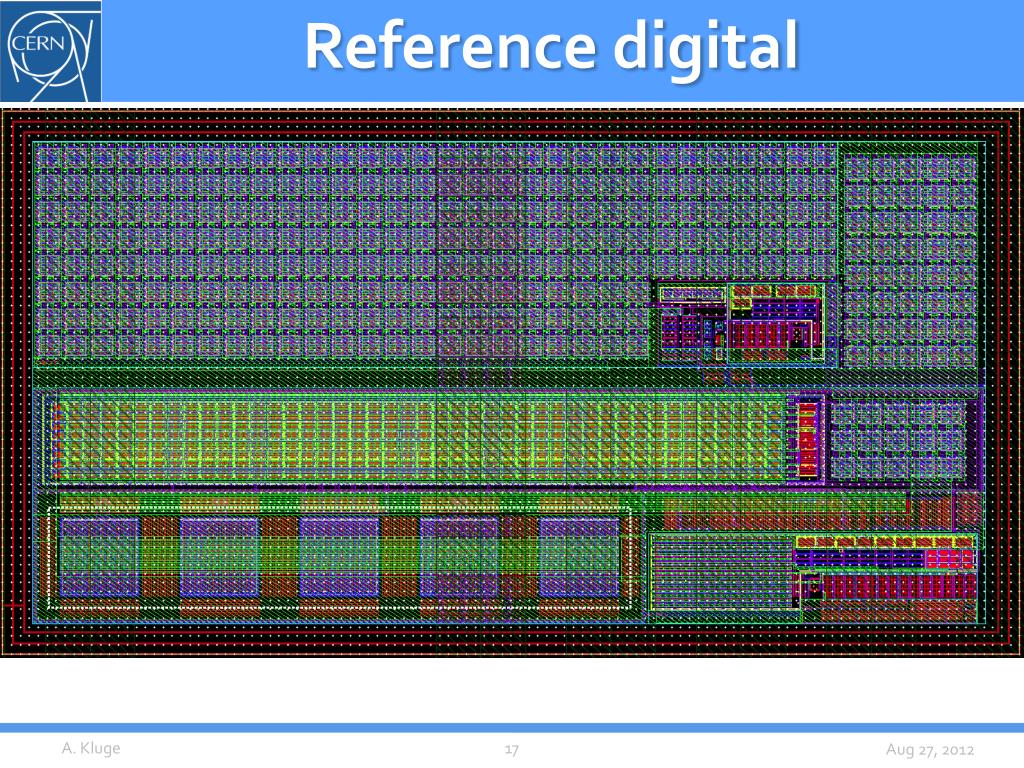

  17. Reference digital A. Kluge

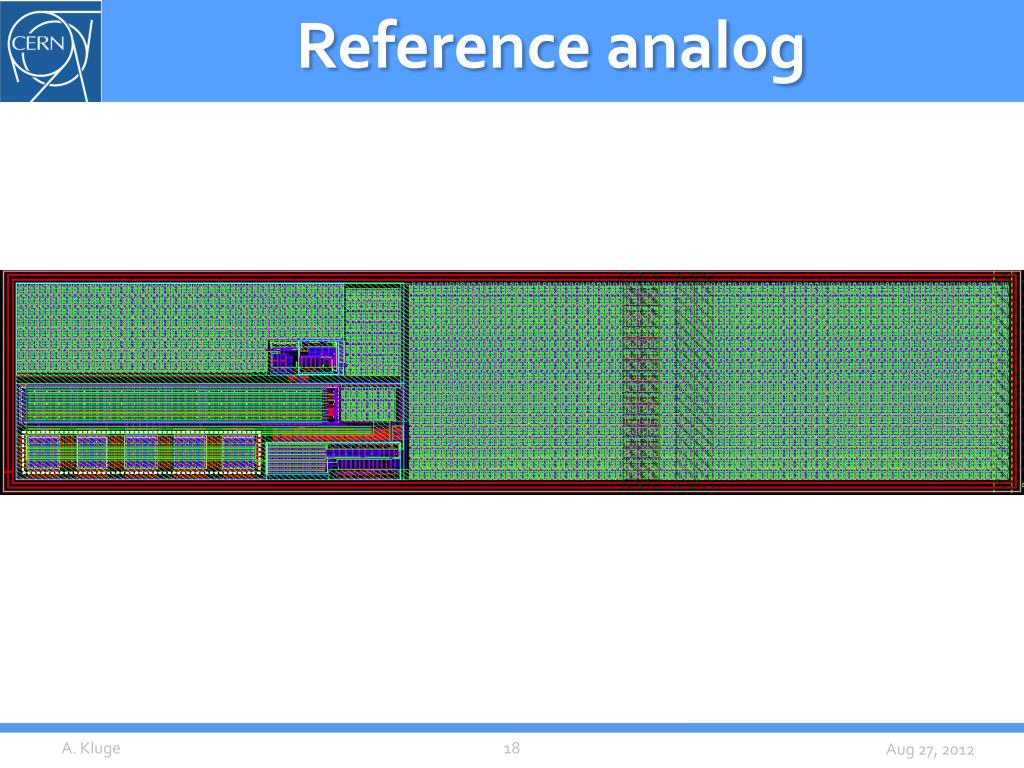

  18. Reference analog A. Kluge

  19. Temperatur sensor A. Kluge

  20. IO pads A. Kluge

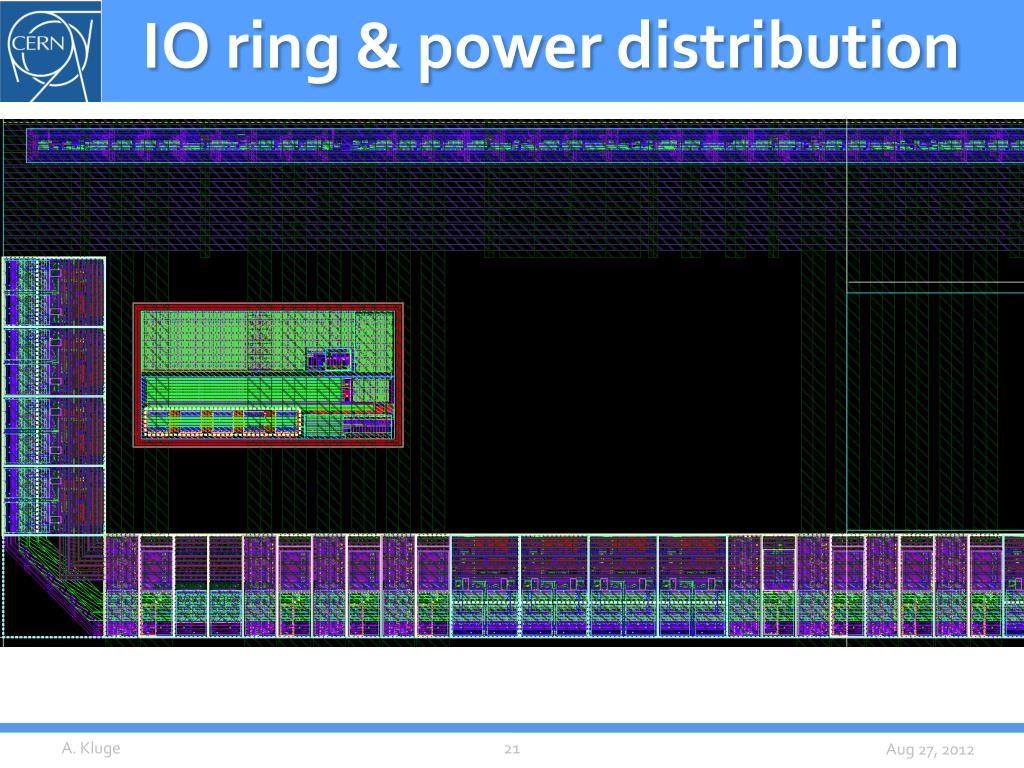

  21. IO ring & power distribution A. Kluge

  22. Data transmission A. Kluge

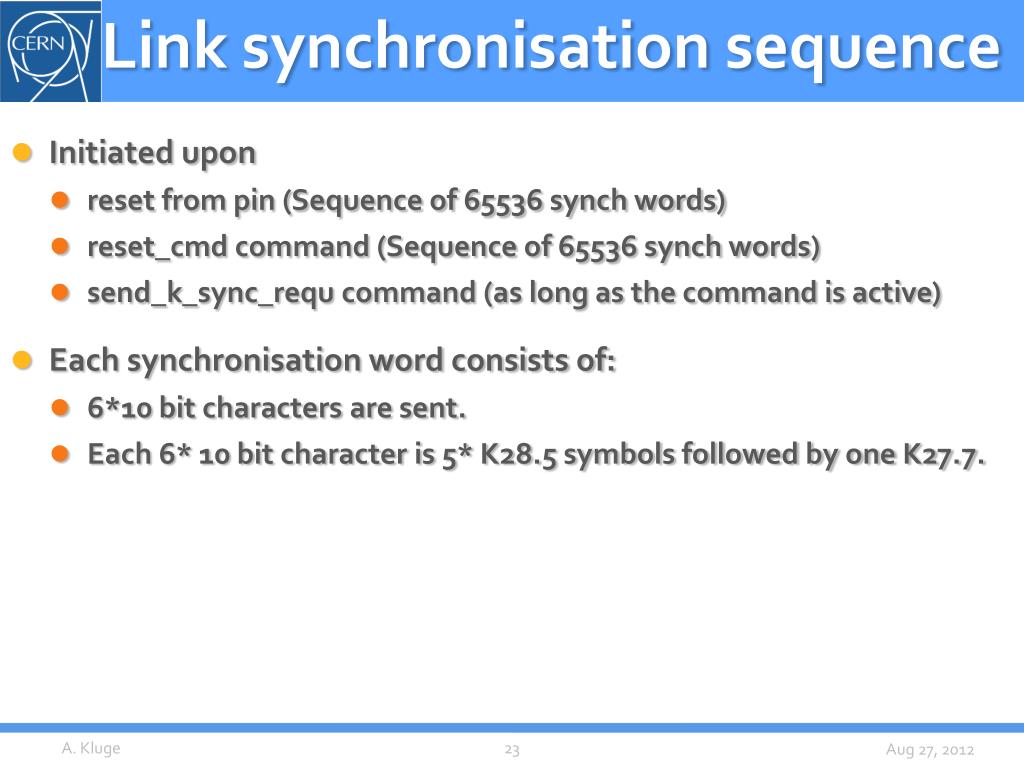

  23. Link synchronisation sequence • Initiated upon • reset from pin (Sequence of 65536 synch words) • reset_cmd command (Sequence of 65536 synch words) • send_k_sync_requ command (as long as the command is active) • Each synchronisation word consists of: • 6*10 bit characters are sent. • Each 6* 10 bit character is 5* K28.5 symbols followed by one K27.7. A. Kluge

  24. Data transmission • Idle command • If no data is transmitted or no frame word is transmitted • the idle command is sent over the link. • It is identical to the link synchronisation word and consists of 5 K28.5 symbols followed by one K27.7 A. Kluge

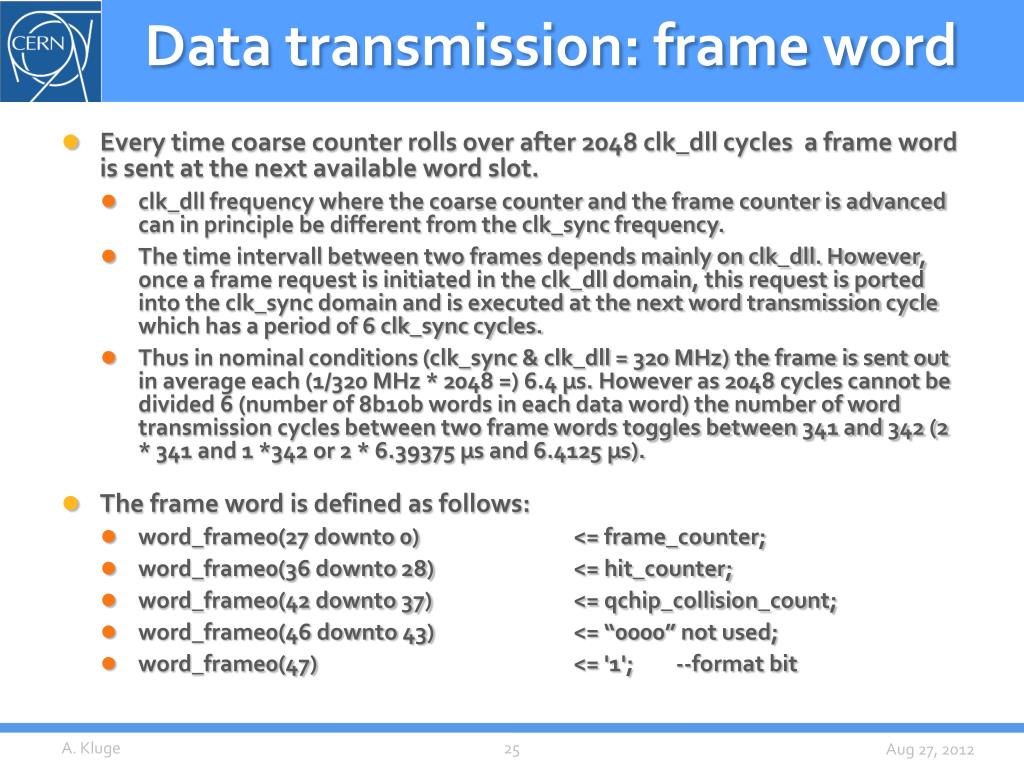

  25. Data transmission: frame word • Every time coarse counter rolls over after 2048 clk_dll cycles a frame word is sent at the next available word slot. • clk_dll frequency where the coarse counter and the frame counter is advanced can in principle be different from the clk_sync frequency. • The time intervall between two frames depends mainly on clk_dll. However, once a frame request is initiated in the clk_dll domain, this request is ported into the clk_sync domain and is executed at the next word transmission cycle which has a period of 6 clk_sync cycles. • Thus in nominal conditions (clk_sync & clk_dll = 320 MHz) the frame is sent out in average each (1/320 MHz * 2048 =) 6.4 µs. However as 2048 cycles cannot be divided 6 (number of 8b10b words in each data word) the number of word transmission cycles between two frame words toggles between 341 and 342 (2 * 341 and 1 *342 or 2 * 6.39375 µs and 6.4125 µs). • The frame word is defined as follows: • word_frame0(27 downto 0) <= frame_counter; • word_frame0(36 downto 28) <= hit_counter; • word_frame0(42 downto 37) <= qchip_collision_count; • word_frame0(46 downto 43) <= “0000” not used; • word_frame0(47) <= '1'; --format bit A. Kluge

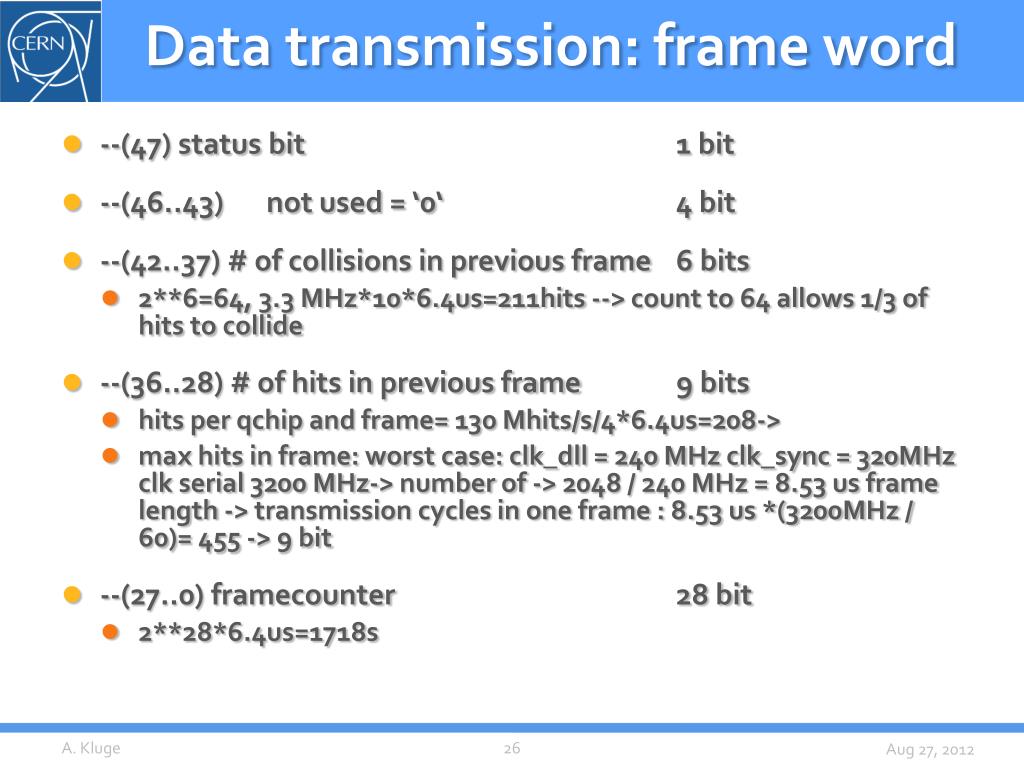

  26. Data transmission: frame word • --(47) status bit 1 bit • --(46..43) not used = ‘0‘ 4 bit • --(42..37) # of collisions in previous frame 6 bits • 2**6=64, 3.3 MHz*10*6.4us=211hits --> count to 64 allows 1/3 of hits to collide • --(36..28) # of hits in previous frame 9 bits • hits per qchip and frame= 130 Mhits/s/4*6.4us=208-> • max hits in frame: worst case: clk_dll = 240 MHz clk_sync = 320MHz clk serial 3200 MHz-> number of -> 2048 / 240 MHz = 8.53 us frame length -> transmission cycles in one frame : 8.53 us *(3200MHz / 60)= 455 -> 9 bit • --(27..0) framecounter 28 bit • 2**28*6.4us=1718s A. Kluge

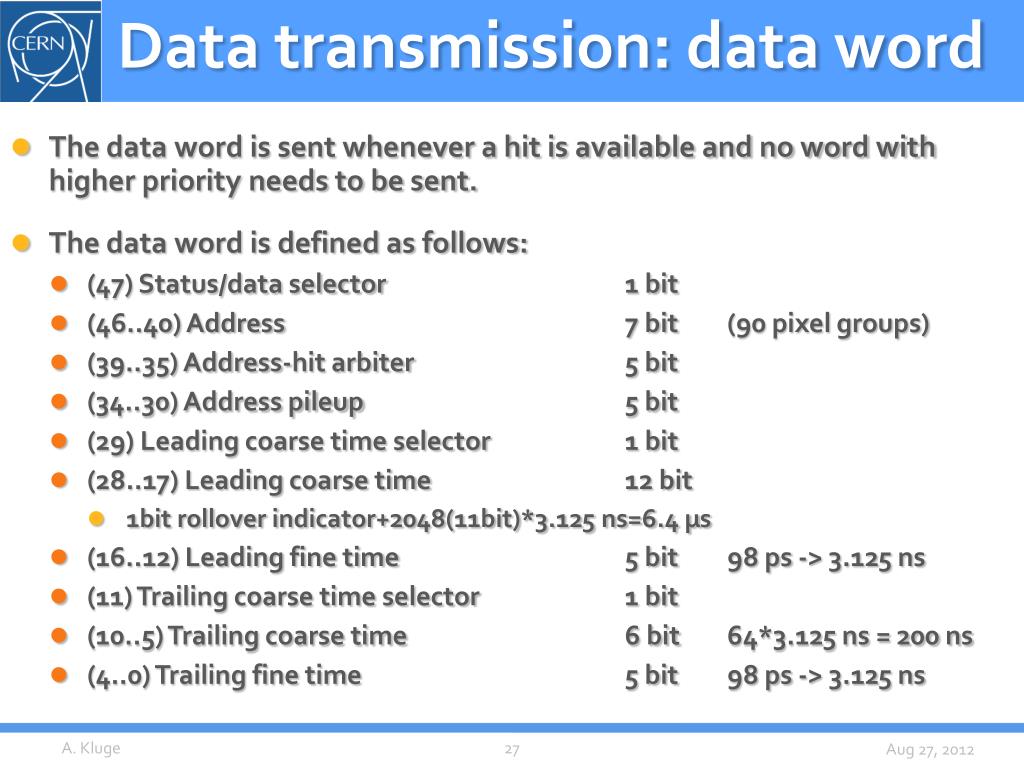

  27. Data transmission: data word • The data word is sent whenever a hit is available and no word with higher priority needs to be sent. • The data word is defined as follows: • (47) Status/data selector 1 bit • (46..40) Address 7 bit (90 pixel groups) • (39..35) Address-hit arbiter 5 bit • (34..30) Address pileup 5 bit • (29) Leading coarse time selector 1 bit • (28..17) Leading coarse time 12 bit • 1bit rollover indicator+2048(11bit)*3.125 ns=6.4 µs • (16..12) Leading fine time 5 bit 98 ps -> 3.125 ns • (11) Trailing coarse time selector 1 bit • (10..5) Trailing coarse time 6 bit 64*3.125 ns = 200 ns • (4..0) Trailing fine time 5 bit 98 ps -> 3.125 ns A. Kluge

  28. Data type • The word transmission priority is defined as follows: • send_k_sync_slot_requ (user request) • send_testpattern_requ (user request) • send_k_word_request (user request) • send_serial_time_requ (user request) • send_frame_requ • send_data_requ A. Kluge

  29. Configuration register • Operation modes and Configuration register • --configuration register • send_k_sync_requ <= configuration_data_int_in(0); default = ‘0’ • send_k_word_requ <= configuration_data_int_in(1); default = ‘0’ • k_word_type <= configuration_data_int_in(5 downto 2); default = “0000” • enable_serial_time_int <= configuration_data_int_in(6); default = ‘0’ • enable_test_pattern_int <= configuration_data_int_in(7); default = ‘0’ • new_data_testpattern <= configuration_data_int_in(8); default = ‘0’ • --> new_data_testpattern acts as write command for the data_testpattern fifo, • --> each 01 transition is used as write cmd A. Kluge

  30. Configuration register (2) • data_testpattern <= configuration_data_int_in(62 downto 9); default = “00..00” • --> Data_testpattern is composed of two words: • --> word_test_pattern_int <= data_testpattern (47 downto 0); • --> are 6 times 8 bit characters composing the 48 qchip_word, • --> K_word is a 6 bit word indicating whether the 6 characters are to be treated as data or k character. • --> k_word_test_pattern <= data_testpattern (53 downto 48); • --54 bit: data_testpattern -> write data into cell 54 of data_testpattern • --> subsequent writing moves write pointer of FIFO so that all 8 FIFO cells can be written • --> when test pattern is enabled, all 8 FIFO cells are read subsequently and pushed into • --> the data stream, thus the data stream consists of a multiple of 8 data words. A. Kluge

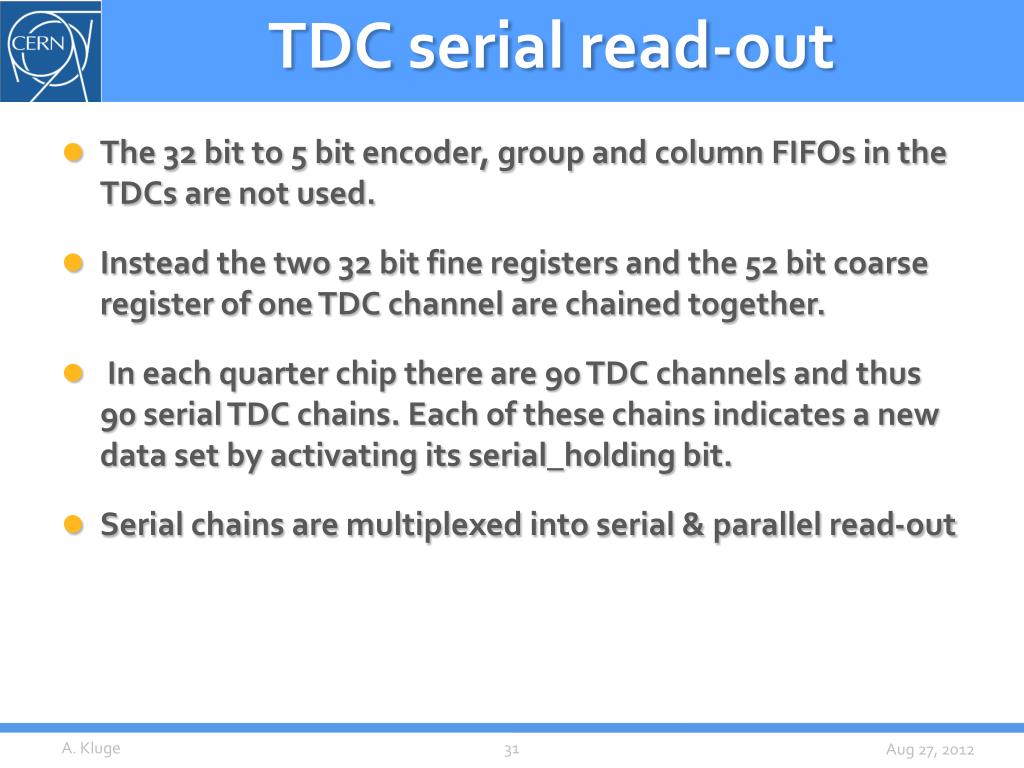

  31. TDC serial read-out • The 32 bit to 5 bit encoder, group and column FIFOs in the TDCs are not used. • Instead the two 32 bit fine registers and the 52 bit coarse register of one TDC channel are chained together. • In each quarter chip there are 90 TDC channels and thus 90 serial TDC chains. Each of these chains indicates a new data set by activating its serial_holding bit. • Serial chains are multiplexed into serial & parallel read-out A. Kluge

  32. ASIC status by Gianluca

  33. Outline by Gianluca Progress since last status report (17 Jul 2012) Status Road ahead

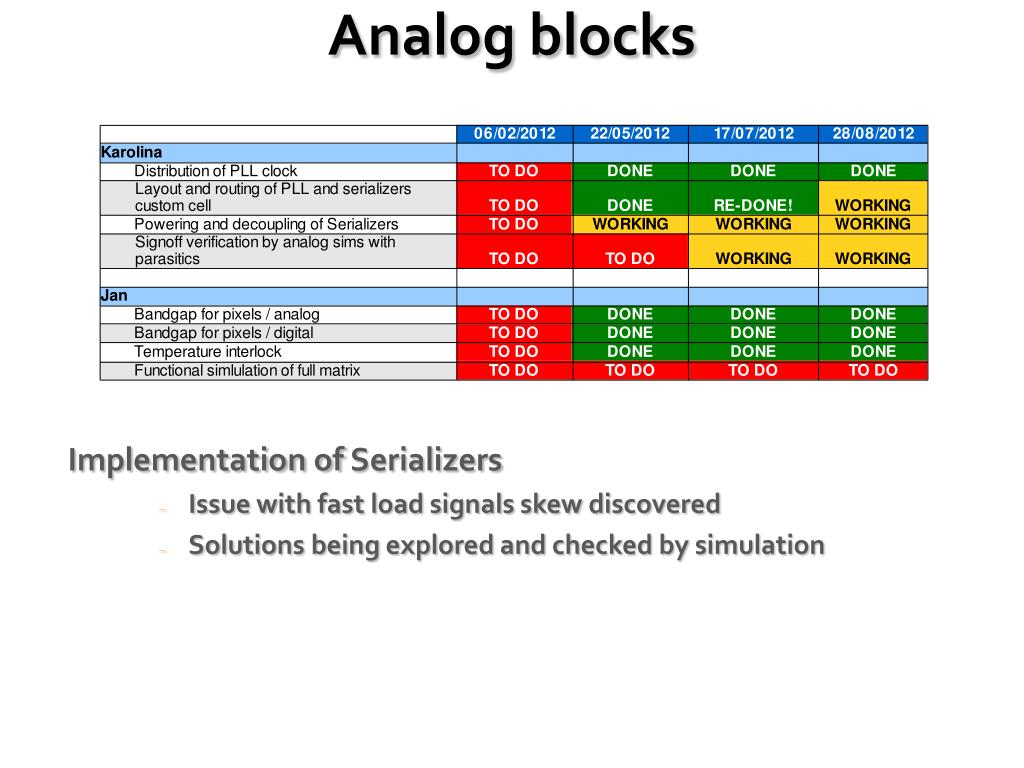

  34. Analog blocks Implementation of Serializers • Issue with fast load signals skew discovered • Solutions being explored and checked by simulation

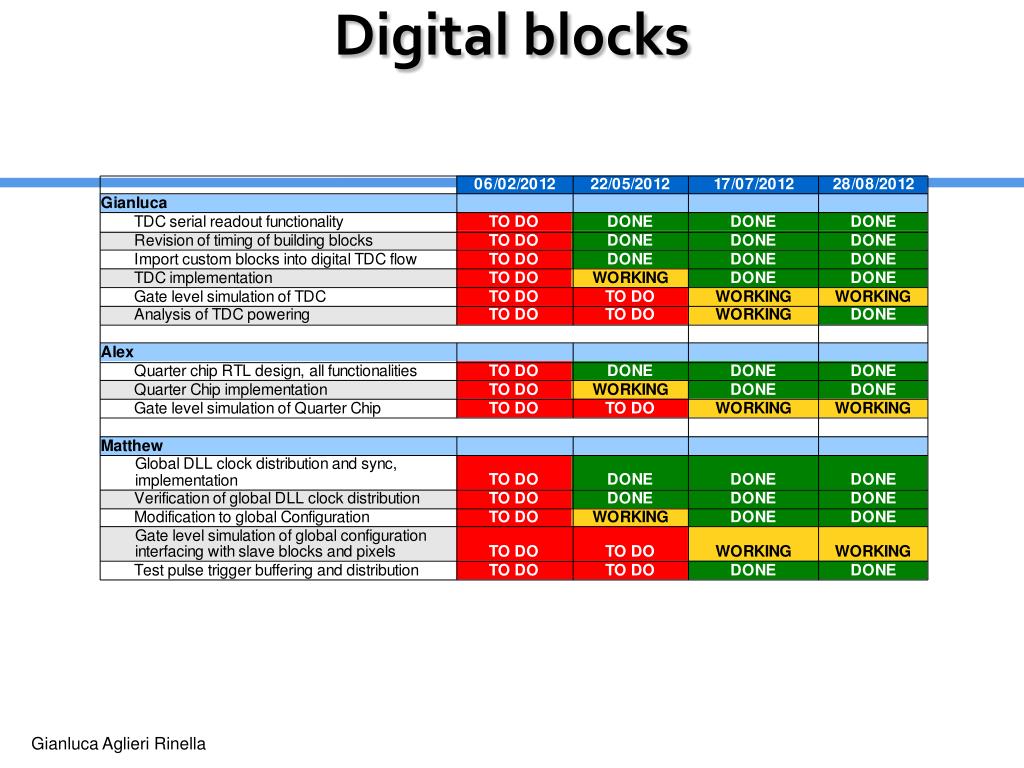

  35. Digital blocks GianlucaAglieriRinella

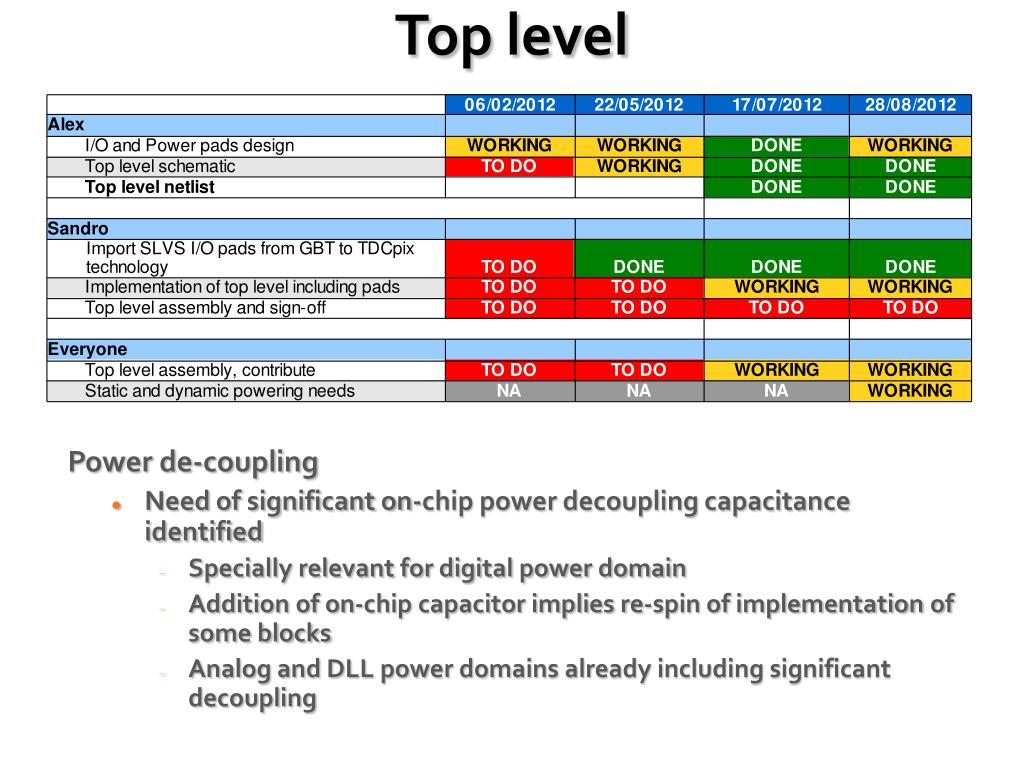

  36. Top level Power de-coupling • Need of significant on-chip power decoupling capacitance identified • Specially relevant for digital power domain • Addition of on-chip capacitor implies re-spin of implementation of some blocks • Analog and DLL power domains already including significant decoupling

  37. Status at a glance on 6 Feb 2012

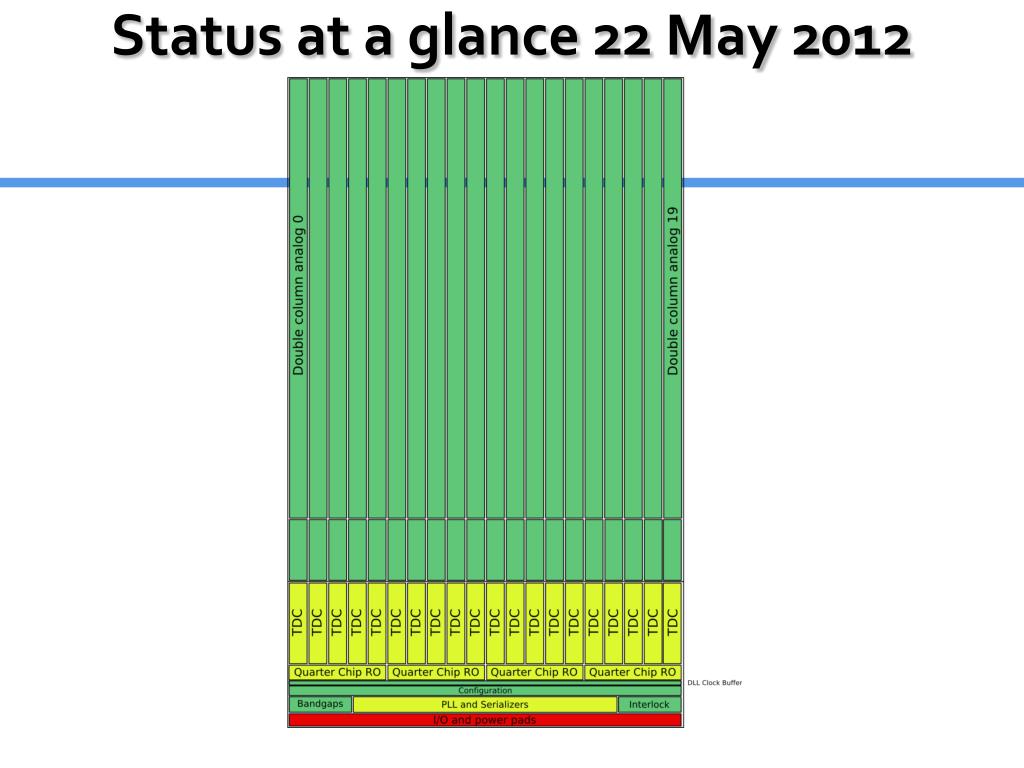

  38. Status at a glance 22 May 2012

  39. Status at a glance 17 July 2012

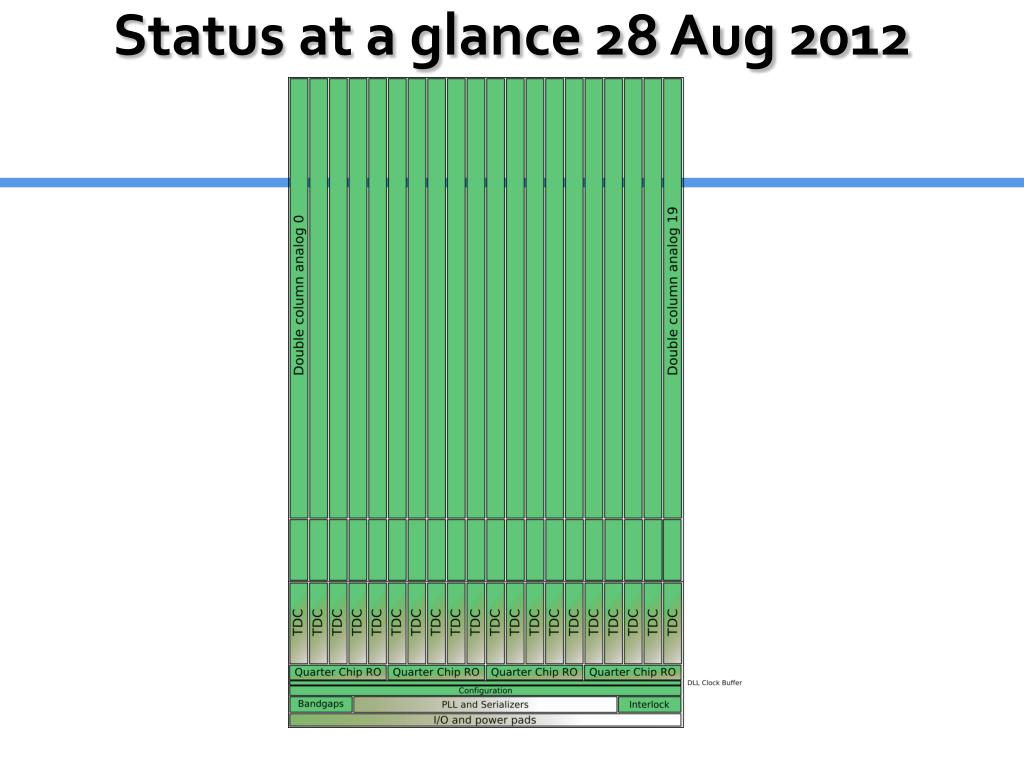

  40. Status at a glance 28 Aug 2012

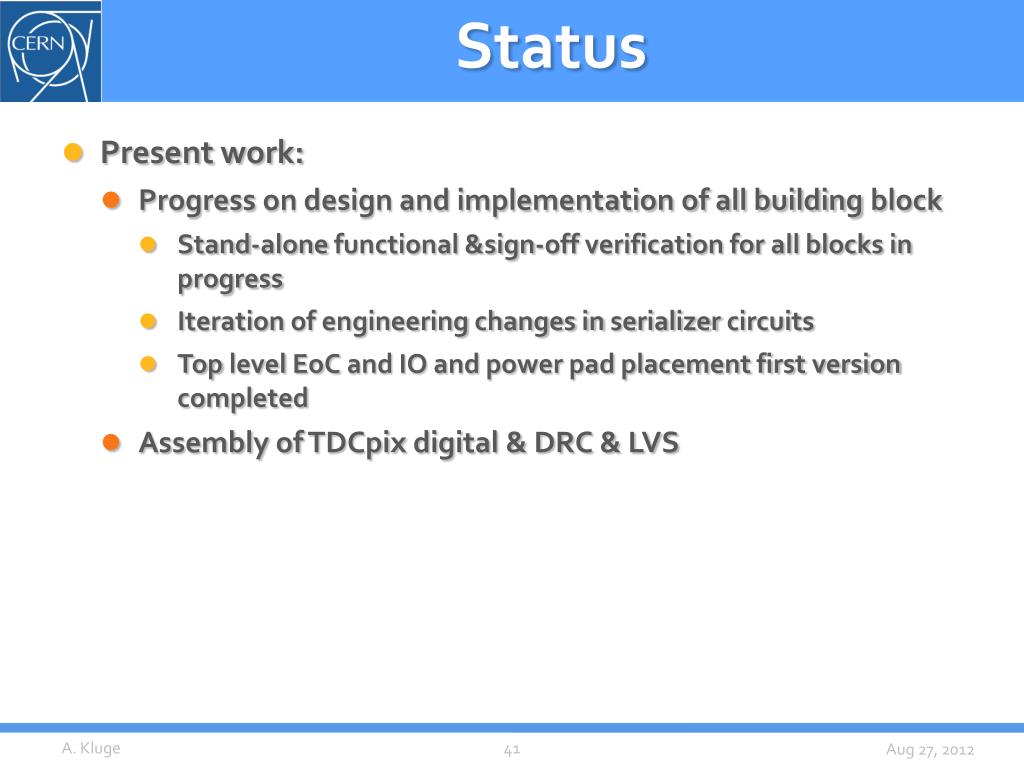

  41. Status • Present work: • Progress on design and implementation of all building block • Stand-alone functional &sign-off verification for all blocks in progress • Iteration of engineering changes in serializercircuits • Top level EoC and IO and power pad placement first version completed • Assembly of TDCpix digital & DRC & LVS A. Kluge

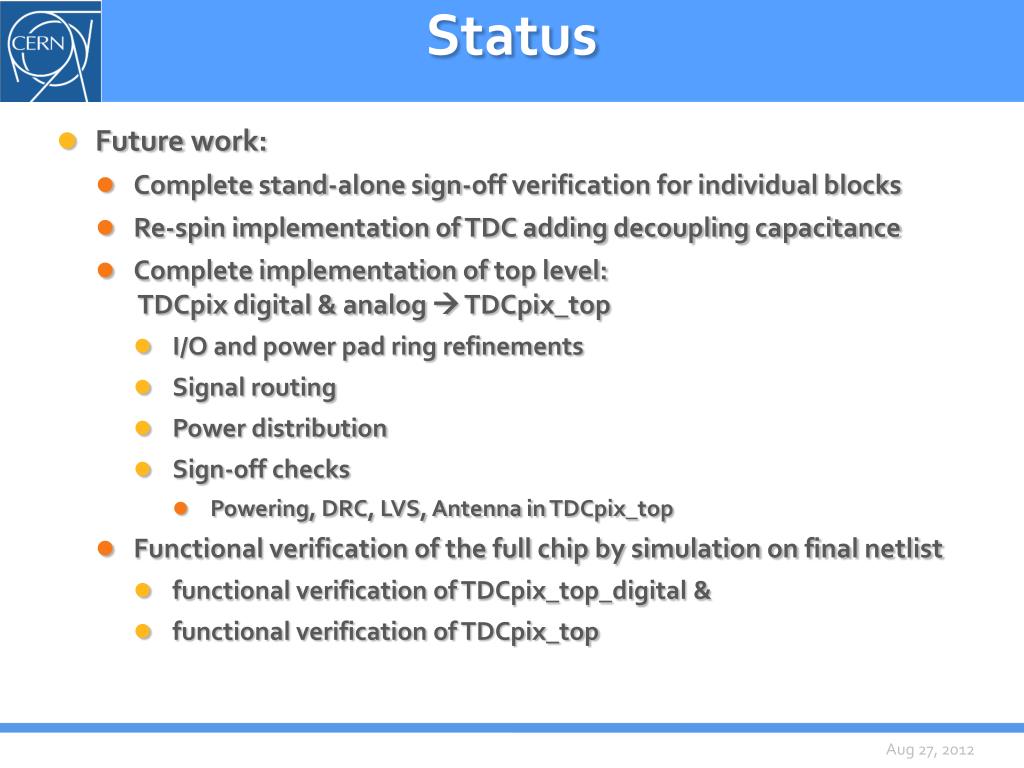

  42. Status • Future work: • Complete stand-alone sign-off verification for individual blocks • Re-spin implementation of TDC adding decoupling capacitance • Complete implementation of top level:TDCpix digital & analog  TDCpix_top • I/O and power pad ring refinements • Signal routing • Power distribution • Sign-off checks • Powering, DRC, LVS, Antenna in TDCpix_top • Functional verification of the full chip by simulation on final netlist • functional verification of TDCpix_top_digital & • functional verification of TDCpix_top
