Chapter 9a - Systems of Particles

Chapter 9a - Systems of Particles. Center of Mass point masses solid objects Newton’s Second Law for a System of Particles Linear Momentum for a System of Particles Conservation of Linear Momentum Rockets Internal Energy/External Forces.

ciaran-william
Télécharger la présentation

Chapter 9a - Systems of Particles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

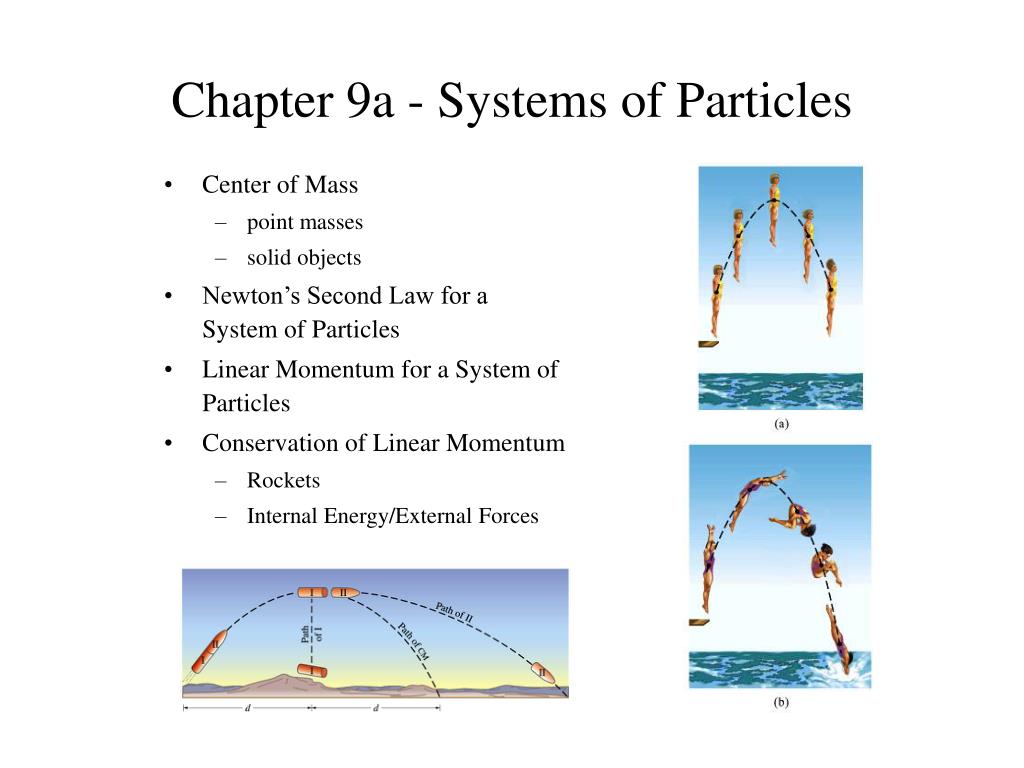

  1. Chapter 9a - Systems of Particles • Center of Mass • point masses • solid objects • Newton’s Second Law for a System of Particles • Linear Momentum for a System of Particles • Conservation of Linear Momentum • Rockets • Internal Energy/External Forces

  2. Calculating the center of mass – point objects – 1 D

  3. Calculating the center of mass – point objects – 2 D

  4. Problem 1 • Three masses located in the x-y plane have the following coordinates: • 2 kg at (3,-2) • 3 kg at (-2,4) • 1 kg at (2,2) • Find the location of the center of mass

  5. Calculating the center of mass – solid objects – 1 D

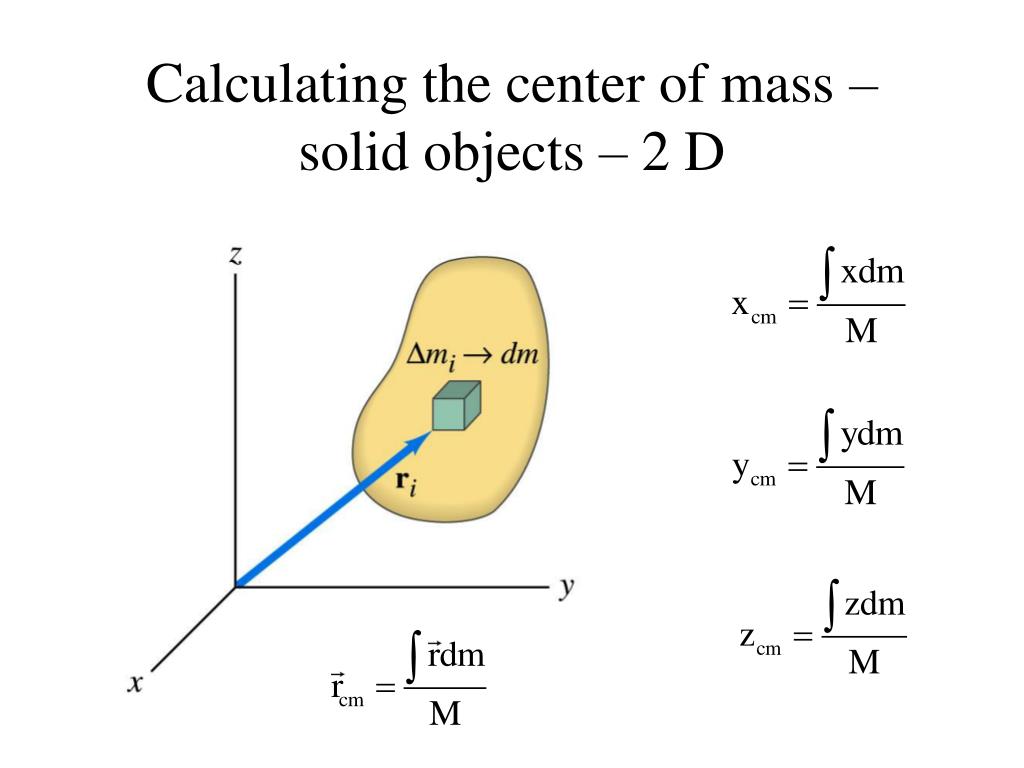

  6. Calculating the center of mass – solid objects – 2 D

  7. Finding the COM

  8. Problem 2 • What is the center of mass of the Letter “F” shown if it has uniform density and thickness? 2cm 2cm 20cm 5cm 10 cm 2cm 15cm

  9. Problem 3 The blue disk has a radius 2R The white area is a hole in the Disk with radius R. Where is the center of mass?

  10. COM and translational motion First time derivative COM Momentum Second time derivative Newton’s 2nd Law

  11. What this means…. • The sum of all forces acting on the system is equal to the total mass of the system times the acceleration of the center of mass. • The center of mass of a system of particles with total mass M moves like a single particle of mass M acted upon by the same net external force.

  12. Conservation of Linear Momentum • If 2 (or more) particles of masses m1, m2, … form an isolated system (zero net external force), then total momentum of the system is conserved regardless of the nature of the force between them.

  13. Problem 1 • An astronaut finds himself at rest in space after breaking his lifeline. With only a space tool in his hand, how can he get back to his ship which is only 10 m away and out of his reach.

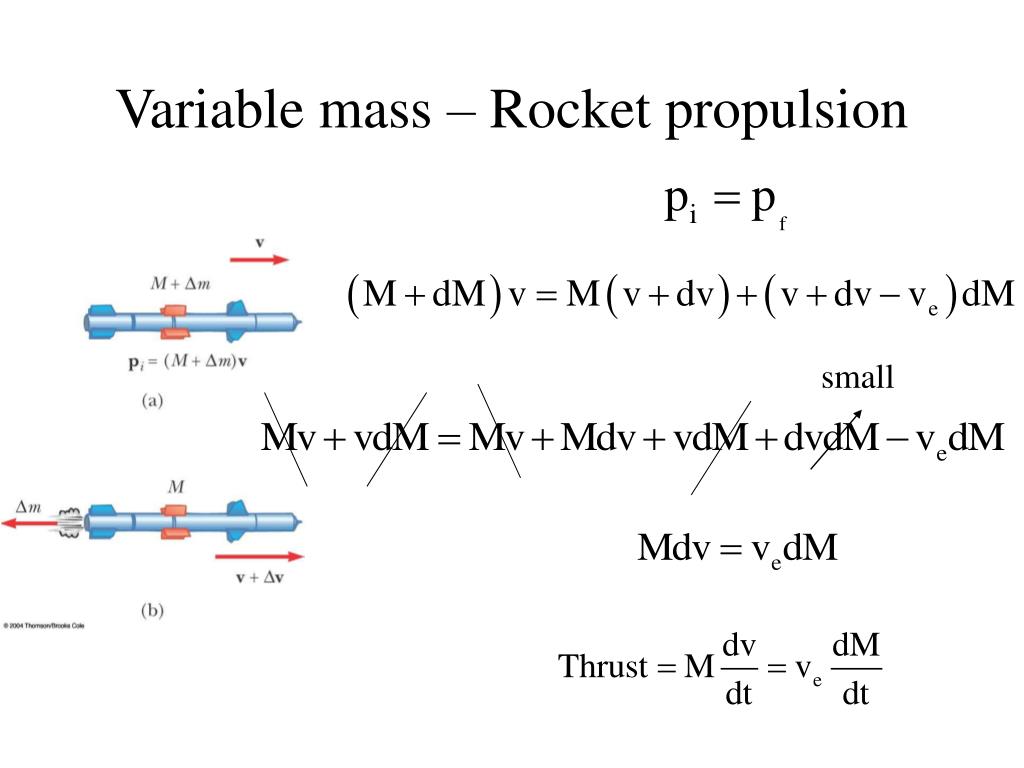

  14. Variable mass – Rocket propulsion small

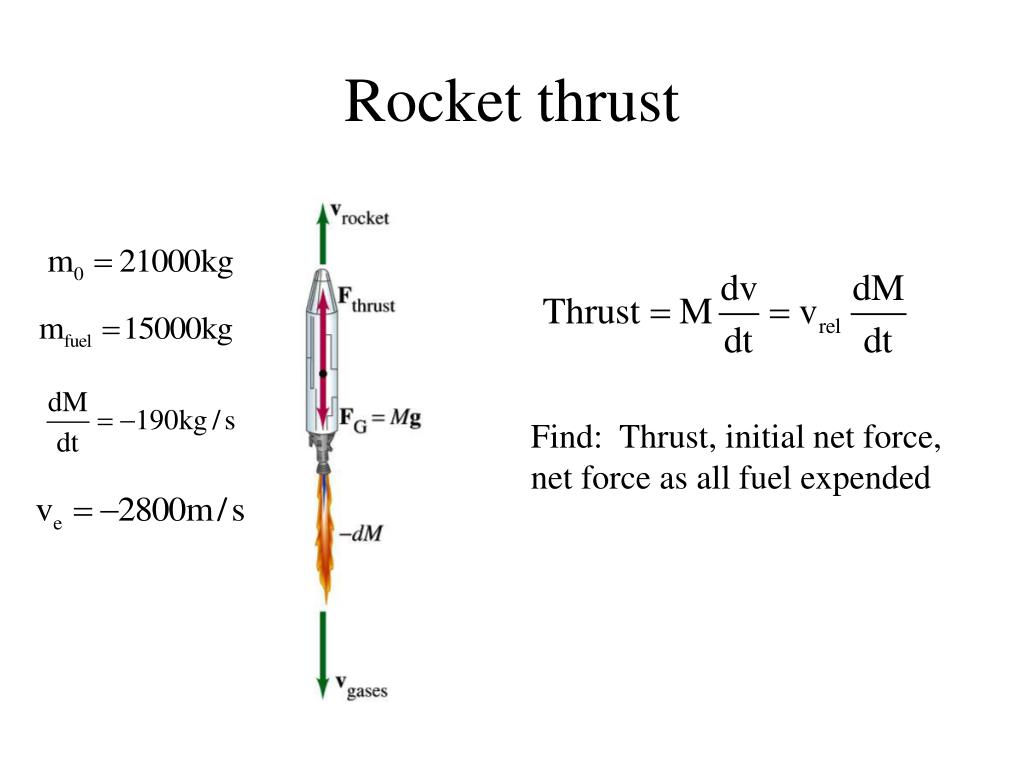

  15. Rocket thrust Find: Thrust, initial net force, net force as all fuel expended
