  1. A Scheme Refresher (Functional Subset) PrabhakerMateti

  2. SchemeRefresher Overview of Scheme • Guy Steele and Gerald Sussman, MIT, 1975 • Interpreted or compiled to machine code • REPL (Read, Eval, Print, Loop) • Like Python, MatLab • Lisp syntax + lexical scope • Lists are a fundamental built-in data type • Everything in prefix form: • (+ a b) instead of the infix a + b • Procedures represented by computable data structures

  3. SchemeRefresher Standards Docs for Scheme • Official Standard: The IEEE standard, 1178-1990 (R1995) standards.ieee.org/ • De Facto Std: R6RS (2007) Revised^6 Report on the Algorithmic Language Scheme www.r6rs.org/ • Older R5RS (1998) www.schemers.org/ Documents/Standards/R5RS/

  4. SchemeRefresher “Implementations” of Scheme • Many (~100 ?) that meet R5RS and R6RS. • On Linux, Windows, … • CS784 choice: http://racket-lang.org/ • Previously (< June 2010) known as PLT-Scheme • DrRacket, … • “Determine language from source” • EOPL3 • Many extensions

  5. SchemeRefresher Scheme Reading • Teach Yourself Scheme in Fixnum Days, DoraiSitaram, free download, www.ccs. neu.edu/home/dorai/ (For programmers.) • How to Design Programs, Felleisen, Bruce Findler, Flatt and Krishnamurthi, MIT Press, 2001. on-line www.htdp.org/ (For beginners.) • Scheme Wiki: community.schemewiki.org/

  6. SchemeRefresher Examples, Discussion, … • http://community.schemewiki.org/ • http://practical-scheme.net/ • http://www.schemers.org/ • http://lambda-the-ultimate.org/

  7. SchemeRefresher Examples-1 • (define x 10) • (define y 20) • (cons x y) • (cdr (cons x y)) • (symbol? '123) • (string->symbol "one, two")

  8. SchemeRefresher Examples-2 • (define list-length • (lambda (lst) • (if (null? lst) • 0 • (+ 1 (list-length (cdrlst)))))) • (define remove-first • (lambda (s los) • (if (null? los) • '() • (if (eqv? (car los) s) • (cdr los) • (cons (car los) (remove-first s (cdr los)))))))

  9. SchemeRefresher Example-3 EOPL3 p19 • (define occurs-free? • (lambda (var exp) • (cond • ((symbol? exp) (eqv? var exp)) • ((eqv? (car exp) 'lambda) • (and • (not (eqv? var (car (cadr exp)))) • (occurs-free? var (caddr exp)))) • (else • (or • (occurs-free? var (car exp)) • (occurs-free? var (cadr exp)))))))

  10. SchemeRefresher Example-4 EOPL3 p21 • (define subst-in-s-exp • (lambda (new old sexp) • (if (symbol? sexp) • (if (eqv? sexp old) new sexp) • (subst new old sexp)))) • (subst 'a 'b '((b c) (b () d)))  '((a c) (a () d))

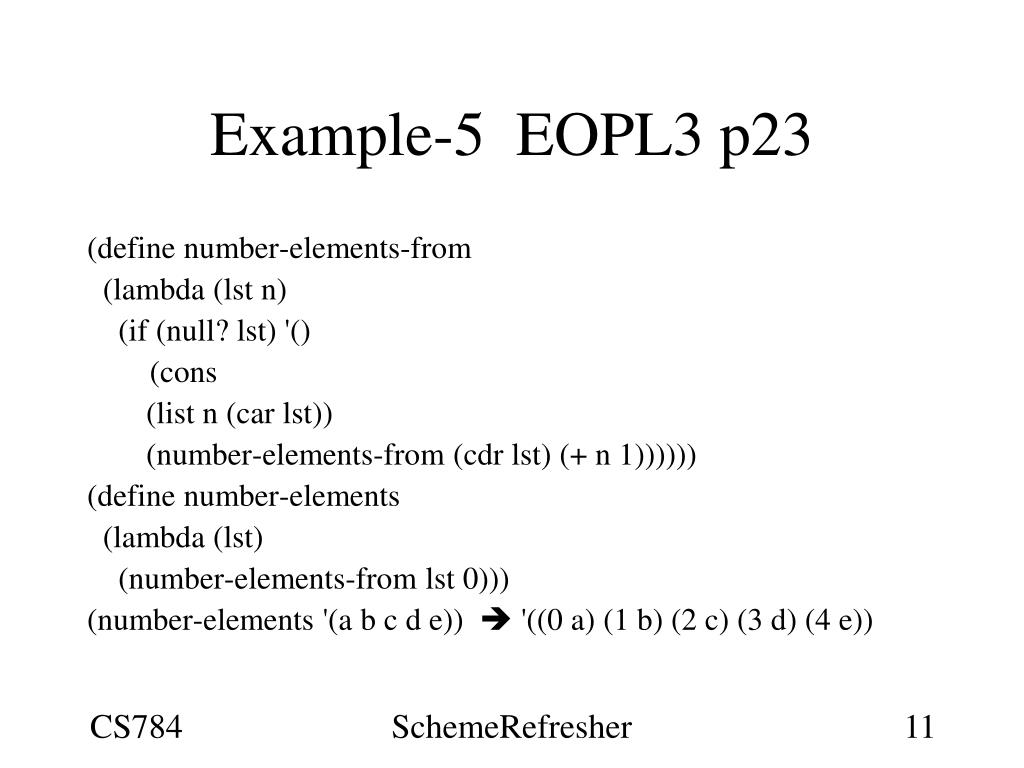

  11. SchemeRefresher Example-5 EOPL3 p23 • (define number-elements-from • (lambda (lst n) • (if (null? lst) '() • (cons • (list n (car lst)) • (number-elements-from (cdrlst) (+ n 1)))))) • (define number-elements • (lambda (lst) • (number-elements-from lst 0))) • (number-elements '(a b c d e))  '((0 a) (1 b) (2 c) (3 d) (4 e))

  12. SchemeRefresher Built-In Data Types • Booleans: #t #f • Numbers • Characters • Strings (Unicode) • Bytes and Byte Strings • Symbols • Keywords • Pairs and Lists • Vectors • Hash Tables • Boxes • Void and Undefined

  13. Four Types Of Expressions • Constants: numbers, booleans. • Variables: names for values. Created using the special form define • Special forms have special rules for evaluation. • Cannot be redefined • 15 “magic words” and, begin, case, cond, define, do, if, lambda, let, let*, letrec, or,quasiquote, quote, set! • a special form is not a first-class object like a procedure • Combination: (operator operands) • "function calls" or • "procedure applications."

  14. Mantras of Scheme • Every expression has a value • except for • errors, • infinite loops, and • define special form • Computing the value of a combination • (operator operands …) • Compute all sub-expressions (in any order) • Apply the value of the first to the values of the rest • Applicative Order • The value of a lambda expression is a procedure

  15. SchemeRefresher Expressions • Literals • 2, 22/7, 3.1, "abc", #t • '(define x 12) • Variables • (define x 12) • x • Function Calls (aka Procedure Applications) • ( ‹id› ‹expr›* )

  16. SchemeRefresher Symbols • A symbol is an atomic value. • An expression that starts with ' and continues with an identifier. • Distinct from identifiers that name variables in the program text. • Distinct from strings (sequence of characters). • Examples • (symbol? 'blah)  #t • (string->symbol "one, two“) |one, two|

  17. SchemeRefresher Pairs • cons procedure: • (cons x y) constructs a pair  (10 . 20) • (cons '() 'blah)  (() . blah) • (cons "blah" '())  ("blah") • (cons 'blah '())  (blah) • car procedure: first value • cdr procedure: second value • (cdr (cons x y))  20 • (pair?  '(1 2))   #t

  18. SchemeRefresher Lists • A list is recursively defined: • the constant null, or • a pair whose second value is a list. • Ordered sequence of elements of arbitrary types (Heterogeneous) • (list? (cons  alpha (cons 2  '())))   #t • (list? (cons  alpha 2))  #f

  19. SchemeRefresher Procedure Call/Application • ( ‹id› ‹expr›* ) • (proc exp1 exp2 exp3 ...) is in other languages proc(exp1 exp2 exp3 ...) • (equal?  6  "half dozen") • ((f #t 3) (string? s) 6) • Order of evaluation of the sub-expressions is deliberately left unspecified by Scheme. • cf. C is silent about it. • cf. Java specifies a left to right processing.

  20. SchemeRefresher procedure:  (eq? v1 v2) • Return #t  if v1 and v2 refer to the same object, #f  otherwise • (eq?  'yes  'yes)  #t • (eq? "yes" "yes" )  #f • (eq? (cons 1 2) (cons 1 2))  #f

  21. SchemeRefresher procedure:  (eqv? v1 v2) • Two values are eqv? if and only if they are eq?, • except for number and character data types • (eqv? (expt 2 100) (expt 2 100))  #t • (eq? (expt 2 100) (expt 2 100))  #f

  22. SchemeRefresher procedure:  (equal? v1 v2) • Two values are equal? if and only if they are eqv?, • except for strings, byte strings, numbers, pairs, mutable pairs, vectors, hash tables, and inspectable structures. • A rule of thumb is that objects are generally equal? if they print the same. • For precise details, see the docs of Scheme implementation you are using.

  23. SchemeRefresher eq? eqv? equal? • (equal? (expt 2 100) (expt 2 100))  #t • (eqv? (expt 2 100) (expt 2 100))  #t • (eq? (expt 2 100) (expt 2 100))  #f • (equal? (make-string 3 #\z) (make-string 3 #\z))  #t • (eqv? (make-string 3 #\z) (make-string 3 #\z))  #f • (eq? (make-string 3 #\z) (make-string 3 #\z))  #f

  24. SchemeRefresher procedure:  (vector v ...)  • Returns a new mutable “array” with the slots initialized to contain the given v … in order. Index starts at 0. • (vector 'a 20 "yes")  #(a 20 "yes") • (define v (vector 'a 20 "yes")) • (vector-ref v 2)  "yes“ • (vector-length v)  3 • (vector->list  v)     (a 20 "yes") • (list->vector '(a 20 "yes"))  #(a 20 "yes") • (build-vector  5  add1)   '#(1 2 3 4 5)

  25. SchemeRefresher Special Forms • A special form is an expression that follows special evaluation rules. • Lambda Expressions • Definitions • Assignments • Conditionals • Sequencing • Iteration

  26. SchemeRefresher (defineidexpr) • binds id to the result of expr • (define x 10) • (define v (vector 'a 20 "yes"))

  27. SchemeRefresher (define (headargs) body ...+) • binds  id, in the head, to a procedure. • (define (f x) (+ x 1)) • (define ((f x)) (+ x 20)) • ((f 10))  30 • (f 10)  #<procedure>

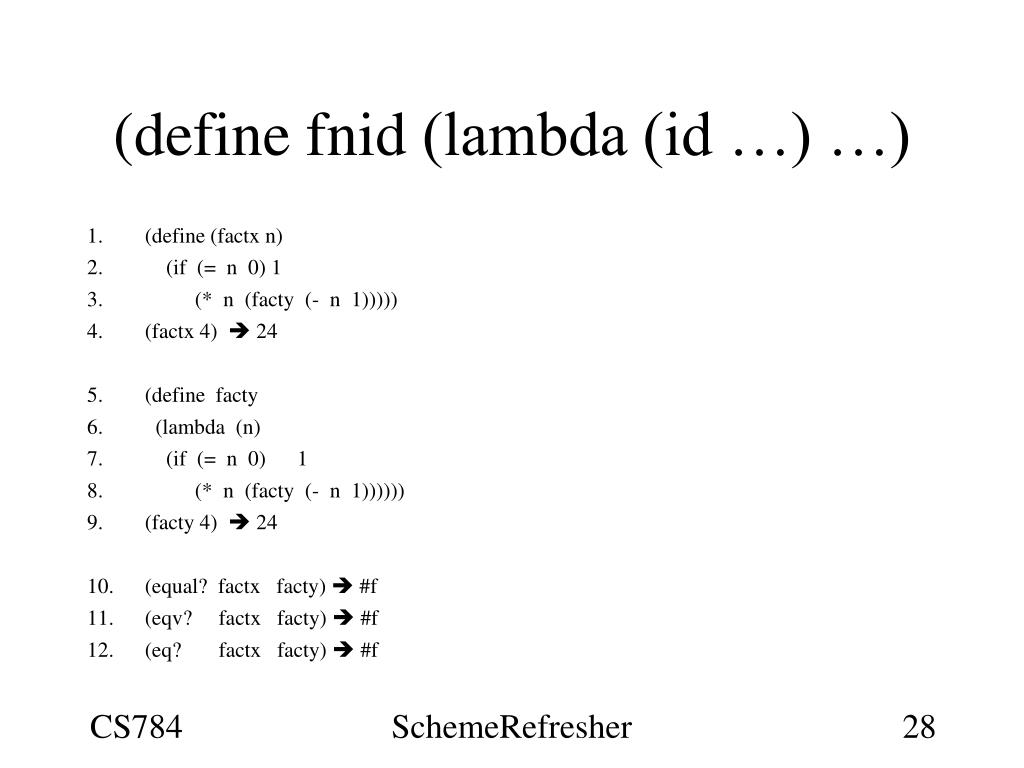

  28. SchemeRefresher (define fnid (lambda (id …) …) • (define (factx n) • (if (= n 0) 1 • (* n (facty (- n 1))))) • (factx 4)  24 • (define facty • (lambda (n) • (if (= n 0) 1 • (* n (facty (- n 1)))))) • (facty 4)  24 • (equal? factx facty)  #f • (eqv? factx facty)  #f • (eq? factx facty)  #f

  29. SchemeRefresher Procedures are first-class data • The definition of a procedure is stored as a data structure. • Can pass them as arguments to other procedures. • A procedure can create and return another procedure.

  30. SchemeRefresher define-syntax • (define-syntax idexpr) • (define-syntax foo • (syntax-rules () • ((_ a ...) • (printf "~a\n" (list a ...))))) • (foo 1 2 3 4)  (1 2 3 4) • (define-syntax (headargs) body ...+) • (define-syntax (bar syntax-object) • (syntax-case syntax-object () • ((_ a ...) • #'(printf "~a\n" (list a ...))))) • (bar 1 2 3 4)   (1 2 3 4)

  31. SchemeRefresher (define-syntax equal?? …) • (define-syntax equal?? • (syntax-rules () • ((_ test-exp correct-ans) • (let ((observed-ans test-exp)) • (if (not (equal? observed-ans correct-ans)) • (printf "~s returned ~s, should have returned ~s~%" • 'test-exp • observed-ans • correct-ans) • (printf "pmateti ~s OK~%" • 'test-exp))))))

  32. SchemeRefresher (applyprocv ... ) → any • Applies proc using the content of v... as the (by-position) arguments. • (apply +  1  2  '(3))   6 • (define compose  (lambda (f g)    (lambda args      (f (apply g args)))))((compose sqrt *) 12 75)    30

  33. SchemeRefresher (lambda  formals body)  • A lambda expression evaluates to an anonymous procedure. • (lambda (x) (+ 12 x))  #<procedure> • ((lambda (x) (+ 12 x)) 20)  32 • ((lambda (x y) (list y x)) 1 2)    '(2 1) • ((lambda (x [y 5]) (list y x)) 1 2)    '(2 1)

  34. SchemeRefresher Local Binding: let • (let ([idval-expr] ...) body ...+) • Evaluates the val-exprs left-to-right, creates a new location for each id, and places the values into the locations. It then evaluates the bodys, in which the ids are bound. • (let ([x 5]) • (let ([x 2] • [y x]) • (list y x)))  '(5 2)

  35. SchemeRefresher Local Binding: let • (letproc-id ([idinit-expr] ...) body ...+) • Defines a local procedure. Evaluates the init-exprs; these become arguments to the proc. The ids must be distinct. • (let fac ([n 10]) • (if (zero? n) • 1 • (* n (fac (sub1 n)))))  3628800

  36. SchemeRefresher Local Binding: let* • (let* ([idval-expr] ...) body ...+) • Similar to let, but evaluates the val-exprs one by one, creating a location for each id as soon as the value is available. The ids are bound in the remainingval-exprs as well as the bodys, and the ids need not be distinct; later bindings shadow earlier bindings. • (let* ([x 1] • [y (+ x 1)]) • (list y x))  (2 1)

  37. SchemeRefresher Local Binding: letrec • (letrec ([idval-expr] ...) body ...+) • Similar to let, but the locations for all ids are created first and filled with #<undefined>, and all ids are bound in all val-exprs as well as the bodys. The ids must be distinct. • (letrec ((a b) (b 34) (c (+ b 5))) • (list a b c))  (#<undefined> 34 39) • (letrec ([is-even? (lambda (n) • (or (zero? n) • (is-odd? (sub1 n))))] • [is-odd? (lambda (n) • (and (not (zero? n)) • (is-even? (sub1 n))))]) • (is-odd? 11))  #t

  38. SchemeRefresher Comparison: let, let*, letrec • (let/let*/letrec ((v1 e1 ) (v2 e2 ) … (vn en )) body ) • let • no vi is created until all ei are evaluated. • none of ei can refer to any vi • let* • e1 is evaluated; v1 created, bound to e1; • e2 is evaluated; v2 created, bound to e2; …; • ej can refer to earlier vi, i < j. • letrec • vi are created with #undefined as their value. • with the above in effect, e1, …, en are evaluated l-to-r • each vi is now bound to ei

  39. SchemeRefresher (iftestthen-expelse-exp) • If test produces any value other than #f, then then-exp is the result. Otherwise, else-exp is the result. • (if  (> 3 2)  (- 3 2)  (+ 3 2))    1 • (if  'we-have-no-bananas "yes" "no") "yes"

  40. SchemeRefresher (cond clause1 clause2  ...) • clause ::= ( test expression ) • (cond • [(positive? -5) (error "doesn't get here")] • [(zero? -5) (error "doesn't get here, either")] • [(positive? 5) 'here])  here • (cond • [(member 2 '(1 2 3)) • => (lambda (x) (map - x))])  (-2 -3) • (cond [(member 2 '(1 2 3))])  (2 3)

  41. SchemeRefresher (case key clause1 clause2 ...) • clause ::= ( keyList expression ) • (case (- 7 5) • [(1 2 3) 'small] • [(10 11 12) 'big])  'small • (define (classify c) • (case (char-general-category c) • [(lllultln lo) "letter"] • [(ndnl no) "number"] • [else "other"])) • (classify #\A)  "letter " • (classify #\1)  "number" • (classify #\!)  "other"
