  1. Research course on functional magnetic resonance imagingLecture 2 Juha Salmitaival

  2. Today’slecture • Preprocessing • Motioncorrection • Slicetimingcorrection • Spatialfiltering • Temporalfiltering • ICA denoising • Globalintensitycorrection • Registration • FSL demo • Thingswehavelearnedsofar

  3. Preprocessing – general things • Signalchanges in BOLD aretypicallysomewherebetween 0.1% and 5% • To enhance the signal and reduce the noise • To prepare the data for statisticalanalysis • Learn to knowyour data!

  4. Preprocessing – motioncorrection • Paddingaround the head to avoidmovement! • Headmovements -> differenttissue in samevoxel and artefactualsignalchanges

  5. Preprocessing – motioncorrection • Howmuchmotion is toomuch? • Largejumpsaremoreseriousthanslowdrifts • Exclusion: outlier?, 1mm? • Ifyouhave stimulus correlatedmotion, youprobablyneedothermethods (e.g., INRIAlign)

  6. Preprocessing – slicetimingcorrection • Slicesarescanned at a slightlydifferenttime (0,2,4,…1,3,5…)

  7. Preprocessing – spatialfiltering • How big areyourblobs? • -> increases SNR • -> Gaussiandistribution (thresholding) • Typically 3-10 mm

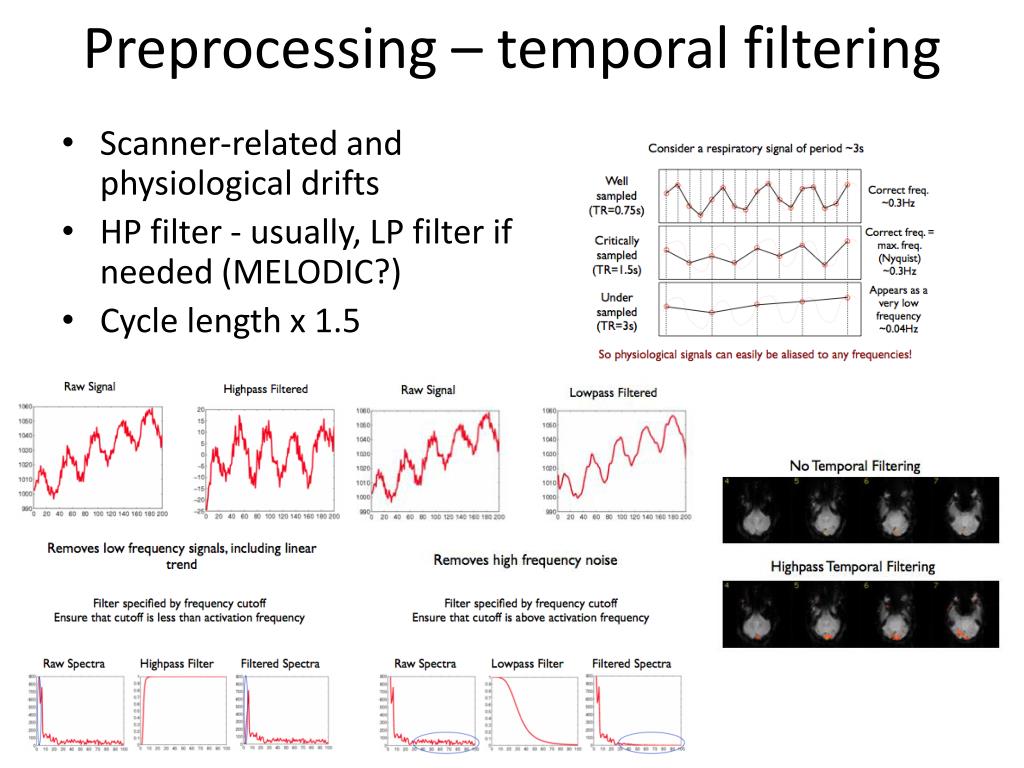

  8. Preprocessing – temporalfiltering • Scanner-related and physiologicaldrifts • HP filter - usually, LP filterifneeded (MELODIC?) • Cyclelength x 1.5

  9. Preprocessing – ICA denoising • Need to knowwhat the signalshould look! • Nongray-matter?, weirdtime-series/frequencyspectrum? • Individual/groupanalysis?

  10. Preprocessing – globalintensitynormalization

  11. Registration of images – wholebrain • Standard spaces: MNI space, Talairachspace/atlas (www.talairach.org) • fMRIspace -> performanalysishereifpossible • fMRI to structural -> anatomicallocalization • fMRI to standard -> comparison of results • (betweensubjects and datasets) • Step 1 estimatingtransformation (transformationmatrix) • Step 2 resampling (modifiedimage)

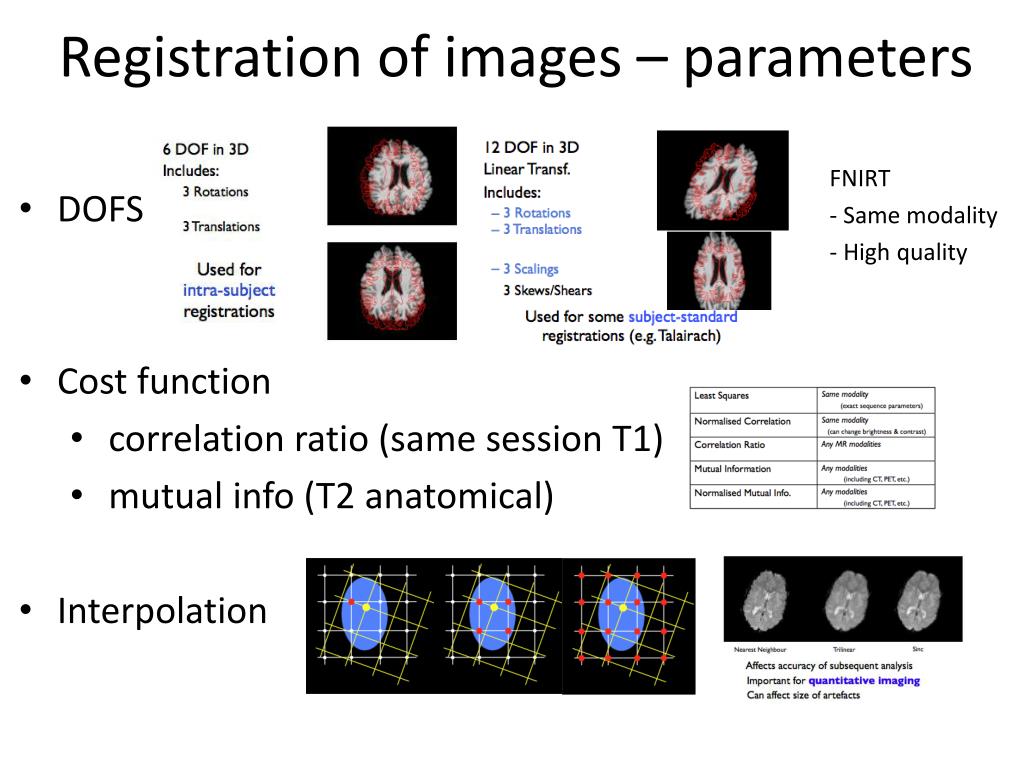

  12. Registration of images – parameters FNIRT - Samemodality - Highquality • DOFS • Costfunction • correlationratio (same session T1) • mutual info (T2 anatomical) • Interpolation

  13. Registration of images • Alwayscheck the resultsvisually! • Twostageregistration • Fieldmapcorrection

  14. Registration of gyri and sulci • Individualdifferences in corticalfoldingarehuge!

  15. Preprocessing & Registration demo • 1. Motioncorrection (fMRIimage) • 2. Brainextraction (manualcheck!) • 3. FEAT preprocessing • (4. fMRImodeling/statistics (nextweekstopic)) • 5. FLIRT registration (manualcheck!)

  16. Groups • 1 GLM and ICA: music vs. speech, audiovisualinteraction • Jussi, Onerva, Hanna, Olli-Pekka • 2 artifacts and signals (ICA/GLM) • Dinos, Jari T., Juha P., Eero K, Timo • 3 cross-sensorycoherence (ISC) • Alexander, Anne, Jonathan, Jaakko • Passwords / Computers

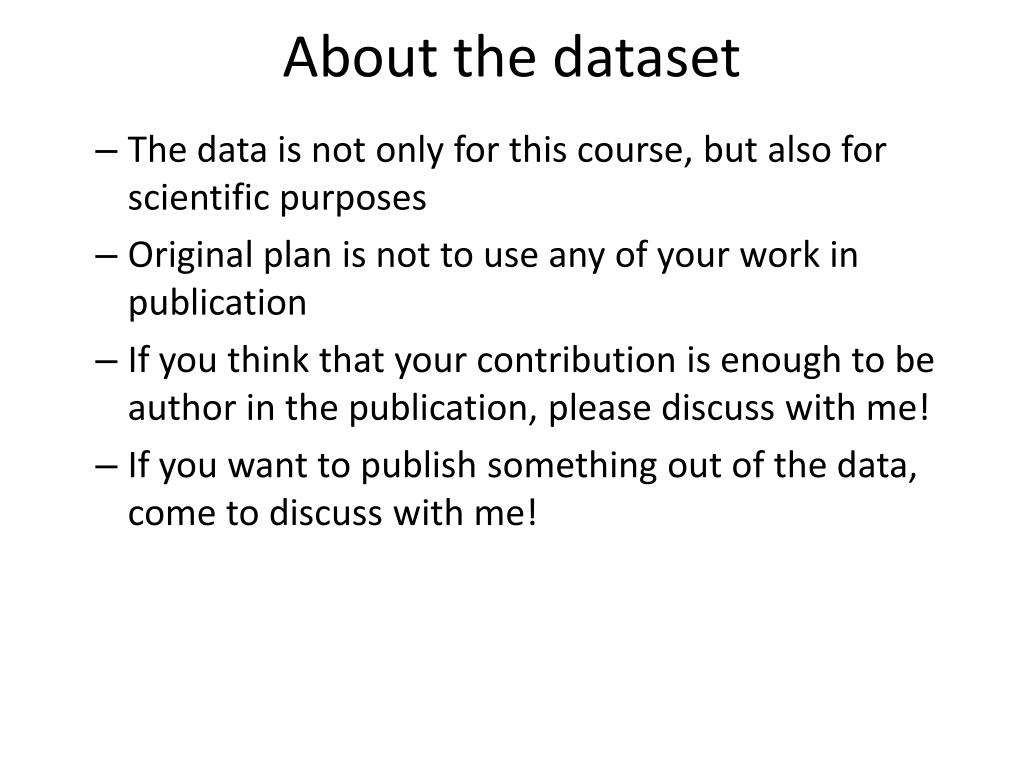

  17. About the dataset • The data is notonly for thiscourse, butalso for scientificpurposes • Originalplan is not to useany of yourwork in publication • Ifyouthinkthatyourcontribution is enough to beauthor in the publication, pleasediscusswith me! • Ifyouwant to publishsomething out of the data, come to discusswith me!

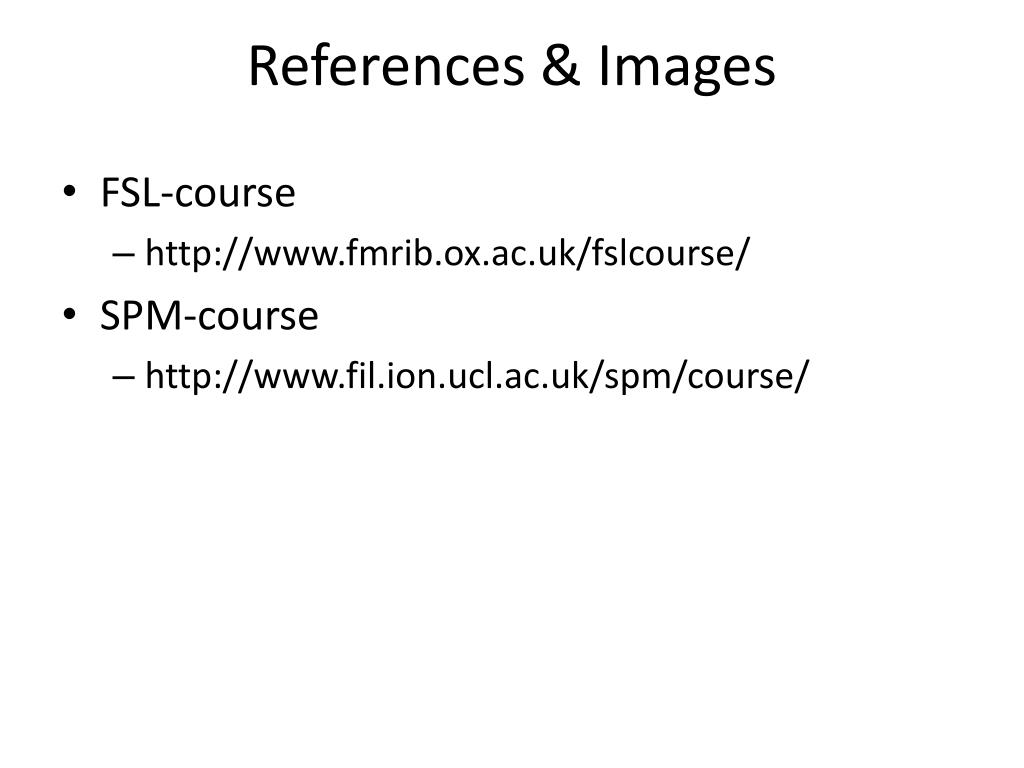

  18. References & Images • FSL-course • http://www.fmrib.ox.ac.uk/fslcourse/ • SPM-course • http://www.fil.ion.ucl.ac.uk/spm/course/
