  1. Resource Allocation forMobile Multiuser OFDM Systems Prof. Brian L. Evans Embedded Signal Processing Laboratory Dept. of Electrical and Computer Engineering The University of Texas at Austin February 17, 2006 bevans@ece.utexas.edu Featuring work by ESPL students Zukang Shen and Ian WongCollaboration with Prof. Jeffrey G. Andrews and Prof. Robert W. Heath

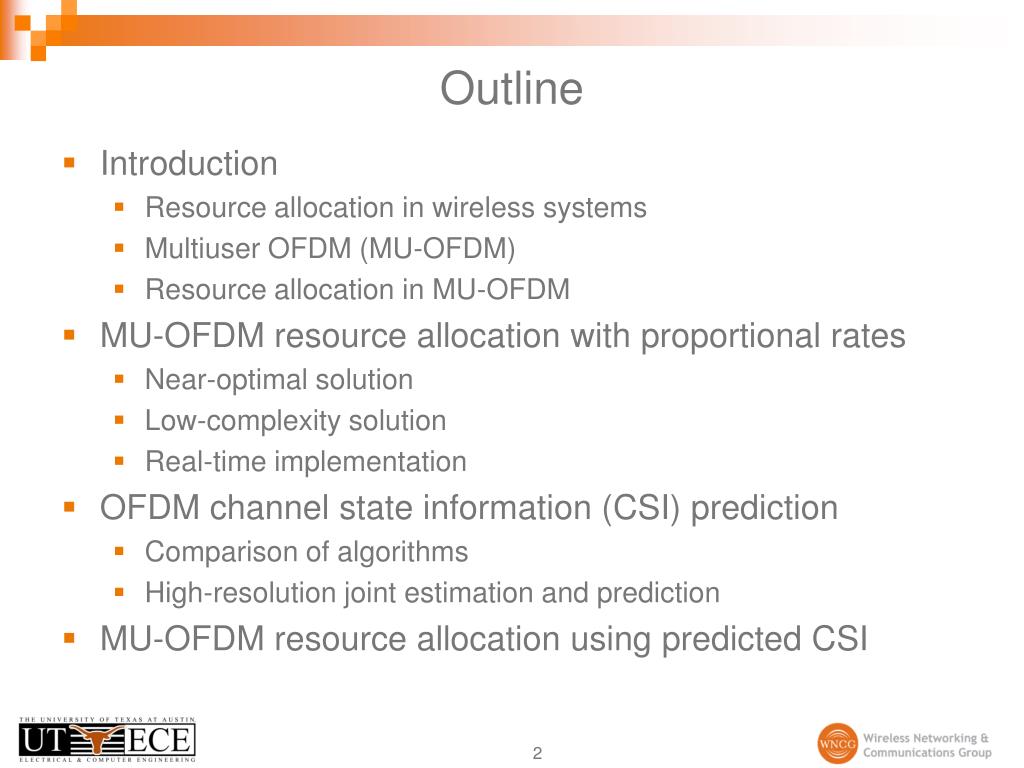

  2. Outline • Introduction • Resource allocation in wireless systems • Multiuser OFDM (MU-OFDM) • Resource allocation in MU-OFDM • MU-OFDM resource allocation with proportional rates • Near-optimal solution • Low-complexity solution • Real-time implementation • OFDM channel state information (CSI) prediction • Comparison of algorithms • High-resolution joint estimation and prediction • MU-OFDM resource allocation using predicted CSI 2

  3. frequency code/spatial user 4 user 5 user 6 user 1 user 2 user 3 time Resource Allocation in Wireless Systems • Wireless local area networks (WLAN) 54--108 Mbps • Metropolitan area networks (WiMAX) ~10--100 Mbps • Limited resources shared by multiple users • Transmit power • Frequency bandwidth • Transmission time • Code resource • Spatial antennas • Resource allocation impacts • Power consumption • User throughput • System latency 3

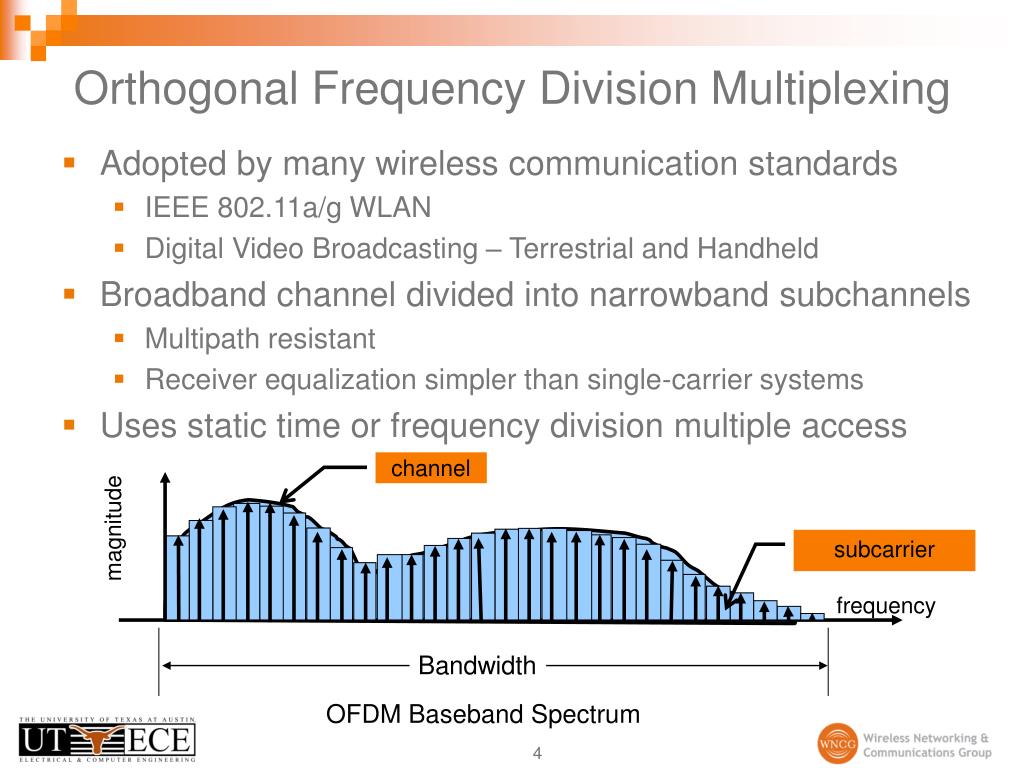

  4. channel magnitude subcarrier frequency Bandwidth Orthogonal Frequency Division Multiplexing • Adopted by many wireless communication standards • IEEE 802.11a/g WLAN • Digital Video Broadcasting – Terrestrial and Handheld • Broadband channel divided into narrowband subchannels • Multipath resistant • Receiver equalization simpler than single-carrier systems • Uses static time or frequency division multiple access OFDM Baseband Spectrum 4

  5. User 1 User 2 frequency Base Station User K (Subcarrier and power allocation) Multiuser OFDM • Orthogonal frequency division multiple access (OFDMA) • Adopted by IEEE 802.16a/d/e standards • 802.16e: 1536 data subchannels with up to 40 users / sector • Users may transmit on different subcarriers at same time • Inherits advantages of OFDM • Exploits diversity among users . . . 5

  6. Exploiting Multiuser Diversity • Downlink multiuser OFDM • Users share subchannels and basestation transmit power • Users only decode their own data 6

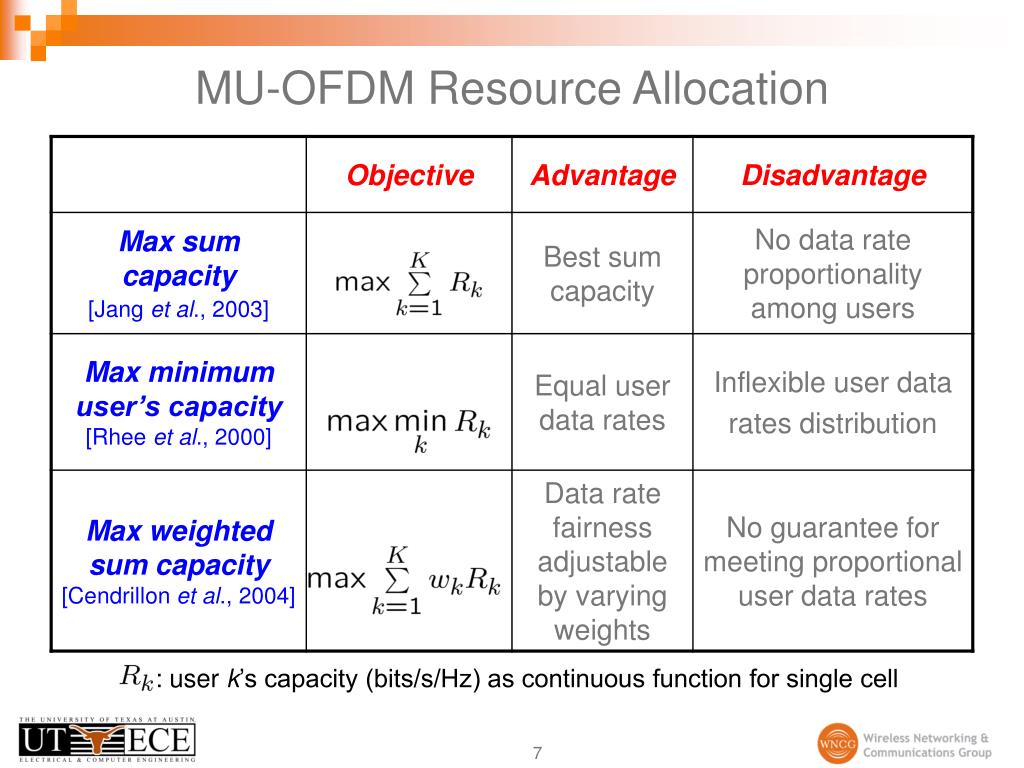

  7. : user k’s capacity (bits/s/Hz) as continuous function for single cell MU-OFDM Resource Allocation 7

  8. Outline • Introduction • Resource allocation in wireless systems • Multiuser-OFDM (MU-OFDM) • Resource allocation in MU-OFDM • MU-OFDM resource allocation with proportional rates • Near-optimal solution • Low-complexity solution • Real-time implementation • OFDM channel state information (CSI) prediction • Comparison of algorithms • High-resolution joint estimation and prediction • MU-OFDM resource allocation using predicted CSI 8

  9. MU-OFDM with Proportional Rates • Objective: Sum capacity • Constraints • Total transmit power • No subchannel shared by multiple users • Proportional rate constraints • Advantages • Allows different service privileges and different pricing 9

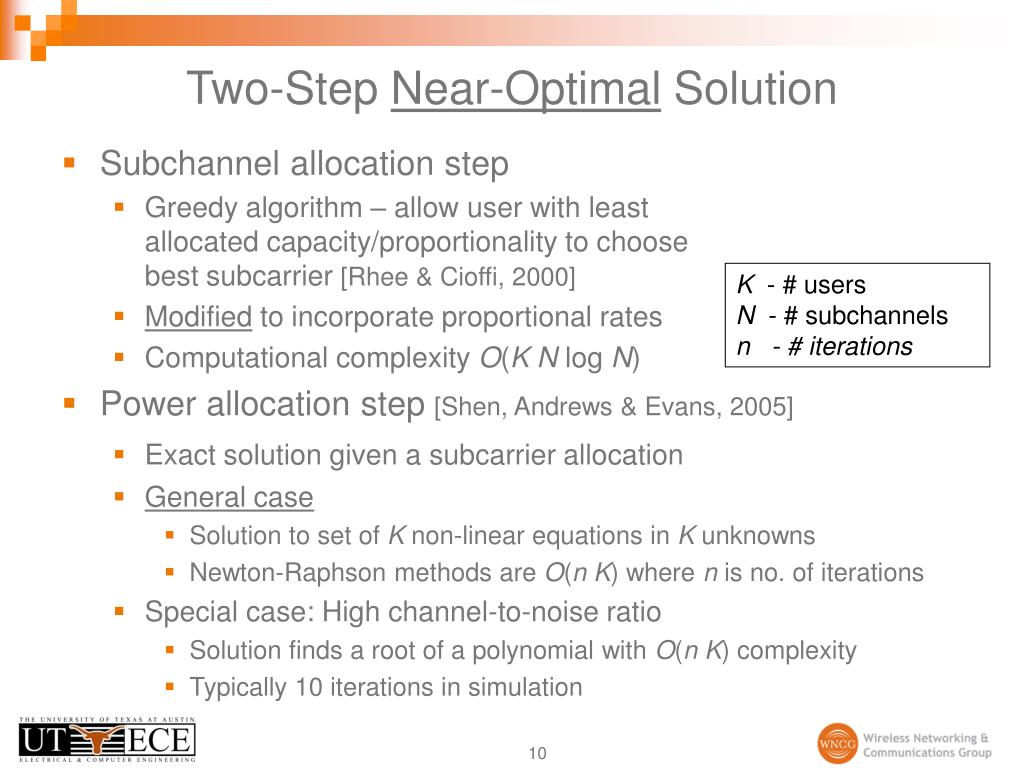

  10. Two-Step Near-Optimal Solution • Subchannel allocation step • Greedy algorithm – allow user with leastallocated capacity/proportionality to choosebest subcarrier [Rhee & Cioffi, 2000] • Modified to incorporate proportional rates • Computational complexity O(K N log N) • Power allocation step [Shen, Andrews & Evans, 2005] • Exact solution given a subcarrier allocation • General case • Solution to set of K non-linear equations in K unknowns • Newton-Raphson methods are O(n K) where n is no. of iterations • Special case: High channel-to-noise ratio • Solution finds a root of a polynomial with O(n K) complexity • Typically 10 iterations in simulation K - # users N - # subchannels n - # iterations 10

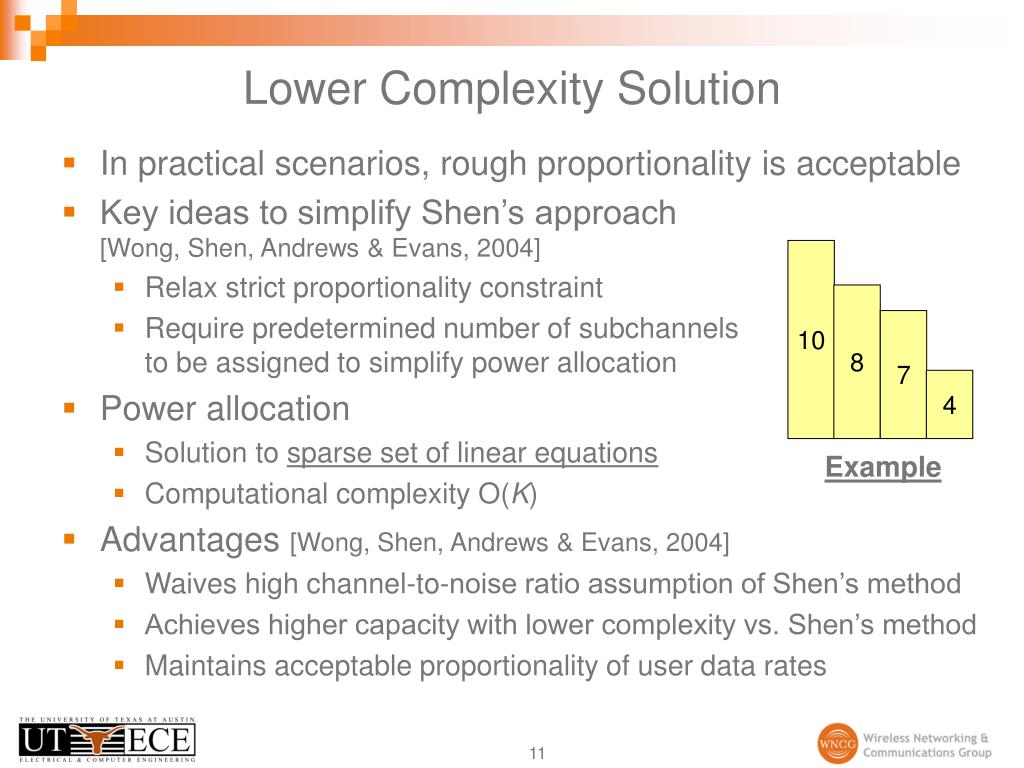

  11. 10 8 7 4 Lower Complexity Solution • In practical scenarios, rough proportionality is acceptable • Key ideas to simplify Shen’s approach[Wong, Shen, Andrews & Evans, 2004] • Relax strict proportionality constraint • Require predetermined number of subchannelsto be assigned to simplify power allocation • Power allocation • Solution to sparse set of linear equations • Computational complexity O(K) • Advantages [Wong, Shen, Andrews & Evans, 2004] • Waives high channel-to-noise ratio assumption of Shen’s method • Achieves higher capacity with lower complexity vs. Shen’s method • Maintains acceptable proportionality of user data rates Example 11

  12. Simulation Parameters 12

  13. Total Capacity Comparison N = 64 subchannels SNR = 38 dB SNR Gap = 3.3 dB Based on 10000 channel realizations Proportions assigned randomly from {4,2,1} with probabilities[0.2, 0.3, 0.5] Wong’s Method Shen’s Method 13

  14. Proportionality Comparison Based on the 16-user case, 10000 channel realizations per user Normalized rate proportions for three classes of users using proportions {4, 2, 1} Proportions Wong’s Method Shen’s Method 14

  15. Real-time Software Prototype LabVIEW 7.0 LabVIEW handles the interface between Matlab and the DSP and automates allocation tests. TMS320C6701 Digital Signal Processor (DSP) Matlab 6.5 Matlab generates a frequency-selective Rayleigh channel for each user. The DSP receives Channel State Information and performs resource allocation algorithm. 15

  16. Computational Complexity 22% average improvement Code developed in floating point C Run on 133 MHzTI TMS320C6701 DSP EVM board 16

  17. Memory Usage * All values are in bytes 17

  18. Performance Comparison Summary 18

  19. Outline • Introduction • Resource allocation in wireless systems • Multiuser-OFDM (MU-OFDM) • Resource Allocation in MU-OFDM • MU-OFDM resource allocation with proportional rates • Near-optimal solution • Low-complexity solution • Real-time implementation • OFDM channel state information (CSI) prediction • Comparison of algorithms • High-resolution joint estimation and prediction • MU-OFDM resource allocation using predicted CSI 19

  20. Back haul t= Internet t=0 Delayed CSI mobile t=0: Mobile estimates channel and feeds this back to base station t=: Base station receives estimates, adapts transmission based on these Higher BER Lower bps/Hz Channel Mismatch 20

  21. h(n-p) h(n-) h(n+) ? h(n) … Prediction of Wireless Channels • Use current and previous channel estimates to predict future channel response • Overcome feedback delay • Adaptation based on predicted channel response • Lessen amount of feedback • Predicted channel responsemay reduce how often directchannel feedback is provided 21

  22. Pilot Subcarriers IFFT … … Data Subcarriers Time-domain channel taps Related Work • Prediction on each subcarrier [Forenza & Heath, 2002] • Each subcarrier treated as a narrowband autoregressive process[Duel-Hallen et al., 2000] • Prediction using pilot subcarriers [Sternad & Aronsson, 2003] • Used unbiased power prediction [Ekman, 2002] • Prediction on time-domain channel taps[Schafhuber & Matz, 2005] • Used adaptive prediction filters 22

  23. OFDM Channel Prediction Comparison • Compared three approaches in unified framework[Wong, Forenza, Heath & Evans, 2004] • Analytical and numerical MSE comparison • All-subcarrier and pilot-subcarrier methods have similar MSE performance • Time-domain prediction performs much better than the two other frequency domain prediction methods • Complexity comparison • All-subcarrier > Pilot-subcarrier ¸ Time-domain 23

  24. High-resolution OFDM Channel Prediction • Combined channel estimation and prediction[Wong & Evans, 2005] • Outperforms previous methods with similar order of computational complexity • Allows decoupling of computations between receiver and transmitter • High-resolution channel estimates available as aby-product of prediction algorithm 24

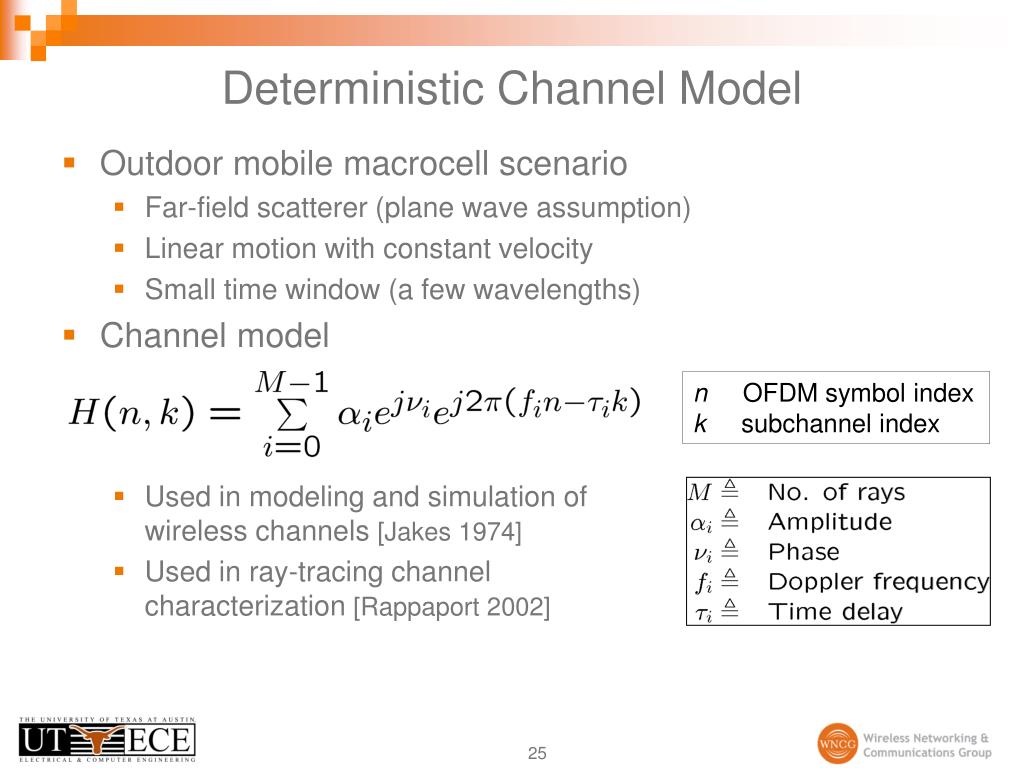

  25. Deterministic Channel Model • Outdoor mobile macrocell scenario • Far-field scatterer (plane wave assumption) • Linear motion with constant velocity • Small time window (a few wavelengths) • Channel model • Used in modeling and simulation ofwireless channels [Jakes 1974] • Used in ray-tracing channelcharacterization [Rappaport 2002] n OFDM symbol indexk subchannel index 25

  26. Prediction via 2-D Frequency Estimation • If we accurately estimate parameters in channel model, we could effectively extrapolate the fading process • Estimation and extrapolation period should be within time window where model parameters are stationary • Estimation of two-dimensional complex sinusoids in noise • Well studied in radar, sonar, and other array signal processing applications [Kay, 1988] • Many algorithms available, but are computationally intensive 26

  27. Two-step 1-D Frequency Estimation • Typically, many propagation paths share the same resolvable time delay • We can thus break down the problem into two steps • Time-delay estimation • Doppler-frequency estimation 27

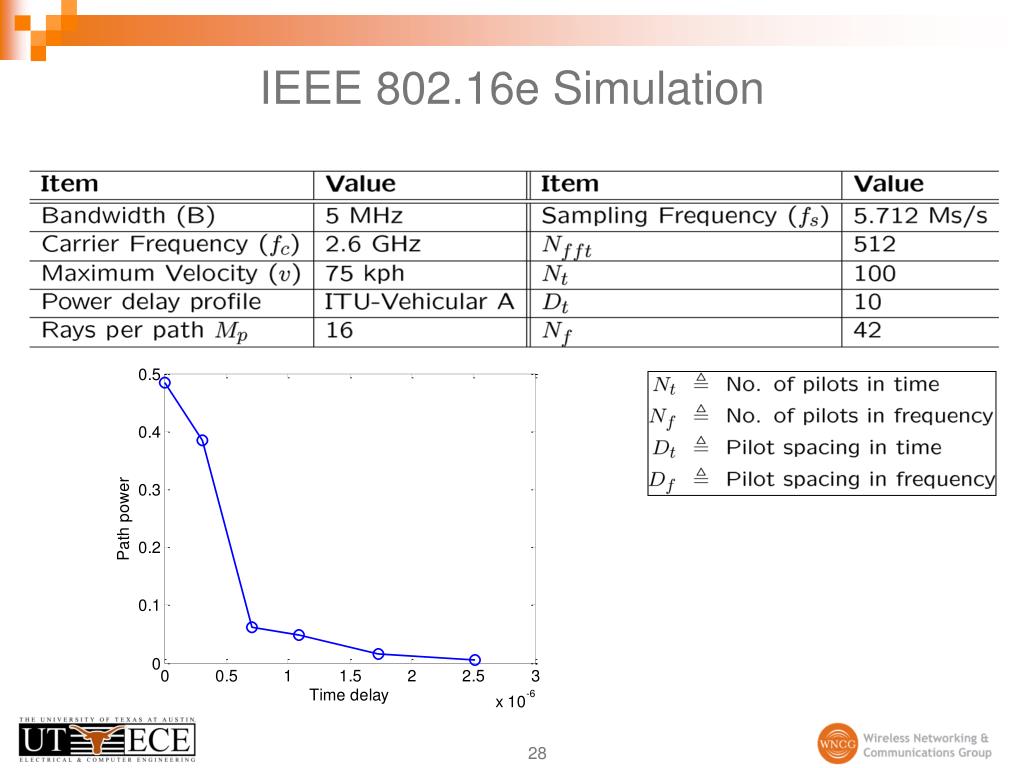

  28. IEEE 802.16e Simulation 28

  29. Mean-square Error vs. SNR Prediction 2  ahead ACRLB – Asymptotic Cramer-Rao Lower Bound CRLB – Cramer-Rao Lower Bound 29

  30. Mean-square Error vs. Prediction Length SNR = 7.5 dB ACRLB – Asymptotic Cramer-Rao Lower Bound CRLB – Cramer-Rao Lower Bound 30

  31. Performance Comparison Summary L - No. of paths M - No. of rays per path 31

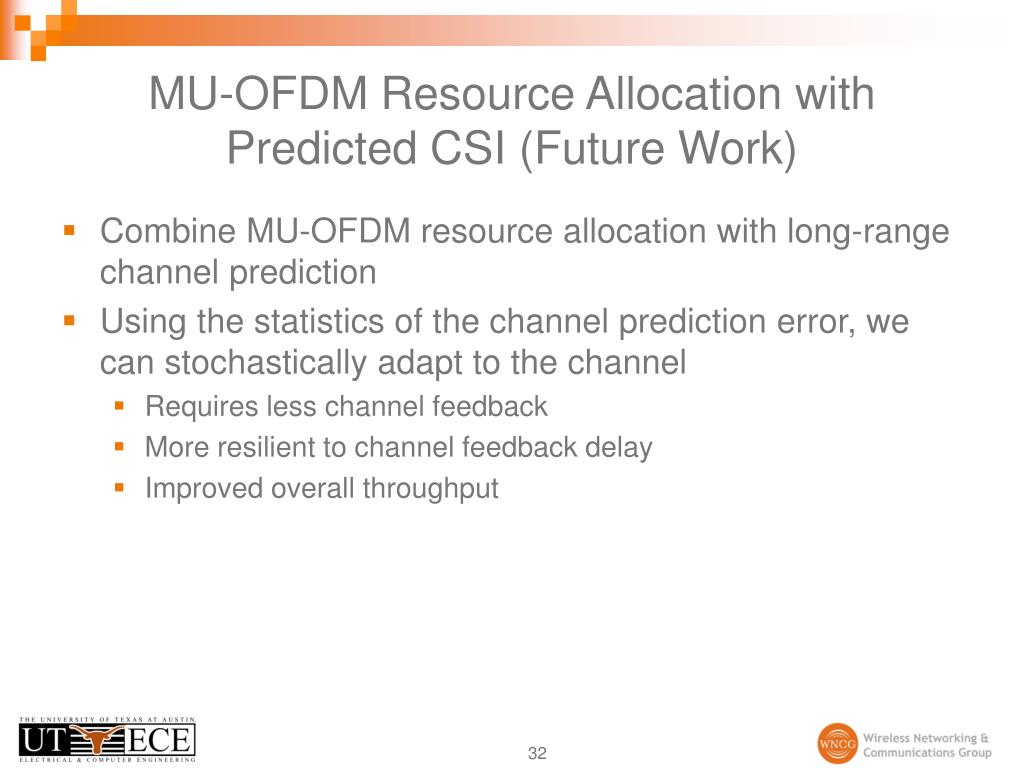

  32. MU-OFDM Resource Allocation with Predicted CSI (Future Work) • Combine MU-OFDM resource allocation with long-range channel prediction • Using the statistics of the channel prediction error, we can stochastically adapt to the channel • Requires less channel feedback • More resilient to channel feedback delay • Improved overall throughput 32

  33. Conclusion • Resource allocation for MU-OFDM with proportional rates • Allows tradeoff between sum capacity and user rate “fairness” • Enables different service privileges and pricing • Derived efficient algorithms to achieve similar performance with lower complexity • Prototyped system in a DSP, showing its promise for real-time implementation • Channel prediction for OFDM systems • Overcomes the detrimental effect of feedback delay • Proposed high-performance OFDM channel prediction algorithms with similar complexity • Resource allocation using predicted channels is important for practical realization of resource allocation in MU-OFDM 33

  34. Embedded Signal Processing Laboratory • Director: Prof. Brian L. Evans • http://www.ece.utexas.edu/~bevans/ • WiMAX (OFDM) related research • Algorithms for resource allocation in MU-OFDM • Algorithms for OFDM channel estimation and prediction • Key collaborators: Prof. Jeff Andrews and Prof. Robert Heath • Key graduate students: • Zukang Shen, PhD • Ian C. Wong, PhD Candidate • Kyungtae Han, PhD Candidate • Daifeng Wang, MS Student • Hamood Rehman, MS Student 34

  35. Backup 35

  36. Subchannel Allocation • Modified method of [Rhee et al., 2000], but we keep the assumption of equal power distribution on subchannels • Initialization (Enforce zero initial conditions)Set , for . Let • For to (Allocate best subchannel for each user) • Find satisfying for all • Let , and update • While (Iteratively give lowest rate user first choice) • Find satisfying for all • For the found , find satisfying for all • For the found and , Let , and update Back 36

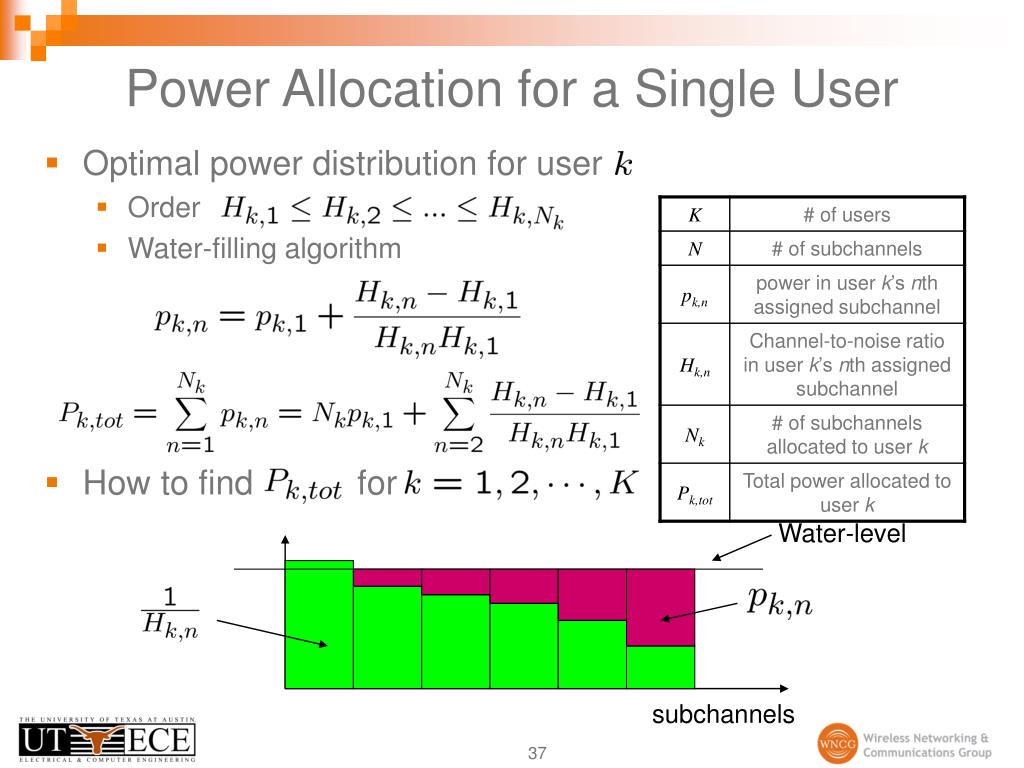

  37. Water-level subchannels Power Allocation for a Single User • Optimal power distribution for user • Order • Water-filling algorithm • How to find for 37

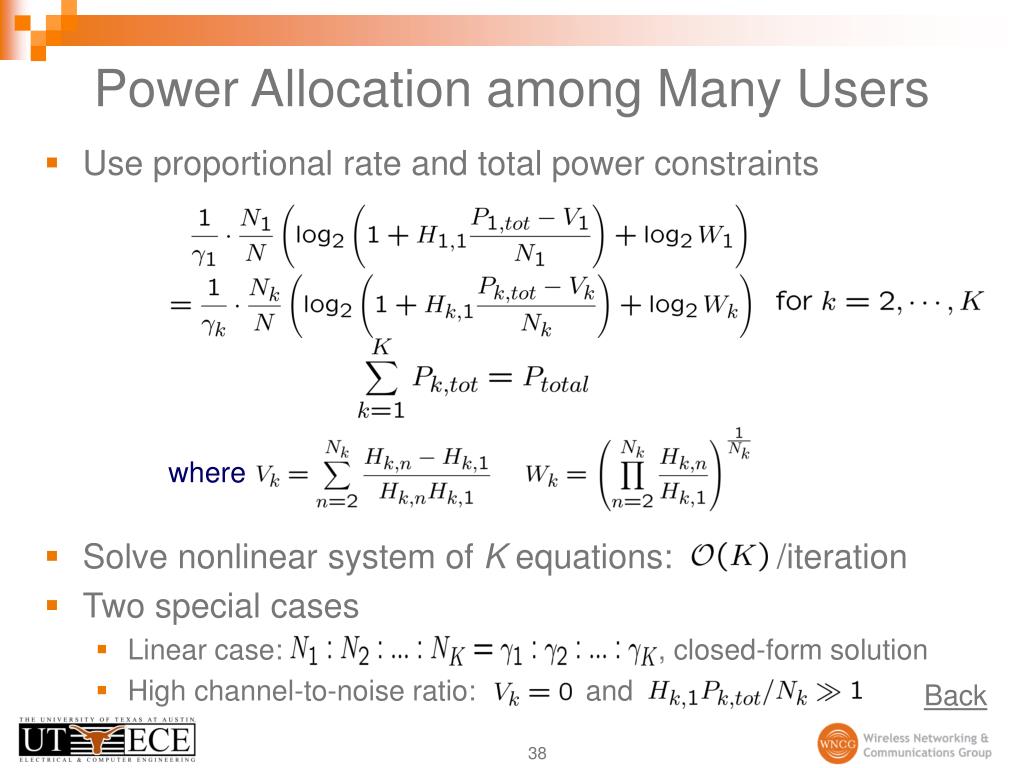

  38. Power Allocation among Many Users • Use proportional rate and total power constraints • Solve nonlinear system of K equations: /iteration • Two special cases • Linear case: , closed-form solution • High channel-to-noise ratio: and where Back 38

  39. Comparison with Optimal Solution Back 39

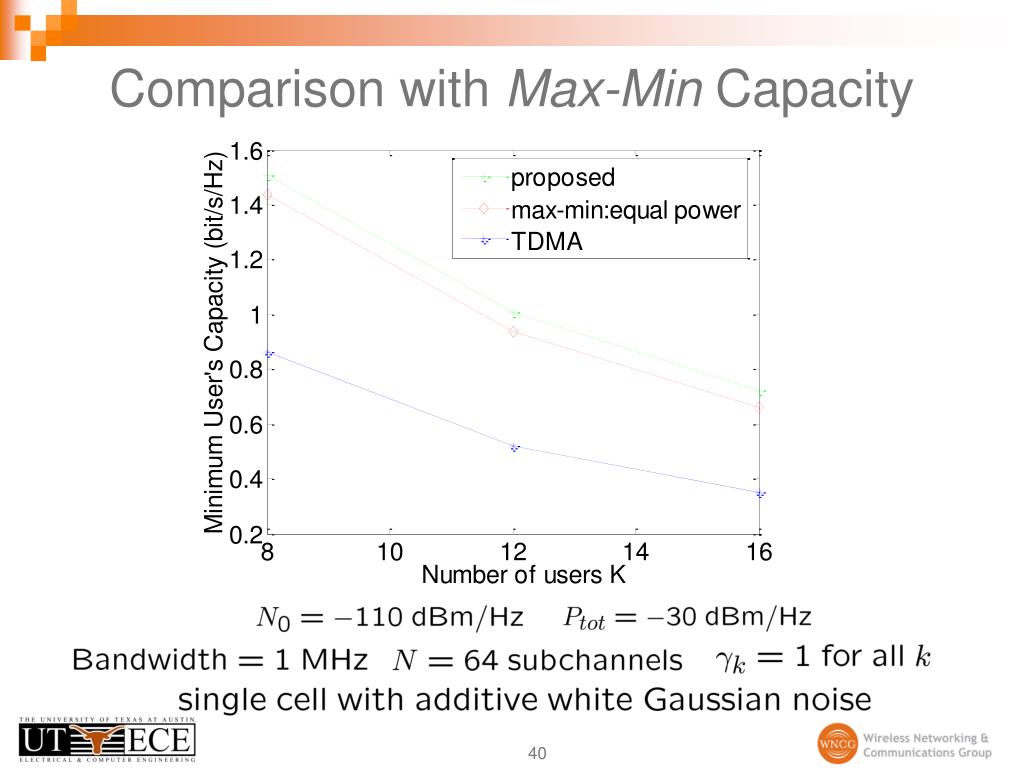

  40. Comparison with Max-Min Capacity 40

  41. Comparison with Max Sum Capacity 41

  42. Summary of Shen’s Contribution • Adaptive resource allocation in multiuser OFDM systems • Maximize sum capacity • Enforce proportional user data rates • Low complexity near-optimal resource allocation algorithm • Subchannel allocation assuming equal power on all subchannels • Optimal power distribution for a single user • Optimal power distribution among many users with proportionality • Advantages • Evaluate tradeoff between sum capacity and user data rate fairness • Fill the gap of max sum capacity and max-min capacity • Achieve flexible data rate distribution among users • Allow different service privileges and pricing 42

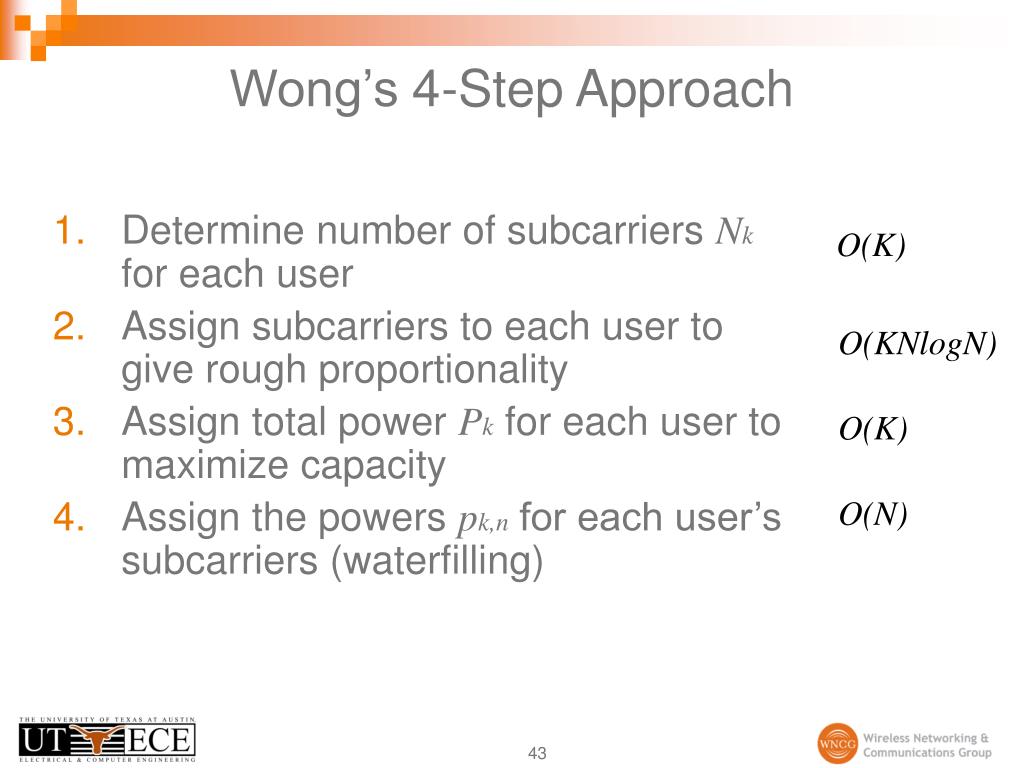

  43. Wong’s 4-Step Approach • Determine number of subcarriers Nkfor each user • Assign subcarriers to each user to give rough proportionality • Assign total power Pk for each user to maximize capacity • Assign the powers pk,n for each user’s subcarriers (waterfilling) O(K) O(KNlogN) O(K) O(N) 43

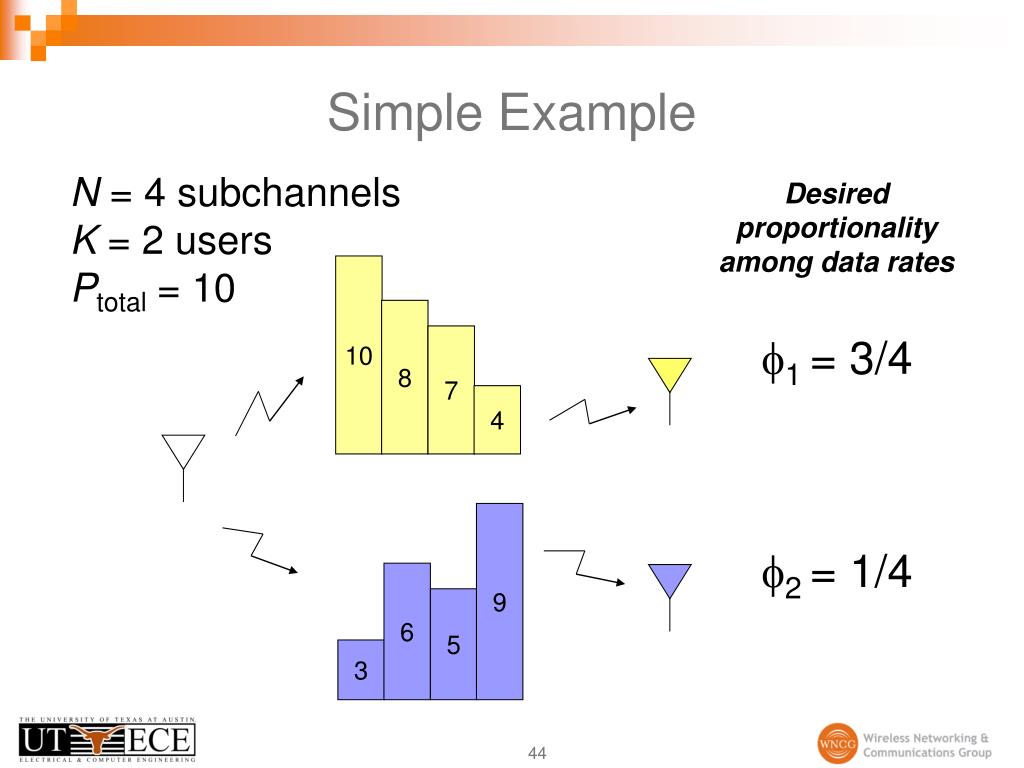

  44. 10 8 7 4 Simple Example N = 4 subchannels K = 2 users Ptotal = 10 Desired proportionality among data rates 1 = 3/4 9 2 = 1/4 6 5 3 44

  45. 10 8 7 4 1 2 3 4 Step 1: # of Subcarriers/User 1 = 3/4 9 2 = 1/4 6 5 3 N = 4 subchannels K = 2 users Ptotal = 10 45

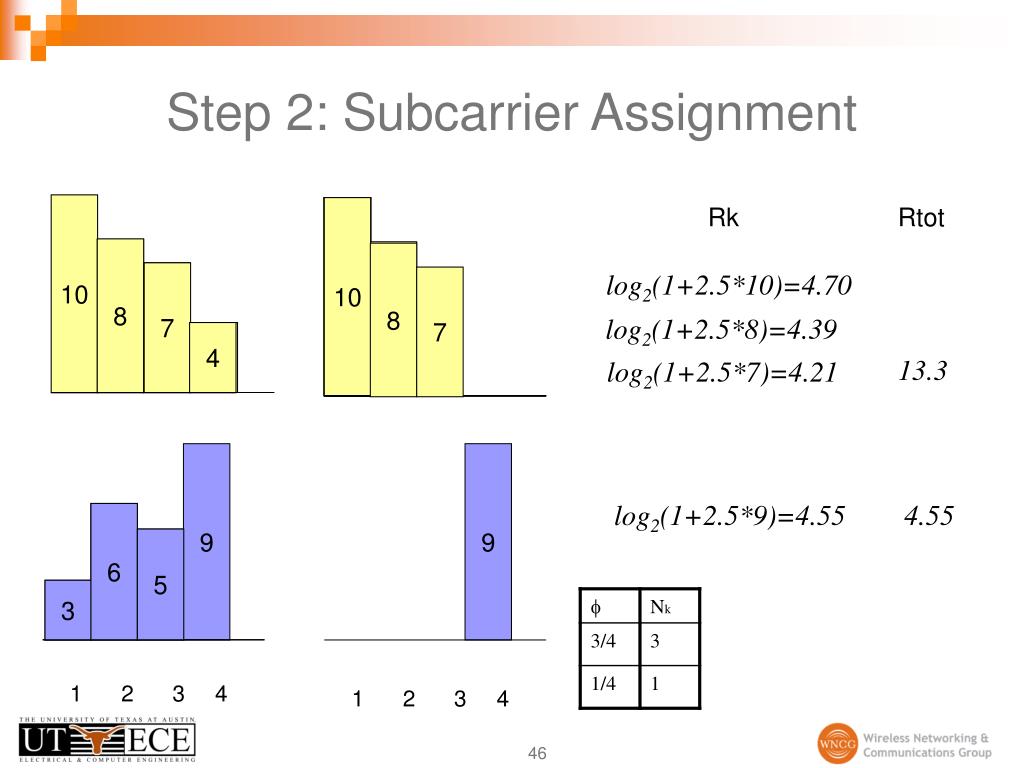

  46. 9 10 8 7 10 10 10 4 8 7 10 8 4 7 9 4 6 10 4 5 6 8 7 5 3 3 1 1 2 2 3 3 4 4 Step 2: Subcarrier Assignment Rk Rtot log2(1+2.5*10)=4.70 log2(1+2.5*8)=4.39 13.3 log2(1+2.5*7)=4.21 log2(1+2.5*9)=4.55 4.55 46

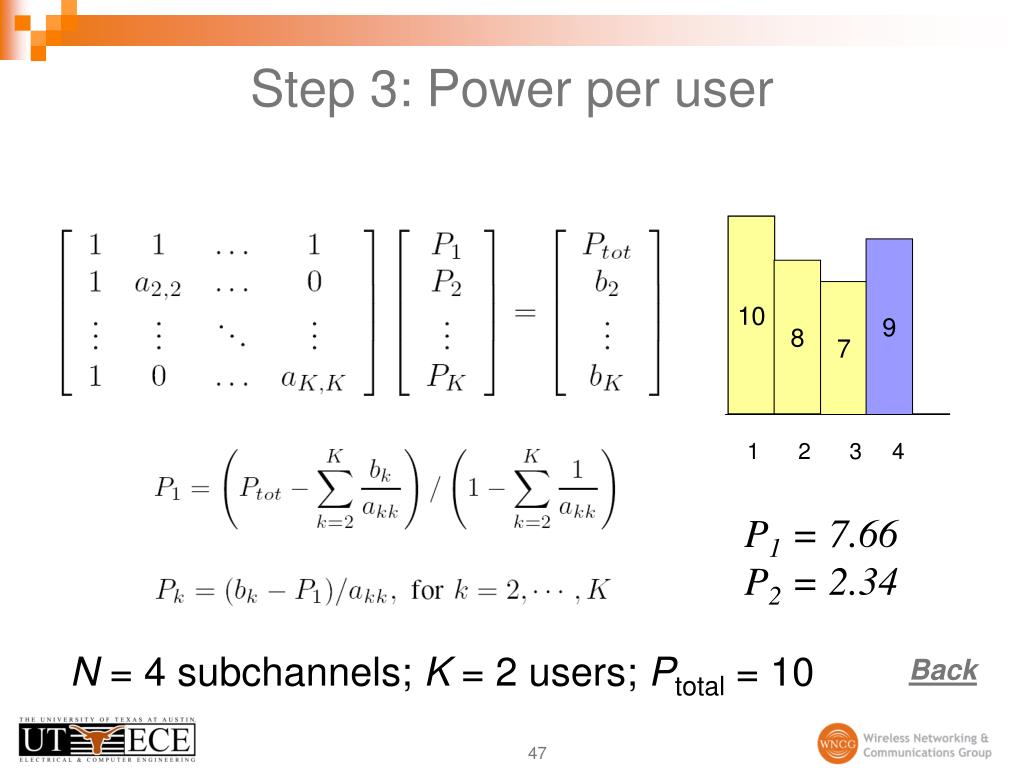

  47. 10 10 8 9 7 1 2 3 4 Step 3: Power per user P1 = 7.66 P2 = 2.34 N = 4 subchannels; K = 2 users; Ptotal = 10 Back 47

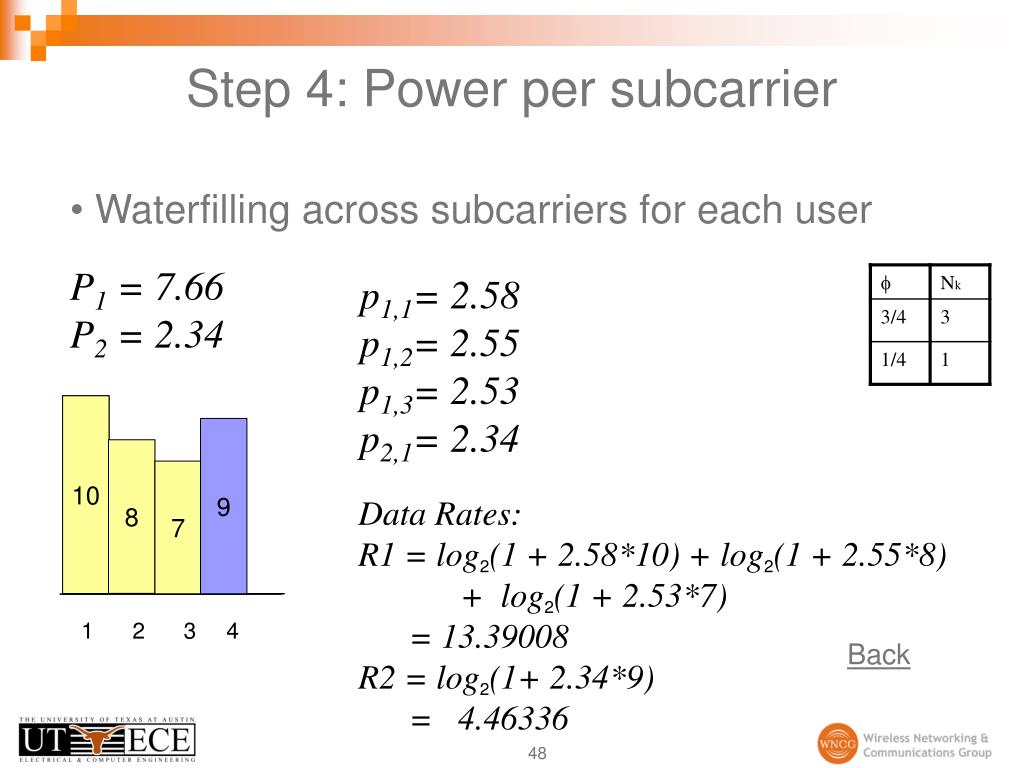

  48. 10 10 8 9 7 1 2 3 4 Step 4: Power per subcarrier • Waterfilling across subcarriers for each user P1 = 7.66 P2 = 2.34 p1,1= 2.58 p1,2= 2.55 p1,3= 2.53 p2,1= 2.34 Data Rates: R1 = log2(1 + 2.58*10) + log2(1 + 2.55*8) + log2(1 + 2.53*7) = 13.39008 R2 = log2(1+ 2.34*9) = 4.46336 Back 48

  49. … f Df t Dt Pilot-based Transmission • Comb pilot pattern • Least-squares channel estimates 49

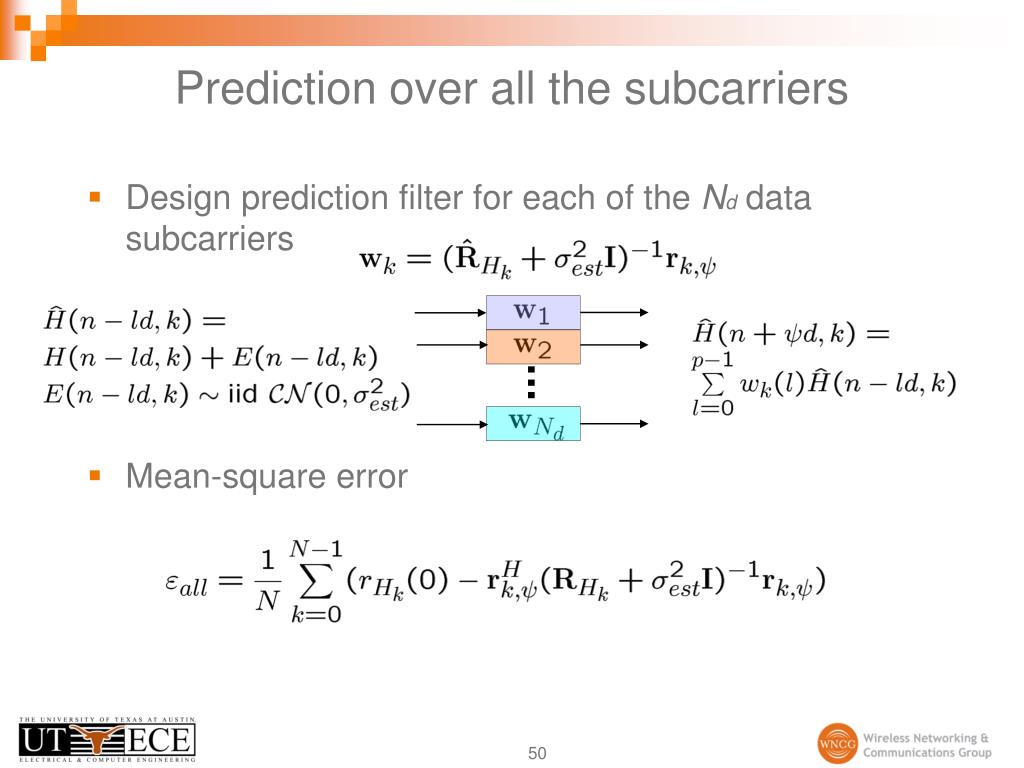

  50. Prediction over all the subcarriers • Design prediction filter for each of the Nd data subcarriers • Mean-square error 50
