  1. Getting Started on Topsail Charles Davis ITS Research Computing February 10, 2010

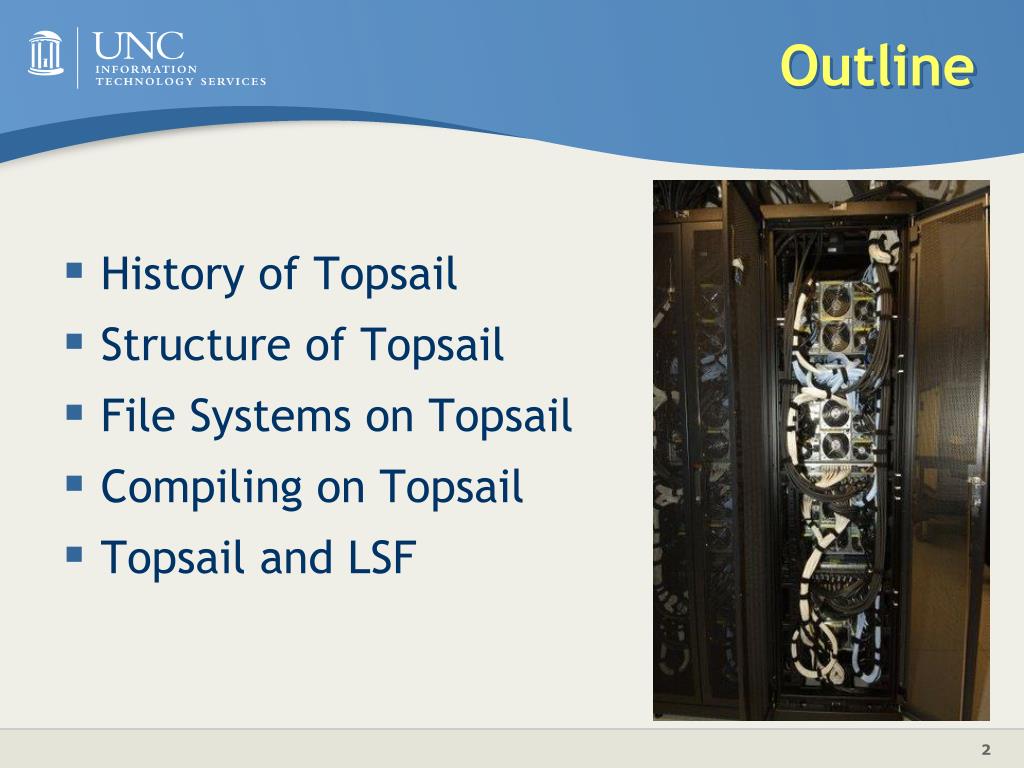

  2. Outline • History of Topsail • Structure of Topsail • File Systems on Topsail • Compiling on Topsail • Topsail and LSF

  3. Initial Topsail Cluster • Initially: 1040 CPU Dell Linux Cluster • 520 dual socket, single core nodes • Infiniband interconnect • Intended for capability research • Housed in ITS Franklin machine room • Fast and efficient for large computational jobs

  4. Topsail Upgrade 1 • Topsail upgraded to 4,160 CPU • replaced blades with dual socket, quad core • Intel Xeon 5345 (Clovertown) Processors • Quad-Core with 8 CPU/node • Increased number of processors, but decreased individual processor speed (was 3.6 GHz, now 2.33) • Decreased energy usage and necessary resources for cooling system • Summary: slower clock speed, better memory bandwidth, less heat • Benchmarks tend to run at the same speed per core • Topsail shows a net ~4X improvement • Of course, this number is VERY application dependent

  5. Topsail – Upgraded blades • 52 Chassis: Basis of node names • Each holds 10 blades -> 520 blades total • Nodes = cmp-chassis#-blade# • Old Compute Blades: Dell PowerEdge 1855 • 2 Single core Intel Xeon EMT64T 3.6 GHZ procs • 800 Mhz FSB • 2MB L2 Cache per socket • Intel NetBurst MicroArchitecture • New Compute Blades: Dell PowerEdge 1955 • 2 Quad core Intel 2.33 GHz procs • 1333 Mhz FSB • 4MB L2 Cache per socket • Intel Core 2 MicroArchitecture

  6. Topsail Upgrade 2 • Most recent Topsail upgrade (Feb/Mar ‘09) • Refreshed much of the infrastructure • Improved IBRIX filesystem • Replaced and improved Infiniband cabling • Moved cluster to ITS-Manning building • Better cooling and UPS

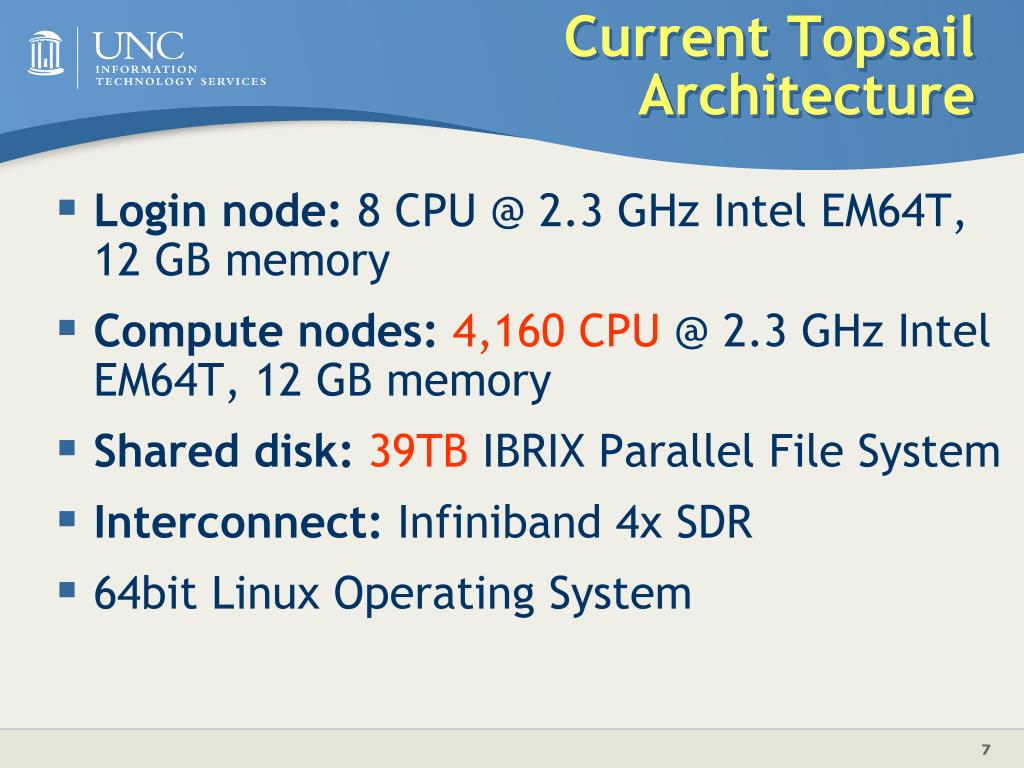

  7. Current Topsail Architecture • Login node: 8 CPU @ 2.3 GHz Intel EM64T, 12 GB memory • Compute nodes:4,160 CPU @ 2.3 GHz Intel EM64T, 12 GB memory • Shared disk:39TB IBRIX Parallel File System • Interconnect: Infiniband 4x SDR • 64bit Linux Operating System

  8. Multi-Core Computing • Processor Structure on Topsail • 500+ nodes • 2 sockets/node • 1 processor/socket • 4 cores/processor (Quad-core) • 8 cores/node • http://www.tomshardware.com/2006/12/06/quad-core-xeon-clovertown-rolls-into-dp-servers/page3.html

  9. Multi-Core Computing • The trend in High Performance Computing is towards multi-core or many core computing. • More cores at slower clock speeds for less heat • Now, dual and quad core processors are becoming common. • Soon 64+ core processors will be common • And these may be heterogeneous!

  10. The Heat Problem Taken From: Jack Dongarra, UT

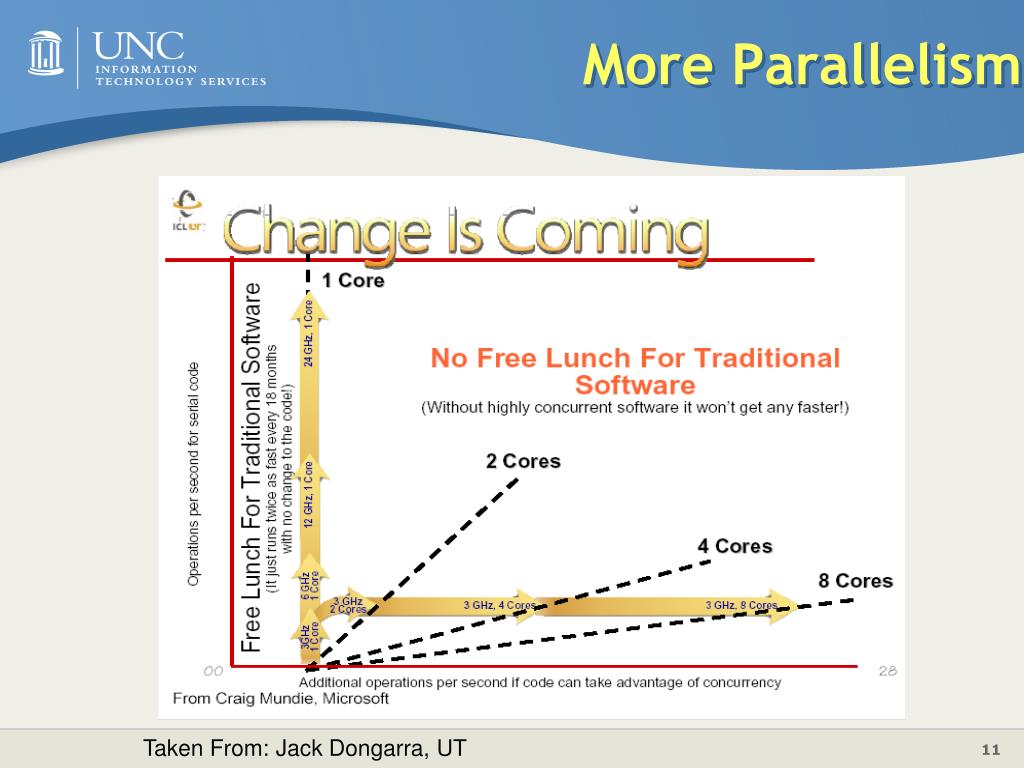

  11. More Parallelism Taken From: Jack Dongarra, UT

  12. Infiniband Connections • Connection comes in single (SDR), double (DDR), and quad data rates (QDR). • Topsail is SDR. • Single data rate is 2.5 Gbit/s in each direction per link. • Links can be aggregated - 1x, 4x, 12x. • Topsail is 4x. • Links use 8B/10B encoding —10 bits carry 8 bits of data — useful data transmission rate is four-fifths the raw rate. Thus single, double, and quad data rates carry 2, 4, or 8 Gbit/s respectively. • Data rate for Topsail is 8 GB/s (4x SDR).

  13. Topsail Network Topology

  14. Infiniband Benchmarks • Point-to-point (PTP) intranode communication on Topsail for various MPI send types • Peak bandwidth: • 1288 MB/s • Minimum Latency (1-way): • 3.6 ms

  15. Infiniband Benchmarks • Scaled aggregate bandwidth for MPI Broadcast on Topsail • Note good scaling throughout the tested range (from 24-1536 cores)

  16. Login to Topsail • Use ssh to connect: • ssh topsail.unc.edu • SSH Secure Shell with Windows • For using interactive programs with X-Windows Display: • ssh –X topsail.unc.edu • ssh –Y topsail.unc.edu • Off-campus users (i.e. domains outside of unc.edu) must use VPN connection

  17. Topsail File Systems • 39TB IBRIX Parallel File System • Split into Home and Scratch Space • Home: /ifs1/home/my_onyen • Scratch: /ifs1/scr/my_onyen • Mass Storage • Only Home is backed up • /ifs1/home/my_onyen/ms

  18. File System Limits • 500GB Total Limit per User • Home – 15GB limit for Backups • Scratch: • No limit except 500GB total • Not backed up • Periodically cleaned • Few installed packages/programs

  19. Compiling on Topsail • Modules • Serial Programming • Intel Compiler Suite for Fortran77, Fortran90, C and C++ - Recommended by Research Computing • GNU • Parallel Programming • MPI • OpenMP • Must use Intel Compiler Suite • Compiler tag: -openmp • Must set OMP_NUM_THREADS in submission script

  20. Compiling Modules • Module commands • module – list commands • module avail – list modules • module add – add module temporarily • module list – list modules being used • module clear – remove module temporarily • Add module using startup files

  21. Available Compilers • Intel – ifort, icc, icpc • GNU – gcc, g++, gfortran • Libraries - BLAS/LAPACK • MPI: • mpicc/mpiCC • mpif77/mpif90 • mpixx is just a wrapper around the Intel or GNU compiler • Adds location of MPI libraries and include files • Provided as a convenience

  22. Test MPI Compile • Copy cpi.c to scratch directory: • cp /ifs1/scr/cdavis/Topsail/cpi.c /ifs1/scr/my_onyen/. • Add Intel module: • module load hpc/mvapich-intel-11 • Confirm Intel module: • which mpicc • Compile code: • mpicc –o cpi cpi.c

  23. MPI/OpenMP Training • Courses are taught throughout year by Research Computing http://learnit.unc.edu/workshops • Next course: • MPI – Summer • OpenMP – March 3rd

  24. Running Programs on Topsail • Upon ssh to Topsail, you are on the Login node. • Programs SHOULD NOT be run on Login node. • Submit programs to one of 4,160 Compute nodes. • Submit jobs using Load Sharing Facility (LSF).

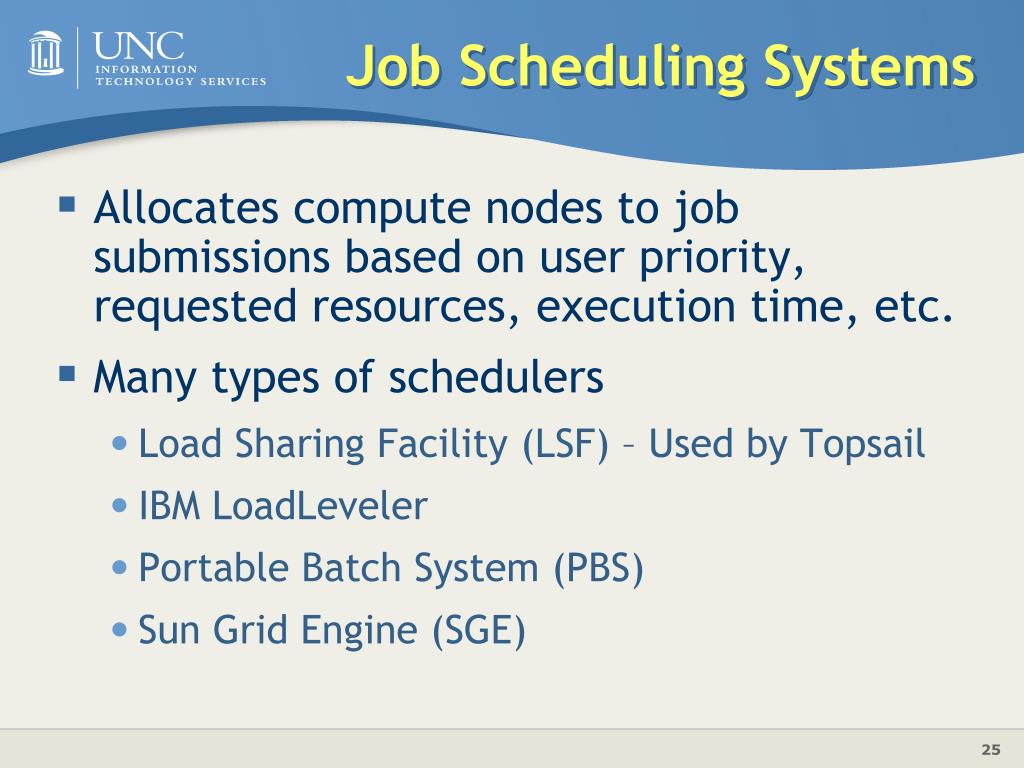

  25. Job Scheduling Systems • Allocates compute nodes to job submissions based on user priority, requested resources, execution time, etc. • Many types of schedulers • Load Sharing Facility (LSF) – Used by Topsail • IBM LoadLeveler • Portable Batch System (PBS) • Sun Grid Engine (SGE)

  26. other hosts other hosts Execution host Submission host Master host 3 LIM LIM MLIM Load information 4 2 5 SBD MBD Batch API 11 8 9 Child SBD 1 7 6 queue 12 10 bsub app RES 13 LIM – Load Information Manager MLIM – Master LIM MBD – Master Batch Daemon SBD – Slave Batch Daemon RES – Remote Execution Server User job Load Sharing Facility (LSF)

  27. Submitting a Job to LSF • For a compiled MPI job: • bsub -n "< number CPUs >" -o out.%J -e err.%J -a mvapich mpirun ./mycode • bsub – LSF command that submits job to compute node • bsub –o and bsub -e • Job output saved to file in submission directory

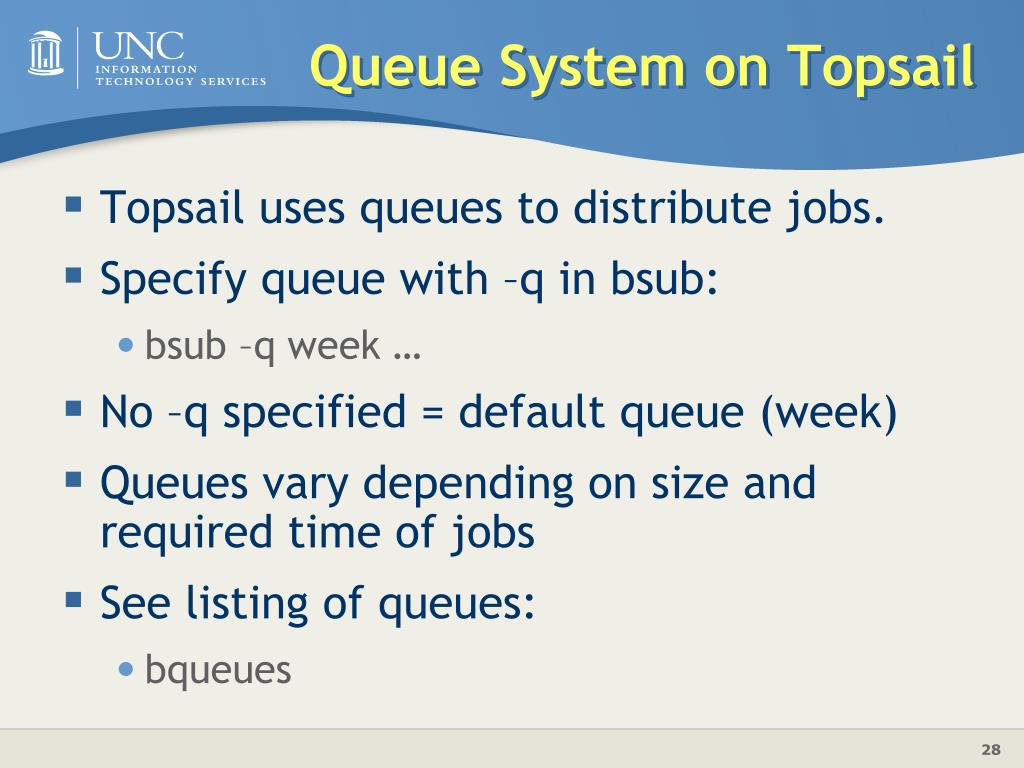

  28. Queue System on Topsail • Topsail uses queues to distribute jobs. • Specify queue with –q in bsub: • bsub –q week … • No –q specified = default queue (week) • Queues vary depending on size and required time of jobs • See listing of queues: • bqueues

  29. Topsail Queues • Most jobs do not scale very well over 128 cpu.

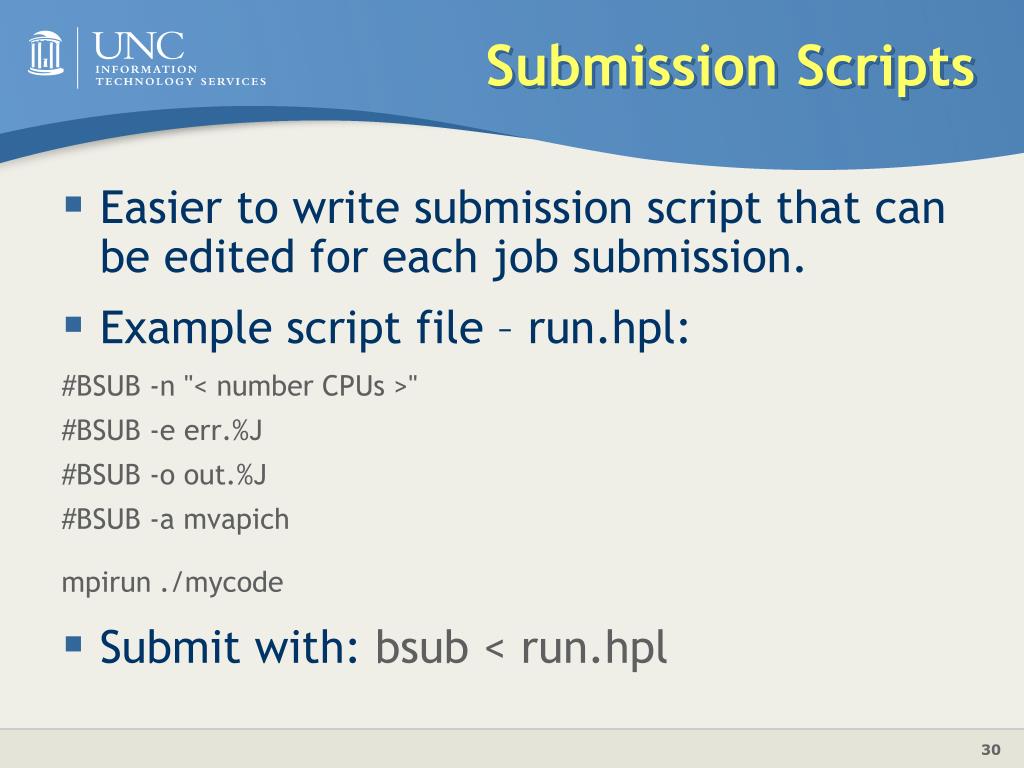

  30. Submission Scripts • Easier to write submission script that can be edited for each job submission. • Example script file – run.hpl: #BSUB -n "< number CPUs >" #BSUB -e err.%J #BSUB -o out.%J #BSUB -a mvapich mpirun ./mycode • Submit with: bsub < run.hpl

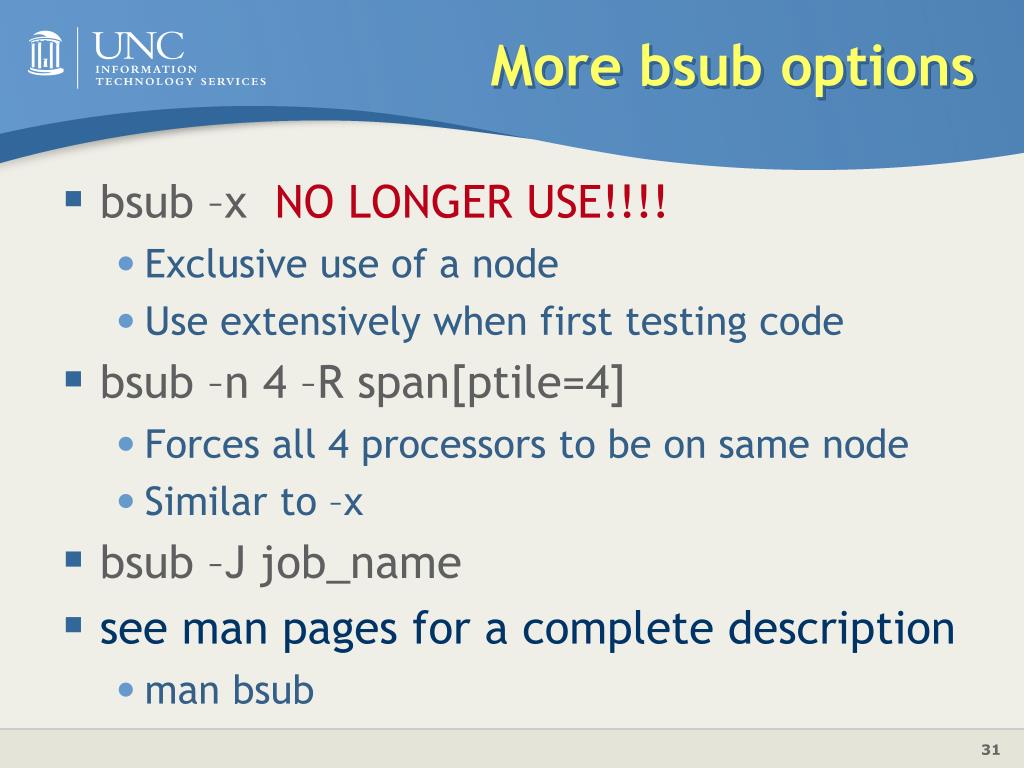

  31. More bsub options • bsub –x NO LONGER USE!!!! • Exclusive use of a node • Use extensively when first testing code • bsub –n 4 –R span[ptile=4] • Forces all 4 processors to be on same node • Similar to –x • bsub –J job_name • see man pages for a complete description • man bsub

  32. Performance Test • Gromacs MD simulation of bulk water • Simulation setups: • Case 1: -n 8 -R span[ptile=1] • Case 2: -n 8 -R span[ptile=8] • Simulation times (1ns MD): • Case 1: 1445 sec • Case 2: 1255 sec • Using 1 node only improved speed by 13%

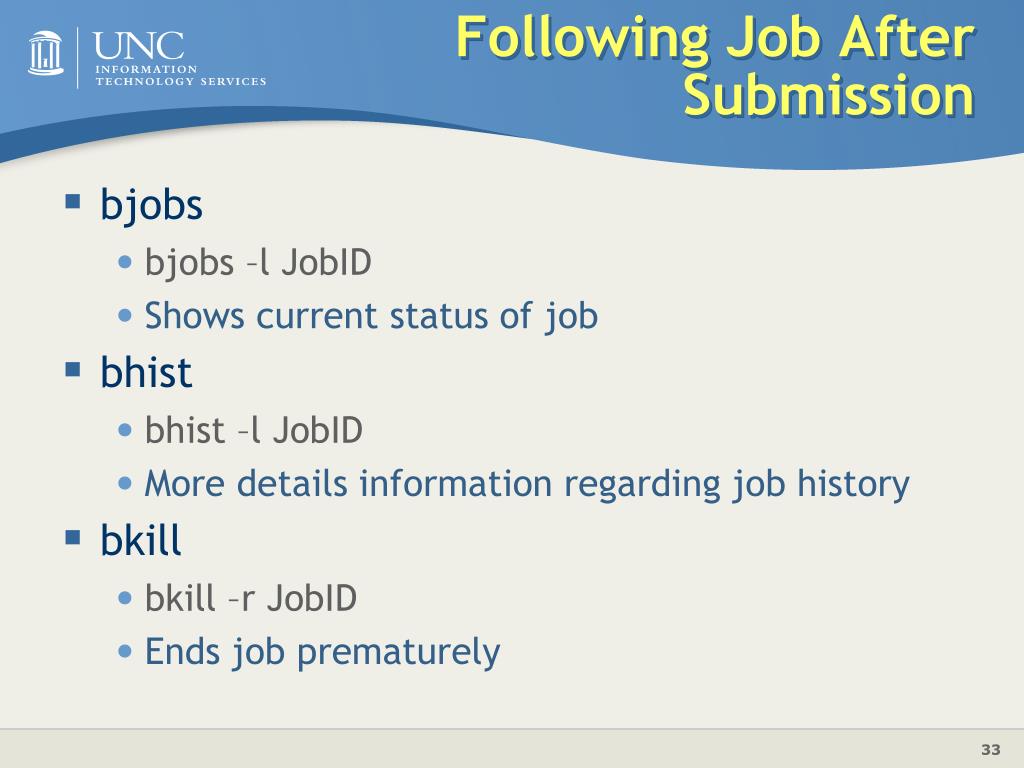

  33. Following Job After Submission • bjobs • bjobs –l JobID • Shows current status of job • bhist • bhist –l JobID • More details information regarding job history • bkill • bkill –r JobID • Ends job prematurely

  34. Submit Test MPI Job • Submit the test MPI program on Topsail • bsub –q week –n 4 –o out.%J –e err.%J –a mvapich mpirun ./cpi • Follow submission: bjobs • Output stored in out.%J file

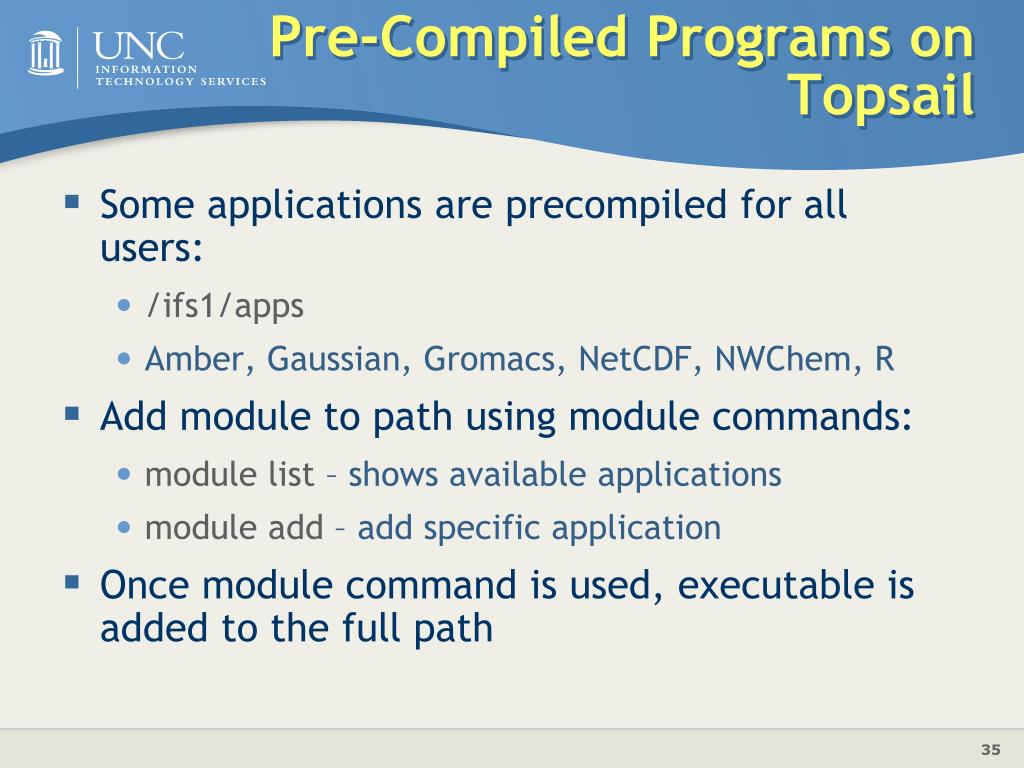

  35. Pre-Compiled Programs on Topsail • Some applications are precompiled for all users: • /ifs1/apps • Amber, Gaussian, Gromacs, NetCDF, NWChem, R • Add module to path using module commands: • module list – shows available applications • module add – add specific application • Once module command is used, executable is added to the full path

  36. Test Gaussian Job on Topsail • Add Gaussian Application to path: • module add apps/gaussian-03e01 • module list • Copy input com file: • cp /ifs1/scr/cdavis/Topsail/water.com . • Check that executable has been added to path: • echo $PATH • Submit job: • bsub –q week –n 4 –e err.%J –o out.%J g03 water.com

  37. Common Error 1 • If job immediately dies, check err.%J file • err.%J file has error: • Can't read MPIRUN_HOST • Problem: MPI enivronment settings were not correctly applied on compute node • Solution: Include mpirun in bsub command

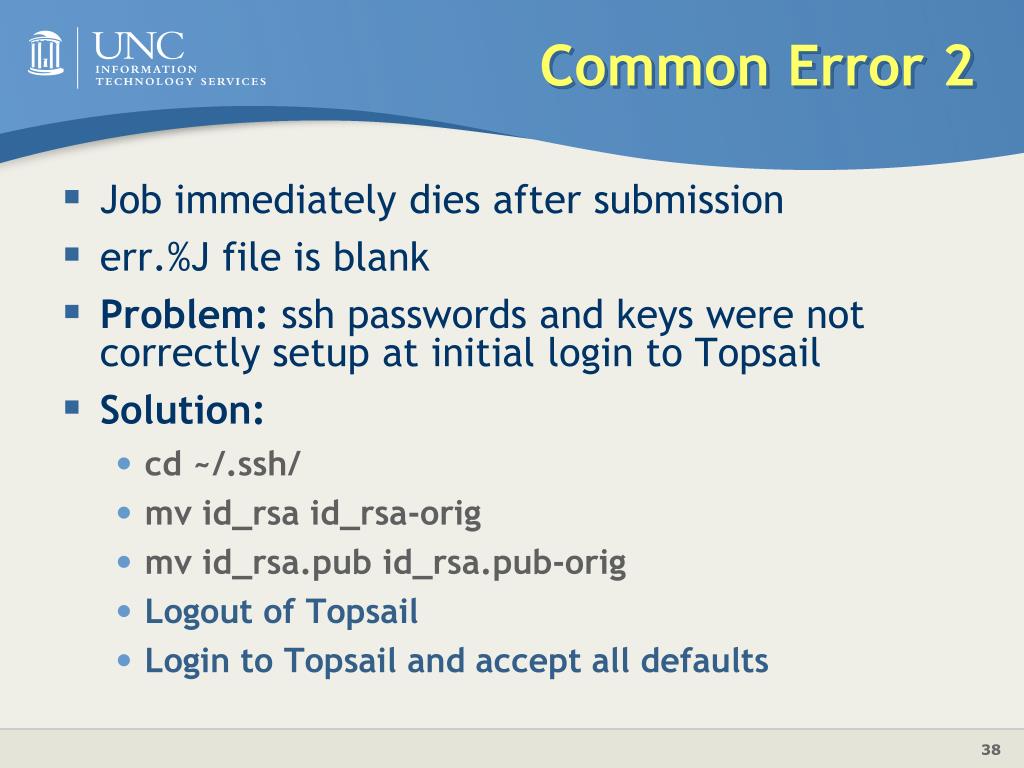

  38. Common Error 2 • Job immediately dies after submission • err.%J file is blank • Problem: ssh passwords and keys were not correctly setup at initial login to Topsail • Solution: • cd ~/.ssh/ • mv id_rsa id_rsa-orig • mv id_rsa.pub id_rsa.pub-orig • Logout of Topsail • Login to Topsail and accept all defaults

  39. Interactive Jobs • To run long shell scripts on Topsail, use int queue • bsub –q int –Ip /bin/bash • This bsub command provides a prompt on compute node • Can run program or shell script interactively from compute node • Totalview debugger can also be run interactively from Topsail

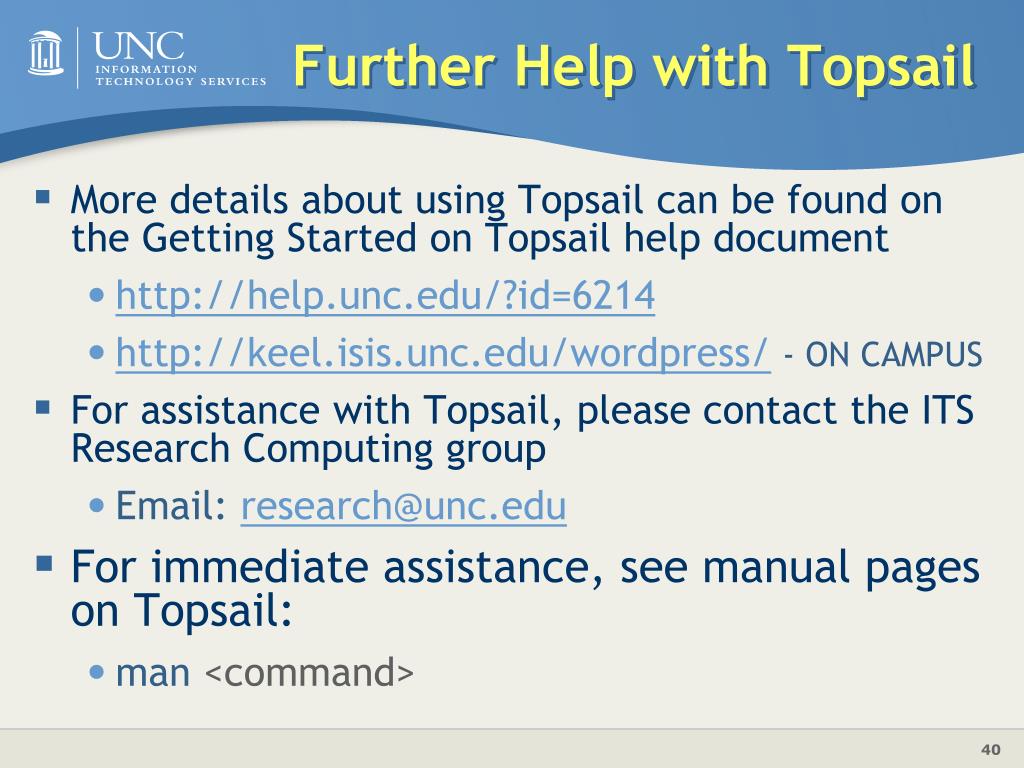

  40. Further Help with Topsail • More details about using Topsail can be found on the Getting Started on Topsail help document • http://help.unc.edu/?id=6214 • http://keel.isis.unc.edu/wordpress/ - ON CAMPUS • For assistance with Topsail, please contact the ITS Research Computing group • Email: research@unc.edu • For immediate assistance, see manual pages on Topsail: • man <command>
