Advancements in Visualizing Off-Screen Locations on Small Mobile Displays

This thesis by Sean Gustafson explores innovative techniques for visualizing off-screen locations on small mobile displays, focusing on methods to reduce clutter and enhance user accuracy in locating objects. It evaluates two interface conditions—halo and wedge—through user studies involving various task densities and contexts. The findings reveal that the wedge technique significantly improves accuracy, particularly in dense conditions and corner scenarios. This research contributes to the fields of human-computer interaction and mobile interface design, providing actionable insights for future developments.

clarke
Télécharger la présentation

Advancements in Visualizing Off-Screen Locations on Small Mobile Displays

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Sean Gustafson master of science thesis defense Dec 15 / 2008 Visualizing Off-Screen Locations on Small Mobile Displays

  2. off-screen viz overview arrows halo f

  3. rel ated work

  4. overviews [Plaisant 95 and many others]

  5. fisheye views fisheye views [Carpendale 01]

  6. simple arrows [Tecmo Bowl 87]

  7. scaled and stretched arrows [Burigat 06]

  8. edgeradar [Gustafson 07]

  9. halo [Baudisch 03]

  10. halo [Baudisch 03]

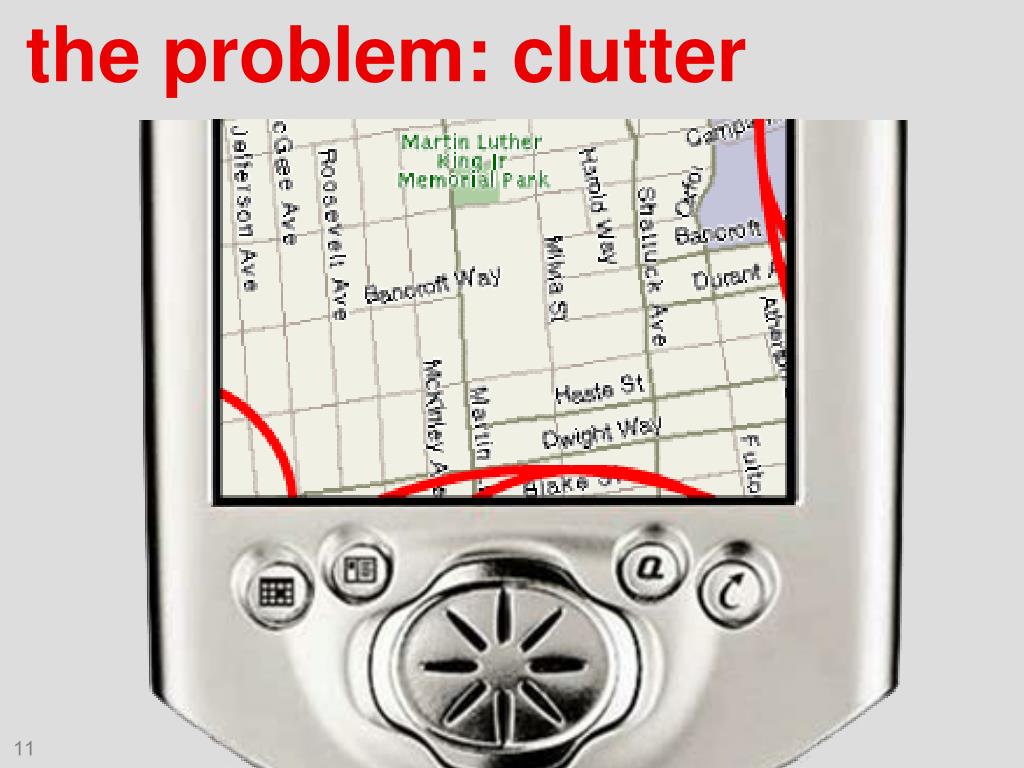

  11. the problem: clutter

  12. the problem: clutter

  13. (also not great: corners) side corner

  14. initial approaches clustering ovals Baudisch & Rosenholtz Irani et al. cut lines color separatevisually

  15. th e wedge

  16. wedge base base base base leg leg target

  17. halo wedge

  18. 3 degrees of freedom intrusion base length rotation

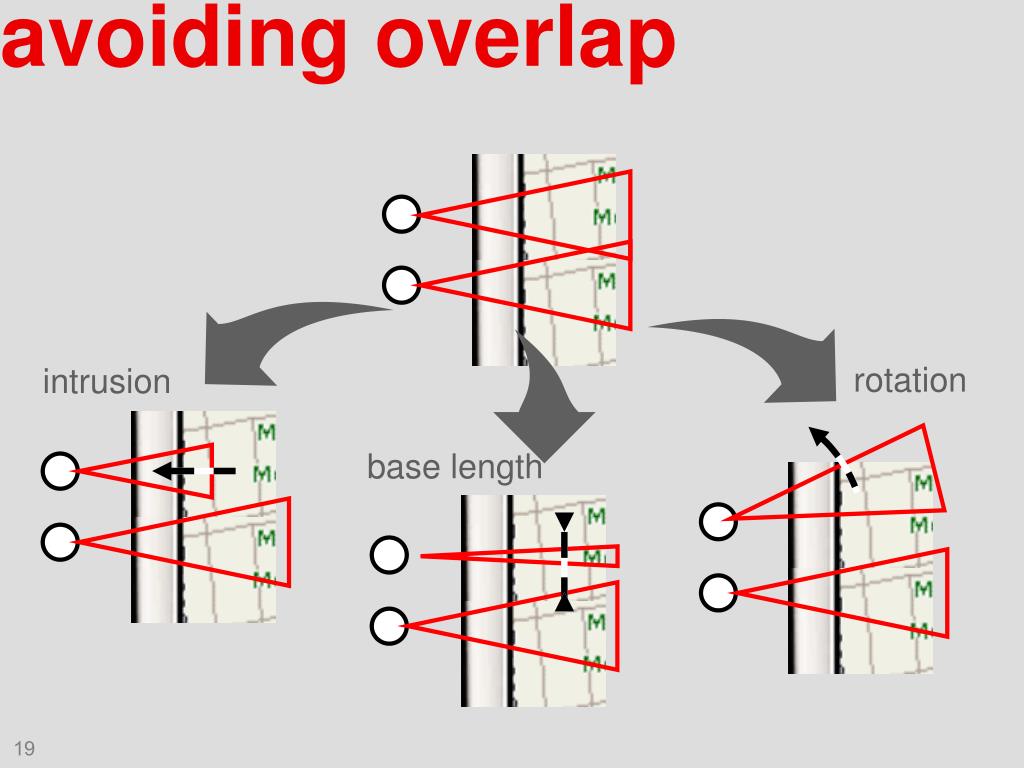

  19. rotation base length avoiding overlap intrusion

  20. lay out algorithm

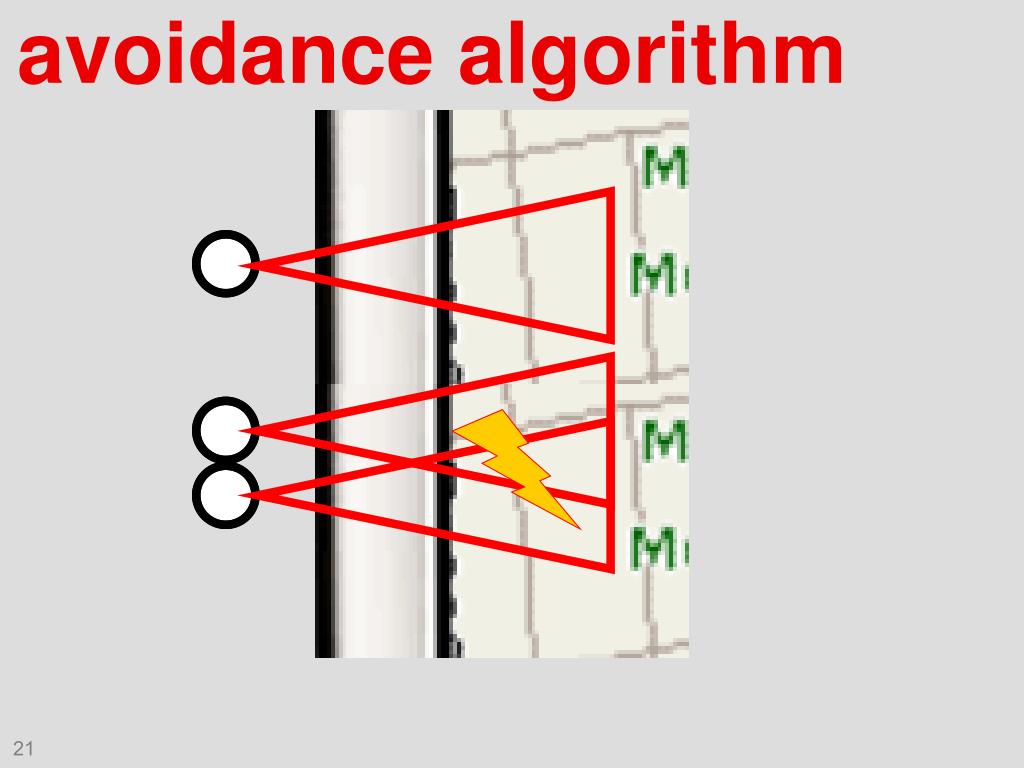

  21. avoidance algorithm

  22. avoidance algorithm

  23. avoidance algorithm

  24. avoidance algorithm

  25. avoidance algorithm

  26. leaves 2 degrees intrusion ~ distance base-width ~ distance

  27. u ser study

  28. two interface conditions halo and wedge

  29. task 1: locate same as original halo paper halo wedge

  30. task 2: closest same as original halo paper halo wedge

  31. task 3: avoid same as original halo paper halo wedge

  32. IV: density sparse dense

  33. IV: corner side corner

  34. 36 participants

  35. hypotheses • 1. wedge is more accurate • larger improvement in dense condition • larger improvement in corners • (no hypothesis about task time)

  36. results

  37. participants were significantly more accurate when using the wedge

  38. error in pixels Side 80 Halo Wedge 60 Error (pixels) 40 20 0 Dense Sparse locate task

  39. error in pixels Corner Side 80 Halo Wedge 60 Error (pixels) 40 20 0 Dense Sparse Dense Sparse locate task

  40. other results no interesting results from the other tasks or from completion time.

  41. other results preferences

  42. hypotheses  • 1. wedge is more accurate • larger improvement in dense condition • larger improvement in corners  

  43. mod eling pointing

  44. beam

  45. beam

  46. beam beam

  47. beam orbital beam

  48. intrusion

  49. intrusion
