SURYANAMASKAR. Outdoor Lights. Let the Sun light your night. Solar King Size Garden Light (KSGL-1). King Size Garden Lights are made from high quality powder coated mild steel. Ht. 3.5 ft Easy to install ,no wiring needed. Ultra bright 16 white super flux LED’S

#outdoor lights #outdoor lights ppt #powerpoint #presentation
Outdoor Lights - slide 1
01 / 16Outdoor Lights
1 / 17

Télécharger la présentation

Outdoor Lights
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

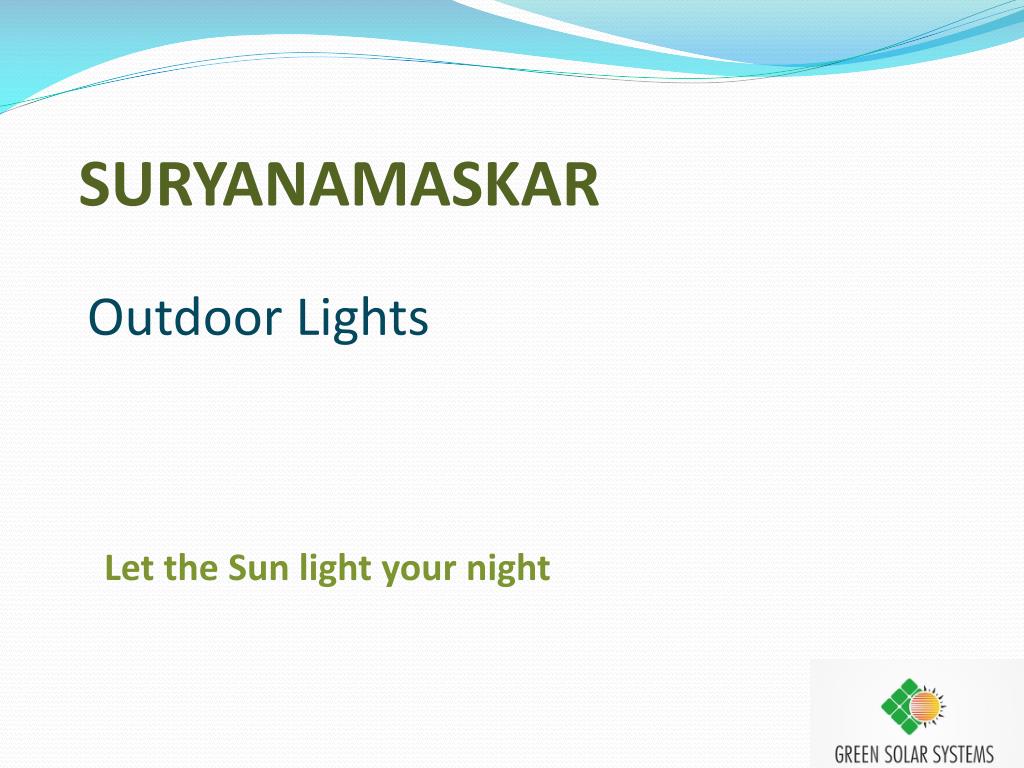

  1. SURYANAMASKAR Outdoor Lights Let the Sun light your night

  2. Solar King Size Garden Light (KSGL-1) King Size Garden Lights are made from high quality powder coated mild steel. Ht. 3.5 ft Easy to install ,no wiring needed. Ultra bright 16 white super flux LED’S Premium quality crystalline solar module (>5 Wp) Automatically switches ON the light at dusk and Switches OFF at Dawn 2 no,6V,4Ah sealed maintenance free battery. Backup : 12-14 hrs

  3. Multicolored solar garden light (KSGL-3) Solar Panel :0.36 watt Battery ,1200 mA,Ni-Mh 1.2 V 6 leds. 4 white and 2 multicolored. 2 options, white light and blinking colored light. Back up :6-8 hrs

  4. Solar Smart Garden light (KSGL-5) solar panel: 1watt The power of light source：0.5 W UHB-LED 16000-18000 Battery: I-MH 3.6V 1200mA Material: stainless steel Working time: 6-8hrs

  5. Style Garden light (KSGL-6) Solar Panel The power of light source：0.5 W UHB-LED 16000-18000 Battery: I-MH 3.6V 1200mA Material: stainless steel Working time: 6-8hrs

  6. Style Garden light (KSGL-7) Solar Panel The power of light source：0.5 W UHB-LED 16000-18000 Battery: I-MH 3.6V 1200mA Material: stainless steel Working time: 6-8hrs

  7. Solar Bollard Garden Light (KSBLD-01)

  8. Solar Bollard Garden Light (KSBLD-02)

  9. Solar Bollard Garden Light (KSBLD-03) Solar Panel : 3 Watt Battery size : 6V,4.5 Ah Led : 16 led ,0.5 mm 2.5 ft pole ht. Working Hours : Dusk to Dawn (16-leds)7 hrs full light and 6 hrs dim light (12 –leds) Dimming is automatic after 7 hrs

  10. Solar Bollard Garden Light (KSBLD-05) Solar Panel : 3 Watt Battery size : 6V,4.5 Ah Led : 16 led ,0.5 mm 2.5 ft pole ht. Mild Steel (Also available in stainless steel) Working Hours : Dusk to Dawn (16-leds)7 hrs full light and 6 hrs dim light (12 –leds) Dimming is automatic after 7 hrs

  11. Solar Power Plant Photovoltaic (PV) is the field of technology and research related to the application of solar cells which convert the sunlight, including sun ultraviolet radiation directly into electricity. At the heart of a solar power system, are solar cells, which are interconnected to form solar modules (solar panels) and solar arrays. The size and configuration of a system depend on its intended task. Solar modules and arrays can be used to charge batteries, operate motors, and to power any number of electrical loads. With the appropriate power conversion equipment, solar power systems can produce alternating current (AC) compatible with any conventional appliances, and can operate in parallel with, and interconnected to, the utility grid (see grid coupling). Among the components of a complete solar power system may be a DC-AC power inverter, a battery bank, a system and battery controller, auxiliary energy sources, and sometimes the specified electrical load (appliances). In addition, an assortment of balance of system hardware, including wiring, overcurrent, surge protection and disconnect devices, and other power processing equipment.

  12. 3 KW SOLAR POWER PLANT

  13. A few Installations of Solar Garden Light from Green Solar Systems • Reliance Industries Ltd. (CWG Project) (New Delhi) • Pearls Buildwell Infrastructure Ltd. (Mohali) • Prithvi Sound Products Company Pvt. Ltd (Najafgarh) • Janaki Devi Memorial College (Karol Bagh) • V.V.D.A.V. Public School (Vikas puri) • Shop–N-Park North (Shalimar Bagh) • Faith Academy (Prasad Nagar)

  14. Installation of Garden lights at Common Wealth Games Village

  15. Common Wealth Games Village

  16. Common Wealth Games Village
