  1. E-LTC march 2008 – Session 6Readiness of Controls Status of LHC applications Delphine Jacquet (AB/OP) Thanks to all persons named in the presentation

  2. OVERVIEW OF NEEDED APPLICATIONS 1

  3. SETTINGS MANAGEMENT

  4. SETTINGS GENERATION • Responsible persons • Lasse Normann, Mike Lamont, Marek Strzelczyk, Delphine Jacquet (AB/OP) • Status • Generic application, used and tested in SPS and LEIR • Actual settings : can generate from a cycle, incorporation into next cycle to be done. • Value generators and makerules to be completed 2

  5. TRIM APPLICATION / DRIVE HARDWARE • Responsible person • Greg Kruk (AB/CO/AP) • Status • Generic applications, used in SPS and LEIR • Trim of discrete and actual settings can be improved 3

  6. OPTICS APPLICATIONS • Responsible persons • Jutta Netzel for LSA (AB/CO) • Ilya Agapov for the online model server • Status • Knob application : knob creation from a file  used in SPS and transfer lines already.New : knob creation from the online model : v1 in place, to be tested. • Trim simulation application (using OM Server): first version in place 4

  7. EQUIPEMENT

  8. EQUIP STATE • Responsible person • Greg Kruk (AB/CO) • Status • Generic application, used and tested in SPS and for HWC • Properties and commands definition to be completed (80% is there) 5

  9. BEAM DUMP (Status – control) • Responsible person • Markus Albert (AB/OP) • Status • v1 operational, tested during beam dump dry run. 6

  10. XPOC • Responsible persons • Jerome Axensalva (AB/OP) • Eric Gallet(AB/BT) • Status • acquisition server and 50% of the online analysis has been tested during the beam dump dry run. • Operational GUI : prototype • Still to do • Complete the online analysis • Communication with the sequencer • Application reliability 7

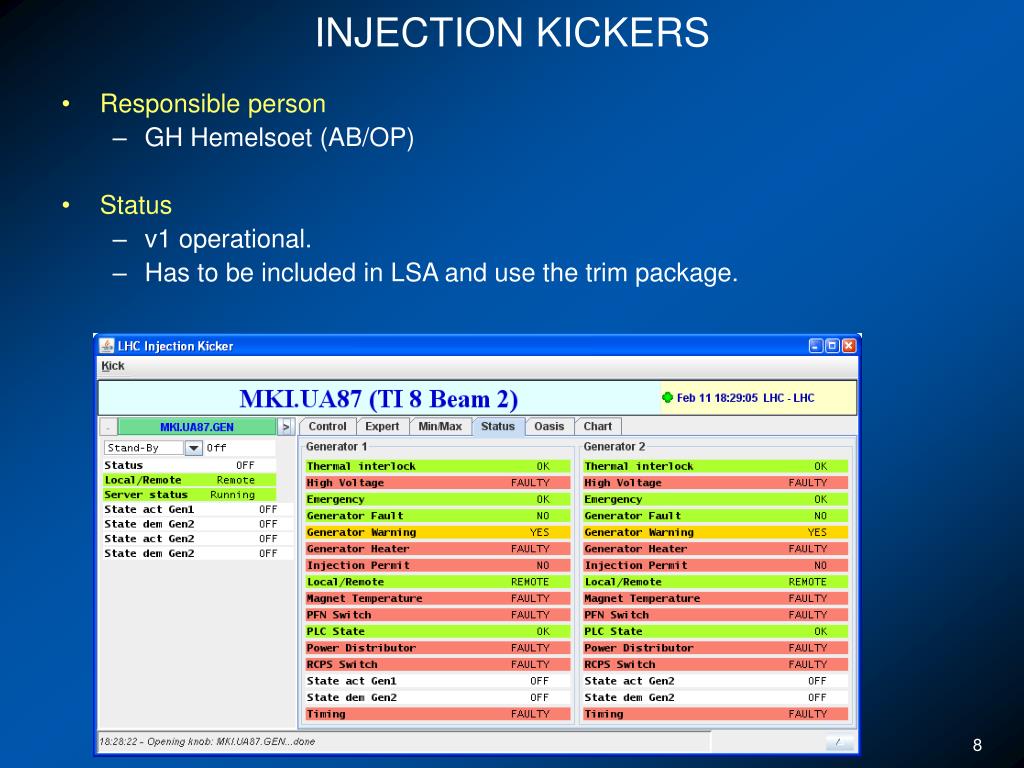

  11. INJECTION KICKERS • Responsible person • GH Hemelsoet (AB/OP) • Status • v1 operational. • Has to be included in LSA and use the trim package. 8

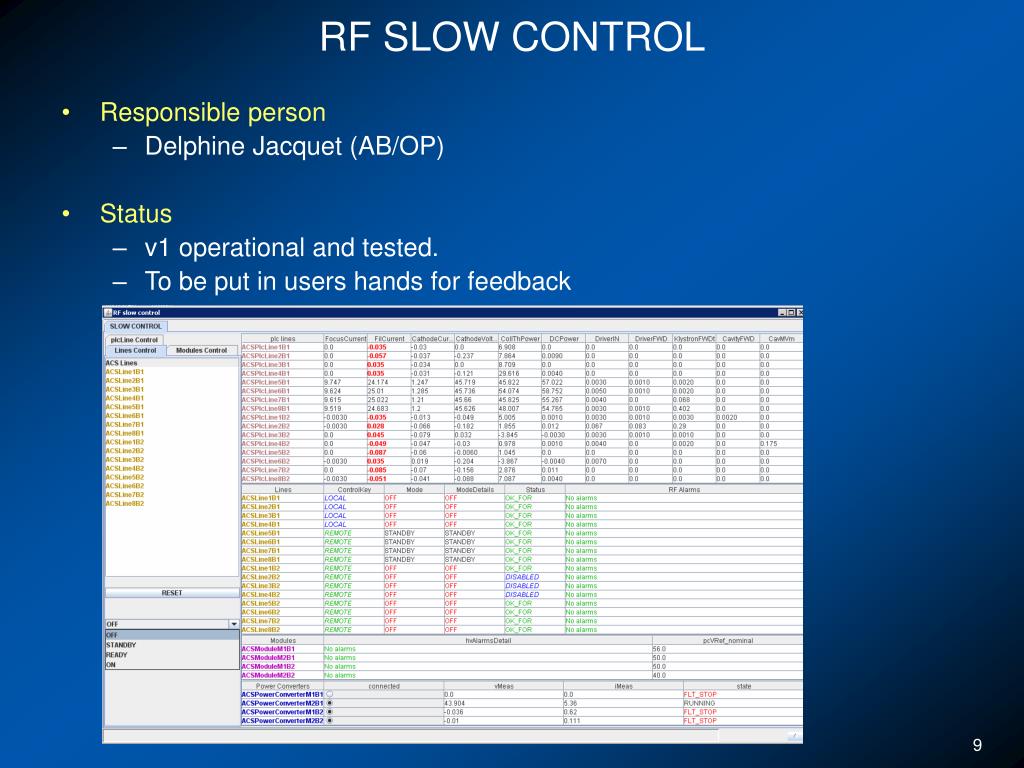

  12. RF SLOW CONTROL • Responsible person • Delphine Jacquet (AB/OP) • Status • v1 operational and tested. • To be put in users hands for feedback 9

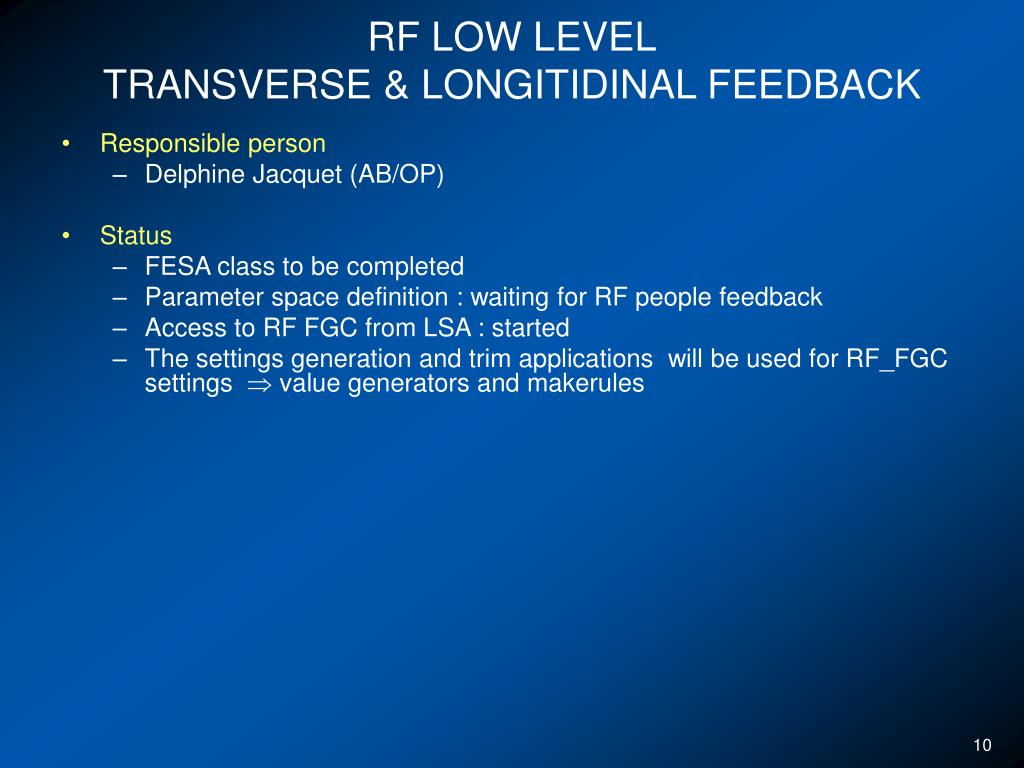

  13. RF LOW LEVELTRANSVERSE & LONGITIDINAL FEEDBACK • Responsible person • Delphine Jacquet (AB/OP) • Status • FESA class to be completed • Parameter space definition : waiting for RF people feedback • Access to RF FGC from LSA : started • The settings generation and trim applications will be used for RF_FGC settings  value generators and makerules 10

  14. COLLIMATORS • Responsible person • Stefano Raedelli (AB/OP) • Status • Beam based alignment application (1 coll) : V1 tested in transfer lines • Parameter space and makerules are defined and tested. • A dedicated trim application has been developed • Fixed Display : work in progress 11

  15. INSTRUMENTATION

  16. BEAM LOSS APPLICATION • Responsible persons • Fabio Follin, Laurette Ponce (AB/OP) • Status • BLM readings from the concentrator  V1 in place • Threshold management  Database configuration, operational application : in progress, 60% done • Fixed Display almost ready. 12

  17. BTV • Responsible person : • Fabio Follin (AB/OP) • Status • Generic application used in SPS • Ready for LHC BTVI 13

  18. TUNE/CHROMATICITY MEASUREMENTAND FEEDBACK (BQBBQ & BQHT) • Responsible persons • Ralph Steinhagen (AB/BI) • Jorg Wenninger, Fabio Follin (AB/OP) • Status • The BI-Expert application will be used in operation • It has been already tested during SPS MD’s (see Ralph’s talk) 14

  19. BPM : YASP, Orbit feedback • Responsible person • Jorg Wenninger (AB/OP) for YASP • Ralph Steinhagen(AB/BI) for the feedback • Status • YASP is ready for LHC. • Orbit feedback will be controlled from YASP (see Jorg’s talk) • BPM fixed display : prototype in place 15

  20. BPM : MULTITURN ANALYSIS • Responsibleperson • Verena Kain (AB/OP) • Status • Most of the functionality is ready • Send timing event to trigger acquisition, interfaces to BPM concentrator • Settings and sensitivity control • Harmonic analysis • To be completed • Synchronized acquisition with MKQ excitation • Phase advance and phase space plots 16

  21. FAST RINGS BCT, BCT • Responsible person • Markus Albert (AB/OP) • Status • Fast BCT  V1 is ready, measurement and device configuration. • BCT  fixed display in place. 17

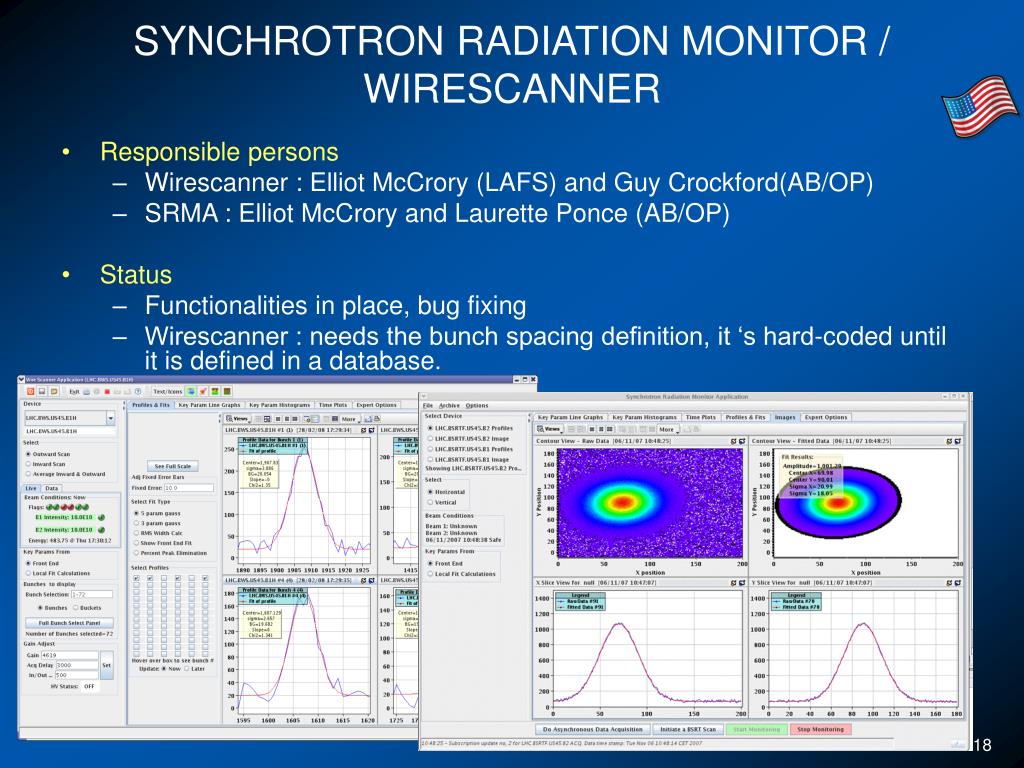

  22. SYNCHROTRON RADIATION MONITOR / WIRESCANNER • Responsible persons • Wirescanner : Elliot McCrory (LAFS) and Guy Crockford(AB/OP) • SRMA : Elliot McCrory and Laurette Ponce (AB/OP) • Status • Functionalities in place, bug fixing • Wirescanner : needs the bunch spacing definition, it ‘s hard-coded until it is defined in a database. 18

  23. OTHER INSTRUMENTS • Ionization Gas Monitor (BGI) • Elliot McCrory. • Waiting for the FESA class to be ready. • A lot will be re-used from the wirescanner and SRMA applications. • Schottky (BQS) • not clear who and how between LARS and LAFS. • Luminosity monitors(BRA) • Elliot McCrory, fixed display and luminosity scan application are needed. • Abort Gap Monitor(BSRA) • Laurette Ponce (AB/OP)  development is starting now. • K-modulation • Bernt Dehning (AB/BI) • Wall current monitor • FESA class to be developed by RF • Beta beating • Rogelio Thomas Garcia (AB/ABP) : first prototype in place, it uses data from the steering and the multi-turn applications 19

  24. GENERAL APPLICATION

  25. SEQUENCER • Responsible persons • Reyes Alemani (AB/OP) • Vito Bagglionni (AB/CO) • Status • New LHC sequencer has been tested during dry runs • Lots of works to be done on sequences definitions(see Reyes’ talk). 20

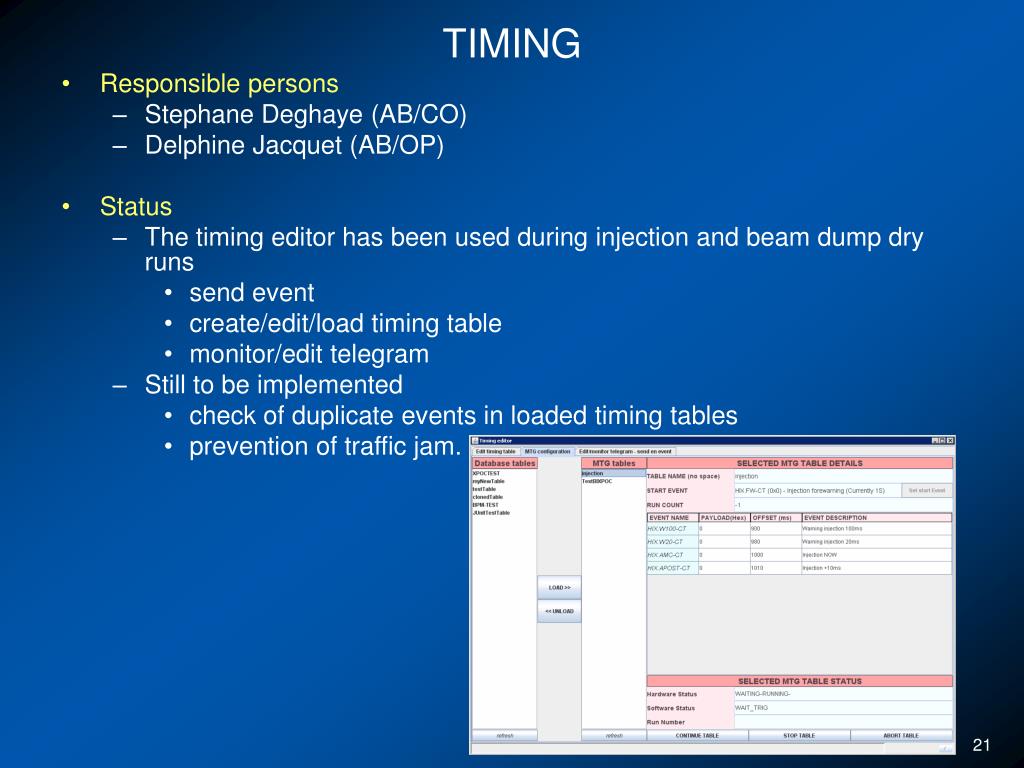

  26. TIMING • Responsible persons • Stephane Deghaye (AB/CO) • Delphine Jacquet (AB/OP) • Status • The timing editor has been used during injection and beam dump dry runs • send event • create/edit/load timing table • monitor/edit telegram • Still to be implemented • check of duplicate events in loaded timing tables • prevention of traffic jam. 21

  27. OTHERS • Interlocks • PIC application • Markus Zerlaut (AB/CO)  ready, already used for HWC (Markus Zerlaut). • BIS • generic application, used in SPS Bruno Puccio (AB/CO)  responsible for the softwareAlick McPherson  responsible for the configuration • SIS • generic application, used in SPS Jakub Wozniak (AB/CO)  responsible for the softwareJorg Wenninger (AB/OP)  responsible for the configuration • Logging / Alarms/ Post mortem • Responsibility of AB/CO • Generic applications used for hardware commissioning and in SPS. • This tools now have to be configured for LHC operation. The responsible persons for the configuration have to be defined. • Radiation monitor • A simple fixed display will be done by OP. The acquisition through japc has been tested. • Final State Machine • Specifications will be written with LAFS collaboration 22

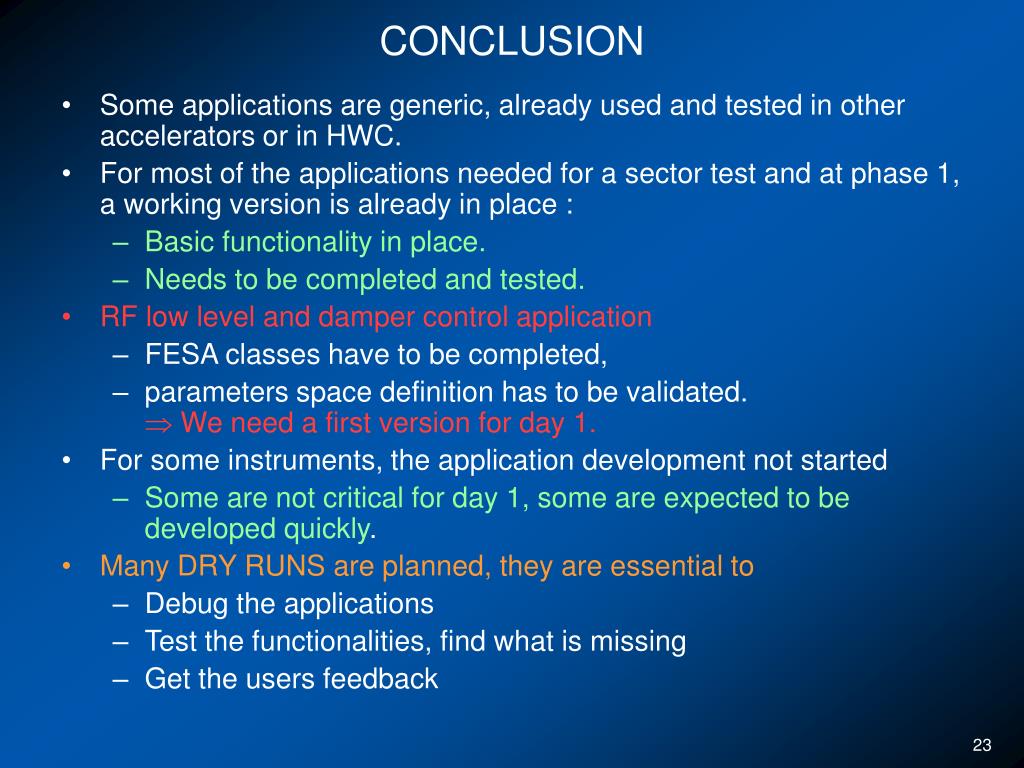

  28. CONCLUSION • Some applications are generic, already used and tested in other accelerators or in HWC. • For most of the applications needed for a sector test and at phase 1, a working version is already in place : • Basic functionality in place. • Needs to be completed and tested. • RF low level and damper control application • FESA classes have to be completed, • parameters space definition has to be validated.  We need a first version for day 1. • For some instruments, the application development not started • Some are not critical for day 1, some are expected to be developed quickly. • Many DRY RUNS are planned, they are essential to • Debug the applications • Test the functionalities, find what is missing • Get the users feedback 23
