  1. HECATAEUS A Framework for Representing SQL Constructs as Graphs George Papastefanatos1, Kostis Kyzirakos1, Panos Vassiliadis2, Yannis Vassiliou1 1 National Technical University of Athens-KDBMS Laboratory {gpapas,kkyzir,yv}@dbnet.ece.ntua.gr 2Universityof Ioannina {pvassil@cs.uoi.gr}

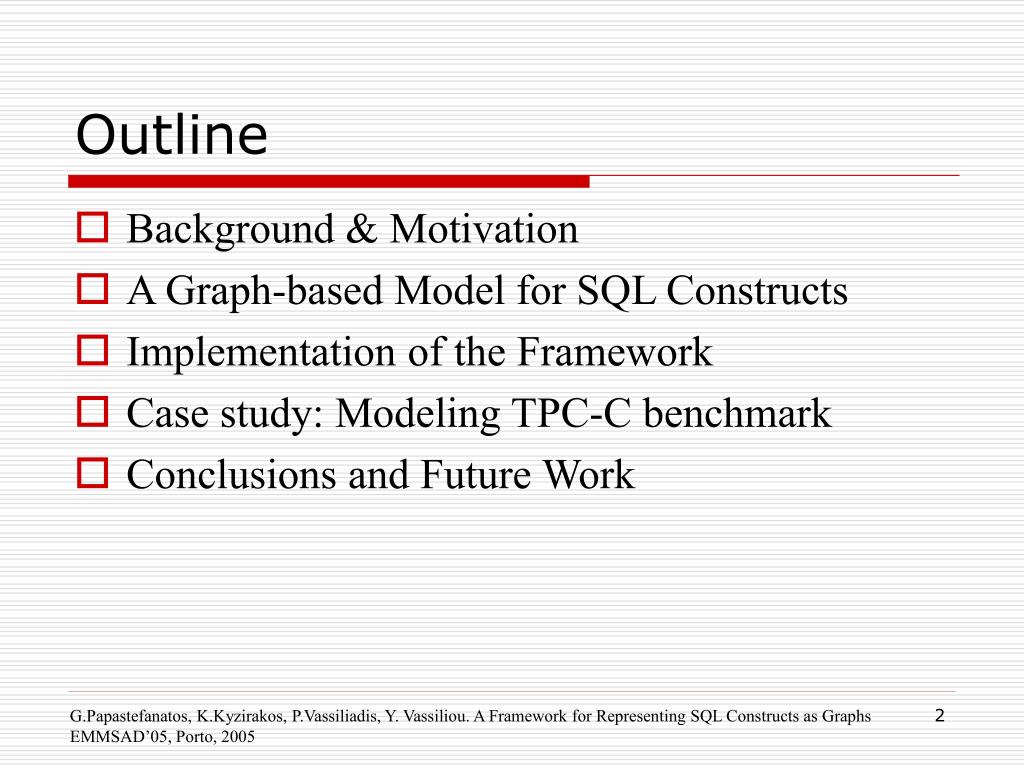

  2. Outline • Background & Motivation • A Graph-based Model for SQL Constructs • Implementation of the Framework • Case study: Modeling TPC-C benchmark • Conclusions and Future Work G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

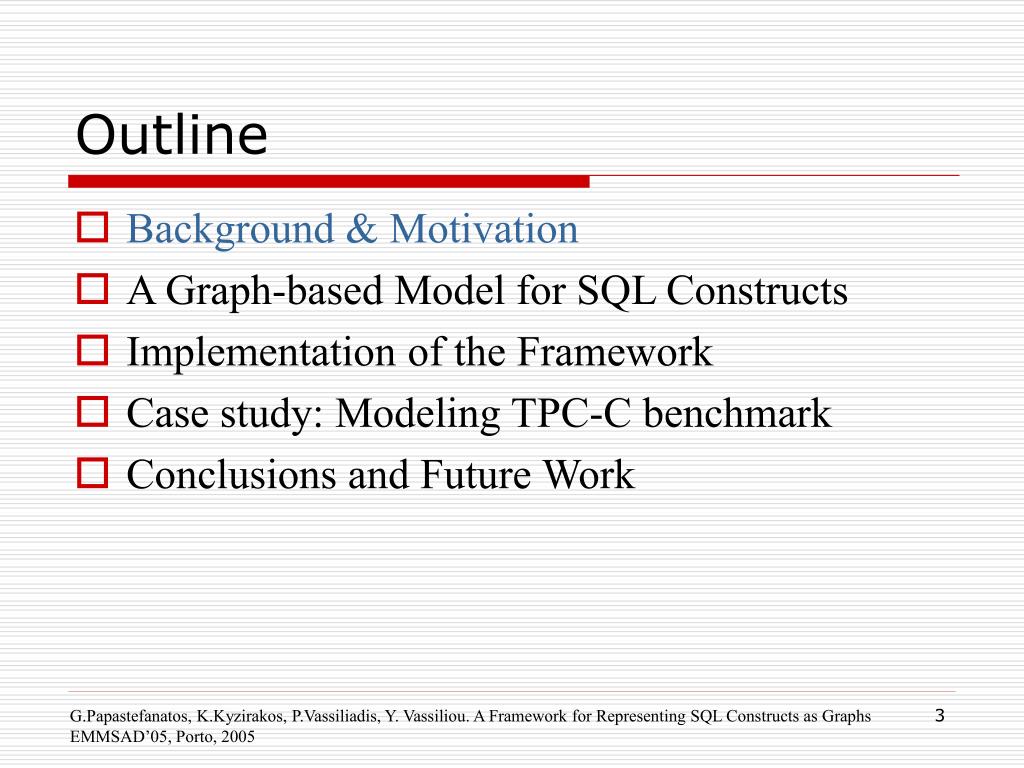

  3. Outline • Background & Motivation • A Graph-based Model for SQL Constructs • Implementation of the Framework • Case study: Modeling TPC-C benchmark • Conclusions and Future Work G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

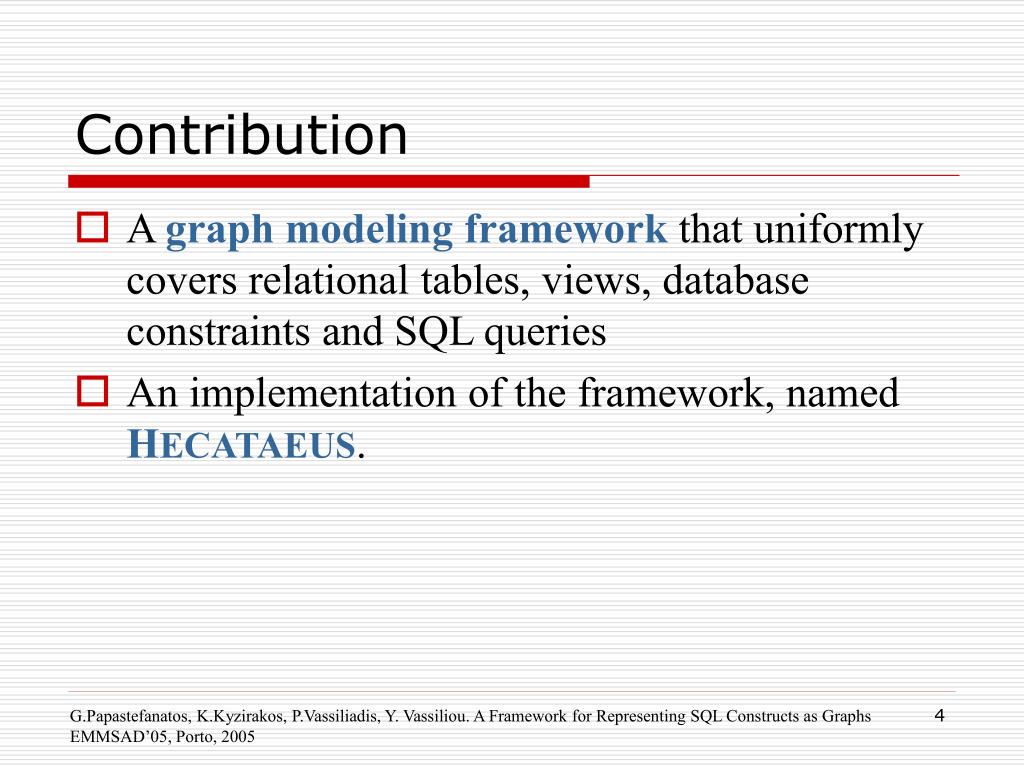

  4. Contribution • A graph modeling framework that uniformly covers relational tables, views, database constraints and SQL queries • An implementation of the framework, named HECATAEUS. G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

  5. Why bother modeling SQL queries as graphs? • Visualization and analysis of both the structure and the workload of the system • Forecasting of the impact of changes • Evaluation of the quality of the database design • Framework stakeholders • Database Administrators • Database Designers / Developers G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

  6. Motivation Queries • Evolution • Which part(s) of the system is (are) affected if we delete an attribute and how? • Performance • Which part(s) of the system has (have) the most workload? • Database Analysis and Quality Evaluation • Which tables are correlated the most ? • Is design A better than design B and why? G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

  7. Background • Traditional database modeling techniques, like ER diagrams,focus on conceptual level modeling. • Visual Query Languages – Visualization techniques • Graph-based • Icon-Based • Diagram-Based G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

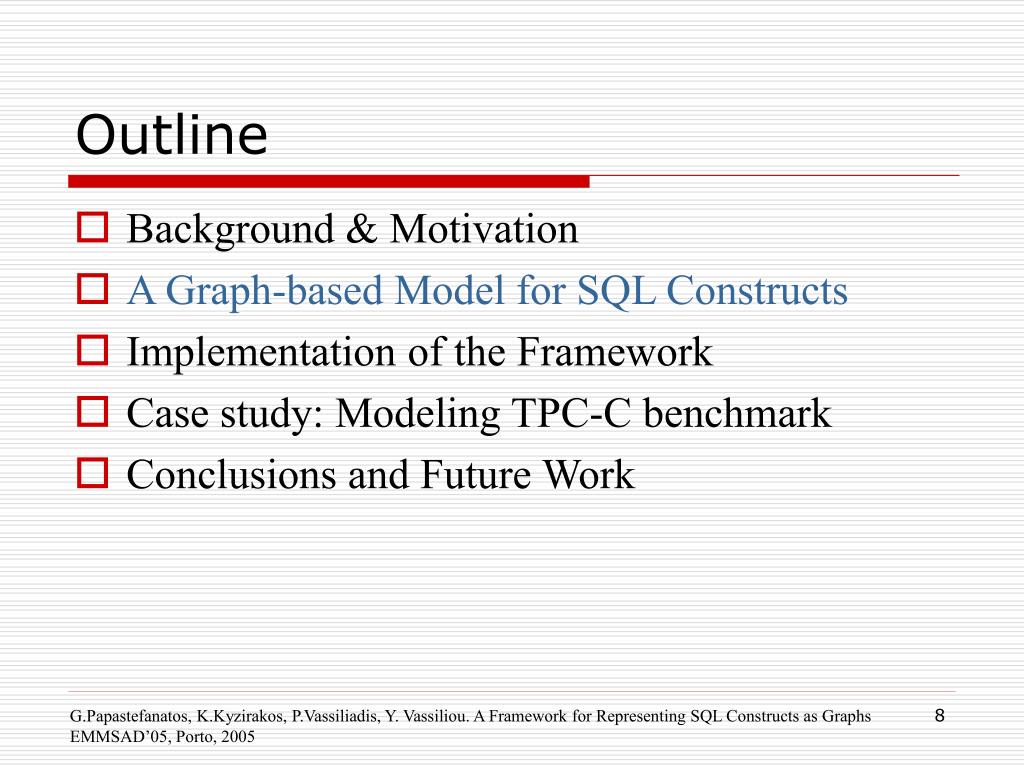

  8. Outline • Background & Motivation • A Graph-based Model for SQL Constructs • Implementation of the Framework • Case study: Modeling TPC-C benchmark • Conclusions and Future Work G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

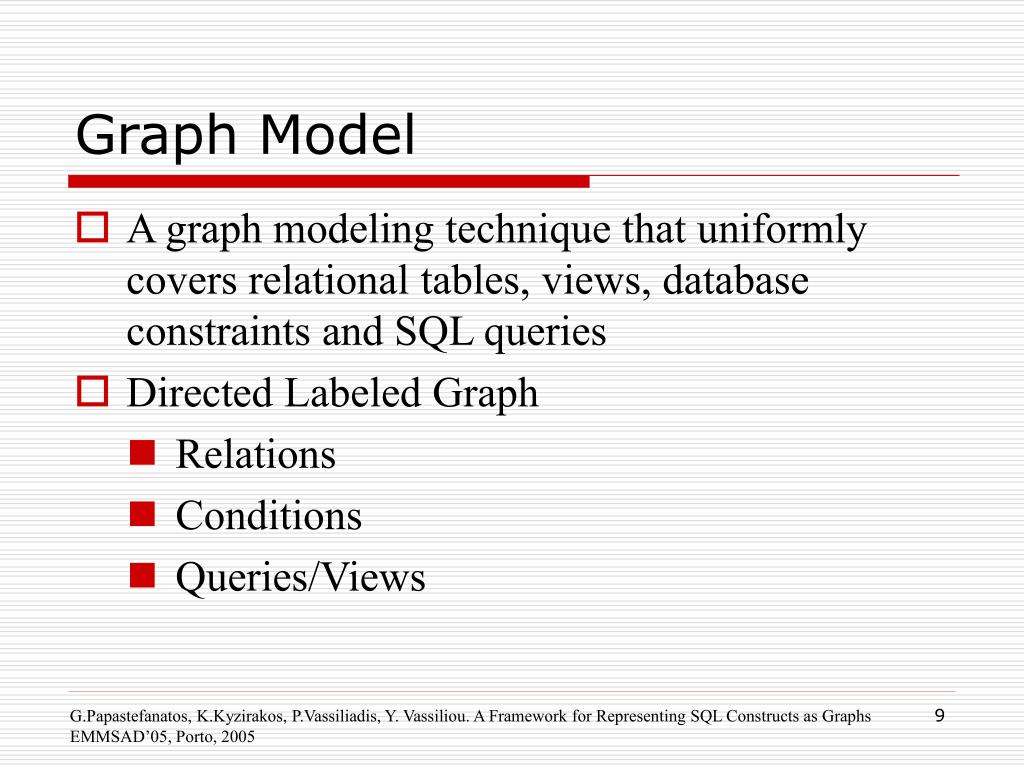

  9. Graph Model • A graph modeling technique that uniformly covers relational tables, views, database constraints and SQL queries • Directed Labeled Graph • Relations • Conditions • Queries/Views G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

  10. Graph Model (continued) • The proposed modeling technique represents all the aforementioned database parts as a directed labeled graph with specific types of nodes and edges for each database part and relationship. • Graphs are employed as a modeling technique because they can address the large size and complexity that characterize a database schema. G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

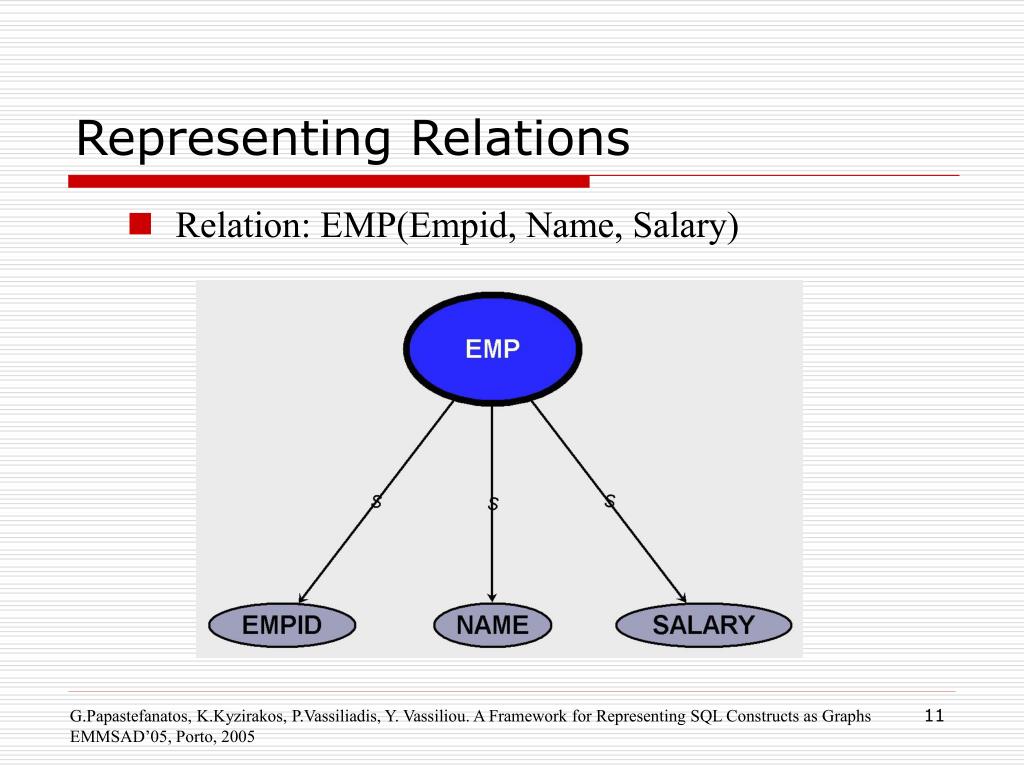

  11. Representing Relations • Relation: EMP(Empid, Name, Salary) G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

  12. Primary Key on EMPID Query condition SELECT EMPID, NAME FROM EMP WHERE AGE>30 AND SALARY>5000; Representing Conditions G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

  13. Representing Queries SELECT EMP.EMPID,Sum(WORKS.Hours) as T_Hours FROM EMP, WORKS WHERE EMP.EMPID = WORKS.EMPID GROUPBY EMP.EMPID; G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

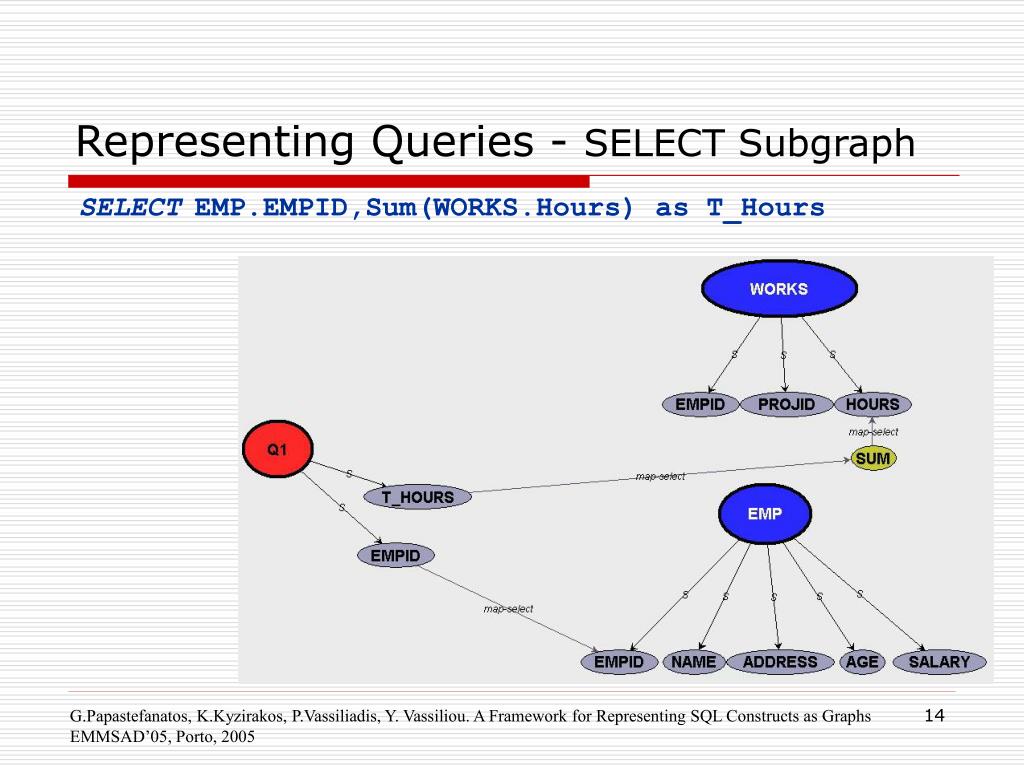

  14. Representing Queries - SELECT Subgraph SELECTEMP.EMPID,Sum(WORKS.Hours) as T_Hours G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

  15. Representing Queries – FROM Subgraph FROMEMP,WORKS G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

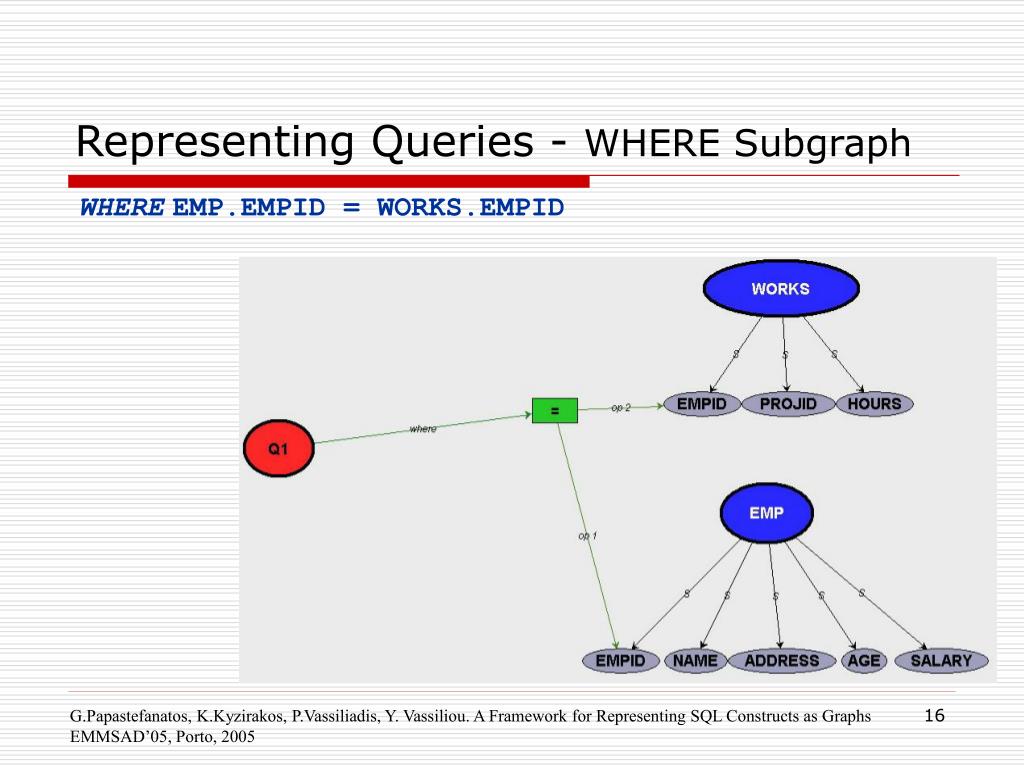

  16. Representing Queries - WHERE Subgraph WHEREEMP.EMPID = WORKS.EMPID G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

  17. Representing Queries - GROUPBY Subgraph GROUPBY EMP.EMPID G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

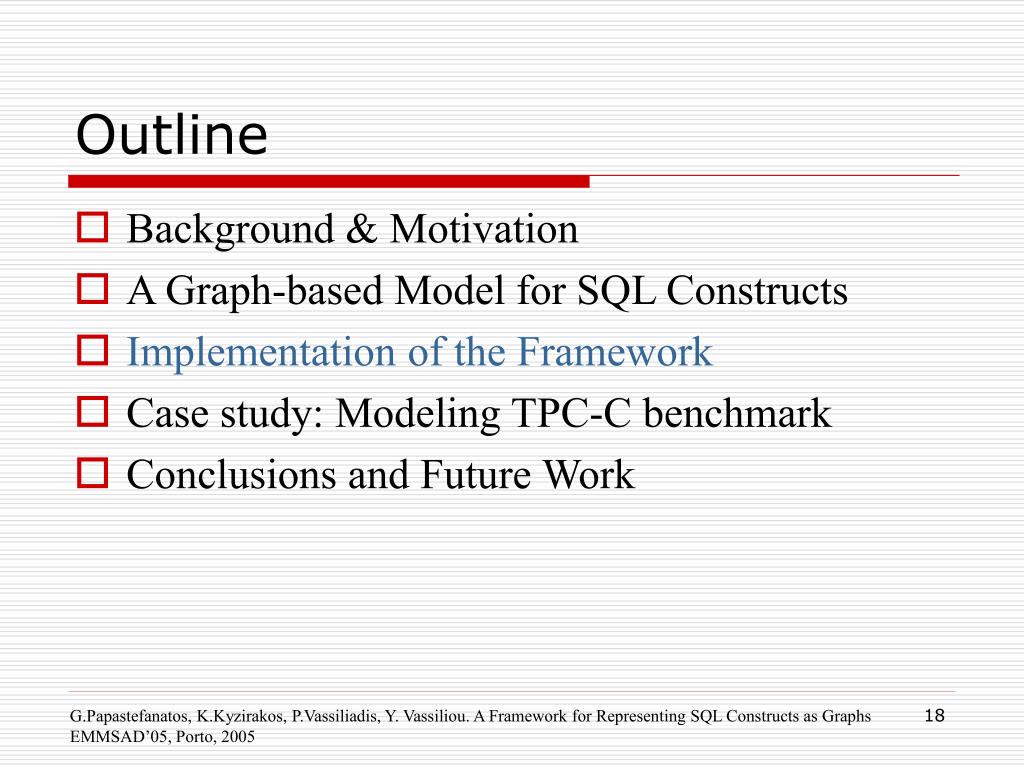

  18. Outline • Background & Motivation • A Graph-based Model for SQL Constructs • Implementation of the Framework • Case study: Modeling TPC-C benchmark • Conclusions and Future Work G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

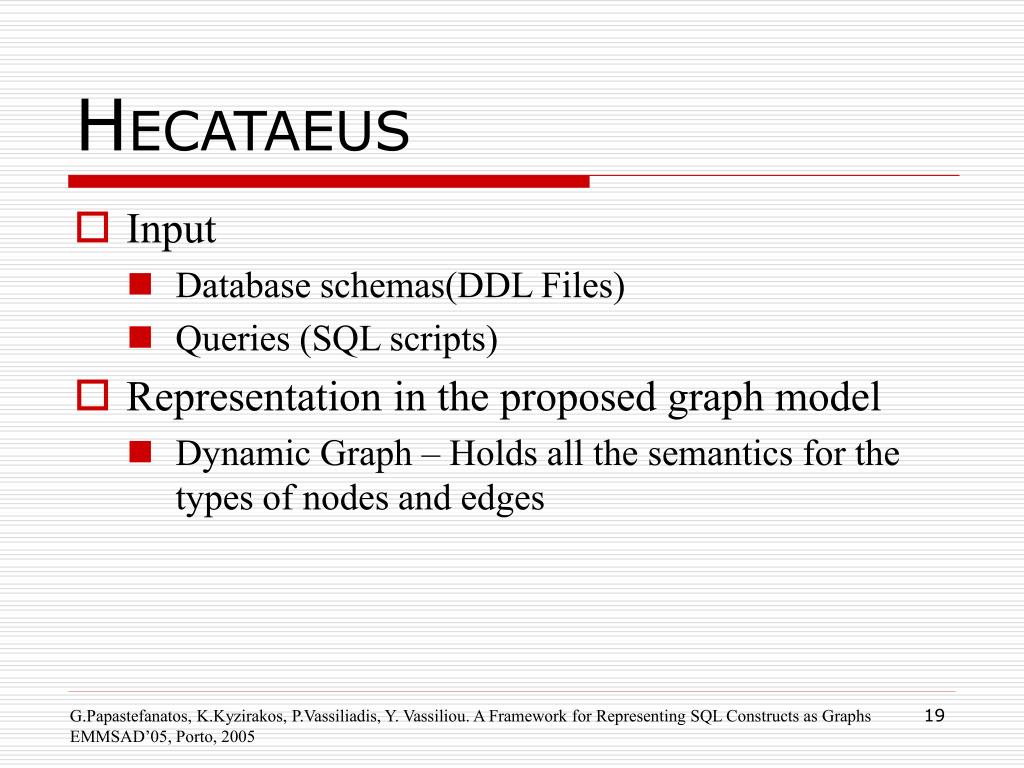

  19. HECATAEUS • Input • Database schemas(DDL Files) • Queries (SQL scripts) • Representation in the proposed graph model • Dynamic Graph – Holds all the semantics for the types of nodes and edges G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

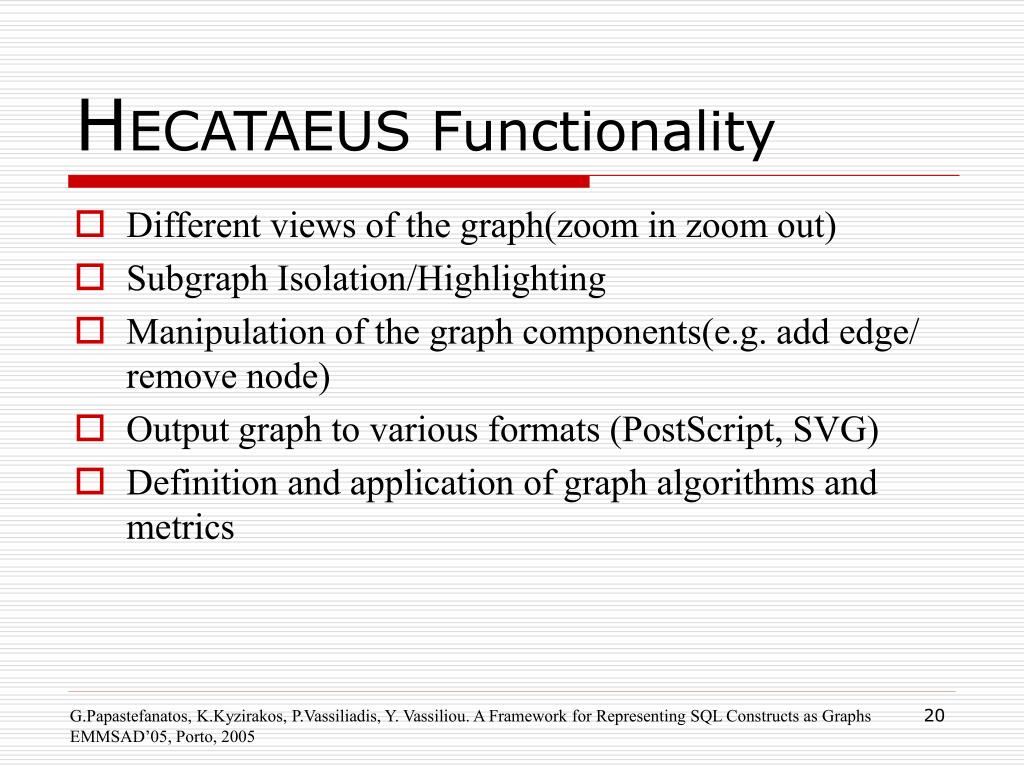

  20. HECATAEUS Functionality • Different views of the graph(zoom in zoom out) • Subgraph Isolation/Highlighting • Manipulation of the graph components(e.g. add edge/ remove node) • Output graph to various formats (PostScript, SVG) • Definition and application of graph algorithms and metrics G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

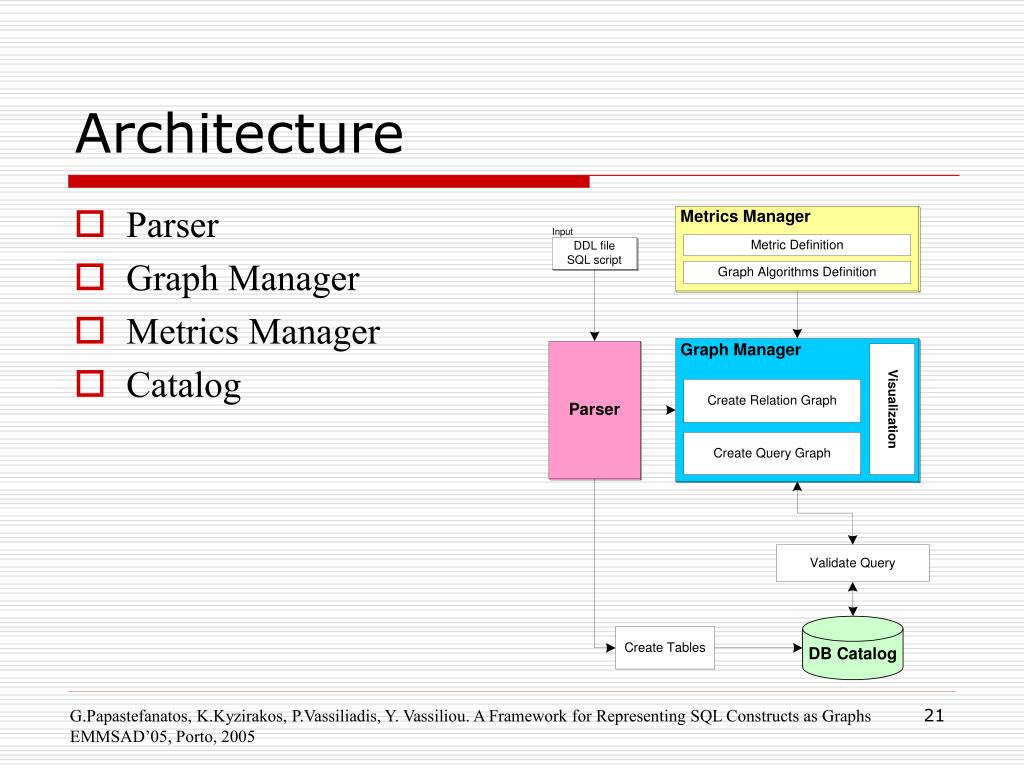

  21. Architecture • Parser • Graph Manager • Metrics Manager • Catalog G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

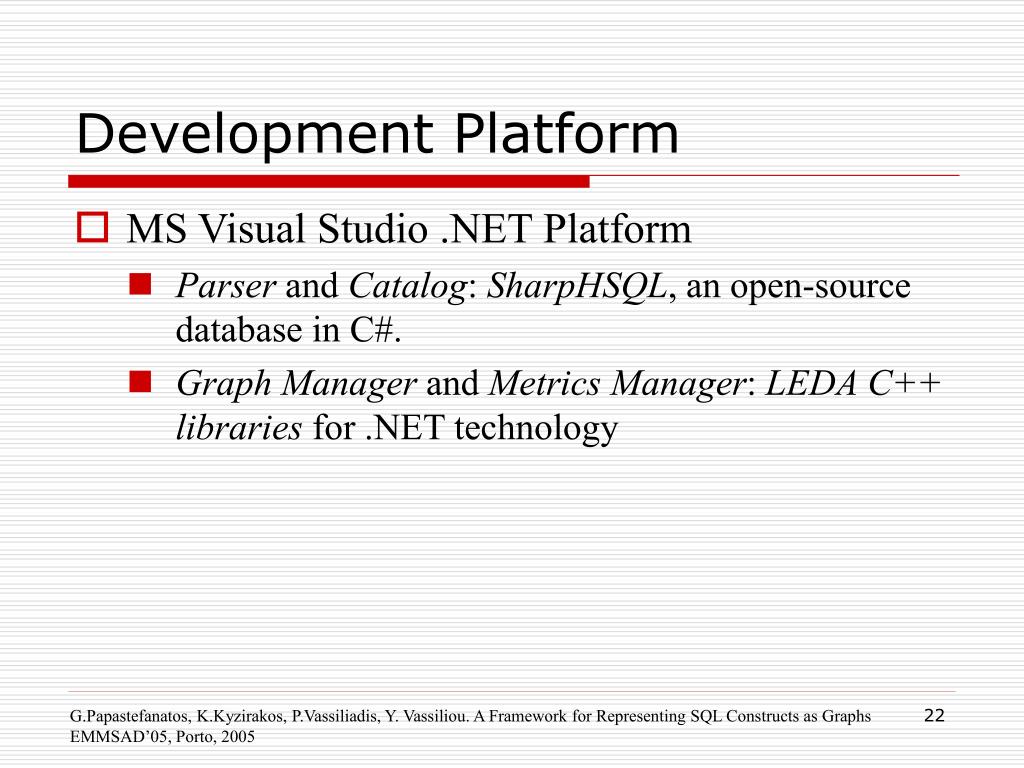

  22. Development Platform • MS Visual Studio .NETPlatform • Parser and Catalog: SharpHSQL, an open-source database inC#. • Graph Manager and Metrics Manager:LEDAC++ libraries for .NET technology G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

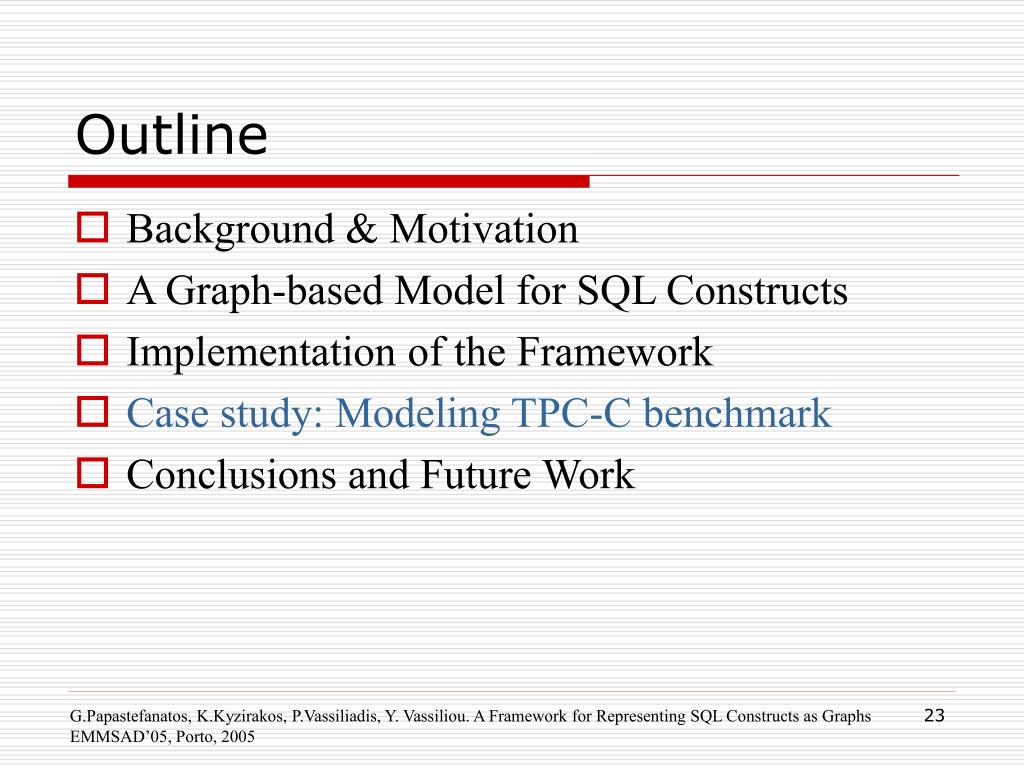

  23. Outline • Background & Motivation • A Graph-based Model for SQL Constructs • Implementation of the Framework • Case study: Modeling TPC-C benchmark • Conclusions and Future Work G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

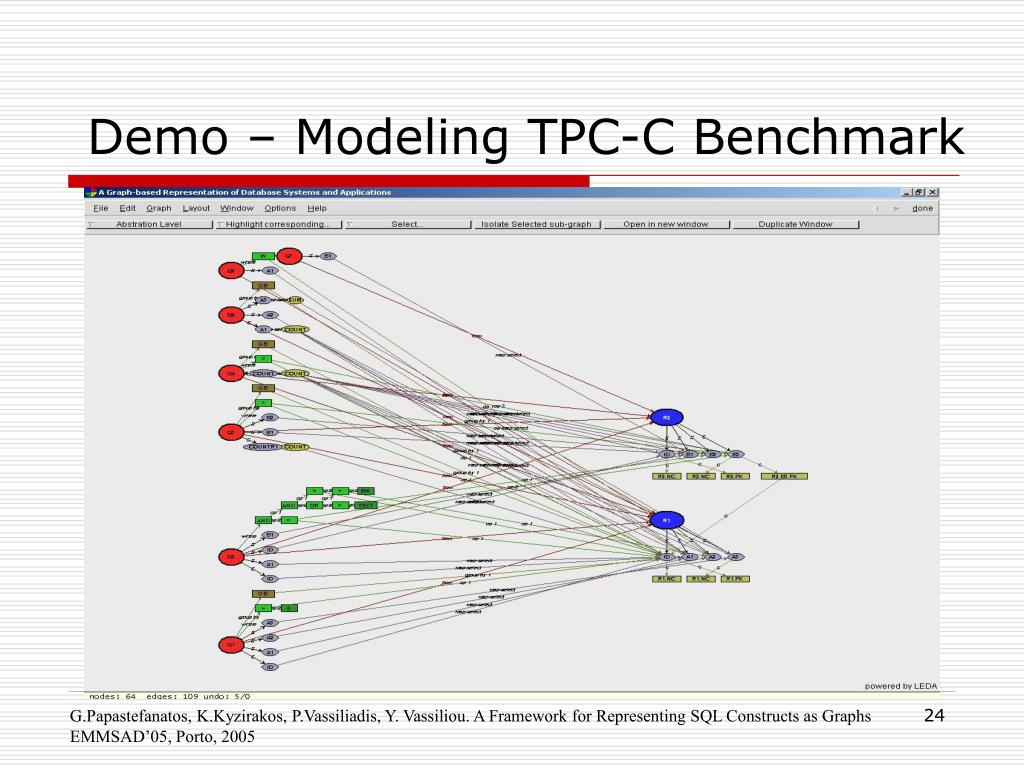

  24. Demo – Modeling TPC-C Benchmark G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

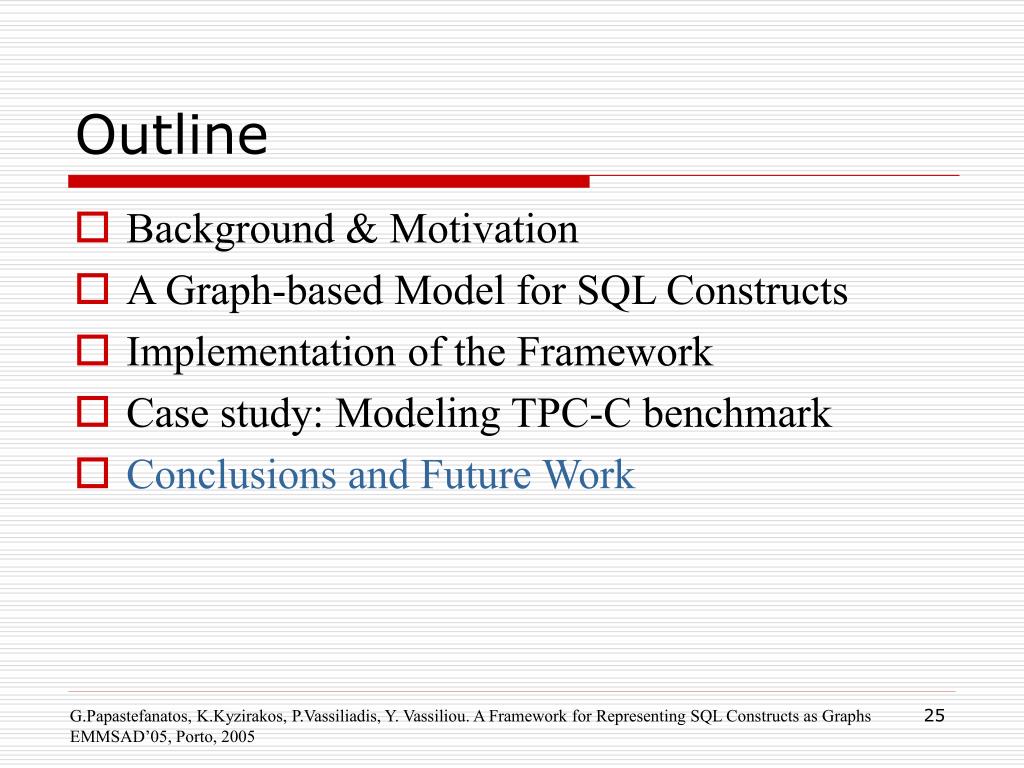

  25. Outline • Background & Motivation • A Graph-based Model for SQL Constructs • Implementation of the Framework • Case study: Modeling TPC-C benchmark • Conclusions and Future Work G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

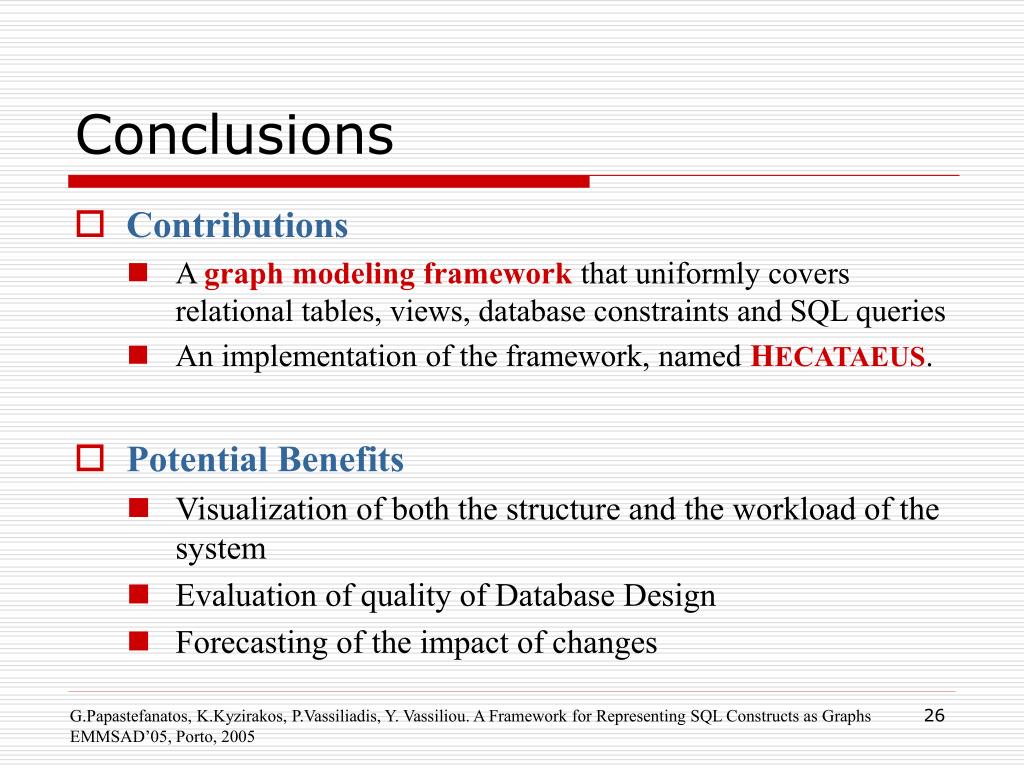

  26. Conclusions • Contributions • A graph modeling framework that uniformly covers relational tables, views, database constraints and SQL queries • An implementation of the framework, named HECATAEUS. • Potential Benefits • Visualization of both the structure and the workload of the system • Evaluation of quality of Database Design • Forecasting of the impact of changes G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

  27. Future Work - Research in Progress • Definition of Metrics and Algorithms for Evolution • Definition of Metrics for Design Quality • Application of graph-theoretic metrics and algorithms • Reverse functionality. Automatic DDL and SQL code creation from graphs • Integration of Hecataeus with a Repository G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005

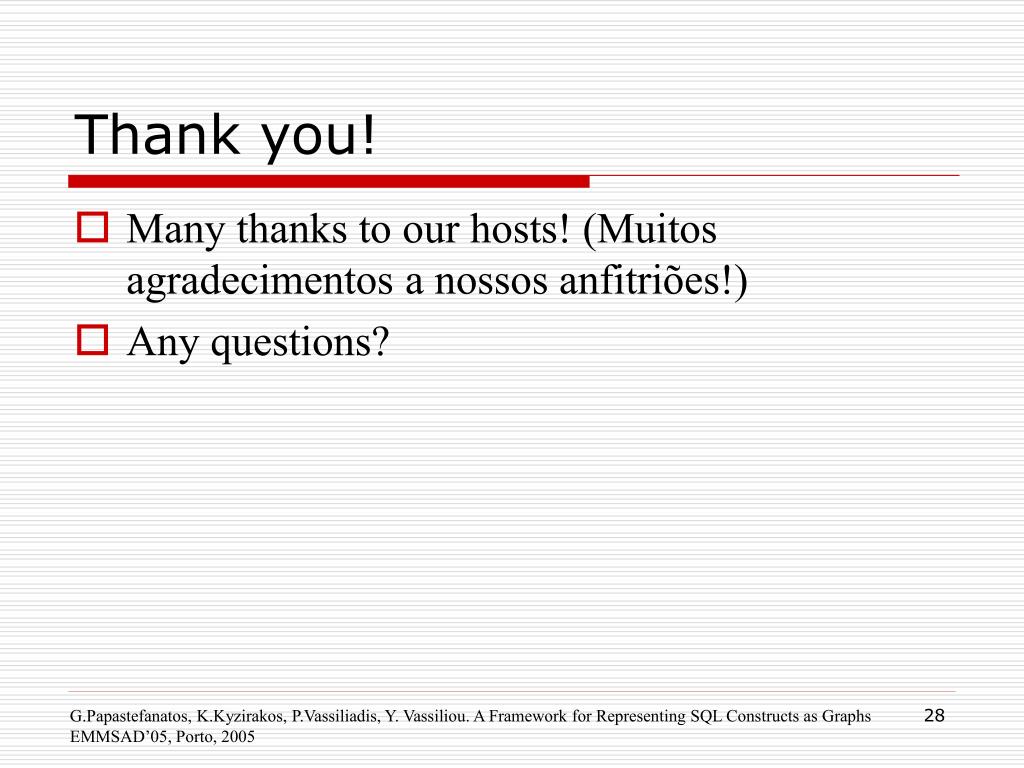

  28. Thank you! • Many thanks to our hosts! (Muitos agradecimentos a nossos anfitriões!) • Any questions? G.Papastefanatos, K.Kyzirakos, P.Vassiliadis, Y. Vassiliou. A Framework for Representing SQL Constructs as Graphs EMMSAD’05, Porto, 2005
