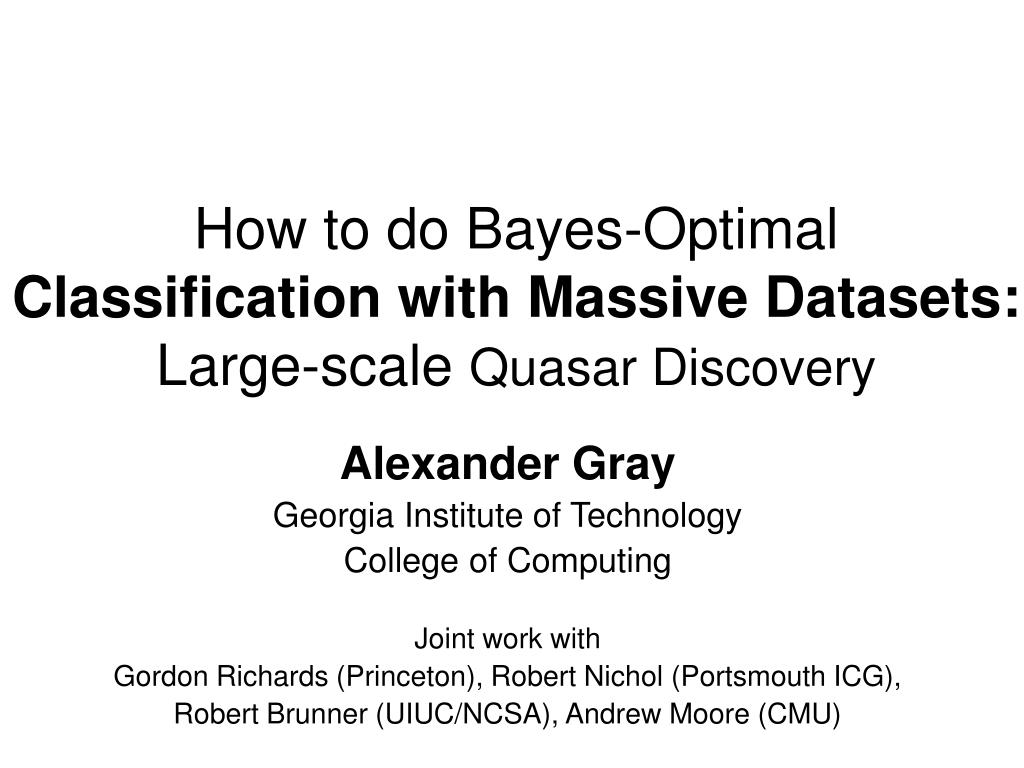

  1. How to do Bayes-Optimal Classification with Massive Datasets:Large-scale Quasar Discovery Alexander Gray Georgia Institute of Technology College of Computing Joint work with Gordon Richards (Princeton), Robert Nichol (Portsmouth ICG), Robert Brunner (UIUC/NCSA), Andrew Moore (CMU)

  2. What I do Often the most general and powerful statistical (or “machine learning”) methods are computationally infeasible. I design machine learning methods and fast algorithms to make such statistical methods possible on massive datasets (without sacrificing accuracy).

  3. Quasar detection • Science motivation: use quasars to trace the distant/old mass in the universe • Thus we want lots of sky  SDSS DR1, 2099 square degrees, to g = 21 • Biggest quasar catalog to date: tens of thousands • Should be ~1.6M z<3 quasars to g=21

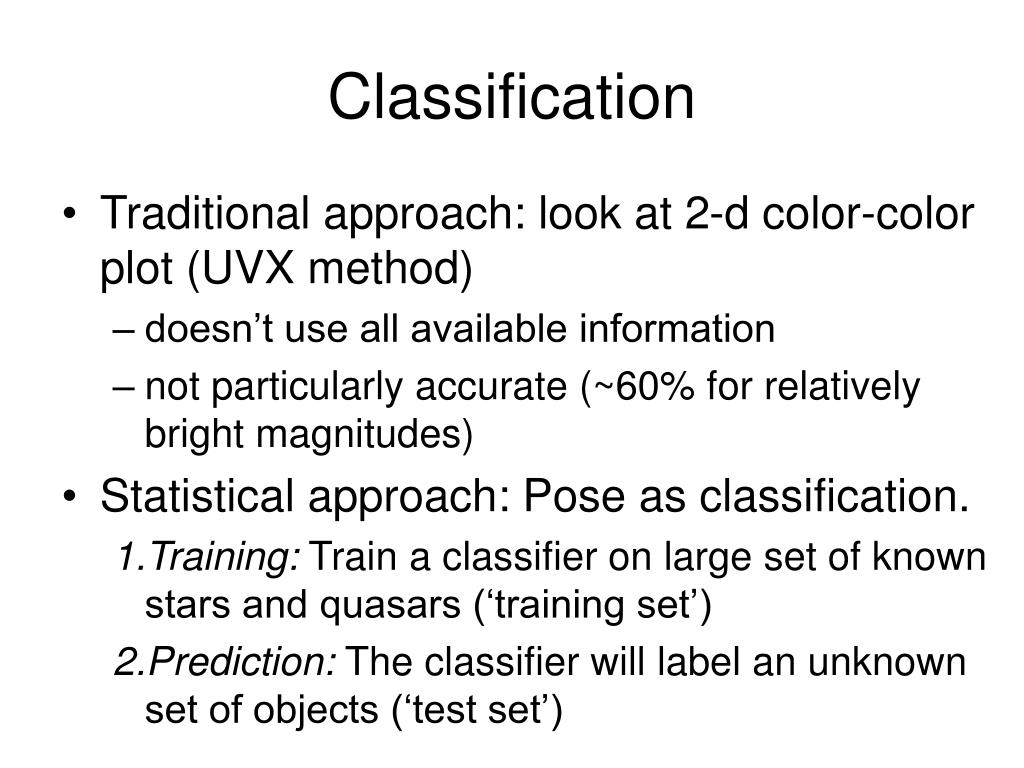

  4. Classification • Traditional approach: look at 2-d color-color plot (UVX method) • doesn’t use all available information • not particularly accurate (~60% for relatively bright magnitudes) • Statistical approach: Pose as classification. • Training: Train a classifier on large set of known stars and quasars (‘training set’) • Prediction: The classifier will label an unknown set of objects (‘test set’)

  5. Which classifier? • Statistical question: Must handle arbitrary nonlinear decision boundaries, noise/overlap • Computational question:We have 16,713 quasars from [Schneider et al. 2003] (.08<z<5.4), 478,144 stars (semi-cleaned sky sample) – way too big for many classifiers • Scientific question: We must be able to understand what it’s doing and why, and inject scientific knowledge

  6. Which classifier? • Popular answers: • logistic regression: fast but linear only • naïve Bayes classifier: fast but quadratic only • decision tree: fast but not the most accurate • support vector machine: accurate but O(N3) • boosting: accurate but requires thousands of classifiers • neural net: reasonable compromise but awkward/human-intensive to train • The good nonparametric methods are also black boxes – hard/impossible to interpret

  7. Main points of this talk • nonparametric Bayes classifier • can be made fast (algorithm design) • accurate and tractable  science

  8. Main points of this talk • nonparametric Bayes classifier • can be made fast (algorithm design) • accurate and tractable  science

  9. Optimal decision theory Quasar density Star density density f(x) x Optimal decision boundary

  10. Bayes’ rule, for Classification

  11. So how do you estimate an arbitrary density?

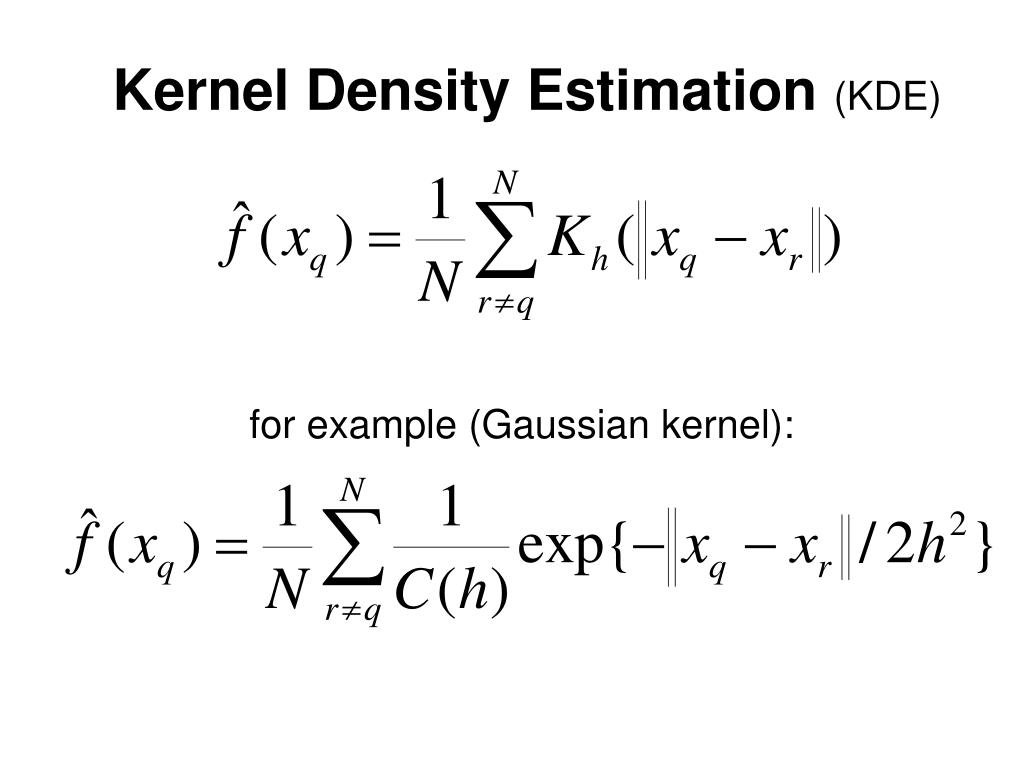

  12. Kernel Density Estimation (KDE) for example (Gaussian kernel):

  13. Kernel Density Estimation (KDE) • There is a principled way to choose the optimal smoothing parameter h • Guaranteed to converge to the true underlying density (consistency) • Nonparametric – distribution need not be known

  14. Nonparametric Bayes Classifier (NBC) [1951] • Nonparametric – distribution can be arbitrary • This is Bayes-optimal, given the right densities • Very clear interpretation • Parameter choices are easy to understand, automatable • There’s a way to enter prior information Main obstacle:

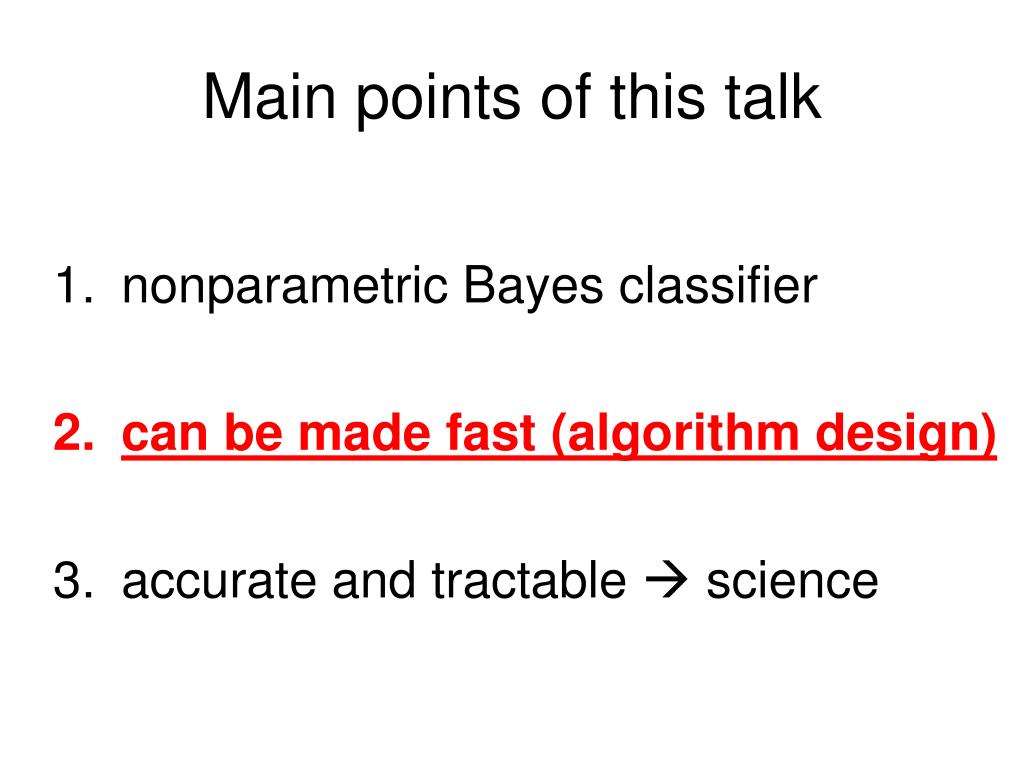

  15. Main points of this talk • nonparametric Bayes classifier • can be made fast (algorithm design) • accurate and tractable  science

  16. kd-trees: most widely-used space-partitioning tree [Bentley 1975], [Friedman, Bentley & Finkel 1977] • Univariate axis-aligned splits • Split on widest dimension • O(N log N) to build, O(N) space

  17. A kd-tree: level 1

  18. A kd-tree: level 2

  19. A kd-tree: level 3

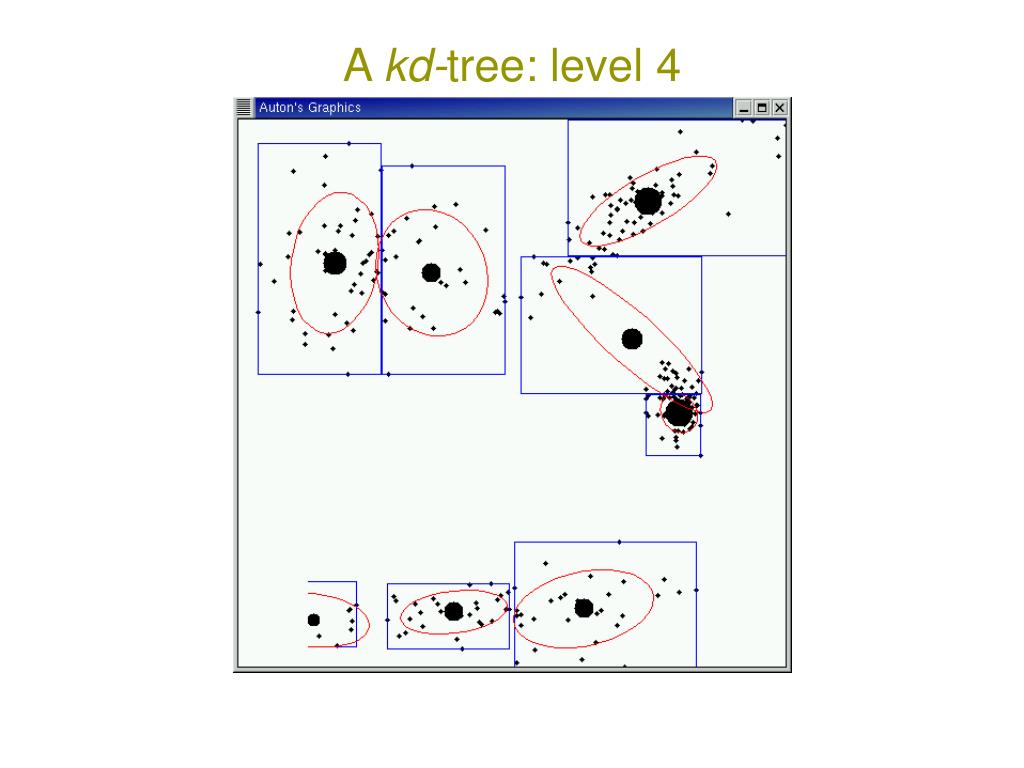

  20. A kd-tree: level 4

  21. A kd-tree: level 5

  22. A kd-tree: level 6

  23. For higher dimensions: ball-trees (computational geometry)

  24. We have a fast algorithm for Kernel Density Estimation (KDE) • Generalization of N-body algorithms (multipole expansions optional) • Dual kd-tree traversal: O(N) • Works in arbitrary dimension • The fastest method to date [Gray & Moore 2003]

  25. But we need a fast algorithm for the Nonparametric Bayes Classifier (NBC) We could just use the KDE algorithm for each class. But: • for the Gaussian kernel this is approximate • choosing the smoothing parameter to minimize (cross-validated) classification error is more accurate

  26. Leave-one-out cross-validation Observations: • Doing bandwidth selection requires only prediction. • To predict class label, we don’t need to compute the full densities. Just which one is higher.  We can make a fast exact algorithm for prediction

  27. Fast NBC prediction algorithm 1. Build a tree for each class

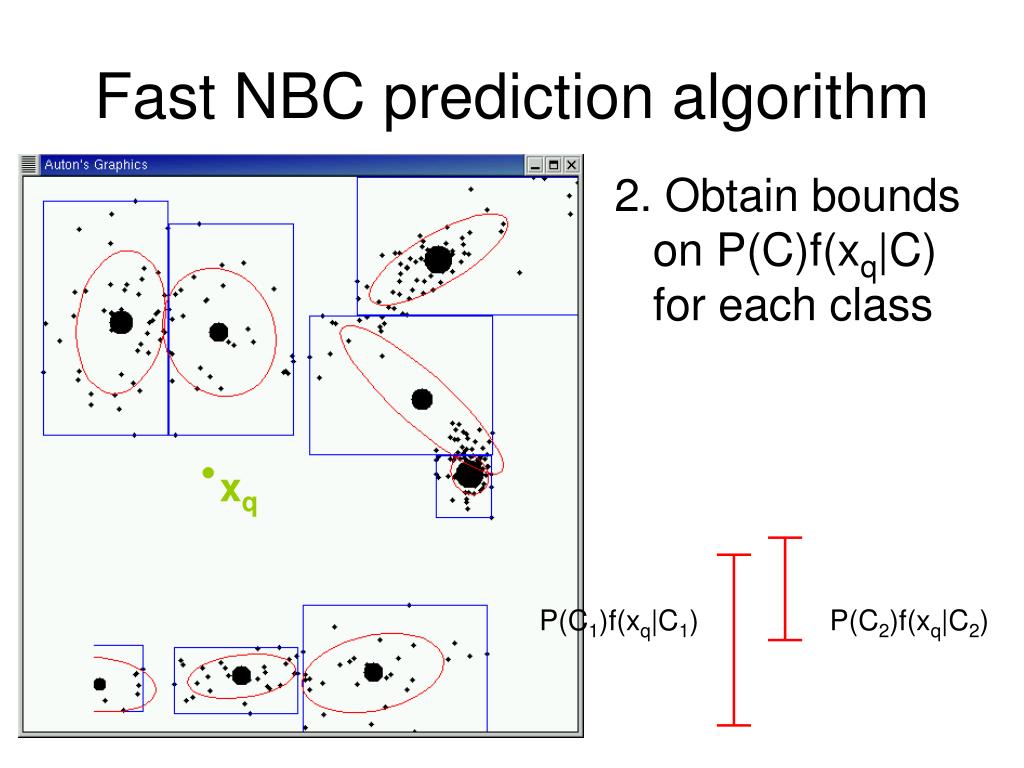

  28. Fast NBC prediction algorithm 2. Obtain bounds on P(C)f(xq|C) for each class xq P(C1)f(xq|C1) P(C2)f(xq|C2)

  29. Fast NBC prediction algorithm 3. Choose the next node-pair with priority = bound difference xq P(C1)f(xq|C1) P(C2)f(xq|C2)

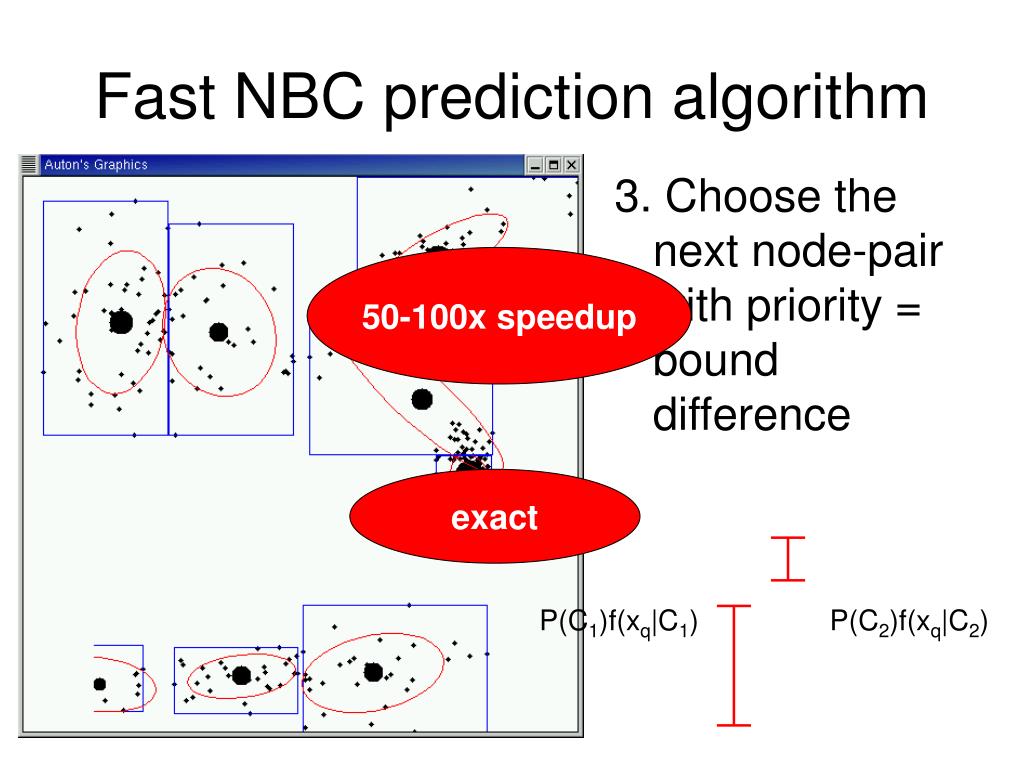

  30. Fast NBC prediction algorithm 3. Choose the next node-pair with priority = bound difference 50-100x speedup exact P(C1)f(xq|C1) P(C2)f(xq|C2)

  31. Main points of this talk • nonparametric Bayes classifier • can be made fast (algorithm design) • accurate and tractable  science

  32. Resulting quasar catalog • 100,563 UVX quasar candidates • Of 22,737 objects w/ spectra, 97.6% are quasars. We estimate 95.0% efficiency overall. (aka “purity”: good/all) • 94.7% completeness w.r.t. g<19.5 UVX quasars from DR1 (good/all true) • Largest mag. range ever: 14.2<g<21.0 • [Richards et al. 2004, ApJ] • More recently, 195k quasars

  33. Cosmic magnification [Scranton et al. 2005] more area more flux 13.5M galaxies, 195,000 quasars Most accurate measurement of cosmic magnification to date [Nature, April 2005]

  34. Next steps (in progress) • better accuracy via coordinate-dependent priors • 5 magnitudes • use simulated quasars to push to higher redshift • use DR4 higher-quality data • faster bandwidth search • 500k quasars easily, then 1M

  35. Bigger picture • nearest neighbor (1-,k-,all-,approx,clsf) [Gray & Moore 2000], [Miller et al. 2003], etc. • n-point correlation functions [Gray & Moore 2000], [Moore et al. 2000], [Scranton et al. 2003], [Gray & Moore 2004], [Nichol et al. 2005 in prep.] • density estimation (nonparametric) [Gray & Moore 2000], [Gray & Moore 2003], [Balogh et al. 2003] • Bayes classification (nonparametric) [Richards et al. 2004], [Gray et al. 2005 PhyStat] • nonparametric regression • clustering: k-means and mixture models, more…

  36. Bigger picture fastest algs • nearest neighbor (1-,k-,all-,approx,clsf) [Gray & Moore 2000], [Miller et al. 2003], etc. • n-point correlation functions [Gray & Moore 2000], [Moore et al. 2000], [Scranton et al. 2003], [Gray & Moore 2004], [Nichol et al. 2005 in prep.] • density estimation (nonparametric) [Gray & Moore 2000], [Gray & Moore 2003], [Balogh et al. 2003] • Bayes classification (nonparametric) [Richards et al. 2004], [Gray et al. 2005 PhyStat] • nonparametric regression • clustering: k-means and mixture models, more…

  37. Bigger picture fastest alg • nearest neighbor (1-,k-,all-,approx,clsf) [Gray & Moore 2000], [Miller et al. 2003], etc. • n-point correlation functions [Gray & Moore 2000], [Moore et al. 2000], [Scranton et al. 2003], [Gray & Moore 2004], [Nichol et al. 2005 in prep.] • density estimation (nonparametric) [Gray & Moore 2000], [Gray & Moore 2003], [Balogh et al. 2003] • Bayes classification (nonparametric) [Richards et al. 2004], [Gray et al. 2005 PhyStat] • nonparametric regression • clustering: k-means and mixture models, more… fastest alg

  38. Bigger picture fastest alg • nearest neighbor (1-,k-,all-,approx,clsf) [Gray & Moore 2000], [Miller et al. 2003], etc. • n-point correlation functions [Gray & Moore 2000], [Moore et al. 2000], [Scranton et al. 2003], [Gray & Moore 2004], [Nichol et al. 2005 in prep.] • density estimation (nonparametric) [Gray & Moore 2000], [Gray & Moore 2003], [Balogh et al. 2003] • Bayes classification (nonparametric) [Richards et al. 2004], [Gray et al. 2005 PhyStat] • nonparametric regression • clustering: k-means and mixture models, more… fastest alg fastest alg

  39. Bigger picture fastest alg • nearest neighbor (1-,k-,all-,approx,clsf) [Gray & Moore 2000], [Miller et al. 2003], etc. • n-point correlation functions [Gray & Moore 2000], [Moore et al. 2000], [Scranton et al. 2003], [Gray & Moore 2004], [Nichol et al. 2005 in prep.] • density estimation (nonparametric) [Gray & Moore 2000], [Gray & Moore 2003], [Balogh et al. 2003] • Bayes classification (nonparametric) [Richards et al. 2004], [Gray et al. 2005 PhyStat] • nonparametric regression • clustering: k-means and mixture models, more… fastest alg fastest alg fastest alg

  40. Bigger picture fastest alg • nearest neighbor (1-,k-,all-,approx,clsf) [Gray & Moore 2000], [Miller et al. 2003], etc. • n-point correlation functions [Gray & Moore 2000], [Moore et al. 2000], [Scranton et al. 2003], [Gray & Moore 2004], [Nichol et al. 2005 in prep.] • density estimation (nonparametric) [Gray & Moore 2000], [Gray & Moore 2003], [Balogh et al. 2003] • Bayes classification (nonparametric) [Richards et al. 2004], [Gray et al. 2005 PhyStat] • nonparametric regression • clustering: k-means and mixture models, others • support vector machines, maybe fastest alg fastest alg fastest alg we’ll see…

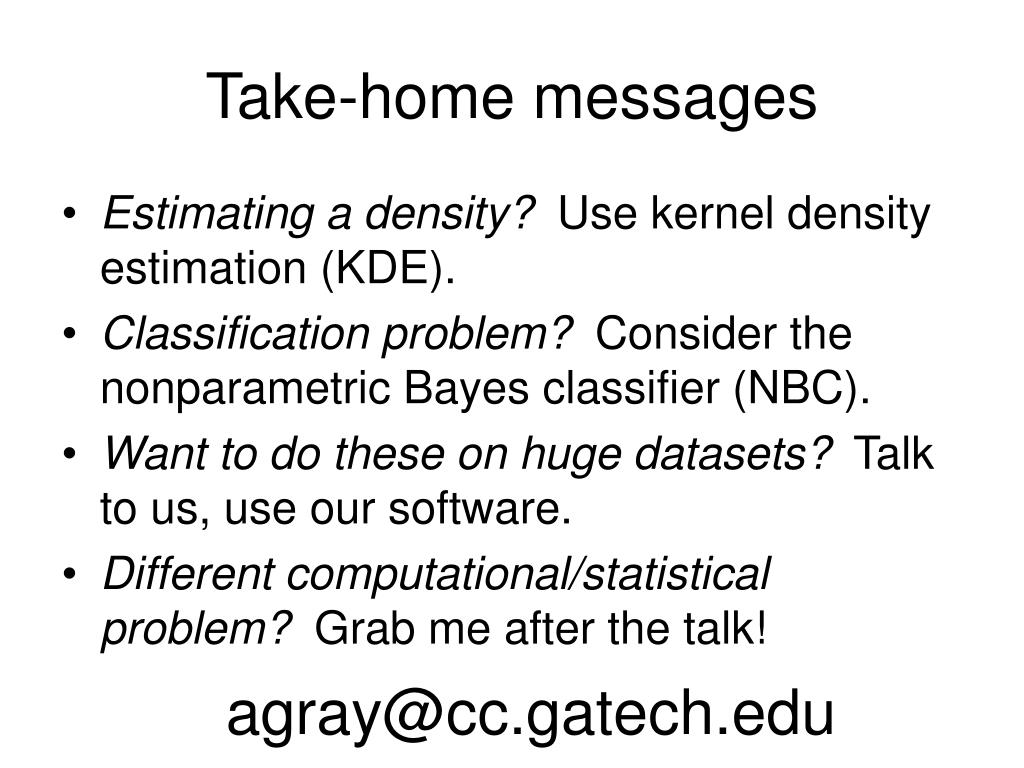

  41. Take-home messages • Estimating a density? Use kernel density estimation (KDE). • Classification problem? Consider the nonparametric Bayes classifier (NBC). • Want to do these on huge datasets? Talk to us, use our software. • Different computational/statistical problem? Grab me after the talk! agray@cc.gatech.edu
