New Insights into Semidefinite Programming for Discrete Optimization

1. New Insights into Semidefinite Programming for Discrete Optimization Moses Charikar Princeton University

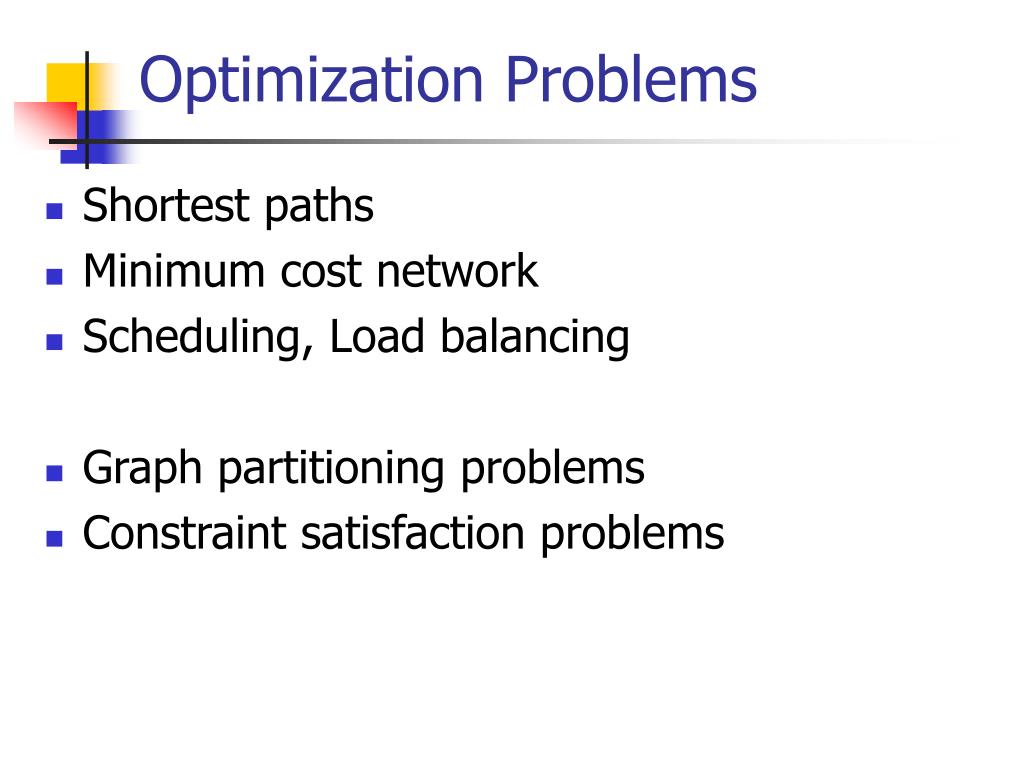

2. Optimization Problems • Shortest paths • Minimum cost network • Scheduling, Load balancing • Graph partitioning problems • Constraint satisfaction problems

3. Approximation Algorithms • Many optimization problems NP-hard • Alternate approach: heuristics with provable guarantees • Guarantee: Alg(I)   OPT(I) (maximization)Alg(I)   OPT(I) (minimization) • Complexity theory gives bounds on best approximation ratios possible

4. i ¢ x m n c b A ¸ x Mathematical Programming approaches • Sophisticated tools from convex optimization • e.g. Linear programming • Can find optimum solution in polynomial time

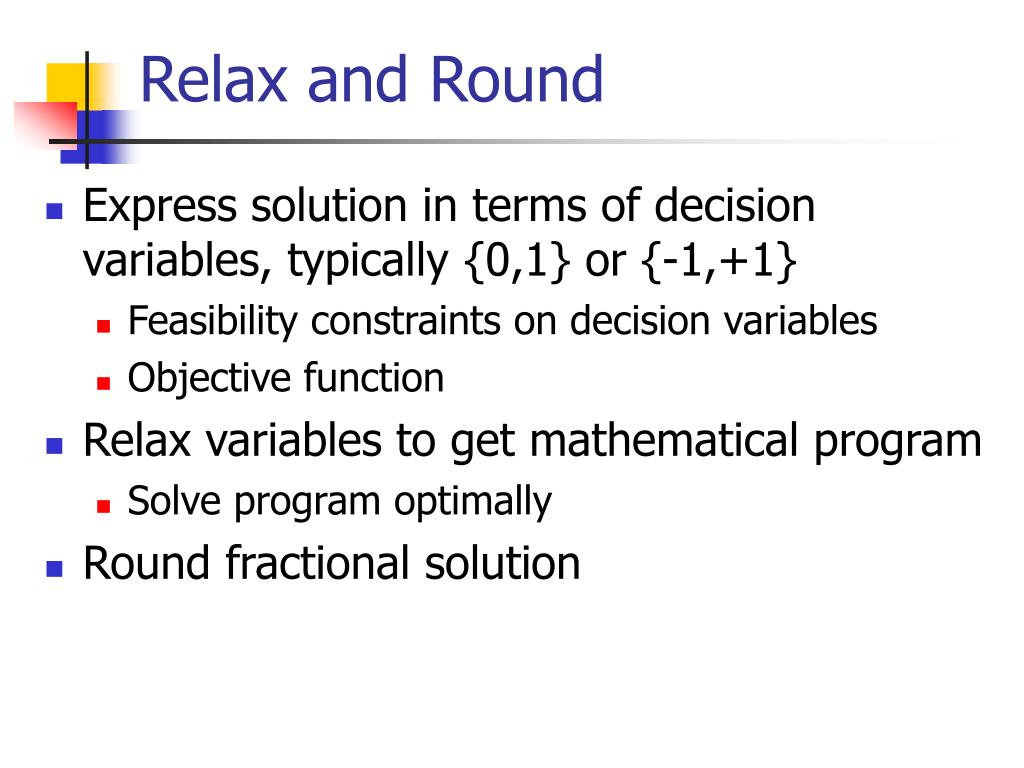

5. Relax and Round • Express solution in terms of decision variables, typically {0,1} or {-1,+1} • Feasibility constraints on decision variables • Objective function • Relax variables to get mathematical program • Solve program optimally • Round fractional solution

6. LP is a widely used tool in designing approximation algorithms • Interpret variables values as probabilities, distances, etc. integer solutions fractional solutions

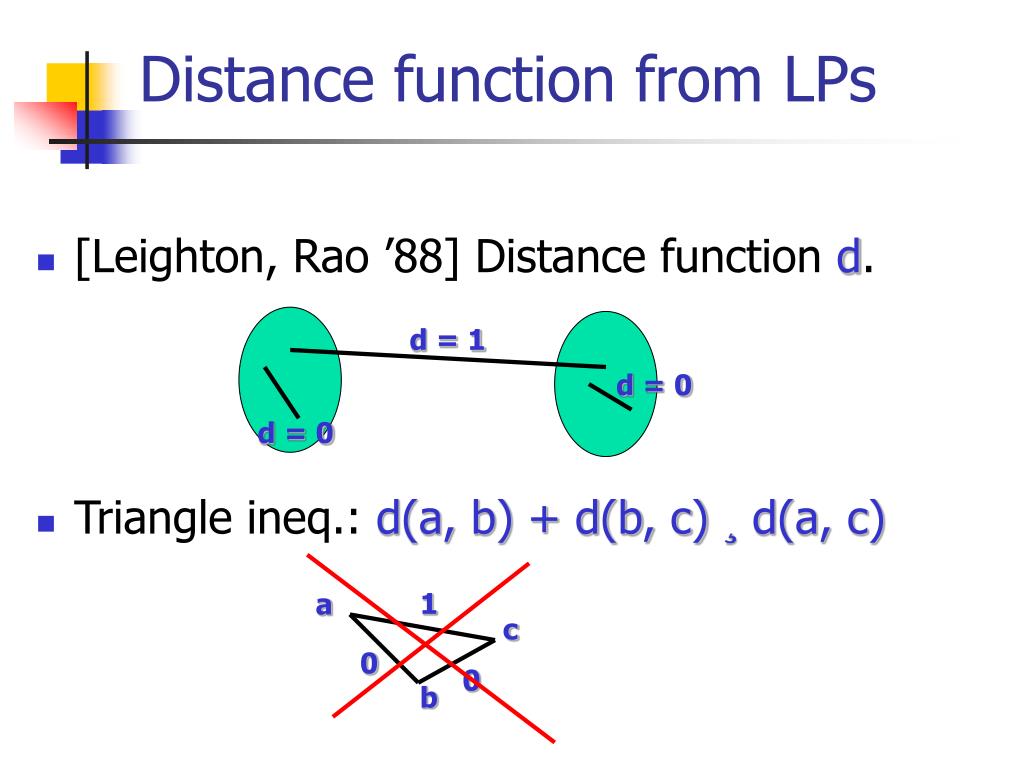

7. Distance function from LPs • [Leighton, Rao ’88] Distance function d. • Triangle ineq.:d(a, b) + d(b, c) ¸ d(a, c) d = 1 d = 0 d = 0 1 a c 0 0 b

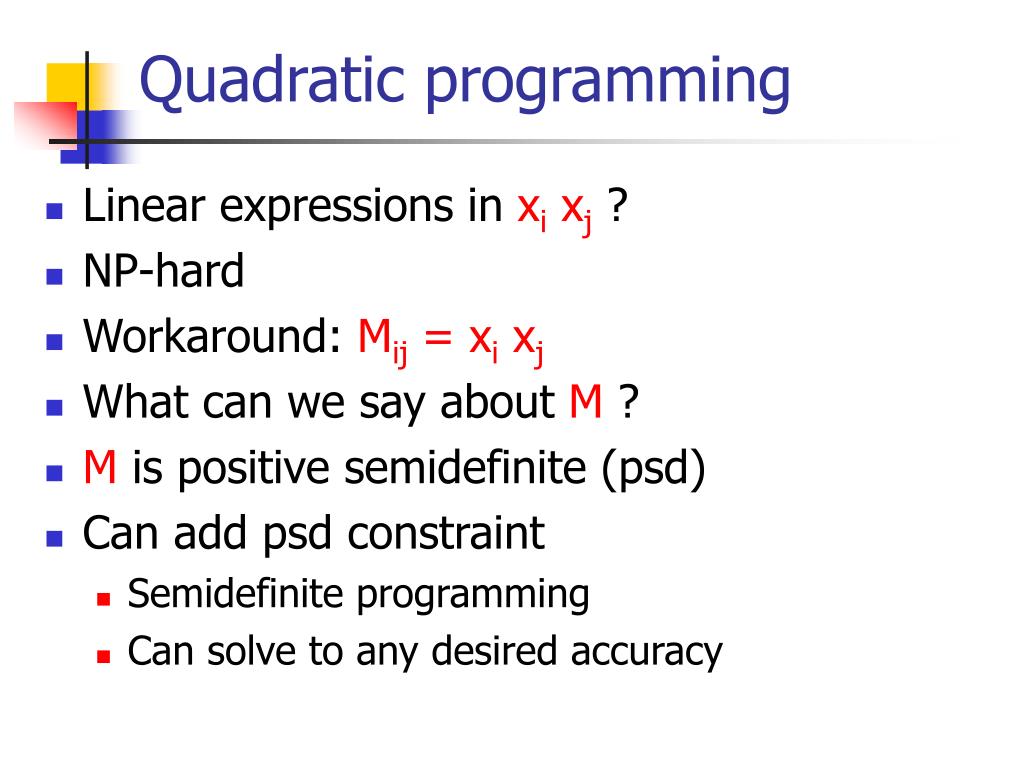

8. Quadratic programming • Linear expressions in xi xj ? • NP-hard • Workaround: Mij = xi xj • What can we say about M ? • M is positive semidefinite (psd) • Can add psd constraint • Semidefinite programming • Can solve to any desired accuracy

9. Positive Semidefinite Matrices • M is psd iff • xT M x  0 for all x • All eigenvalues of M are non-negative • M = VT V (Cholesky decomposition) • Mij = vi vj

10. Vector Programming • Variables are vectors • Linear constraints on dot products • Linear objective on dot products

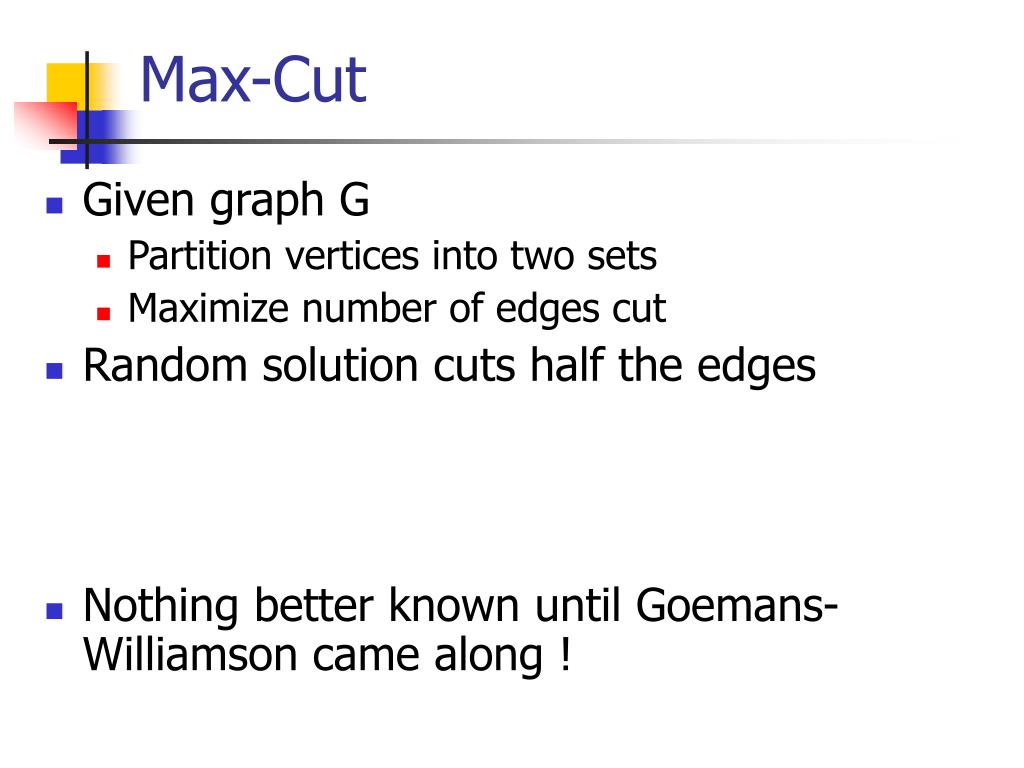

11. Max-Cut • Given graph G • Partition vertices into two sets • Maximize number of edges cut • Random solution cuts half the edges • Nothing better known until Goemans-Williamson came along !

12. 2 2 ( ( ) ) ¡ ¡ x v v x X X i i j j m m a a x x 4 4 ( ( ) ) E E i i j j 2 2 ; ; f l l 2 i 1 f l l i 1 ¢ v v o r a = i i x o r a = i Relaxation for Max Cut

13. SDP solution • Geometric embedding of vertices • Hyperplane rounding

14. [ ] = µ E t c u ¼ i ¸ m n ( ( ) ) = µ S D P 1 2 ¡ µ c o s Rounding SDP solution • Pick random vector r • Partition vertices according to sign(vi·r) • Prob[(i,j) cut] = ij / • Contribution of (i,j) to SDP = (1-cos ij)/2 • 0.878 approximation

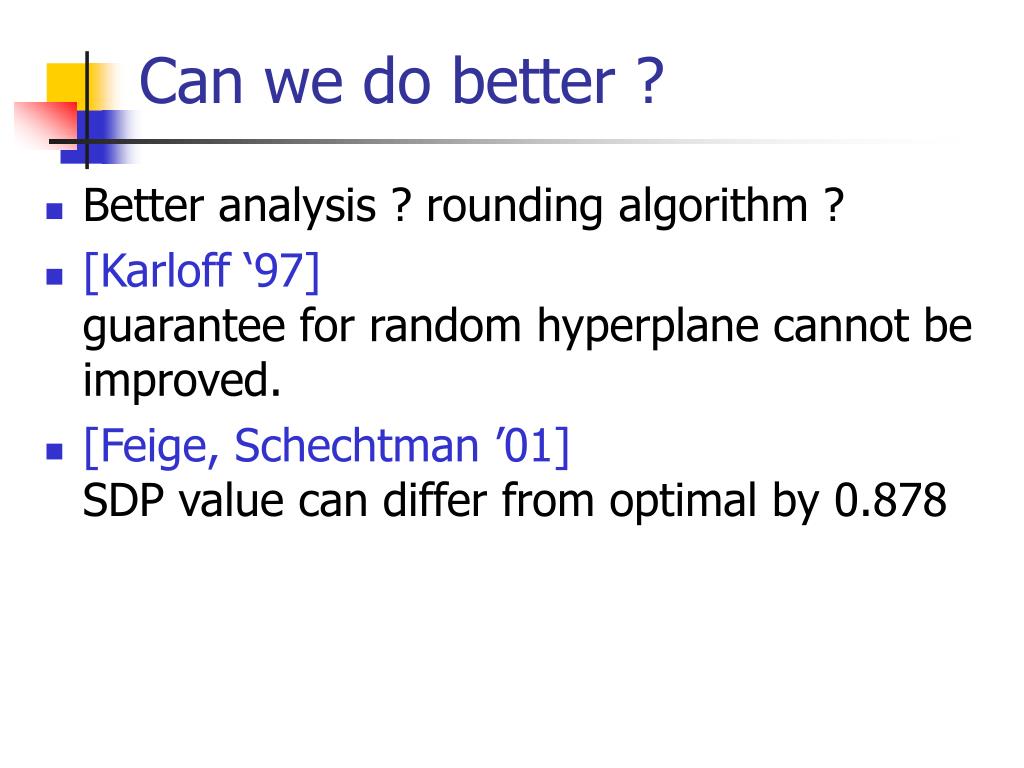

15. Can we do better ? • Better analysis ? rounding algorithm ? • [Karloff ‘97] guarantee for random hyperplane cannot be improved. • [Feige, Schechtman ’01]SDP value can differ from optimal by 0.878

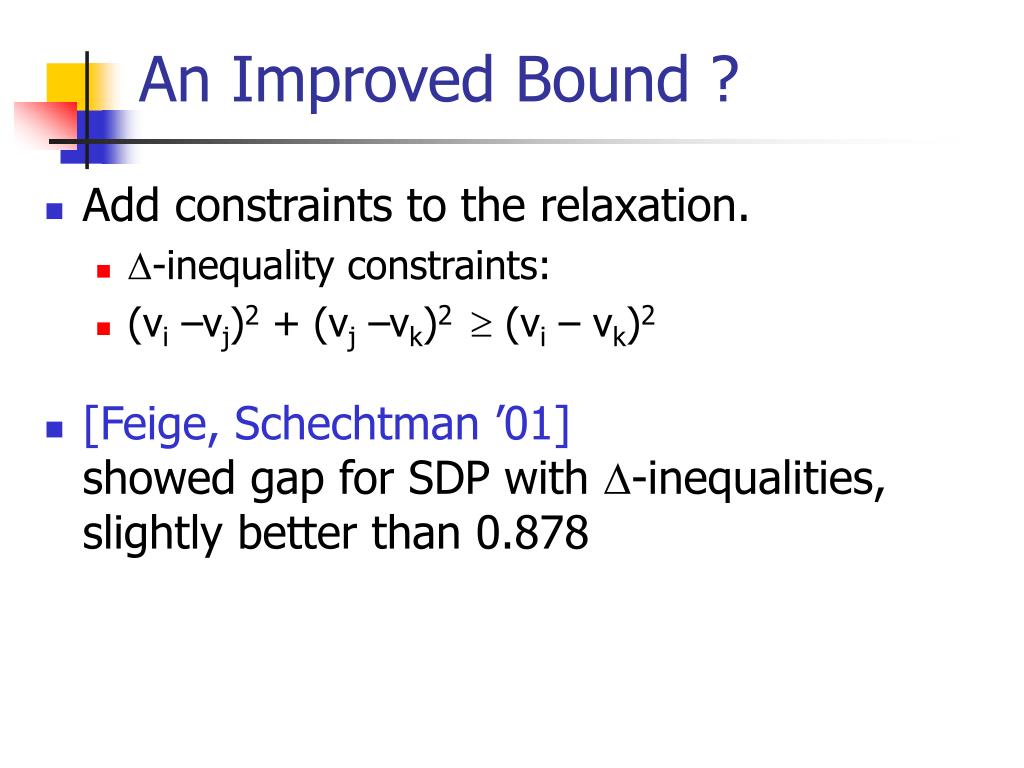

16. An Improved Bound ? • Add constraints to the relaxation. • -inequality constraints: • (vi –vj)2 + (vj –vk)2  (vi – vk)2 • [Feige, Schechtman ’01]showed gap for SDP with -inequalities, slightly better than 0.878

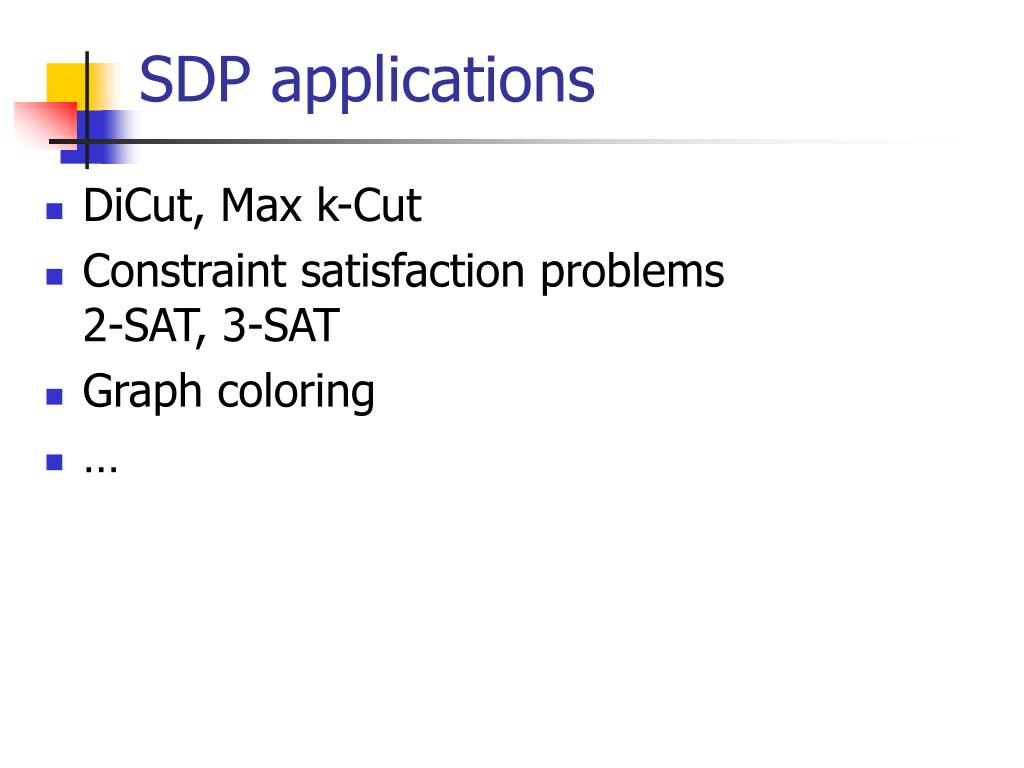

17. SDP applications • DiCut, Max k-Cut • Constraint satisfaction problems2-SAT, 3-SAT • Graph coloring • …

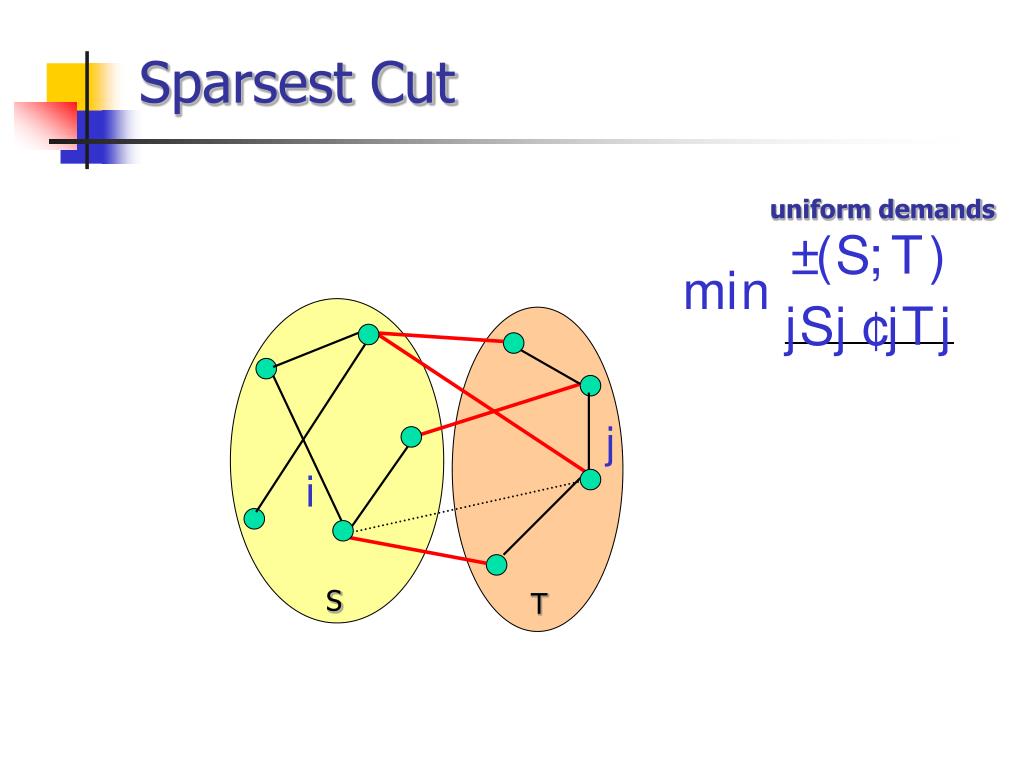

18. j i Sparsest Cut uniform demands ( ) ± S T ; i m n j j j j S T ¢ S T

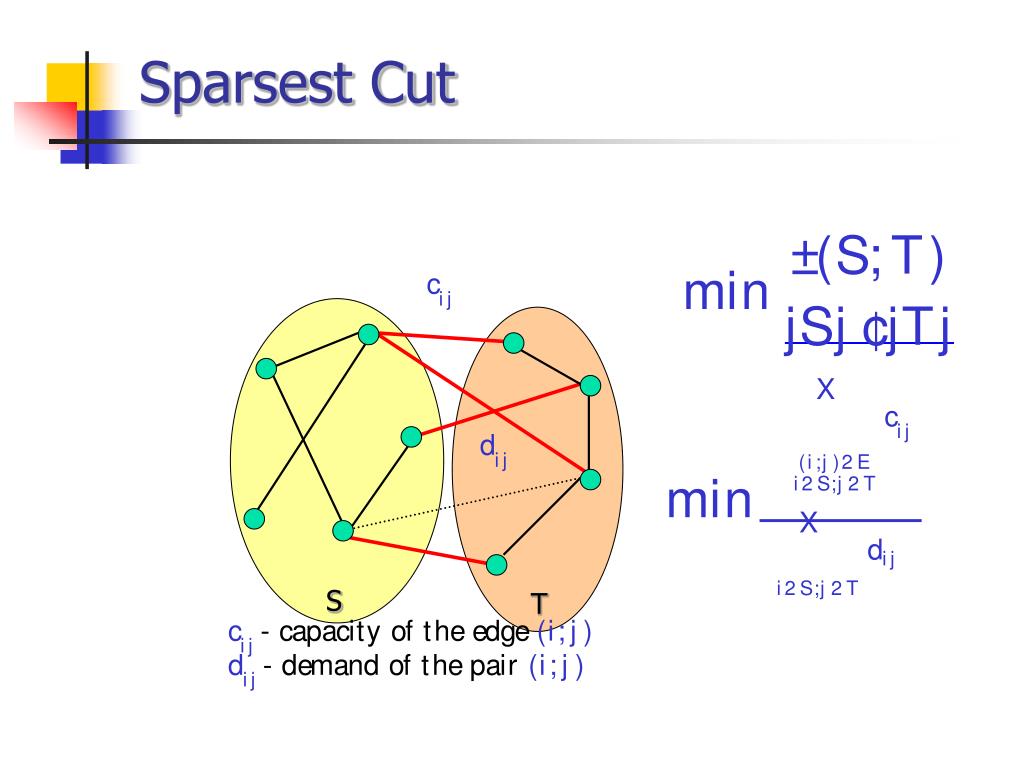

19. ( ) d f h d i i j t t c c - c a p a c y o e e g e i i i j j j ; X X ( ) d d d f h d i i j t - e m a n o e p a r c i j i i j j ; ( S ) T i j E i j 2 2 2 ; ; S T i j 2 2 ; ( ) ± S T i ; m n i m n j j j j S T ¢ Sparsest Cut S T

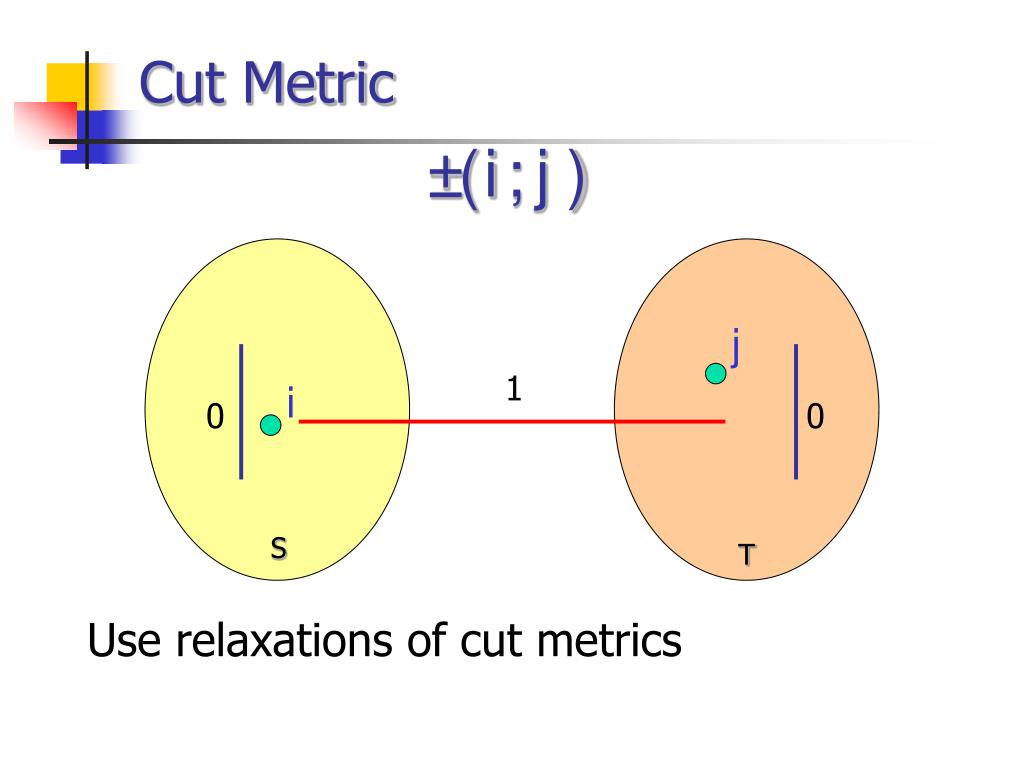

20. i j ( ) ± i j ; Cut Metric 1 0 0 S T Use relaxations of cut metrics

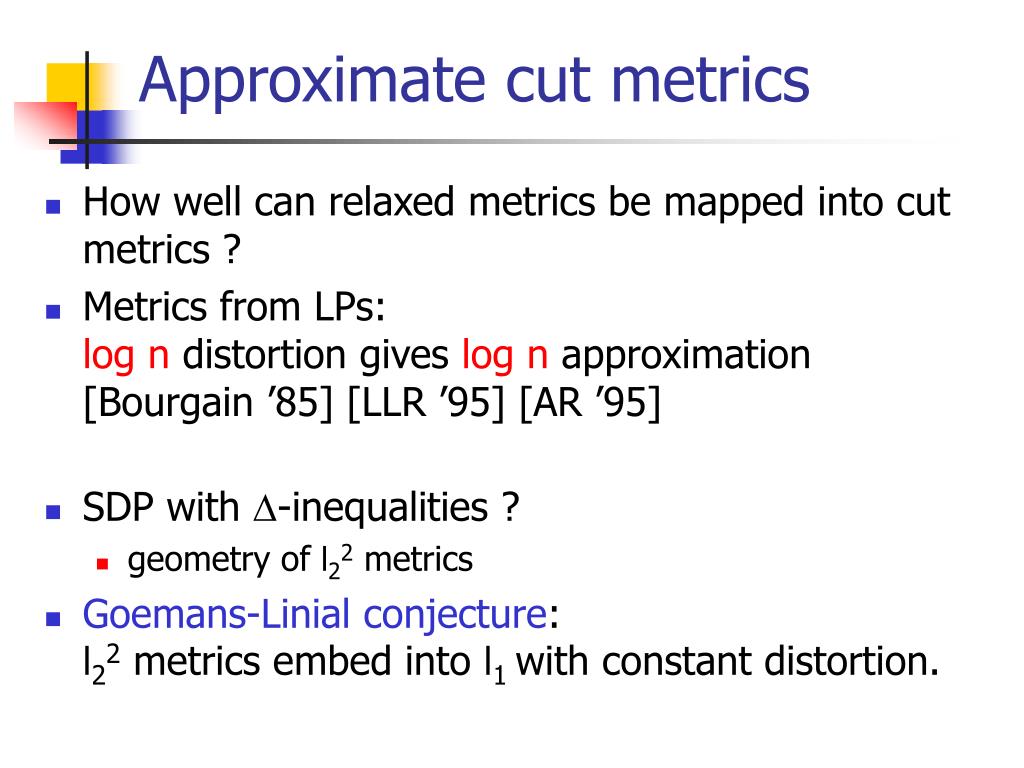

21. Approximate cut metrics • How well can relaxed metrics be mapped into cut metrics ? • Metrics from LPs: log n distortion gives log n approximation[Bourgain ’85] [LLR ’95] [AR ’95] • SDP with -inequalities ? • geometry of l22 metrics • Goemans-Linial conjecture:l22 metrics embed into l1 with constant distortion.

22. p l o g n Arora-Rao-Vazirani • [ARV ’04] • Breakthrough for SDPs with -inequalities • approximation for balanced cut and sparsest cut

23. ARV-Separation Theorem • [Arora, Rao, Vazirani ’04, • Lee ‘05]: • Unit vectors visatisfy triangle inequalities: • |vi – vj|2 + |vj – vk|2¸ |vi – vk|2 • (and a spreading constraint) • ) sets S and T, that: • =(1/(log n)½) separated • contain a const. fraction of all vertices (each) S  T

24. p p l l o o g g n n Applications • min unCut • approximation [ACMM ’05] • Min 2-CNF deletion • approximation [ACMM ’05] • Directed analog of ARV separation lemma

25. Directed Distances • Choose an arbitrary unit vector v0 • Define directed symmetric semimetric d as follows: d(vi , vj) = |vi – vj|2 + 2hvi – vj , v0i = 2hv0 + vi , v0 – vji = |vi – vj|2 + |v0 – vj|2 – |v0 – vi|2 d = 1 d = 0 d = 0 d = 0 true false vi = v vi = -v

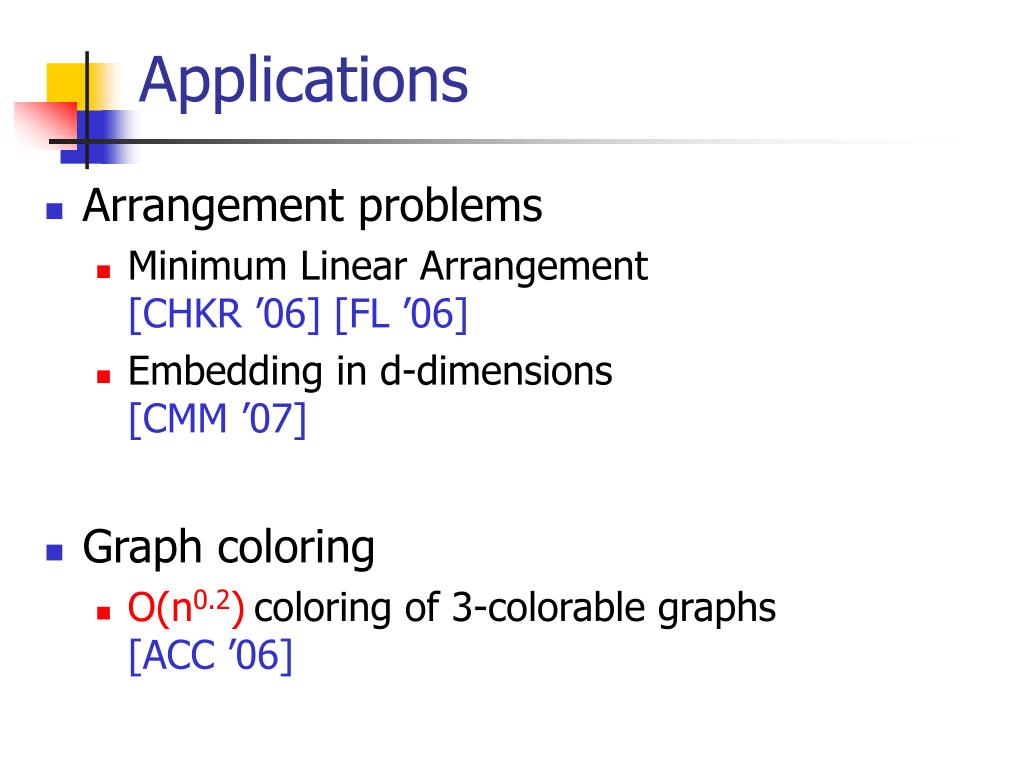

26. Applications • Arrangement problems • Minimum Linear Arrangement [CHKR ’06] [FL ’06] • Embedding in d-dimensions[CMM ’07] • Graph coloring • O(n0.2)coloring of 3-colorable graphs[ACC ’06]

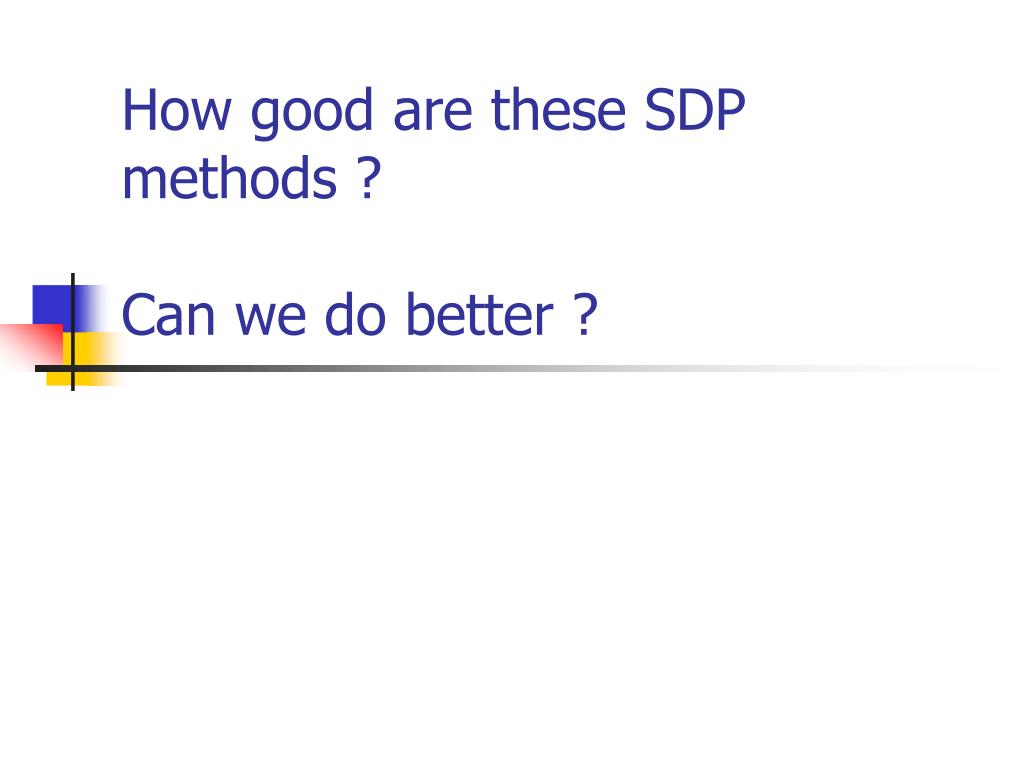

27. How good are these SDP methods ?Can we do better ?

28. 8 ( ) d 2 1 3 3 1 7 + ´ x x m o 1 4 > > > ( ) d 1 6 4 1 7 + < ´ x x m o 3 2 > : : : > > ( ) d : 5 3 9 1 7 + ´ x x m o 1 9 Unique Games • Linear equations mod p • 2 variables per equation • maximize number of satisfied constraints • In every constraint, for every value of one variable, unique value of other variable satisfies the constraint. • If 99% of equations are satisfiable, can we satisfy 1% of them ?

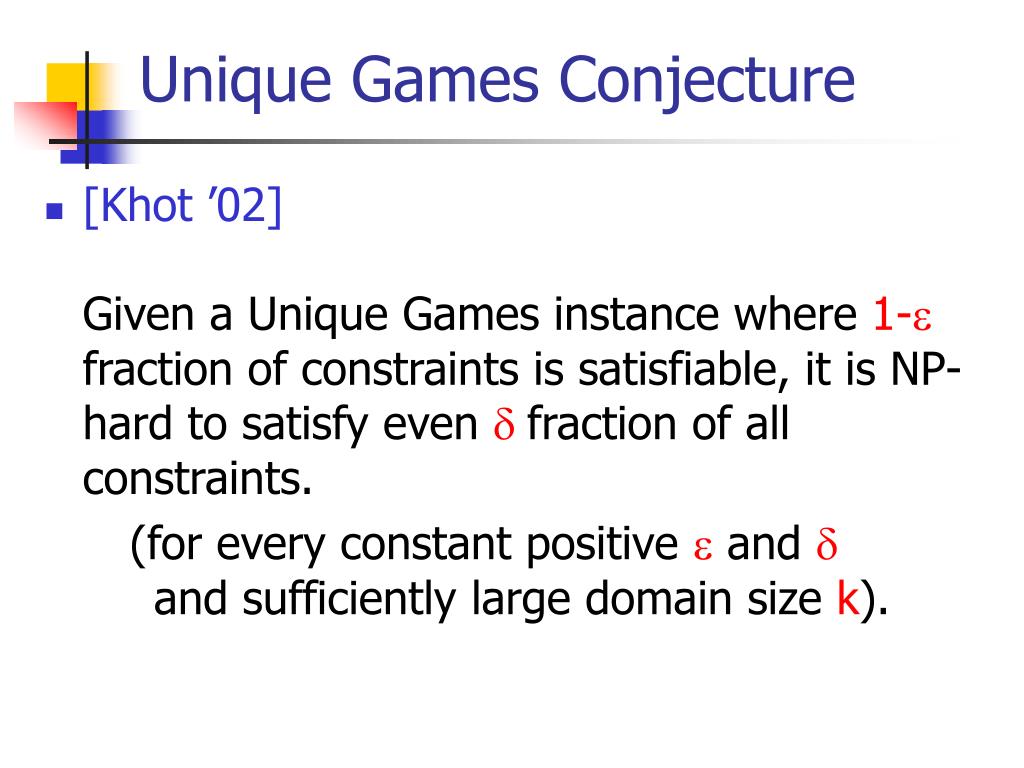

29. Unique Games Conjecture • [Khot ’02]Given a Unique Games instance where 1-fraction of constraints is satisfiable, it is NP-hard to satisfy evenfraction of all constraints. (for every constant positive  and  and sufficiently large domain size k).

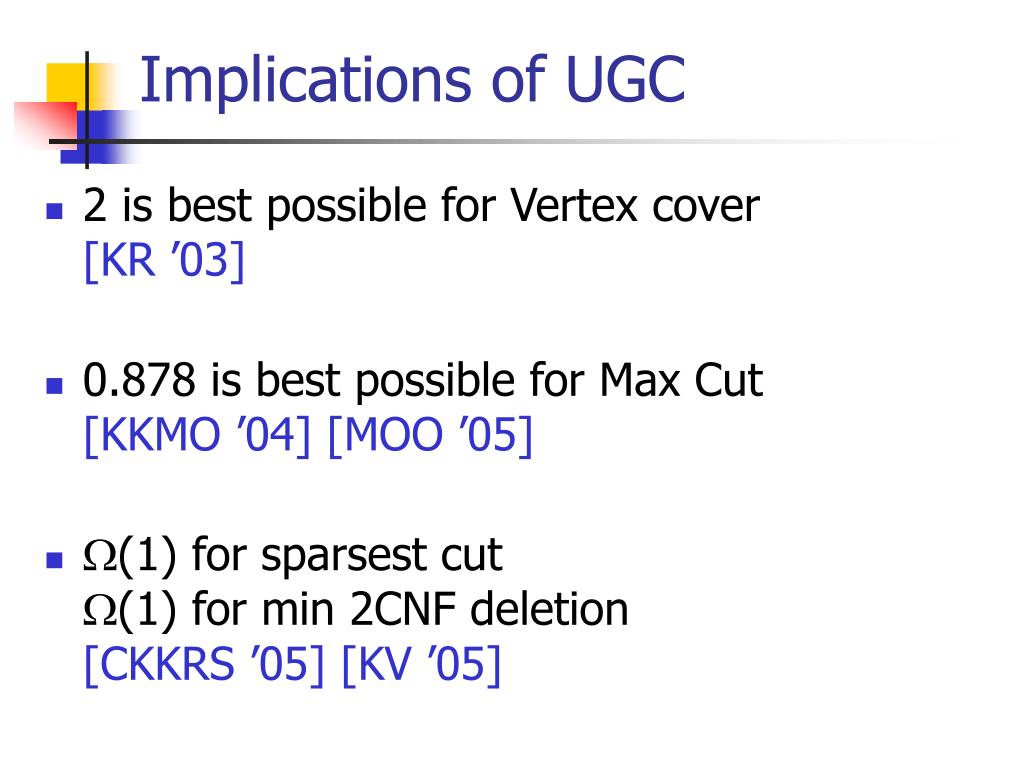

30. Implications of UGC • 2 is best possible for Vertex cover [KR ’03] • 0.878 is best possible for Max Cut [KKMO ’04] [MOO ’05] • (1) for sparsest cut(1) for min 2CNF deletion[CKKRS ’05] [KV ’05]

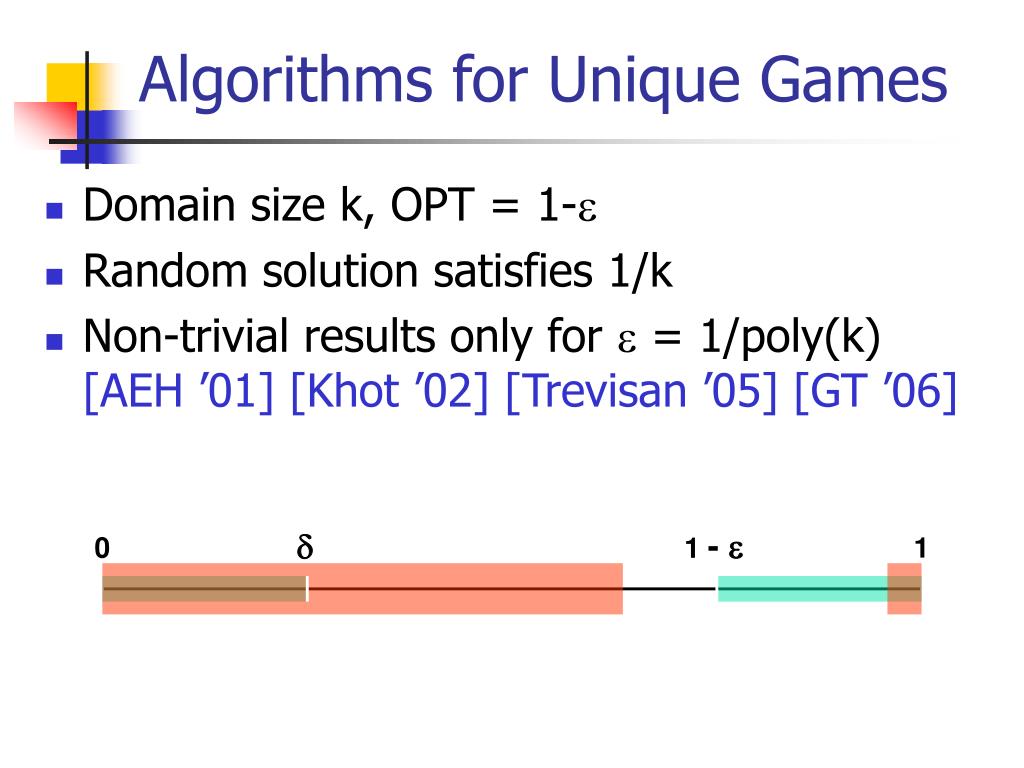

31. Algorithms for Unique Games • Domain size k, OPT = 1- • Random solution satisfies 1/k • Non-trivial results only for  = 1/poly(k)[AEH ’01] [Khot ’02] [Trevisan ’05] [GT ’06] 1 -   0 1

32. ³ ´ p l k O 1 ¡ " o g " ¡ ¡ ¢ k ­ ¡ 2 " New results for Unique Games • [CMM ’05] • Given an instance where 1-fraction of constraints is satisfiable, we satisfy • We can also satisfy:

33. ³ ´ p l k O 1 ¡ " o g = l k 1 1 0 c o g = 2 1 5 ( ) k O 1 = ( ) ¡ 2 1 ¡ ¡ ¡ " " " k k New results for Unique Games • Algorithms cover the entire range of .

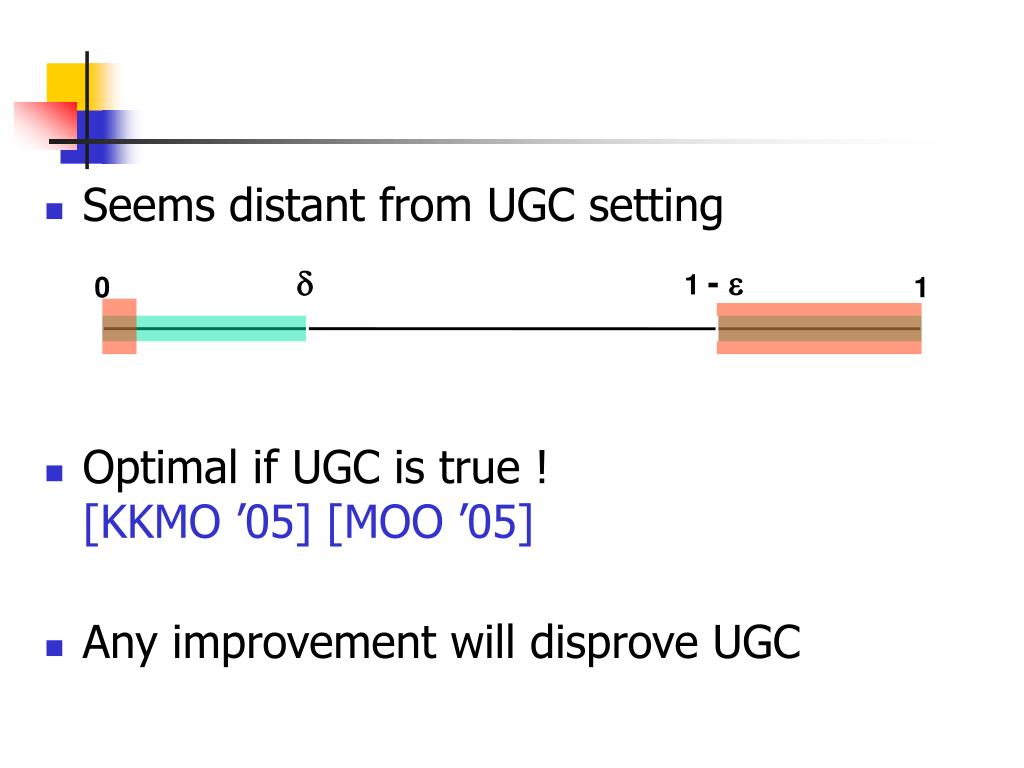

34. Seems distant from UGC setting • Optimal if UGC is true ![KKMO ’05] [MOO ’05] • Any improvement will disprove UGC 1 -   0 1

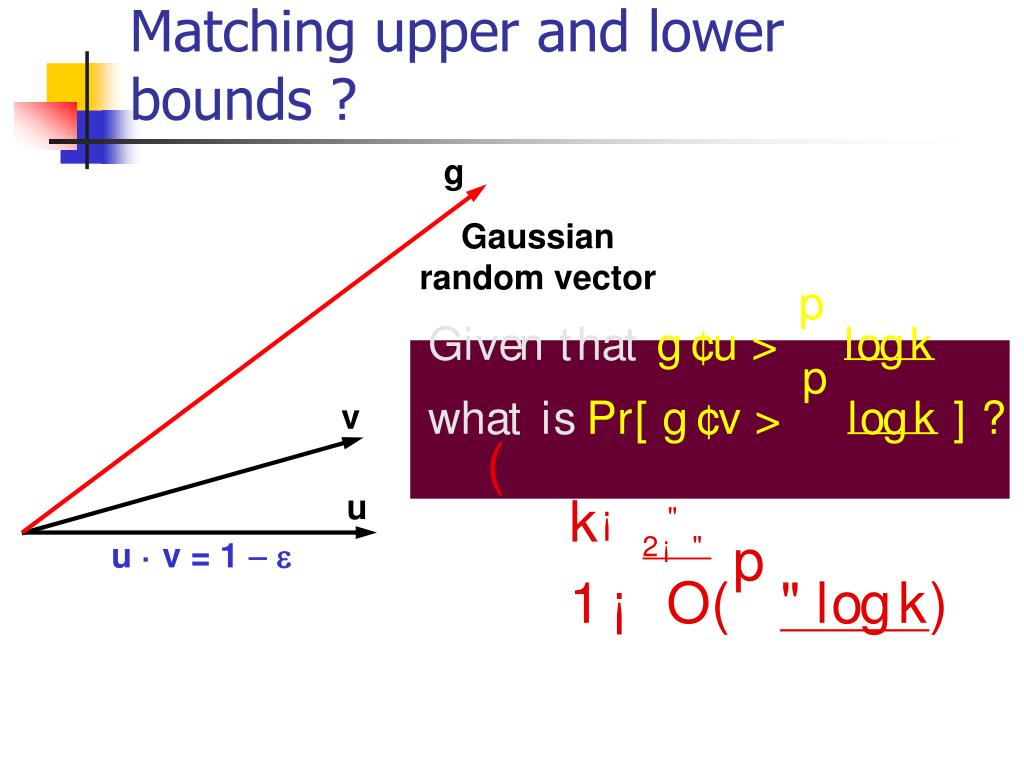

35. p h l k G i t t > ( ¢ v e n a g u o g " ¡ k ¡ 2 " p [ ] h l k ? P i t > ¢ w a s r g v o g p ( ) l k O 1 ¡ " o g Matching upper and lower bounds ? g Gaussian random vector v u u · v = 1 

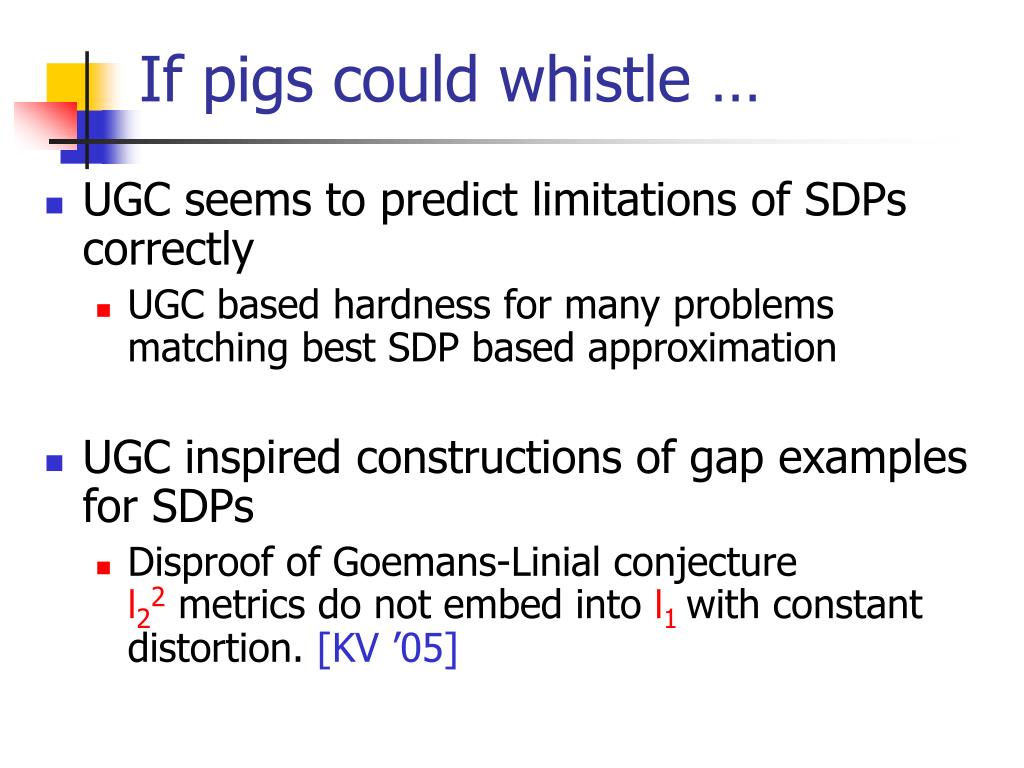

36. If pigs could whistle … • UGC seems to predict limitations of SDPs correctly • UGC based hardness for many problems matching best SDP based approximation • UGC inspired constructions of gap examples for SDPs • Disproof of Goemans-Linial conjecturel22 metrics do not embed into l1 with constant distortion. [KV ’05]

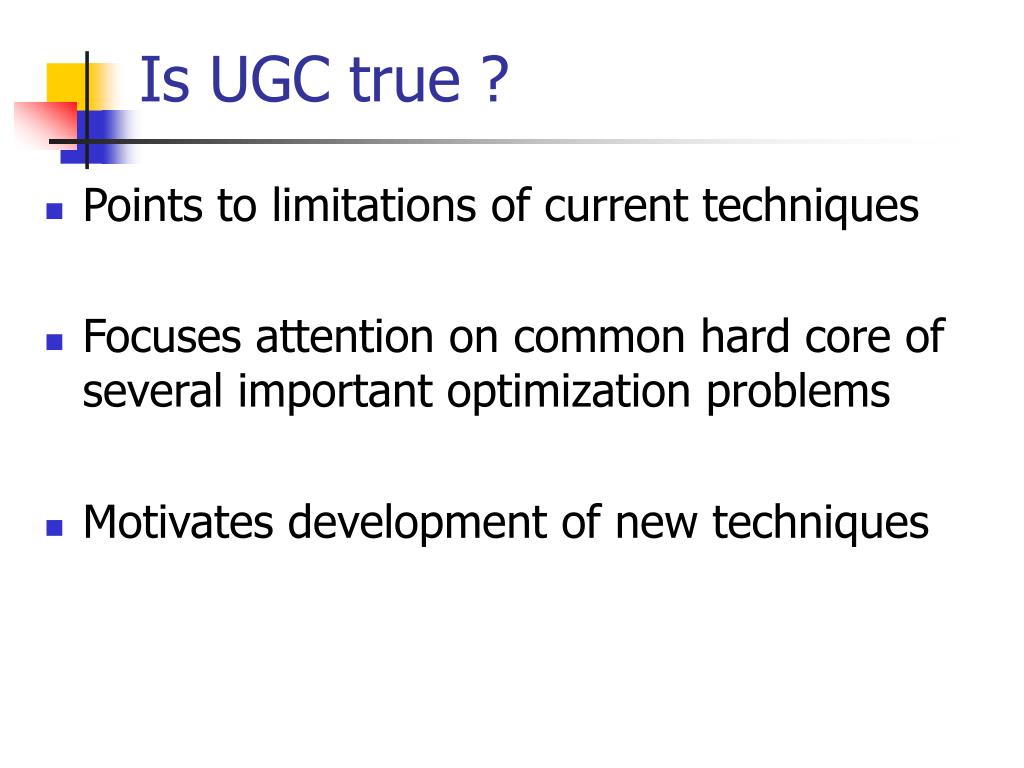

37. Is UGC true ? • Points to limitations of current techniques • Focuses attention on common hard core of several important optimization problems • Motivates development of new techniques

38. Approaches to disproving UGC • Focus on possibly easier problems • Max Cut: • OPT = 1-, beat 1-1/2[GW ‘94] • Max k-CSP: • constraints are ANDs of k literals • maximize #satisfied constraints • Beat k/2k [ST ‘06] [CMM ‘07] • Distinguish between 1/k and 1/2k satisfiable

39. Approaches to disproving UGC • Lifting procedures for SDPs • Lovasz-Schrijver, Sherali-Adams, Lasserre • Simulate products of k variables • Can we use them ?

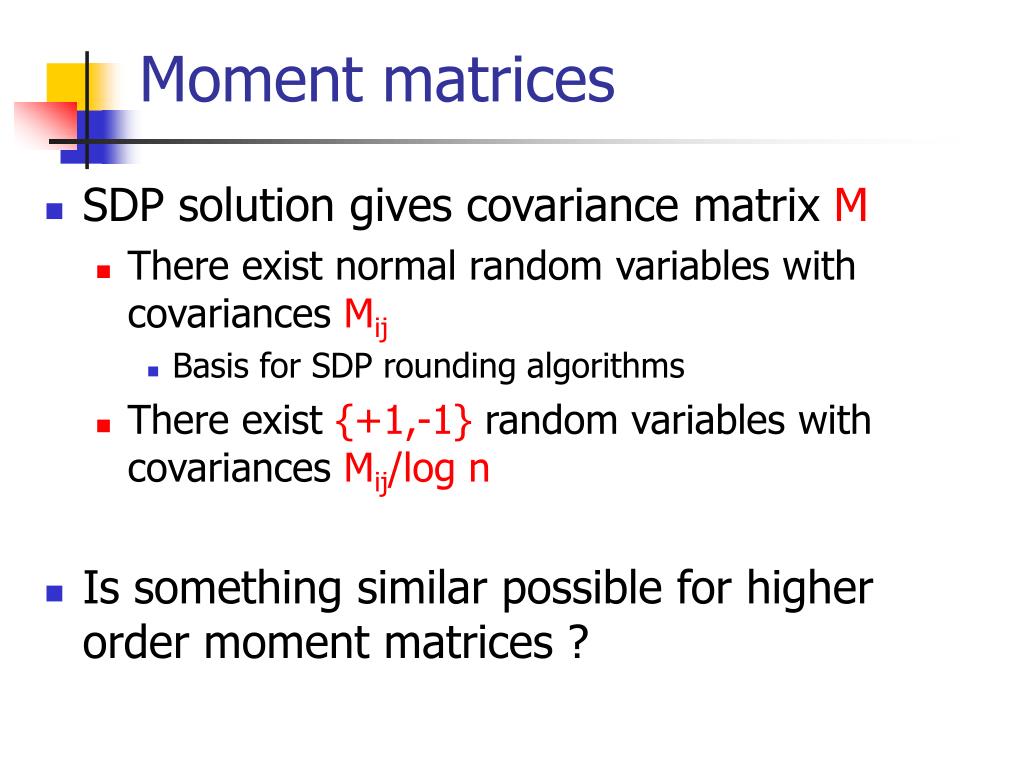

40. Moment matrices • SDP solution gives covariance matrix M • There exist normal random variables with covariances Mij • Basis for SDP rounding algorithms • There exist {+1,-1} random variables with covariances Mij/log n • Is something similar possible for higher order moment matrices ?

41. Concluding thoughts • Fascinating questions • Algorithms require geometric insights • Is the geometry intrinsic to these problems ? • Many mysterious connections and unsolved problems
