Progressive Science Air Sampling Systems: Analysis, Design, and Approval Process

This project involves designing, analyzing, and installing air sampling systems for Progressive Science flights. It includes mechanical and structural design, data analysis, flight configurations, inlet airflow modeling, electrical components, software development, and flight-worthiness approval. The project also involves scheduling, staffing, construction, testing, approvals, and installation of the systems. Instruments requiring inlets for gas and pressure sampling hardware are utilized for the flights.

clive
Télécharger la présentation

Progressive Science Air Sampling Systems: Analysis, Design, and Approval Process

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Progressive Science air sampling • pressure rake & air sampling systems • analysis data & questions • mechanical / structural design • hardware? flight configurations? • inlet airflow modeling • electrical & software • flight-worthiness approval • schedule & staffing • construction, testing, approvals, installation • data system interface

  2. Instruments needing inlets for Progressive Science flights

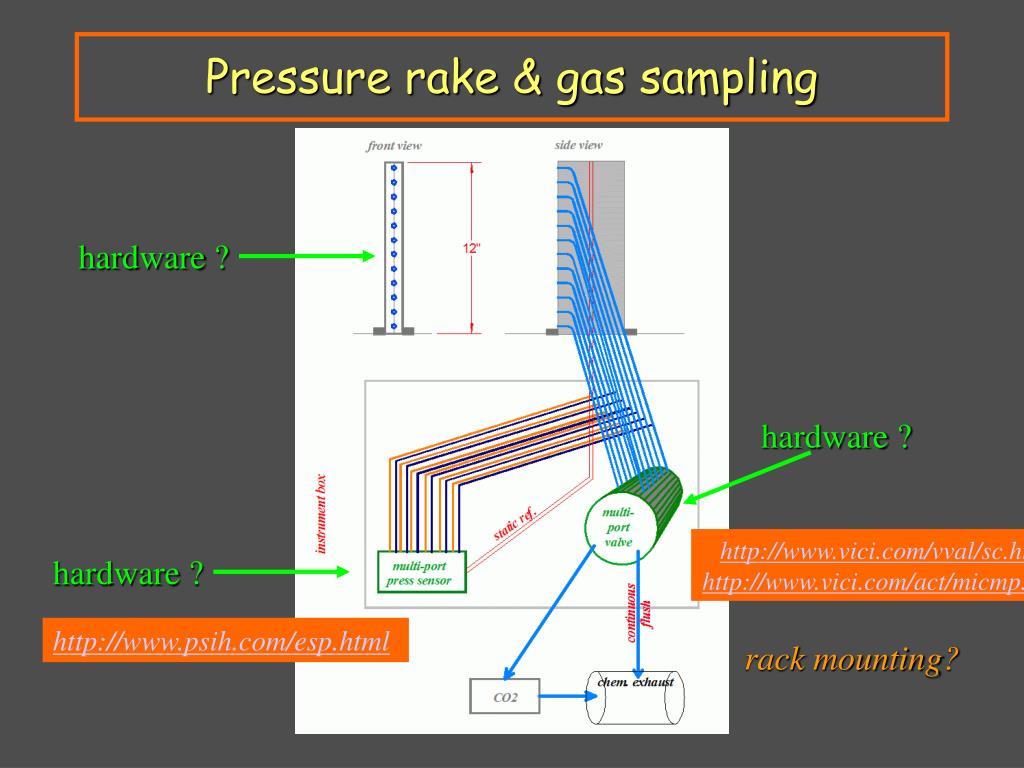

  3. Pressure rake & gas sampling hardware ? hardware ? http://www.vici.com/vval/sc.htm http://www.vici.com/act/micmp.htm hardware ? http://www.psih.com/esp.html rack mounting?

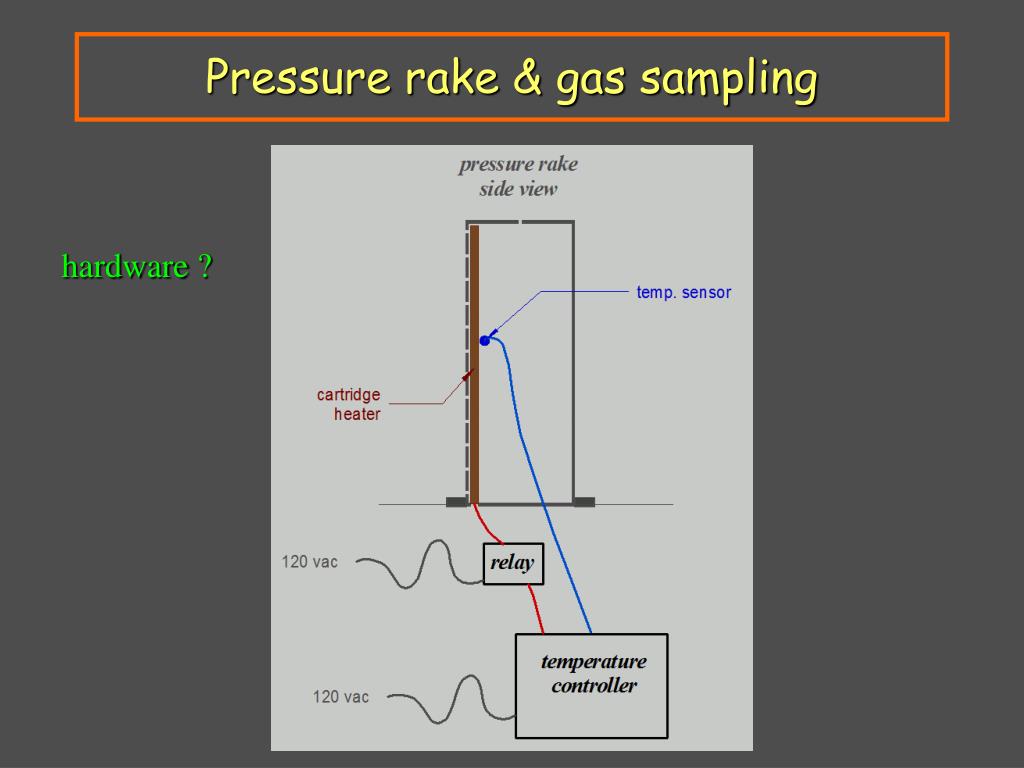

  4. Pressure rake & gas sampling hardware ?

  5. flight configurations changes between flights?

  6. staffing

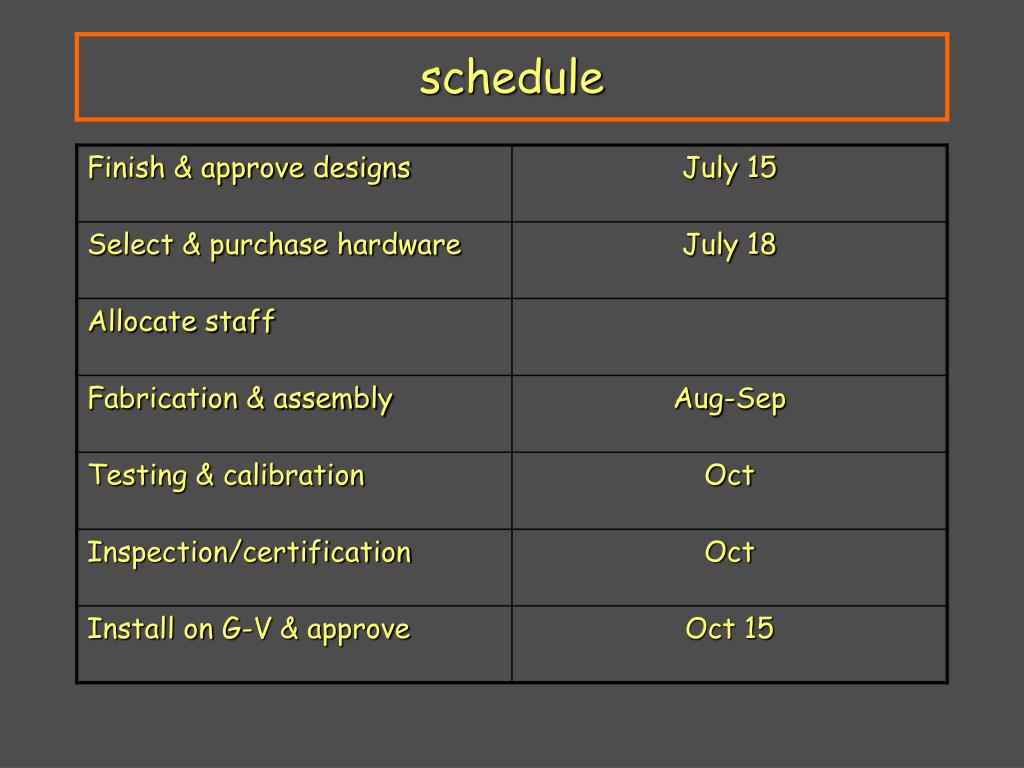

  7. schedule

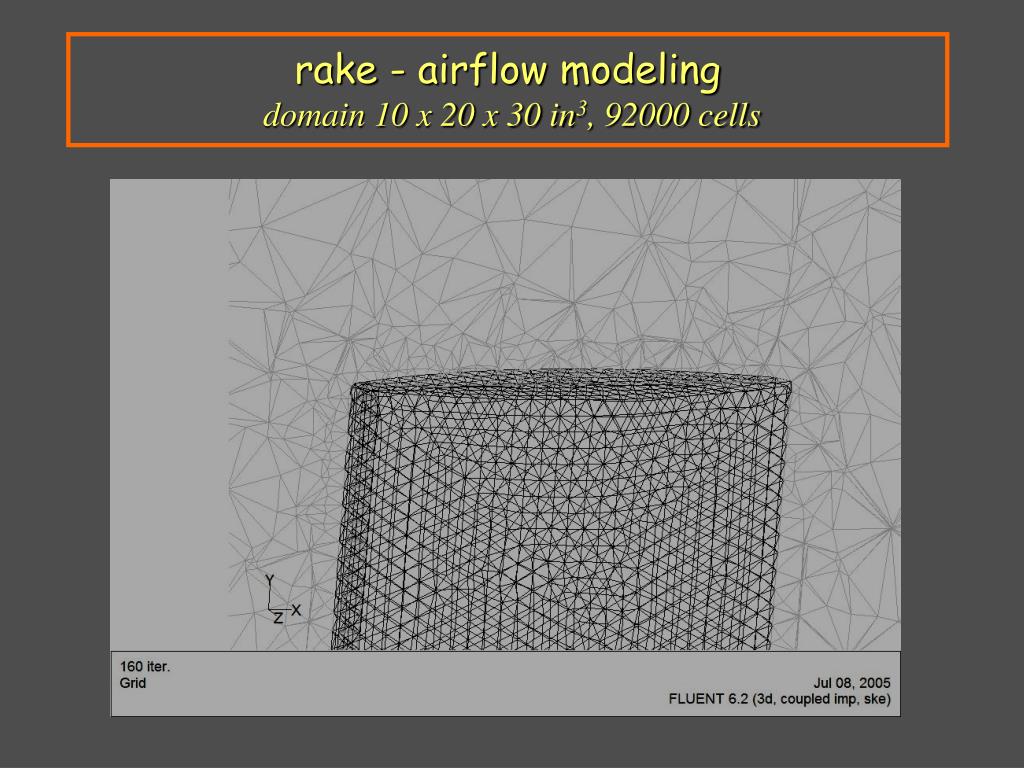

  8. rake - airflow modeling domain 10 x 20 x 30 in3, 92000 cells

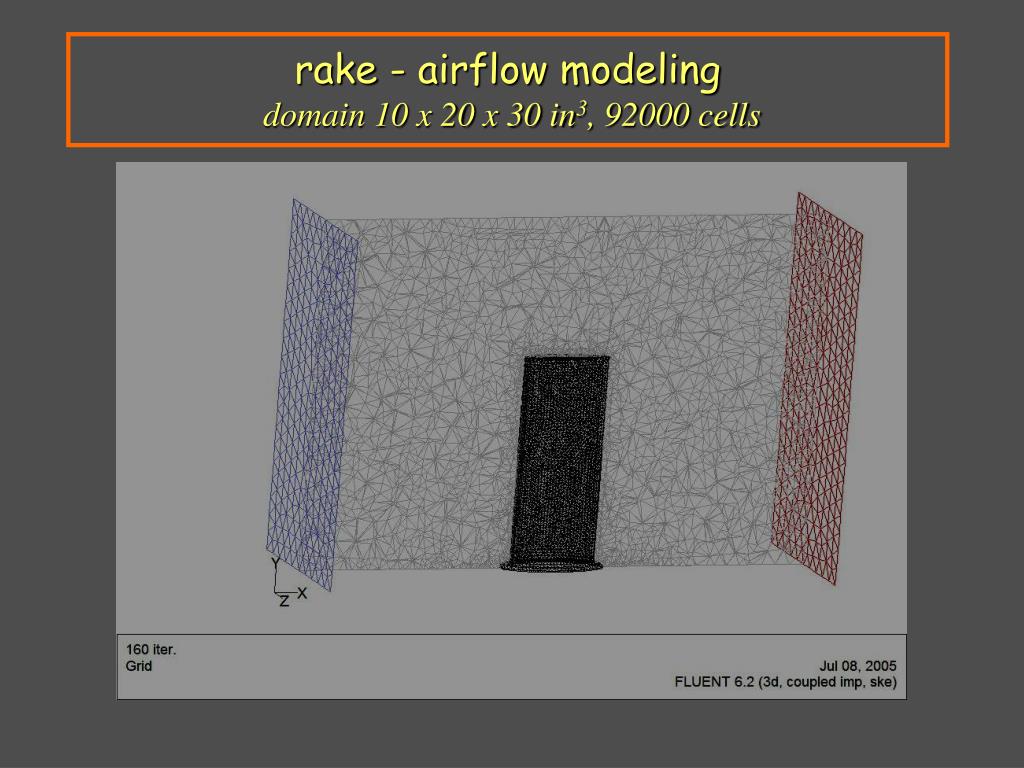

  9. rake - airflow modeling domain 10 x 20 x 30 in3, 92000 cells

  10. Velocity

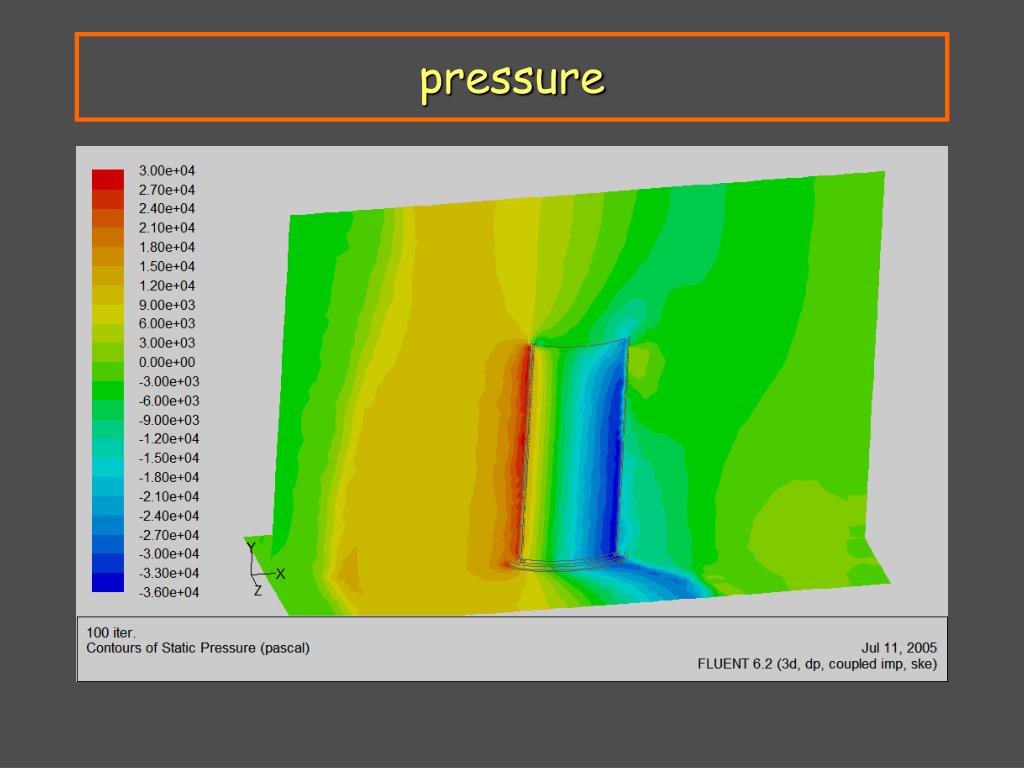

  11. pressure

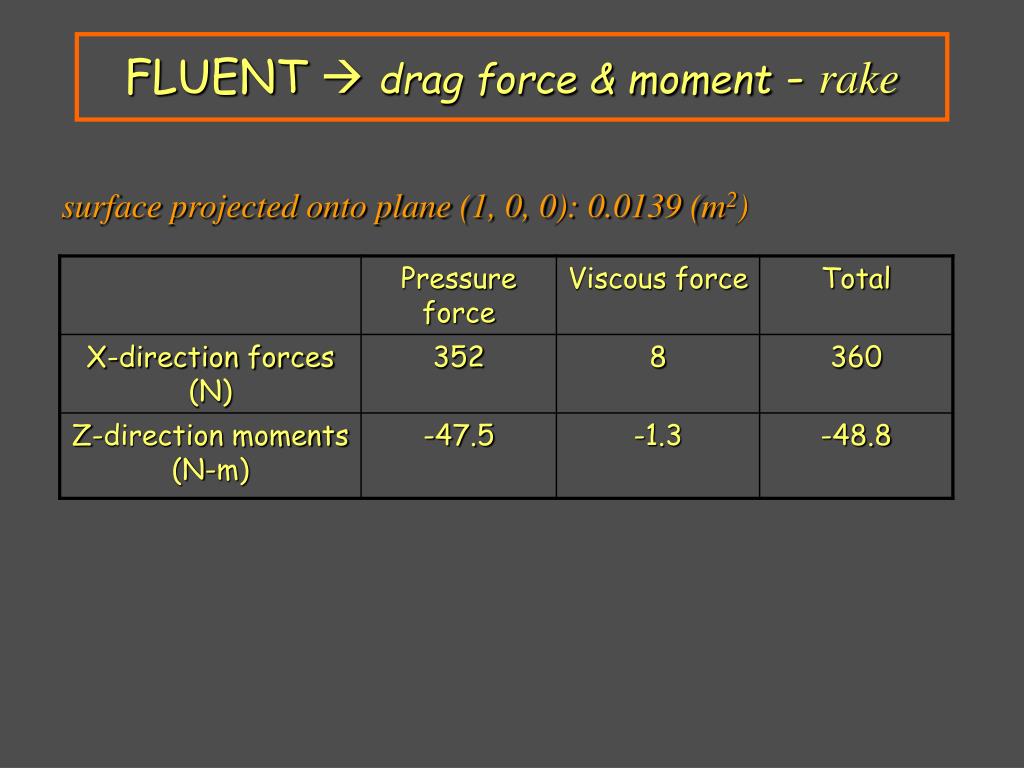

  12. FLUENT  drag force & moment - rake surface projected onto plane (1, 0, 0): 0.0139 (m2)
