  1. Chapter 6 Soil and the Hydrologic Cycle Water cycles in the Teton Mountains. (R. Weil)

  2. Figure 6.1 Global Stocks of Water

  3. Water Balance Equation Evaporation Transpiration P = ET + SS + D Evapotranspiration Soil Storage Discharge The Hydrologic Cycle

  4. Figure 6.2 Hydrologic Cycle

  5. When precipitation is intercepted by plant foliage and subsequently evaporated back to the atmosphere before the plant has a chance to use it. Interception

  6. Figure 6.4

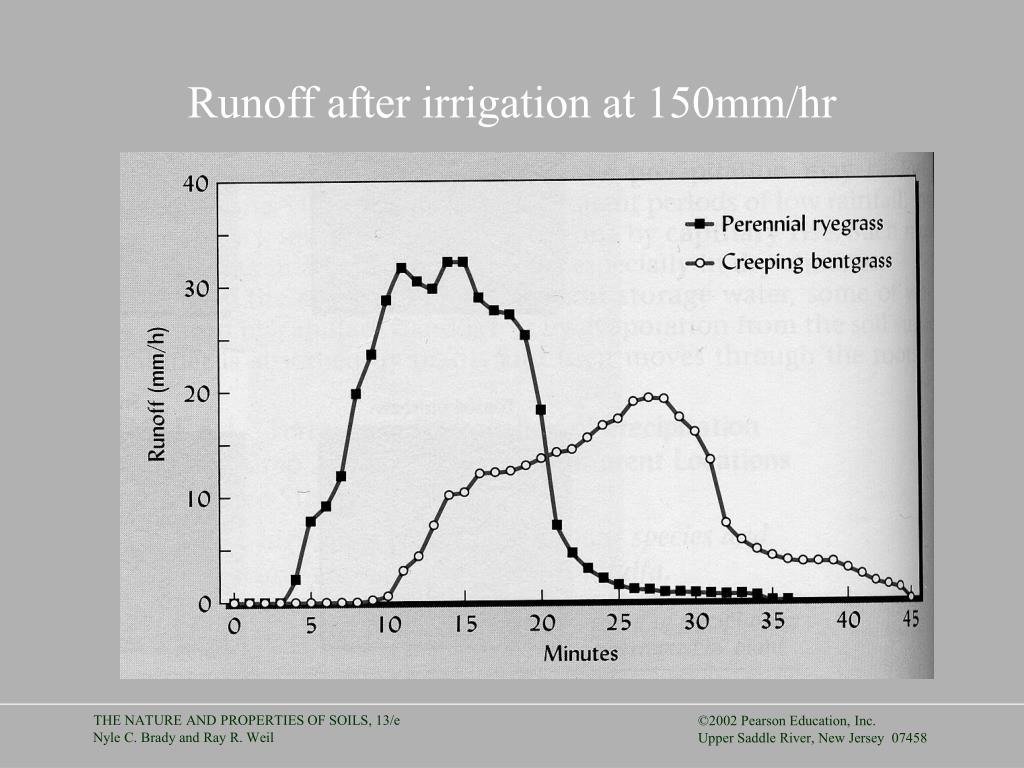

  7. Runoff after irrigation at 150mm/hr

  8. Figure 6.5

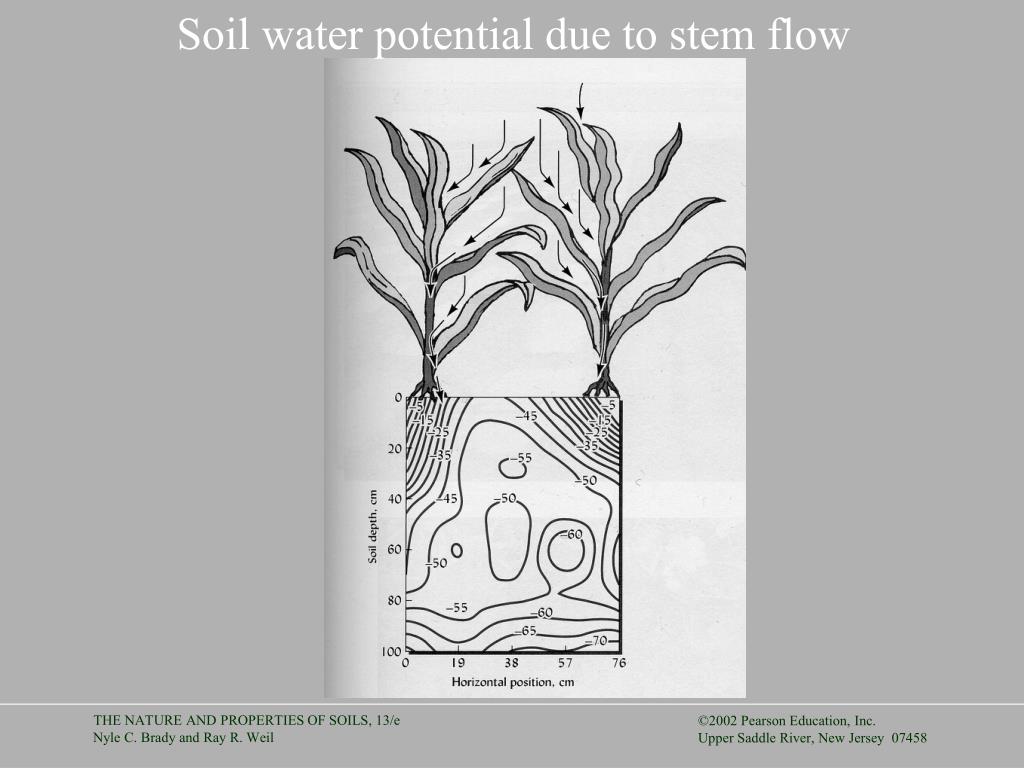

  9. Soil water potential due to stem flow

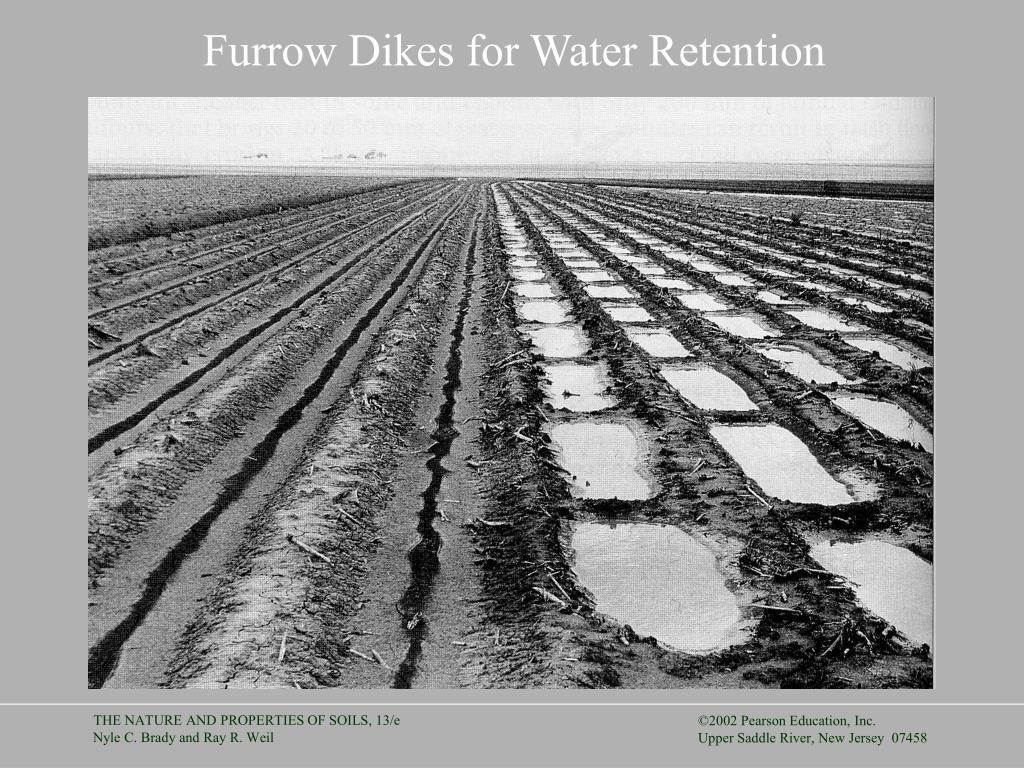

  10. Furrow Dikes for Water Retention

  11. Figure 6.7

  12. Figure 6.9

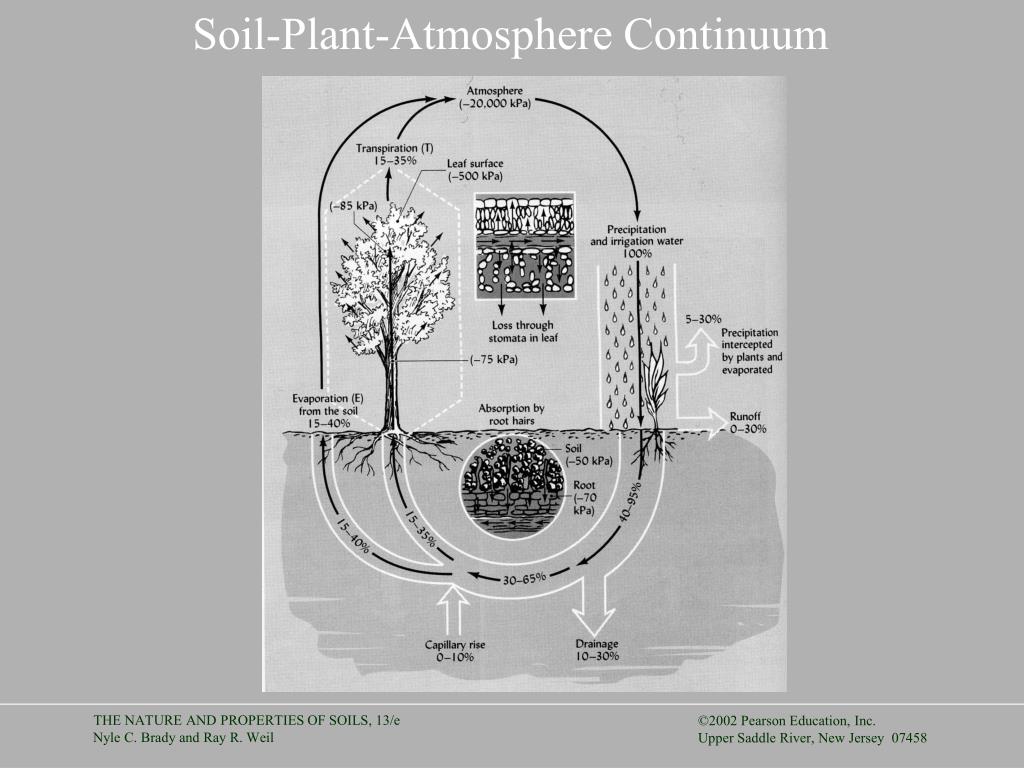

  13. Soil-Plant-Atmosphere Continuum

  14. Figure 6.11

  15. Figure 6.12

  16. Figure 6.13

  17. Figure 6.14

  18. Figure 6.23

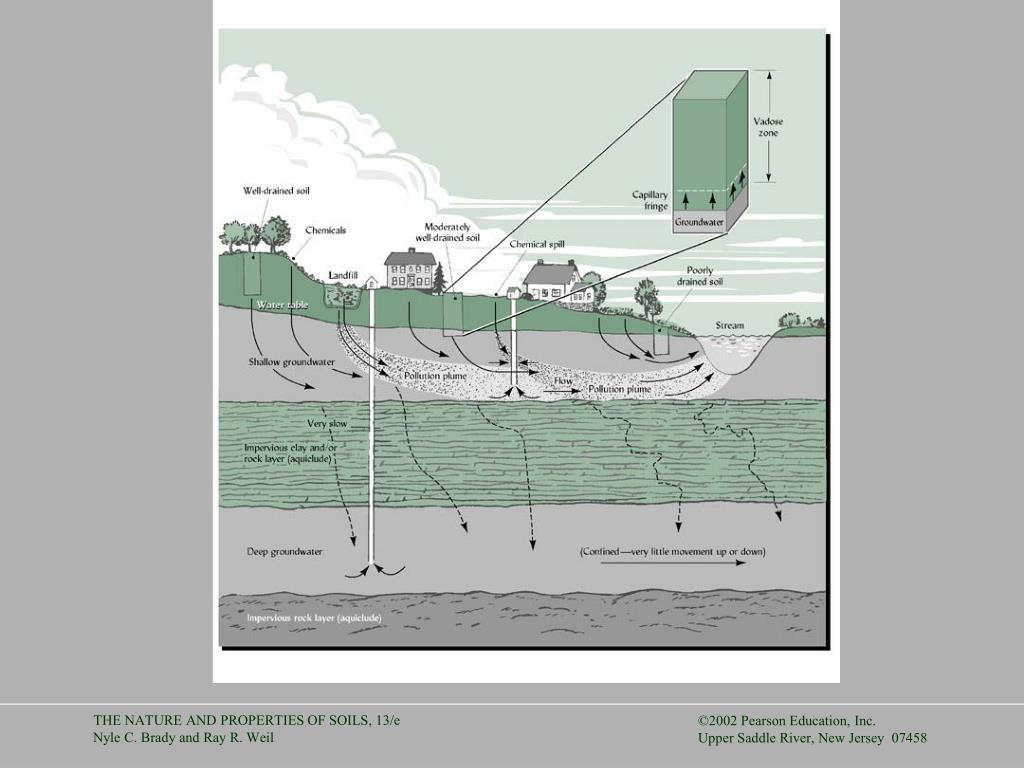

  19. Figure 6.25

  20. Figure 6.26

  21. Figure 6.47 (a) (b)

  22. Figure 6.45
