  1. NAND Flash Failure Behavior Sponsored By Micron Technology Inc

  2. Group Members and Topics • Rob Wells • Project Introduction • System Integration • Jeremy Hamblin • Firmware Design • Roger White • NAND DUT Interface • NAND Controller & Timing • David Chu • Host GUI Interface & Application • Conclusions

  3. Robert Wells Project Introduction System Integration

  4. Introduction to NAND Flash • What NAND Flash Memory Is • NAND Flash Memory Applications • What NAND Flash Memory Is Not • Project Concept • An Affordable Platform • Customizable Usage/Programming Patterns • Characterization/Analysis of NAND Behavior

  5. System Integration • High Level View • FPGA System • Block Diagram Interface • SOPC Builder Overview • Component Generation • HAL (Hardware Abstraction Layer) – NIOS II • HDL (Hardware Description Language) – Quartus II • Quartus II Overview • Integration of the FPGA system • Controller Development • NIOS II Overview • Device Drivers • Firmware • Firmware to Controller Integration • Host PC to Firmware Integration

  6. High Level View • Components: • NIOS II Processor • SDRAM • USB • On-Chip Memory • LCD Display Quartus II .c • HAL (Hardware Abstraction Layer) • C Code • API (Application Programming Interface) • Firmware • Custom C Code • (Jeremy) .c .v SOPC .v NIOS II • HDL (Hardware Description Language) • Verilog Code • NAND Flash Controller • Custom Verilog Code • (Roger) • Application GUI Interface • Program the NAND Flash • Analyze/Display Results • (David) SOPC Builder (System On a Programmable Chip)

  7. High Level View • Configure Memory Usage • Memory Range • Data Pattern • Number of Cycles • Analyze Performance • Will NAND Flash Work Over the Lifespan of a Given Device? • Application GUI Interface • Program the NAND Flash • Analyze/Display Results • (David)

  8. System Integration • High Level View • FPGA System • Block Diagram Interface • SOPC Builder Overview • Component Generation • HAL (Hardware Abstraction Layer) – NIOS II • HDL (Hardware Description Language) – Quartus II • Quartus II Overview • Integration of the FPGA system • Controller Development • NIOS II Overview • Device Drivers • Firmware • Firmware to Controller Integration • Host PC to Firmware Integration

  9. FPGA development system Clock Generation SOPC Built System (Jeremy) Reset Delay NAND Flash Controller (Roger)

  10. System Integration • High Level View • FPGA System • Block Diagram Interface • SOPC Builder Overview • Component Generation • HAL (Hardware Abstraction Layer) – NIOS II • HDL (Hardware Description Language) – Quartus II • Quartus II Overview • Integration of the FPGA system • Controller Development • NIOS II Overview • Device Drivers • Firmware • Firmware to Controller Integration • Host PC to Firmware Integration

  11. Example FPGA System With SOPC

  12. System Integration • High Level View • FPGA System • Block Diagram Interface • SOPC Builder Overview • Component Generation • HAL (Hardware Abstraction Layer) – NIOS II • HDL (Hardware Description Language) – Quartus II • Quartus II Overview • Integration of the FPGA system • Controller Development • NIOS II Overview • Device Drivers • Firmware • Firmware to Controller Integration • Host PC to Firmware Integration

  13. System Integration • High Level View • FPGA System • Block Diagram Interface • SOPC Builder Overview • Component Generation • HAL (Hardware Abstraction Layer) – NIOS II • HDL (Hardware Description Language) – Quartus II • Quartus II Overview • Integration of the FPGA system • Controller Development • NIOS II Overview • Device Drivers • Firmware • Firmware to Controller Integration • Host PC to Firmware Integration

  14. System Integration • High Level View • FPGA System • Block Diagram Interface • SOPC Builder Overview • Component Generation • HAL (Hardware Abstraction Layer) – NIOS II • HDL (Hardware Description Language) – Quartus II • Quartus II Overview • Integration of the FPGA system • Controller Development • NIOS II Overview • Device Drivers • Firmware • Firmware to Controller Integration • Host PC to Firmware Integration

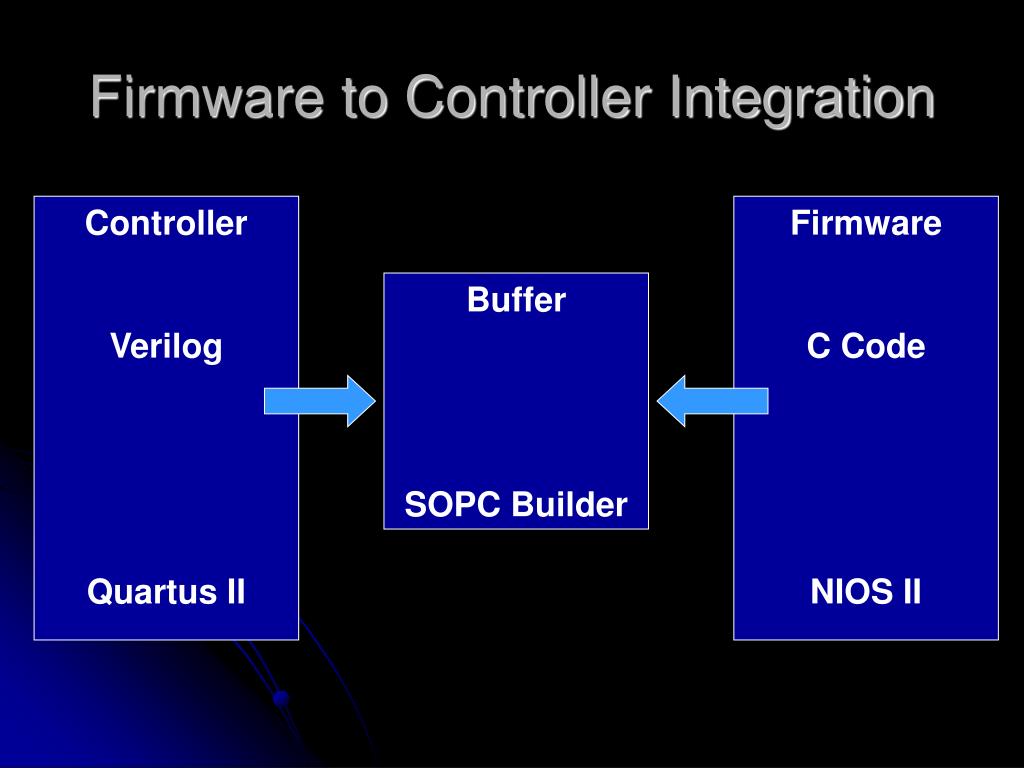

  15. Firmware to Controller Integration Controller Verilog Quartus II Firmware C Code NIOS II Buffer SOPC Builder

  16. System Integration • High Level View • FPGA System • Block Diagram Interface • SOPC Builder Overview • Component Generation • HAL (Hardware Abstraction Layer) – NIOS II • HDL (Hardware Description Language) – Quartus II • Quartus II Overview • Integration of the FPGA system • Controller Development • NIOS II Overview • Device Drivers • Firmware • Firmware to Controller Integration • Host PC to Firmware Integration

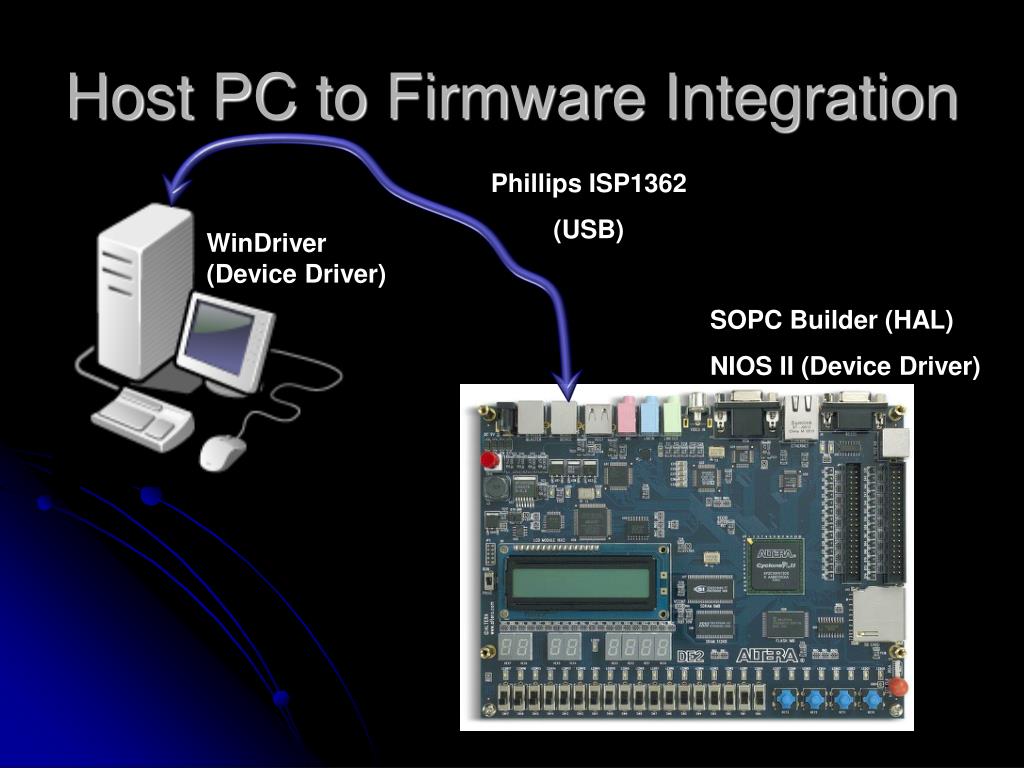

  17. Host PC to Firmware Integration Phillips ISP1362 (USB) WinDriver (Device Driver) SOPC Builder (HAL) NIOS II (Device Driver)

  18. Conclusions • System Components • Custom Hardware Design (Verilog) • Custom Firmware Design (C) • Powerful Design Tools • Custom Built Application GUI Interface • Inexpensive Platform for Testing • Analysis of NAND Wear-Out From a Customizable Memory Usage Model • Allows Developers to Determine if NAND Flash is a Viable Solution for a Given Application • Evaluate Other Aspects of NAND Flash

  19. Questions

  20. Jeremy Hamblin Firmware Design

  21. Firmware Design • SOPC Builder • System Components • Firmware Design (NIOS II) • Reset NAND Operation • USB Interface • Op-Code/Algorithm • NAND Flash Addressing • Example Algorithm Layout • Command Transferring

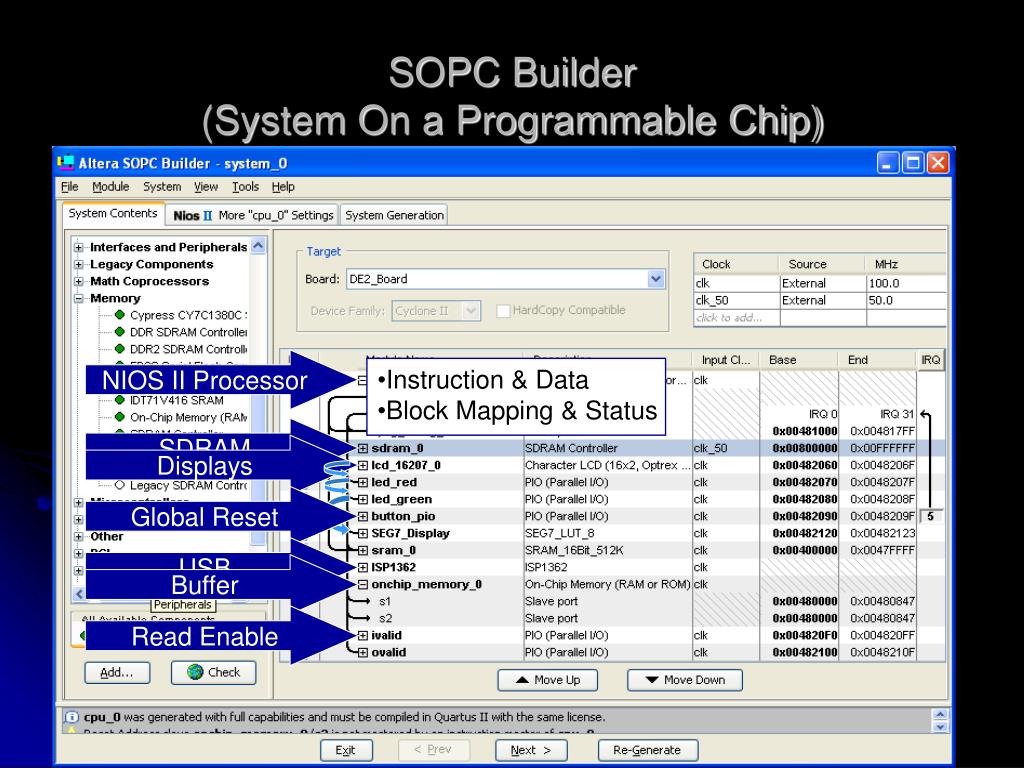

  22. SOPC Builder(System On a Programmable Chip) NIOS II Processor • Instruction & Data • Block Mapping & Status SDRAM Displays Global Reset USB Buffer Read Enable

  23. Firmware Design • SOPC Builder • System Components • Firmware Design (NIOS II) • Reset NAND Operation • USB Interface • Op-Code/Algorithm • NAND Flash Addressing • Example Algorithm Layout • Command Transferring

  24. Firmware Design • Reset NAND Operation • First Operation After NAND Power Up • Occurs During System Initialization • Places NAND DUT (Device Under Test) in a Known State

  25. Firmware Design • SOPC Builder • System Components • Firmware Design (NIOS II) • Reset NAND Operation • USB Interface • Op-Code/Algorithm • NAND Flash Addressing • Example Algorithm Layout • Command Transferring

  26. Firmware Design • USB Interface • Generates IRQ (Interrupt ReQuest) • ISR (Interrupt Service Routine) Receives Data Sent From Host PC and Parses Data 00 00 00 00 | 00 00 00 00 | 00 00 00 00 | 00 00 00 00 - 16 Bytes 00 00 00 00 | 00 00 0000 | 00 00 00 00 | 00 00 00 00 - 16 Bytes 00 00 00 00 | 00 00 00 00 | 00 00 0000 | 00 00 00 00 - 16 Bytes 00 000000 - Byte0 Padding Algorithm OP Code Start Address – 3 Bytes End Address – 3 Bytes Padding – 1 Byte # Cycles – 3 Bytes Padding – 5 Bytes

  27. Firmware Design • Op-Code Types • Read ID • Write • Read • Algorithm Types • Continuous • Checker Board • Random

  28. Firmware Design NAND Flash Addressing Blocks Pages Bytes

  29. Firmware Design • NAND Flash Addressing

  30. Algorithm Example Page N Page N-1 … Page 1 Page 0 Erased Programmed Block-0 Block-1 … Block N-1 Block N Continuous Cycle I Cycle II Checker Board

  31. Firmware Design • SOPC Builder • System Components • Firmware Design (NIOS II) • Reset NAND Operation • USB Interface • Op-Code/Algorithm • NAND Flash Addressing • Example Algorithm Layout • Command Transferring

  32. Firmware Design • Command Transferring • Commands & Data Transferred Through Buffer • Different Data and Command Requirements • Write- 2119 Bytes Transferred to NAND, 0 Returned • Read- 7 Bytes Transferred to NAND, 2112 Returned • Erase- 5 Bytes Transferred to NAND, 0 Returned • Read Status- 1 Byte Transferred, 1 Returned • Each NAND Command Type Has its Own Buffer Function • Removes All NAND Device Timing Constraints From the Firmware • Firmware Too Slow

  33. Firmware Design Conclusion • Command Received Over USB • Parsed in USB ISR • Execution of Op-Code • Command and Data are Passed to NAND Controller Through the Buffer • Command is Executed From Start Address to End Address • Repeated for # of Cycles Given in Command From Host • Block Status Returned Over USB

  34. Questions

  35. Roger White NAND DUT Interface NAND Controller & Timing

  36. NAND DUT Interface • Daughter Card • Our Own?? • Boise State’s

  37. NAND DUT Interface

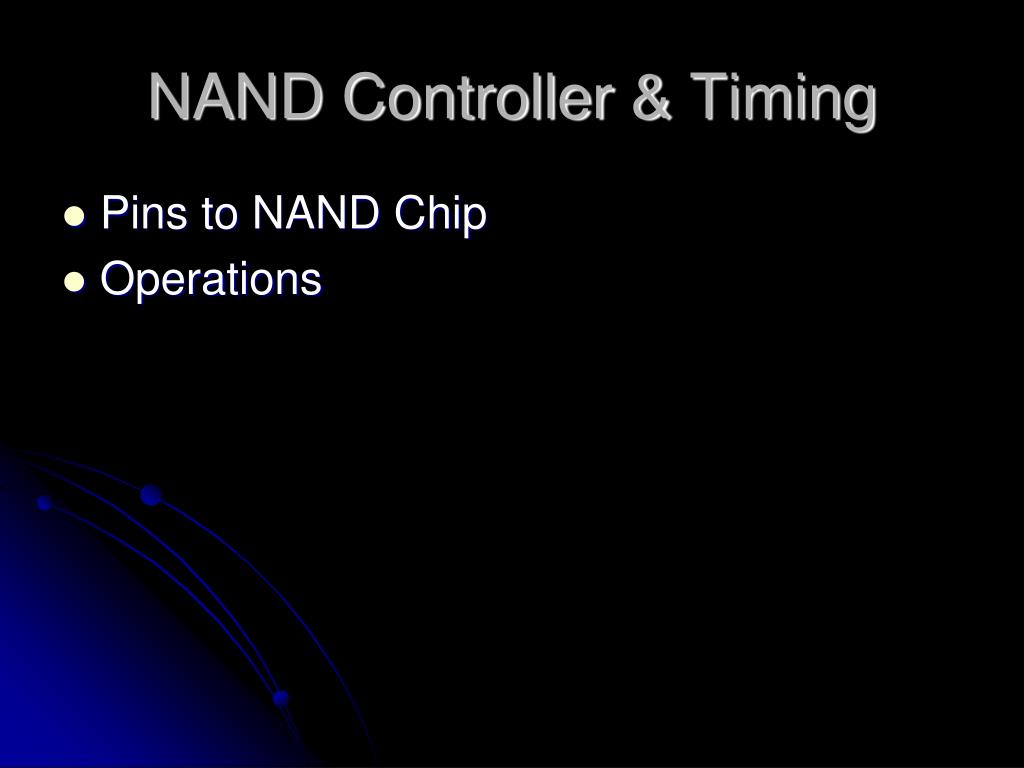

  38. NAND Controller & Timing • Pins to NAND Chip • Operations

  39. NAND Controller & Timing • Pins to NAND chip • CLE (Command Line Enable) • CE# (Chip Enable) • WE# (Write Enable) • ALE (Address Line Enable) • R/B (Ready/Busy) • RE# (Read Enable) • WP# (Write Protect) • I/Ox (Input/Output)

  40. NAND Controller & Timing • Pins to NAND Chip • Operations

  41. NAND Controller & Timing • Operations • Read • Program • Erase • Read Status • Reset • Read ID

  42. NAND Controller & timing • Program Operation

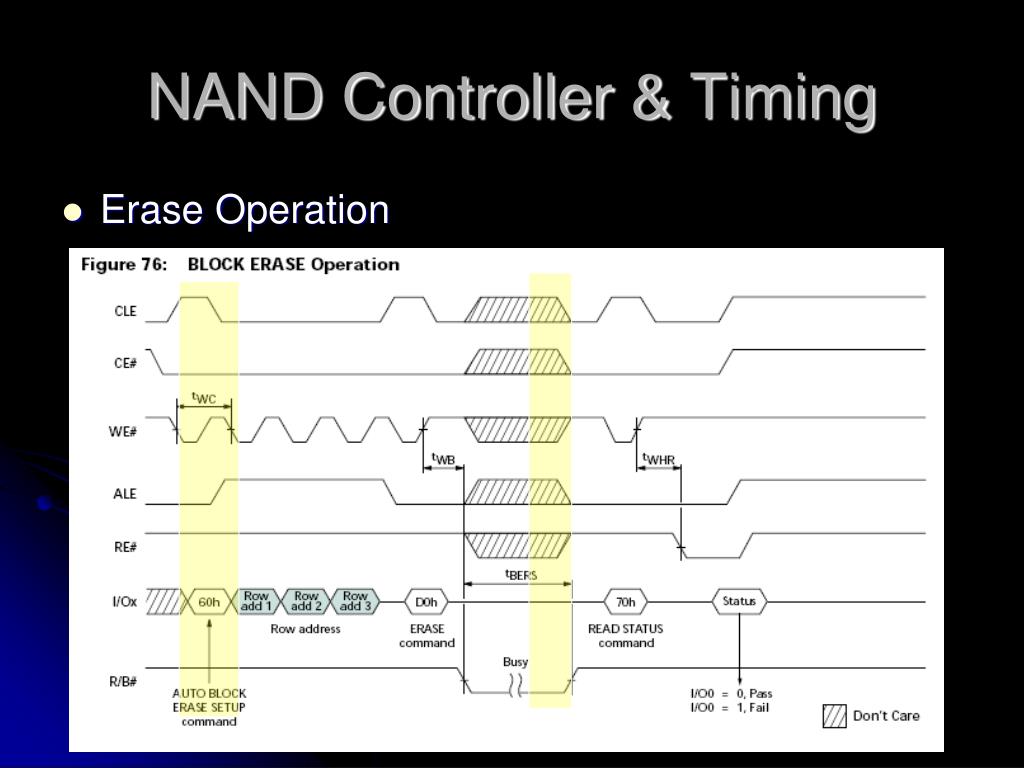

  43. NAND Controller & Timing • Erase Operation

  44. NAND Controller & Timing • Reset Operation

  45. Conclusions NAND DUT Interface Daughter Card NAND Controller & Timing Pins Operations

  46. Questions?

  47. User Interface, USB, and Conclusions By: David Chu

  48. Overview • User Interface • Command Interface • Functionality and Scripting Information • Results Interface • Functionality, Database Information, and XML File Description • Charts Interface • Functionality • USB • Functionality and Bit Organization • Conclusions • Methods, Results, and Future Improvements
