  1. Sd-May11-20 Betty Nguyen Scott Mertz David Hansen Ashley Polkinghorn Wireless Network of Dissolved Oxygen (DO) Monitors Advisors Joseph Shinar Ruth Shinar with Bob Mayer

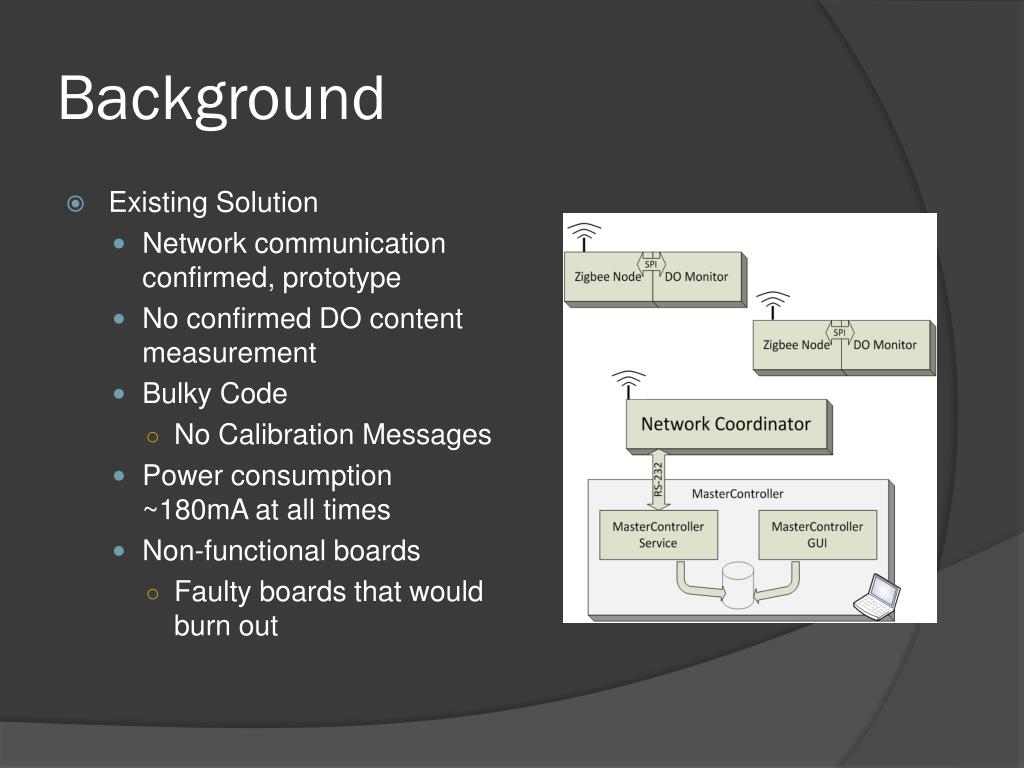

  2. Background • Existing Solution • Network communication confirmed, prototype • No confirmed DO content measurement • Bulky Code • No Calibration Messages • Power consumption ~180mA at all times • Non-functional boards • Faulty boards that would burn out

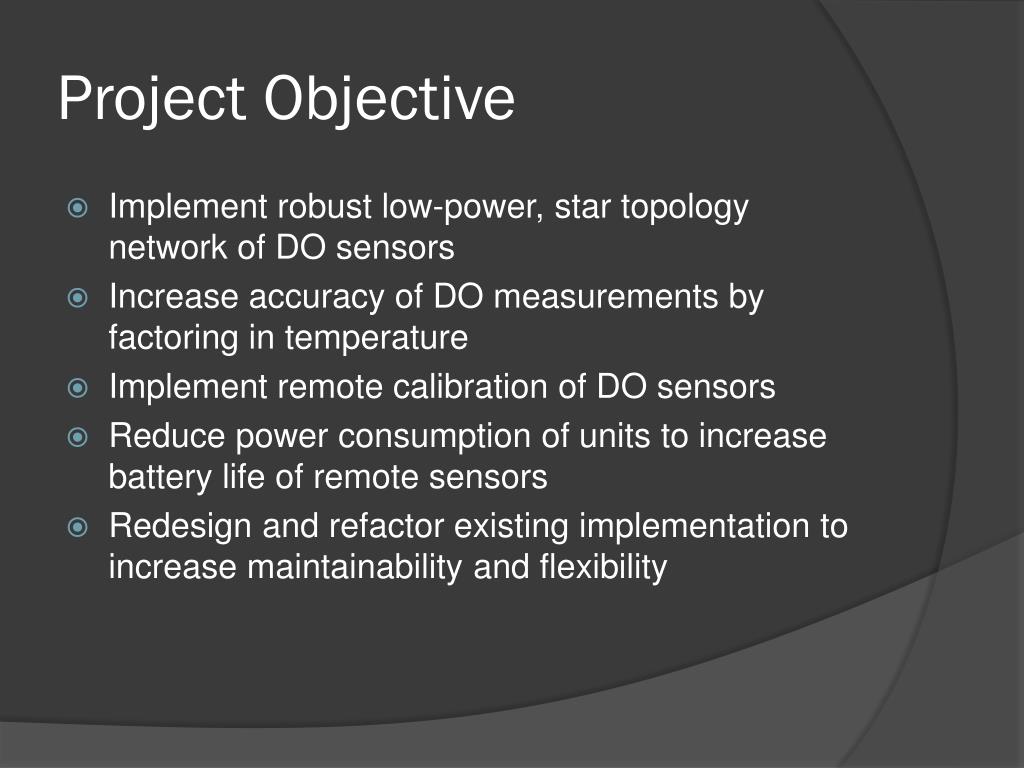

  3. Project Objective • Implement robust low-power, star topology network of DO sensors • Increase accuracy of DO measurements by factoring in temperature • Implement remote calibration of DO sensors • Reduce power consumption of units to increase battery life of remote sensors • Redesign and refactor existing implementation to increase maintainability and flexibility

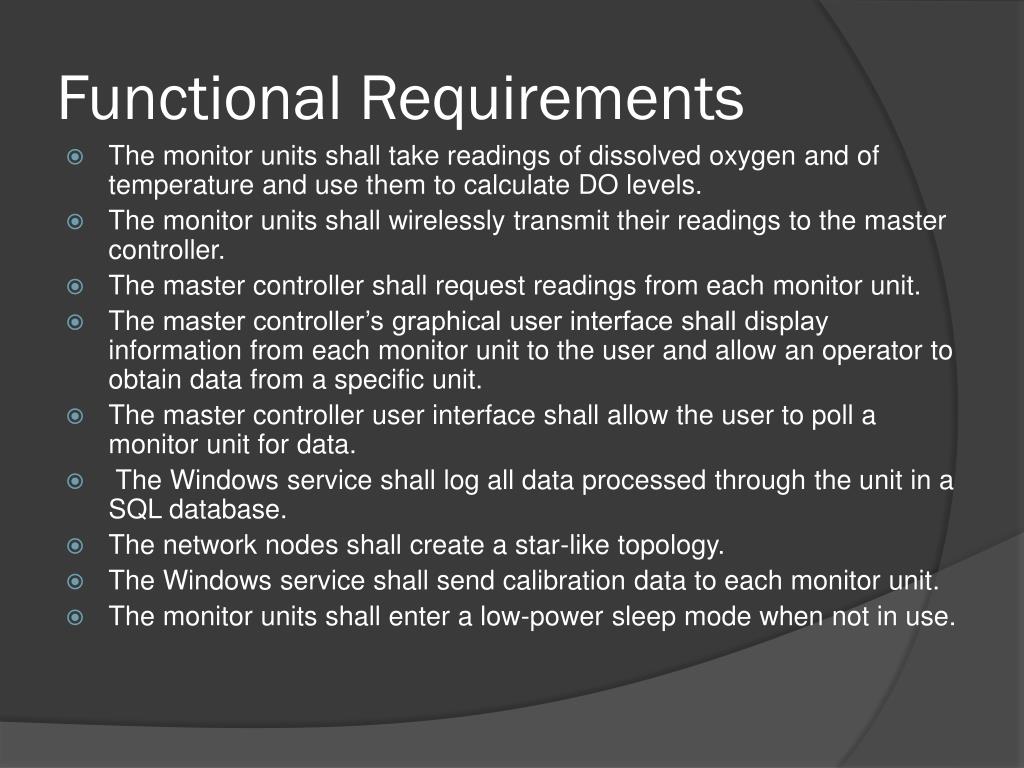

  4. Functional Requirements • The monitor units shall take readings of dissolved oxygen and of temperature and use them to calculate DO levels. • The monitor units shall wirelessly transmit their readings to the master controller. • The master controller shall request readings from each monitor unit. • The master controller’s graphical user interface shall display information from each monitor unit to the user and allow an operator to obtain data from a specific unit. • The master controller user interface shall allow the user to poll a monitor unit for data. • The Windows service shall log all data processed through the unit in a SQL database. • The network nodes shall create a star-like topology. • The Windows service shall send calibration data to each monitor unit. • The monitor units shall enter a low-power sleep mode when not in use.

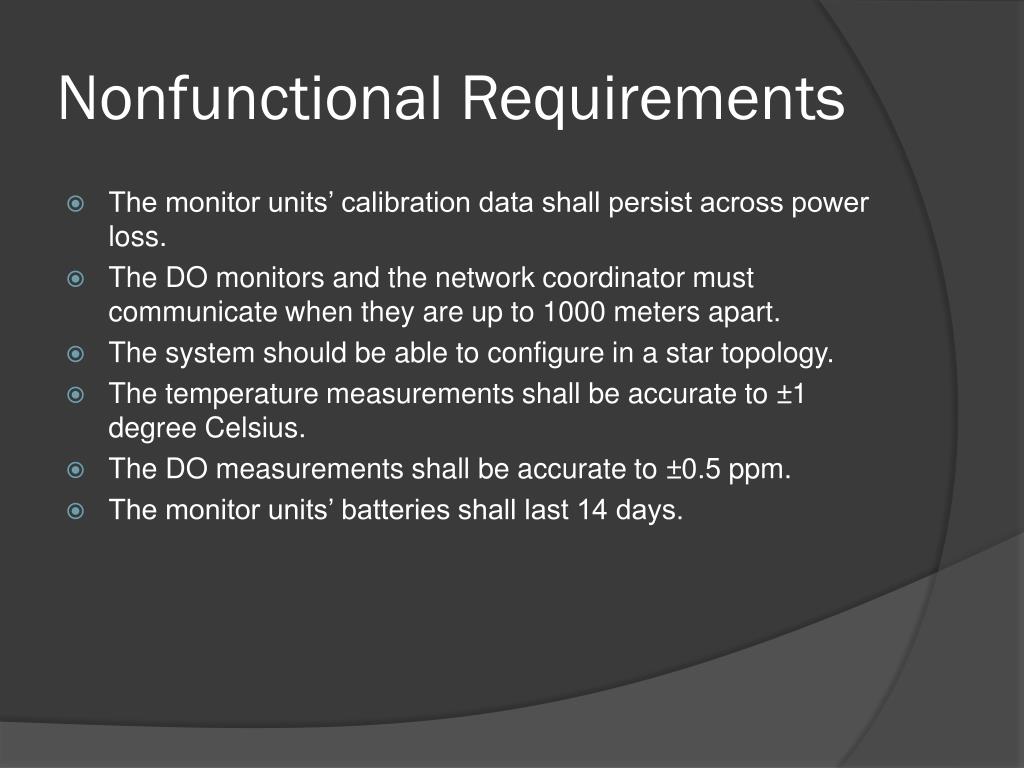

  5. Nonfunctional Requirements • The monitor units’ calibration data shall persist across power loss. • The DO monitors and the network coordinator must communicate when they are up to 1000 meters apart. • The system should be able to configure in a star topology. • The temperature measurements shall be accurate to ±1 degree Celsius. • The DO measurements shall be accurate to ±0.5 ppm. • The monitor units’ batteries shall last 14 days.

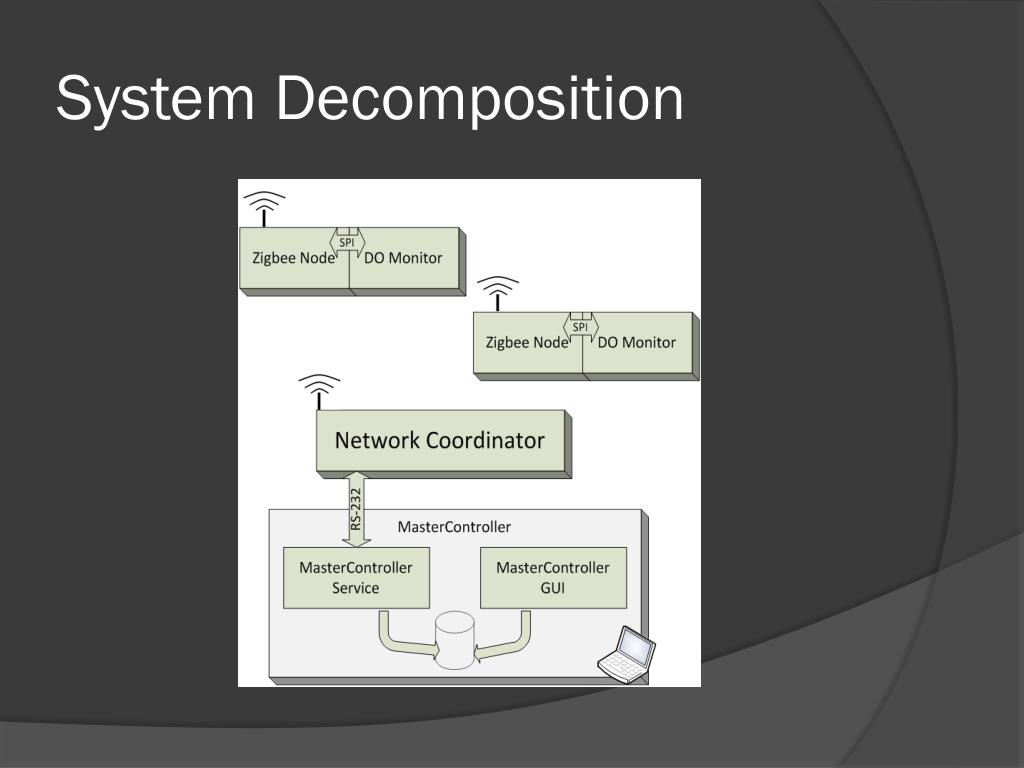

  6. System Decomposition

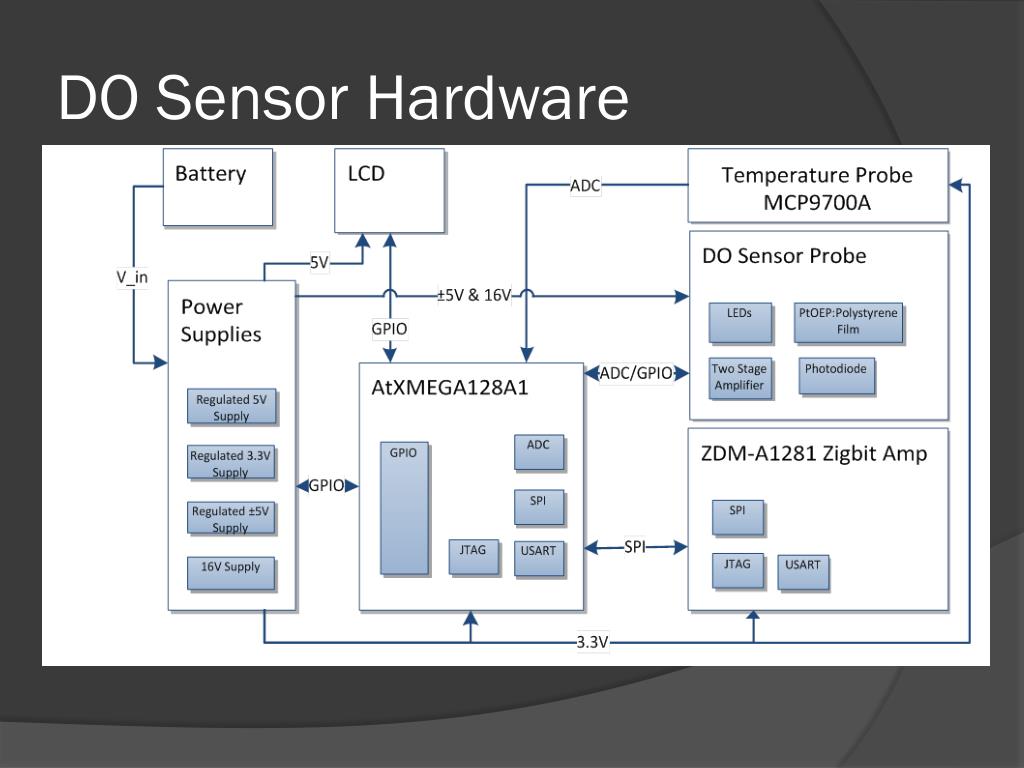

  7. DO Sensor Hardware

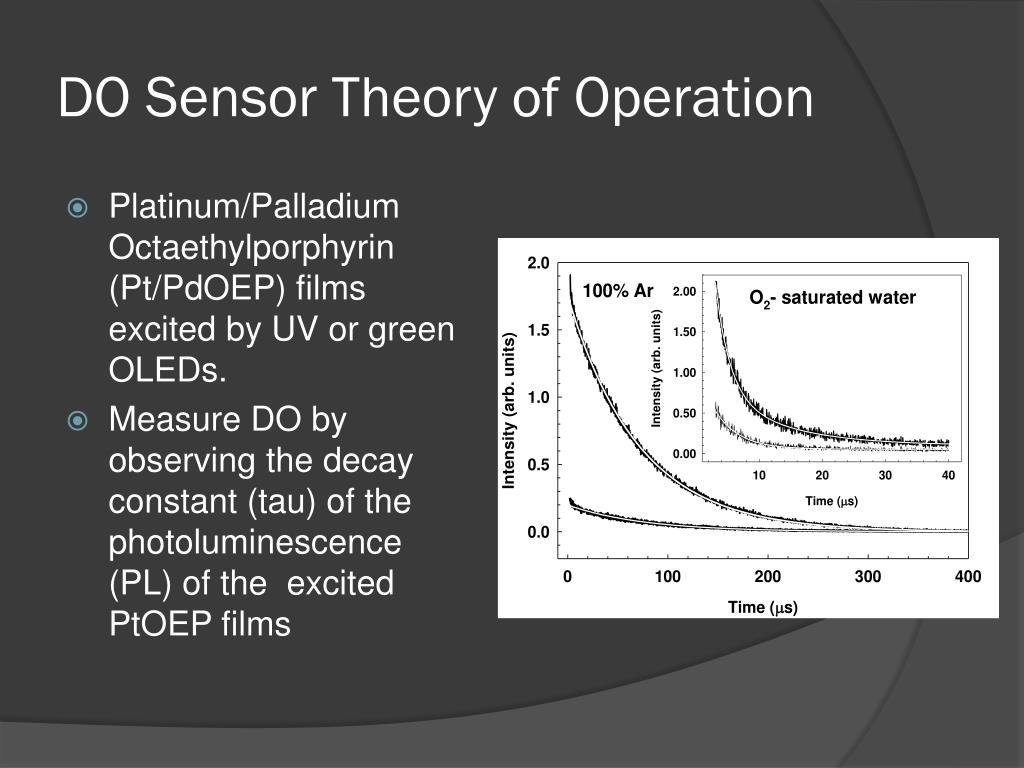

  8. DO Sensor Theory of Operation • Platinum/Palladium Octaethylporphyrin (Pt/PdOEP) films excited by UV or green OLEDs. • Measure DO by observing the decay constant (tau) of the photoluminescence (PL) of the excited PtOEP films

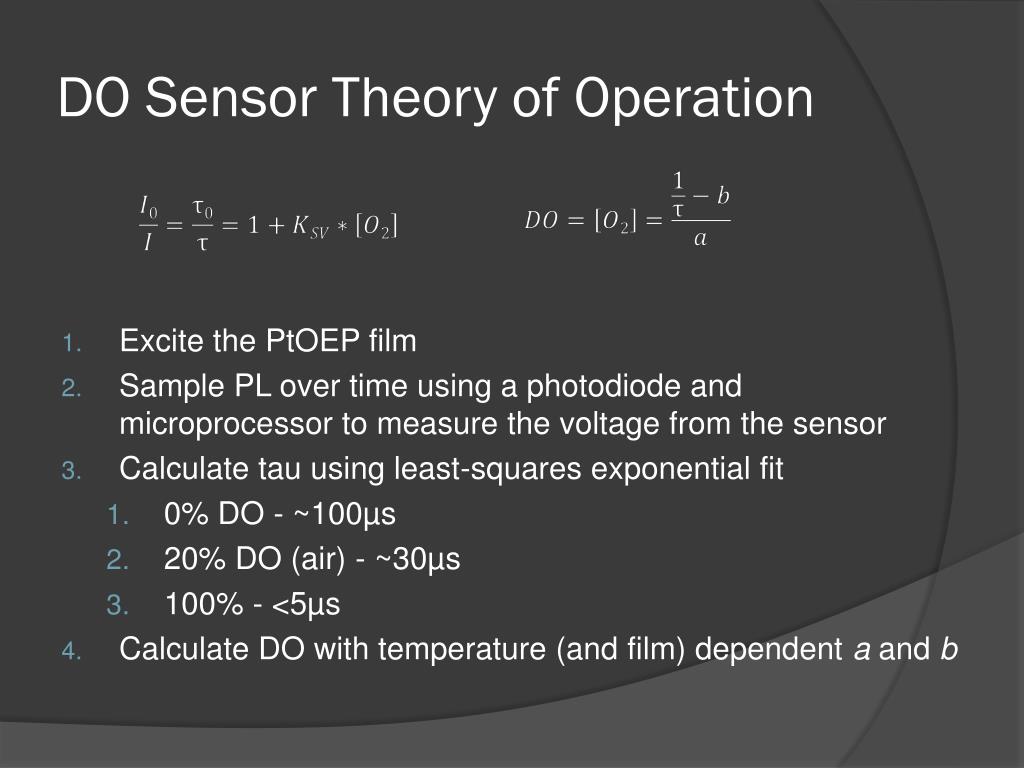

  9. DO Sensor Theory of Operation • Excite the PtOEP film • Sample PL over time using a photodiode and microprocessor to measure the voltage from the sensor • Calculate tau using least-squares exponential fit • 0% DO - ~100µs • 20% DO (air) - ~30µs • 100% - <5µs • Calculate DO with temperature (and film) dependent a and b

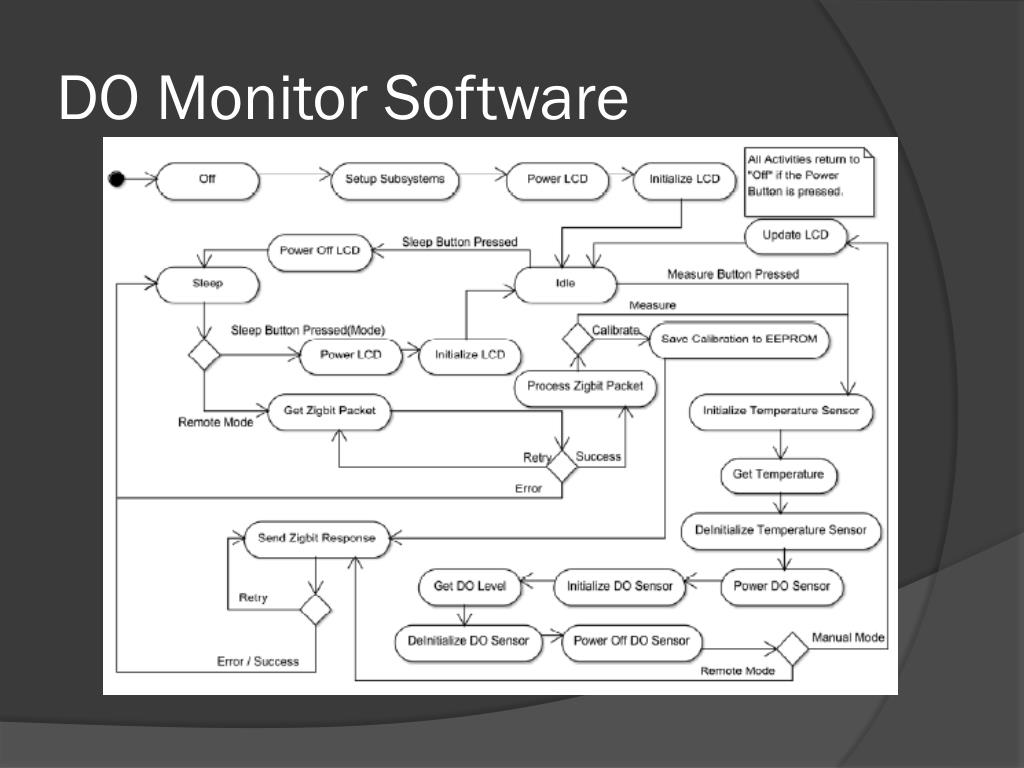

  10. DO Monitor Software

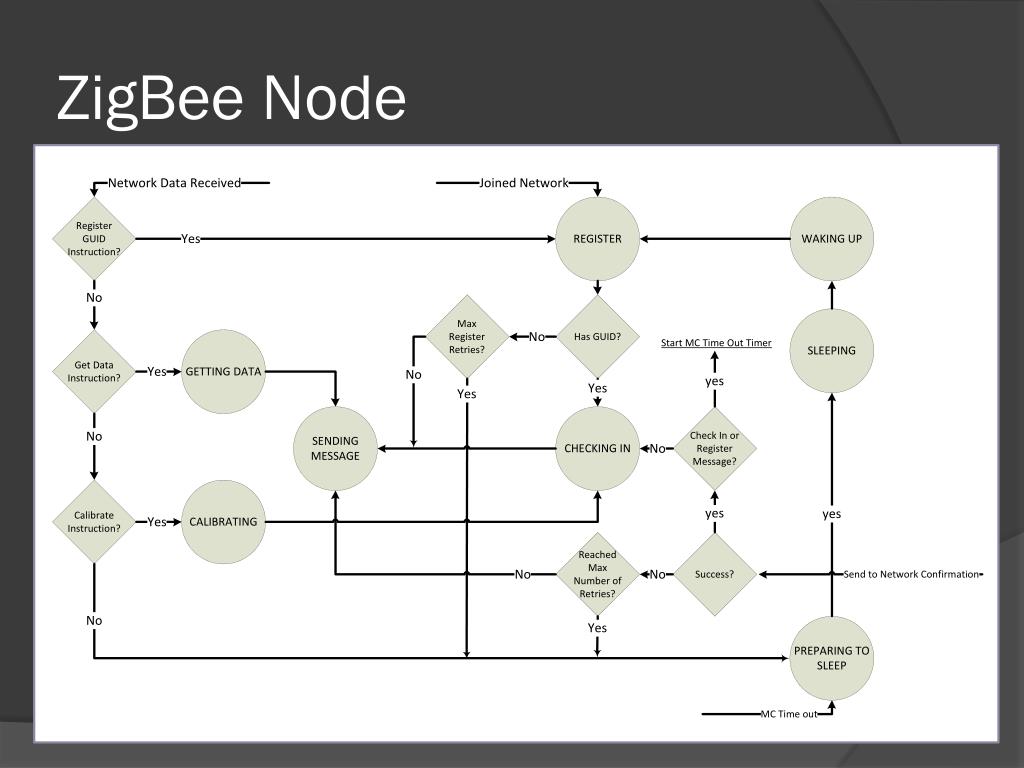

  11. ZigBee Node

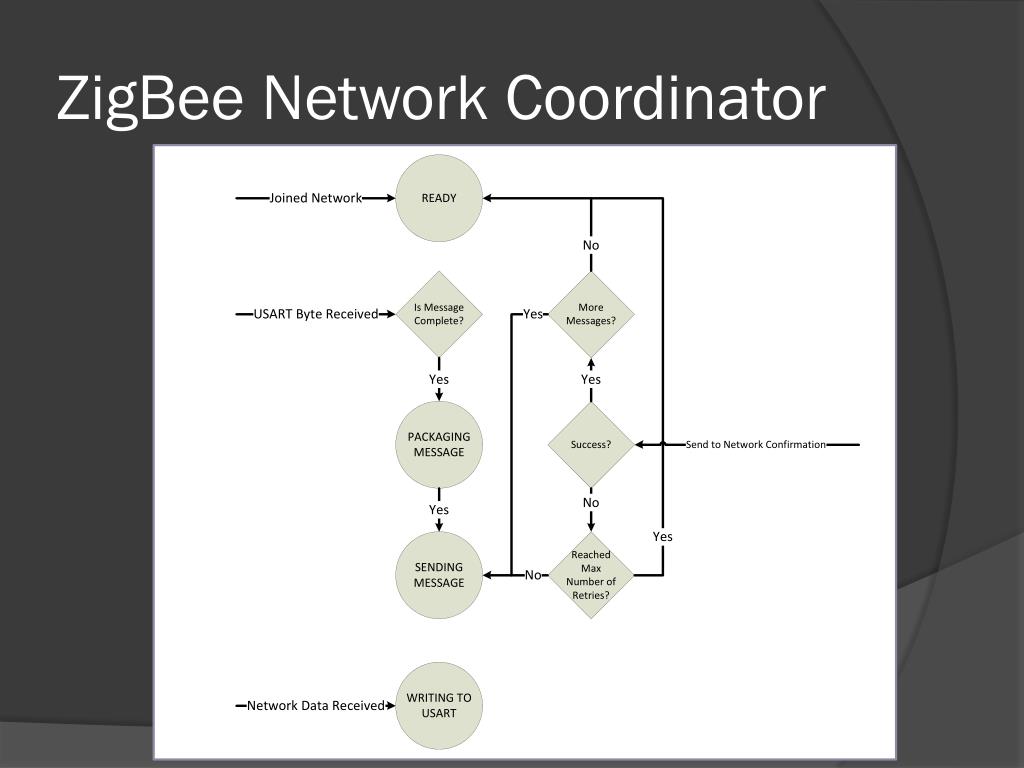

  12. ZigBee Network Coordinator

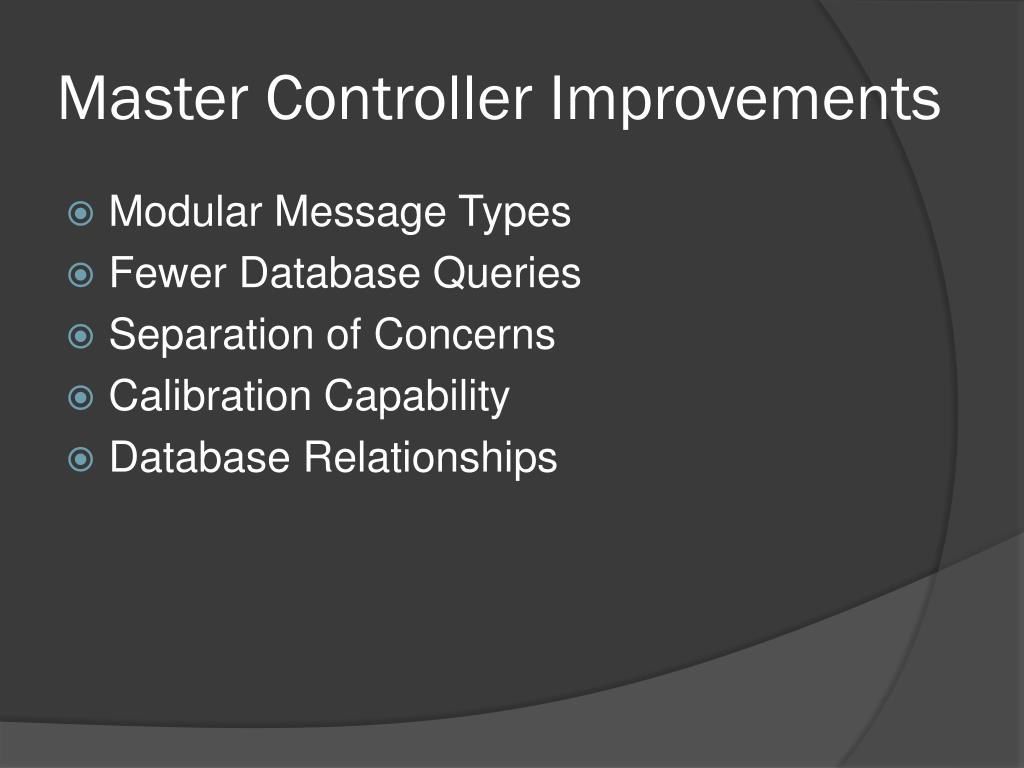

  13. Master Controller Improvements • Modular Message Types • Fewer Database Queries • Separation of Concerns • Calibration Capability • Database Relationships

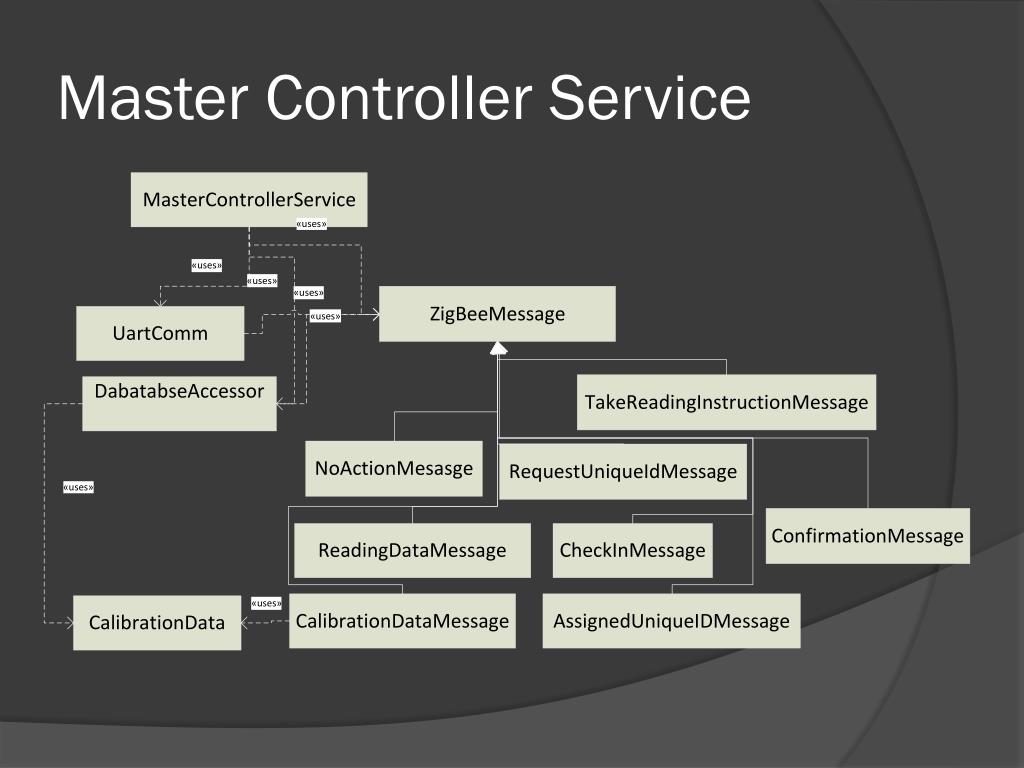

  14. Master Controller Service

  15. Master Controller GUI

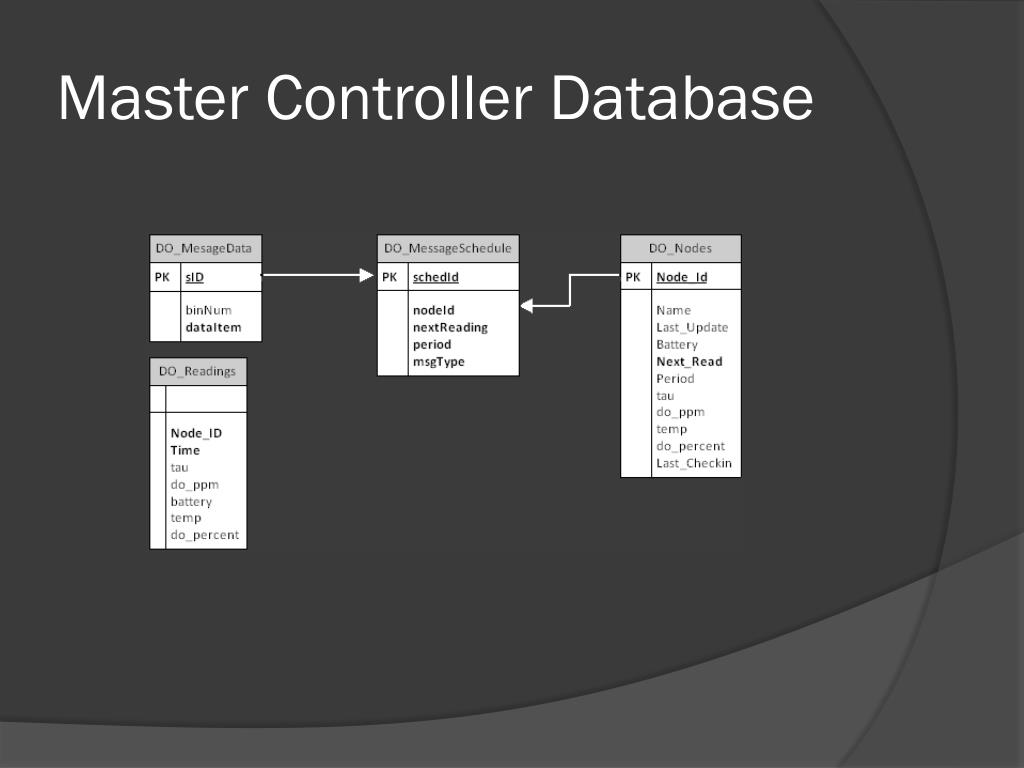

  16. Master Controller Database

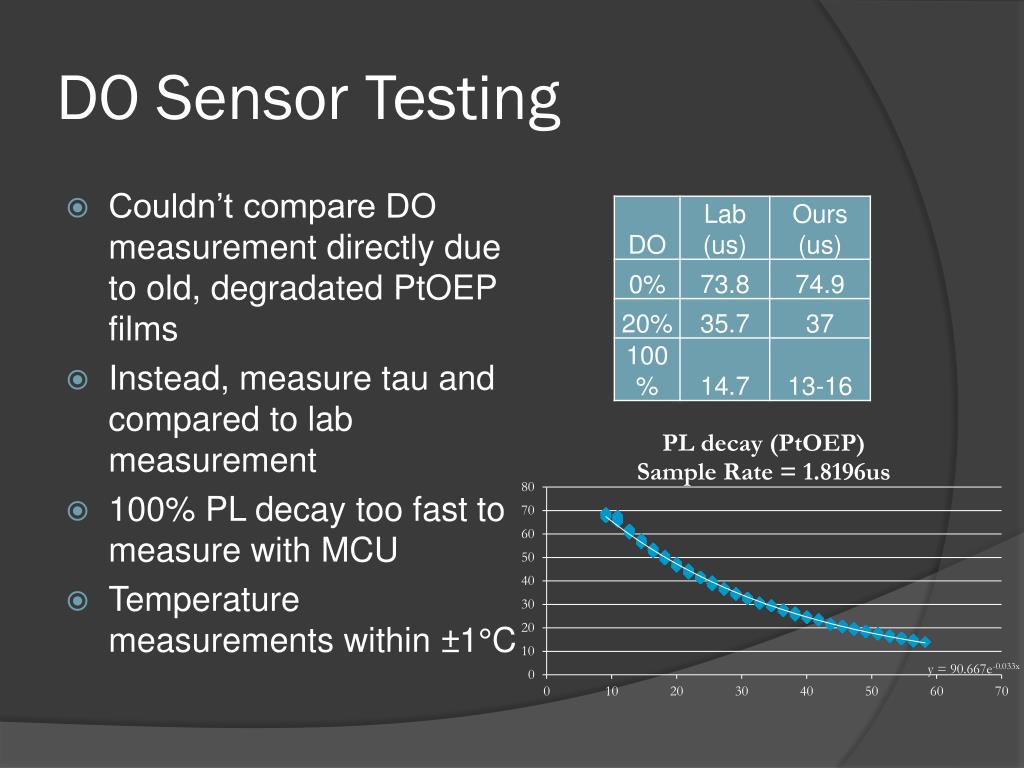

  17. DO Sensor Testing • Couldn’t compare DO measurement directly due to old, degradatedPtOEP films • Instead, measure tau and compared to lab measurement • 100% PL decay too fast to measure with MCU • Temperature measurements within ±1°C

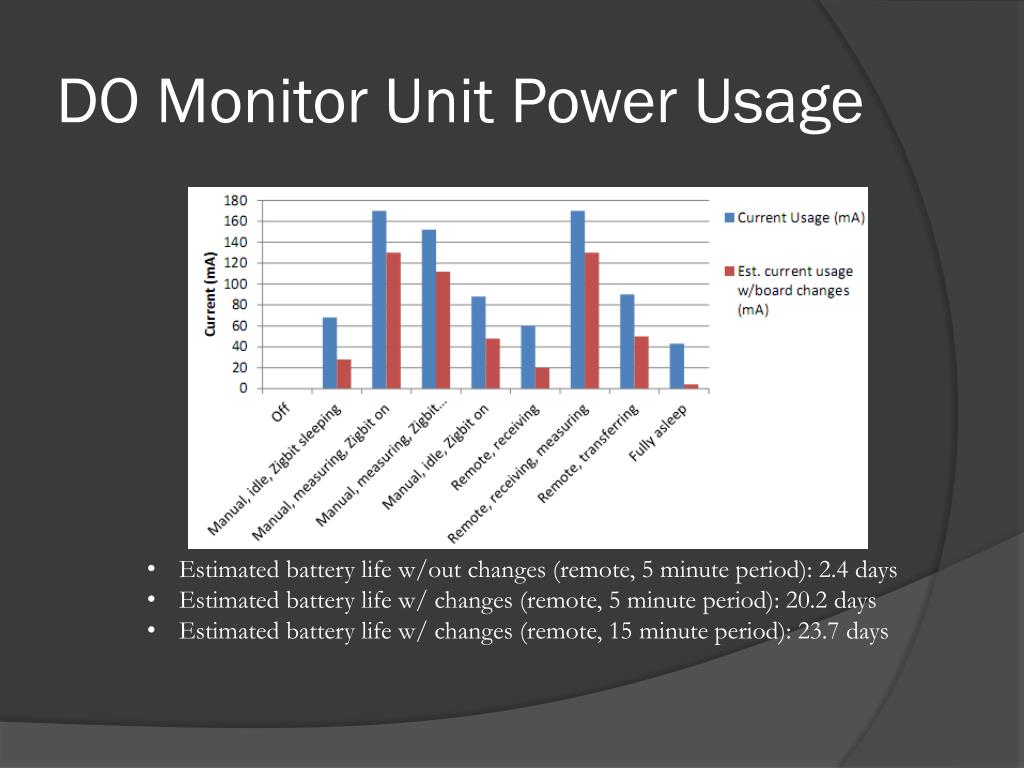

  18. DO Monitor Unit Power Usage • Estimated battery life w/out changes (remote, 5 minute period): 2.4 days • Estimated battery life w/ changes (remote, 5 minute period): 20.2 days • Estimated battery life w/ changes (remote, 15 minute period): 23.7 days

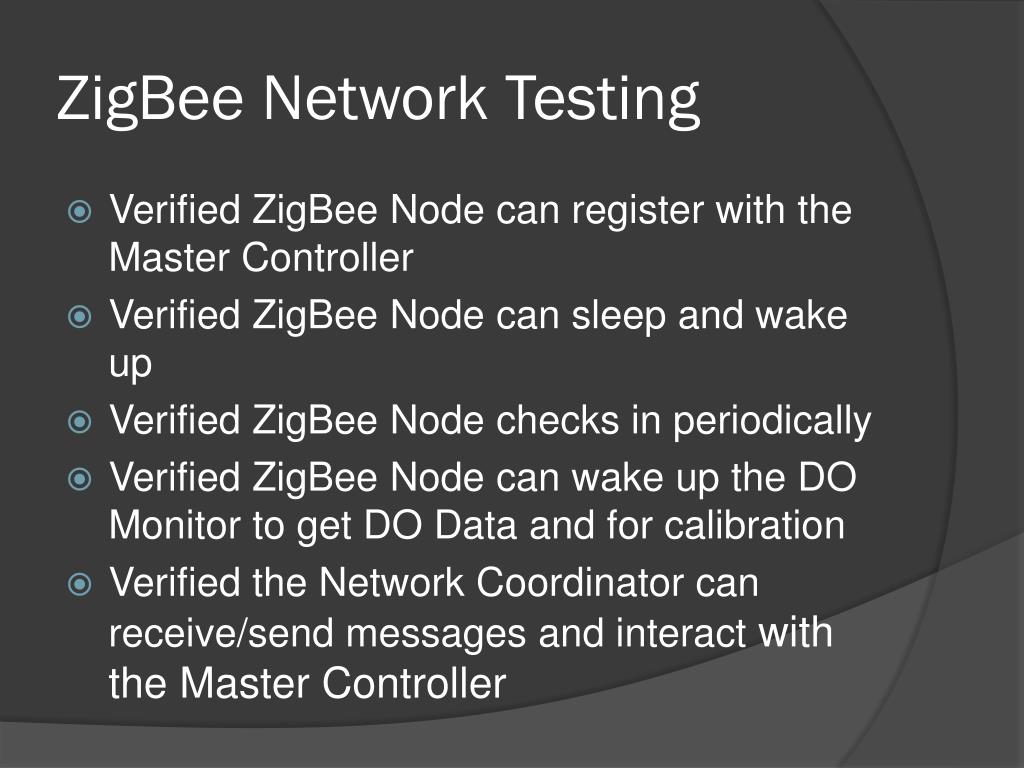

  19. ZigBee Network Testing • Verified ZigBee Node can register with the Master Controller • Verified ZigBee Node can sleep and wake up • Verified ZigBee Node checks in periodically • Verified ZigBee Node can wake up the DO Monitor to get DO Data and for calibration • Verified the Network Coordinator can receive/send messages and interact with the Master Controller

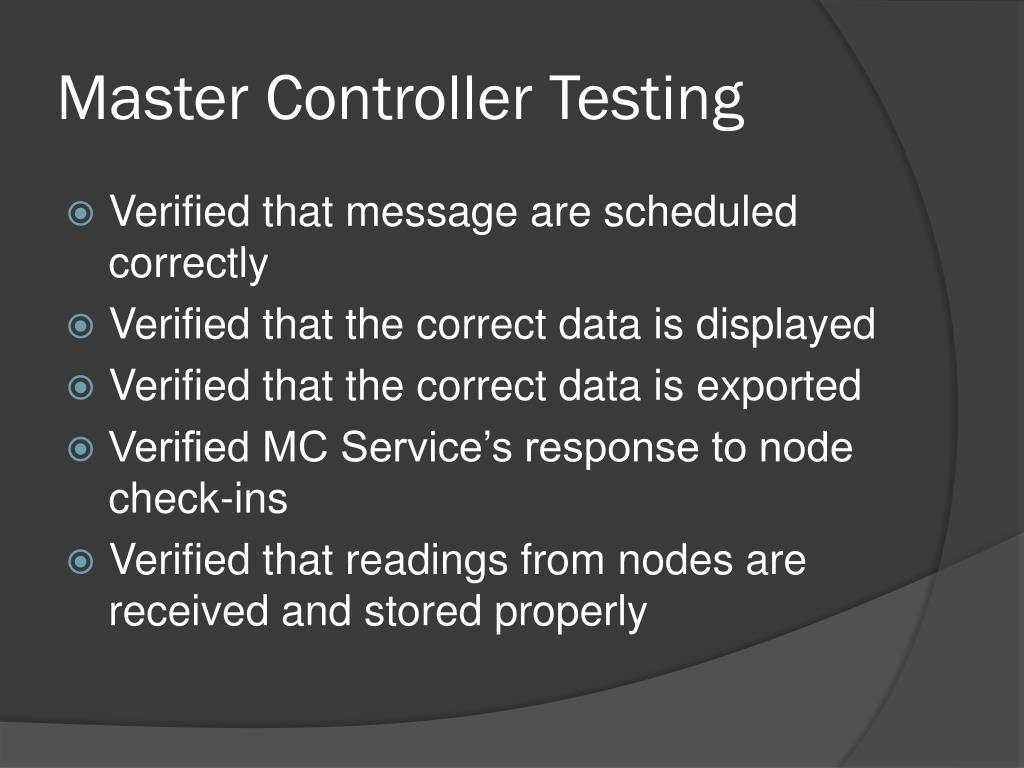

  20. Master Controller Testing • Verified that message are scheduled correctly • Verified that the correct data is displayed • Verified that the correct data is exported • Verified MC Service’s response to node check-ins • Verified that readings from nodes are received and stored properly

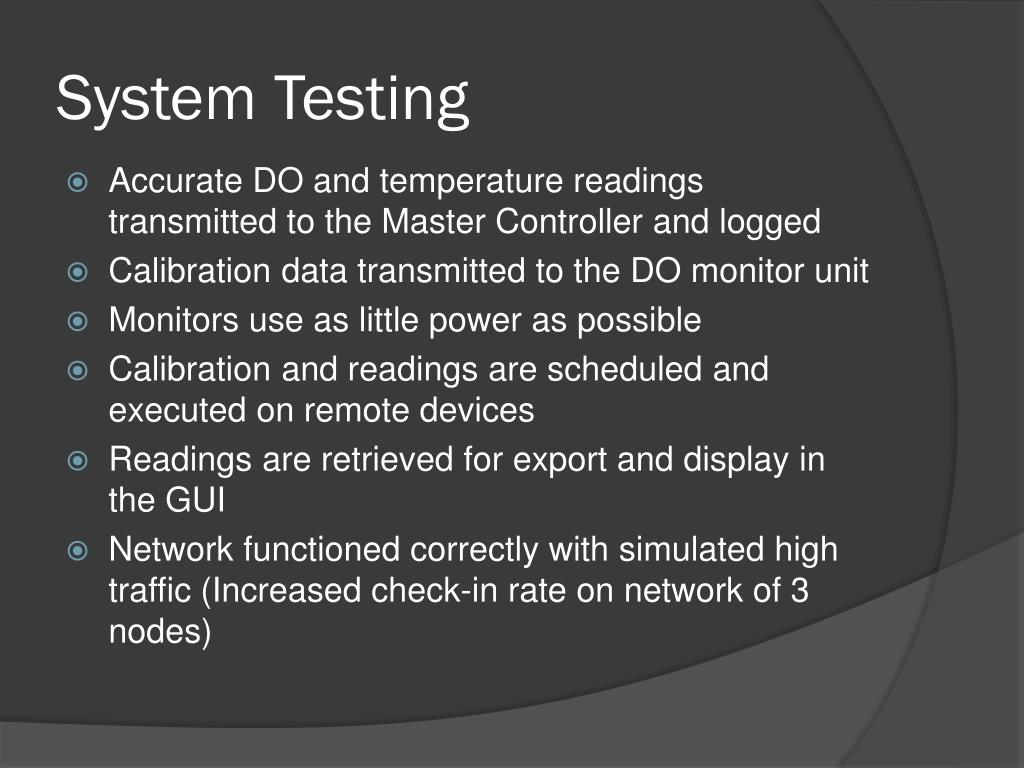

  21. System Testing • Accurate DO and temperature readings transmitted to the Master Controller and logged • Calibration data transmitted to the DO monitor unit • Monitors use as little power as possible • Calibration and readings are scheduled and executed on remote devices • Readings are retrieved for export and display in the GUI • Network functioned correctly with simulated high traffic (Increased check-in rate on network of 3 nodes)

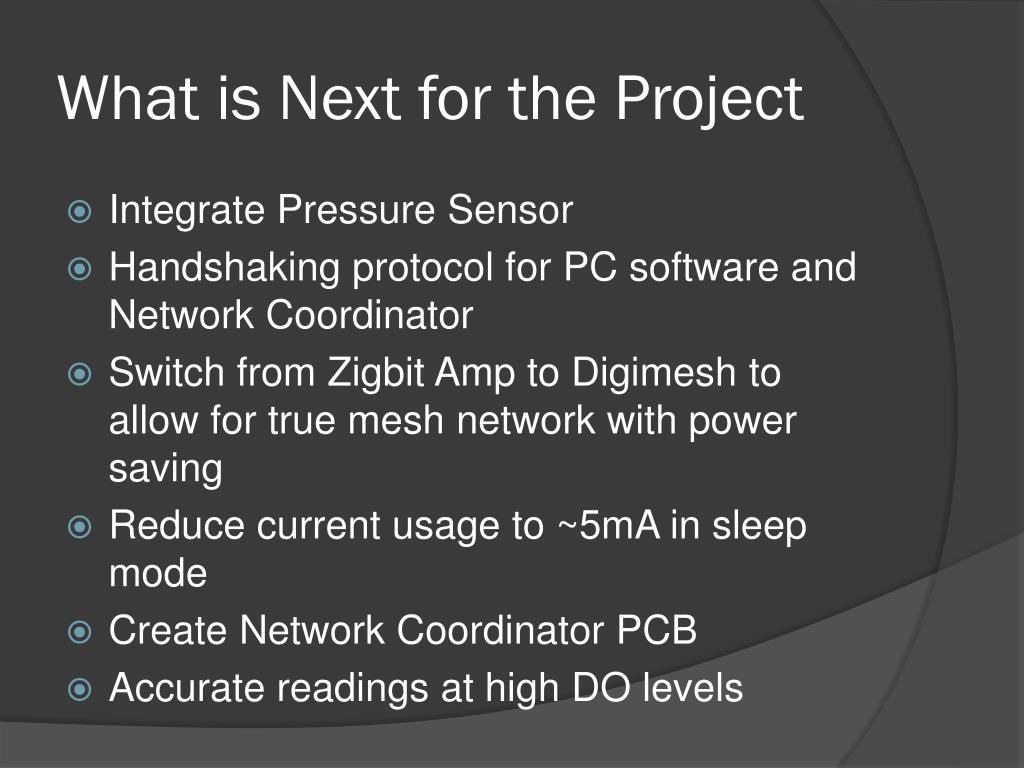

  22. What is Next for the Project • Integrate Pressure Sensor • Handshaking protocol for PC software and Network Coordinator • Switch from Zigbit Amp to Digimesh to allow for true mesh network with power saving • Reduce current usage to ~5mA in sleep mode • Create Network Coordinator PCB • Accurate readings at high DO levels

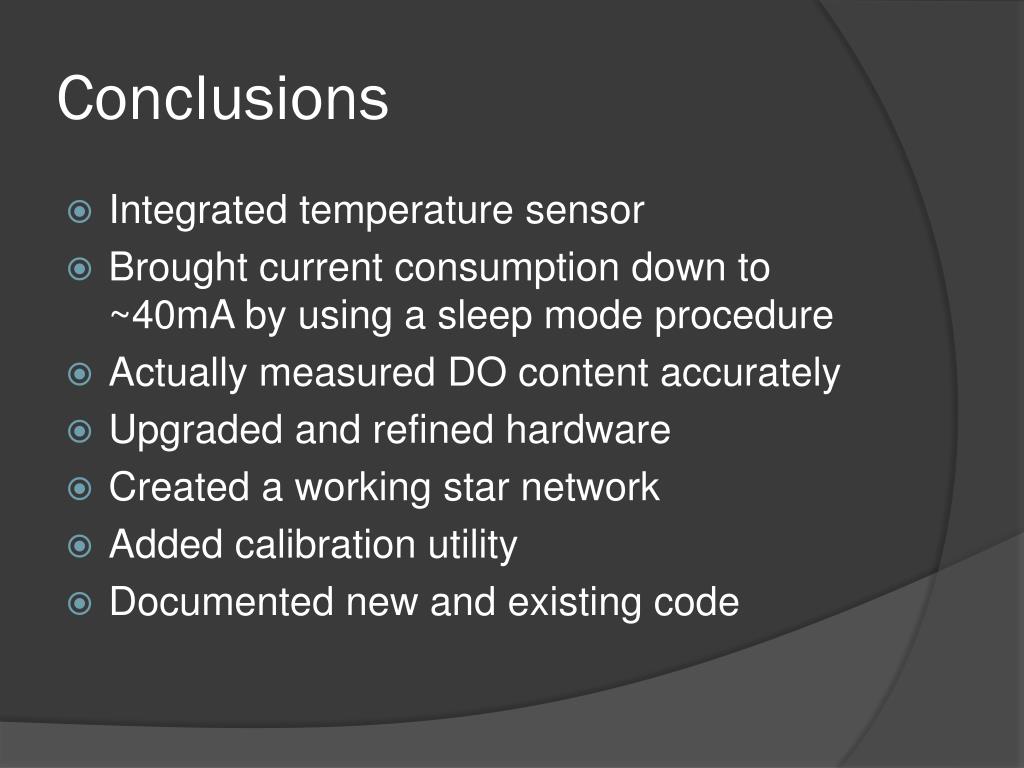

  23. Conclusions • Integrated temperature sensor • Brought current consumption down to ~40mA by using a sleep mode procedure • Actually measured DO content accurately • Upgraded and refined hardware • Created a working star network • Added calibration utility • Documented new and existing code

  24. Questions?
