On Partitioning and Symbolic Model Checking FM 2005

1. On Partitioning and Symbolic Model CheckingFM 2005 Subramanian Iyer, UT-Austin Debashis Sahoo, Stanford E. Allen Emerson, UT-Austin Jawahar Jain, Fujitsu Labs

2. Outline • Background • The Partitioning Approach • Model Checking • The naïve algorithm • An improved algorithm • Experiments and Conclusion

3. Outline • Background • The Partitioning Approach • Model Checking • The naïve algorithm • An improved algorithm • Experiments and Conclusion

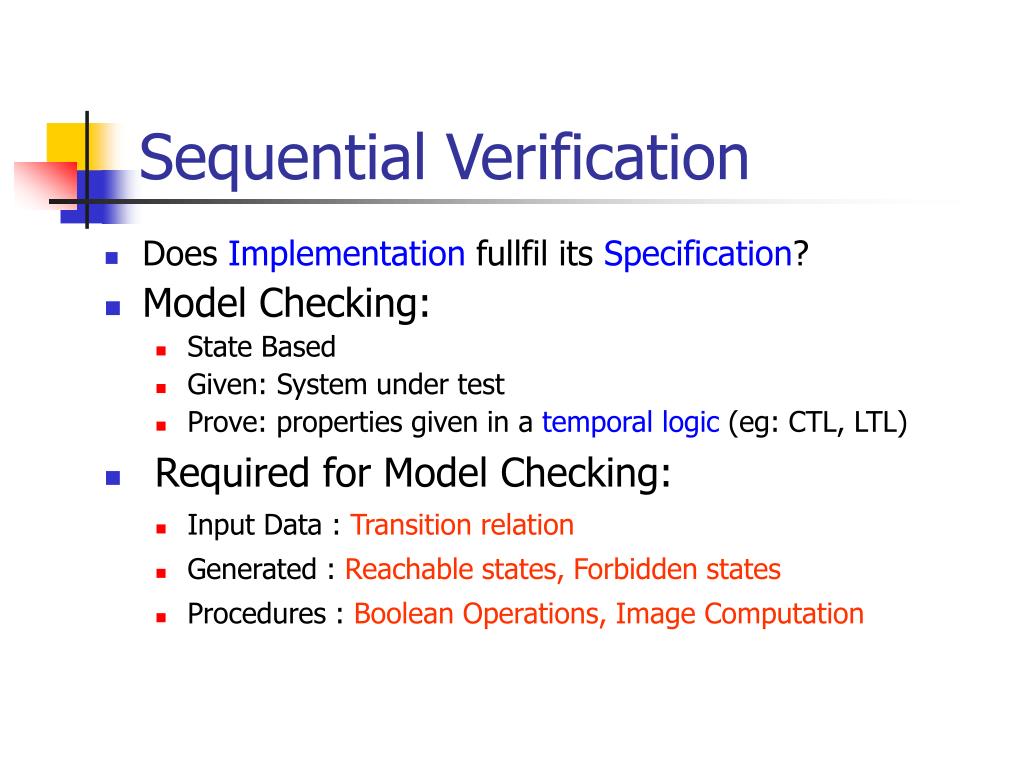

4. Sequential Verification • Does Implementation fullfil its Specification? • Model Checking: • State Based • Given: System under test • Prove: properties given in a temporal logic (eg: CTL, LTL) • Required for Model Checking: • Input Data : Transition relation • Generated : Reachable states, Forbidden states • Procedures : Boolean Operations, Image Computation

5. S0 Reachability Analysis Algorithm: Simple property: 2n From=Reached=S0 do{ To = Img(TR,From) New = To \ Reached Reached = Reached + To From = New }while(New  Ø ) • C • D

6. Model Checking • Hinges on Reachability • Basic Operation: Pre-image • In Simple terms • Given “bad” formula f • Compute reachable states • Compute states satisfying f • Pass if intersection is empty • Key issues : State set generation and representation • Extensional, as originally proposed. • Symbolic, as now practiced

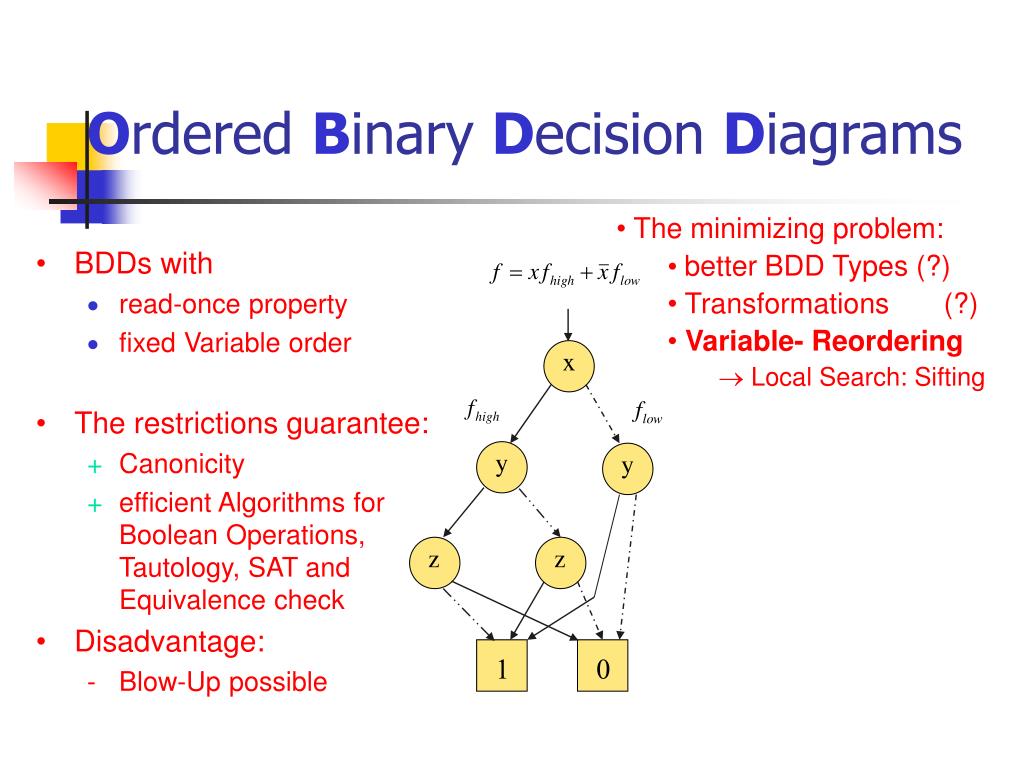

7. x y y z z 1 0 OrderedBinary Decision Diagrams • BDDs with • read-once property • fixed Variable order • The restrictions guarantee: • Canonicity • efficient Algorithms for Boolean Operations, Tautology, SAT and Equivalence check • Disadvantage: • Blow-Up possible • The minimizing problem: • better BDD Types (?) • Transformations (?) • Variable- Reordering • Local Search: Sifting

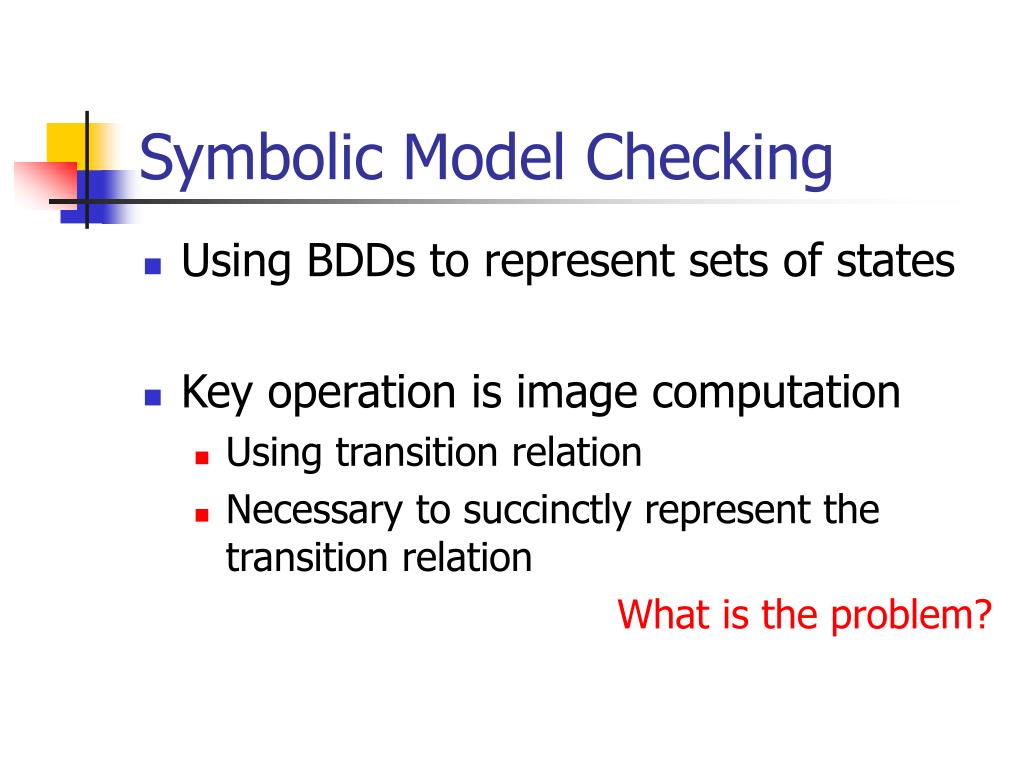

8. Symbolic Model Checking • Using BDDs to represent sets of states • Key operation is image computation • Using transition relation • Necessary to succinctly represent the transition relation What is the problem?

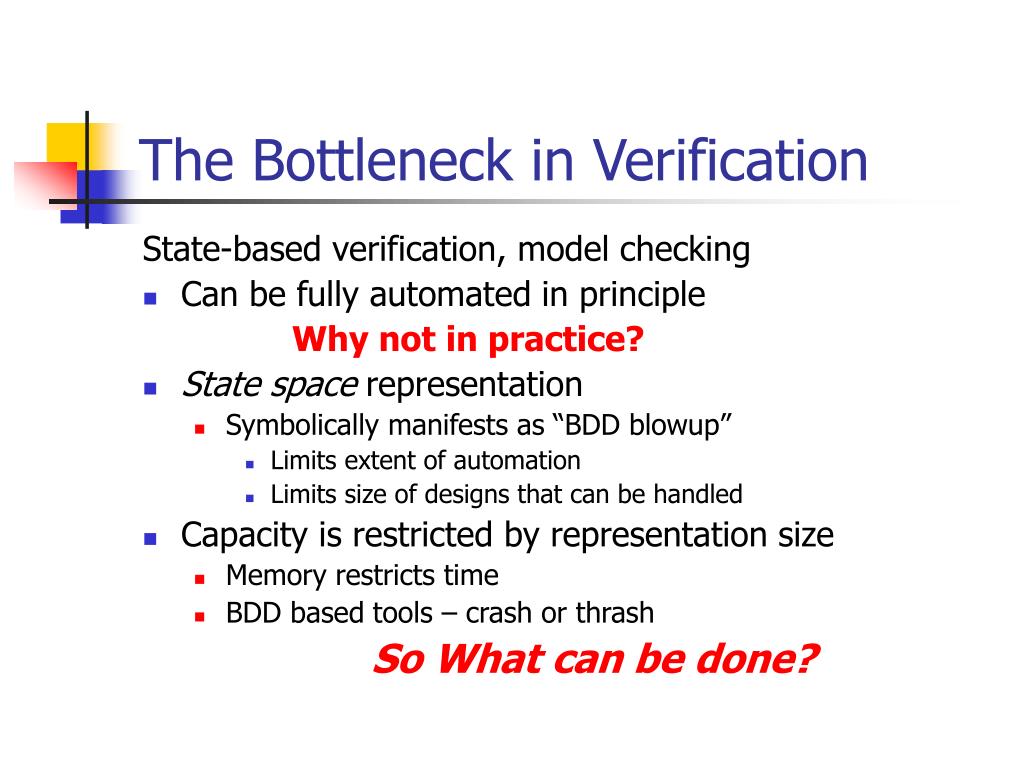

9. The Bottleneck in Verification State-based verification, model checking • Can be fully automated in principle Why not in practice? • State space representation • Symbolically manifests as “BDD blowup” • Limits extent of automation • Limits size of designs that can be handled • Capacity is restricted by representation size • Memory restricts time • BDD based tools – crash or thrash So What can be done?

10. Outline • Background • The Partitioning Approach • Model Checking • The naïve algorithm • An improved algorithm • Experiments and Conclusion

11. Partitioned Transition Relation • Represented as conjunction of k parts TRi • Easy to construct for synchronous circuits • Conjunction of “bitwise” TRi’s – the transition function of each state variable • Set of variables partitioned into k disjoint subsets • Transition functions for variables in each subset are conjuncted together to give TRi • TR is the implicit conjunction of TRi for i in 1 to k

12. Partitioned TR (Cont‘d) • Basis of reachable states computation: • Partitioned TR: TRj Cluster of ROBDDs Monolithic ROBDD

13. Image Computation • The image computation step: • Partitioned TR useful due to early quantification (AndExist): • Choice and order of TRj’s is crucial for a good performance! Img(TR,A)= $x( TR(x,y) A(x)) Img(TR,A)= $xn( TRn ...$x2( TR2 $x1( TR1 A)))...)

14. Partitioned TR - Observations • What is it that is partitioned? • The set of variables • The relation • Actual TR is an implicit conjunction • Sets of states always ROBDD • During image computation • Before and After image computation

15. So What? • Sets of states as ROBDDs • Can get very large • TR parts repeatedly conjuncted • During each image • Made easier combined with quantification • Still repeated expense • Solution: Partition all state-sets

16. f ^ ^ ^ ^ f2 f4 f3 f1 Partitioned ROBDD (POBDD) Given the Boolean Function Xfis its partitioned-ROBDD representation if, where and are ROBDDs with variable ordering pi, and, w2 w1 Each wiis called a window function Note that the ROBDDs in each partition may have a different variables ordering pi w4 w3

17. A simple example f = c (a1b1 + a2b2) + c (a1a2 + b1b2 ) w1 = c w2 = c f1 = c (a1b1 + a2b2) f2 = c (a1a2 + b1b2 ) f2 f1 c c     a1 a1 a2 b1 b1 a2 b2 b2 1 1 0 0 2 : c, a1, a2, b1, b2 1 : c, a1, b1, a2, b2

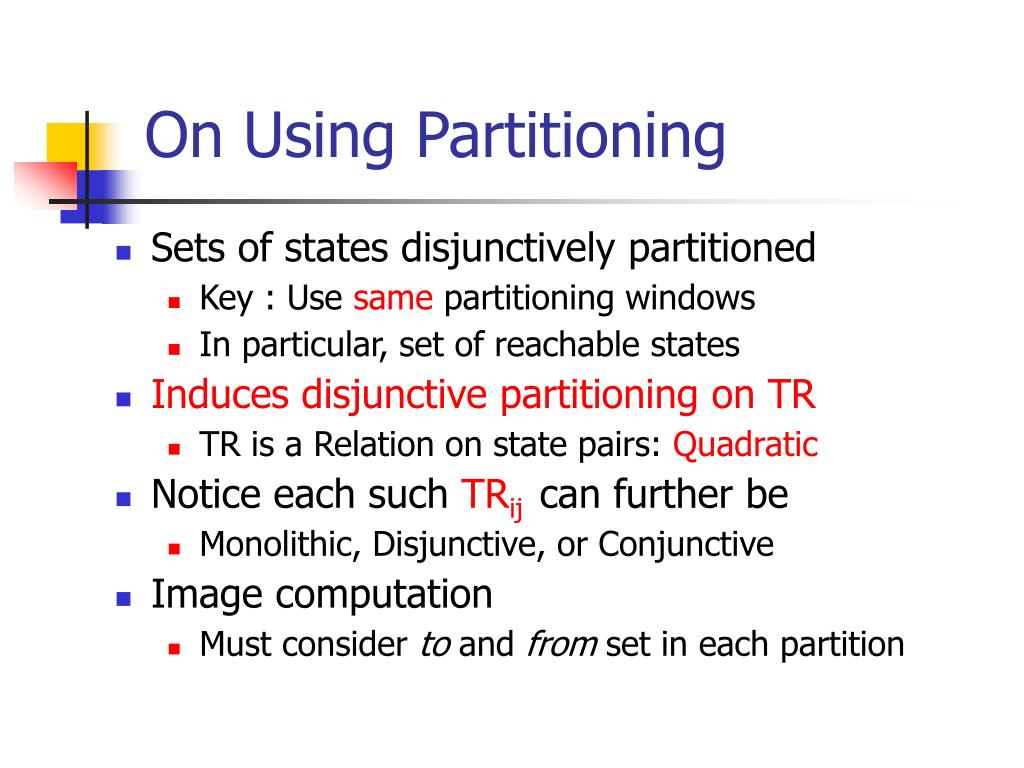

18. On Using Partitioning • Sets of states disjunctively partitioned • Key : Use same partitioning windows • In particular, set of reachable states • Induces disjunctive partitioning on TR • TR is a Relation on state pairs: Quadratic • Notice each such TRijcan further be • Monolithic, Disjunctive, or Conjunctive • Image computation • Must consider to and from set in each partition

19. Reachability Revisited Old Algorithm: From=Reached=S0 do{ To = Img(TR,From) New = To \ Reached Reached += To From = New }while(New  Ø ) Notice that From is now partitioned TR applied to Fromiof partition i, result Toiis also partitioned So Toijis owned by partition j Must be given to j. Quadratic such transfers!

20. Image and Reachability • Fix point computations performed • On each partition locally Using TRii • Use reachability algorithm on ROBDDs • Synchronization between partitions • Cross-over images finds states use TRij , . • Must keep it infrequent • Postponed till local fixpoint reached

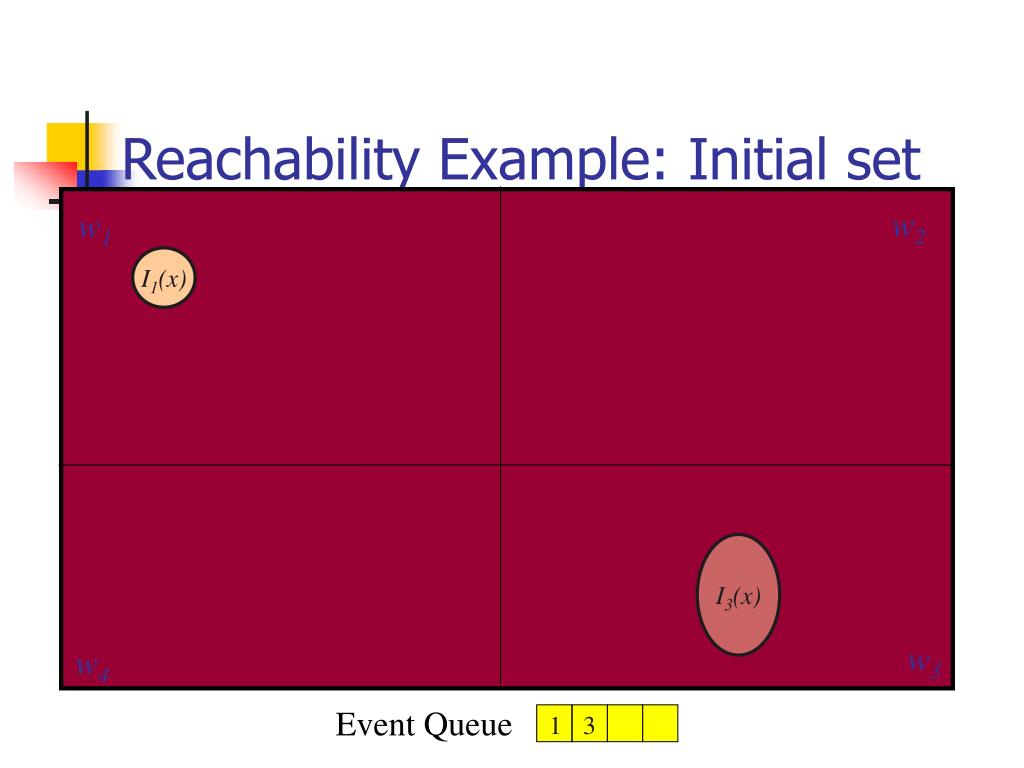

21. Reachability Example: Initial set w2 w1 I1(x) I3(x) w3 w4 Event Queue 1 3

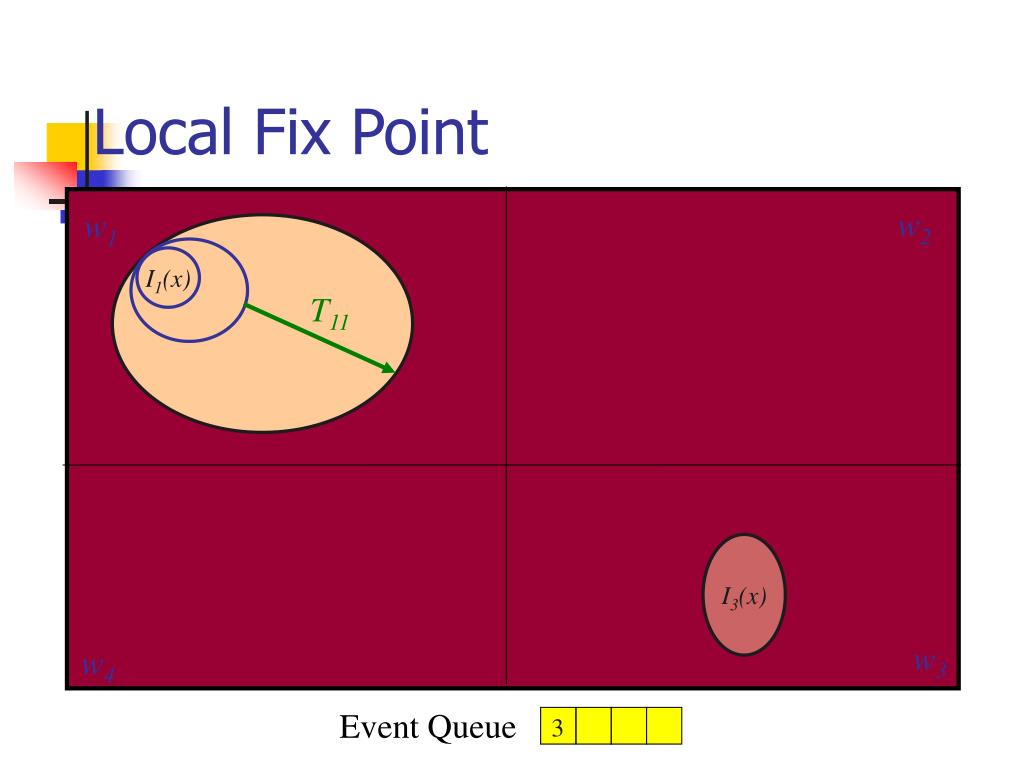

22. w2 w1 I1(x) T11 I3(x) w3 w4 Event Queue 3 Local Fix Point

23. Event Queue 3 4 Cross-over images w2 w1 T12 R1 T14 T13 I3(x) w3 w4

24. w2 w1 R1 T33 I3(x) w3 w4 Event Queue 4 Another Local Fix point

25. w2 w1 R1 T31 T32 T34 R3 w3 w4 Event Queue 4 2 1 More Cross over images

26. w2 w1 R1 T44 R3 w3 w4 Event Queue 1 2 Example, cont.

27. Outline • Background • The Partitioning Approach • Model Checking • The naïve algorithm • An improved algorithm • Experiments and Conclusion

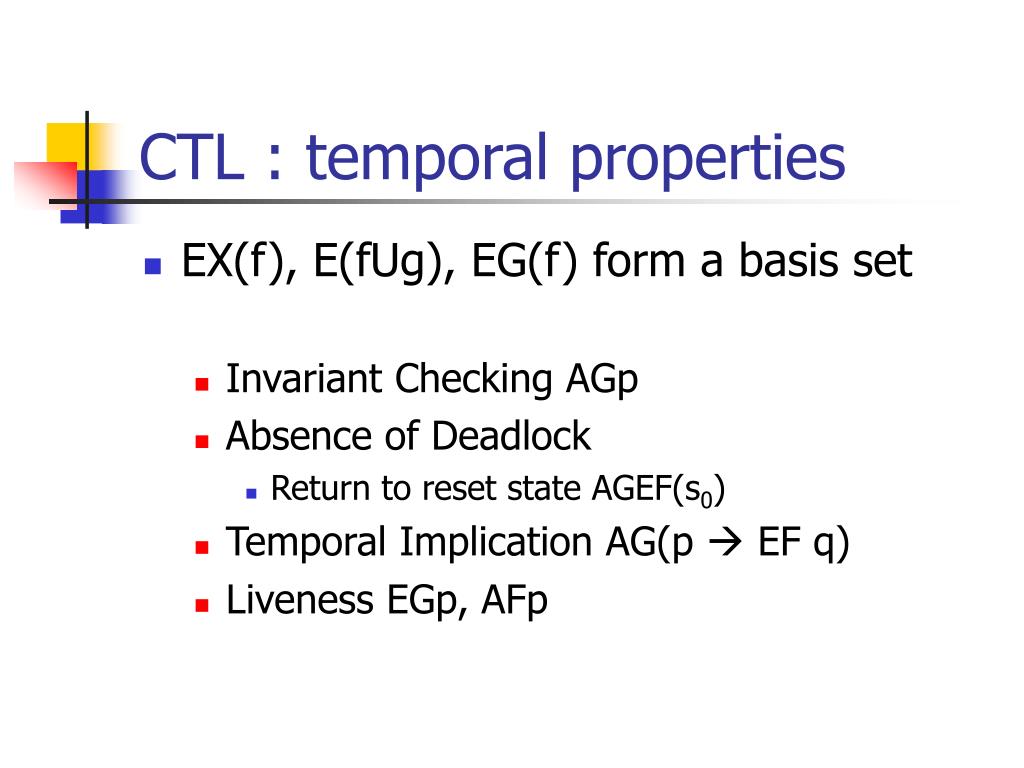

28. CTL : temporal properties • EX(f), E(fUg), EG(f) form a basis set • Invariant Checking AGp • Absence of Deadlock • Return to reset state AGEF(s0) • Temporal Implication AG(p  EF q) • Liveness EGp, AFp

29. Outline • Background • The Partitioning Approach • Model Checking • The naïve algorithm • An improved algorithm • Experiments and Conclusion

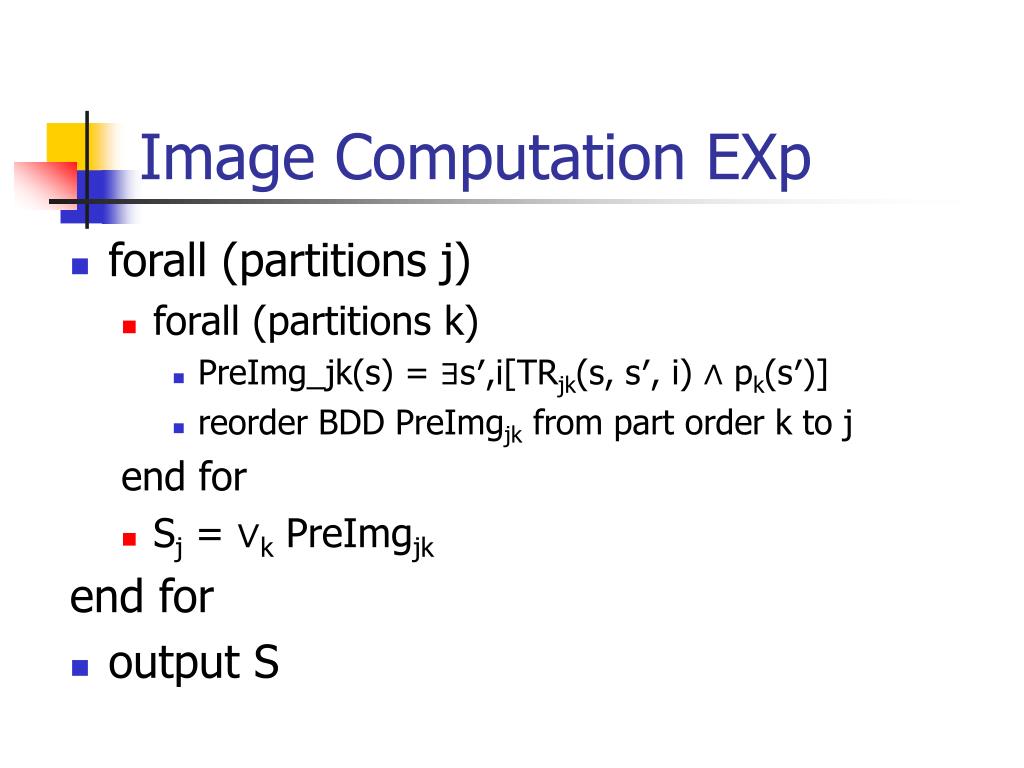

30. Image Computation EXp • forall (partitions j) • forall (partitions k) • PreImg_jk(s) = ∃s′,i[TRjk(s, s′, i) ∧ pk(s′)] • reorder BDD PreImgjk from part order k to j end for • Sj = ∨k PreImgjk end for • output S

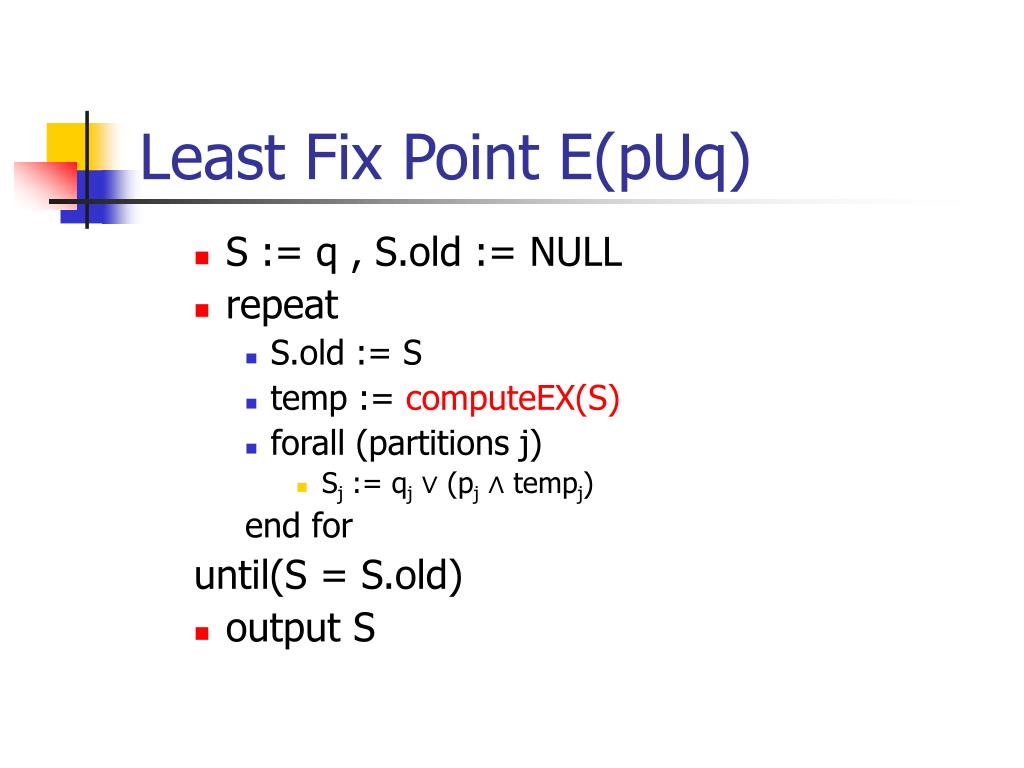

31. Least Fix Point E(pUq) • S := q , S.old := NULL • repeat • S.old := S • temp := computeEX(S) • forall (partitions j) • Sj := qj ∨ (pj ∧ tempj) end for until(S = S.old) • output S

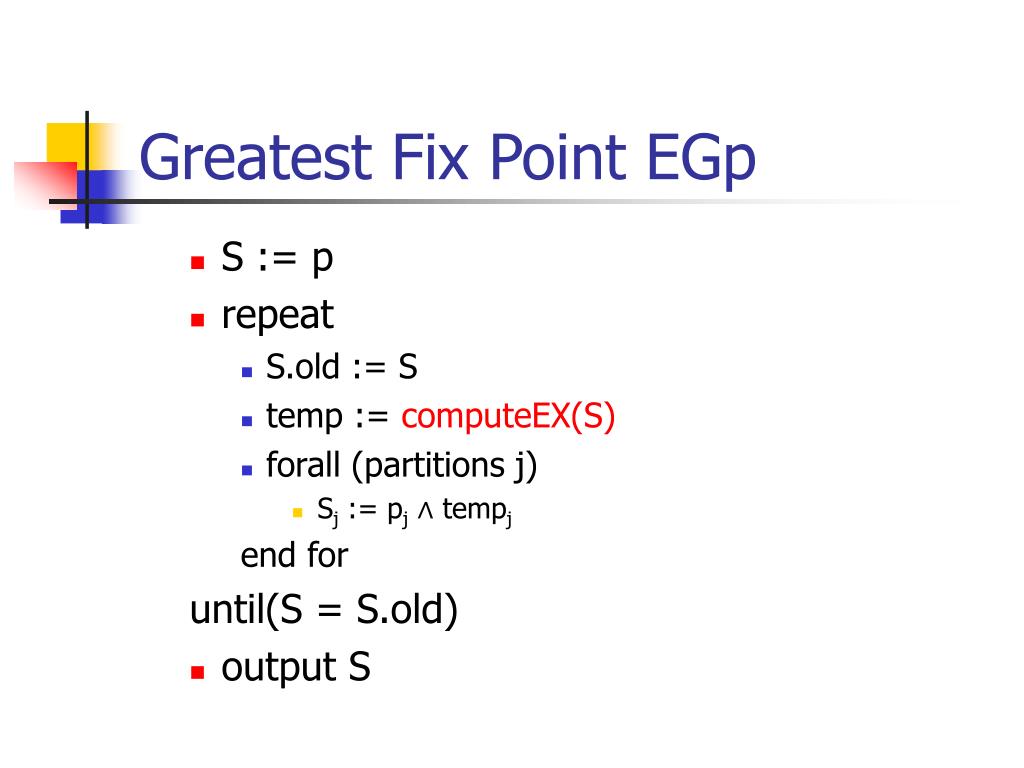

32. Greatest Fix Point EGp • S := p • repeat • S.old := S • temp := computeEX(S) • forall (partitions j) • Sj := pj ∧ tempj end for until(S = S.old) • output S

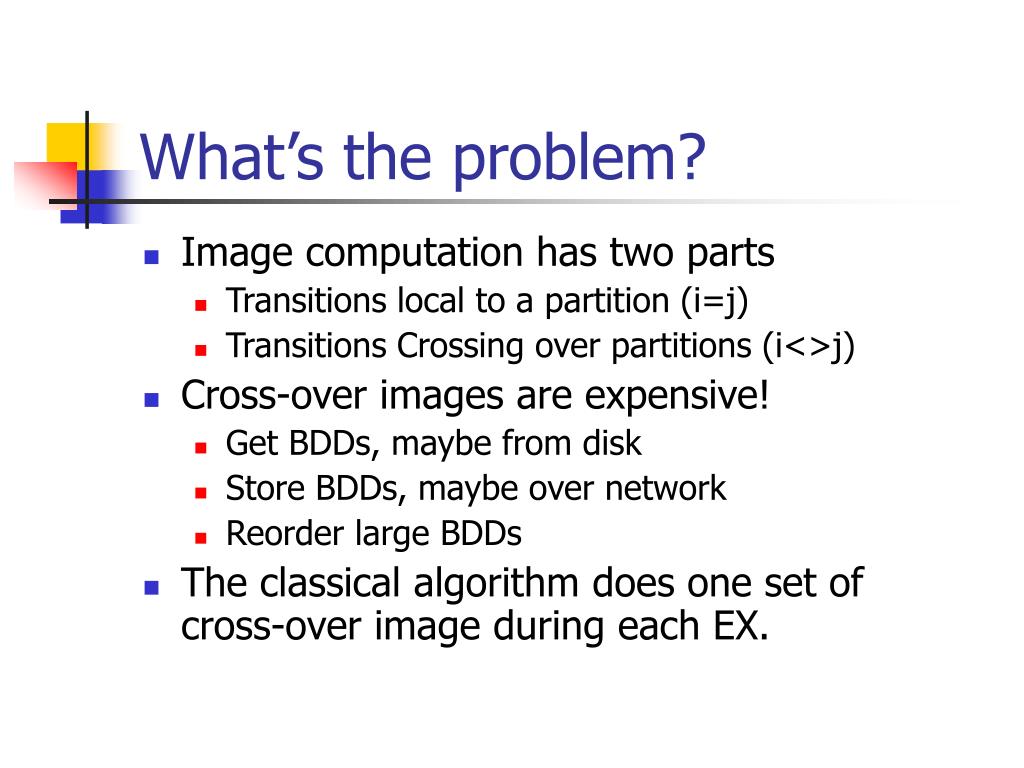

33. What’s the problem? • Image computation has two parts • Transitions local to a partition (i=j) • Transitions Crossing over partitions (i<>j) • Cross-over images are expensive! • Get BDDs, maybe from disk • Store BDDs, maybe over network • Reorder large BDDs • The classical algorithm does one set of cross-over image during each EX.

34. Outline • Background • The Partitioning Approach • Model Checking • The naïve algorithm • An improved algorithm • Experiments and Conclusion

35. Least Fix Point E(pUq) • S := q, S.old := NULL • repeat • S.old := S • forall (partitions j) • repeat • Sj .old := Sj • Sj := Sj ∨ (pj ∧ EXl(Sj , j)) … under-approximate until(Sj = Sj .old) end for • S := S ∨ (p ∧ EXc(S)) … add missing states until(S = S.old) • output S

36. Greatest Fix Point EGp • S := p • Border := p ∧ EXc(S) … candidate set • repeat • S.old := S • forall (partitions j) • repeat • Sj .old := Sj • Sj := pj ∧ (EXl(Sj , j) ∨ Borderj) … over-approx • until(Sj == Sj .old) end for • Border := p ∧EXc(S) … prune states until(S == S.old) • output S

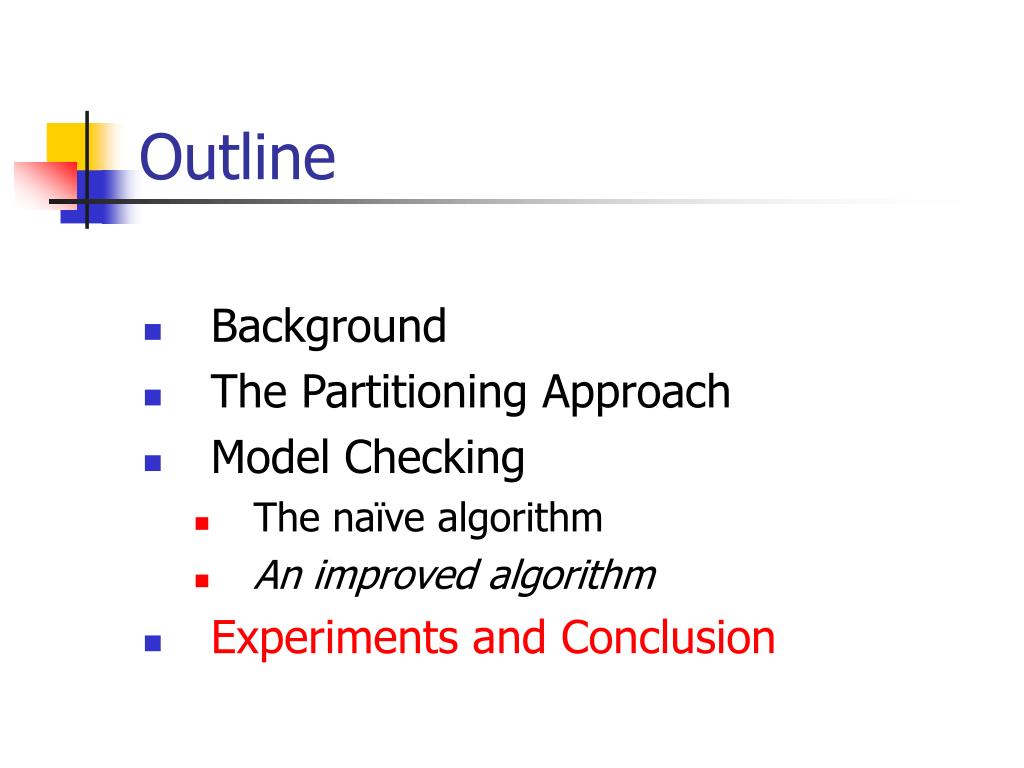

37. Outline • Background • The Partitioning Approach • Model Checking • The naïve algorithm • An improved algorithm • Experiments and Conclusion

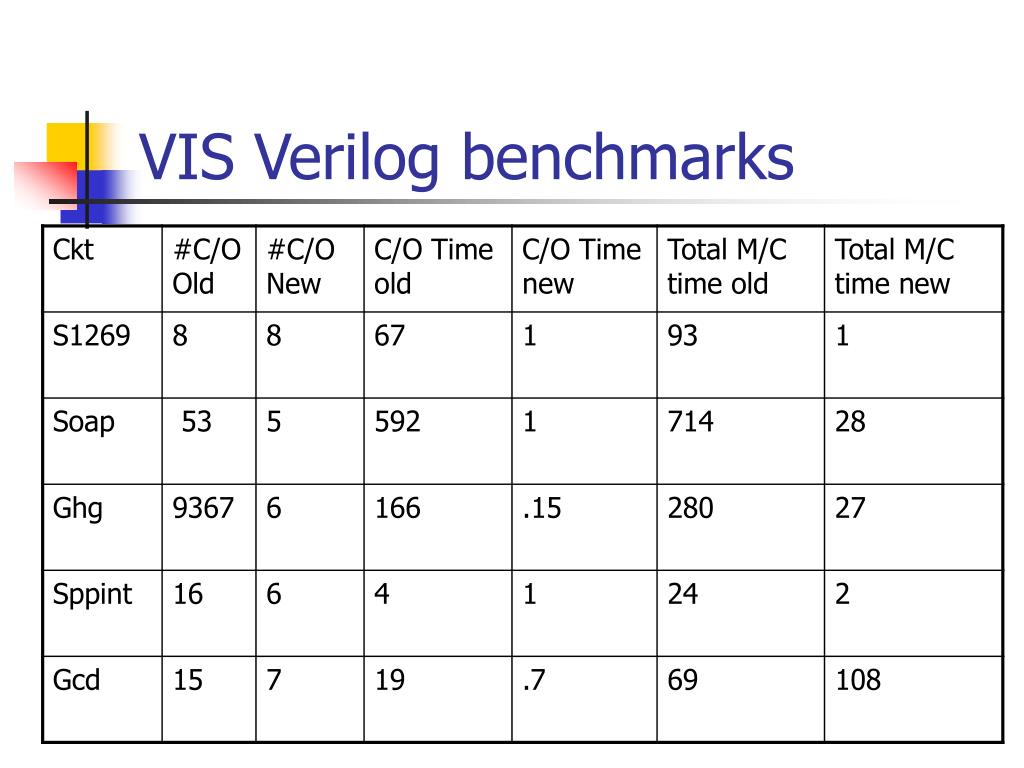

38. VIS Verilog benchmarks

39. Conclusions Assuming a model where cross-over images are very expensive, the proposed algorithm: • Is no worse than the classical algorithm • Converges faster, empirically, in terms of • Number of cross-over images • Time spent in cross-over images • Reduces total model checking time • Often quite significantly • Is good for parallel model checking
