FPGA Defect Tolerance: Impact of Granularity Anthony Yu Guy Lemieux December 14, 2005

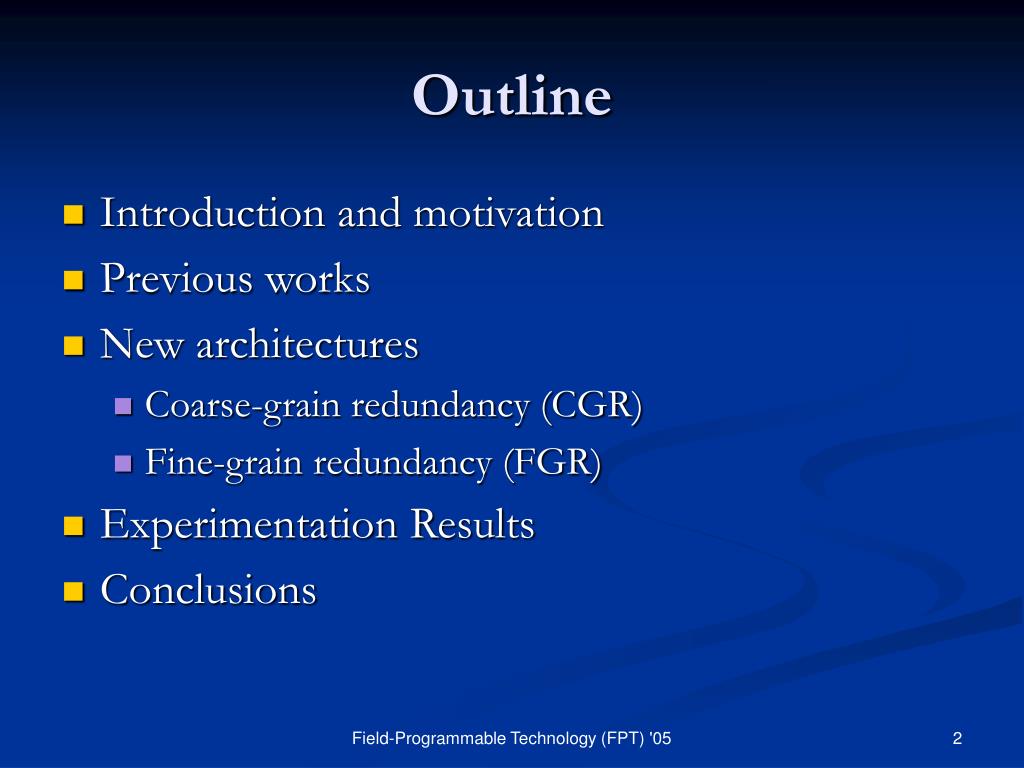

Outline • Introduction and motivation • Previous works • New architectures • Coarse-grain redundancy (CGR) • Fine-grain redundancy (FGR) • Experimentation Results • Conclusions Field-Programmable Technology (FPT) '05

Introduction and Motivation • Scaling introduces new typesof defects • Smaller feature sizes susceptible to smaller defects • Expected results • Defects per chip increases • Chip yield declines • FPGAs are mostly interconnect • FPGAs must tolerate multiple interconnect defects to improve yield (and $$$) Field-Programmable Technology (FPT) '05

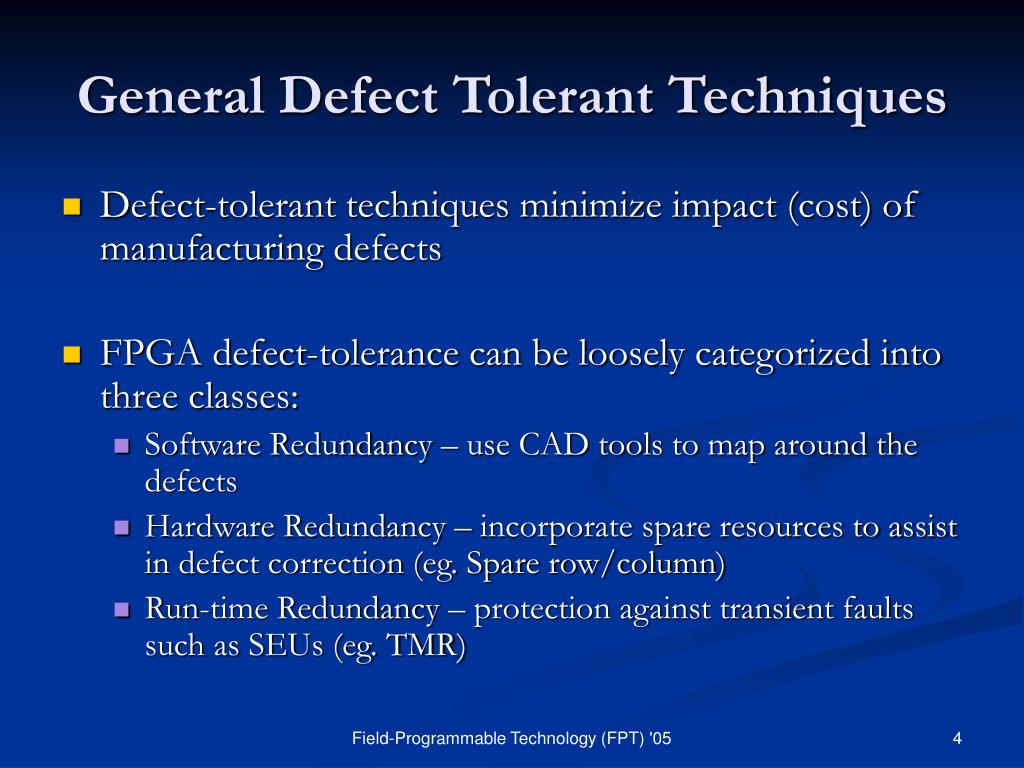

General Defect Tolerant Techniques • Defect-tolerant techniques minimize impact (cost) of manufacturing defects • FPGA defect-tolerance can be loosely categorized into three classes: • Software Redundancy – use CAD tools to map around the defects • Hardware Redundancy – incorporate spare resources to assist in defect correction (eg. Spare row/column) • Run-time Redundancy – protection against transient faults such as SEUs (eg. TMR) Field-Programmable Technology (FPT) '05

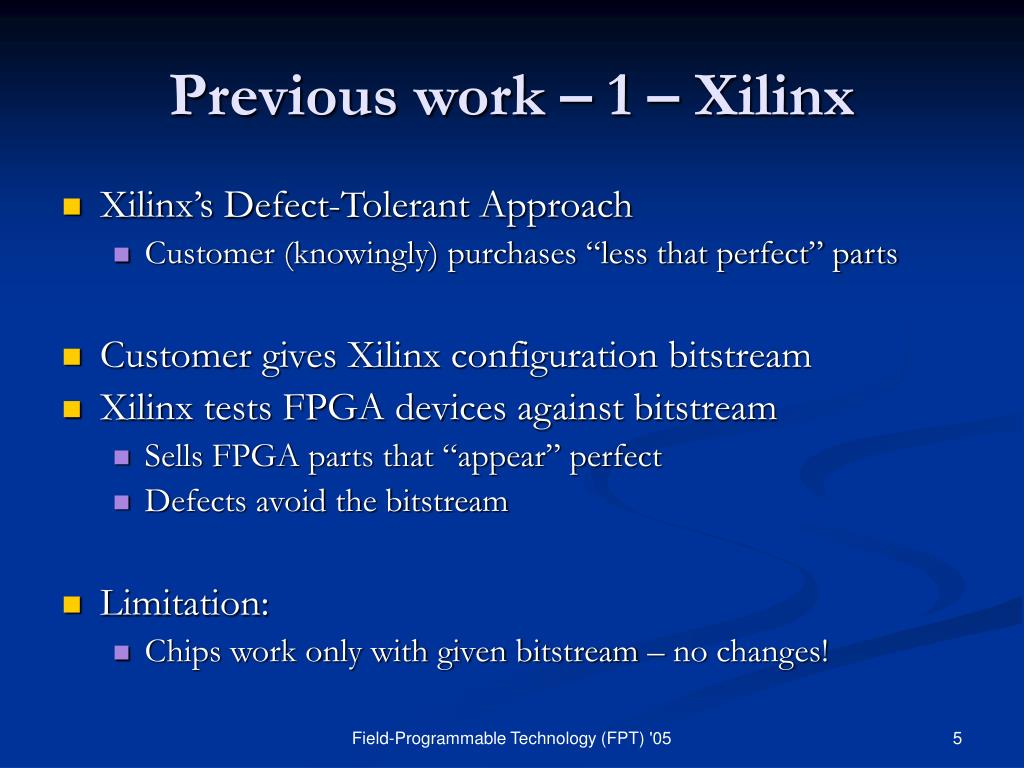

Previous work – 1 – Xilinx • Xilinx’s Defect-Tolerant Approach • Customer (knowingly) purchases “less that perfect” parts • Customer gives Xilinx configuration bitstream • Xilinx tests FPGA devices against bitstream • Sells FPGA parts that “appear” perfect • Defects avoid the bitstream • Limitation: • Chips work only with given bitstream – no changes! Field-Programmable Technology (FPT) '05

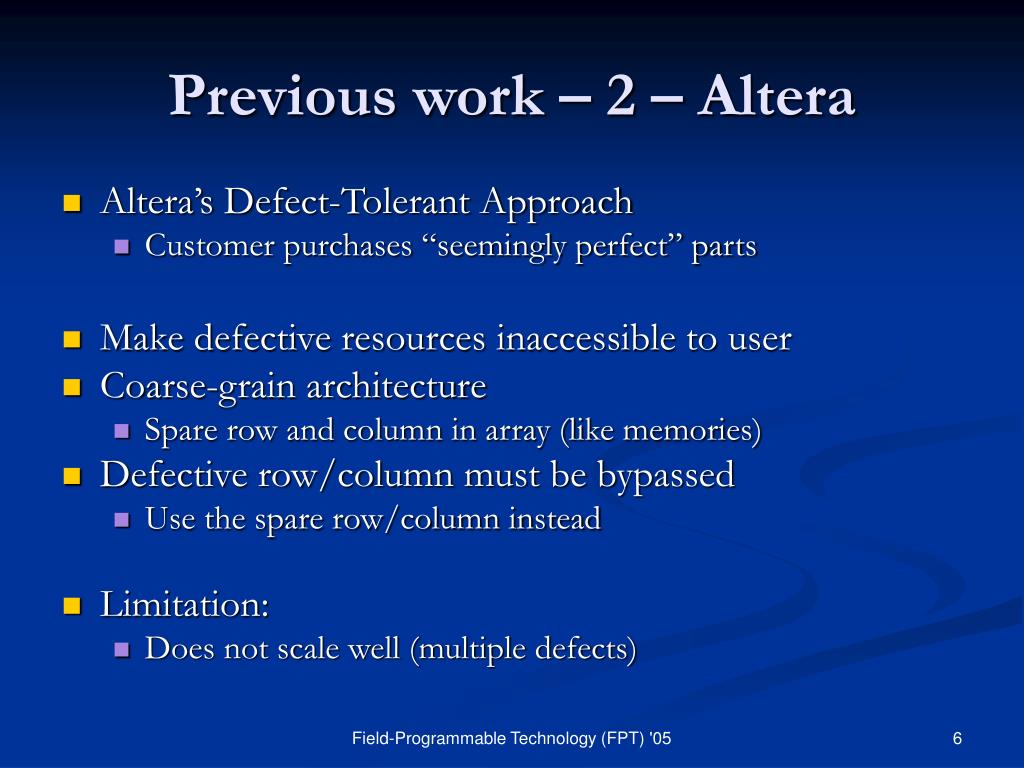

Previous work – 2 – Altera • Altera’s Defect-Tolerant Approach • Customer purchases “seemingly perfect” parts • Make defective resources inaccessible to user • Coarse-grain architecture • Spare row and column in array (like memories) • Defective row/column must be bypassed • Use the spare row/column instead • Limitation: • Does not scale well (multiple defects) Field-Programmable Technology (FPT) '05

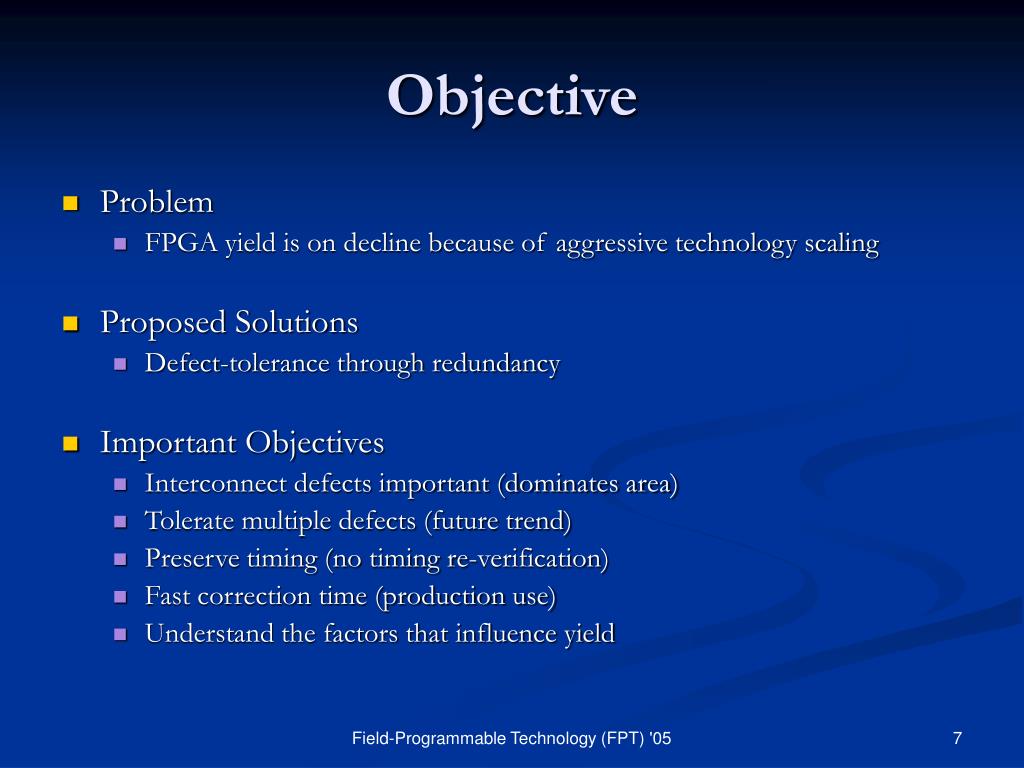

Objective • Problem • FPGA yield is on decline because of aggressive technology scaling • Proposed Solutions • Defect-tolerance through redundancy • Important Objectives • Interconnect defects important (dominates area) • Tolerate multiple defects (future trend) • Preserve timing (no timing re-verification) • Fast correction time (production use) • Understand the factors that influence yield Field-Programmable Technology (FPT) '05

Background

Island-style FPGA Field-Programmable Technology (FPT) '05

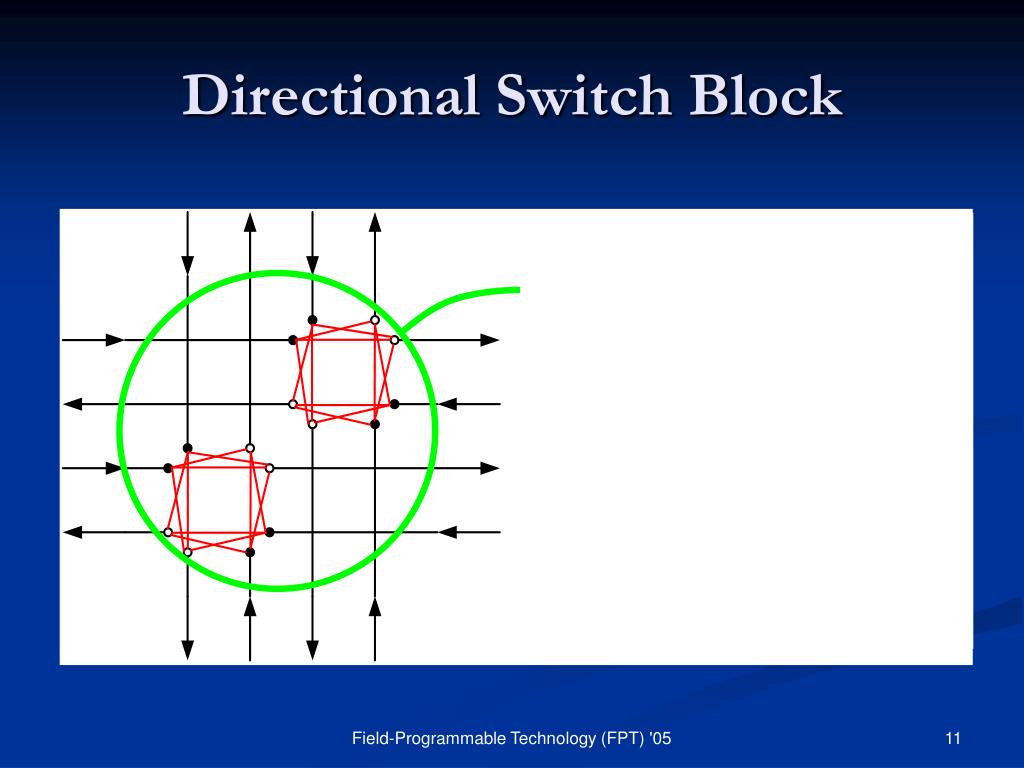

Directional Switch Block Field-Programmable Technology (FPT) '05

Course-grain Redundancy (CGR)

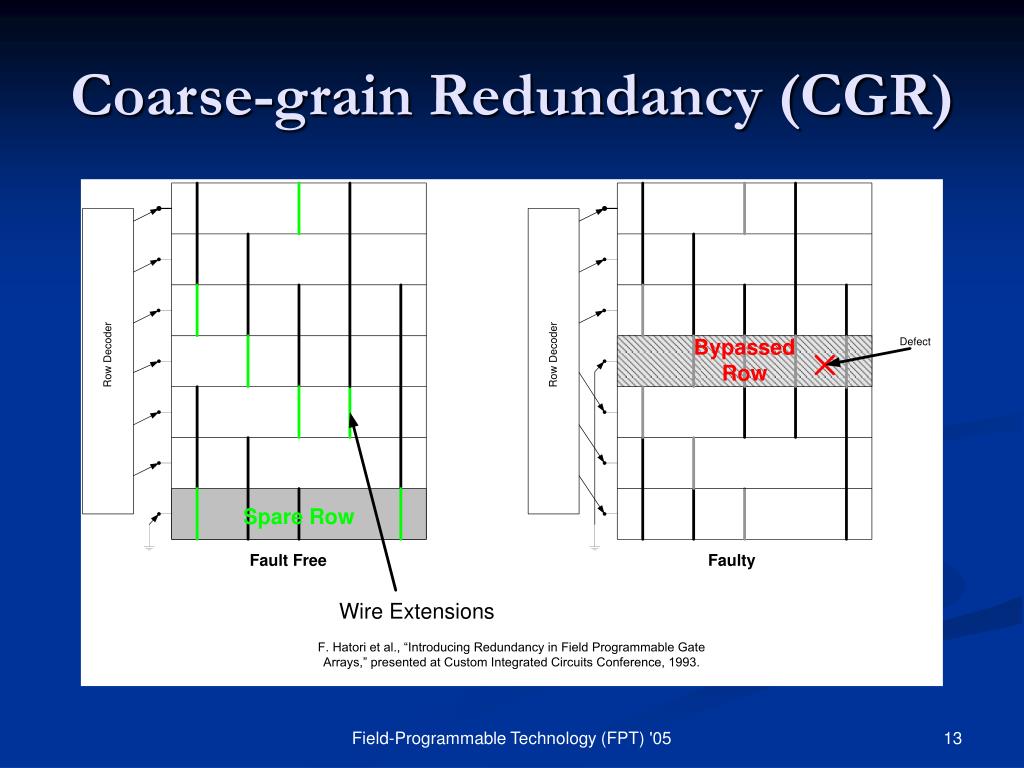

Coarse-grain Redundancy (CGR) Field-Programmable Technology (FPT) '05

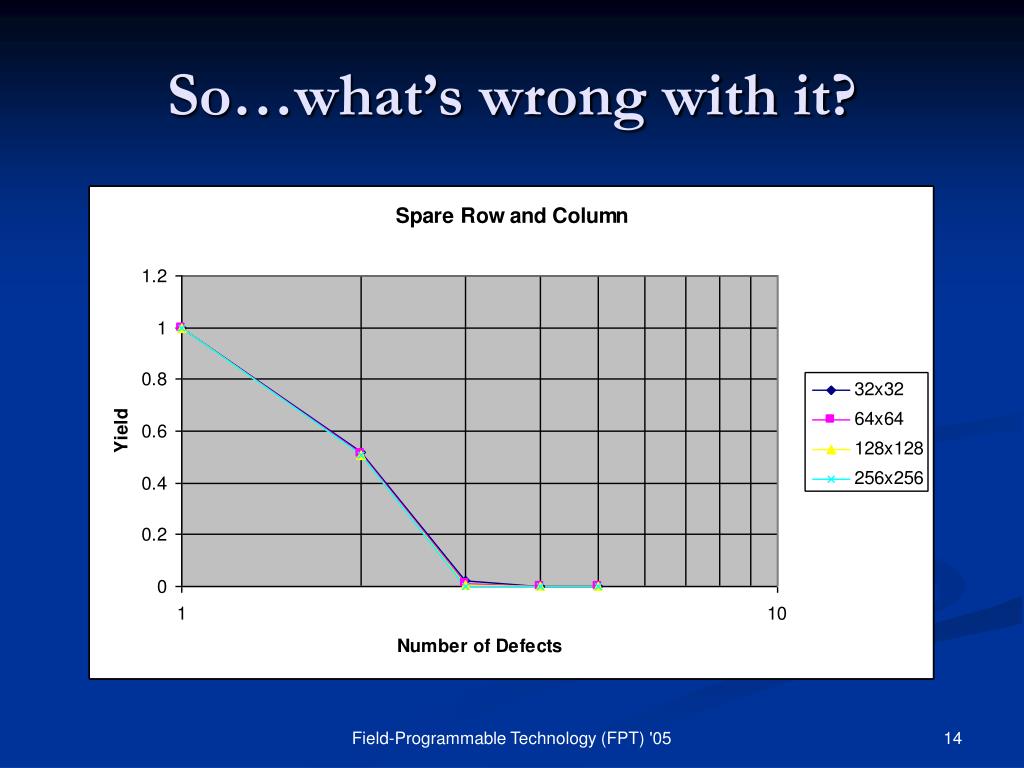

So…what’s wrong with it? Field-Programmable Technology (FPT) '05

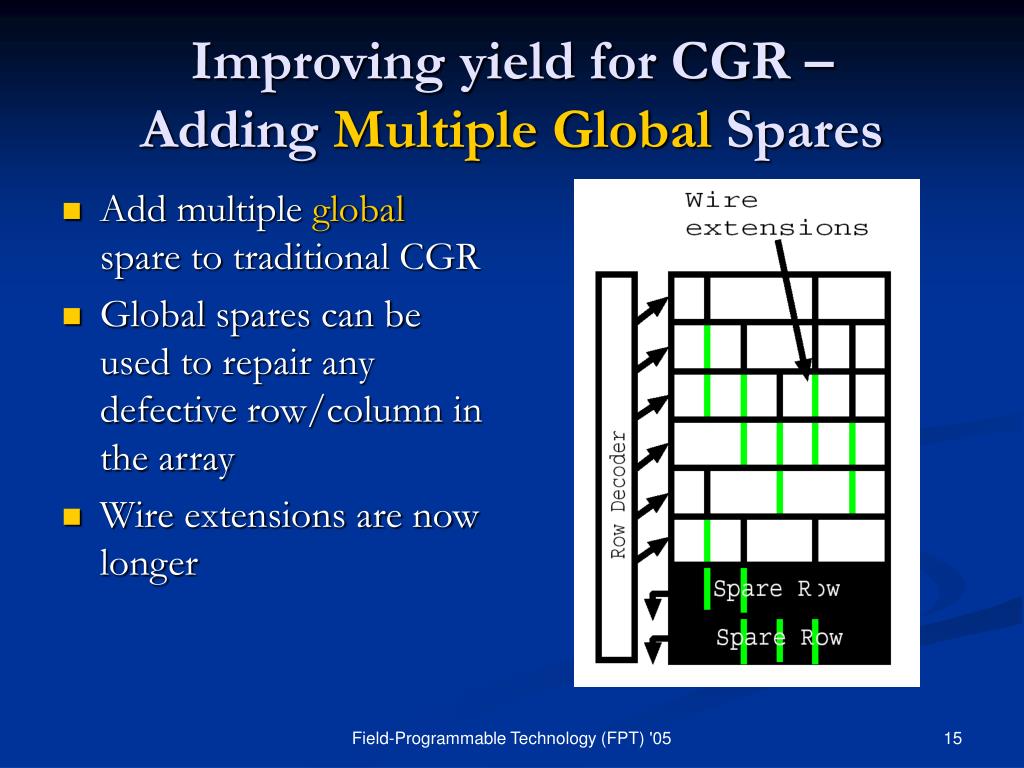

Improving yield for CGR –Adding Multiple Global Spares • Add multiple global spare to traditional CGR • Global spares can be used to repair any defective row/column in the array • Wire extensions are now longer Field-Programmable Technology (FPT) '05

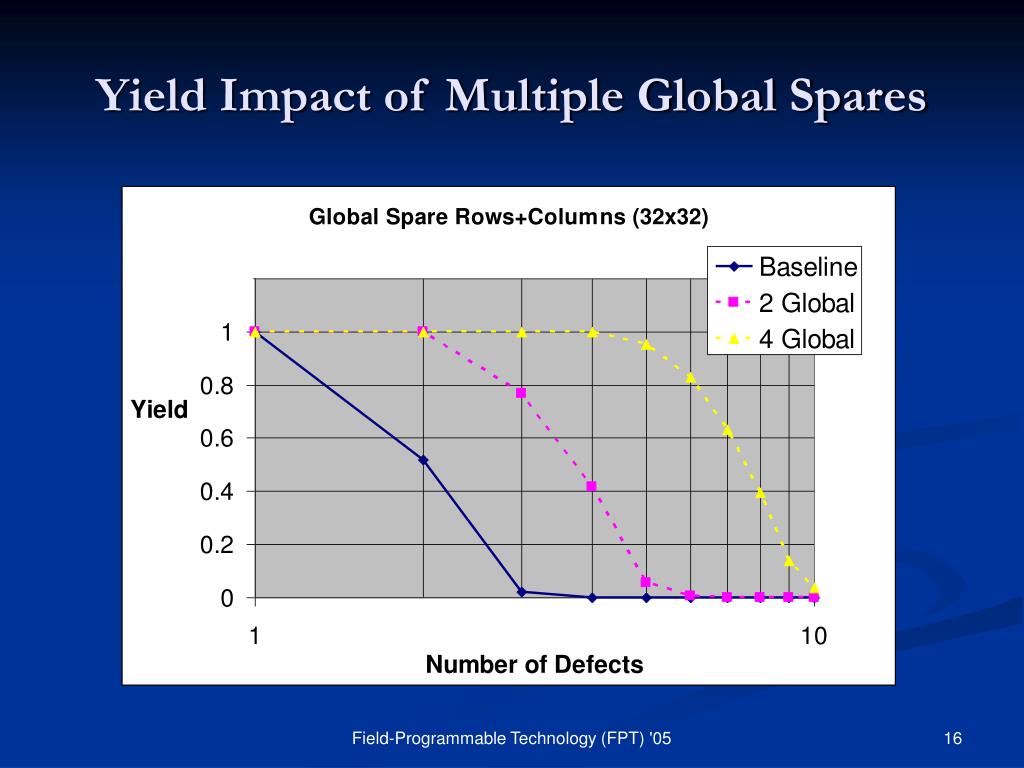

Yield Impact of Multiple Global Spares Field-Programmable Technology (FPT) '05

Increasing Area+Delay Overhead MORE SPARES  MORE MUX OVERHEAD IN EVERY SWITCH ELEMENT NO SPARES 2 GLOBAL SPARES 4 GLOBAL SPARES MAY BE IMPRACTICAL !!! 1 GLOBAL SPARE Field-Programmable Technology (FPT) '05

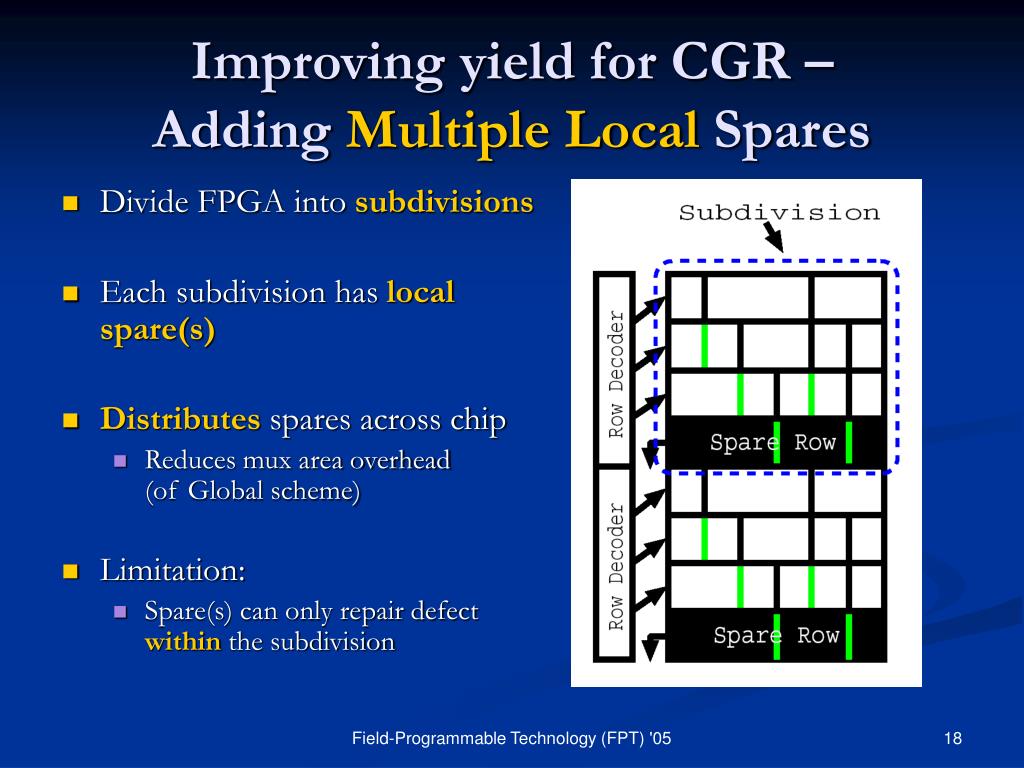

Improving yield for CGR –Adding Multiple Local Spares • Divide FPGA into subdivisions • Each subdivision has localspare(s) • Distributes spares across chip • Reduces mux area overhead(of Global scheme) • Limitation: • Spare(s) can only repair defect within the subdivision Field-Programmable Technology (FPT) '05

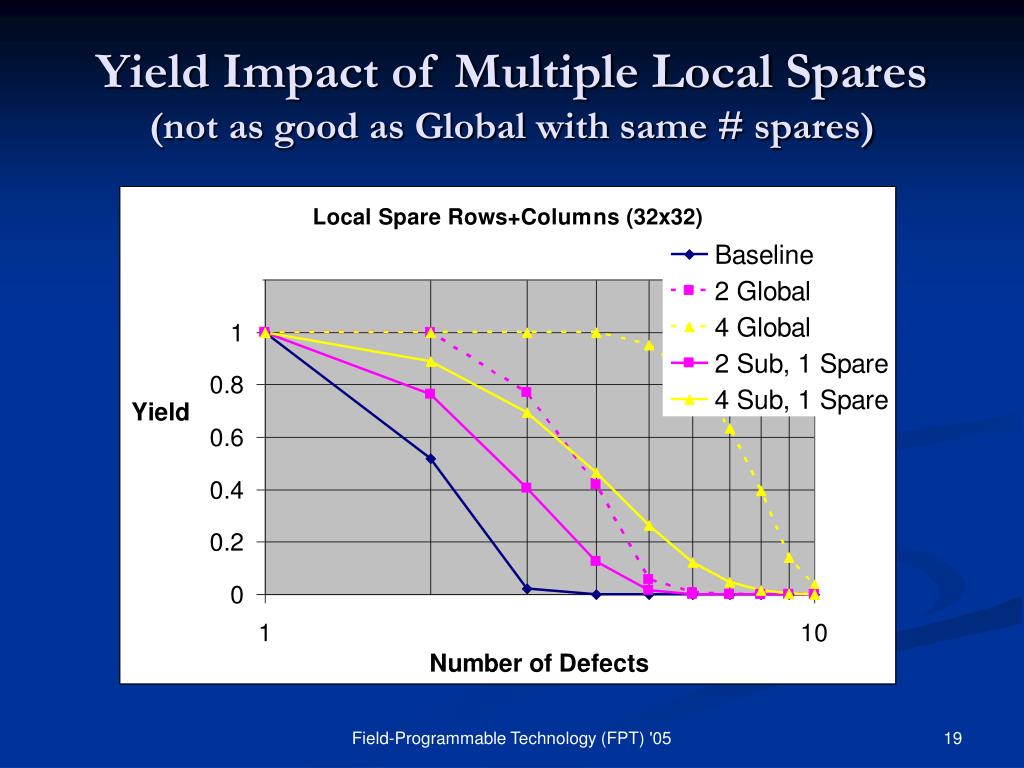

Yield Impact of Multiple Local Spares(not as good as Global with same # spares) Field-Programmable Technology (FPT) '05

Fine-grain Redundancy (FGR)

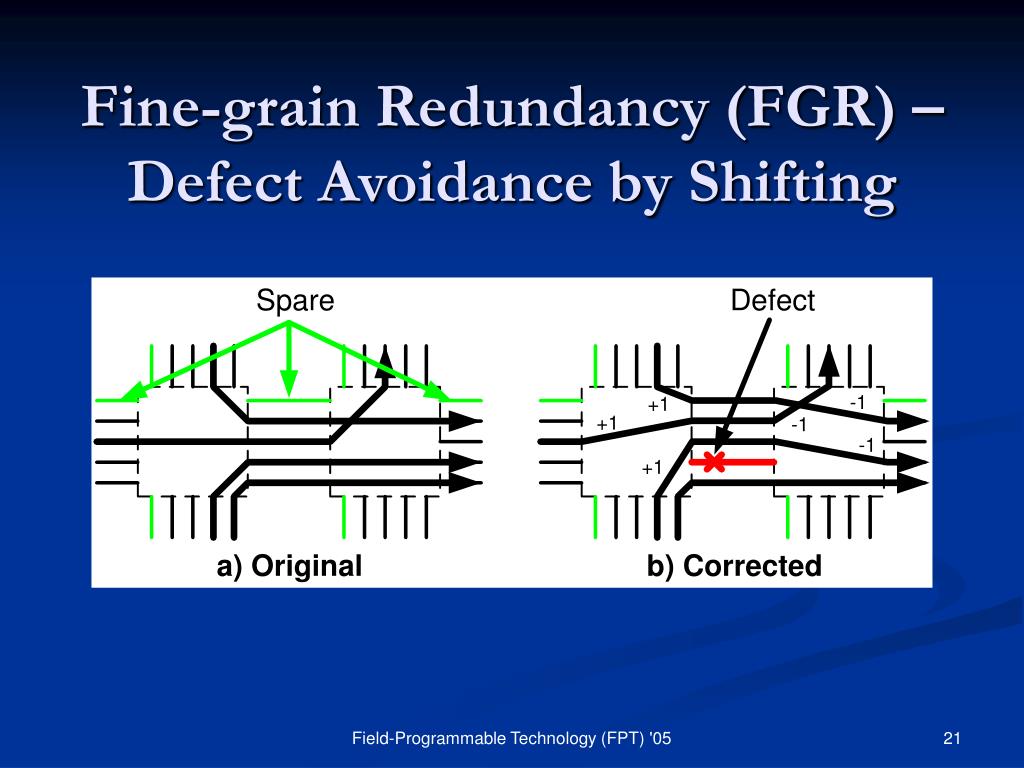

Fine-grain Redundancy (FGR) – Defect Avoidance by Shifting Field-Programmable Technology (FPT) '05

Defect-tolerant Switch Block Field-Programmable Technology (FPT) '05

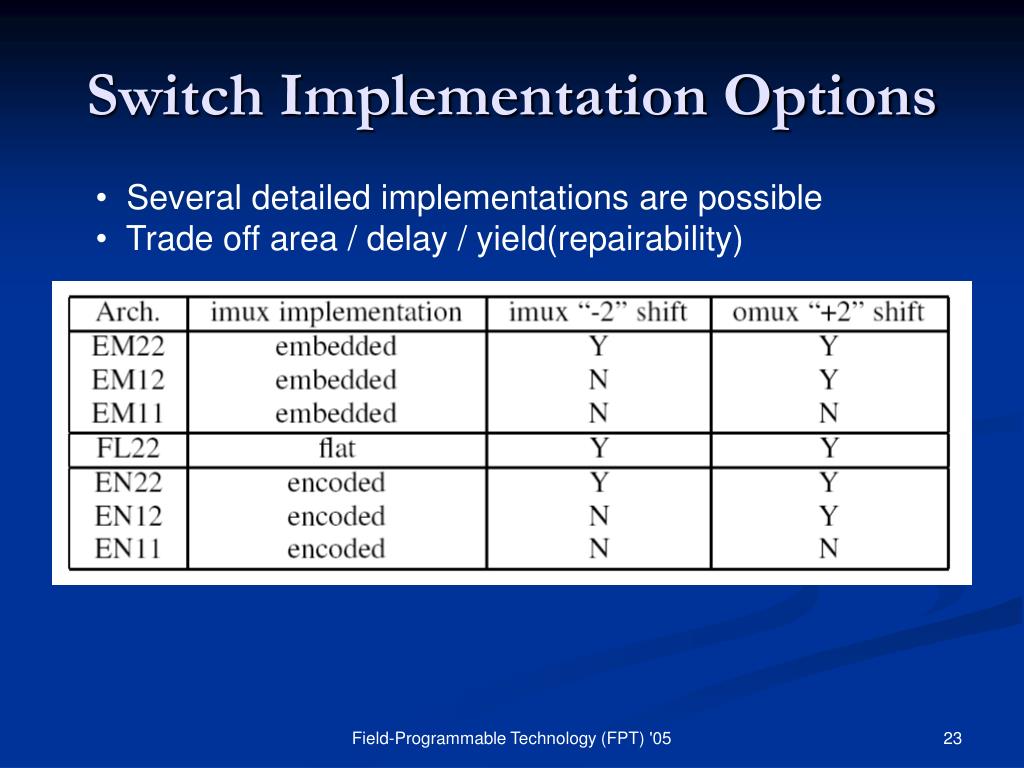

Switch Implementation Options • Several detailed implementations are possible • Trade off area / delay / yield(repairability) Field-Programmable Technology (FPT) '05

Minimum Fault-free Radius (MFFR) Field-Programmable Technology (FPT) '05

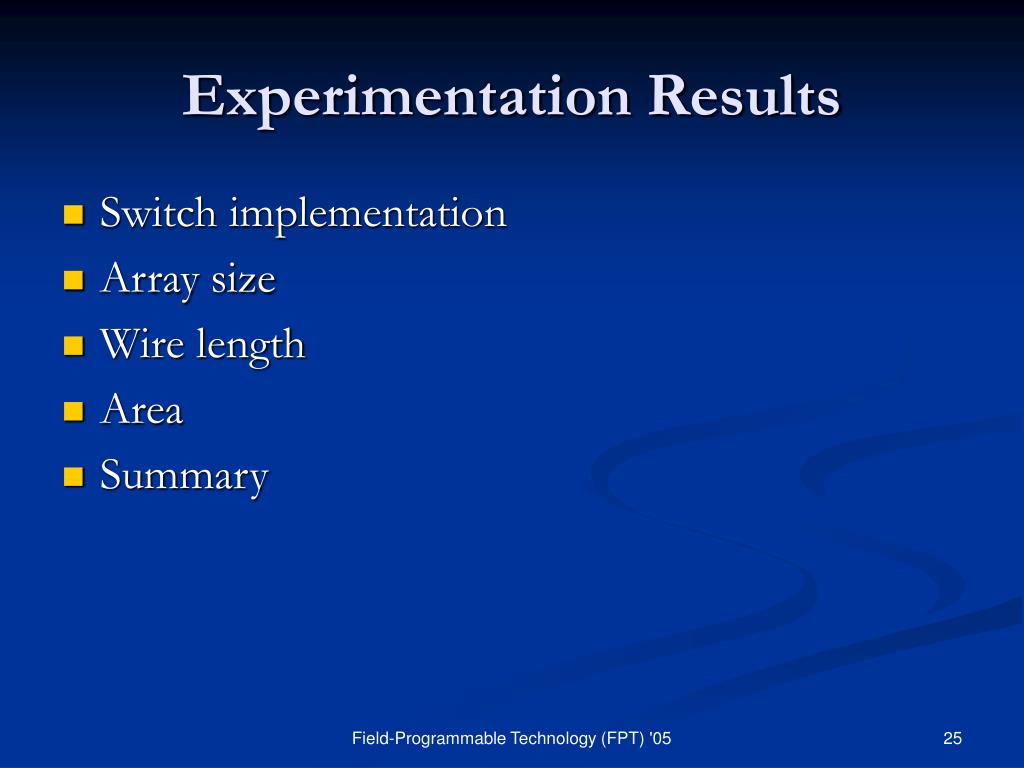

Experimentation Results • Switch implementation • Array size • Wire length • Area • Summary Field-Programmable Technology (FPT) '05

Switch Implementation * Assumes all bridging defects Field-Programmable Technology (FPT) '05

Fixed Array Size (32x32) – Global Sparing Field-Programmable Technology (FPT) '05

Fixed Array Size (32x32) – Local Sparing Field-Programmable Technology (FPT) '05

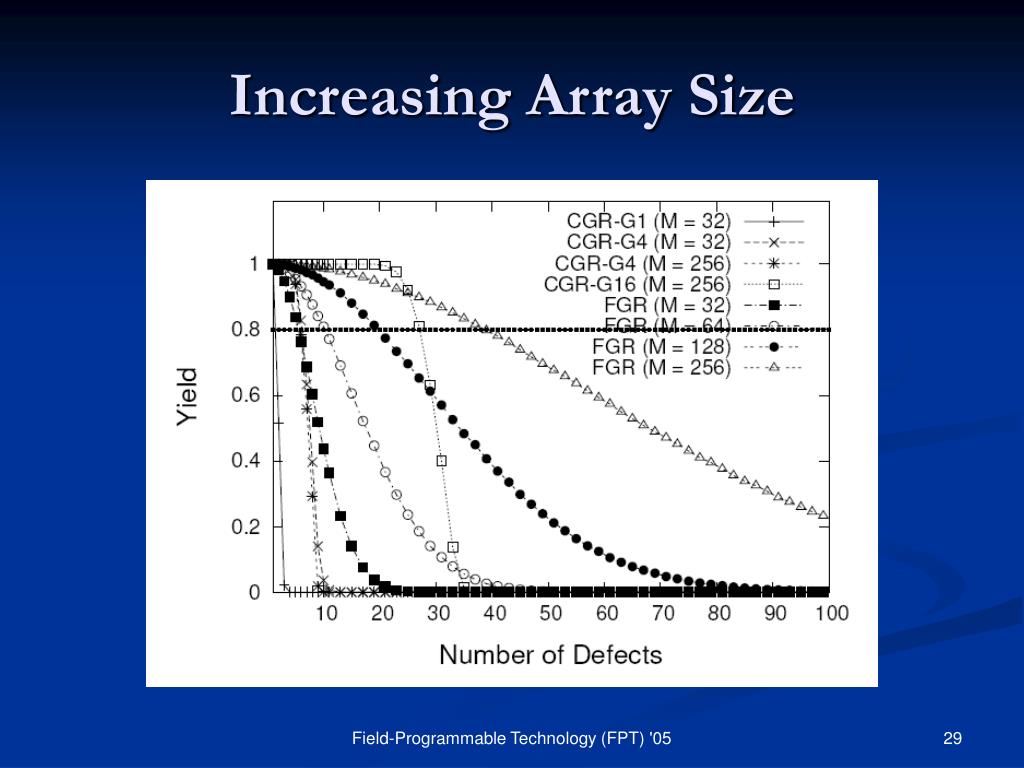

Increasing Array Size Field-Programmable Technology (FPT) '05

Yield for Varying Wire Length Field-Programmable Technology (FPT) '05

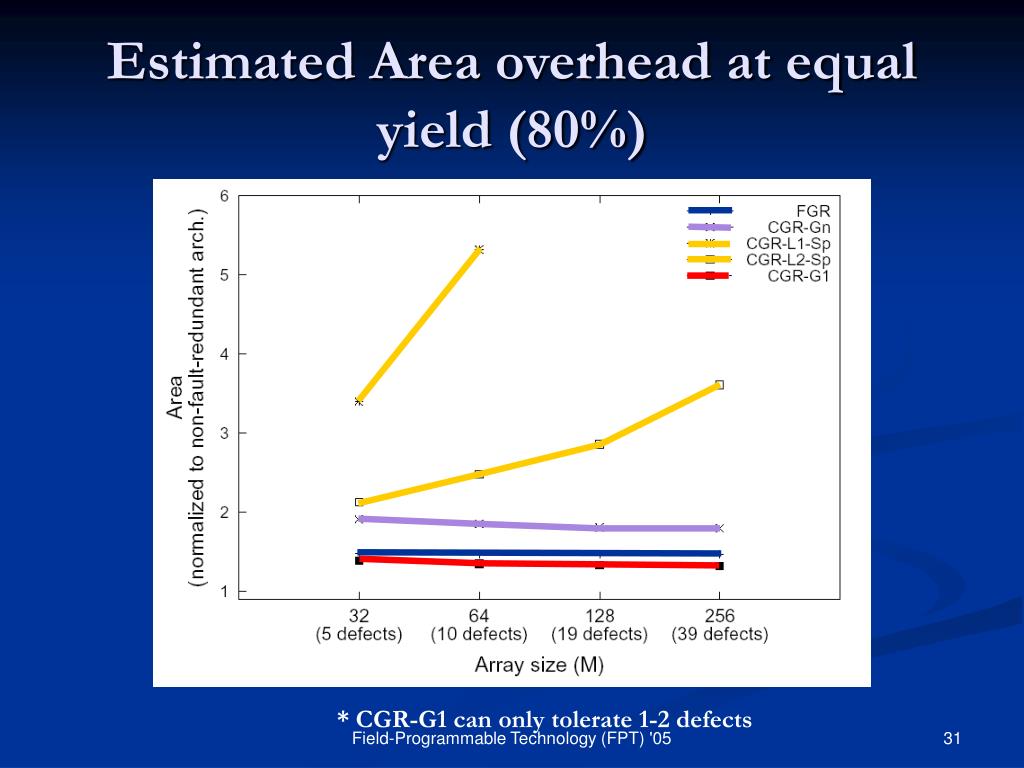

Estimated Area overhead at equal yield (80%) * CGR-G1 can only tolerate 1-2 defects Field-Programmable Technology (FPT) '05

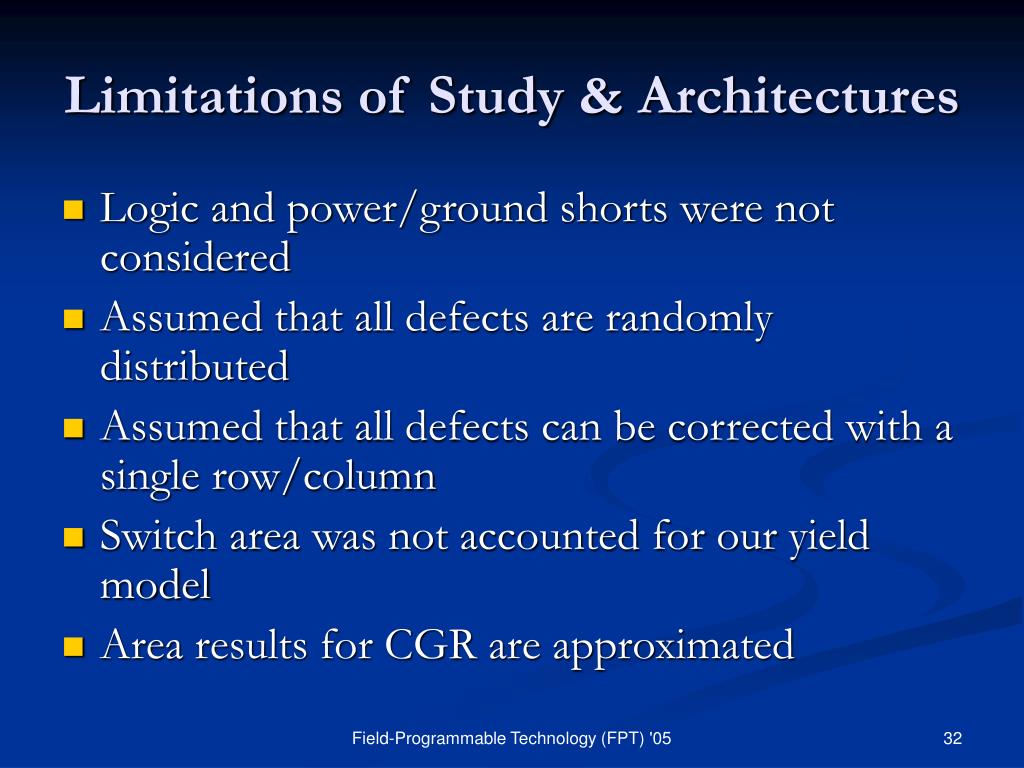

Limitations of Study & Architectures • Logic and power/ground shorts were not considered • Assumed that all defects are randomly distributed • Assumed that all defects can be corrected with a single row/column • Switch area was not accounted for our yield model • Area results for CGR are approximated Field-Programmable Technology (FPT) '05

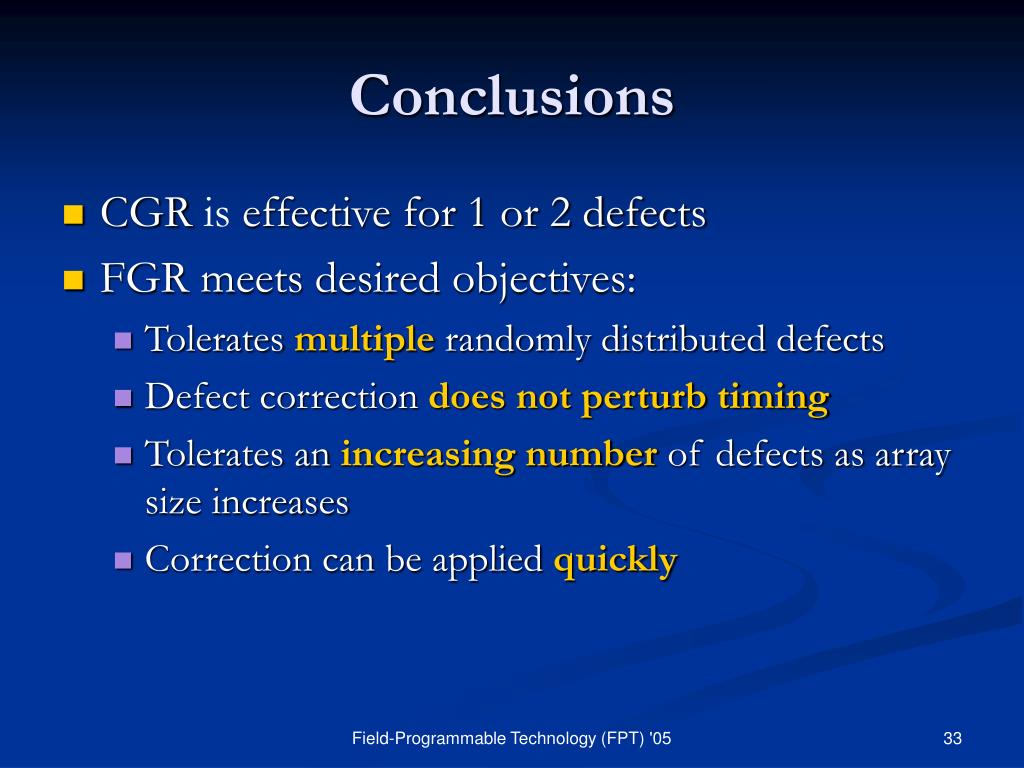

Conclusions • CGR is effective for 1 or 2 defects • FGR meets desired objectives: • Tolerates multiple randomly distributed defects • Defect correction does not perturb timing • Tolerates an increasing number of defects as array size increases • Correction can be applied quickly Field-Programmable Technology (FPT) '05

Thank you! anthonyy@ece.ubc.ca

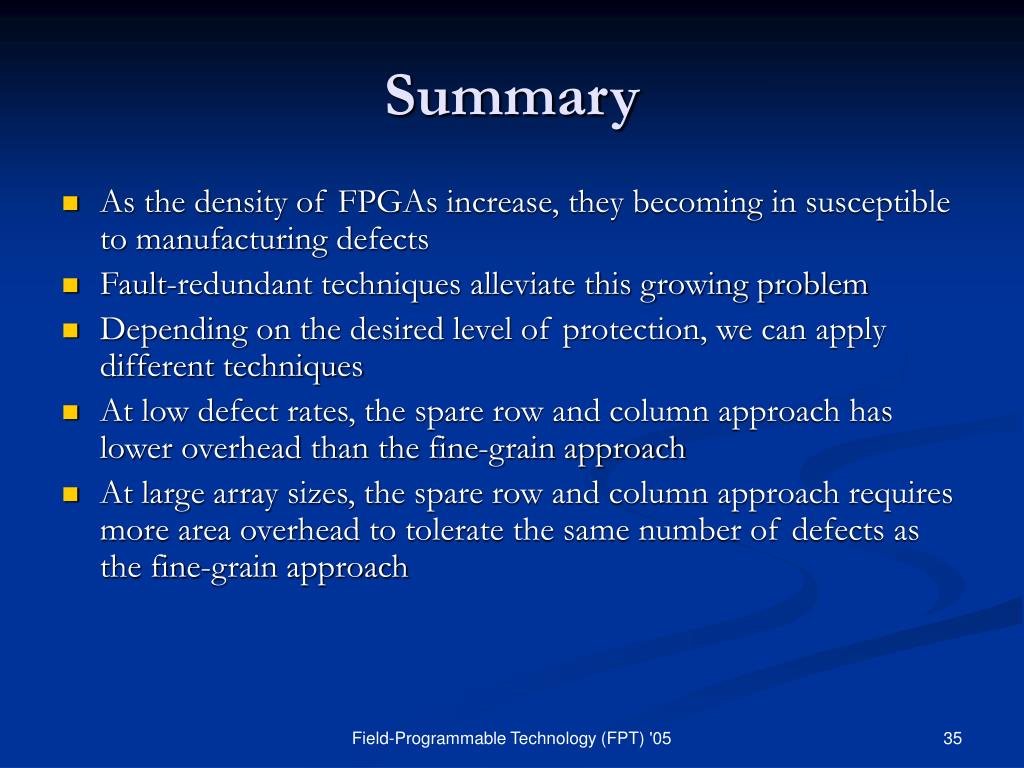

Summary • As the density of FPGAs increase, they becoming in susceptible to manufacturing defects • Fault-redundant techniques alleviate this growing problem • Depending on the desired level of protection, we can apply different techniques • At low defect rates, the spare row and column approach has lower overhead than the fine-grain approach • At large array sizes, the spare row and column approach requires more area overhead to tolerate the same number of defects as the fine-grain approach Field-Programmable Technology (FPT) '05
