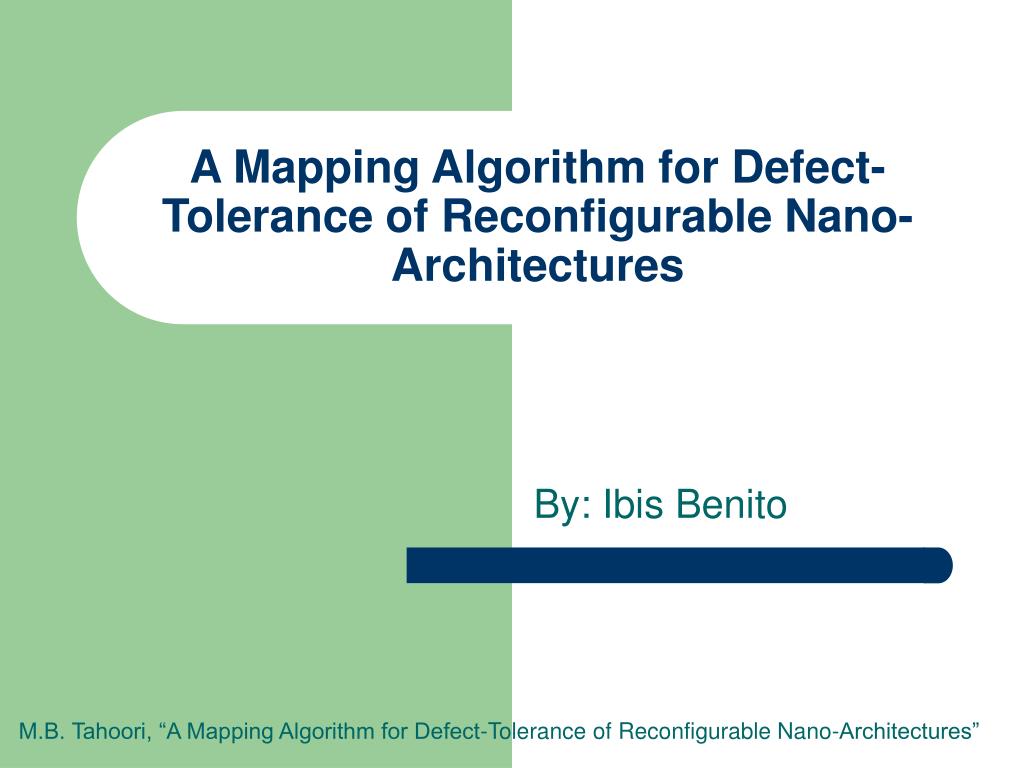

  1. A Mapping Algorithm for Defect-Tolerance of Reconfigurable Nano-Architectures By: Ibis Benito M.B. Tahoori, “A Mapping Algorithm for Defect-Tolerance of Reconfigurable Nano-Architectures”

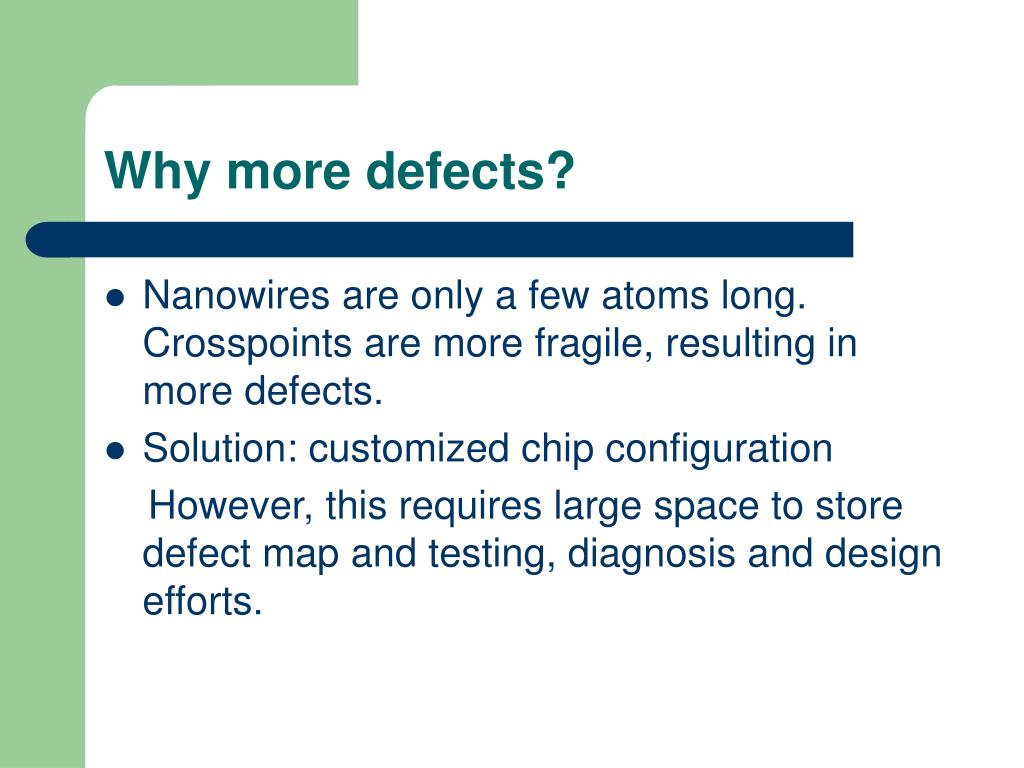

  2. Why more defects? • Nanowires are only a few atoms long. Crosspoints are more fragile, resulting in more defects. • Solution: customized chip configuration However, this requires large space to store defect map and testing, diagnosis and design efforts.

  3. Crossbar Faults • Switch stuck-open faults: missing switch at crosspoint. • Switch stuck-closed faults: a horizontal and a vertical wire are shorted together and become unusable. • Nanowire open, bridging faults: open fault on a nanowire; two or more nanowires shorted together, all become unusable.

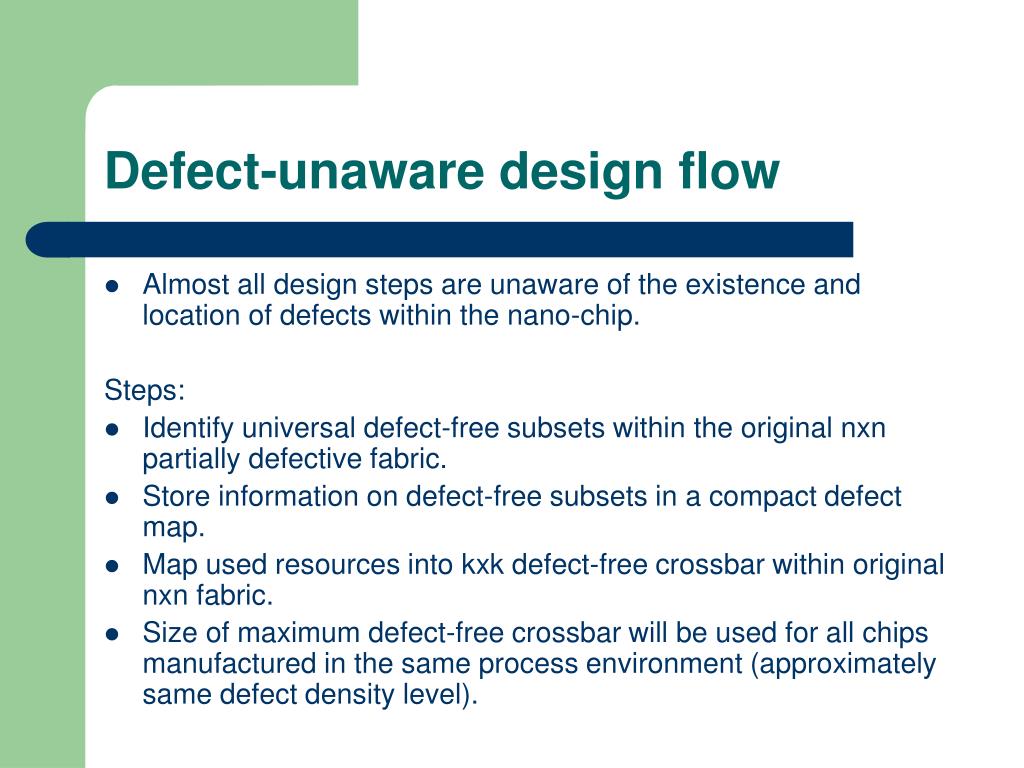

  4. Defect-unaware design flow • Almost all design steps are unaware of the existence and location of defects within the nano-chip. Steps: • Identify universal defect-free subsets within the original nxn partially defective fabric. • Store information on defect-free subsets in a compact defect map. • Map used resources into kxk defect-free crossbar within original nxn fabric. • Size of maximum defect-free crossbar will be used for all chips manufactured in the same process environment (approximately same defect density level).

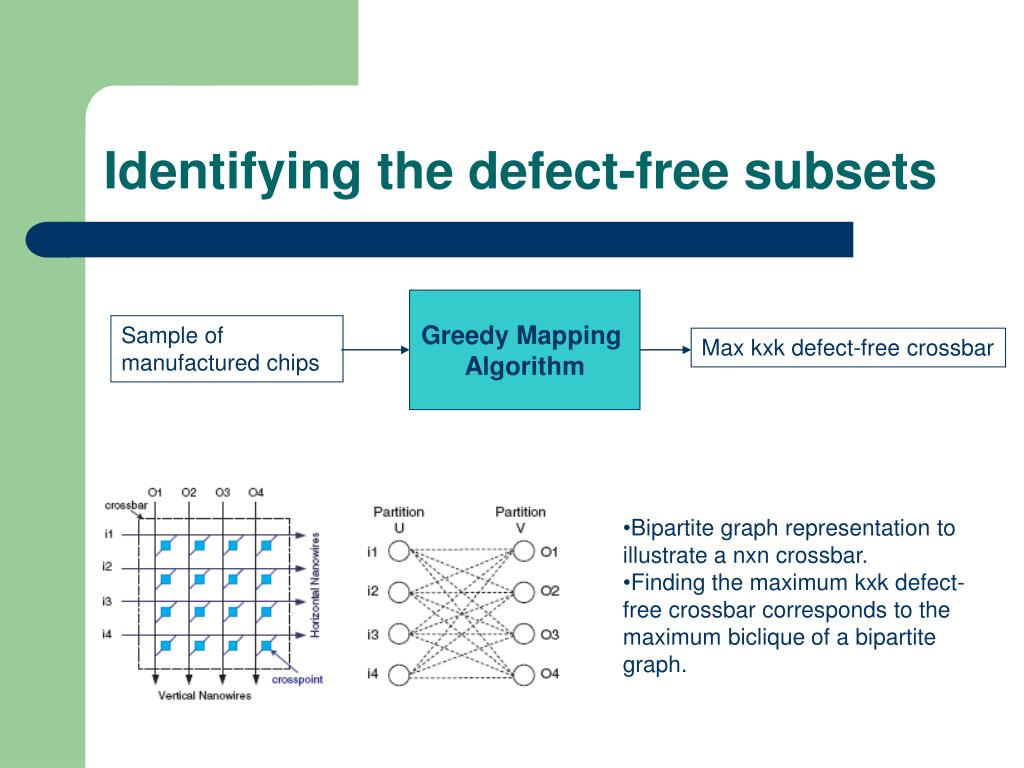

  5. Identifying the defect-free subsets Greedy Mapping Algorithm Sample of manufactured chips Max kxk defect-free crossbar • Bipartite graph representation to illustrate a nxn crossbar. • Finding the maximum kxk defect-free crossbar corresponds to the maximum biclique of a bipartite graph.

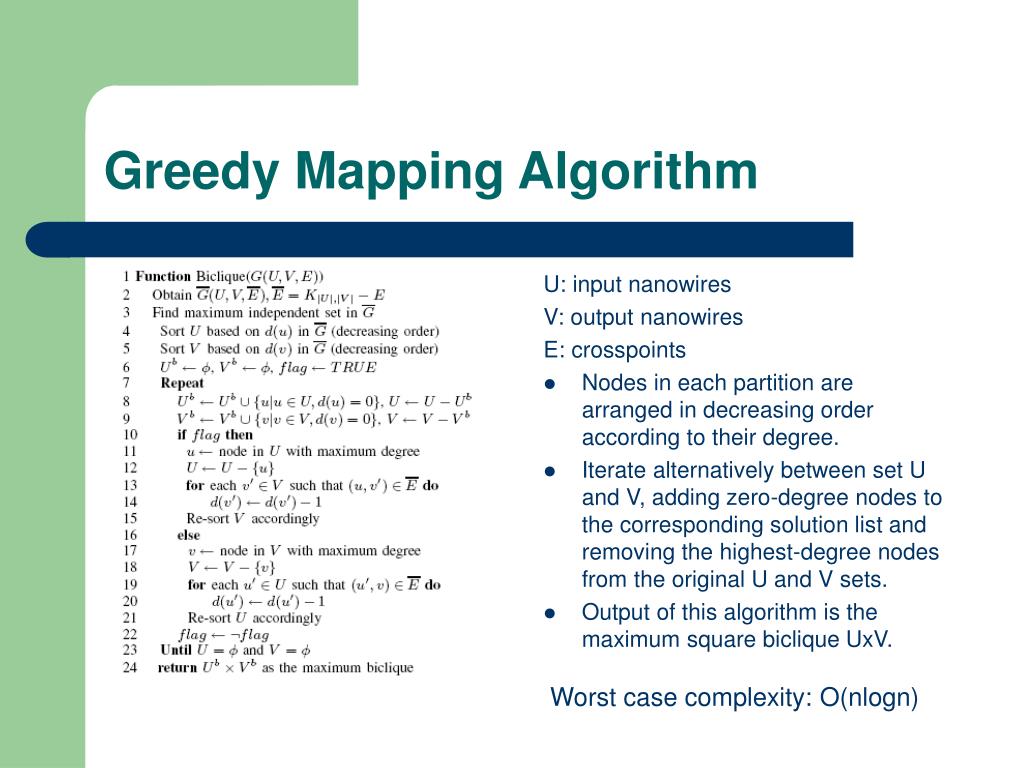

  6. Greedy Mapping Algorithm U: input nanowires V: output nanowires E: crosspoints • Nodes in each partition are arranged in decreasing order according to their degree. • Iterate alternatively between set U and V, adding zero-degree nodes to the corresponding solution list and removing the highest-degree nodes from the original U and V sets. • Output of this algorithm is the maximum square biclique UxV. Worst case complexity: O(nlogn)

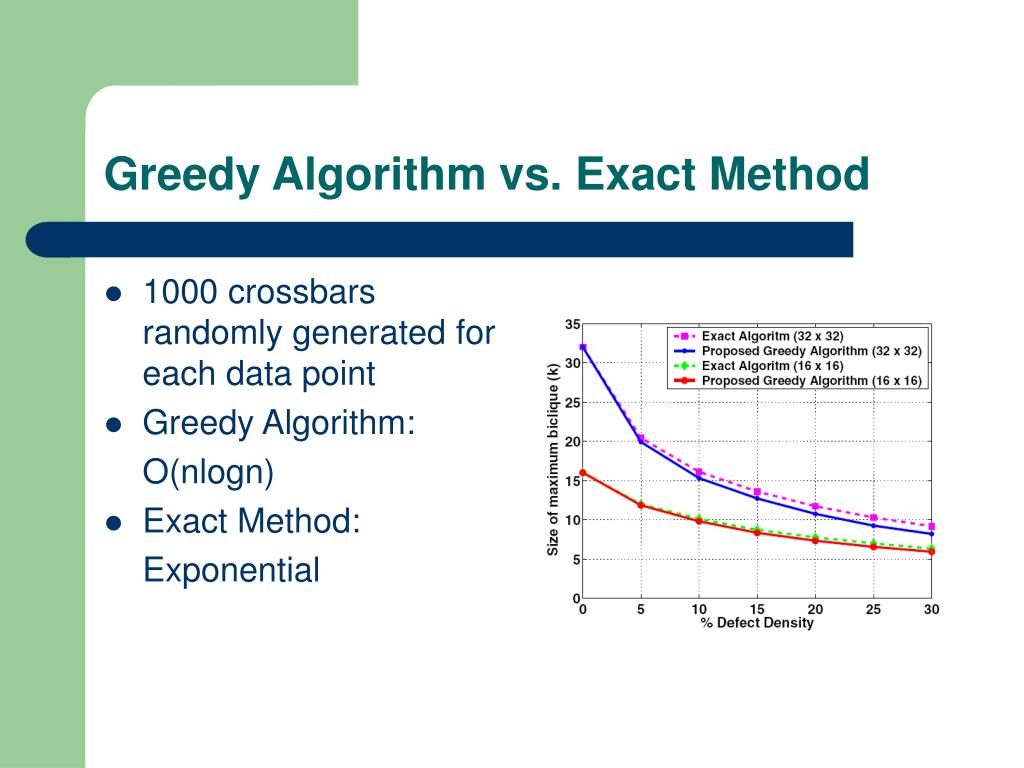

  7. Greedy Algorithm vs. Exact Method • 1000 crossbars randomly generated for each data point • Greedy Algorithm: O(nlogn) • Exact Method: Exponential

  8. Conclusions • Defect map size reduced from O(n2) to O(n). • No per-chip customized design. • Algorithm to determine the maximum defect-free crossbar with O(nlogn) complexity, as opposed to the exponential complexity of an exact method.
