  1. Study of the Spatial Resolution and Muon Tomographic Imaging Properties of Glass RPCs Qite Li Peking University

  2. Knowledge is PowerSir Francis Bacon (1561-1626)

  3. Peace Happiness Fear Frustration Nuclear Knowledge can be the Power of

  4. Uranium 90% (HEU) • Pu-239 93% (WGPu) • 26 kg HEU / 5kg WGPu • 11 cm / 6 cm box

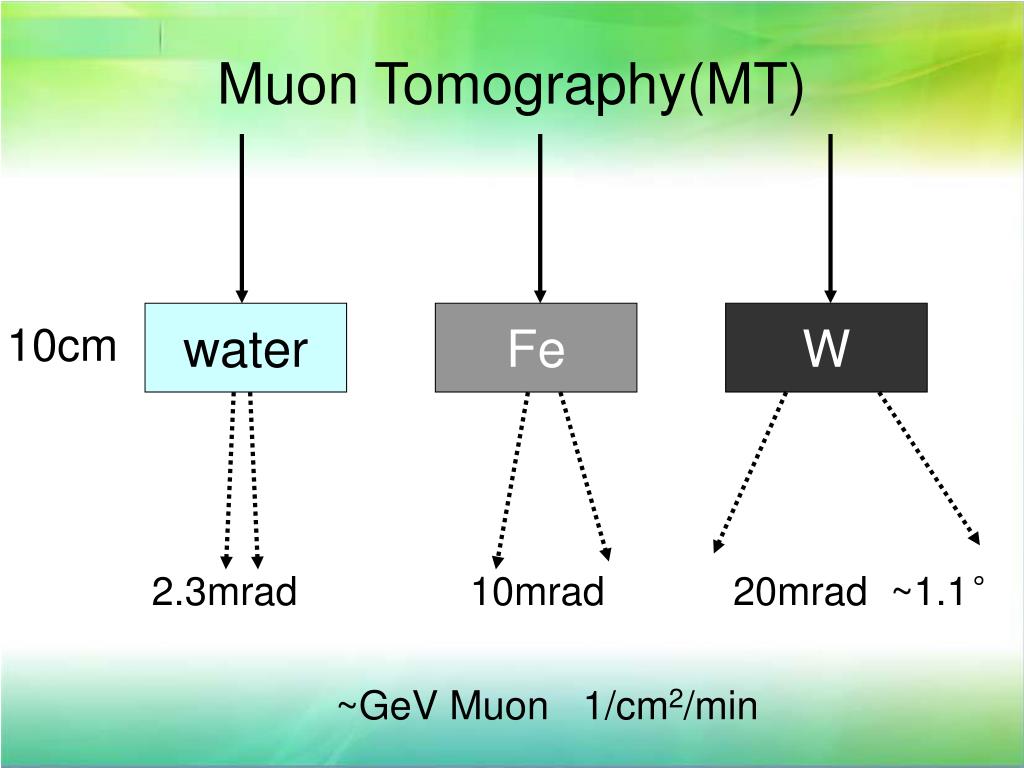

  5. Muon Tomography(MT) 2.3mrad 10mrad 20mrad ~1.1° ~GeV Muon 1/cm2/min water Fe W 10cm

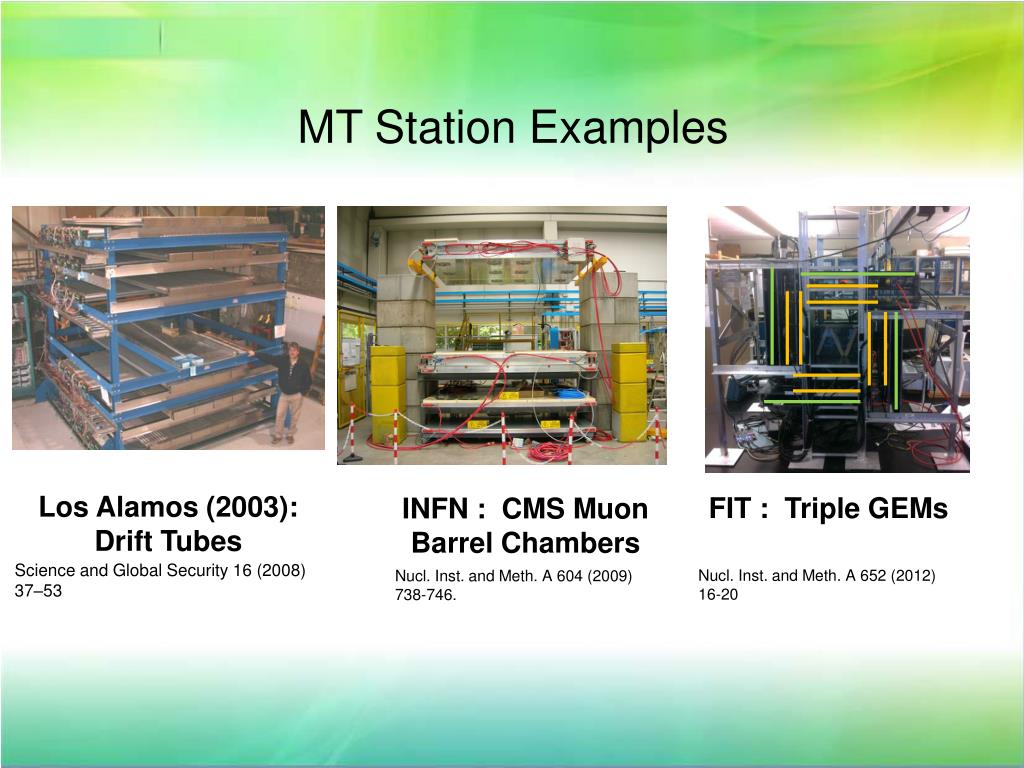

  6. INFN : CMS Muon Barrel Chambers FIT : Triple GEMs Nucl. Inst. and Meth. A 604 (2009) 738-746. Nucl. Inst. and Meth. A 652 (2012) 16-20 MT Station Examples Los Alamos (2003): Drift Tubes Science and Global Security 16 (2008) 37–53

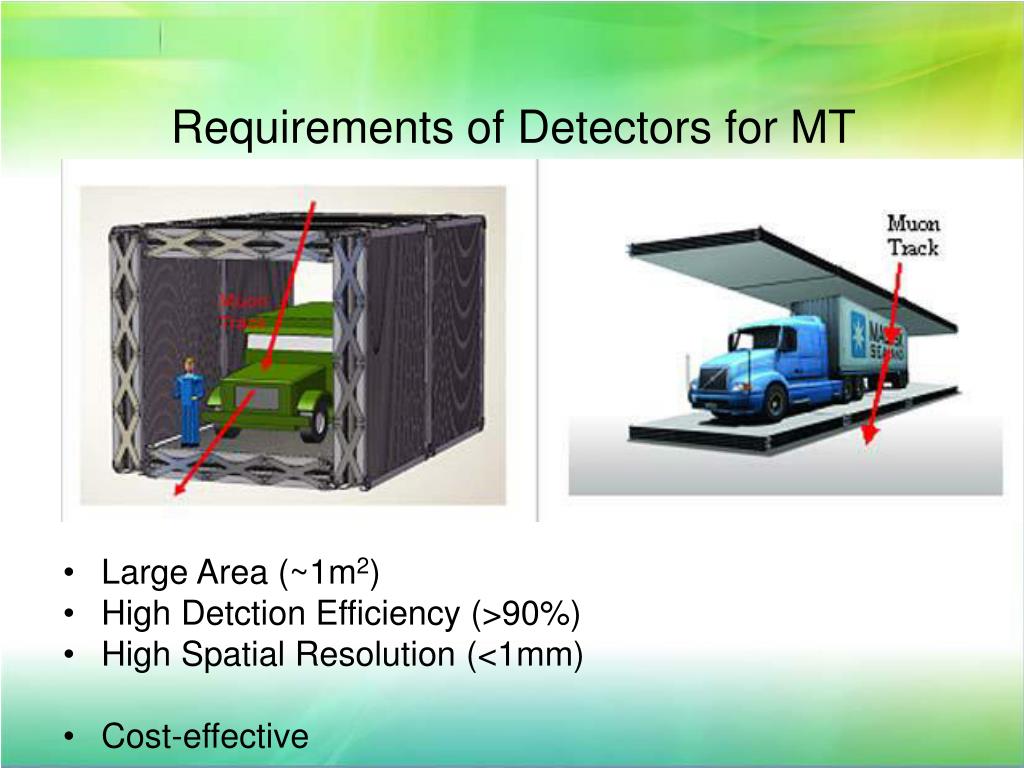

  7. Requirements of Detectors for MT • Large Area (~1m2) • High Detction Efficiency (>90%) • High Spatial Resolution (<1mm) • Cost-effective

  8. RPC Resistive Plate Chamber R. Santonico(in 1980s) Large Area Good Time Solution~1ns Acceptable Spatial Resolution ~1cm CMS Muon Trigger RPCs by PKU (2002)

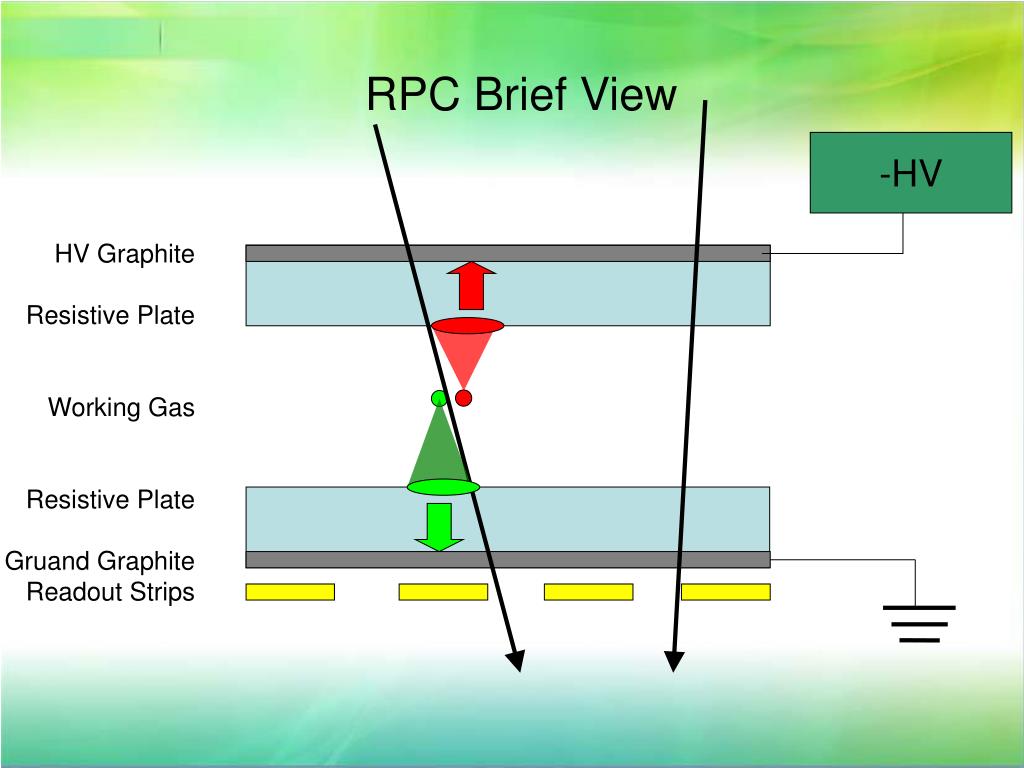

  9. RPC Brief View -HV HV Graphite Resistive Plate Working Gas Resistive Plate Gruand Graphite Readout Strips

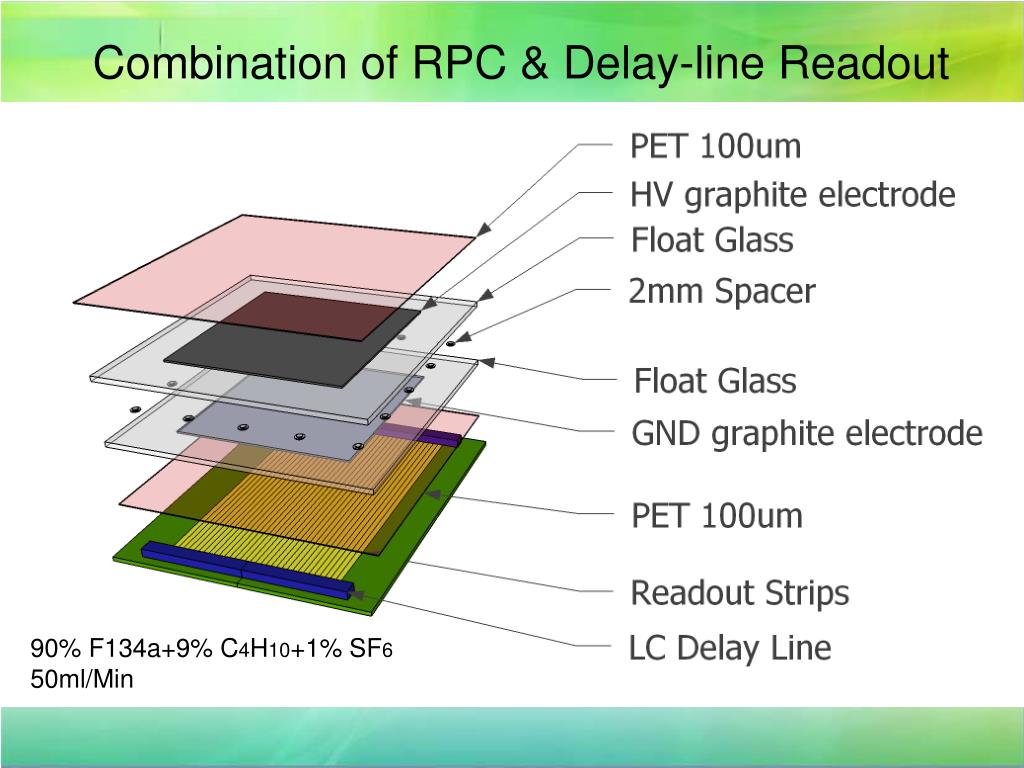

  10. Combination of RPC & Delay-line Readout 90% F134a+9% C4H10+1% SF6 50ml/Min

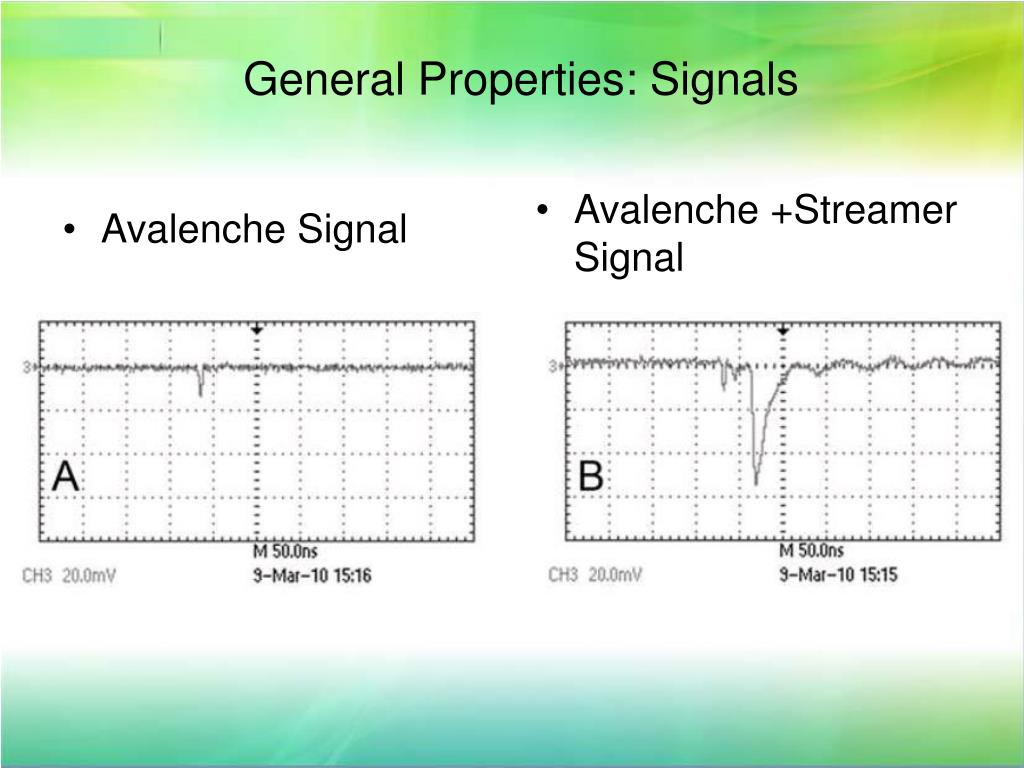

  11. General Properties: Signals • Avalenche +Streamer Signal • Avalenche Signal

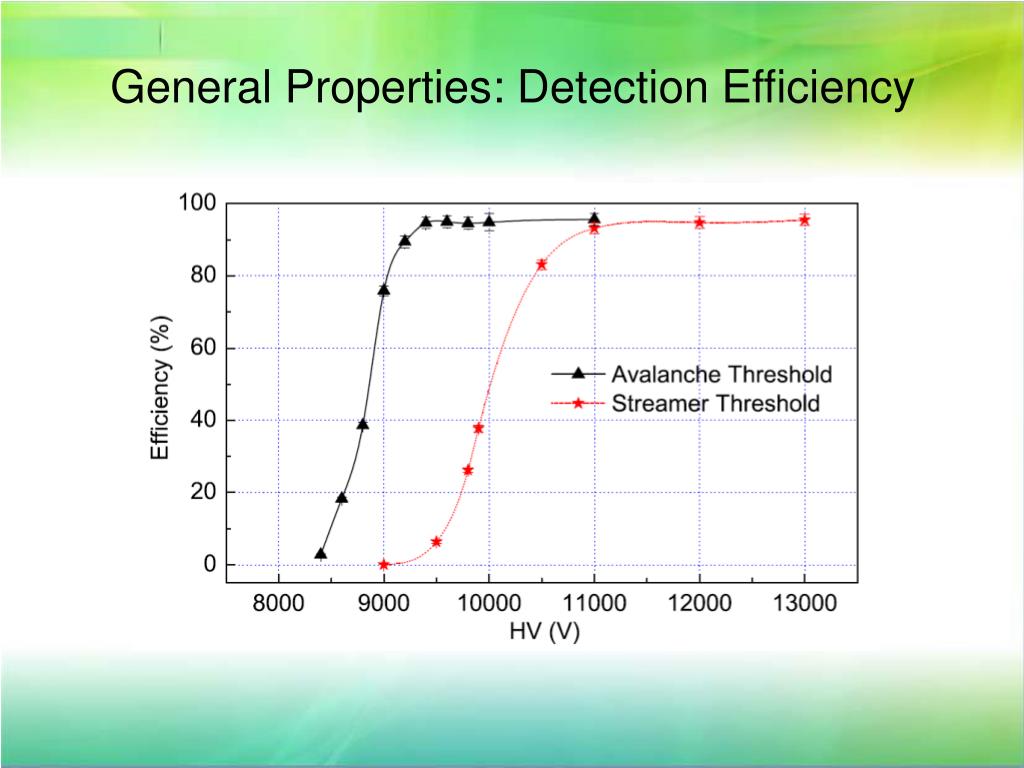

  12. General Properties: Detection Efficiency

  13. -HV

  14. Simulation Profile Sigma 2.40mm Avalanche Profile Sigma 2.2±0.1mm Streamer Profile Sigma 7.4±0.2mm

  15. Spatial Resolution Measurement Residual Method ΔX=X2-(X1+X3)/2

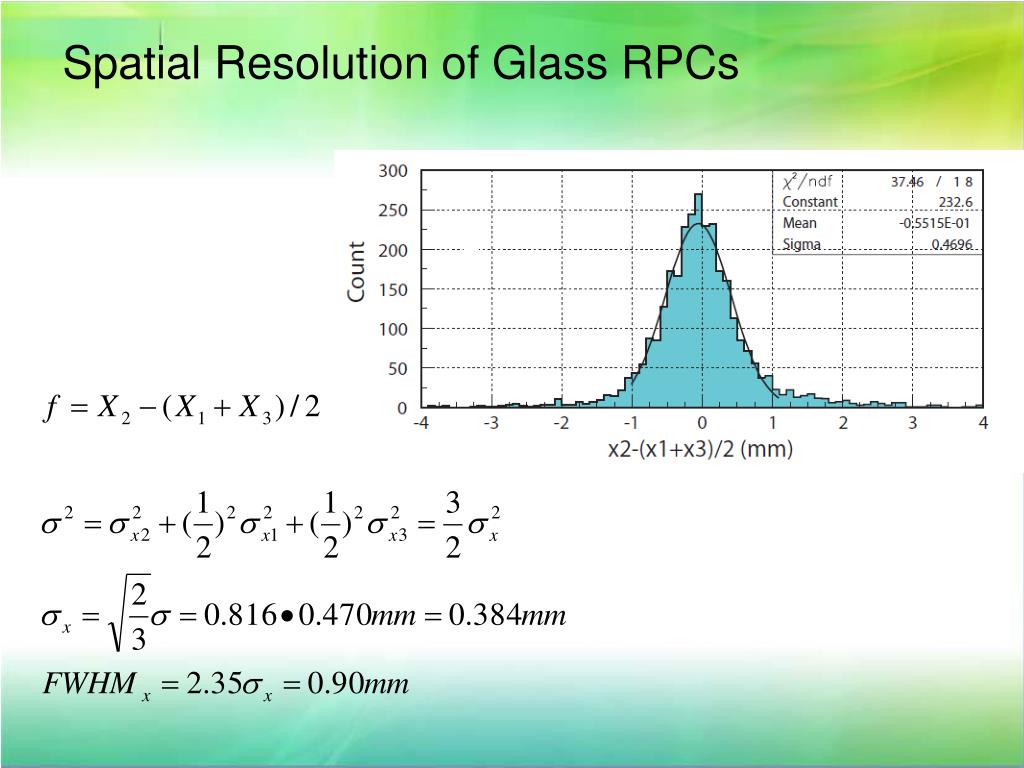

  16. Spatial Resolution of Glass RPCs

  17. Uniformity -50mm~-25mm Res=0.99 mm 25mm~50mm Res=0.94 mm -25mm~0mm Res=0.89 mm 0mm~25mm Res=0.82 mm

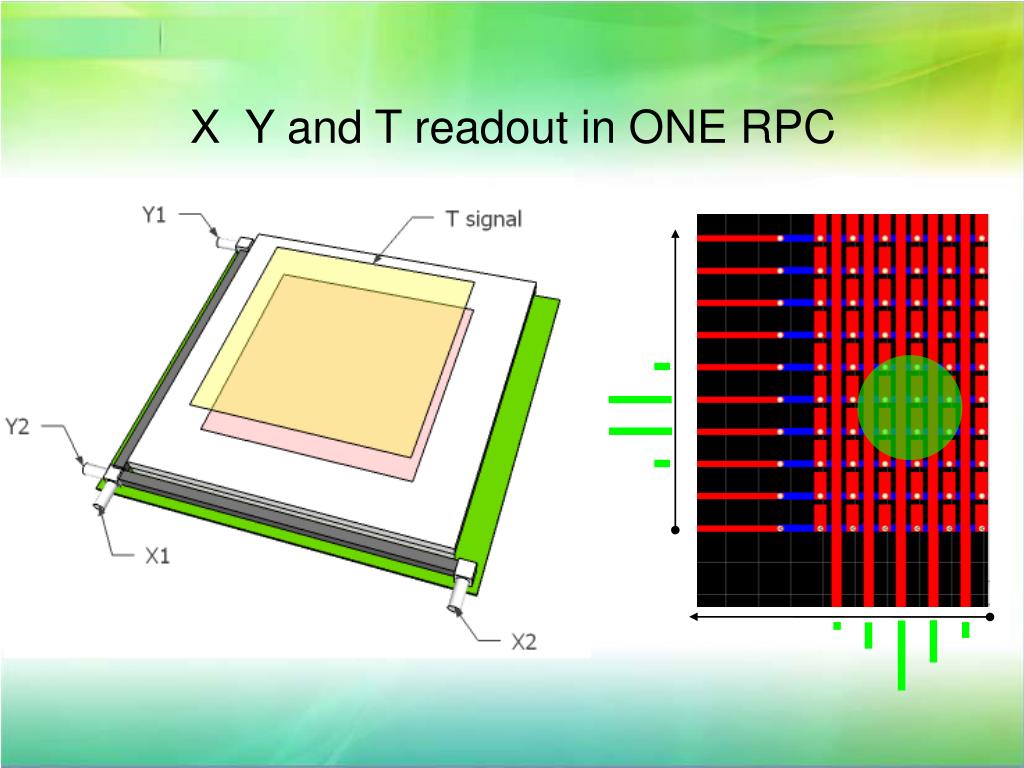

  18. X Y and T readout in ONE RPC

  19. X axis 0.79 mm (FWHM) for one RPC Preliminary Y axis 1.97 mm (FWHM) for one RPC Preliminary

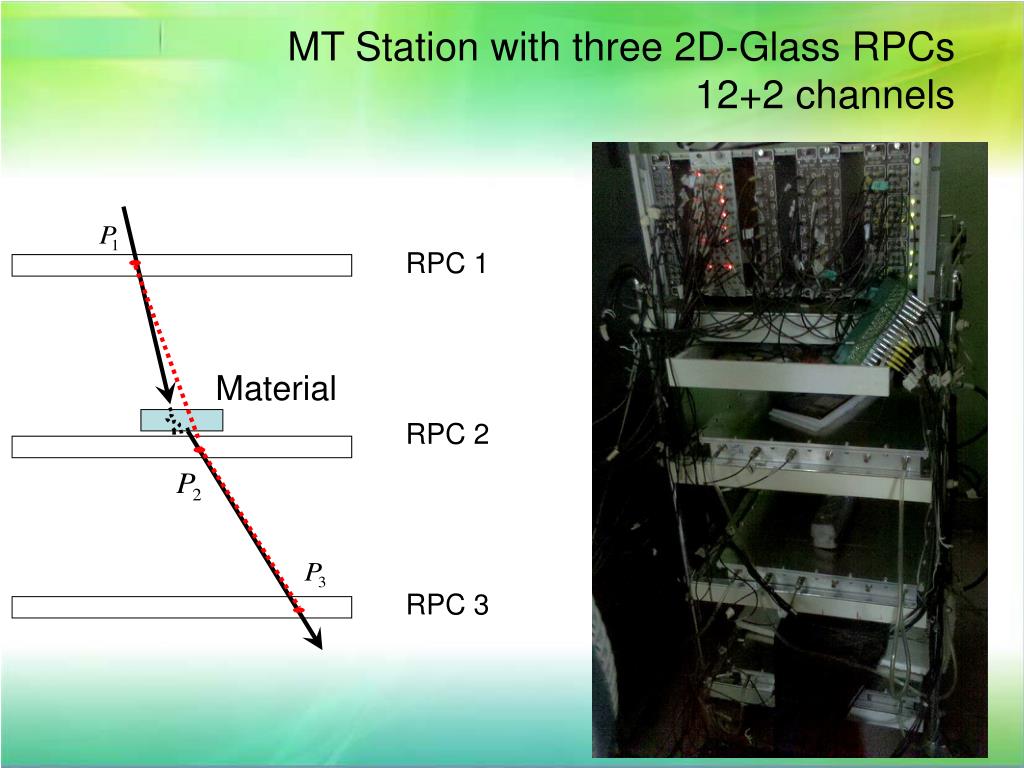

  20. RPC 1 RPC 2 RPC 3 Material MT Station with three 2D-Glass RPCs12+2 channels

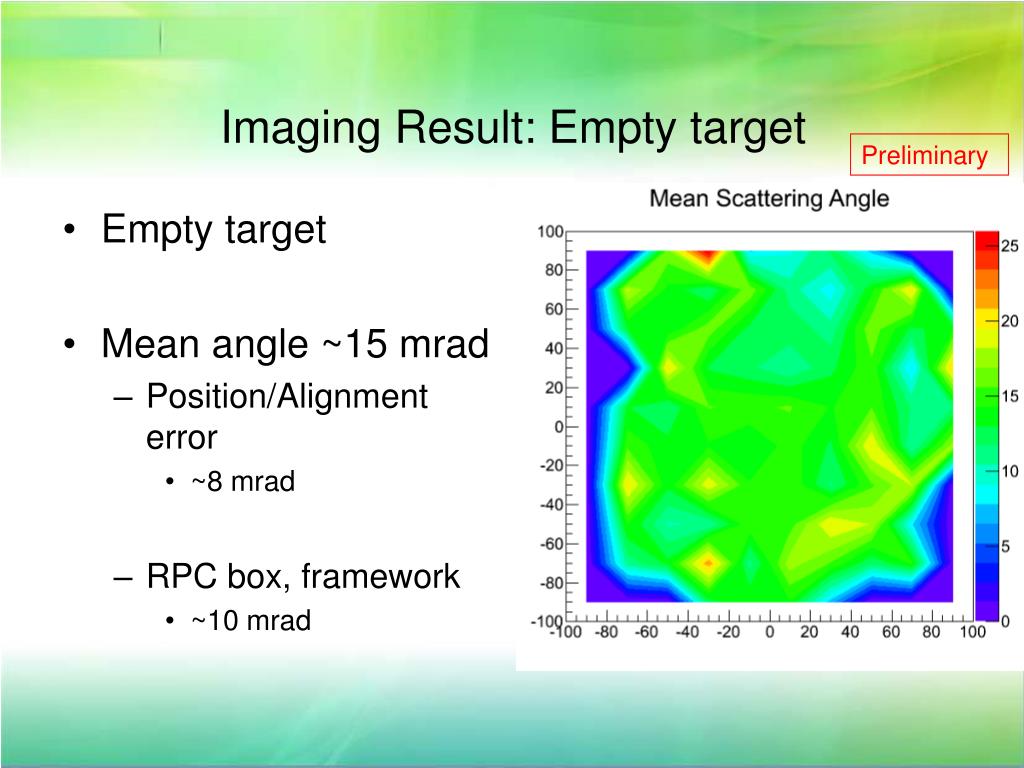

  21. Empty target Mean angle ~15 mrad Position/Alignment error ~8 mrad RPC box, framework ~10 mrad Imaging Result: Empty target Preliminary

  22. Pb brick 1 15cm*5.5cm*3.5cm Imaging Result: Pb brick 1 Preliminary

  23. Pb brick 2 24cm*7cm*6cm Imaging Result: Pb brick 2 Preliminary

  24. Conclusions • Glass RPCs with LC Delay-line Readout • Simple structrue, stable performance • Efficiency 95~98% • Charge profile measurement • <1mm(FWHM) in avalenche mode • Ideal detectors for MT • MT Station using three 2D-Glass RPCs • Preliminary Test (detection area: 20cm*20cm) • Sensitive to ~cm Pb

  25. MT station with 4 RPCs 3D ImagingComing Soon

  26. Thank You! Email: Liqt@pku.edu.cn Gmail: Liqt1985@gmail.com Supervisor: Prof. Yanlin Ye Email: yeyl@pku.edu.cn Peking University, China
