  1. Simple Network Defense System Shou-Chuan Lai Computer and Communication Center National Tsing Hua University

  2. Objective • Make our network as available as possible.

  3. Network Defense System • Internet Worm Detection Module • Automatic Router Control Module • Notification Module • Open Mail Relay Detection Module

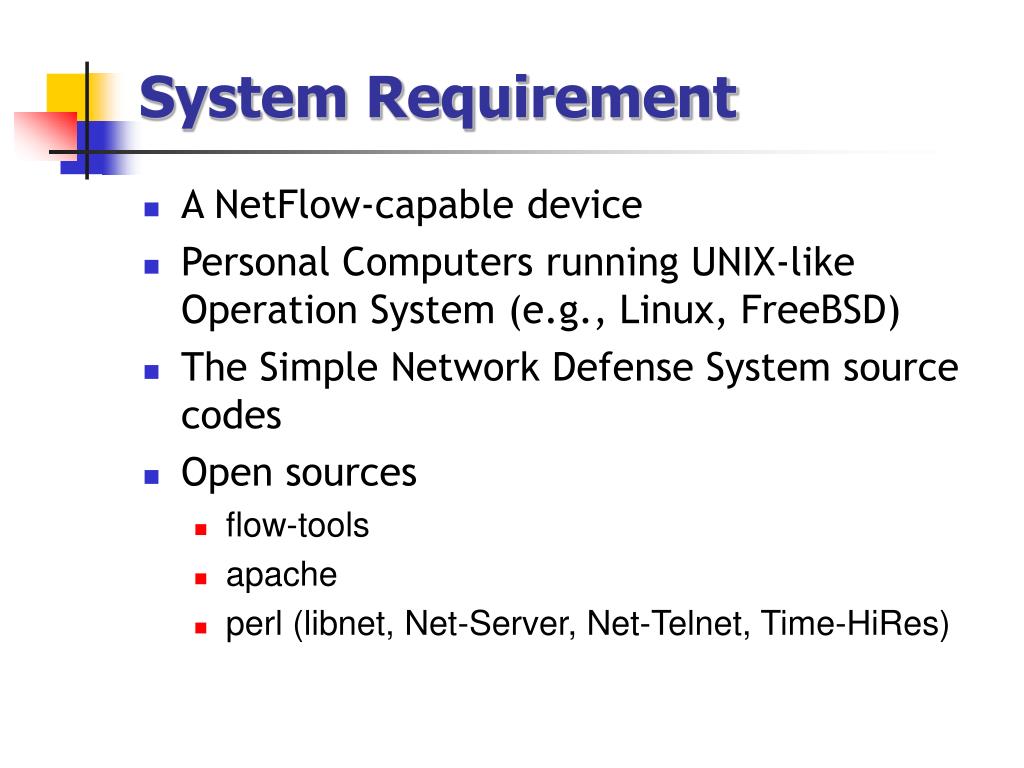

  4. System Requirement • A NetFlow-capable device • Personal Computers running UNIX-like Operation System (e.g., Linux, FreeBSD) • The Simple Network Defense System source codes • Open sources • flow-tools • apache • perl (libnet, Net-Server, Net-Telnet, Time-HiRes)

  5. Internet Worm Detection Module

  6. System requirement • NetFlow-enabled routers or devices (e.g. Cisco Catalyst 6509, Mirror-enabled router/switch + NetFlow export software) • Personal Computers (e.g. Intel platform) • UNIX-like OS (e.g. Linux, FreeBSD, Solaris,…) • flow-tools (http://www.splintered.net/sw/flow-tools/) • Perl v5.6 or above • apache-1.x or above (http://httpd.apache.org/)

  7. Directory Structure • flow-scan (/usr/local/flow-scan/) • bin (system programs) • etc (configuration files) • flow (netflow data captured by flow-tools) • scan (scan files generated by flow-scan) • htdocs (html files generated by scan2html) • tmp (temporary space)

  8. Programs • flow2scan • Read flow files and convert to scan files • scan2html • Read scan files and convert to html files • html2idx • Read html files and generate an index html

  9. flow2scan • Program modules • MyFlow.pm (common subroutines) • MyScore.pm (score module) • MyRobot.pm (talk to router control robot) • Read flow files • read: /usr/local/flow-scan/flow/…. • Generate scan files • write: /usr/local/flow-scan/scan/…. • Send blocking command

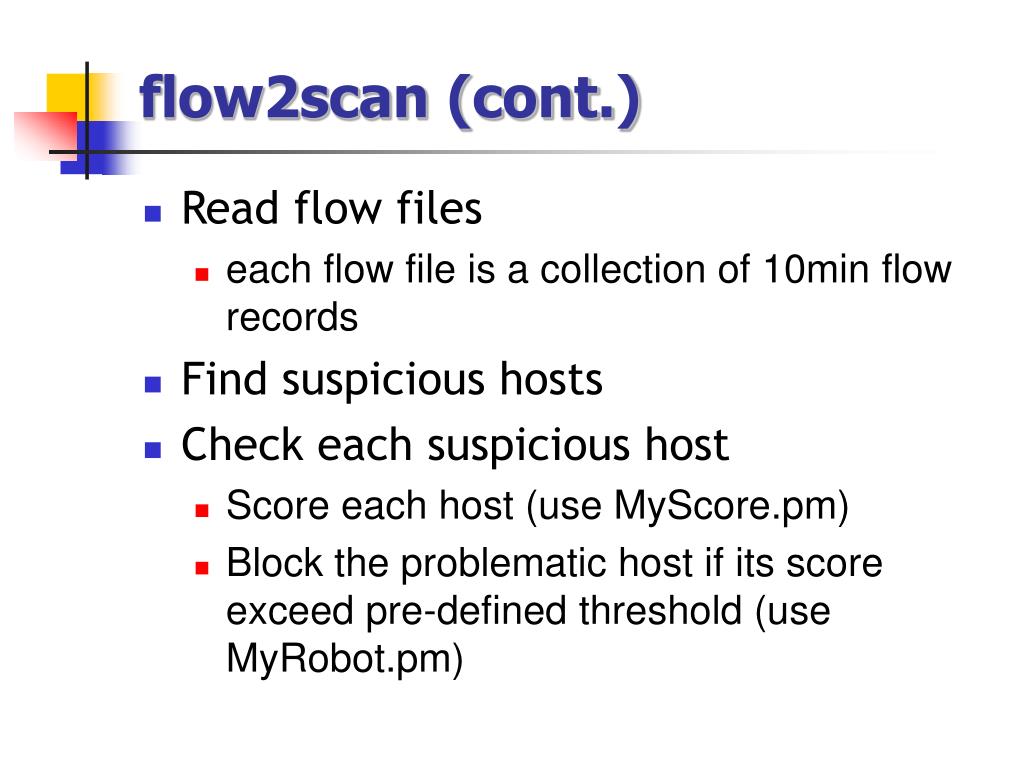

  10. flow2scan (cont.) • Read flow files • each flow file is a collection of 10min flow records • Find suspicious hosts • Check each suspicious host • Score each host (use MyScore.pm) • Block the problematic host if its score exceed pre-defined threshold (use MyRobot.pm)

  11. scan2html • Read scan files • read: /usr/local/flow-scan/scan/…. • Generate a html file for each scan file • write: /usr/local/flow-scan/htdocs/….

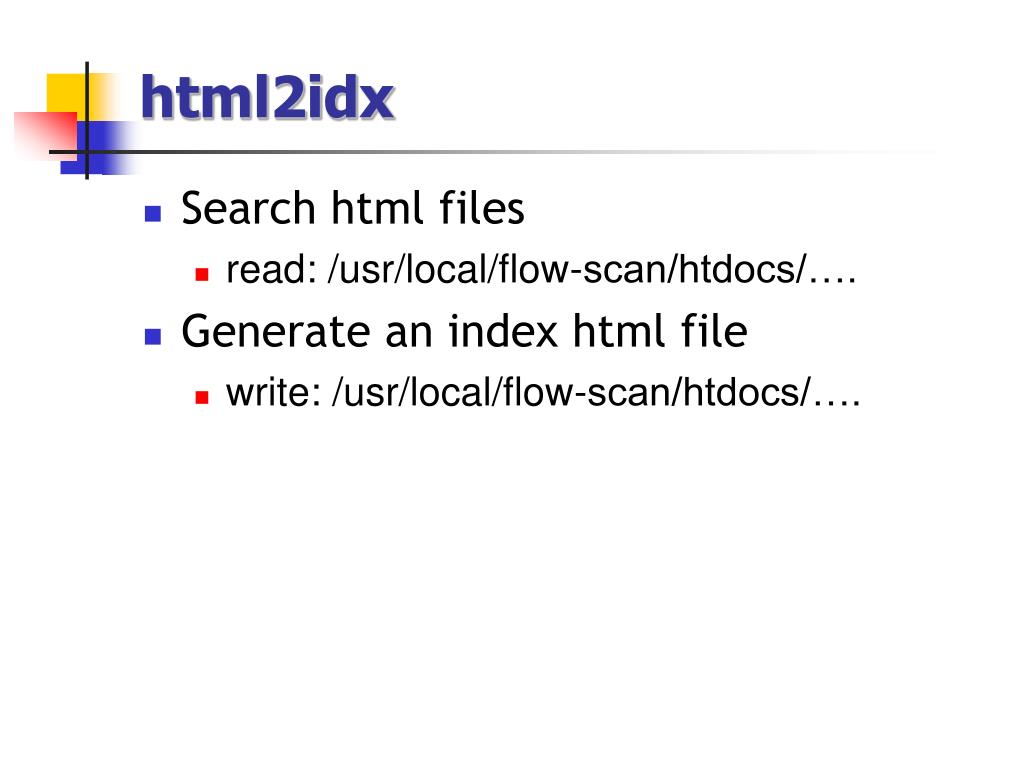

  12. html2idx • Search html files • read: /usr/local/flow-scan/htdocs/…. • Generate an index html file • write: /usr/local/flow-scan/htdocs/….

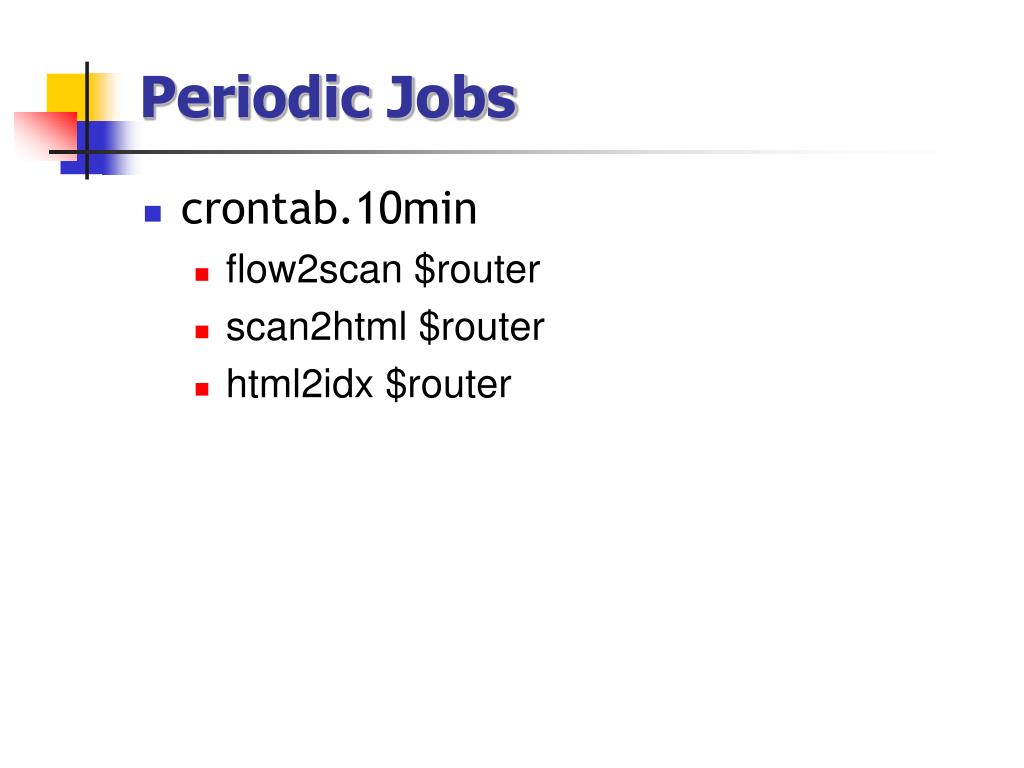

  13. Periodic Jobs • crontab.10min • flow2scan $router • scan2html $router • html2idx $router

  14. Configurations • flow-scan.txt • screen.txt (to be screened) • 192.168.128.0/17 • trust.txt (avoid being blocked) • 192.168.192.0/24 • worm.txt (list of worm types) • IP-SCAN-TCP-135

  15. flow-scan.txt • TOOL = "/usr/local/flow-tools/bin" • FLOW = "$FDIR/flow" • SCAN = "$FDIR/scan" • FTMP = "$FDIR/tmp" • FSUP = "$FETC/dscan.supress" • WORM = "$FETC/worm.txt" • TRUST = "$FETC/trust.txt" • SCREEN = "$FETC/screen.txt" • IP_RESERVED = "$FETC/IPv4-address.txt" • HTML = "$FDIR/htdocs/netflow" • HTML_REF = "/netflow" • HTML_URL = "http://netflow.myschool.edu.tw/netflow" • C6509 = "c6509" • C6509INT = "6"

  16. Installation • Download source tar file • http://cc.nthu.edu.tw/~chuan/ • Extract source tar file • cp flow-scan-0.90.tar.gz /usr/local • cd /usr/local • tar zxf flow-scan-0.90.tar.gz • ln –s flow-scan-0.90 flow-scan

  17. Installation (cont.) • Modify bin/MyFlow.pm • set FDIR • Modify etc/flow-scan.txt • set TOOL • set HTML_URL • set C6509INT • Modify etc/screen.txt • Modify etc/trust.txt

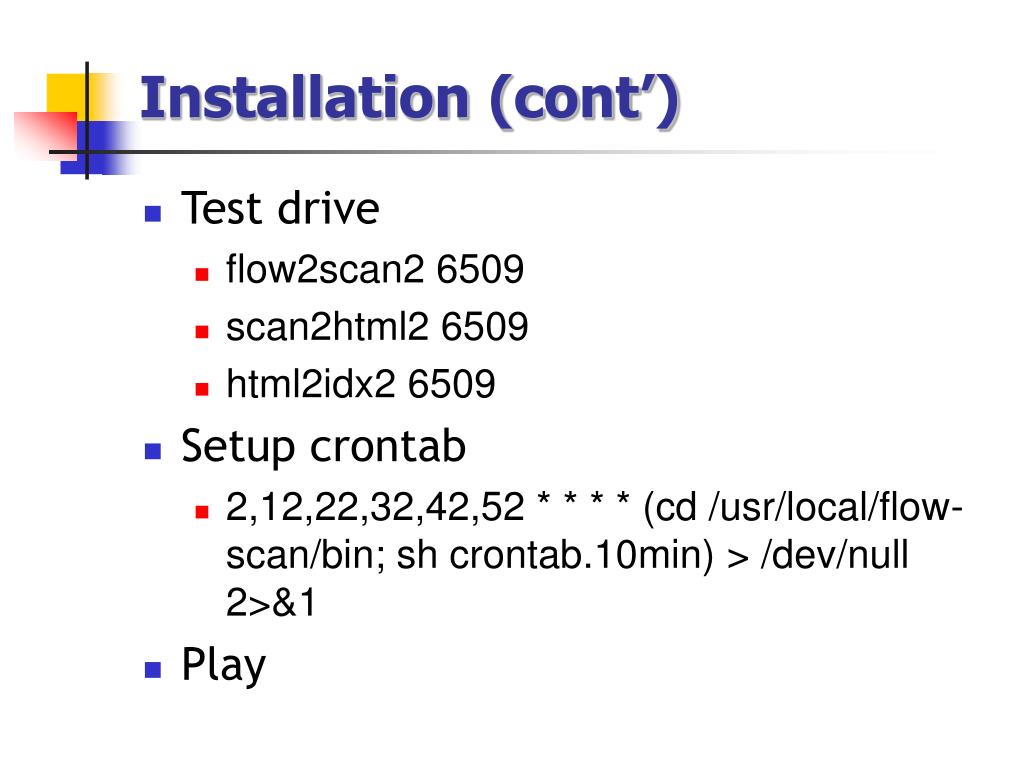

  18. Installation (cont’) • Test drive • flow2scan2 6509 • scan2html2 6509 • html2idx2 6509 • Setup crontab • 2,12,22,32,42,52 * * * * (cd /usr/local/flow-scan/bin; sh crontab.10min) > /dev/null 2>&1 • Play

  19. Automatic Router Control Module

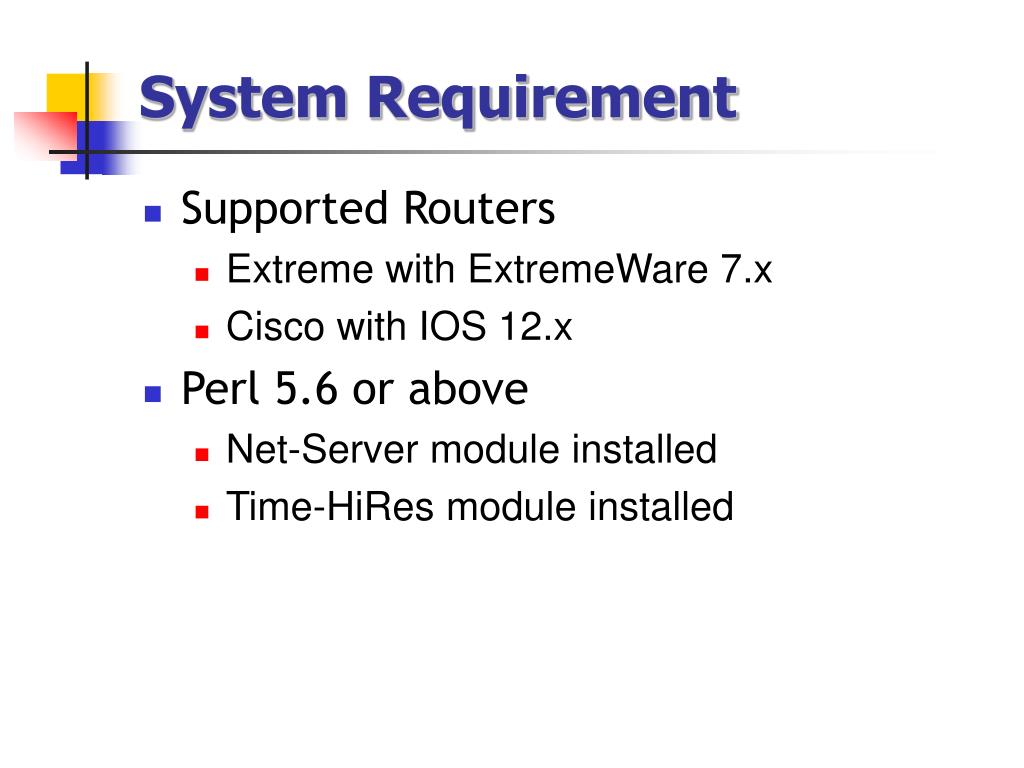

  20. System Requirement • Supported Routers • Extreme with ExtremeWare 7.x • Cisco with IOS 12.x • Perl 5.6 or above • Net-Server module installed • Time-HiRes module installed

  21. Directory Structure • netguard (/usr/local/netguard/) • bin (binaries for human operation) • etc (configurations) • htdocs (notification web pages) • lib (system modules) • log (system logs) • sbin (daemon resides) • spool (IPC for registrar and netguard)

  22. Programs (bin) • block-ip.pl • block an IP address immediately • block-ip.pl ip-address tag comments • open-ip.pl • open an IP address immediately • open-ip.pl ip-address

  23. Programs (cont.) • book-open-ip.pl • book an IP address to be opened • book-open-ip ip-address • cron-open.pl • open booked IP addresses at specified alarm time (obtained from spool/book) • cron-open.pl

  24. Daemon Programs (sbin) • netguard.sh • start or stop netguard module • netguard.sh (start|stop|restart) • monitor-netguard.sh • keep netguard running (for shake of unknown-reason stop); should work with crontab • 1,11,21,31,41,51 * * * * (cd /usr/local/netguard/sbin; ./monitor-netguard.sh) > /dev/null 2>&1

  25. Daemon Programs (cont.) • registrar.pl • as a central registrar which accept commands from other programs via Socket and write commands to the file spool • should be waken up by netguard.sh • netguard.pl • as a router control robot which read commands from the file spool (/spool) • should be waken up by netguard.sh

  26. Program Modules (lib) • netguard.pm • contains codes which is able to login the supported routers and configure the access control list for a specified IP address • currently support routers: Cisco and Extreme

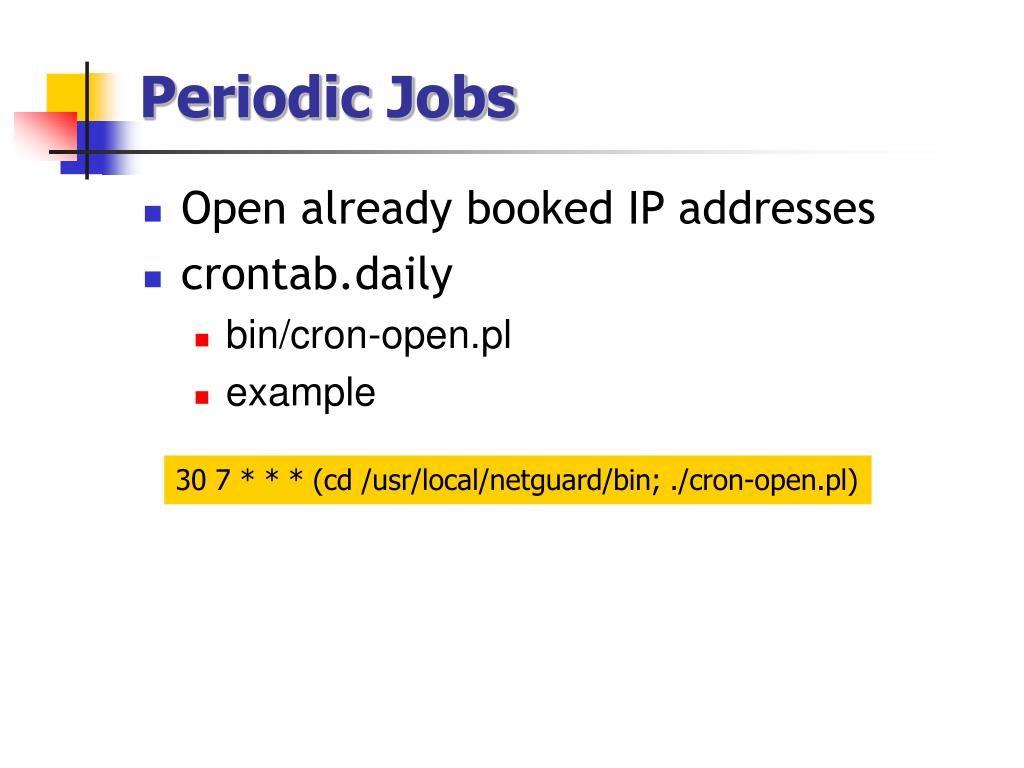

  27. Periodic Jobs • Open already booked IP addresses • crontab.daily • bin/cron-open.pl • example 30 7 * * * (cd /usr/local/netguard/bin; ./cron-open.pl)

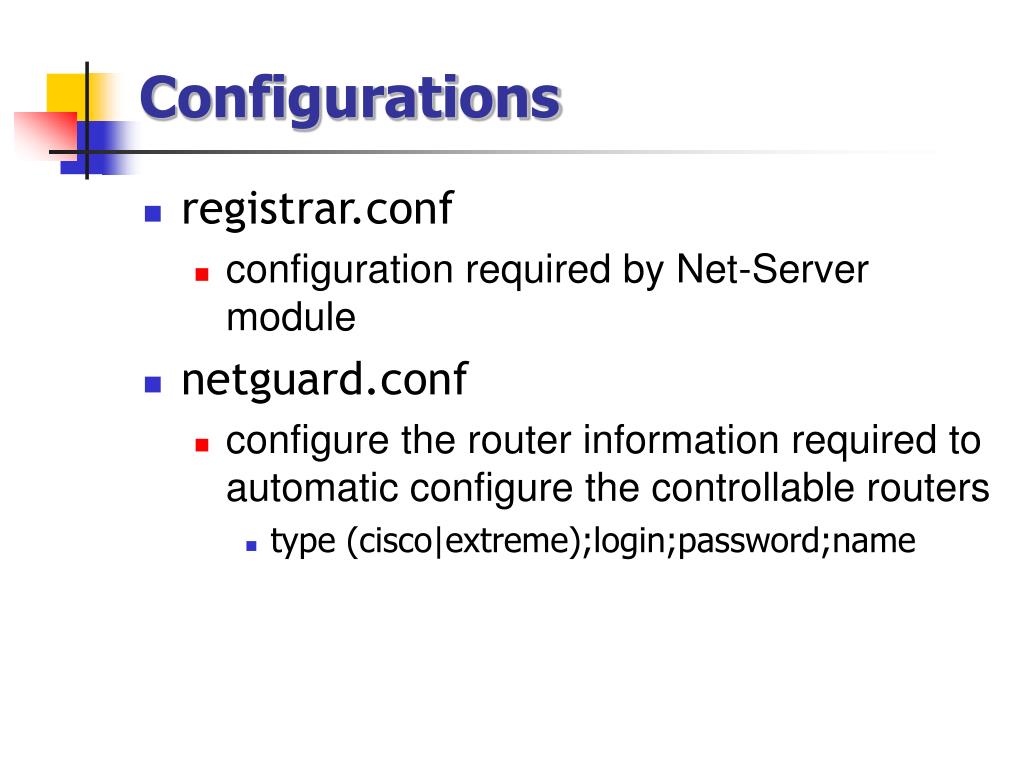

  28. Configurations • registrar.conf • configuration required by Net-Server module • netguard.conf • configure the router information required to automatic configure the controllable routers • type (cisco|extreme);login;password;name

  29. Password and Port Setting • Server password and service port • change the setting in registrar.pl • Client password and port • change the settings in block-ip.pl, open-ip.pl, and book-open-ip.pl • change the programs which talk to netguard module in other detecting modules

  30. File Spool (spool) • The inter-process communication between registrar and netguard • each file represents a status of an IP address • archive (has become part of history) • block (is being blocked) • book (booked an open request) • info (an immediate notification required) • request (command the netguard) • unblock (counting infected frequency)

  31. Notification Module

  32. System Requirement • Perl 5.6 or above • Apache 1.x or above • http://httpd.apache.org/

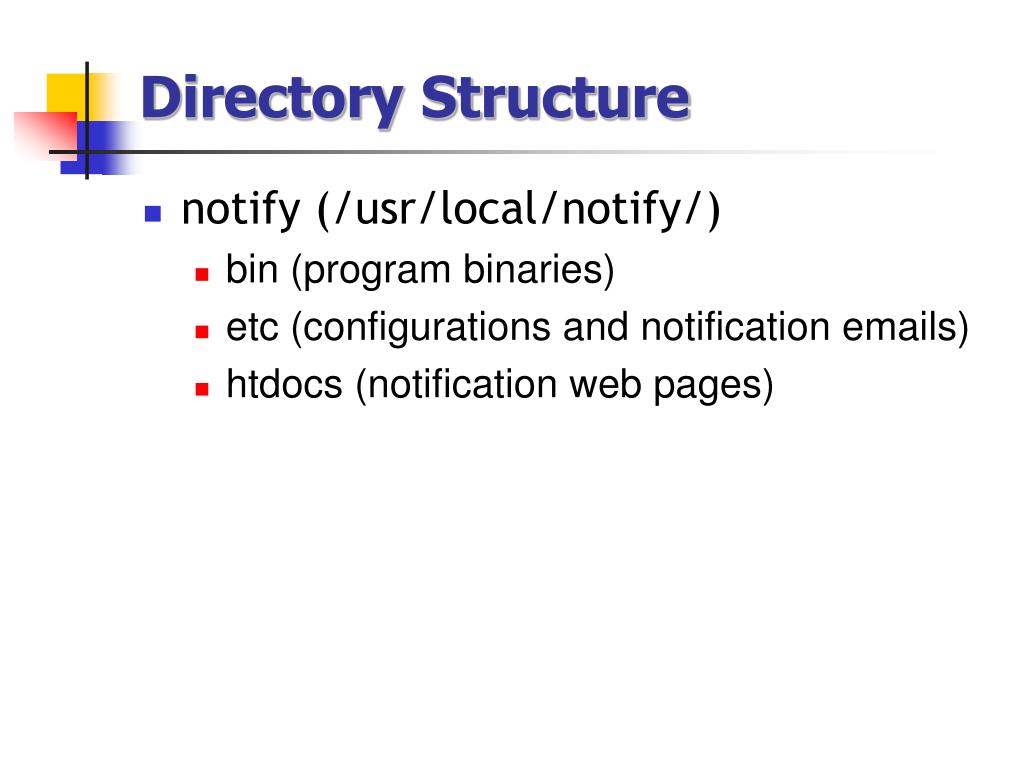

  33. Directory Structure • notify (/usr/local/notify/) • bin (program binaries) • etc (configurations and notification emails) • htdocs (notification web pages)

  34. Programs • cron-sendmail.pl • send daily notification • cron-sendmail2.pl • send notification once being blocked • genhtm.pl • generate notification web pages periodically

  35. Periodic Jobs • Notifications should be delivered periodically • Send emails daily, send email once being blocked, and generate web pages periodically • 10 8 * * * (cd /usr/local/notify; ./cron-sendmail) • 8,18,28,38,48,58 * * * * (cd /usr/local/notify/bin; ./cron-sendmail2) • 0,10,20,30,40,50 * * * * (cd /usr/local/notify/bin; ./genhtml.pl)

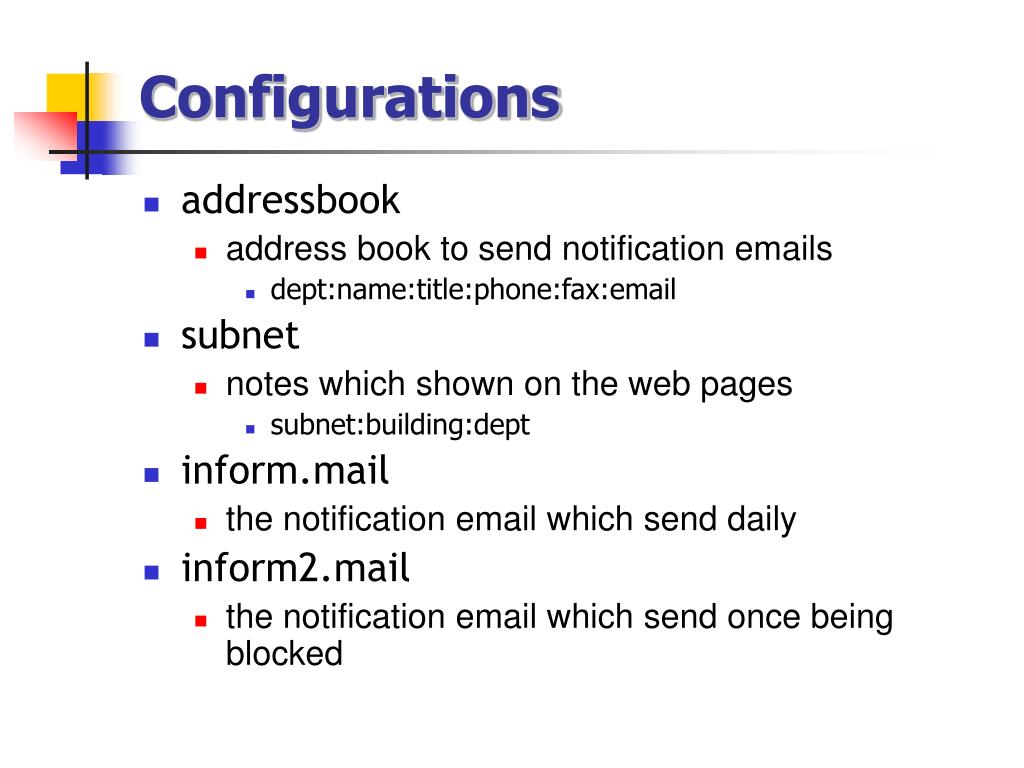

  36. Configurations • addressbook • address book to send notification emails • dept:name:title:phone:fax:email • subnet • notes which shown on the web pages • subnet:building:dept • inform.mail • the notification email which send daily • inform2.mail • the notification email which send once being blocked

  37. Web Pages (htdocs) • ban-head.htm • the header part of the notification web pages • ban-tail.htm • the tail part of the notification web pages • index.htm • may be required for the apache web server

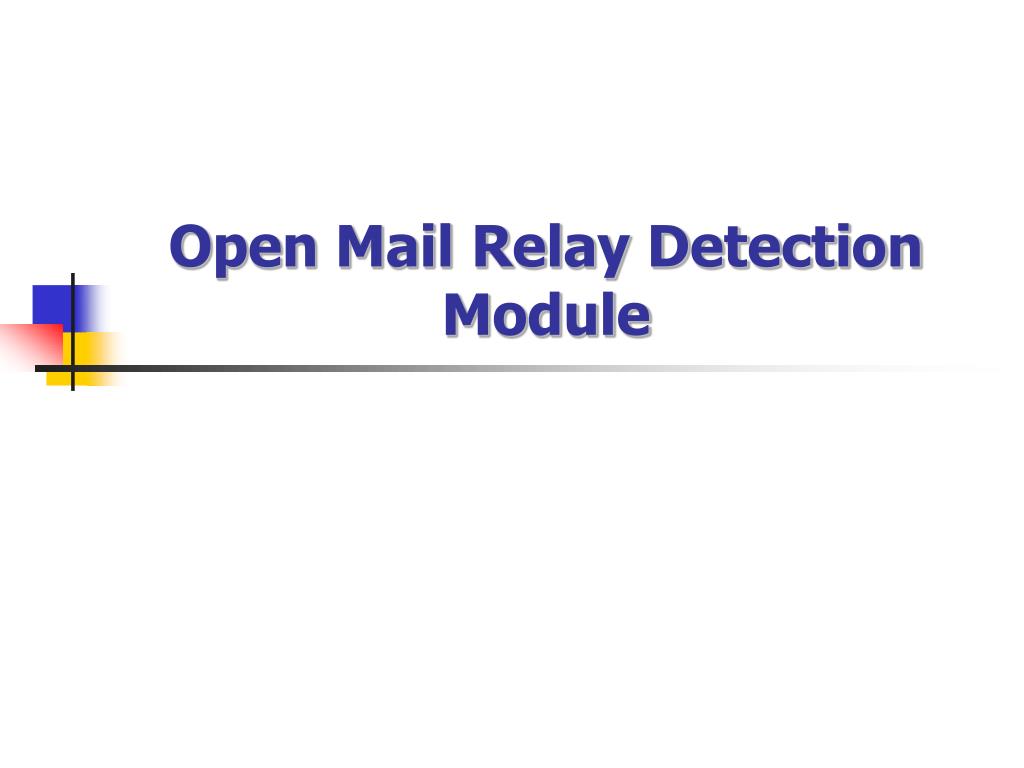

  38. Open Mail Relay Detection Module

  39. System Requirement • A remote server • relay testing email • receive testing mail • Perl 5.6 or above • libnet module installed • Pxytest • http://www.unicom.com/sw/pxytest/

  40. To Be Done

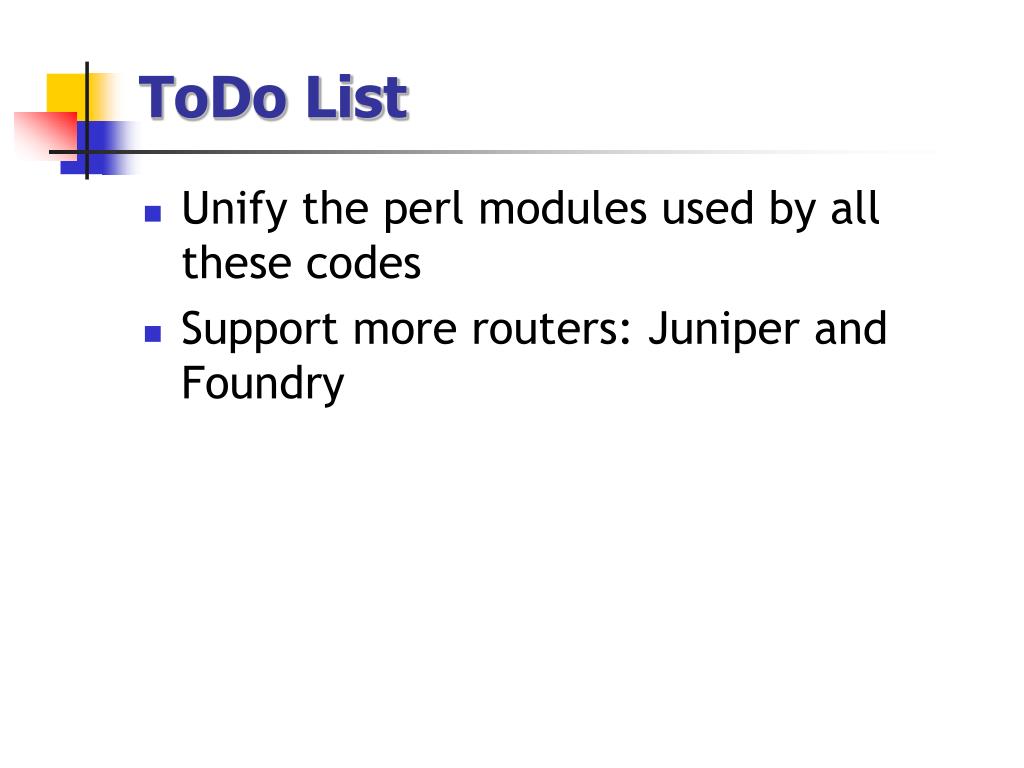

  41. ToDo List • Unify the perl modules used by all these codes • Support more routers: Juniper and Foundry

  42. Thank You!
