Using SDSS database to study metallicities of star-forming galaxies

Using SDSS database to study metallicities of star-forming galaxies. 梁艳春，国家天文台 2006.10.29 ， 上海. Outline. SDSS: hot topic Methods to estimate metallicities of star-forming galaxies (12+log(O/H)) SDSS samples: metal-rich, metal-poor

conroy
Télécharger la présentation

Using SDSS database to study metallicities of star-forming galaxies

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

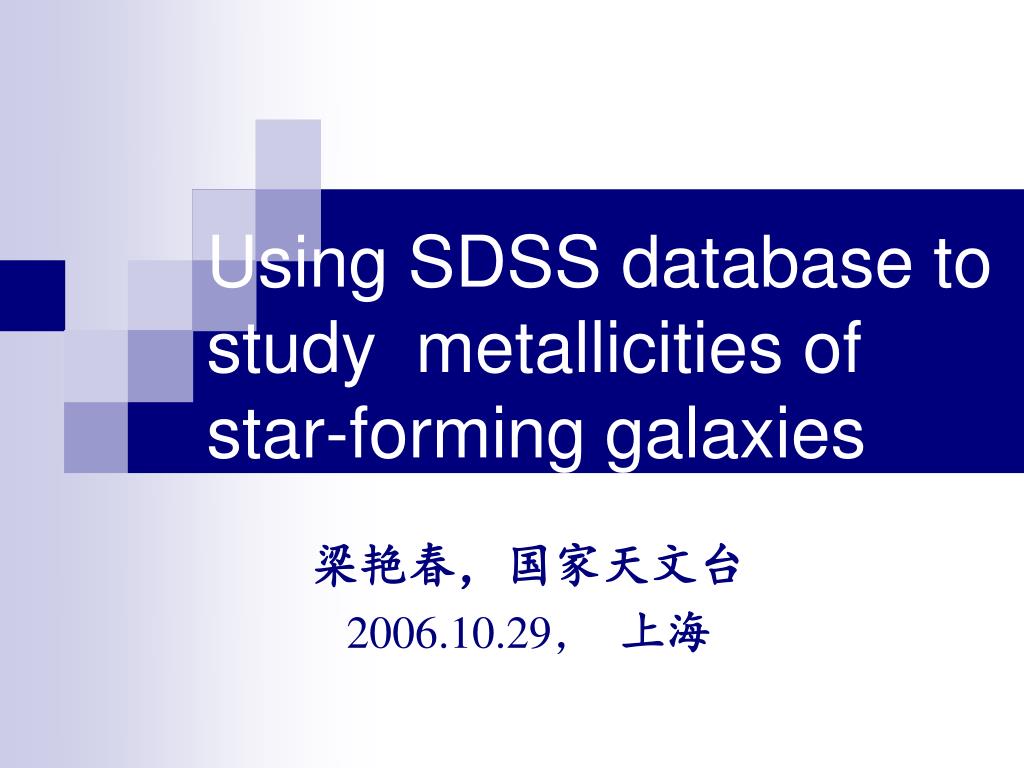

  1. Using SDSS database to study metallicities of star-forming galaxies 梁艳春，国家天文台 2006.10.29， 上海

  2. Outline • SDSS: hot topic • Methods to estimate metallicities of star-forming galaxies (12+log(O/H)) • SDSS samples: metal-rich, metal-poor • Interests to our LAMOST: about the metallicities of large sample of galaxies • N/O abundances

  3. 1. SDSS: hot topic ADS--- search by “SDSS”: “Abstract” -- 2964 , “Title” — 1227 Xi’An AGN meeting：1) sdss samples themselves, 2) selecting objects, multi-wavelength studies –- large sample, or strange objects e.g. Hao L.: Mid-IR spectra of SDSS AGNs Yuan W.M.: NLS1, then X-ray etc. Li C. : clustering of NL AGNs Wang T.G: Type 2 QSO Nagao N.: metallicity evolution of AGNs Groves B.: low-metallicity AGNs

  4. The SDSS-DR5 SDSS DR5 Imaging Sky Coverage (Aitoff projection of Equatorial coordinates) SDSS DR5 Spectral Sky Coverage (Aitoff projection of Equatorial coordinates) 8000 sq. deg. 5740 sq. deg.

  5. The SDSS-DR5 Imaging

  6. The SDSS-DR5 Spectroscopy

  7. Star-forming galaxies from SDSS (from Tremonti et al. 2004)

  8. 2. Methods to estimate metallicities of star-forming galaxies • Te-method： the most accurate method • 2) R23-method ((I[OII]+I[OIII])/Hb) • 3) P-method (R23,P) • 4) Other strong-line ratio methods:[NII]/Ha, • [OIII]/[NII],[NII]/[OII],[NII]/[SII], • [SII]/Ha,[OIII]/Hb, S23,S234 • 5) Photoionization model fitting • (梁艳春等，天文学进展，2006，第四期)

  9. 1) Te-method：the most accurate method ( Izotov et al. 2005) (Garnett 1992)

  10. 2) R23-method：empirical strong-line ratio (Pagel et al. 1979 for metal-rich galaxies) (Skillman 1989 for metal-poor galaxies)

  11. 3) P-method (Pilyugin 2000,2001,2005) • From the sample galaxies with Te,R23,P, they derive calibrations for O/H=f(R23,P)(P=logR3/R23,R3=[OIII]/Hb) • 7.1<12+log(O/H)Te<7.95: • 8.2<12+log(O/H)Te<8.7:

  12. 4) Other strong-line ratio methods: N2=log([NII]/Ha), O3N2=log(([OIII]/Hb)/([NII]/Ha))[NII]/[OII], [NII]/[SII][SII]/Ha, [OIII]/Hb Use the large sample of SDSS galaxies to get calibration relations There are photoionization model calculations published (Kewley & Dopita 2000)

  13. 3. Sample selection (Groves, B. et al. 2006,astro-ph/0608058)

  14. Metal-rich galaxies: (i) SDSS-DR2 (261,054), 14.5<r<17.77 mag (193,890 left); (ii) 12+log(O/H)(SDSS) > 0 (50,385 left) (SDSS: Tremonti et al. 2004); (iii) 0.04<z<0.25 (40,693 left); (iv) emission lines [OII], H\beta, [OIII], H\alpha, [NII] were detected (40,239 left, this number will be reduced to 39,919 if the [SII]6717,6731 are considered as well); (v) fluxes of emission lines H\beta, H\alpha, and [NII]6583 were detected at greater than 5\sigma (39,029 left); (vi) 8.4<12+log(O/H)<10 (39,006 left); (vii) the discrepancy between 12+log(O/H) values of Tremonti et al. (2004) and our estimates is less than 0.15 dex (38,478 left finally).

  15. Calibrations:N2=log([NII]6583/Ha) O3N2=log[([OIII]/Hb)/ ([NII]6583/Ha)] (Liang et al. 2006, ApJ astro-ph/0607074; Pettini & Pagel 2004; Denicolo et al. 2002;Kewley & Dopita 2002)

  16. Metal-poor galaxies We summarize consequently the selection criteria : (i) SDSS-DR4 (567,486) (ii) star-forming galaxies (141,317) (iii) 0.04<z<0.25 (123,994) (iv) emission lines [OII], Hb, [OIII]4363,5007, Ha, [NII]6583, [SII]6717,6731 were detected (53,469) (v) Fluxes of emission lines Hb, Ha, [NII] , [SII]6717,6731, [OIII]4363 was detected at greater than 5σ (531) In addition, there are 164 extremely metal-poor galaxies with [OIII]4363detected from literature. (Yin et al. 2006, A&A, astro-ph/0610068)

  17. N2 O3N2 log{([OIII]/Hb)/([NII]/Ha)} log([NII]/Ha) Re-deriving calibrations on N2, O3N2, S2 S2 N2, P

  18. Comparisons with models, full metallicity range: O3N2 [NII]/[OII] N2 [NII]/[SII] [SII]/Ha [OIII]/Hb

  19. R23 • (1) [NII]/[OII] is the best for the metal-rich region, • but it needs careful dust correction • N2, O3N2, S2 correlate with O/H in metal-poor • R23 is a good calibration for 12+log(O/H)<7.9 • [NII]/Ha is very useful since the two lines are • close, and can be obtained from the NIR • observations for inter.-, high-z galaxies. • However, it relates to the enrichment history • of N element, must be kept in mind.

  20. 4. Hints to our LAMOST: estimating the metallicities of large sample of galaxies Flux-calibrated spectra, Te method, R23 method, P method, other strong-line ratios (N2, O3N2, S2 etc.) Un-Flux-calibrated spectra, EW (N2，O3N2， N2S2), EW R23 method(?)

  21. 5. Estimating N abundances tII=10-4T[NII] x=logR23

  22. N/O the combination of ``primary" and ``secondary“ components of nitrogen, but the ``secondary" one dominates. It is the first such large sample. They do not show large scatter in the log(N/O) vs.12+log(O/H) relations. (R23)

  23. (SDSS)

  24. (12+log(O/H) -0.25dex to fit solar N/O value) GCE models from Molla et al. 2006, MN, 372,1069

  25. Summary • The large sample of SDSS galaxies are very efficient to derive metallicity calibrations of galaxies; samples selections for metal-rich and metal-poor • Methods to estimate metallicities of star-forming galaxies (12+log(O/H)) • Interests to our LAMOST: about the metallicities of large sample of galaxies e.g. O/H, N/O abundances

  26. Thank you!
