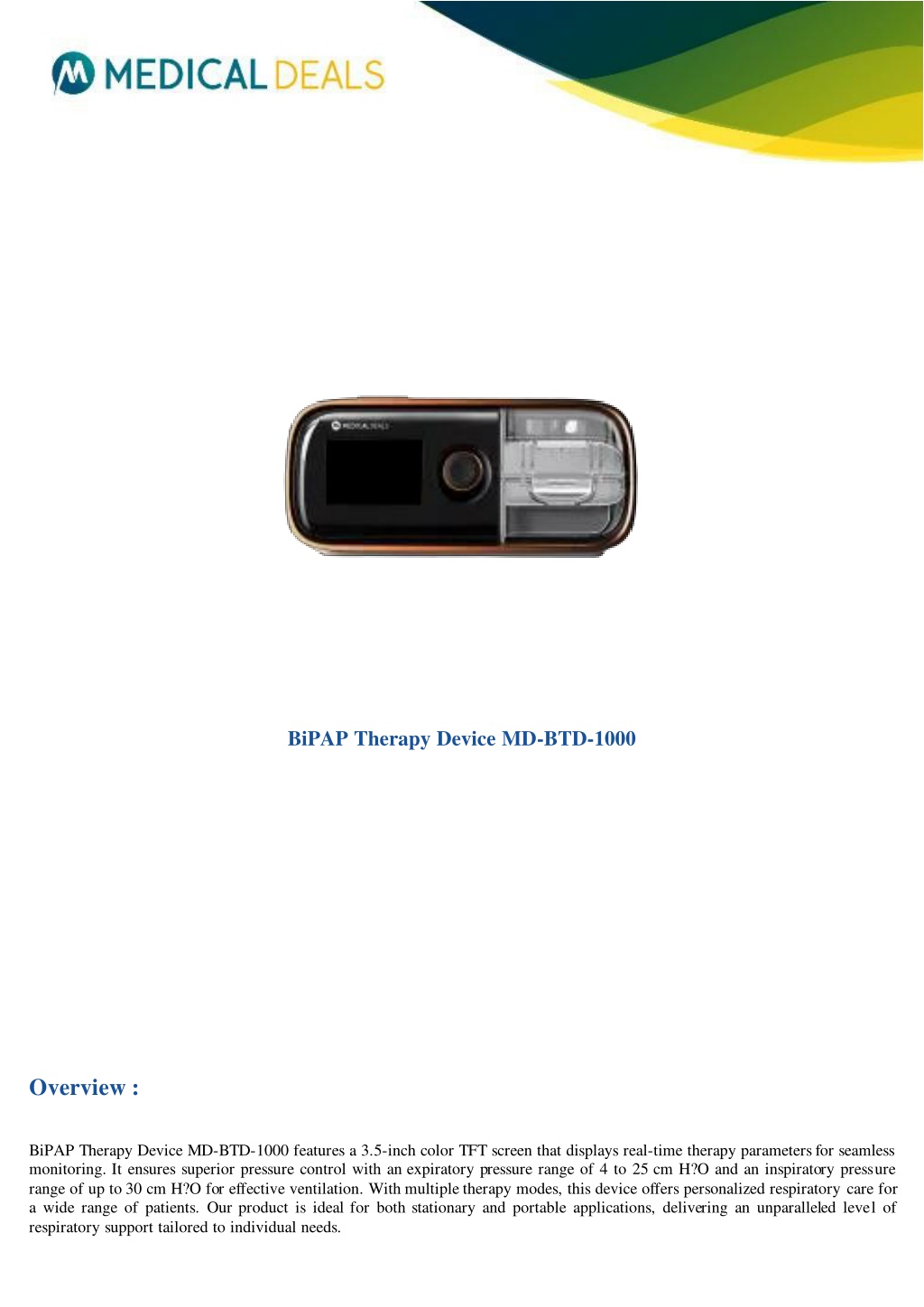

  1. BiPAP Therapy Device MD-BTD-1000 Overview : BiPAP Therapy Device MD-BTD-1000 features a 3.5-inch color TFT screen that displays real-time therapy parameters for seamless monitoring. It ensures superior pressure control with an expiratory pressure range of 4 to 25 cm H?O and an inspiratory pressure range of up to 30 cm H?O for effective ventilation. With multiple therapy modes, this device offers personalized respiratory care for a wide range of patients. Our product is ideal for both stationary and portable applications, delivering an unparalleled level of respiratory support tailored to individual needs.

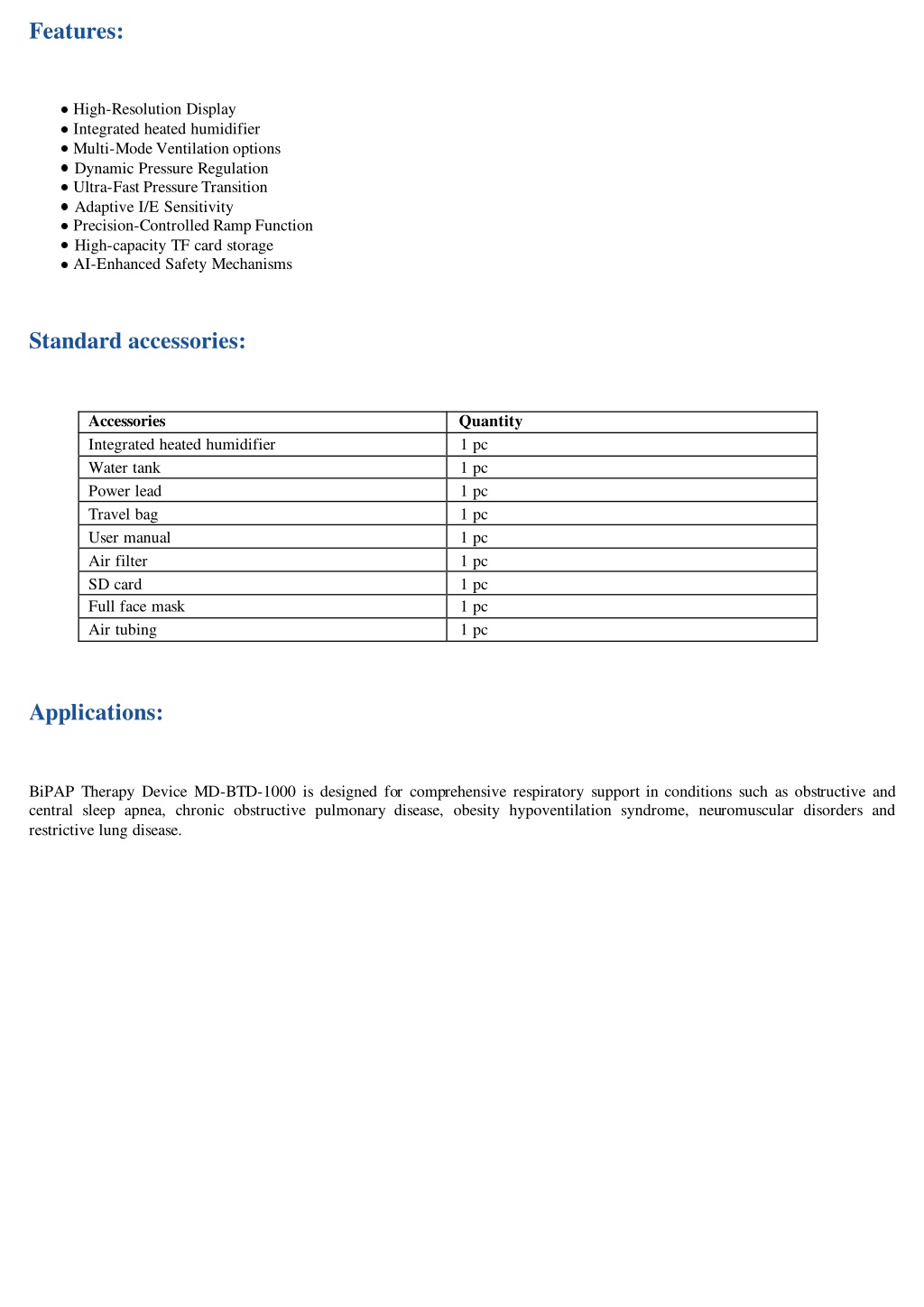

  2. Features: High-Resolution Display Integrated heated humidifier Multi-Mode Ventilation options Dynamic Pressure Regulation Ultra-Fast Pressure Transition Adaptive I/E Sensitivity Precision-Controlled Ramp Function High-capacity TF card storage AI-Enhanced Safety Mechanisms Standard accessories: Accessories Integrated heated humidifier Water tank Power lead Travel bag User manual Air filter SD card Full face mask Air tubing Quantity 1 pc 1 pc 1 pc 1 pc 1 pc 1 pc 1 pc 1 pc 1 pc Applications: BiPAP Therapy Device MD-BTD-1000 is designed for comprehensive respiratory support in conditions such as obstructive and central sleep apnea, chronic obstructive pulmonary disease, obesity hypoventilation syndrome, neuromuscular disorders and restrictive lung disease.

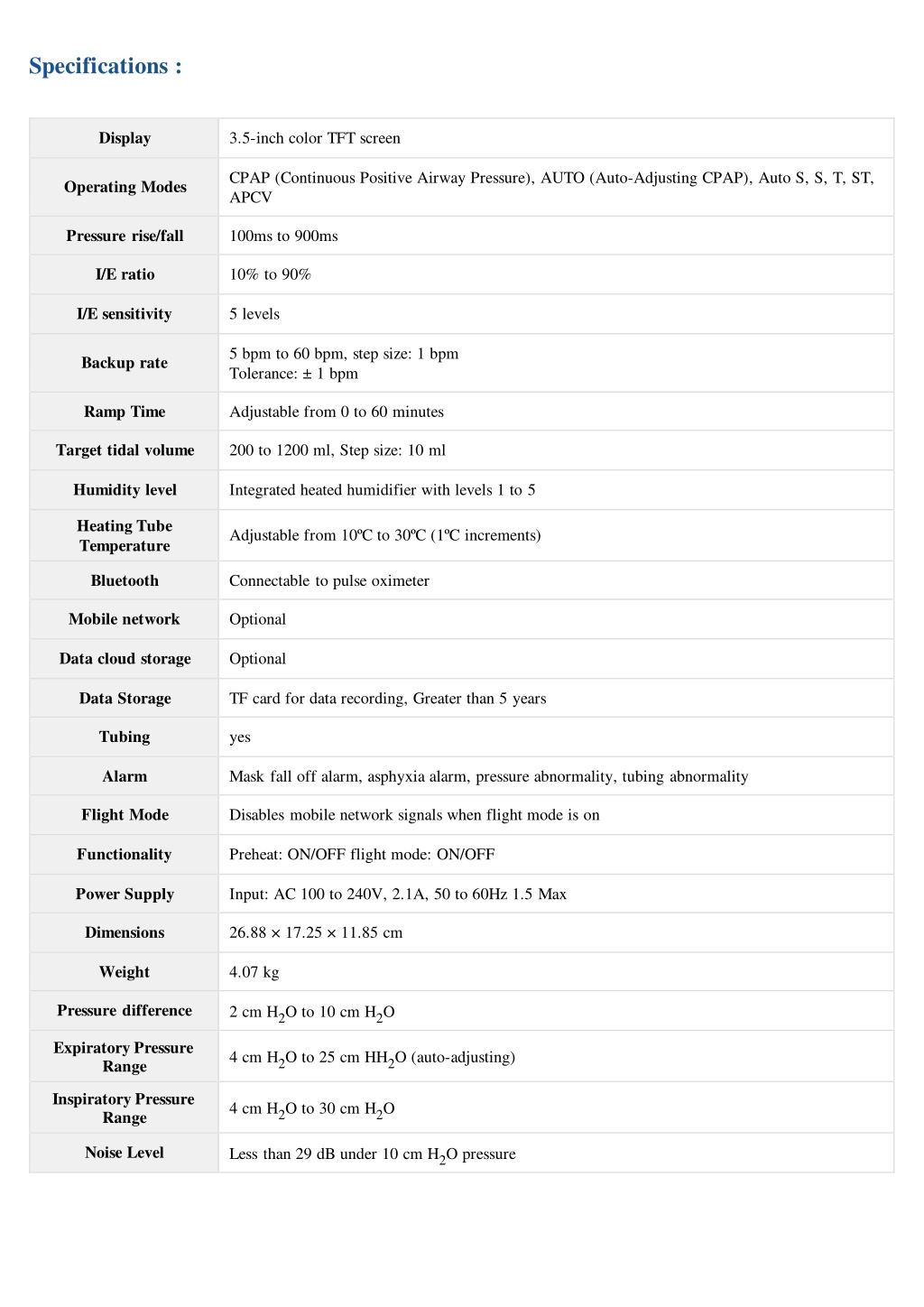

  3. Specifications : Display 3.5-inch color TFT screen CPAP (Continuous Positive Airway Pressure), AUTO (Auto-Adjusting CPAP), Auto S, S, T, ST, APCV Operating Modes Pressure rise/fall 100ms to 900ms I/E ratio 10% to 90% I/E sensitivity 5 levels 5 bpm to 60 bpm, step size: 1 bpm Tolerance: ± 1 bpm Backup rate Ramp Time Adjustable from 0 to 60 minutes Target tidal volume 200 to 1200 ml, Step size: 10 ml Humidity level Integrated heated humidifier with levels 1 to 5 Heating Tube Temperature Adjustable from 10ºC to 30ºC (1ºC increments) Bluetooth Connectable to pulse oximeter Mobile network Optional Data cloud storage Optional Data Storage TF card for data recording, Greater than 5 years Tubing yes Alarm Mask fall off alarm, asphyxia alarm, pressure abnormality, tubing abnormality Flight Mode Disables mobile network signals when flight mode is on Functionality Preheat: ON/OFF flight mode: ON/OFF Power Supply Input: AC 100 to 240V, 2.1A, 50 to 60Hz 1.5 Max Dimensions 26.88 × 17.25 × 11.85 cm Weight 4.07 kg Pressure difference 2 cm H2O to 10 cm H2O Expiratory Pressure Range 4 cm H2O to 25 cm HH2O (auto-adjusting) Inspiratory Pressure Range 4 cm H2O to 30 cm H2O Noise Level Less than 29 dB under 10 cm H2O pressure

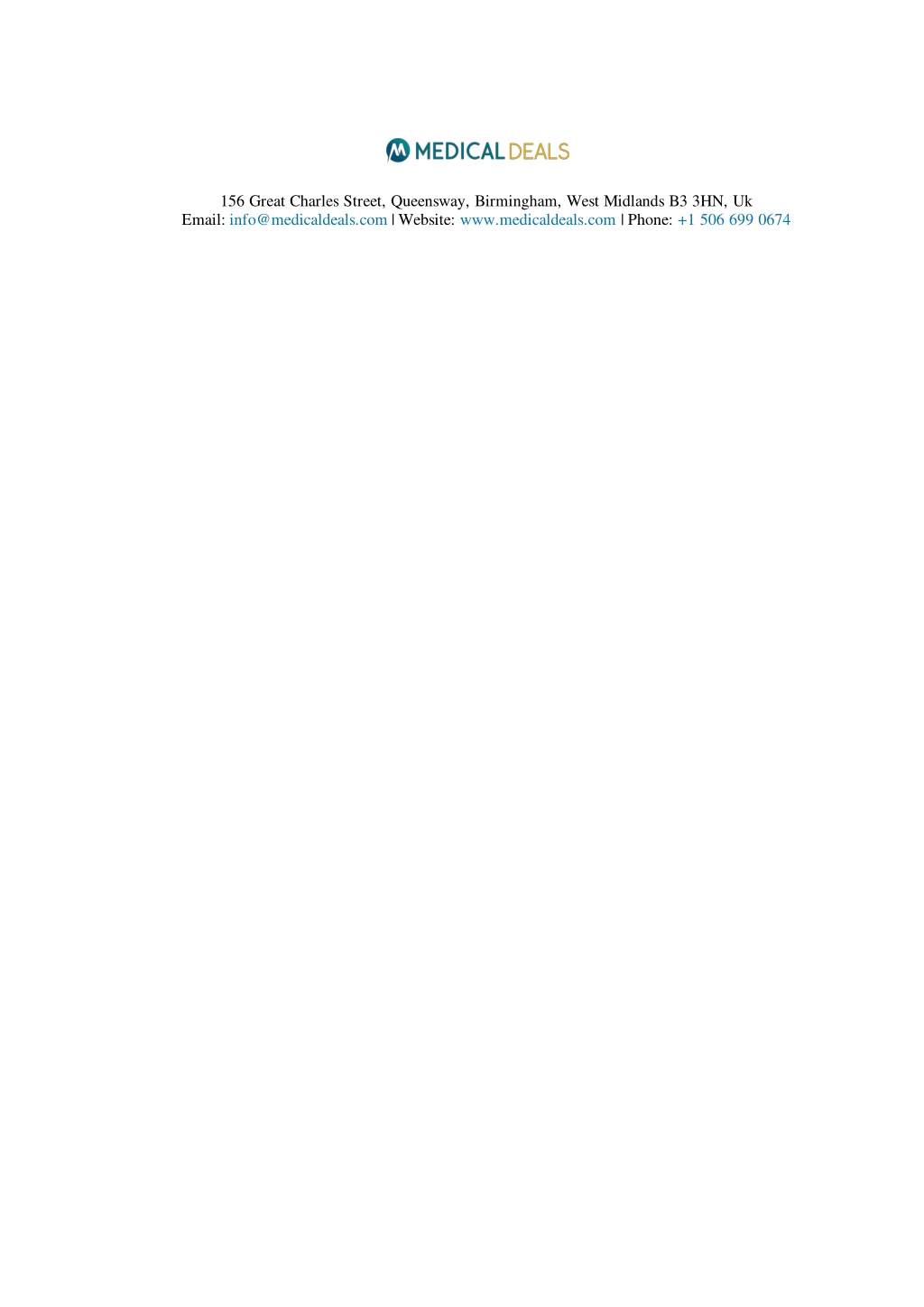

  4. 156 Great Charles Street, Queensway, Birmingham, West Midlands B3 3HN, Uk Email: info@medicaldeals.com | Website: www.medicaldeals.com | Phone: +1 506 699 0674
