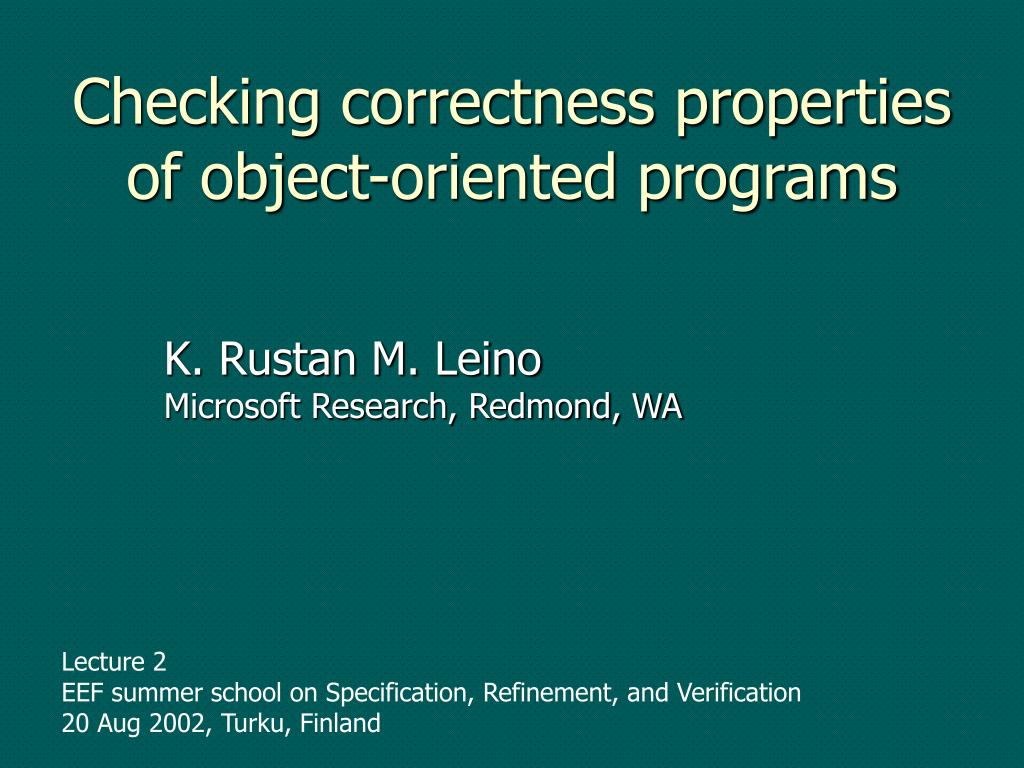

  1. Checking correctness properties of object-oriented programs K. Rustan M. LeinoMicrosoft Research, Redmond, WA Lecture 2EEF summer school on Specification, Refinement, and Verification20 Aug 2002, Turku, Finland

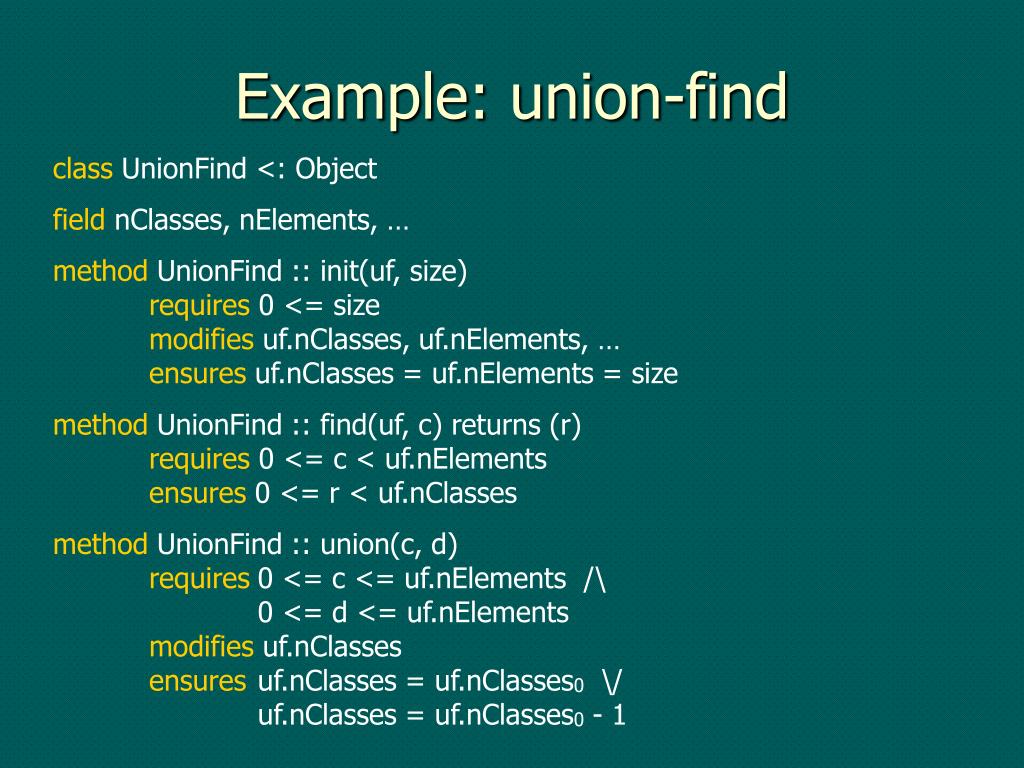

  2. Example: union-find class UnionFind <: Object field nClasses, nElements, … method UnionFind :: init(uf, size)requires 0 <= sizemodifies uf.nClasses, uf.nElements, …ensures uf.nClasses = uf.nElements = size method UnionFind :: find(uf, c) returns (r)requires 0 <= c < uf.nElementsensures 0 <= r < uf.nClasses method UnionFind :: union(c, d)requires 0 <= c <= uf.nElements /\ 0 <= d <= uf.nElementsmodifies uf.nClassesensures uf.nClasses = uf.nClasses0 \/ uf.nClasses = uf.nClasses0 - 1

  3. Example, client var uf, r0, r1, r2 in uf := new(UnionFind); uf.init(12); uf.union(3, 8); uf.union(8, 6); uf.union(10, 11); r0 := uf.find(3); r1 := uf.find(5); r2 := uf.find(6); assert r0 ≠ r1;assert r0 = r2 end

  4. Example, implementation class StandardUnionFind <: UnionFind mimpl StandardUnionFind :: find(uf, c) returns (r) is … class FastUnionFind <: UnionFind mimpl FastUnionFind :: find(uf, c) returns (r) is …

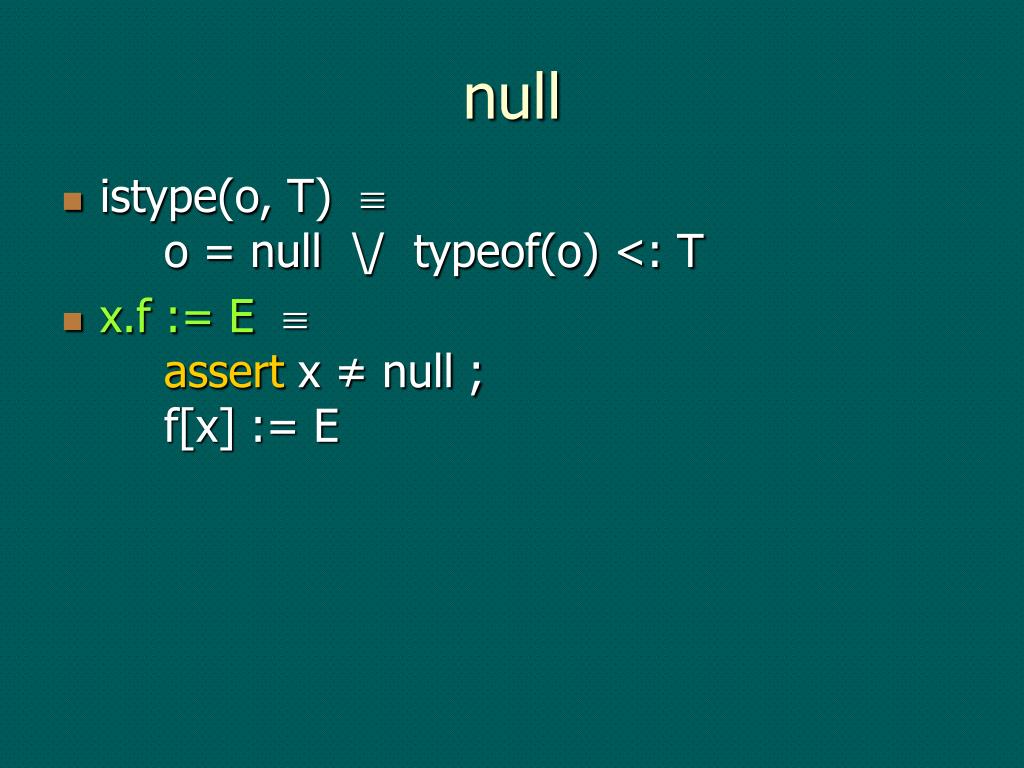

  5. null • istype(o, T)  o = null \/ typeof(o) <: T • x.f := E assert x ≠ null ; f[x] := E

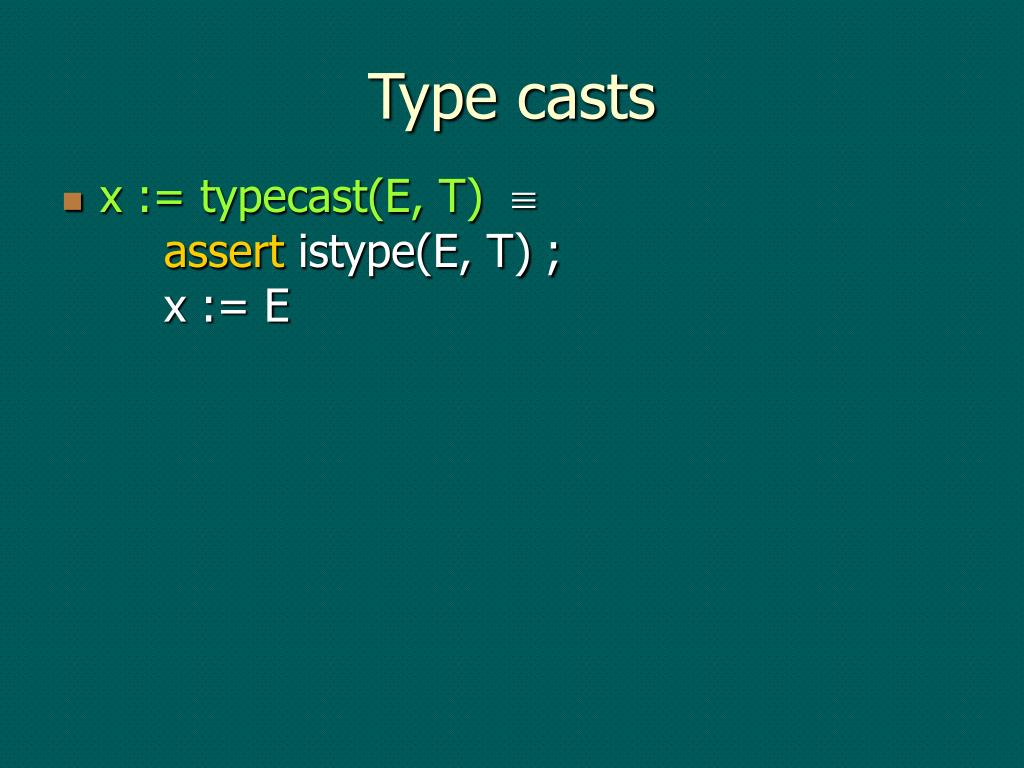

  6. Type casts • x := typecast(E, T)assert istype(E, T) ; x := E

  7. Example: binary method class T <: Object method T :: equal(x, y) returns (b)requires typeof(x) = typeof(y) class U <: T mimpl U :: equal(x, y) returns b isvar yy in yy := typecast(y, U); // compare x and yy …end

  8. Types of parameters method OutputStream :: putText(wr, s) … method T :: print(t, wr)requires istype(wr, OutputStream)

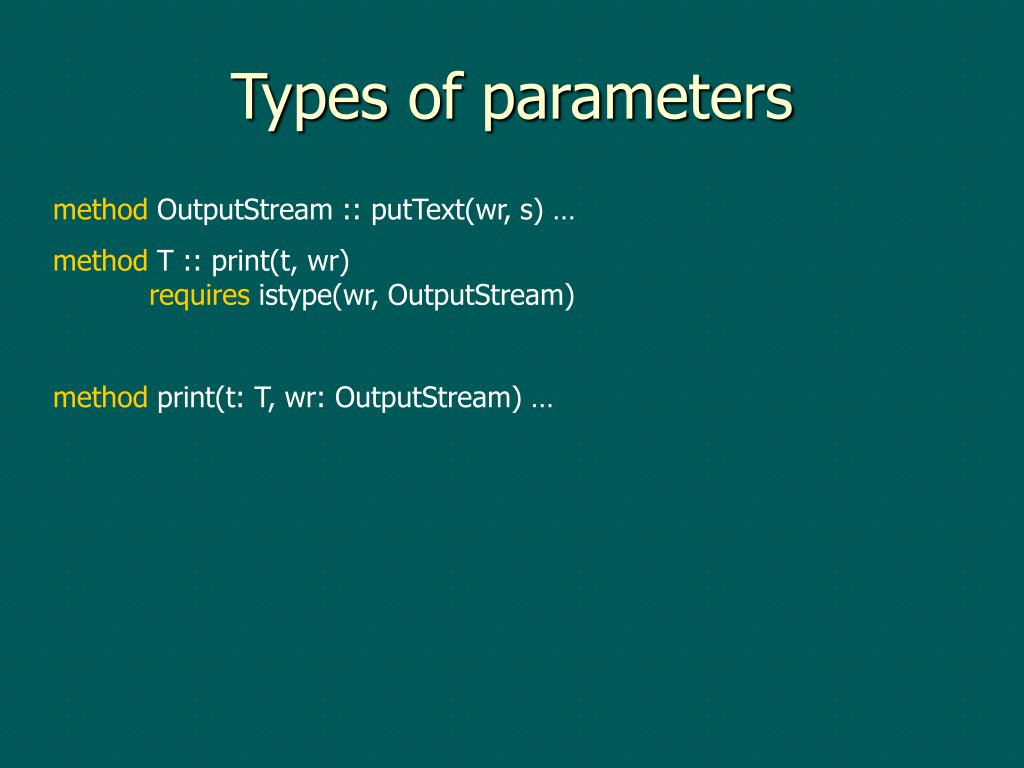

  9. Types of parameters method OutputStream :: putText(wr, s) … method T :: print(t, wr)requires istype(wr, OutputStream) method print(t: T, wr: OutputStream) …

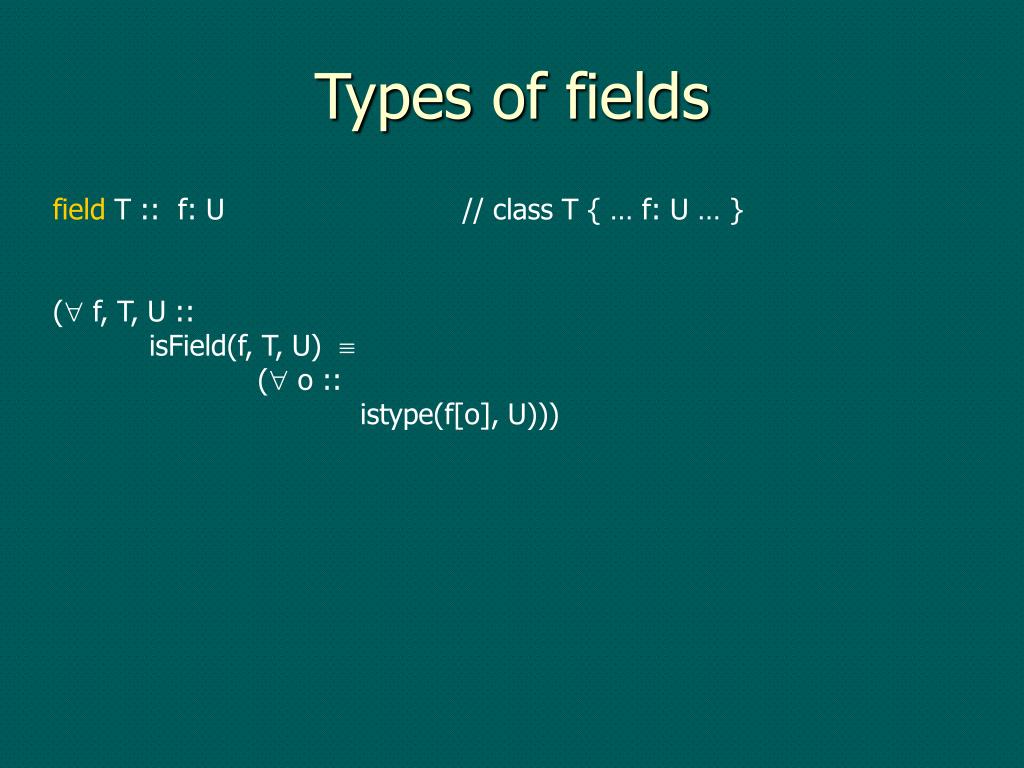

  10. Types of fields field T :: f: U // class T { … f: U … } ( f, T, U :: isField(f, T, U)  ( o :: istype(f[o], U)))

  11. Types of fields field T :: f: U // class T { … f: U … } ( f, T, U :: isField(f, T, U)  ( o :: istype(o, T) ==> istype(f[o], U)))

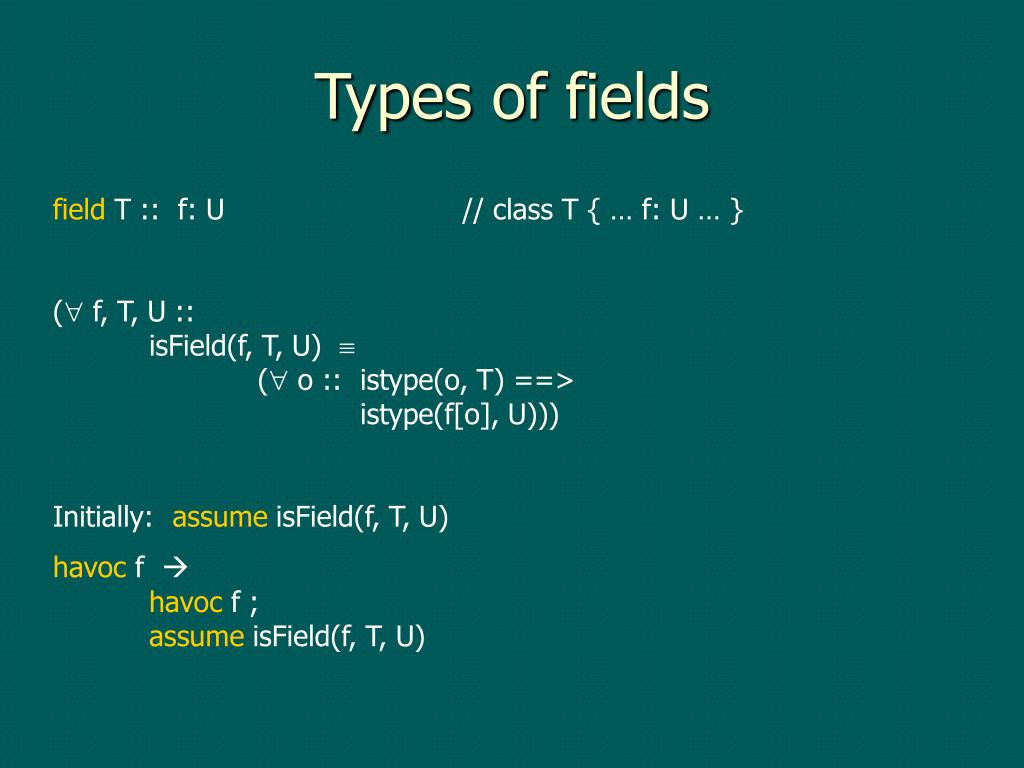

  12. Types of fields field T :: f: U // class T { … f: U … } ( f, T, U :: isField(f, T, U)  ( o :: istype(o, T) ==> istype(f[o], U))) Initially: assume isField(f, T, U) havoc f havoc f ;assume isField(f, T, U)

  13. More about allocation • initially, for every parameter x:assume alloc[x] • mimpl T :: m(x) isvar y in y := new(T);assert x ≠ yend

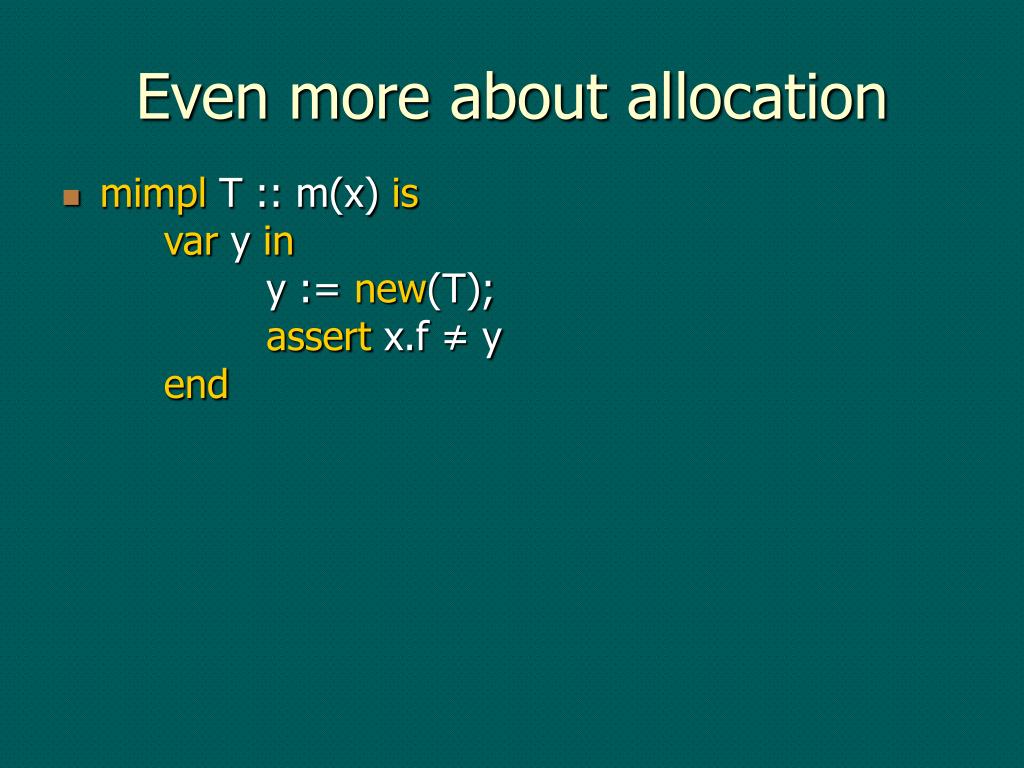

  14. Even more about allocation • mimpl T :: m(x) isvar y in y := new(T);assert x.f ≠ yend

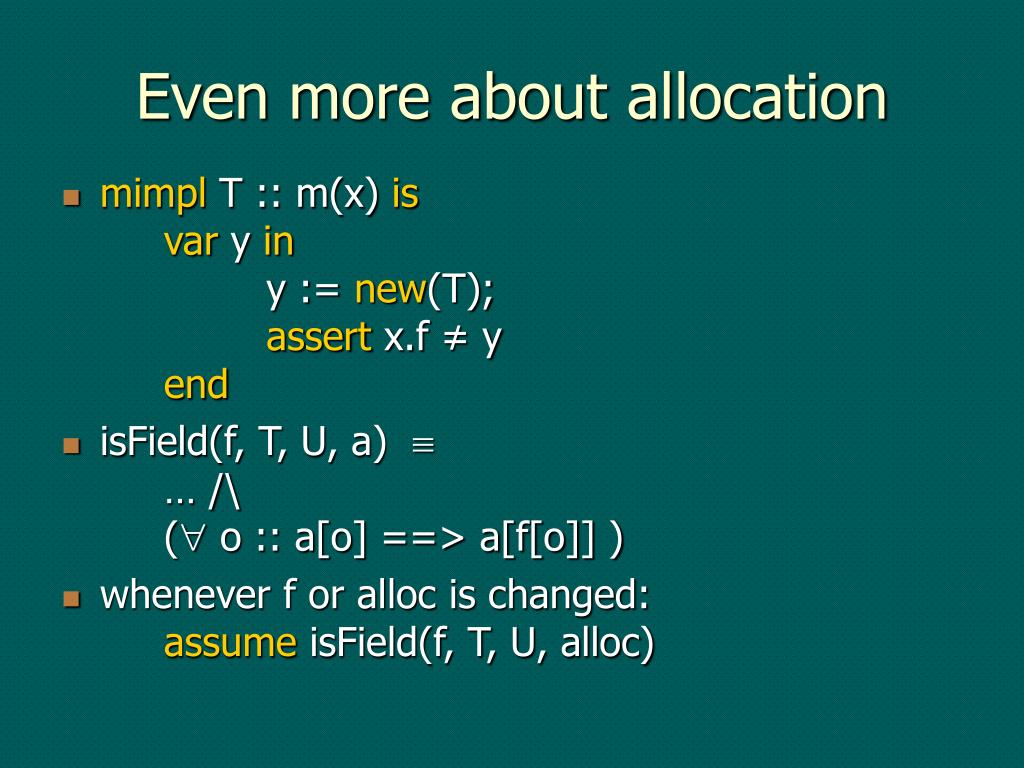

  15. Even more about allocation • mimpl T :: m(x) isvar y in y := new(T);assert x.f ≠ yend • isField(f, T, U, a)  … /\ ( o :: a[o] ==> a[f[o]] ) • whenever f or alloc is changed:assume isField(f, T, U, alloc)

  16. Exercise • Prove the following program correct:method p(x) modifies x.fmethod m(x) modifies x.fmimpl m(x) isvar y in x.p(); y := new(T);assert x.f ≠ yend

  17. Strengthening specifications class T <: Object method T :: m(x, y, z) requires P modifies w ensures Q class U <: T method U :: m(x, y, z) requires P modifies w ensures Q /\ R … u.m(y, z) ; assert R … ?

  18. Strengthening specifications class T <: Object method T :: m(x, y, z) returns (r)requires P modifies w ensures Q class U <: T method U :: n(x, y, z) returns (r)requires P modifies w ensures Q /\ R mimpl U :: m(x, y, z) is r := x.n(y, z) … r := u.n(y, z) ; assert R …

  19. Modifies and objects • modifies x.f modifies fensures ( o :: o.f = o.f0 \/ o = x)

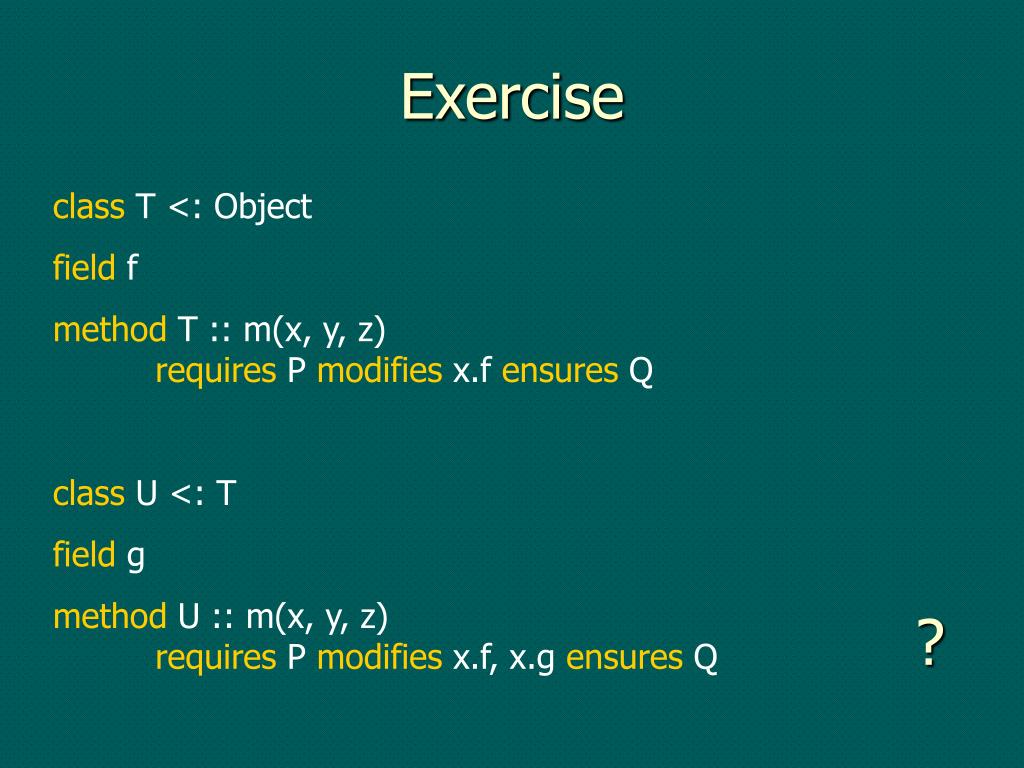

  20. Exercise class T <: Object field f method T :: m(x, y, z) requires P modifies x.f ensures Q class U <: T field g method U :: m(x, y, z) requires P modifies x.f, x.g ensures Q ?

  21. What else is missing? • Data abstraction • Information hiding • Programming methodology • …

  22. References • K. Rustan M. Leino. Toward Reliable Modular Programs. PhD thesis, California Institute of Technology. Technical Report Caltech-CS-TR-95-03, Caltech, 1995. • K. Rustan M. Leino. “Ecstatic: An object-oriented programming language with an axiomatic semantics”. In Foundations of Object-Oriented Languages (FOOL 4), http://www.cis.upenn.edu/~bcpierce/FOOL//index.html, 1997. • K. Rustan M. Leino and Greg Nelson. Data abstraction and information hiding. Research Report 160, Compaq SRC, Nov. 2000. To appear in TOPLAS. • K. Rustan M. Leino. “Data groups: Specifying the modification of extended state”. In OOPSLA ’98, pp. 144-153, ACM, 1998.
