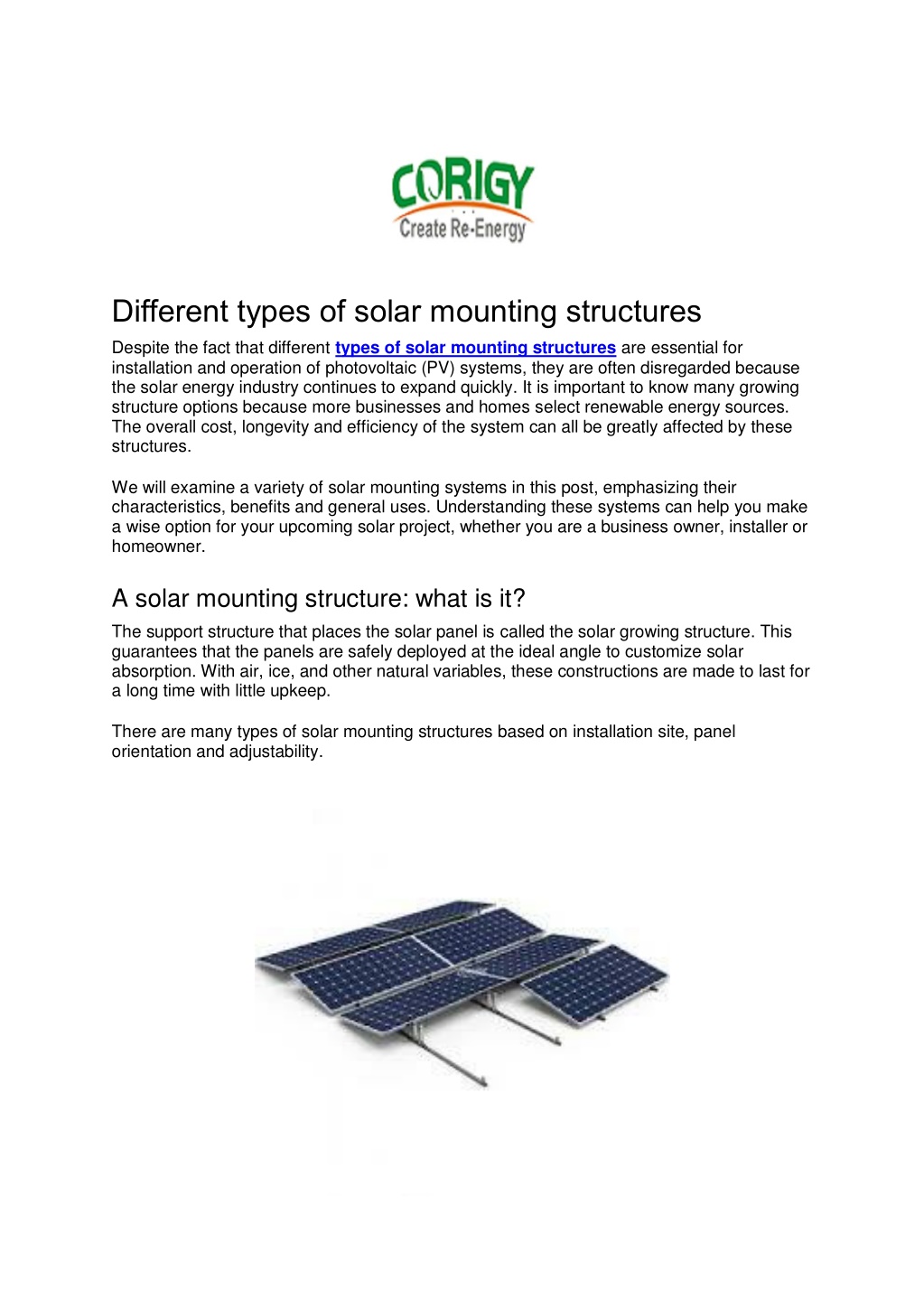

  1. Different types of solar mounting structures Despite the fact that different types of solar mounting structures are essential for installation and operation of photovoltaic (PV) systems, they are often disregarded because the solar energy industry continues to expand quickly. It is important to know many growing structure options because more businesses and homes select renewable energy sources. The overall cost, longevity and efficiency of the system can all be greatly affected by these structures. We will examine a variety of solar mounting systems in this post, emphasizing their characteristics, benefits and general uses. Understanding these systems can help you make a wise option for your upcoming solar project, whether you are a business owner, installer or homeowner. A solar mounting structure: what is it? The support structure that places the solar panel is called the solar growing structure. This guarantees that the panels are safely deployed at the ideal angle to customize solar absorption. With air, ice, and other natural variables, these constructions are made to last for a long time with little upkeep. There are many types of solar mounting structures based on installation site, panel orientation and adjustability.

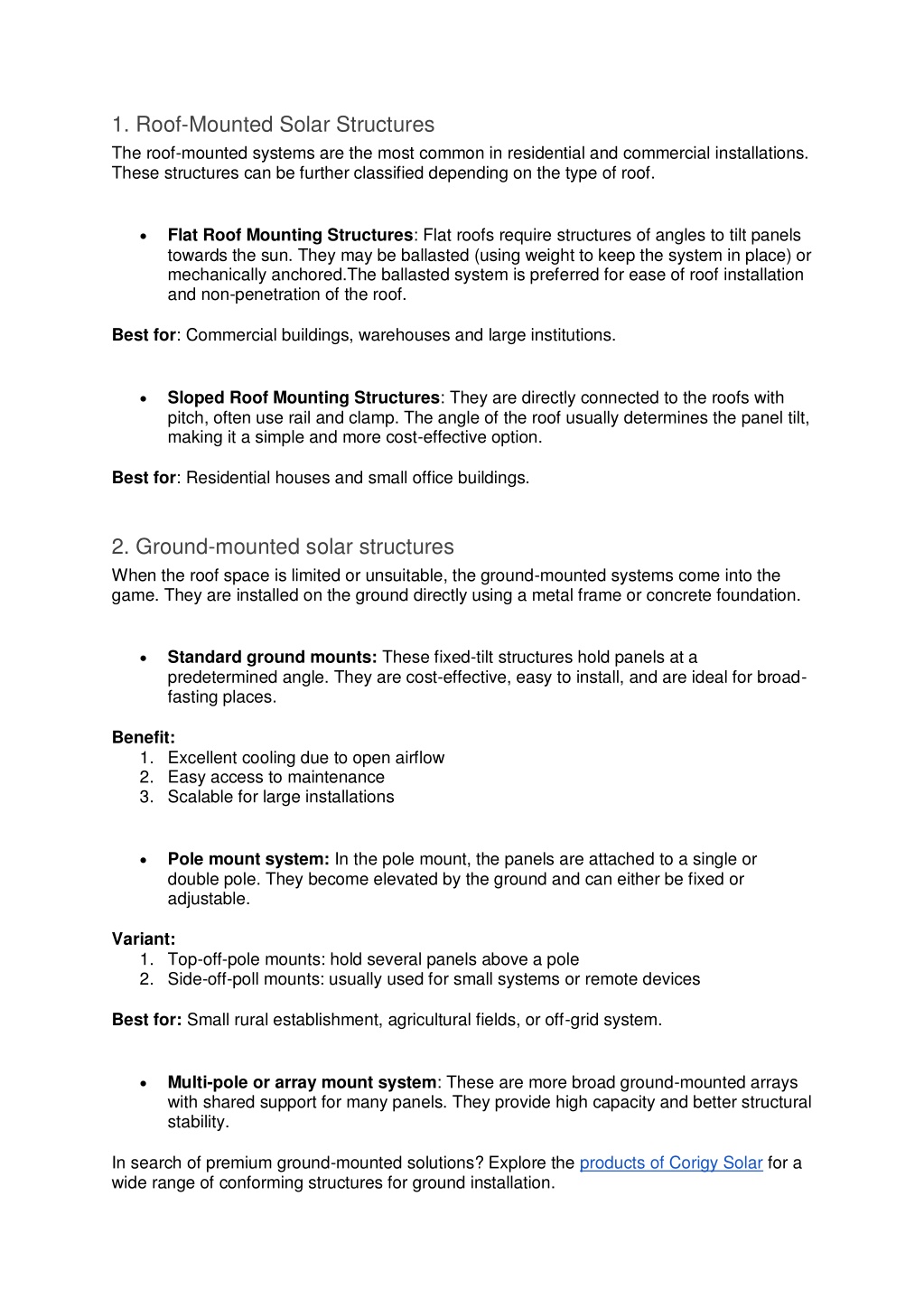

  2. 1. Roof-Mounted Solar Structures The roof-mounted systems are the most common in residential and commercial installations. These structures can be further classified depending on the type of roof.  Flat Roof Mounting Structures: Flat roofs require structures of angles to tilt panels towards the sun. They may be ballasted (using weight to keep the system in place) or mechanically anchored.The ballasted system is preferred for ease of roof installation and non-penetration of the roof. Best for: Commercial buildings, warehouses and large institutions.  Sloped Roof Mounting Structures: They are directly connected to the roofs with pitch, often use rail and clamp. The angle of the roof usually determines the panel tilt, making it a simple and more cost-effective option. Best for: Residential houses and small office buildings. 2. Ground-mounted solar structures When the roof space is limited or unsuitable, the ground-mounted systems come into the game. They are installed on the ground directly using a metal frame or concrete foundation.  Standard ground mounts: These fixed-tilt structures hold panels at a predetermined angle. They are cost-effective, easy to install, and are ideal for broad- fasting places. Benefit: 1. Excellent cooling due to open airflow 2. Easy access to maintenance 3. Scalable for large installations  Pole mount system: In the pole mount, the panels are attached to a single or double pole. They become elevated by the ground and can either be fixed or adjustable. Variant: 1. Top-off-pole mounts: hold several panels above a pole 2. Side-off-poll mounts: usually used for small systems or remote devices Best for: Small rural establishment, agricultural fields, or off-grid system.  Multi-pole or array mount system: These are more broad ground-mounted arrays with shared support for many panels. They provide high capacity and better structural stability. In search of premium ground-mounted solutions? Explore the products of Corigy Solar for a wide range of conforming structures for ground installation.

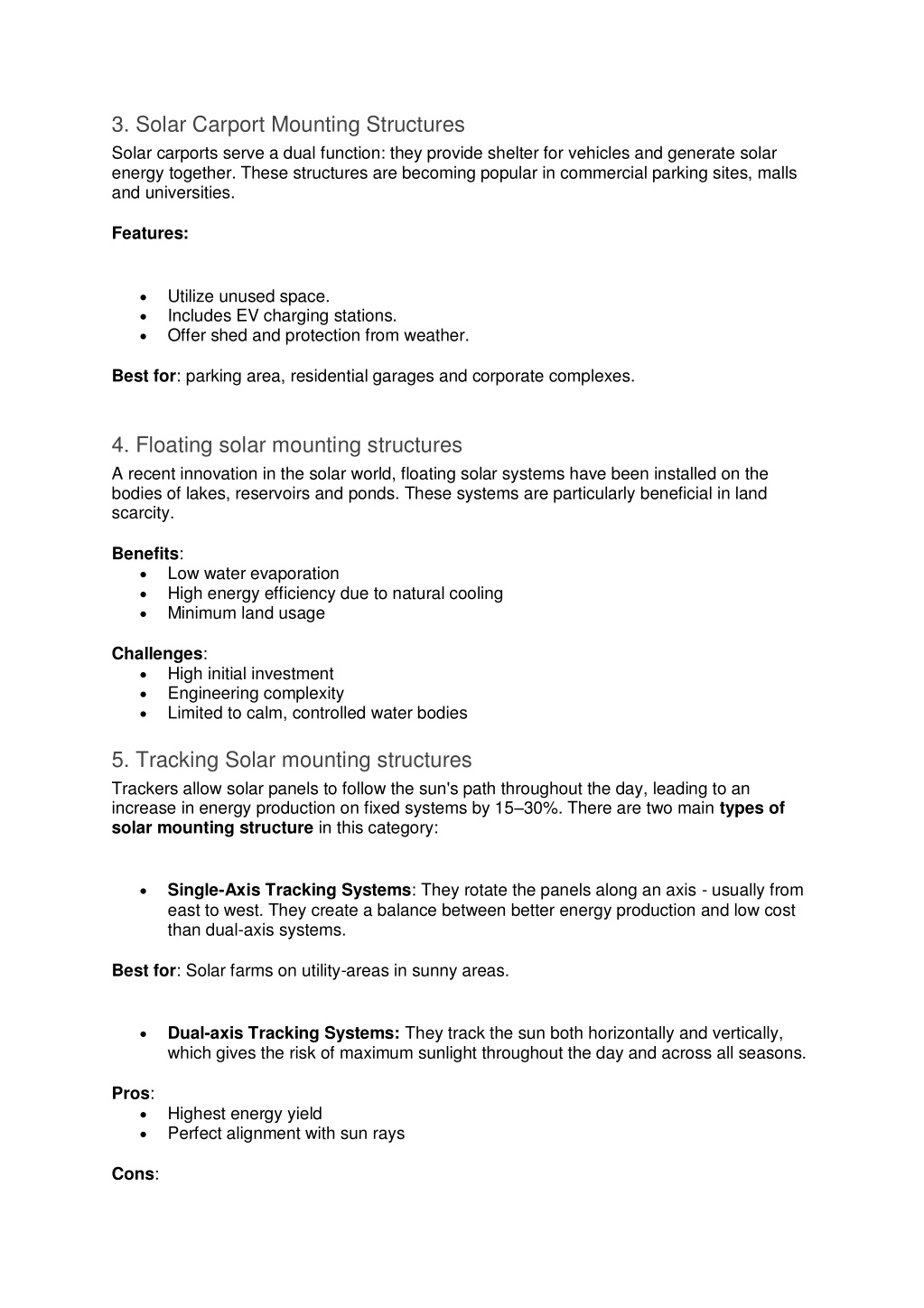

  3. 3. Solar Carport Mounting Structures Solar carports serve a dual function: they provide shelter for vehicles and generate solar energy together. These structures are becoming popular in commercial parking sites, malls and universities. Features:  Utilize unused space.  Includes EV charging stations.  Offer shed and protection from weather. Best for: parking area, residential garages and corporate complexes. 4. Floating solar mounting structures A recent innovation in the solar world, floating solar systems have been installed on the bodies of lakes, reservoirs and ponds. These systems are particularly beneficial in land scarcity. Benefits:  Low water evaporation  High energy efficiency due to natural cooling  Minimum land usage Challenges:  High initial investment  Engineering complexity  Limited to calm, controlled water bodies 5. Tracking Solar mounting structures Trackers allow solar panels to follow the sun's path throughout the day, leading to an increase in energy production on fixed systems by 15–30%. There are two main types of solar mounting structure in this category:  Single-Axis Tracking Systems: They rotate the panels along an axis - usually from east to west. They create a balance between better energy production and low cost than dual-axis systems. Best for: Solar farms on utility-areas in sunny areas.  Dual-axis Tracking Systems: They track the sun both horizontally and vertically, which gives the risk of maximum sunlight throughout the day and across all seasons. Pros:  Highest energy yield  Perfect alignment with sun rays Cons:

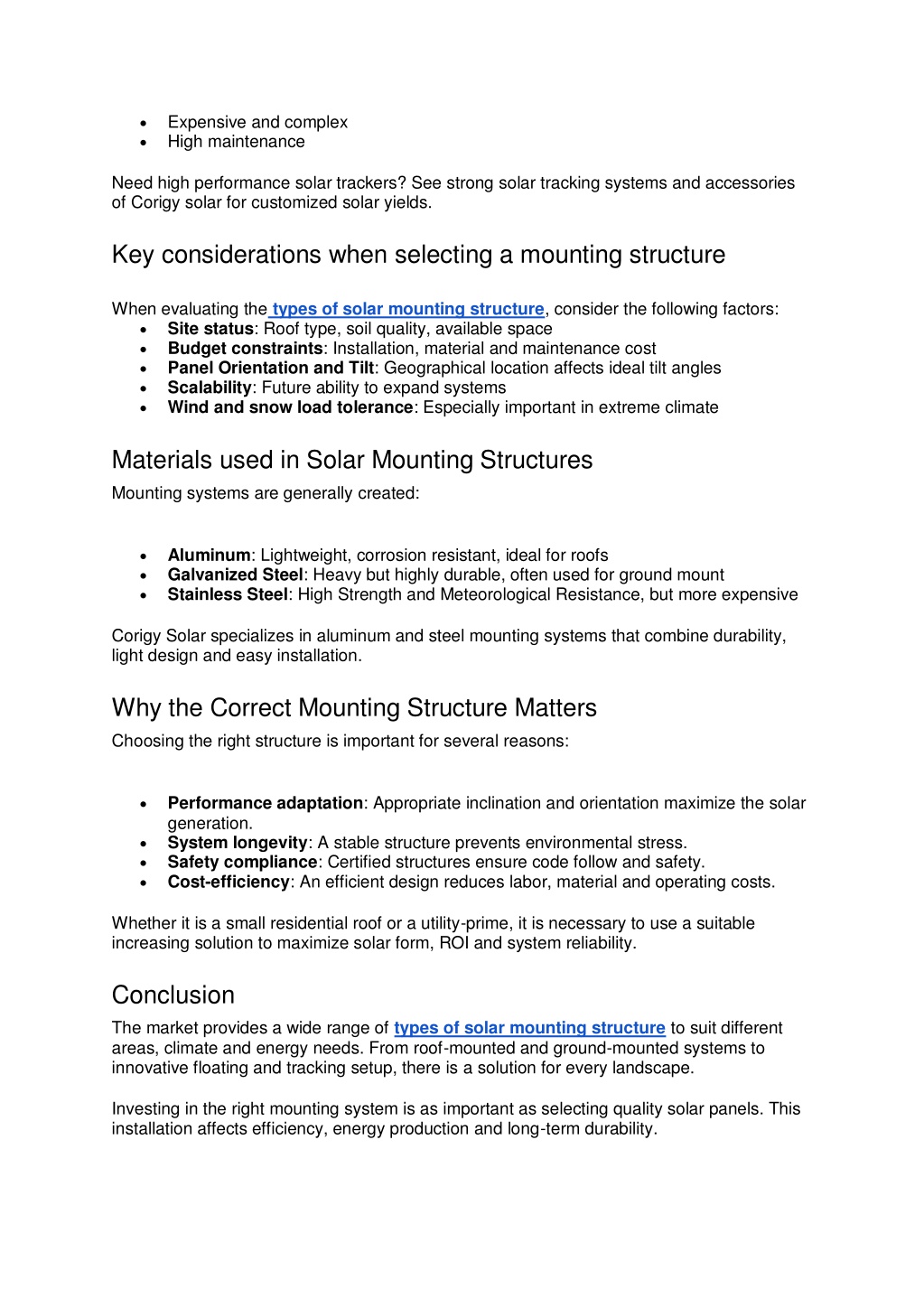

  4. Expensive and complex High maintenance   Need high performance solar trackers? See strong solar tracking systems and accessories of Corigy solar for customized solar yields. Key considerations when selecting a mounting structure When evaluating the types of solar mounting structure, consider the following factors:  Site status: Roof type, soil quality, available space  Budget constraints: Installation, material and maintenance cost  Panel Orientation and Tilt: Geographical location affects ideal tilt angles  Scalability: Future ability to expand systems  Wind and snow load tolerance: Especially important in extreme climate Materials used in Solar Mounting Structures Mounting systems are generally created:  Aluminum: Lightweight, corrosion resistant, ideal for roofs  Galvanized Steel: Heavy but highly durable, often used for ground mount  Stainless Steel: High Strength and Meteorological Resistance, but more expensive Corigy Solar specializes in aluminum and steel mounting systems that combine durability, light design and easy installation. Why the Correct Mounting Structure Matters Choosing the right structure is important for several reasons:  Performance adaptation: Appropriate inclination and orientation maximize the solar generation.  System longevity: A stable structure prevents environmental stress.  Safety compliance: Certified structures ensure code follow and safety.  Cost-efficiency: An efficient design reduces labor, material and operating costs. Whether it is a small residential roof or a utility-prime, it is necessary to use a suitable increasing solution to maximize solar form, ROI and system reliability. Conclusion The market provides a wide range of types of solar mounting structure to suit different areas, climate and energy needs. From roof-mounted and ground-mounted systems to innovative floating and tracking setup, there is a solution for every landscape. Investing in the right mounting system is as important as selecting quality solar panels. This installation affects efficiency, energy production and long-term durability.

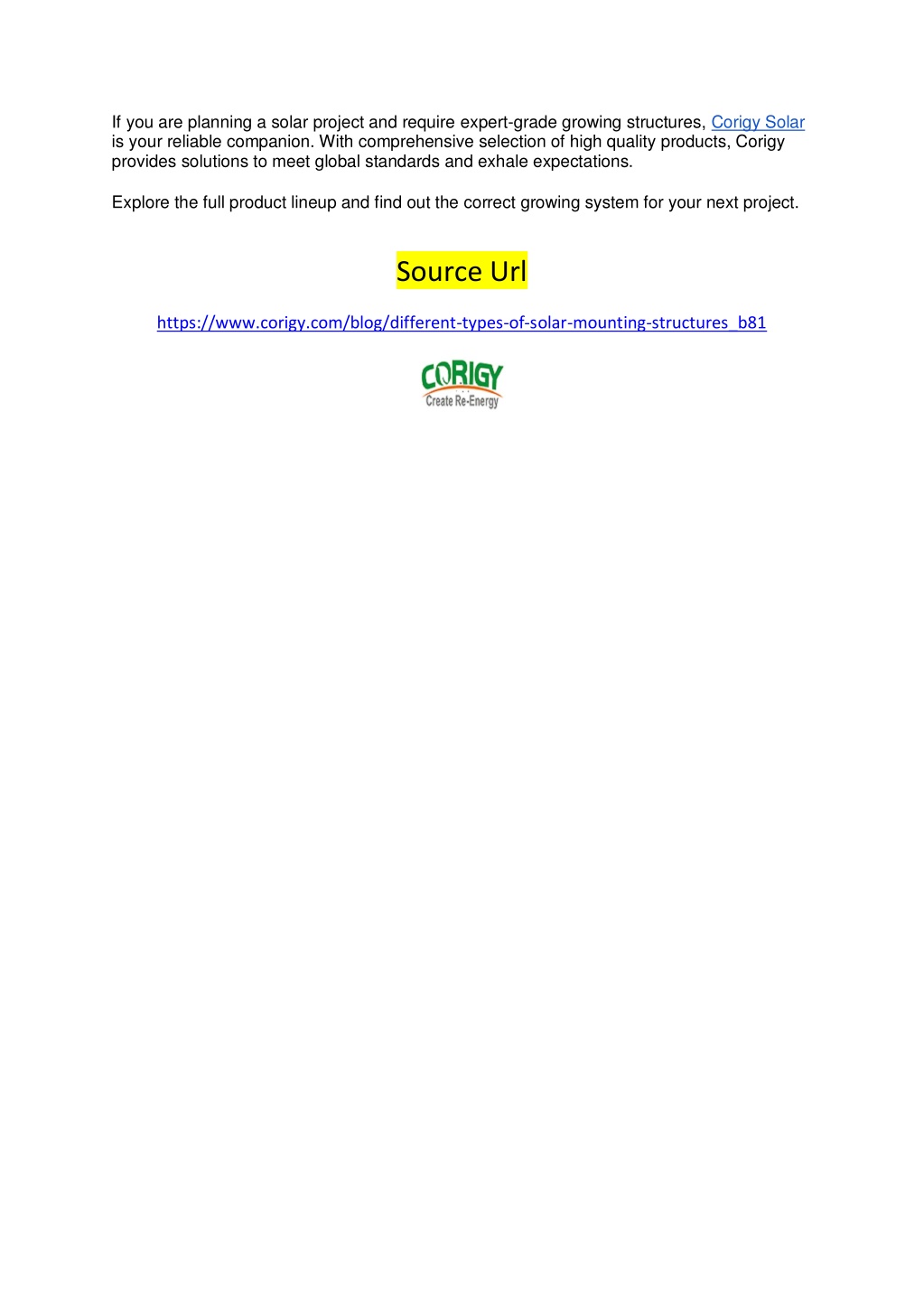

  5. If you are planning a solar project and require expert-grade growing structures, Corigy Solar is your reliable companion. With comprehensive selection of high quality products, Corigy provides solutions to meet global standards and exhale expectations. Explore the full product lineup and find out the correct growing system for your next project. Source Url https://www.corigy.com/blog/different-types-of-solar-mounting-structures_b81
