  1. Probabilistic Analysis using FEA A. Petrella

  2. What is Probabilistic Analysis • All input parameters have some uncertainty • What is the uncertainty in outcome metrics? • How sensitive are outcomes to different inputs • Which inputs are most important and how can we design for a specific probability of performance?

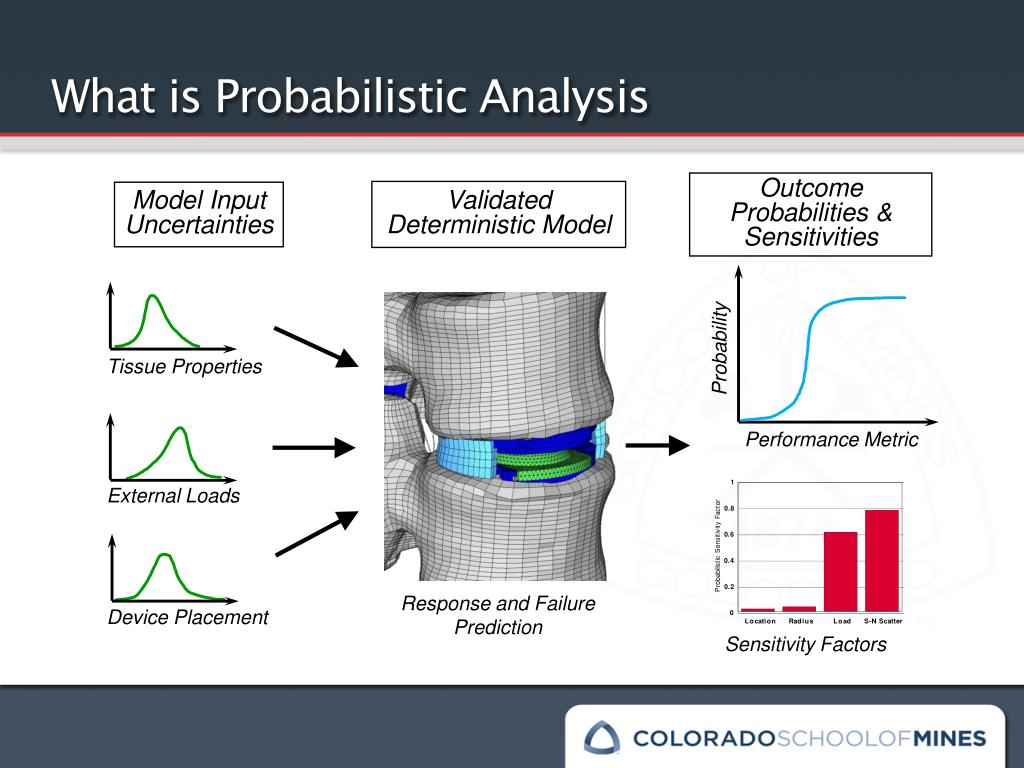

  3. What is Probabilistic Analysis Outcome Probabilities & Sensitivities Validated Deterministic Model Model Input Uncertainties Probability Tissue Properties Performance Metric External Loads Response and Failure Prediction Device Placement Sensitivity Factors

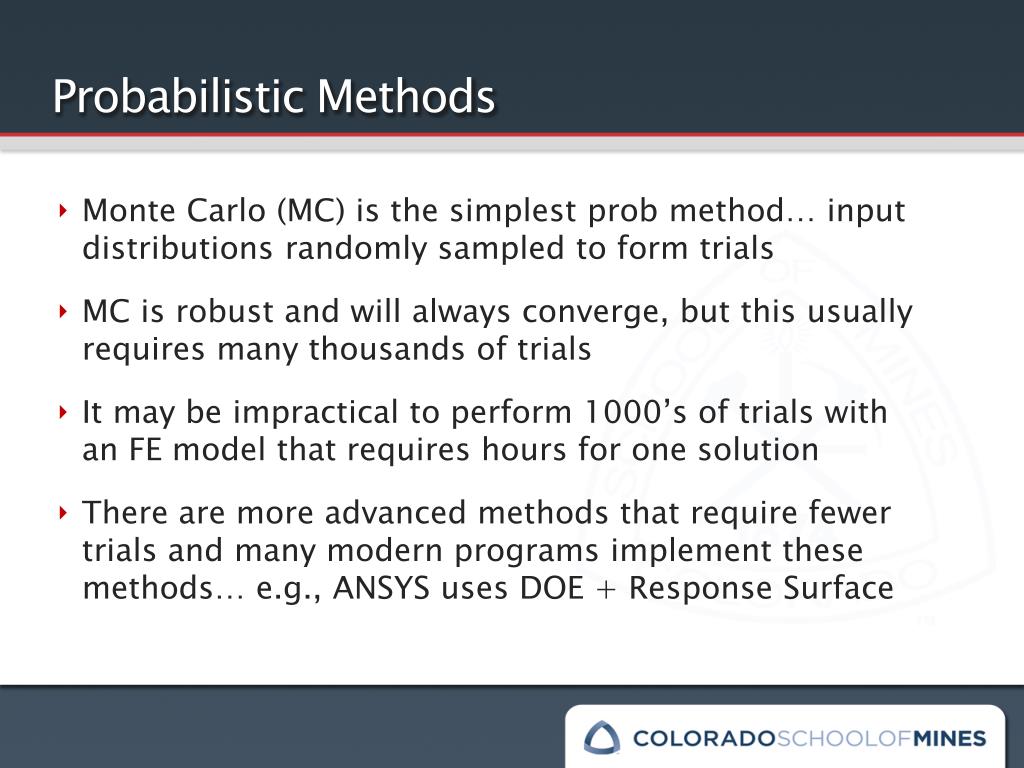

  4. Probabilistic Methods • Monte Carlo (MC) is the simplest prob method… input distributions randomly sampled to form trials • MC is robust and will always converge, but this usually requires many thousands of trials • It may be impractical to perform 1000’s of trials with an FE model that requires hours for one solution • There are more advanced methods that require fewer trials and many modern programs implement these methods… e.g., ANSYS uses DOE + Response Surface

  5. Prob… an example with Excel Random variables, normally distributed h = 400 ± 20 mm b = 100 ± 5 mm P = 1000 ± 50 N E = 200 ± 10 GPa P h L = 2400 mm b

  6. Standard Normal Distribution CDF PDF m = 0 s = 1

  7. Standard Normal Distribution • Normal (m=0, s=1) • Standard normal variate • (Note: Halder uses S) • All normal distributions can be simply transformed to the standard normal distribution

  8. Generating Random Trials

  9. Back to the Beam Example… 500 MC To get the 10% lower and 90% upper bounds… Use Excel functions: “large()” and “small()”

  10. Beam Example in ANSYS • ANSYS uses the term…“Sig Sigma Analysis”…this is most likely marketing since 6s is popular in industry • Prob trials are taken from a response surface (quadratic polynomial regression) built on a results from a DOE • This is how ANSYS avoids 1000’s of trials required for a brute force MC

  11. Beam Example in ANSYS - Deflection

  12. Beam Example in ANSYS - Stress

  13. Beam Example in ANSYS - Sensitivity Sensitivity factors are the components of a unit vector in the direction of the function gradient…(i.e., stress = f(h,b,P,E)) …then sqrt(sum(si2)) = 1 sh sb sP sE sh sb sP sE

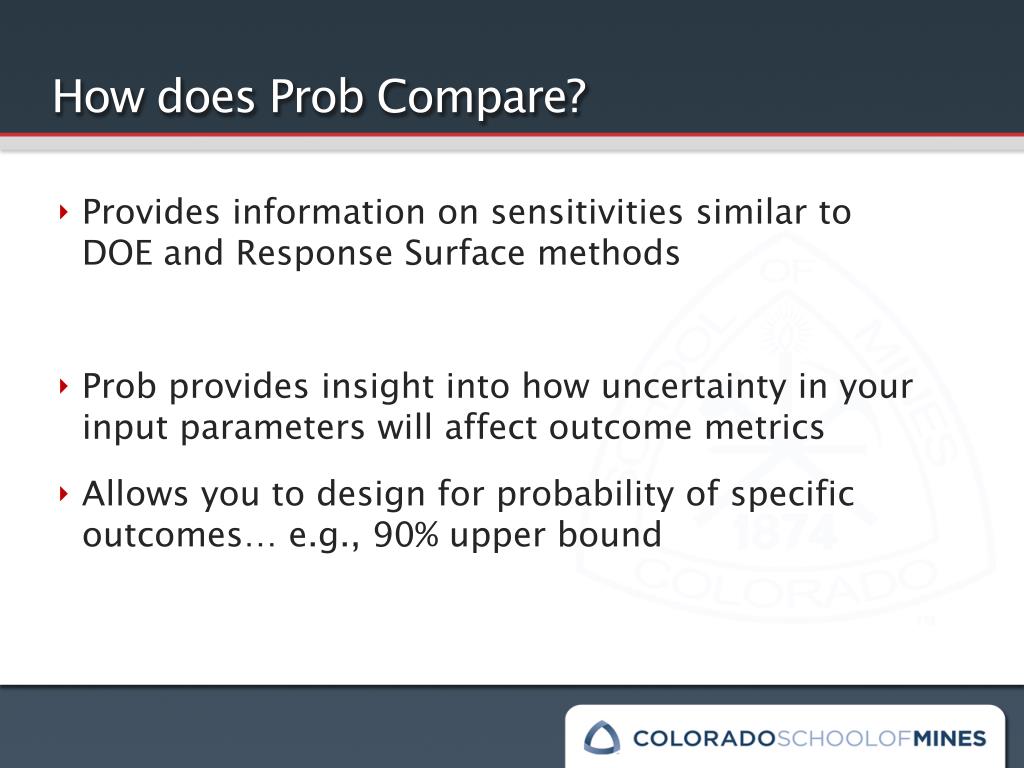

  14. How does Prob Compare? • Provides information on sensitivities similar to DOE and Response Surface methods • Prob provides insight into how uncertainty in your input parameters will affect outcome metrics • Allows you to design for probability of specific outcomes… e.g., 90% upper bound
