  1. Study-Element Based Adaptation of Lecture Videos to Mobile Devices GaneshNarayana Murthy (M.Tech IIT Bombay) Sridhar Iyer (Associate Professor, IIT Bombay) NCC 2010, Chennai, 30/01/2010

  2. Problem Definition • Adapt CDEEP videos to be viewable on mobile devices: • Viewable at low network bandwidths (like GPRS) • Viewable at low cost • Video bit-rate • Size of video stream over time • Total size = bit-rate * total time • CDEEP video bit-rate: 1150kbps • GPRS bit-rate: 40kbps • The problem: • Video playing incurs delays if available network bandwidth is less than video-bit rate NCC 2010, Chennai, 30/01/2010

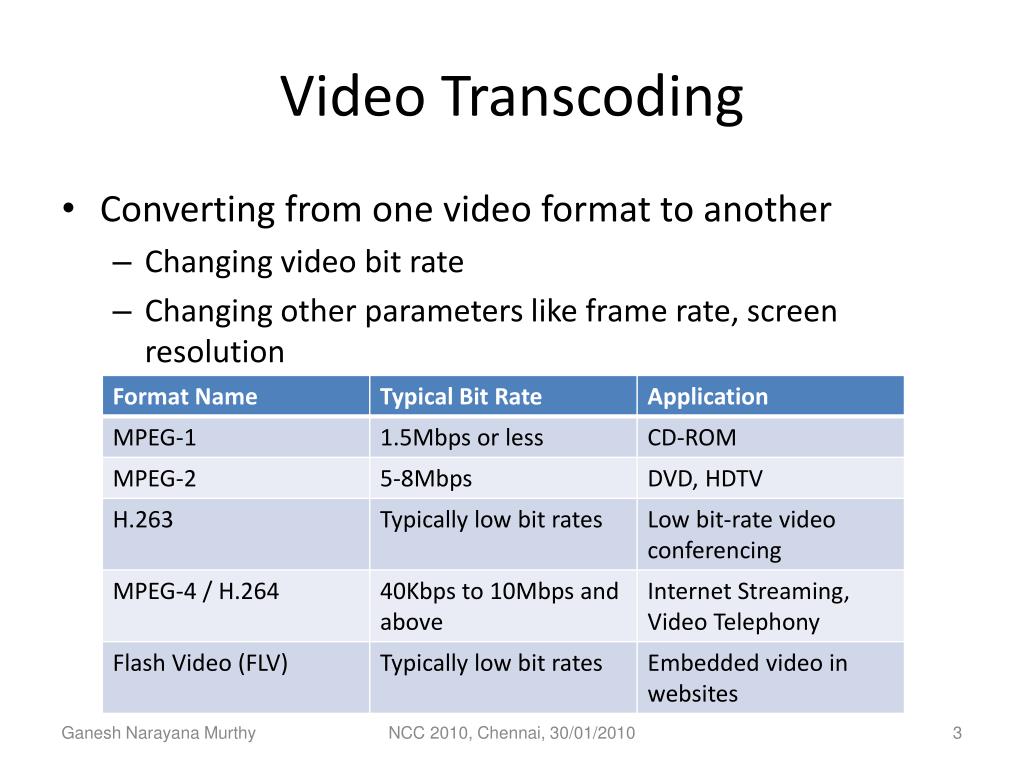

  3. Video Transcoding • Converting from one video format to another • Changing video bit rate • Changing other parameters like frame rate, screen resolution NCC 2010, Chennai, 30/01/2010

  4. Video Quality at low-bit rates (a) MPEG-1 (b) MPEG-2 Images from transcoded videos (Target bit rate : 40kbps, No audio) NCC 2010, Chennai, 30/01/2010

  5. Video Quality at low bit-rates (contd.) (d) H.263 (3gpp) (c) H.264 (mp4) Images from transcoded videos (Target bit rate : 40kbps, No audio) NCC 2010, Chennai, 30/01/2010

  6. (e) Flash Video (flv) Images from transcoded videos (Target bit rate : 40kbps, No audio) NCC 2010, Chennai, 30/01/2010

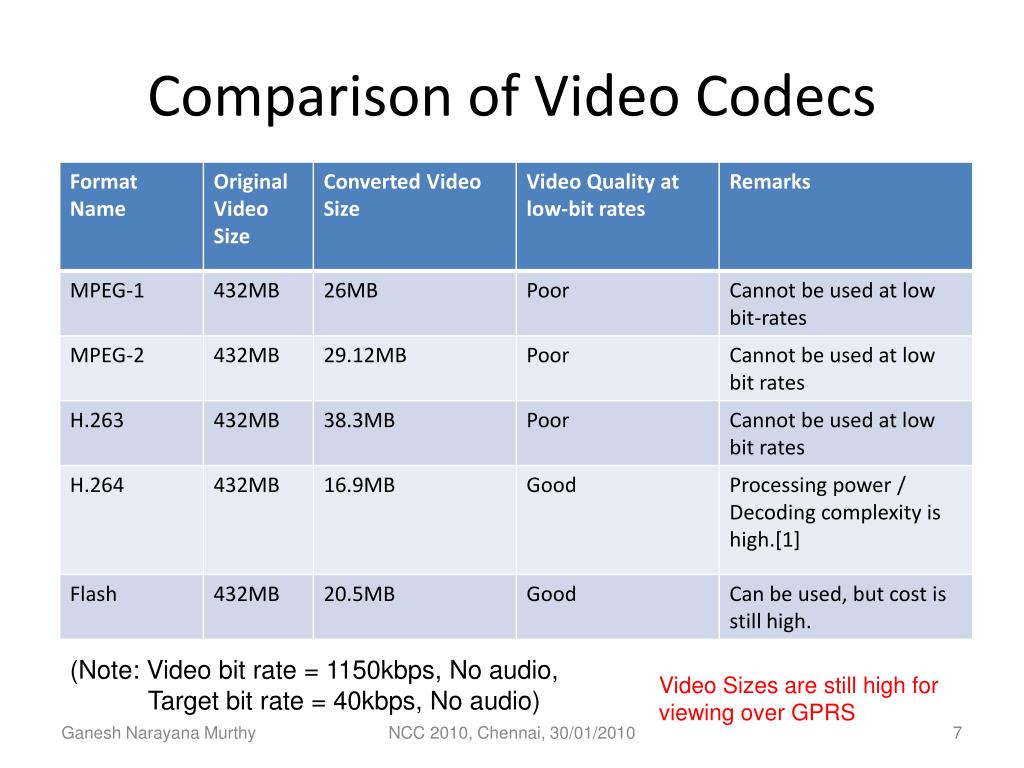

  7. Comparison of Video Codecs (Note: Video bit rate = 1150kbps, No audio, Target bit rate = 40kbps, No audio) Video Sizes are still high for viewing over GPRS NCC 2010, Chennai, 30/01/2010

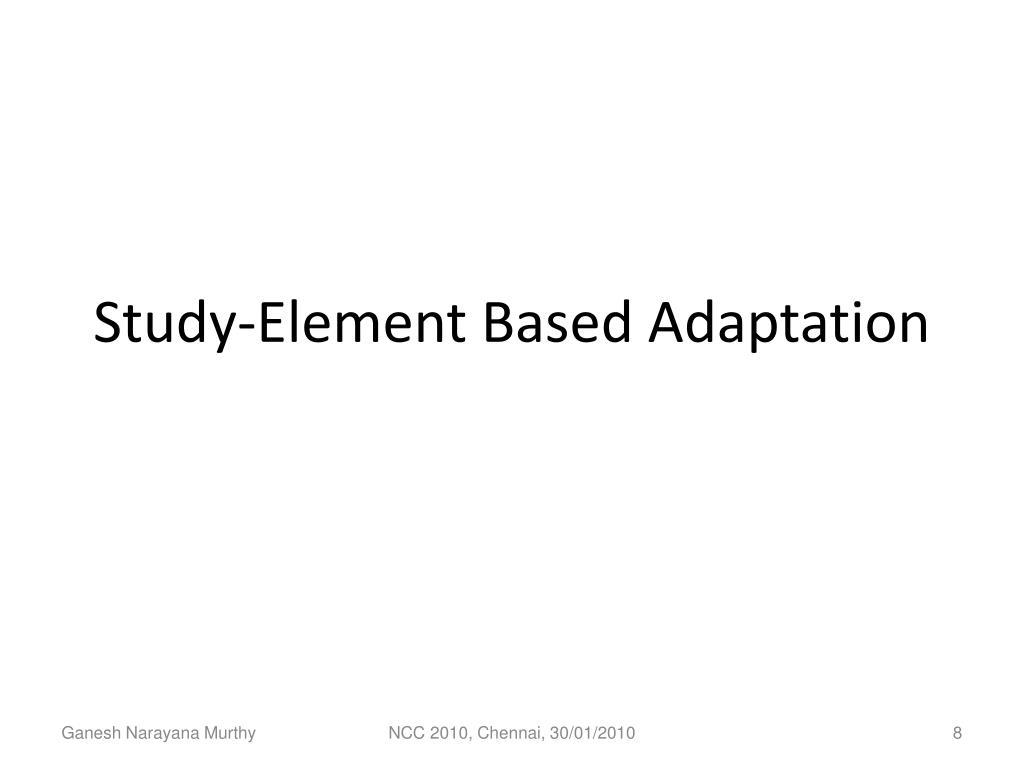

  8. Study-Element Based Adaptation NCC 2010, Chennai, 30/01/2010

  9. Motivation • CDEEP video usually consists of • Presentation slides • Instructor explaining on white paper • Video of instructor talking • Presentation slide is usually not changing • Video of slide is not required. One image is sufficient • Idea • Extract one image every ‘n’ seconds and send to client. • This would reduce amount of data sent for showing one slide. NCC 2010, Chennai, 30/01/2010

  10. Method-1 • Send one image every ‘n’ seconds • Server sends one image every ‘n’ seconds to client • Audio is simultaneously streamed • Network bandwidth and Size • Network Overhead (NO) = Image Size / n • Size Overhead (SO) = Total size of images • What is the user experience? NCC 2010, Chennai, 30/01/2010

  11. User Experience Basis • Presentation Study Element • Portion of video showing one slide • White Paper Study Element • Portion of video showing instructor writing on white paper • Instructor Study Element • Portion of video showing instructor talking Presentation Slide White Paper ………….. ……….. 0 3 5 10 15 25 30 35 Video Time (secs) Delay in start of slide NCC 2010, Chennai, 30/01/2010

  12. User Experience • Presentation Element • Delay Experienced (D2) = • Delay in start of slide as compared to audio • White Paper Element • Delay Experienced (D1) = • Delay between any two consecutive images = Sending Rate • Instructor Element • Only audio important. No image need be sent. • User Experience is assumed to be one • User Experience (Ui) = 1 sec / Di NCC 2010, Chennai, 30/01/2010

  13. Method-2 • Trade-off for user experience • Cost incurred in terms of number of images sent • Same sending interval for all elements, cannot balance user experience and cost. • Choose different sending interval for each study element • Probably: • Higher user experience for white paper element • Lower user experience for presentation element Sending Interval User Experience Cost Trade-Off Relation NCC 2010, Chennai, 30/01/2010

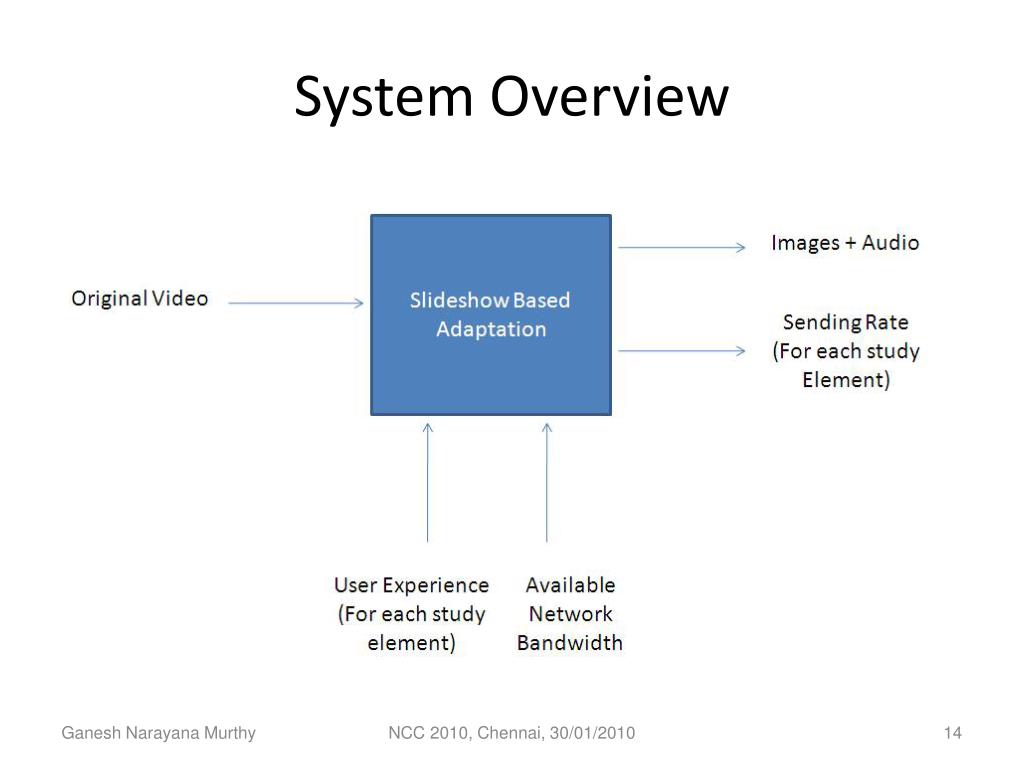

  14. System Overview NCC 2010, Chennai, 30/01/2010

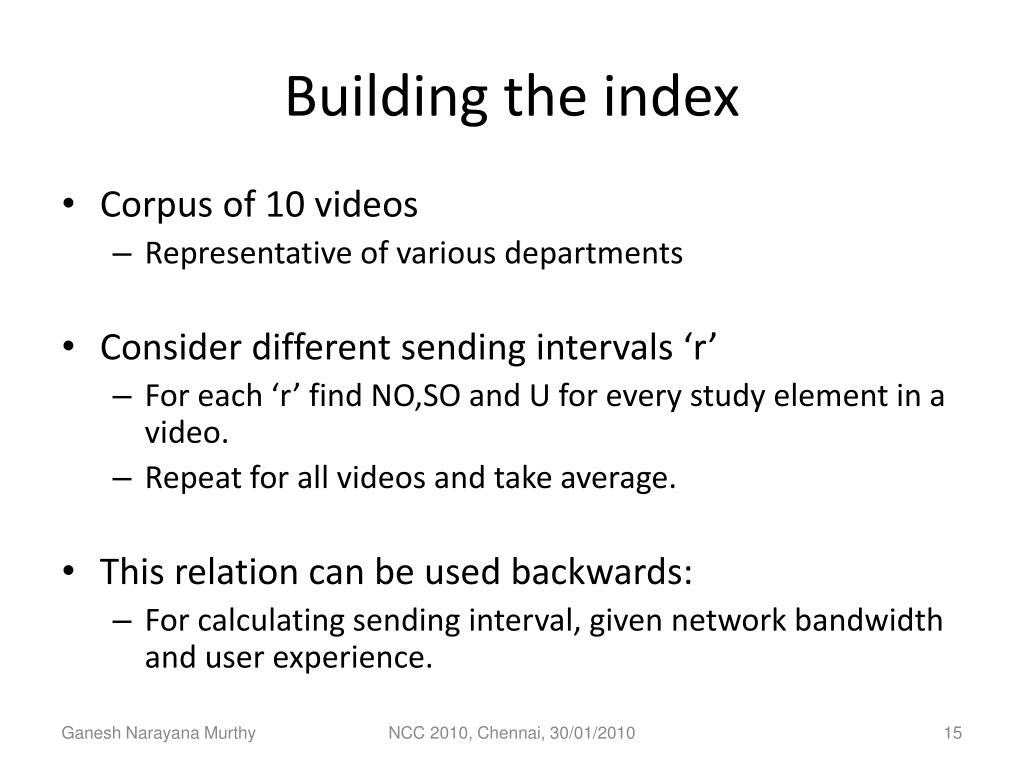

  15. Building the index • Corpus of 10 videos • Representative of various departments • Consider different sending intervals ‘r’ • For each ‘r’ find NO,SO and U for every study element in a video. • Repeat for all videos and take average. • This relation can be used backwards: • For calculating sending interval, given network bandwidth and user experience. NCC 2010, Chennai, 30/01/2010

  16. Graphs of User Experience NCC 2010, Chennai, 30/01/2010

  17. Graphs of overheads NCC 2010, Chennai, 30/01/2010

  18. Results Achieved Size Reduction Fig: Video stream size reduction (note: Original video bit-rate = 1150kbps, No audio) NCC 2010, Chennai, 30/01/2010

  19. Results (contd.) Balance User Experience and Cost Reduction in size user experience for white paper element remaining same Required Network Bandwidth =max(NO1,NO2) is reduced NCC 2010, Chennai, 30/01/2010

  20. Conclusion • Large size reduction can be achieved by using the concept of slideshows • Identifiying study-elements within the video helps define user-experience of the slideshow. • CDEEP Lecture videos can be adapted to low network bandwidths and in a cost-controlled manner. NCC 2010, Chennai, 30/01/2010

  21. Future Work Automated tagging • Identifying study element boundaries • Shot detection techniques User Experience Correlation • Identifying relation between obtained user experience and actual user values NCC 2010, Chennai, 30/01/2010

  22. References • H.264 white paper. http://ati.amd.com/products/pdf/h264_whitepaper.pdf. • Real-time Content-Based Adaptive Streaming of Sports Videos. Shih-Fu Chang, Di Zhong, and Raj Kumar. In CBAIVL '01: Proceedings of the IEEE Workshop on Content-based Access of Image and Video Libraries (CBAIVL'01), page 139, Washington, DC, USA, 2001. IEEE Computer Society. • Content-aware video adaptation under low-bitrate constraint. Ming-Ho Hsiao, Yi-Wen Chen, Hua-Tsung Chen, Kuan-Hung Chou, and Suh-Yin Lee. EURASIP J. Adv. Signal Process,2007(2):27-27, 2007. • A Characteristics-Based Bandwidth Reduction Technique for Pre-recorded Videos. WallapakTavanapong and SrikanthKrishnamohan. In IEEE International Conference on Multimedia and Expo (III), pages 1751-1754, 2000. NCC 2010, Chennai, 30/01/2010

  23. Questions? NCC 2010, Chennai, 30/01/2010

  24. Content-Aware Adaptation NCC 2010, Chennai, 30/01/2010
