  1. OpenGL introduction • Mark Nelson • mjas@itu.dk Fall 2012 www.itu.dk

  2. 3d API landscape DirectX OpenGL OpenGL ES WebGL

  3. 3d API purposes Portable way of accessing 3d graphics hardware Implementation of common operations But this is becominglessemphasized

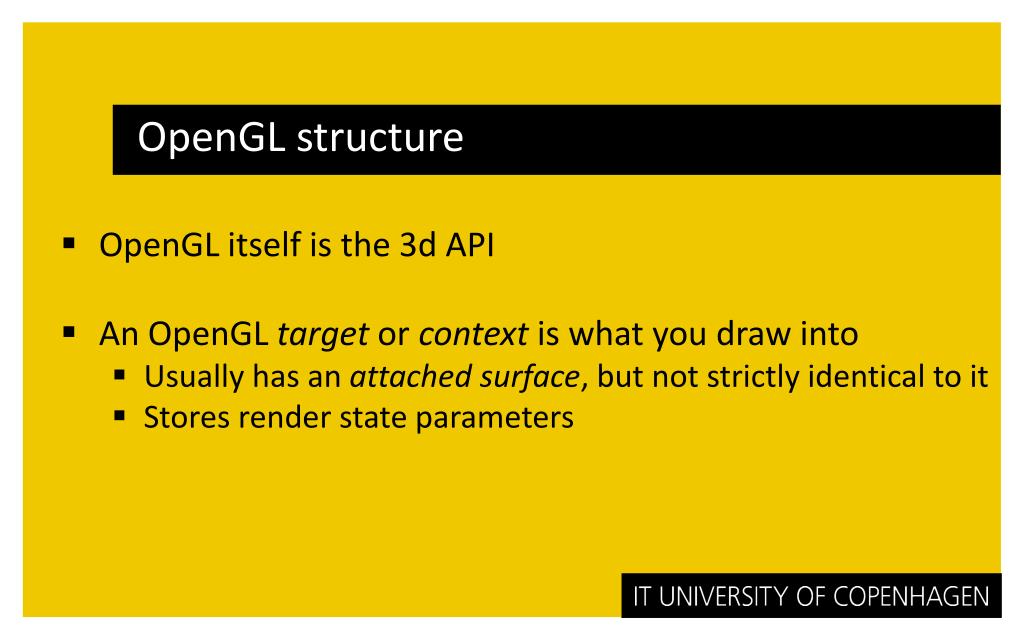

  4. OpenGL structure OpenGL itself is the 3d API An OpenGL target or context is what you draw into Usually has an attached surface, but not strictly identical to it Stores render state parameters

  5. OpenGL structure OpenGL doesn’t cover OS-specific operations Opening and resizing windows Handling input Either target a specific platform (e.g. Win32* calls) Or use a utility library glut, freeglut, SDL

  6. OpenGL structure Other stuff GLU is a utility library shipped with OpenGL (glu* functions) GLSL is the shader language (replaces Cg/etc.) Extensions can add functionality If you use any, consider an extension manager like GLEW

  7. Built-in functionality, versus general API Recall the discussion of hardware sprites, 2d collision detection, and similar features in old consoles Some similar patterns of development in OpenGL (Also compare the RISC v. CISC debate)

  8. Classic OpenGL Fixed-function pipeline Implementation of textbook-standard rendering Immediate mode Context is updated by directly calling update functions

  9. Hardware T&L • Late-90s / most-of-2000s trend towards GPU T&L • Fixed pipeline • Definelights, shading modes, textures, etc. • GPU computeslightness of polygons

  10. Immediate-mode rendering Immediate-mode rendering Renders to screen, well, immediately Triangle is sent to GPU textured/lit/transformed/etc. Rendered to framebuffer To avoid flickering, SDL provides double-buffering Render to off-screen buffer Then call SDL_GL_SwapBuffers();

  11. Immediate-mode rendering There is a current transformation/view matrix glLoadIdentity() initializes/resets it glTranslatef(), glRotatef(), gluLookAt(), etc., modify it glBegin() / glVertex3f() / glEnd() drawimmediately Using current transformation/view matrix

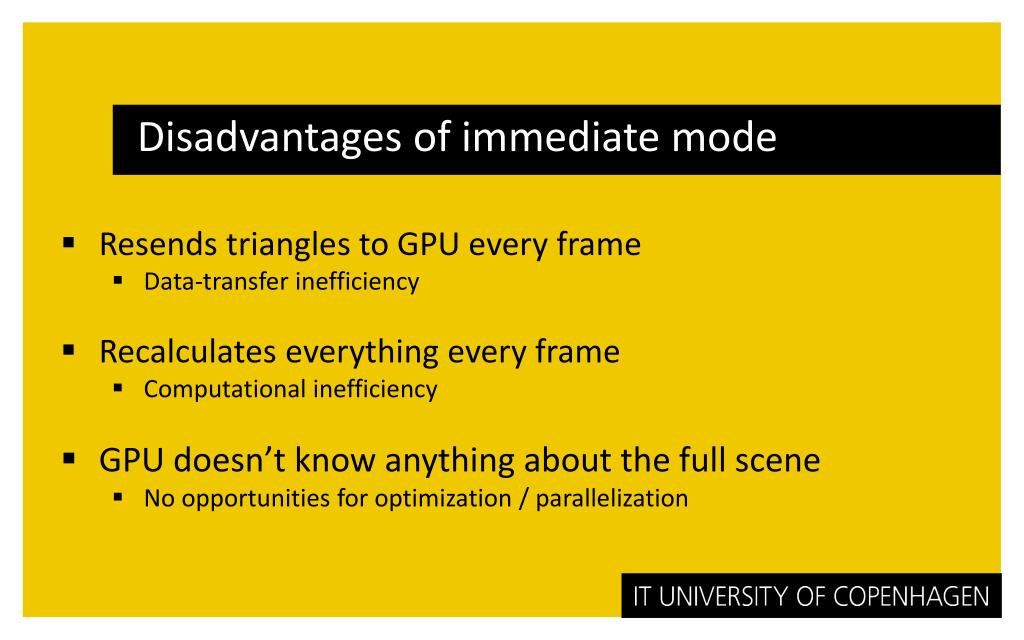

  12. Disadvantages of immediate mode Resends triangles to GPU every frame Data-transfer inefficiency Recalculates everything every frame Computational inefficiency GPU doesn’t know anything about the full scene No opportunities for optimization / parallelization

  13. Display lists One way of speeding things up Series of GL calls stored on GPU Created via macro-recording Give a display list ID, record series of gl*() commands to it

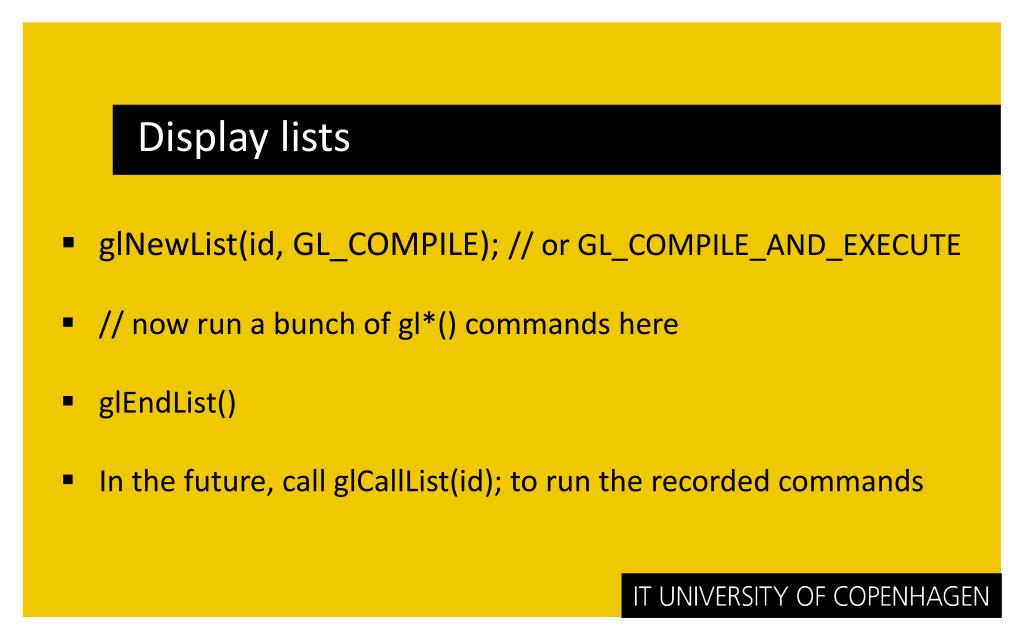

  14. Display lists glNewList(id, GL_COMPILE); // or GL_COMPILE_AND_EXECUTE // now run a bunch of gl*() commands here glEndList() In the future, call glCallList(id); to run the recorded commands

  15. Display lists Example usage Display list per object Change it only when the object changes Advantages Don’t have to resend data every time GPU can pre-compute things that don’t change GPU sees a series of commands at once, so can optimize

  16. Display list drawbacks Not the full solution Still a serial programming model Modern GPUs are massively parallel Difficult to optimize display-list code to internal GPU parallel architecture

  17. What the GPU really wants An array of triangles, all ahead of time Some information about what to do with each one Then it can split up the work between its units

  18. Vertex array objects Give the GPU an array of vertices glGenVertexArrays() / glBindVertexArray() Generates names and tells the GPU to bind one to the current context glGenBuffers() / glBindBuffer() / glBufferData() Associate a data buffer with the currently bound vertex array object Can store other buffers with the vertex array

  19. Vertex array objects Use array drawing comments that operate on currently bound array objects glDrawArrays(GL_TRIANGLES, 0, N); Treats every three elements of the array as a triangle Sends them to be drawn all at once

  20. Indexed array rendering Further optimization Triangles often share vertices and edges With glDrawArrays(), every triangle needs its own three vertices, no sharing Duplicate vertices mean more space, and extra vertex shading Solution One buffer of unique vertices, not associated with triangles Separate index buffer pointing to vertices for each triangle

  21. Indexed array rendering glGenBuffers() / glBindBuffer() / glBufferData() again With parameters specifying an index buffer glDrawElements() instead of glDrawArrays() Will pull out every 3 indexes from the index buffer as a triangle Look up corresponding vertices in the vertex buffer Vertex shaders not called again for reused vertices

  22. Shader-based OpenGL The retained-mode pipeline stores arrays of triangles Vertex shaders called for every vertex in the buffer object Fixed-function pipeline no longer makes sense Hides underlying flexibility/functionality (massively parallel shader calls) Increases complexity of implementation

  23. Shader-based OpenGL The old fixed-function pipeline is now treated as just one possible shader program Shaders are a programmable rendering/T&L API Can be written in GLSL Required if doing OpenGL ES or WebGL Necessary for non-standard effects (e.g. cel-shading)

  24. Kinds of shaders Vertex shaders Geometry shaders Pixel/fragment shaders

  25. Vertex shaders • Run for eachvertex, computelighting/etc. • Can implement the old fixed-pipeline approach • Or do anythingelse • GPU as massively parallel programmingenvironment

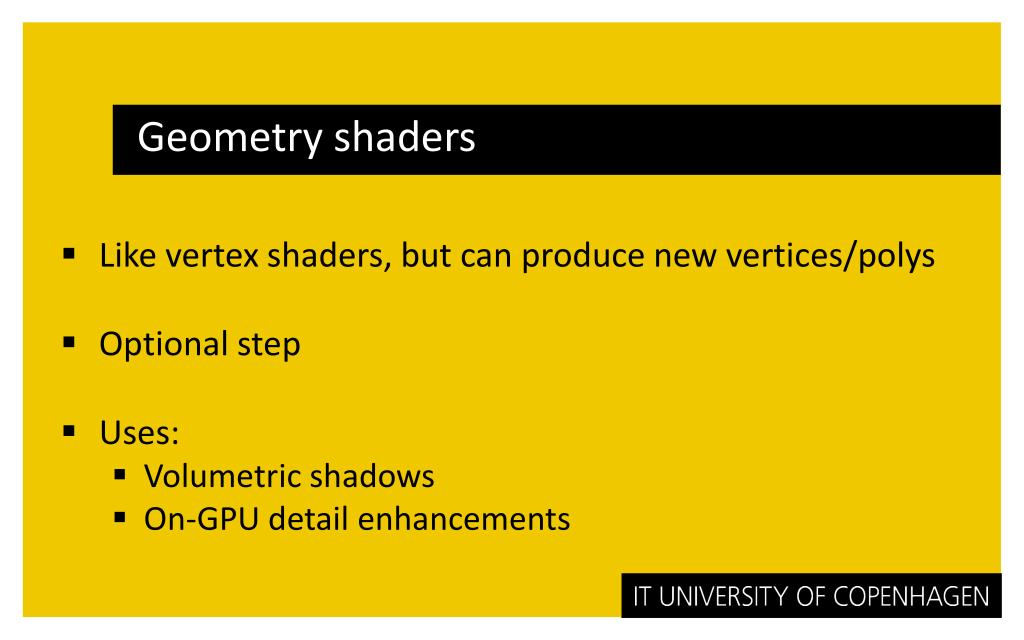

  26. Geometry shaders • Likevertexshaders, but canproduce new vertices/polys • Optional step • Uses: • Volumetricshadows • On-GPU detailenhancements

  27. Pixel/fragment shaders • Operate in 2d space, but w/ some 3d information • Possible to think of them as: • Fragment shader: shading one fragment of a triangle, e.g. by applying bump mapping • Pixel shader: adding arbitrary image-processing effects to the post-render 2 image

  28. Post-processing pixel shader effects • Most noticeable are effects that don’t make sense in 3d • Instead of a ”correct” render, modify the rendered image • Film grain • Full-image color shifts • Enhanced edges • E.g.: Add noise by changing 1/50 pixels to a random value

  29. Pixel shader effects

  30. Pixel shader effects

  31. Shader input/output Uniform variables Constant and read-only per primitive and per draw call Attribute variables Per-vertex information Read-only, in the vertex shader Varying variables Read/write in the vertex shader Read-only, with perspective-correct interpolation, in fragment shader

  32. Summary • Modern GPU is a massively parallel but simple processor • Feed it triangles, and then run small shader programs • Some utility functions still exist, both in glu*() and in GLSL, for computing view matrices and similar
