Lesson 14-Security Baselines

1. Lesson 14-Security Baselines

2. Background • The many uses for systems and operating systems require flexible components. • Allows users to design, configure, and implement the systems they need. • This flexibility causes the biggest weaknesses in computer systems.

3. Background • Securing systems effectively and consistently requires a structured and logical approach. • Some of the best security practices to follow are: • Examining the intended functions and capabilities. • Determining the processes and applications on the system. • Removing or disabling anything that is not required. • Applying appropriate patches, hotfixes, and settings to protect and secure the systems.

4. Background • This process of establishing a system's security state is called baselining. • The resulting product is a security baseline that allows the system to run safely and securely.

5. Background • Once the baseline process is completed: • Any similar configuration can be built with the same baseline. • Similar systems will have the same level and depth of security and protection.

6. Objectives • Upon completion of this lesson, the learner will be able to: • Describe ways of hardening various operating systems. • Describe methods for hardening network devices. • Describe issues related to hardening various applications.

7. Password Selection • Selecting a good password for all user accounts is critical to protecting information systems.

8. Password Policy Guidelines • The username and password combination is most poorly configured, neglected, and easily circumvented.

9. Password Policy Guidelines • The first step in addressing the password issue is to create a password policy for system administrators and users. • People should be informed about the password policy, once it has been created. • A copy of it should be given to all users. • Every user should understand the policy. • The second step is to enforce the policy to make it effective.

10. Password Policy Guidelines • Password Rules • Set a minimum number of characters. • Implement password aging. • Prompt users to change passwords on a regular basis. • Do not accept passwords based on dictionary words. • Do not allow users to reuse passwords.

11. Password Policy Guidelines • Password Rules • Audit password files with some popular password-cracking utilities. • Perform audits as often as possible. • Monthly, every other month, or every quarter. • If accounts with easily-cracked passwords exist, have users review the password policy and change passwords immediately.

12. Selecting a Password • There are two methods of selecting a password. • They range from random generation to one-time use. • Each method has its strengths and weaknesses. • When security increases, usability decreases. • The best compromise between security and usability is the selection of secure passwords using a passphrase.

13. Selecting a Password • A password-based passphrase can be formed in the following ways: • Taking the first letter of each word in a sentence. • Taking the first letter from the first word, second letter from the second word, and so on. • Combining words. • Replacing letters with other characters.

14. Selecting a Password • Any method can be chosen, but the end result should be a difficult-to-guess, easy-to-remember password. • Some examples of passphrases and their passwords are given below. • Sentence 1: I love to drive my 1969 Mustang! • Password: Iltdm69M! • Sentence 2: Bad to the Bone • Password: Bad2theB1

15. Components of a Good Password • Users should create their own easy-to-remember passwords with passphrases. • A password prevents unauthorized access to resources. • A password should not be easy for someone to guess or obtain using password-cracking utilities.

16. Components of a Good Password • A password can be made more difficult to guess or obtain by following the guidelines given below: • A password should be at least eight characters long. • Some operating systems require longer passwords by default.

17. Components of a Good Password • It should have at least three of the following four elements: • One or more uppercase letters (A – Z) • One or more lowercase letters (a – z) • One or more numerals (0 – 9) • One or more special characters or punctuation marks (!@#$%^&*,.:;?)

18. Components of a Good Password • It should not consist of dictionary words. • It should never be the same as the login name or contain the login name. • It should not contain the user's first or last name, family member's names, birth dates, pet names, or any other item that is easily identified with the user.

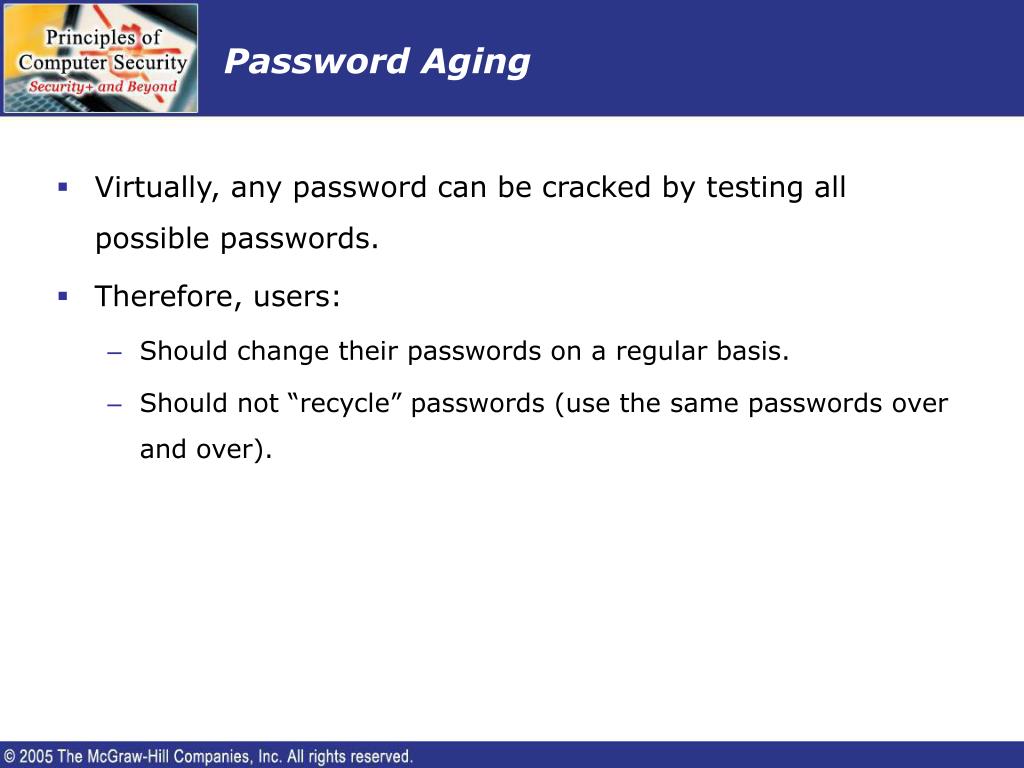

19. Password Aging • Virtually, any password can be cracked by testing all possible passwords. • Therefore, users: • Should change their passwords on a regular basis. • Should not “recycle” passwords (use the same passwords over and over).

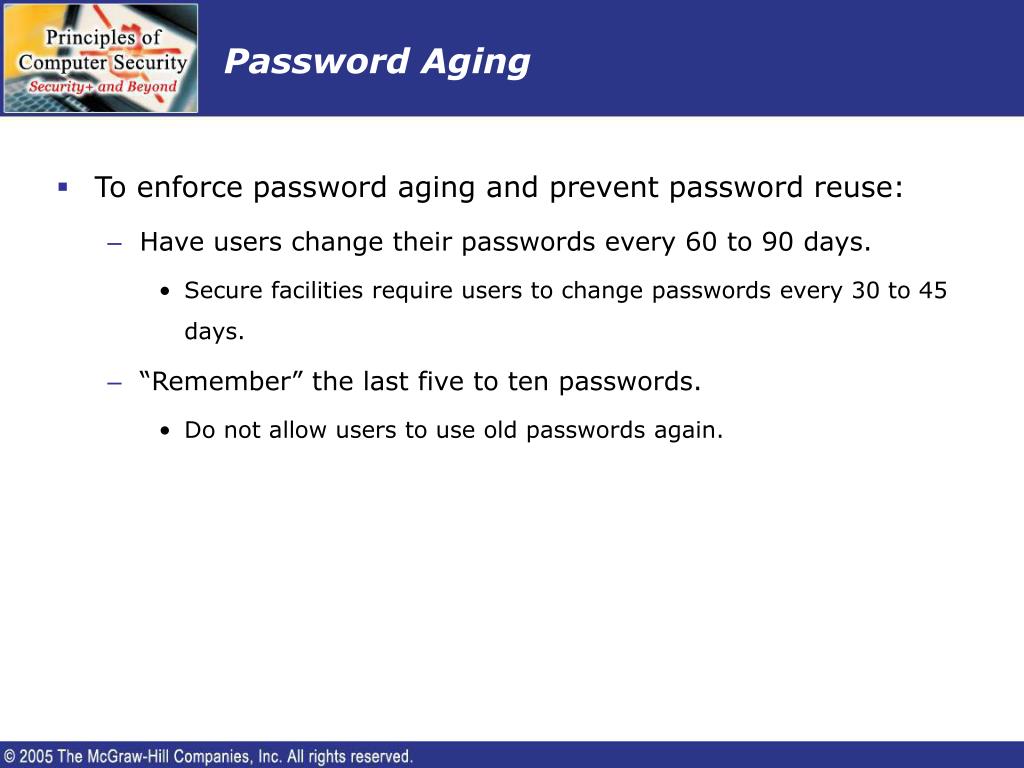

20. Password Aging • To enforce password aging and prevent password reuse: • Have users change their passwords every 60 to 90 days. • Secure facilities require users to change passwords every 30 to 45 days. • “Remember” the last five to ten passwords. • Do not allow users to use old passwords again.

21. Hardening Operating Systems • The operating system (OS) of a computer handles tasks such as: • Input • Output • Display • Memory management • The operating system supports the user environment and applications.

22. Hardening Operating Systems • A network operating system (NOS) is an operating system that includes additional functions and capabilities to assist in connecting computers and devices.

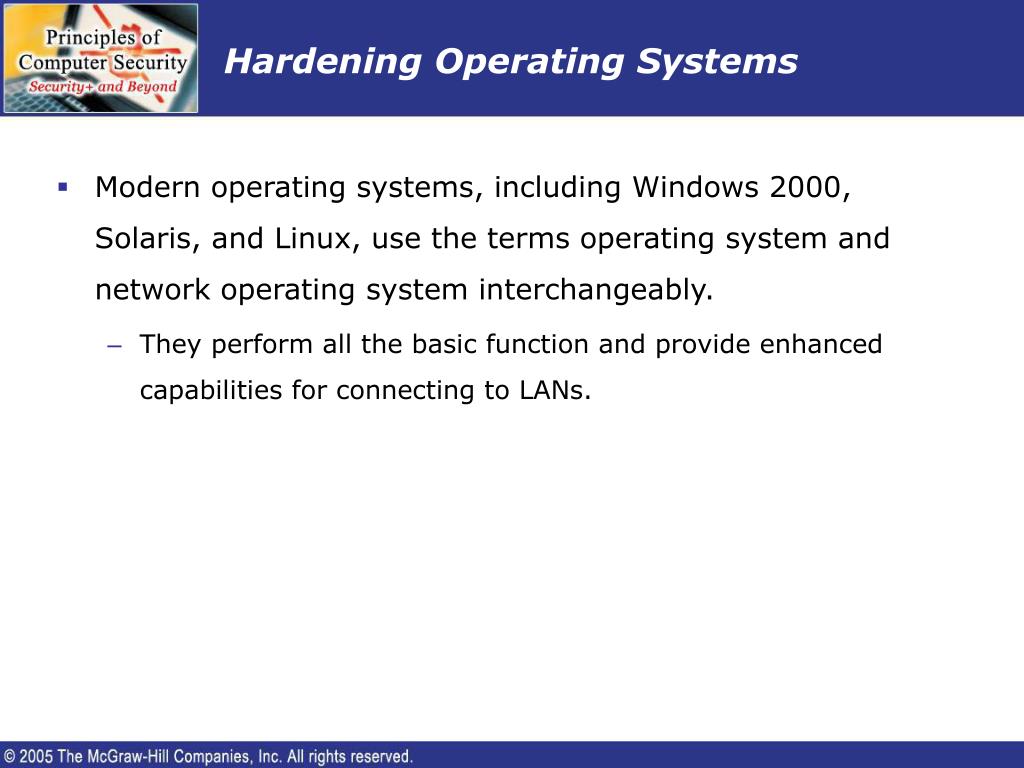

23. Hardening Operating Systems • Modern operating systems, including Windows 2000, Solaris, and Linux, use the terms operating system and network operating system interchangeably. • They perform all the basic function and provide enhanced capabilities for connecting to LANs.

24. Hardening Operating Systems • Operating system developers and manufacturers share a common problem. • There is no way to anticipate the configurations and variations users require from their products.

25. Hardening Operating Systems • Instead of spending time and money to meet every need, manufacturers provide a “default” installation for their products. • These contain the base operating system and some commonly desirable options, such as drivers, utilities, and enhancements.

26. Hardening Operating Systems • Manufacturer-provided recommendations or tools and settings facilitate securing the system. • End users are responsible for securing their systems.

27. Hardening Operating Systems • The process of securing an operating system is called hardening. • It makes the system more resistant to attacks.

28. Hardening Operating Systems • Each operating system has its own approach to security. • The process of hardening is the same. • Different steps must be taken to secure each operating system.

29. Hardening Microsoft OS • Hardening of Microsoft systems focuses on: • Windows NT • Windows 2000 • Windows XP family of operating systems

30. Hardening Microsoft OS • Older Microsoft operating systems, such as Windows 3.11, Windows 95, Windows 98, and Windows ME, were designed with few security capabilities. • Not much can be done to harden those operating systems.

31. Hardening Windows 2000 • The security of Windows 2000 can be improved using a number of guides available that assist in securing the Windows system.

32. Hardening Windows 2000 • The following section contains the steps recommended by Microsoft's security team. • Determine the version of the operating system to be secured: • Professional • Server • Advanced Server • Determine the purpose of the system: • User desktop • Web server • File server

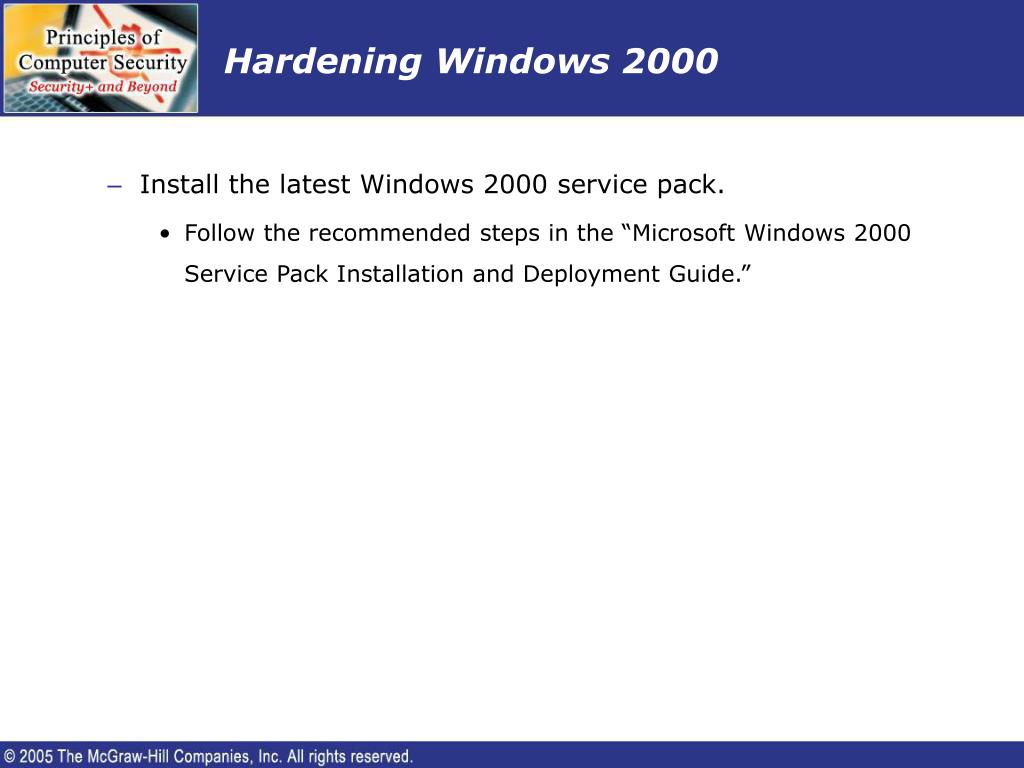

33. Hardening Windows 2000 • Install the latest Windows 2000 service pack. • Follow the recommended steps in the “Microsoft Windows 2000 Service Pack Installation and Deployment Guide.”

34. Hardening Windows 2000 • Configure Windows “Automatic Updates” service to check the Microsoft site and inform about new security fixes when they are available.

35. Hardening Windows 2000 • Keep up with the latest security patches using Microsoft's Security Bulletins Search. • Follow the guidelines in the “Microsoft Windows 2000 Server Baseline Security Checklist.” • Update antivirus tools and signature files.

36. Hardening Windows 2000 • Check Microsoft's virus alerts regularly. • Read “Securing Windows 2000 Server,” “Security Operations Guide for Windows 2000 Server,” and the “Security Administration Operations Guide.” • Use the “Baseline Security Analyzer” tool to scan and evaluate the security of the system.

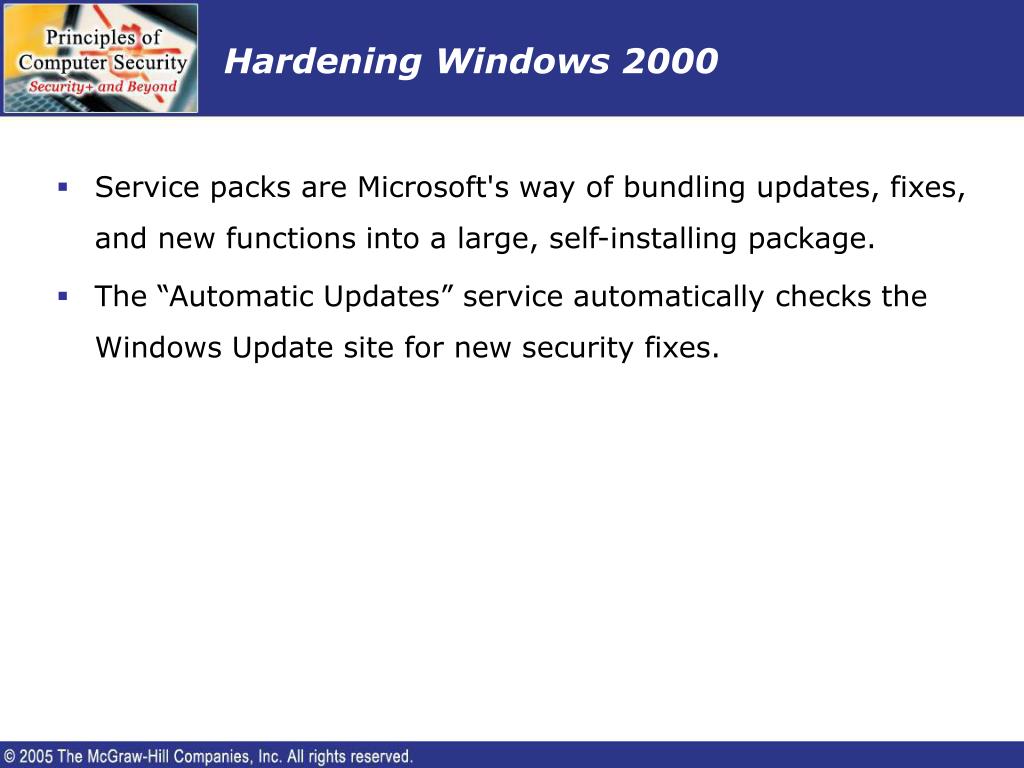

37. Hardening Windows 2000 • Service packs are Microsoft's way of bundling updates, fixes, and new functions into a large, self-installing package. • The “Automatic Updates” service automatically checks the Windows Update site for new security fixes.

38. Hardening Windows 2000 • The “Baseline Security Analyzer” is a free tool from Microsoft that scans and evaluates the security state of the Windows system to ensure the latest patches and fixes are in place and user accounts are secured. • Appropriate permissions have been applied to files and directories.

39. Win2K Security Checklist • The checklist applies to both the Windows 2000 Server and Advanced Server operating systems and outlines the steps to achieve a minimum baseline of security.

40. Win2K Security Checklist • Verify all disk partitions are formatted with NTFS.

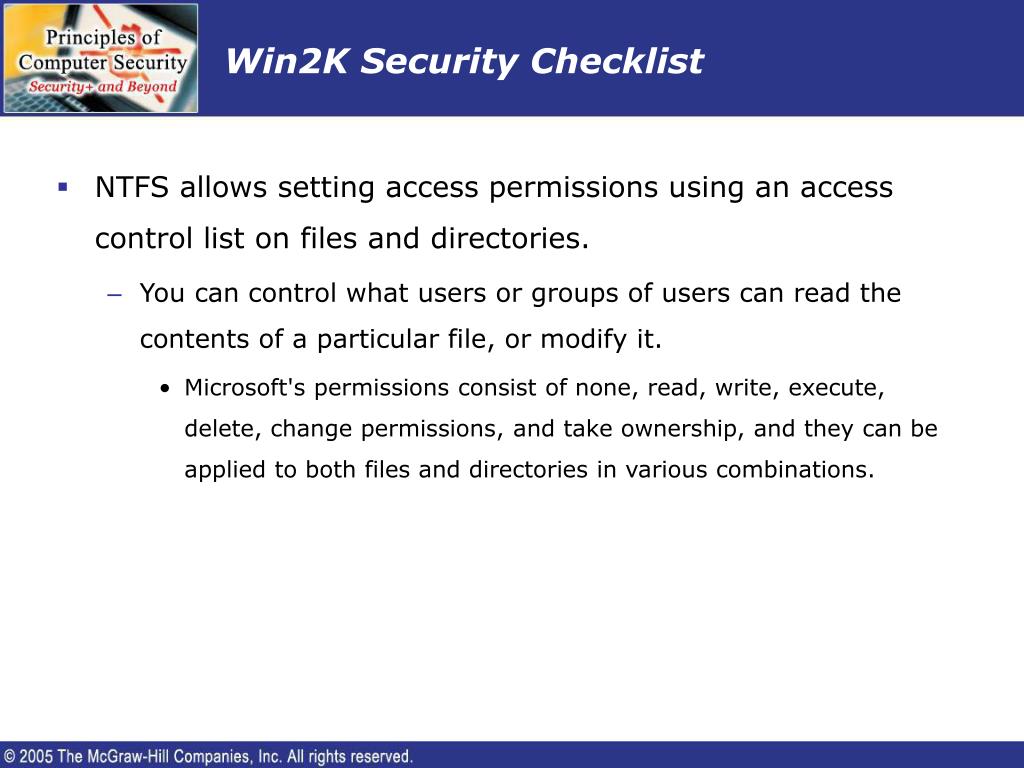

41. Win2K Security Checklist • NTFS allows setting access permissions using an access control list on files and directories. • You can control what users or groups of users can read the contents of a particular file, or modify it. • Microsoft's permissions consist of none, read, write, execute, delete, change permissions, and take ownership, and they can be applied to both files and directories in various combinations.

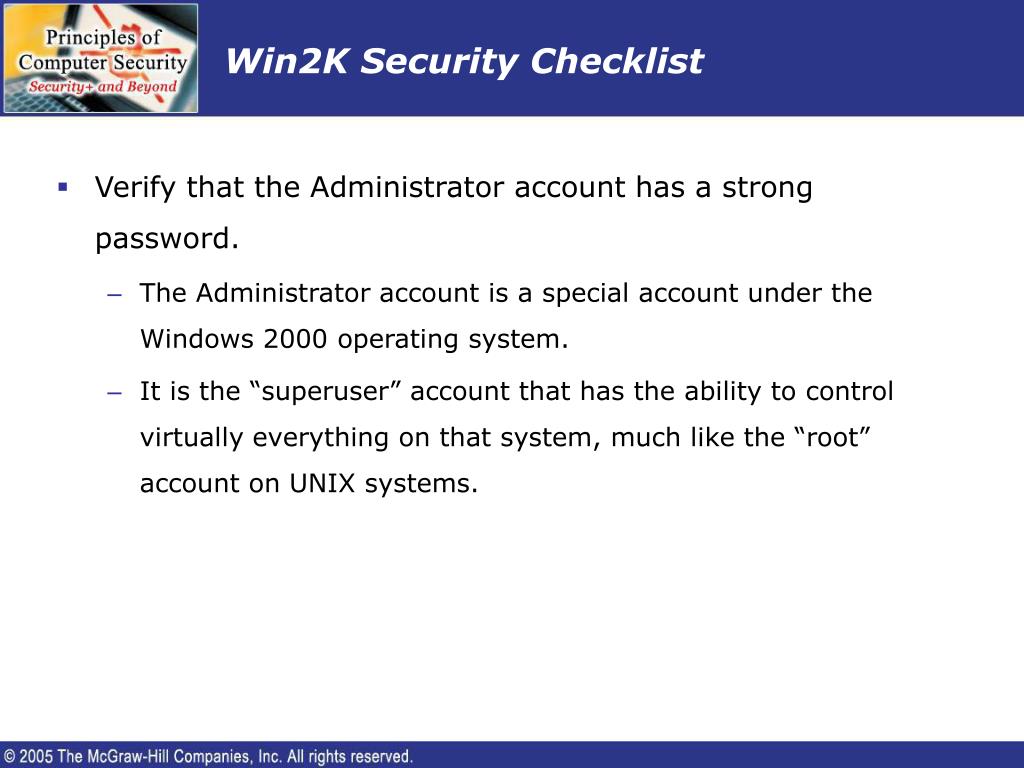

42. Win2K Security Checklist • Verify that the Administrator account has a strong password. • The Administrator account is a special account under the Windows 2000 operating system. • It is the “superuser” account that has the ability to control virtually everything on that system, much like the “root” account on UNIX systems.

43. Win2K Security Checklist • Disable unnecessary services. • Any service not required to support the function of the server should be disabled or completely removed from the system.

44. Win2K Security Checklist • Permissions • Disable or delete unnecessary accounts. • Make sure the Guest account is disabled.

45. Win2K Security Checklist • Protect files and directories. • Certain Windows operating systems can restrict access to files and directories by using access control lists (ACLs). • An ACL is a list of permissions that controls who may write, modify, delete, or access a specific file or directory.

46. Win2K Security Checklist • Sample Rights Screen

47. Win2K Security Checklist

48. Win2K Security Checklist • Protect the Registry from anonymous access. • Apply appropriate Registry ACLs. • Restrict access to public local security authority (LSA) information.

49. Win2K Security Checklist • To prevent attackers from extracting information from a system anonymously, create the following Registry key using regedit: • Hive –HKEY_LOCAL_MACHINE\SYSTEM • Key –CurrentControlSet\Control\LSA • Value Name –RestrictAnonymous • Type –REG_DWORD • Value –1

50. Win2K Security Checklist • Restrict anonymous connection with the Local Security Policy Setting tool. • Select Administrative Tools from the Control Panel. • Select Local Security Policy. • In the drop-down box, select: • None, Do Not Allow Enumeration Of SAM Accounts And Shares. • No Access Without Explicit Anonymous Permissions.
